P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

Méthode de contrôle:Manuel

Distributeur:4 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:SAE 10

Orifice de sortie:SAE 10

Dimension du raccord:SAE 10

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80 Vanne directionnelle monobloc

Taille de l'emballage:26*27*11

Poids brut:13.40 kg

Disponibilité: En stock

1255 personnes consultent ce produit

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions drawing image

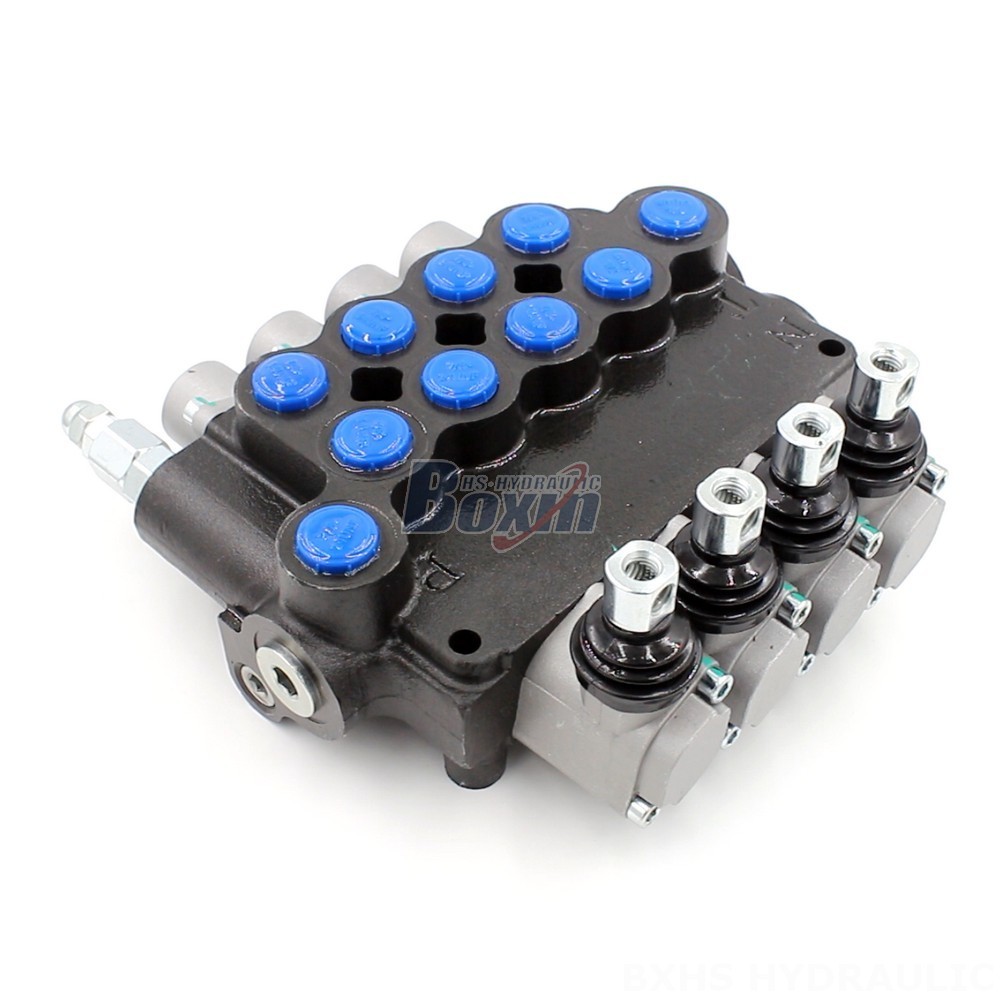

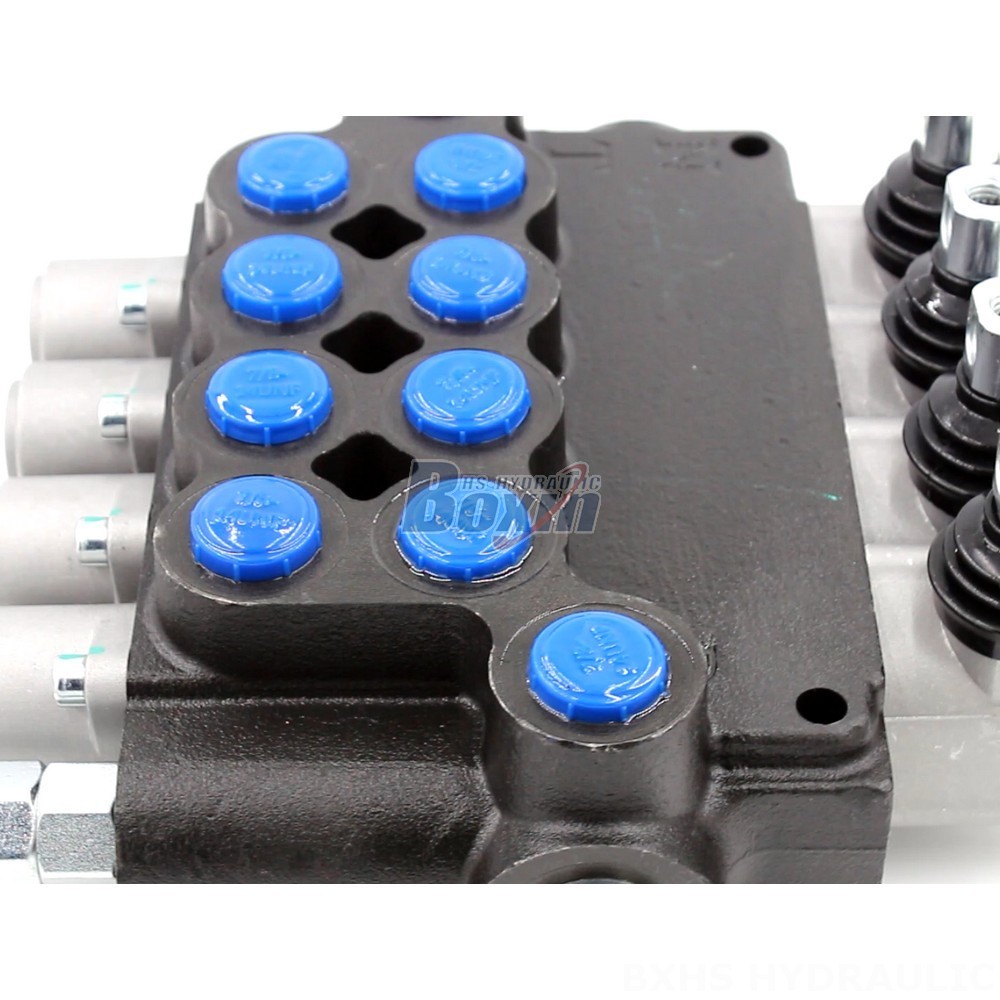

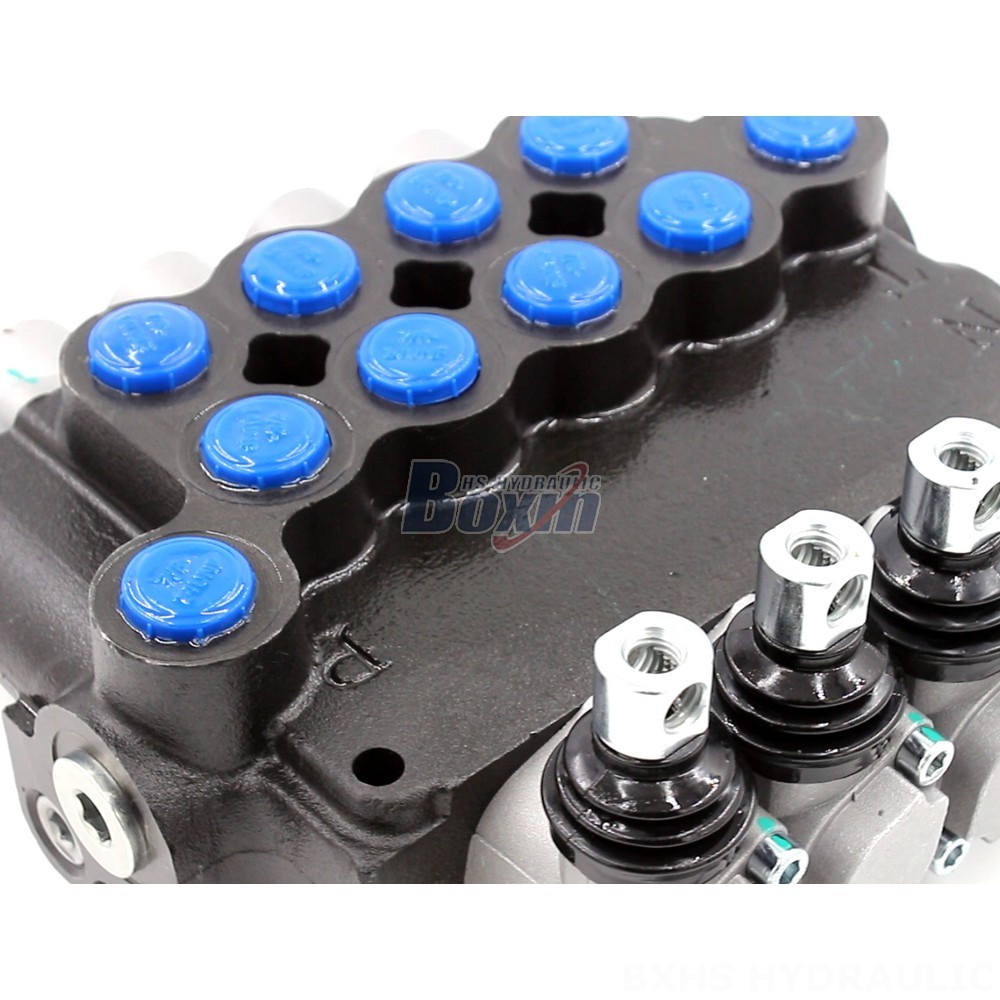

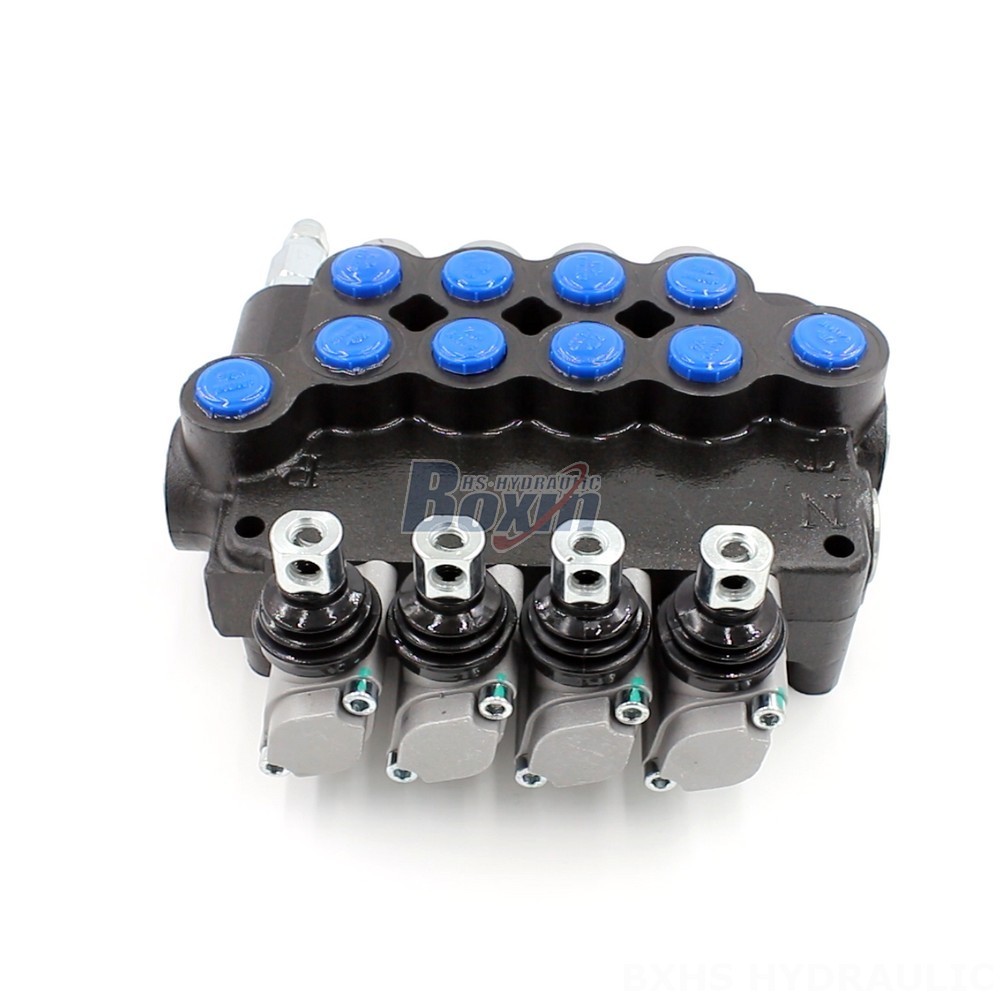

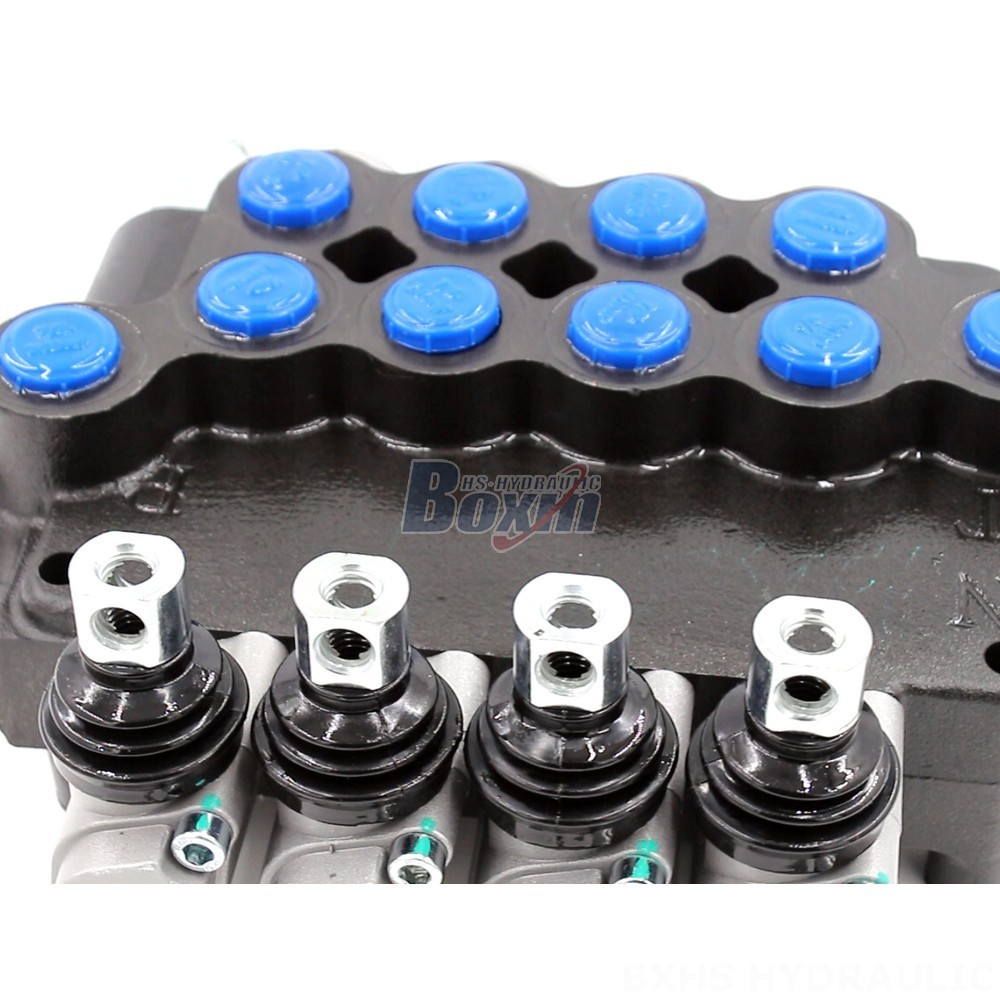

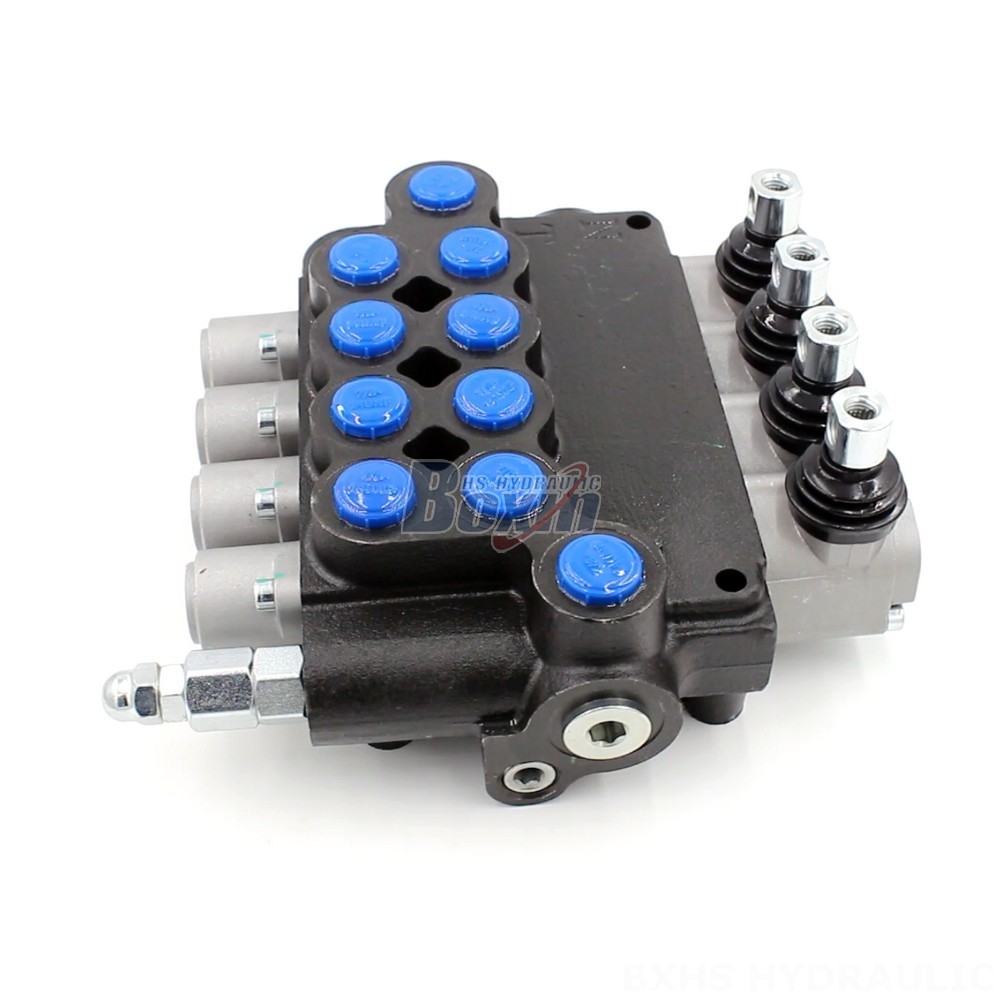

The P80-U78-4OT Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a 4-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of machinery.

Série P80 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 80 L/min (21,2 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 Series monoblock directional valve is a robust and reliable hydraulic solution for controlling hydraulic systems in various applications. With its 4-section design, it offers precise control of multiple hydraulic functions. The valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, ensuring efficient operation even under demanding conditions. The manual control method provides straightforward operation, while the compact monoblock design minimizes installation space. Suitable for a wide range of machinery, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders, this valve is a reliable choice for various industrial and agricultural applications.
