Manual 5 Spool Monoblock Directional Valve, part of the P80 series, is ideally suited for various industries including material handling, construction, and agriculture. With a rated flow of 80 l/min and a max pressure of 250 bar, it ensures efficient and reliable operation in demanding applications.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

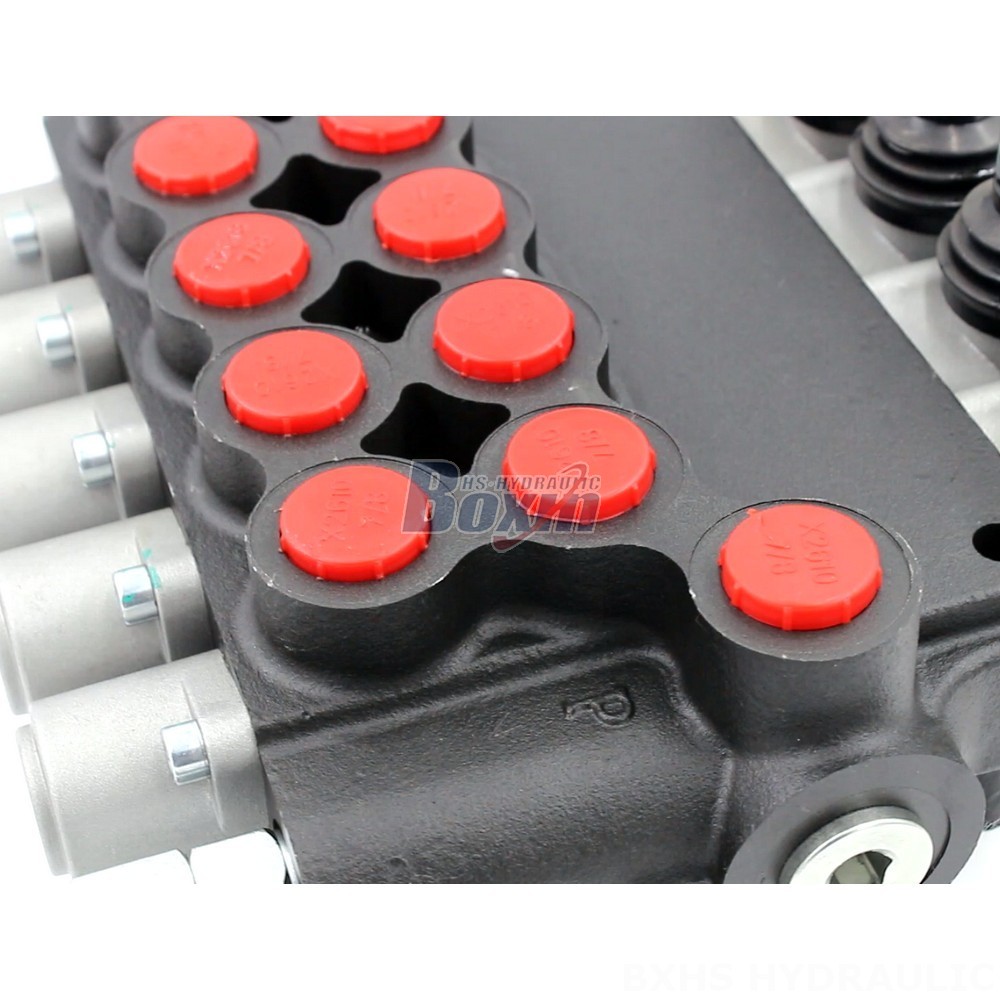

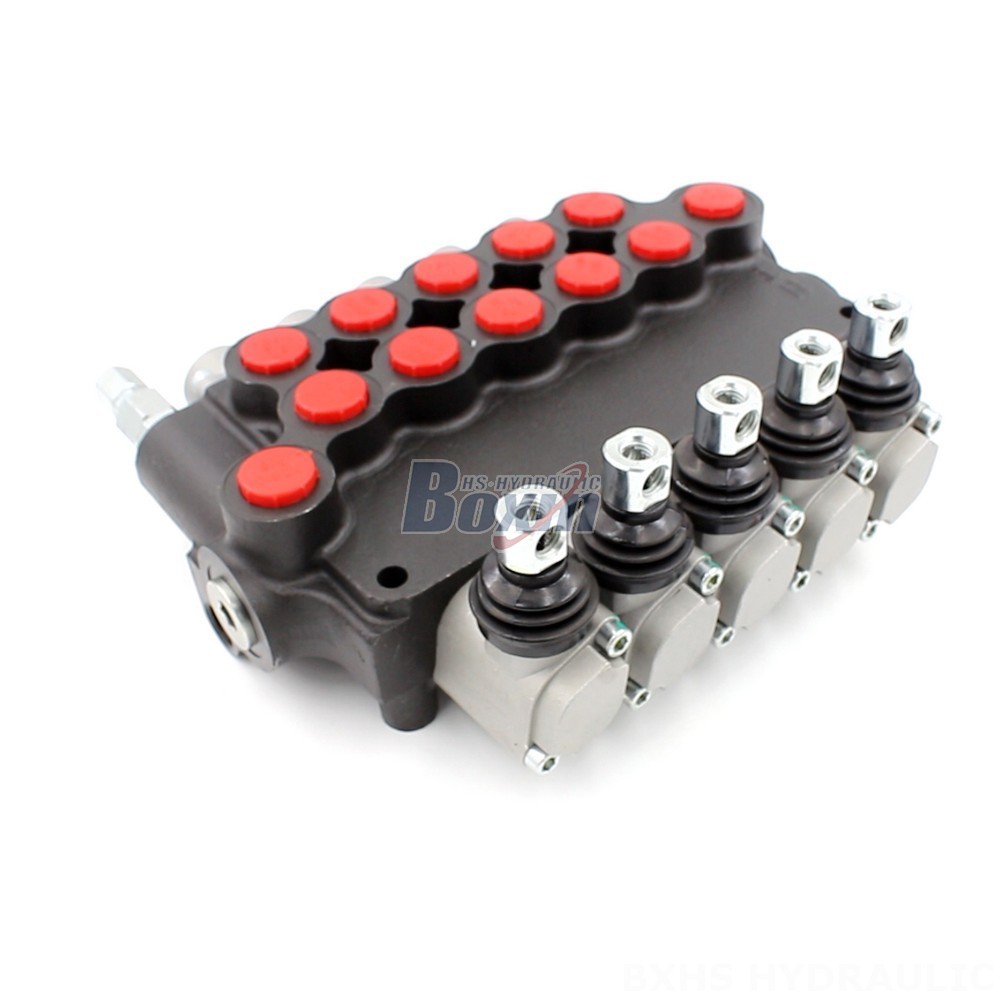

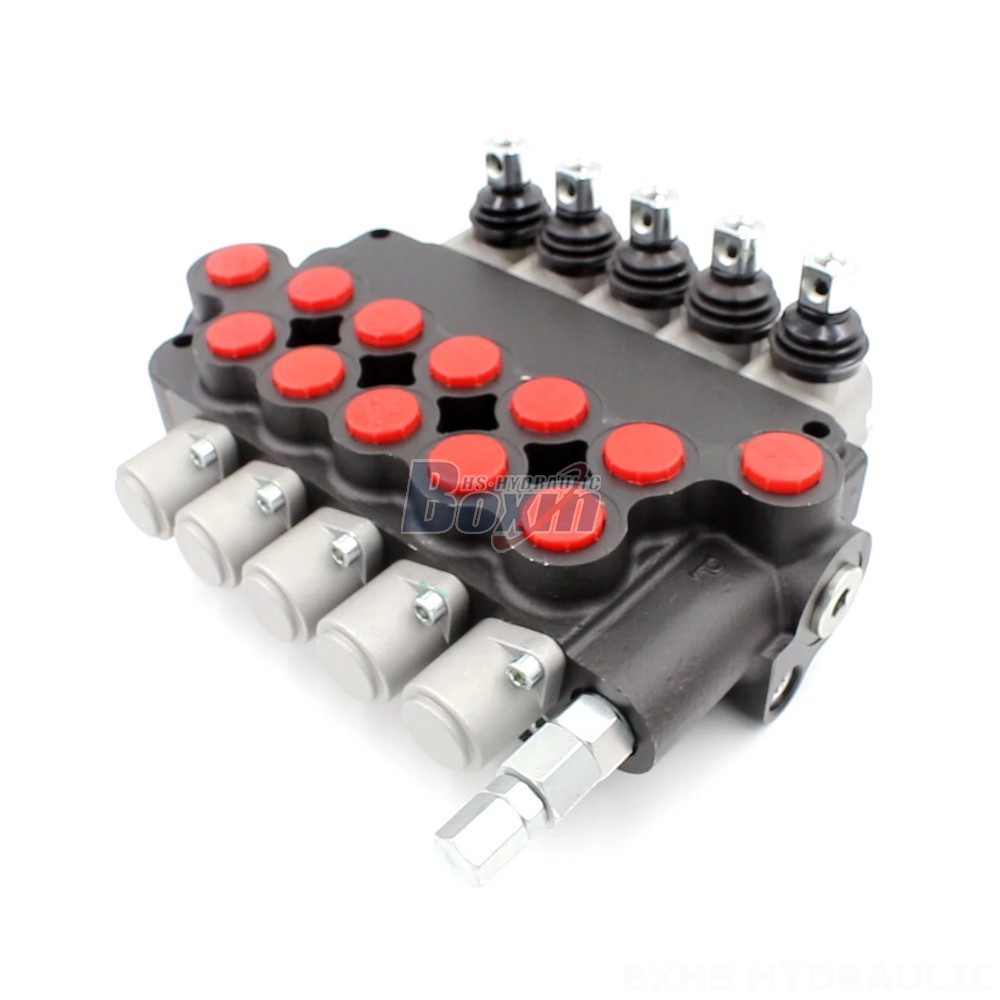

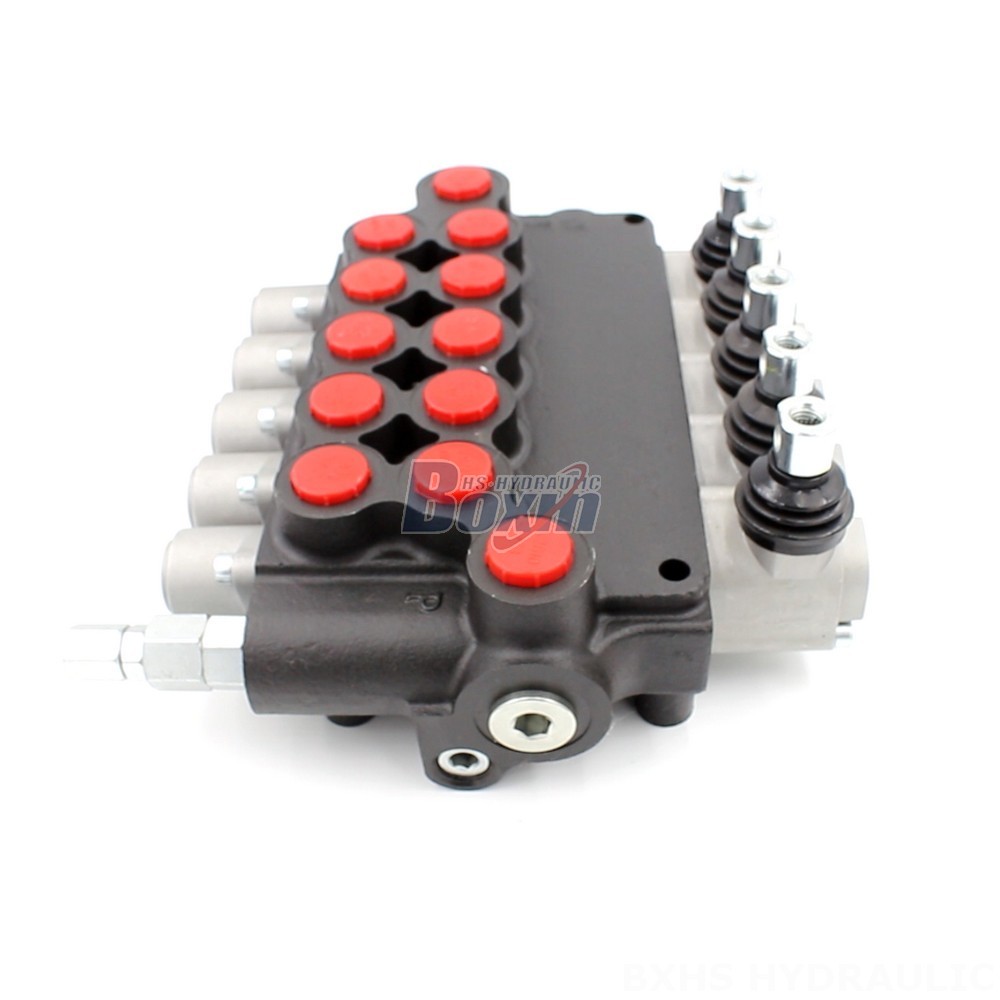

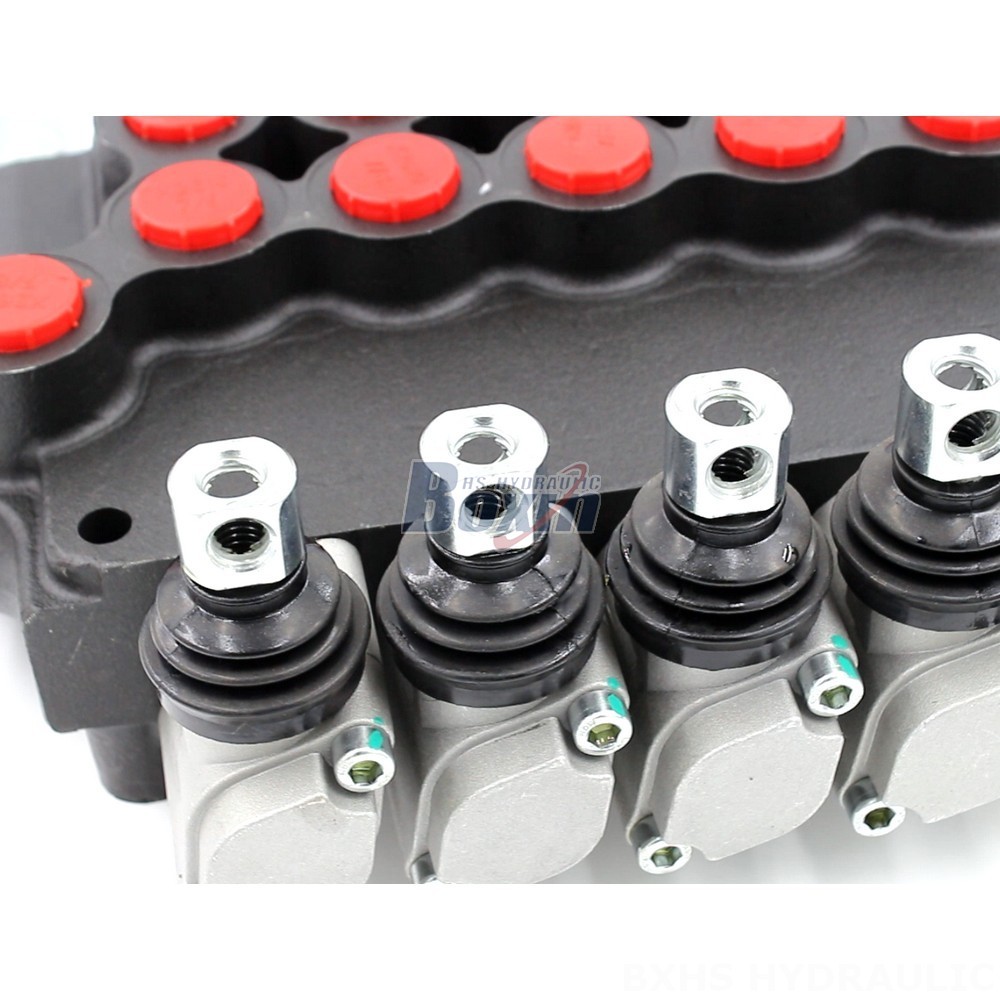

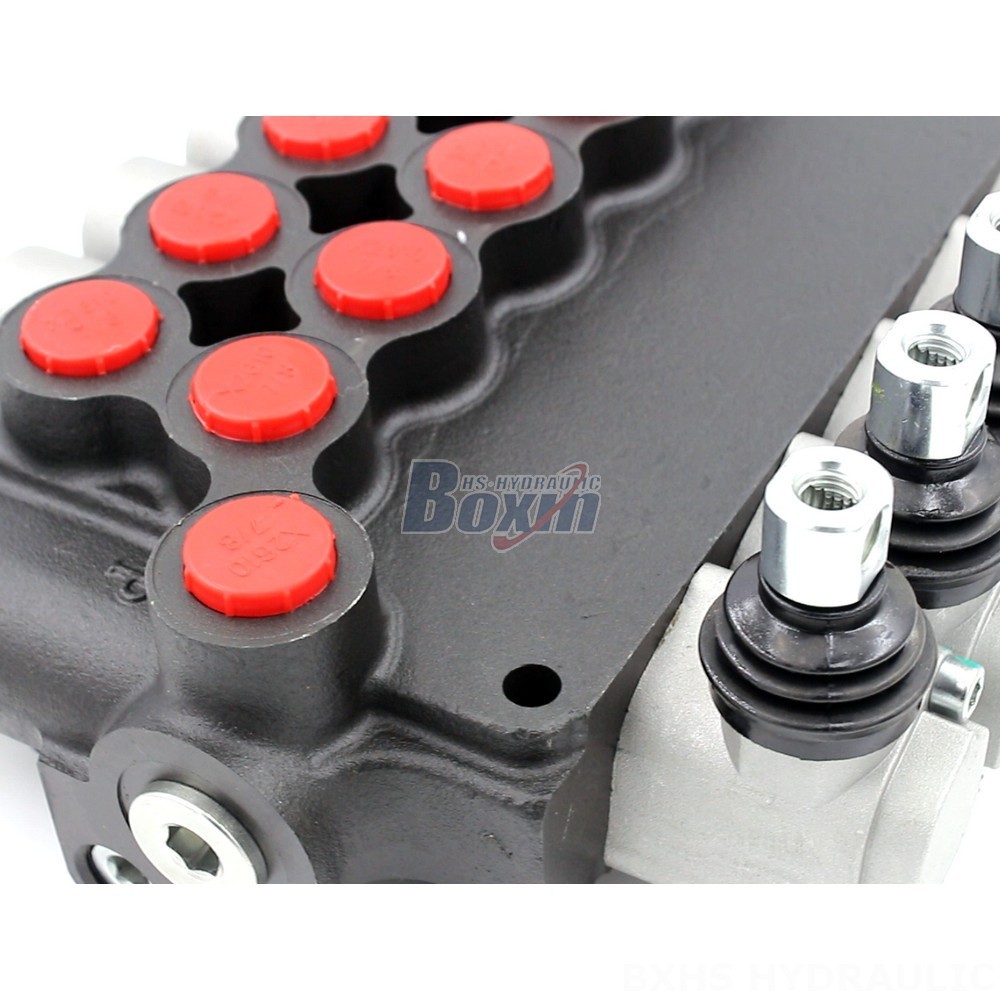

**P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve**
This valve features a manual control method and a monoblock structure, providing high durability and ease of maintenance. It boasts a 5 section design, enabling precise control of multiple hydraulic functions simultaneously. The valve's operating viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in diverse operating conditions.
**Key Features:**
- Manual control method for precise operation
- Monoblock design for enhanced durability and compactness
- 5 spool configuration for versatile hydraulic control
- Rated flow of 80 l/min for efficient hydraulic system operation
- Max pressure of 250 bar for demanding applications
- Wide operating viscosity range (15 - 75 mm²/s) for adaptability to various hydraulic fluids
- Extended ambient temperature range (-40°C to +80°C) for reliable performance in harsh environments
**Applications:**
This valve finds application in a wide range of industries, including:
- Material handling: forklifts, telehandlers, stackers
- Construction and earth moving: excavators, wheel loaders, motor graders
- Agriculture: tractors, harvesters, sprayers
- Industrial vehicles: aerial platforms, sweepers, scrubbers
