The P80 Solenoid 1 Spool Monoblock Directional Valve is a medium-pressure hydraulic valve designed for mobile applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

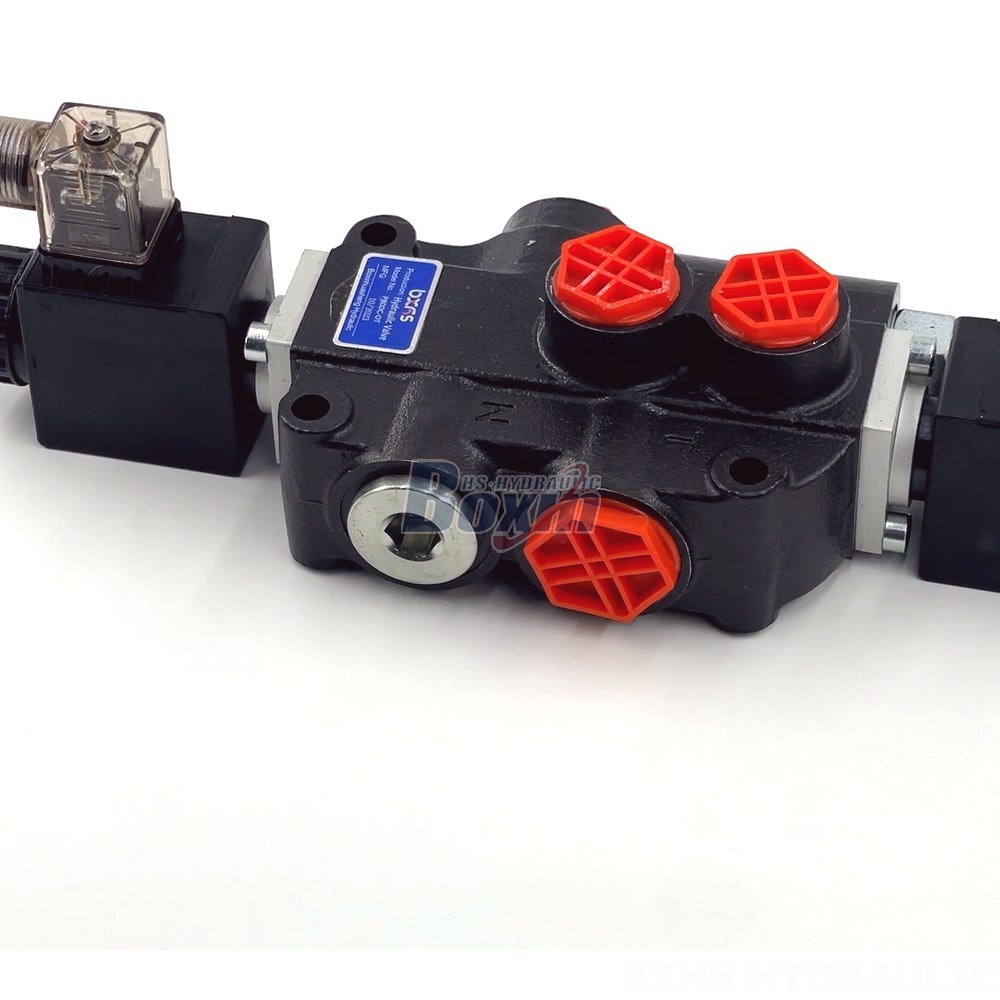

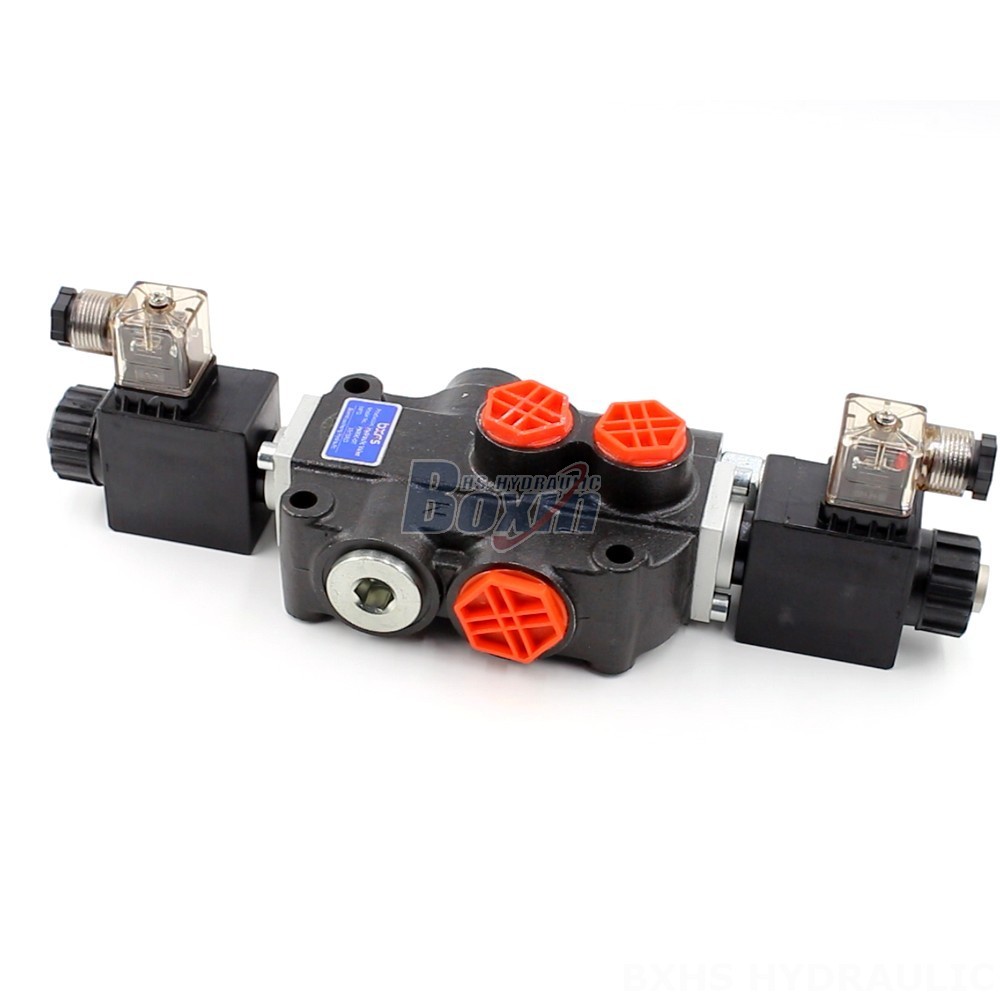

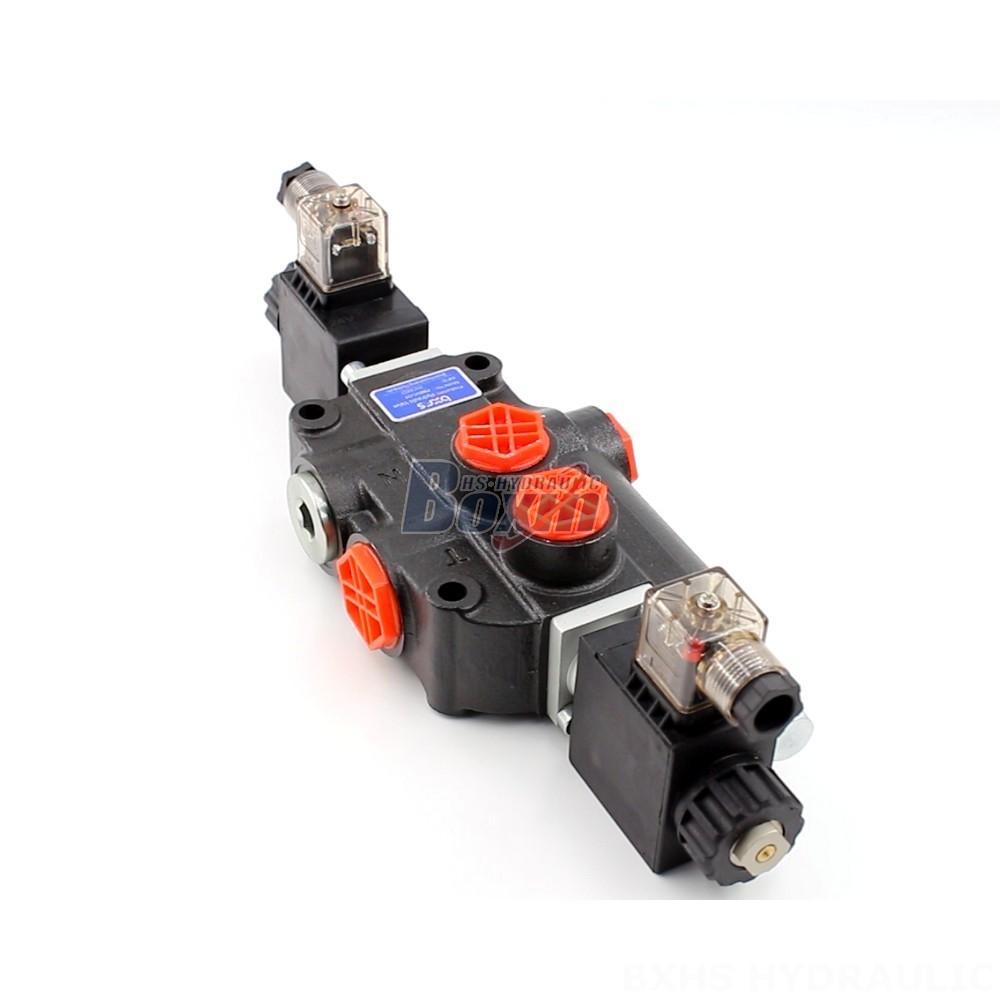

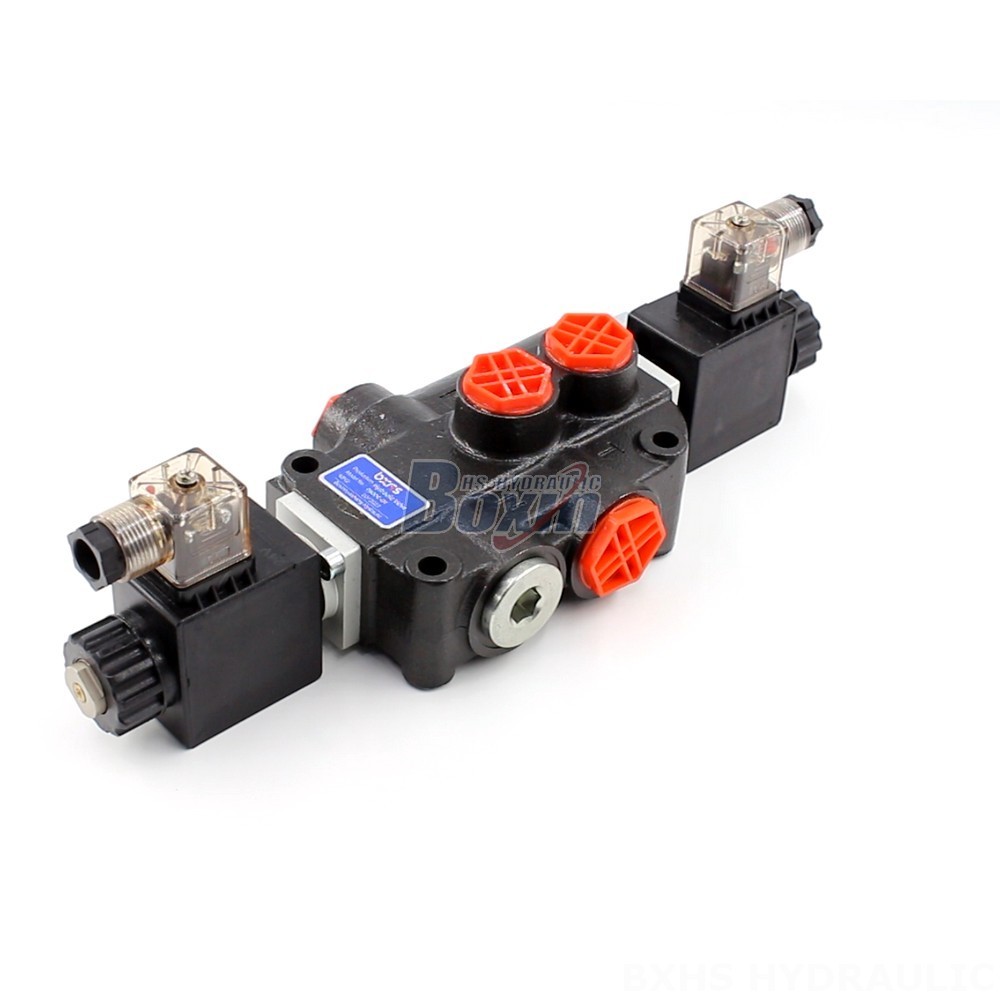

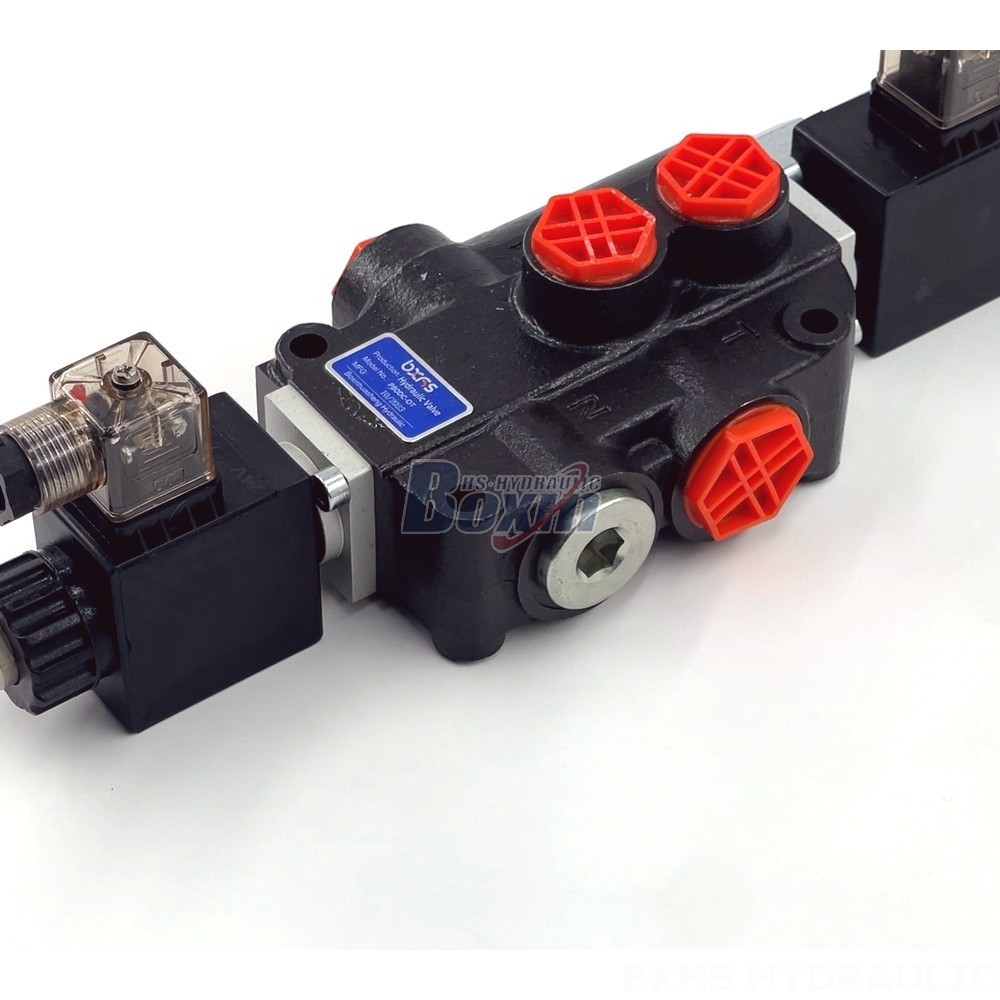

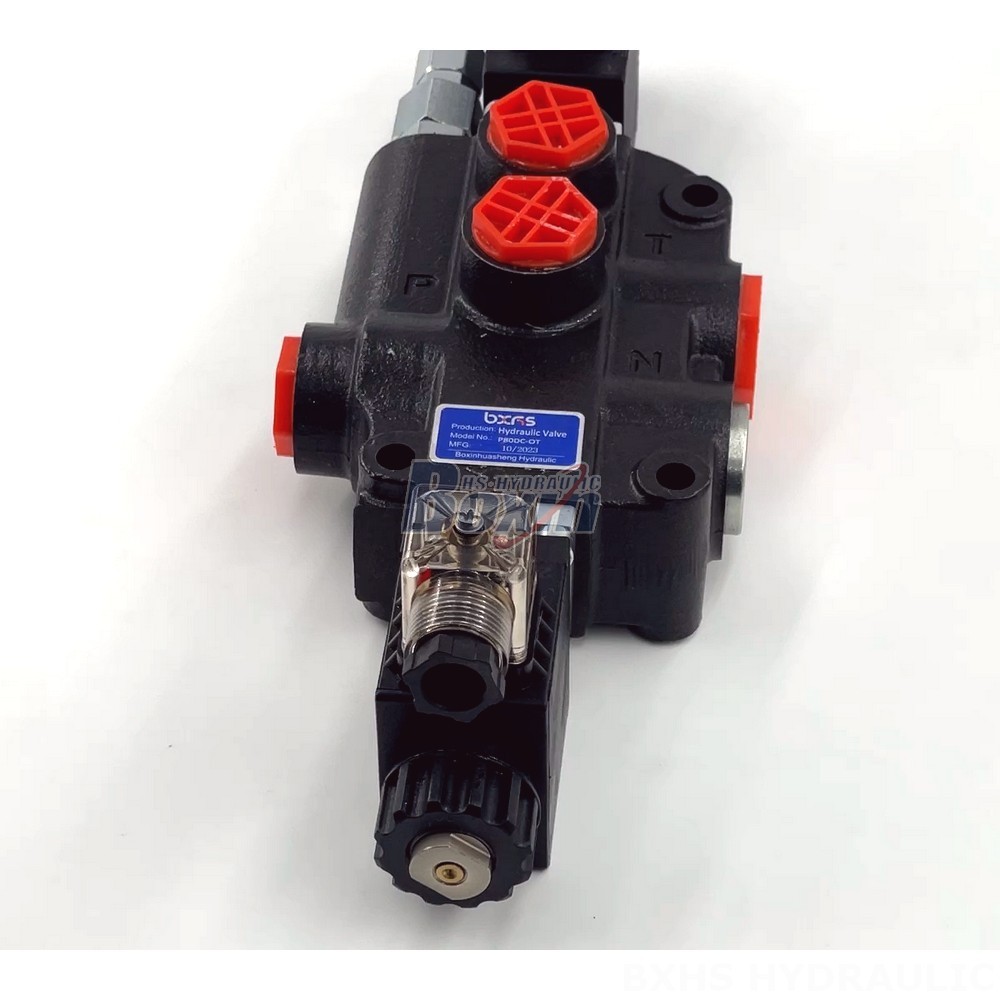

**P80 Solenoid 1 Spool Monoblock Directional Valve**
**Key Features:**
* Solenoid control for precise and reliable operation
* Monoblock construction for compact design and reduced leakage potential
* Rated flow of 80 L/min for efficient hydraulic power transmission
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15-75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for use in harsh environments
* 1 spool design for simple and cost-effective directional control
* P80 Series for compatibility with other P80 components
**Applications:**
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
