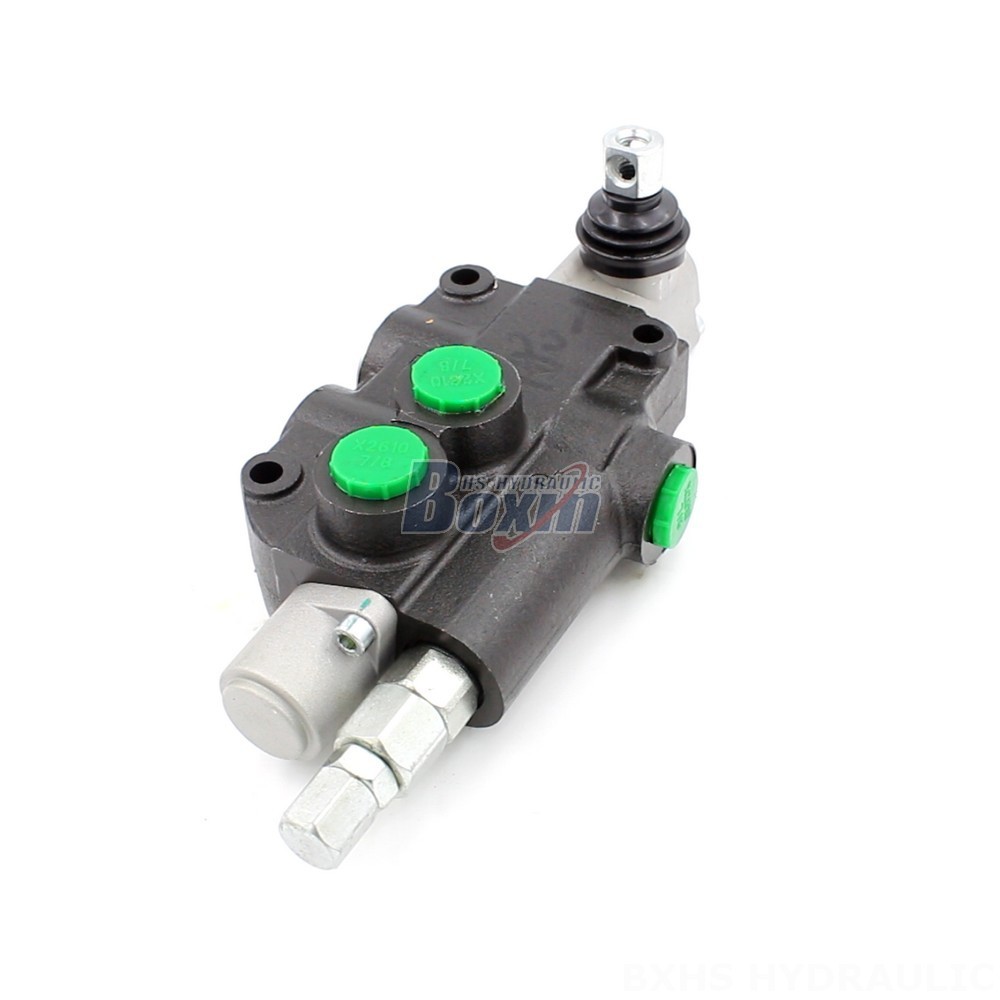

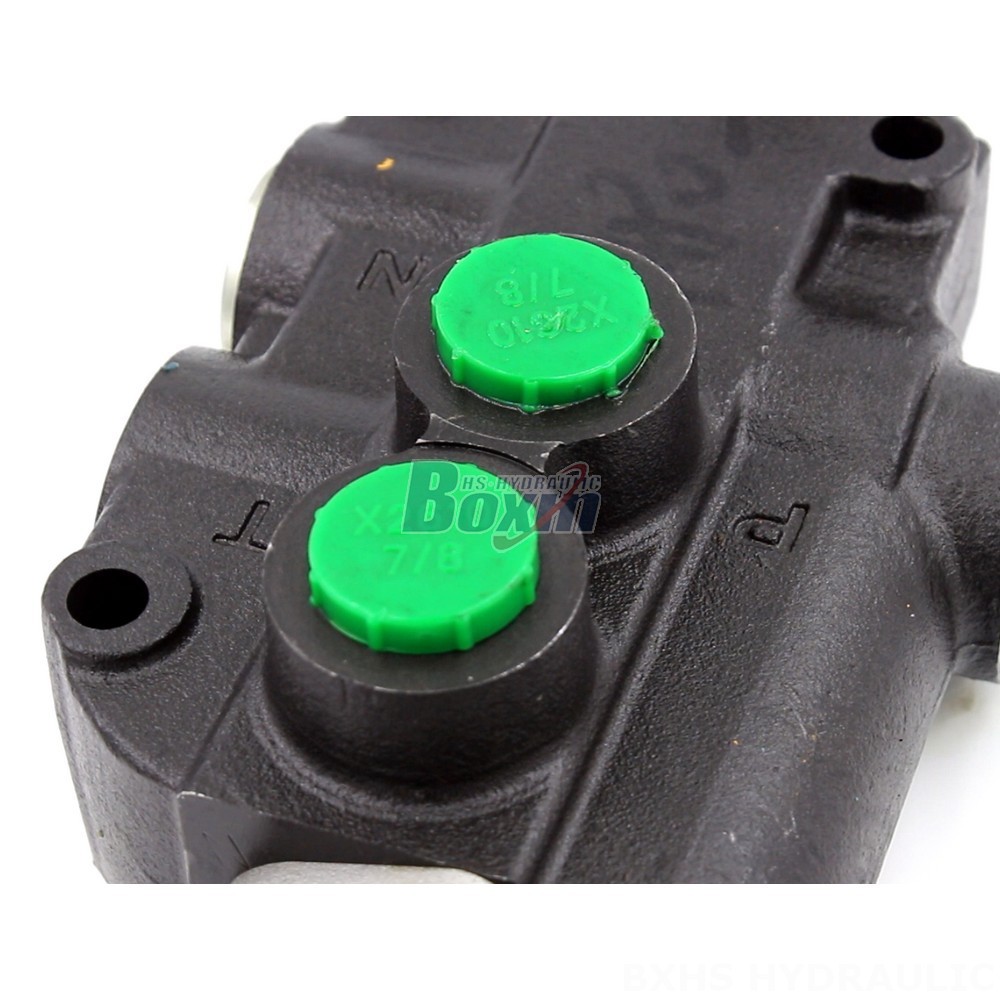

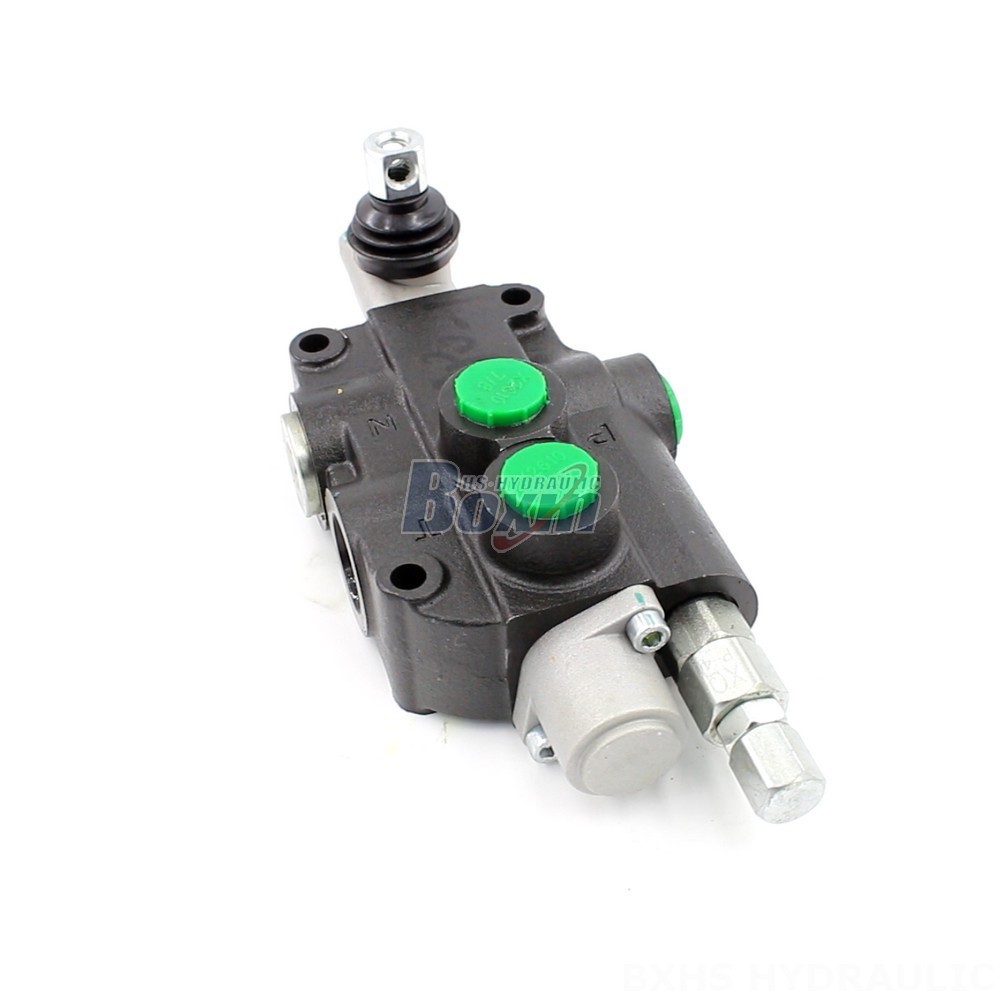

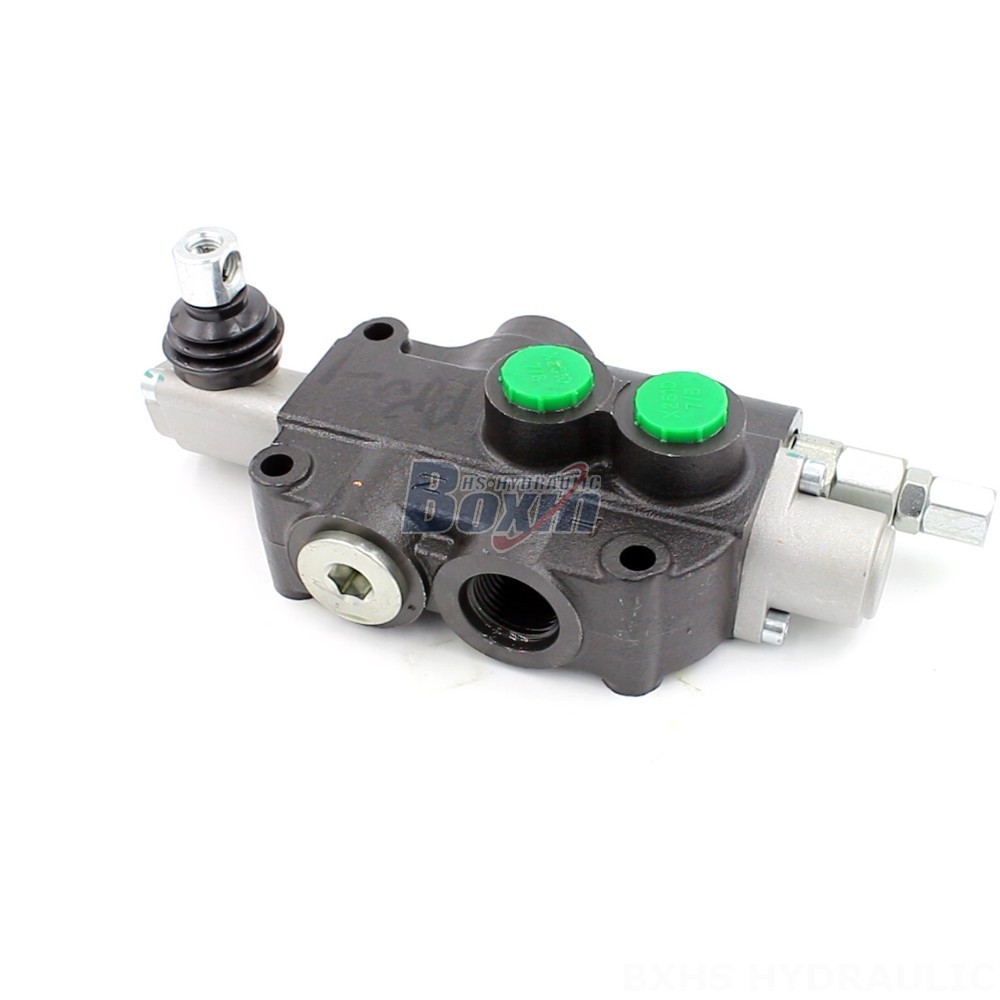

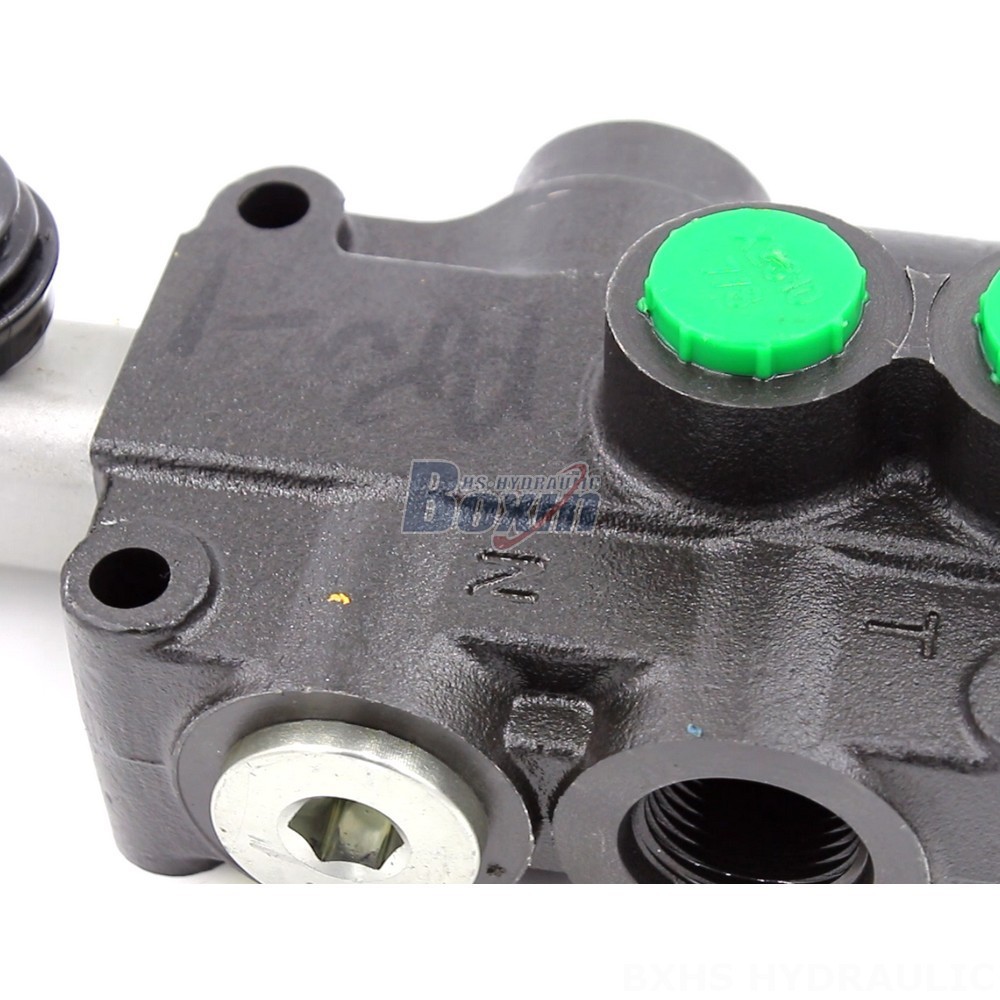

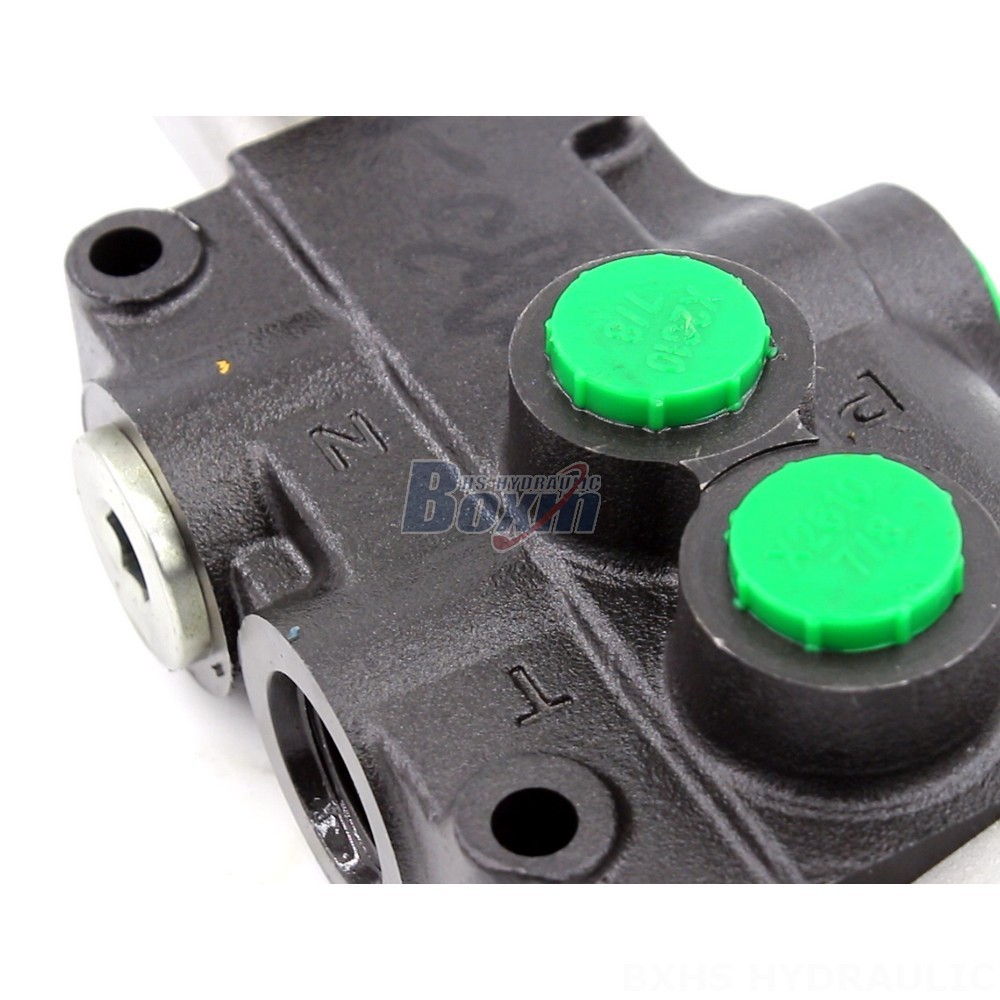

The P80-LDG-U78-OT Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides exceptional flow control and pressure regulation capabilities.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- Manual control for precise and responsive operation
- Monoblock construction for durability and compact size
- 80 L/min rated flow for high-volume applications
- 250 bar maximum pressure for demanding hydraulic systems
- Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C for use in harsh environments
- 1 spool for simple and efficient flow control
- P80 Series for compatibility with other P80 valves and components
**Applications:**
- MATERIAL HANDLING: Forklifts, telehandlers, stackers, aerial platforms
- CONSTRUCTION AND EARTH MOVING: Excavators, motor graders, skid steer loaders, compact wheel loaders
- AGRICULTURE: Tractors, harvesters, sprayers, irrigation systems
- INDUSTRIAL VEHICLES: Cranes, boom trucks, lift trucks, mobile work platforms
