The P80-G34-OT Manual 7 Spool Monoblock Directional Valve is a high-performance hydraulic control solution designed for demanding applications in various industries. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides exceptional flow capacity and pressure handling capabilities.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

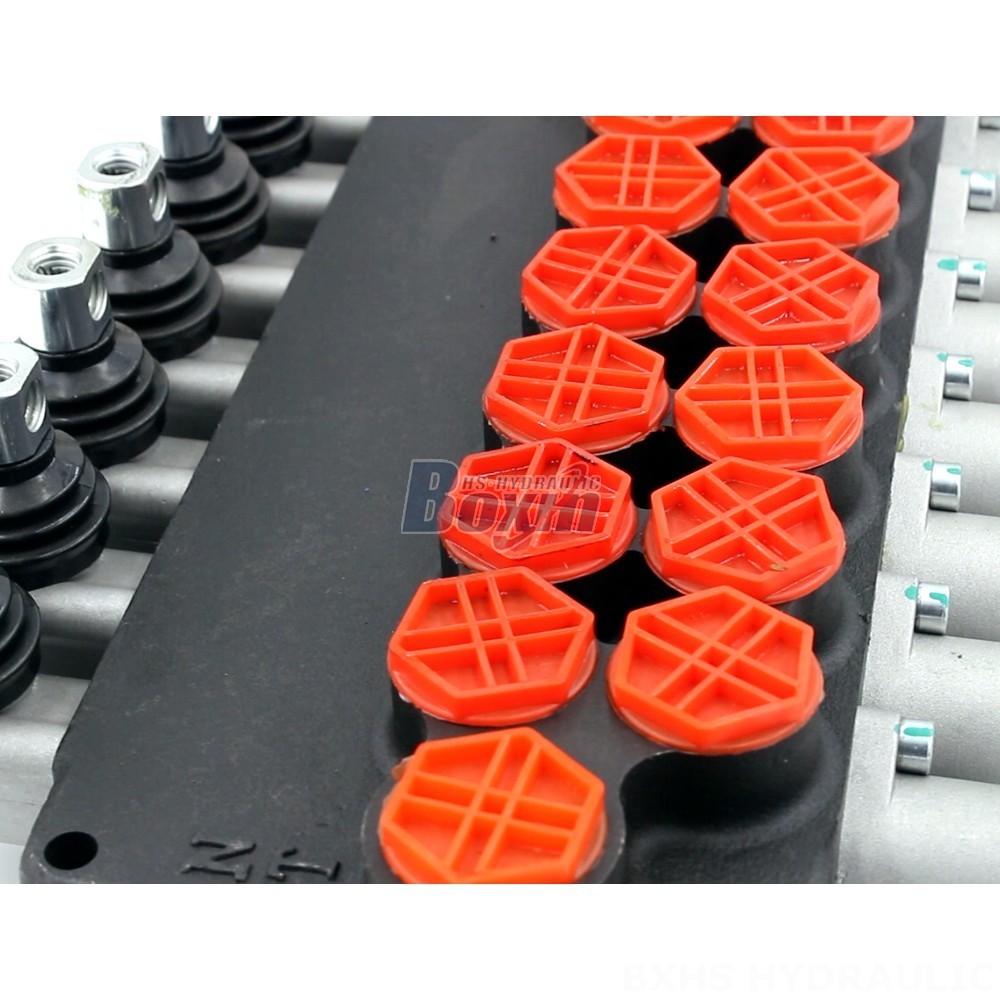

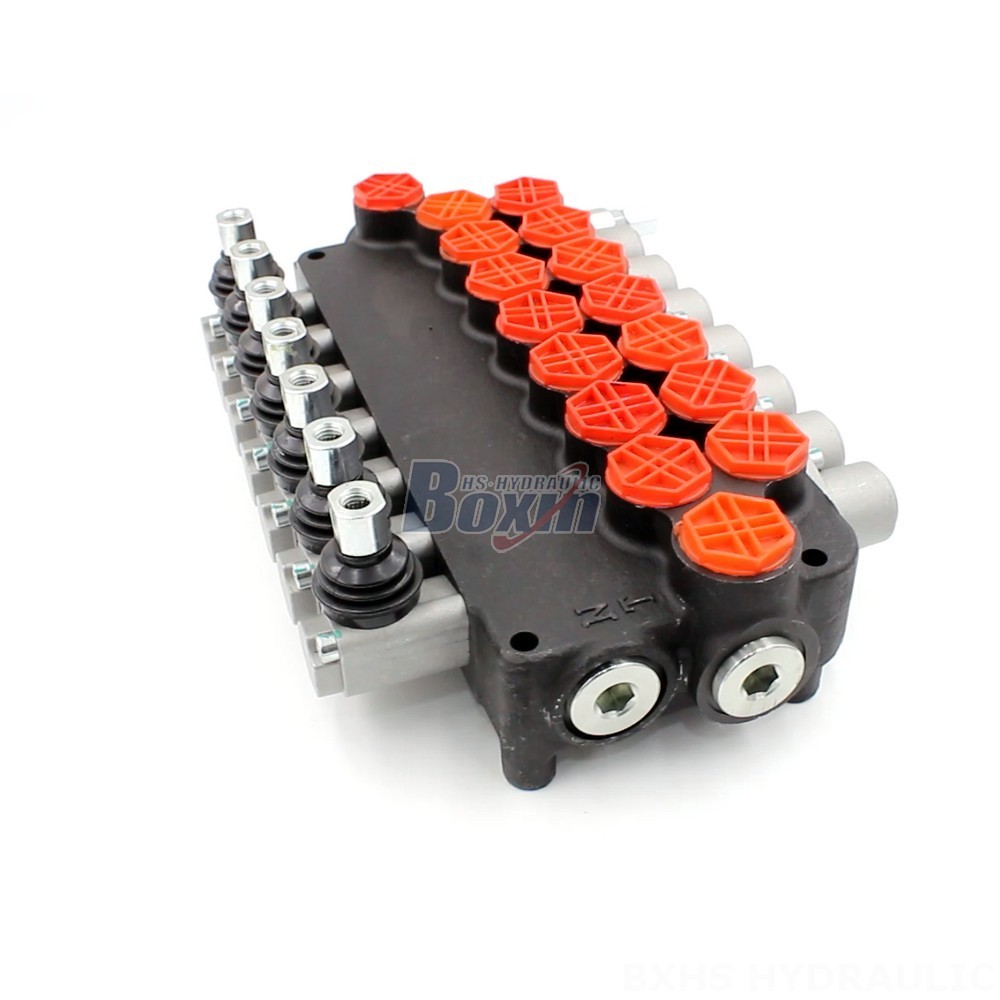

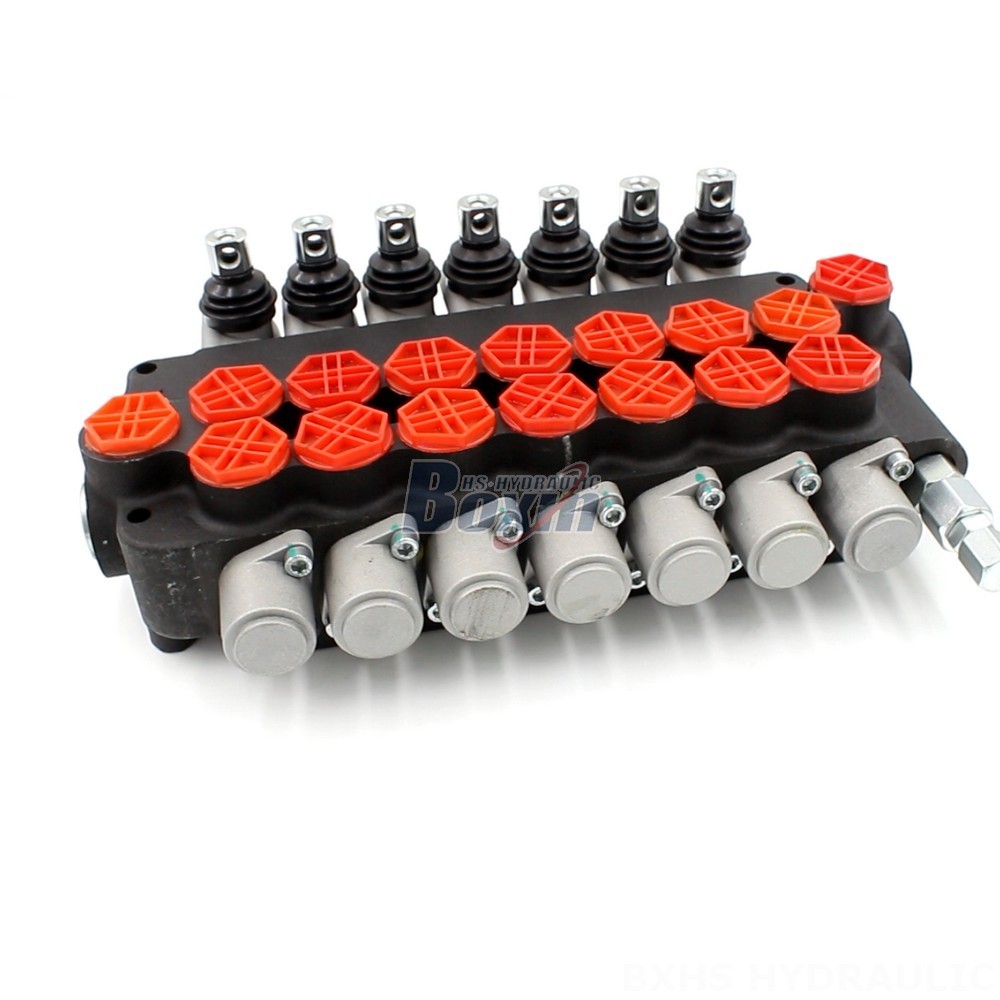

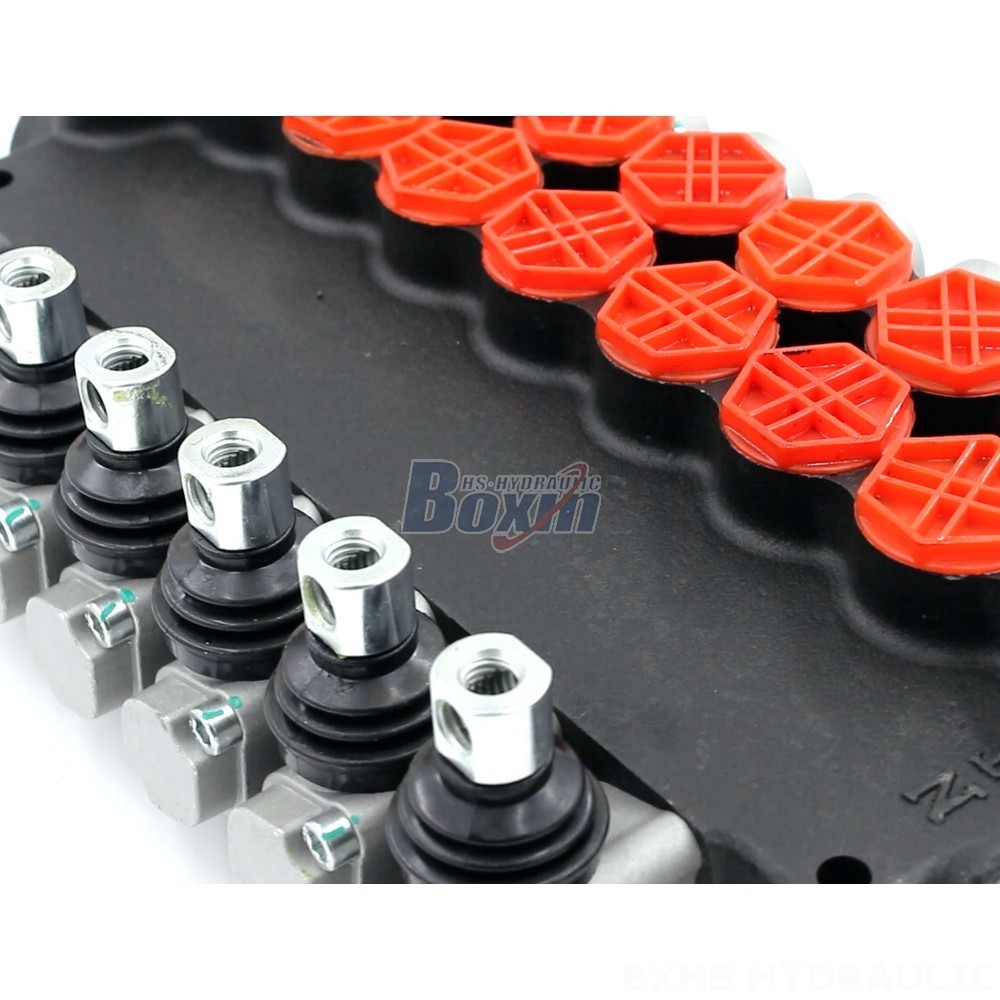

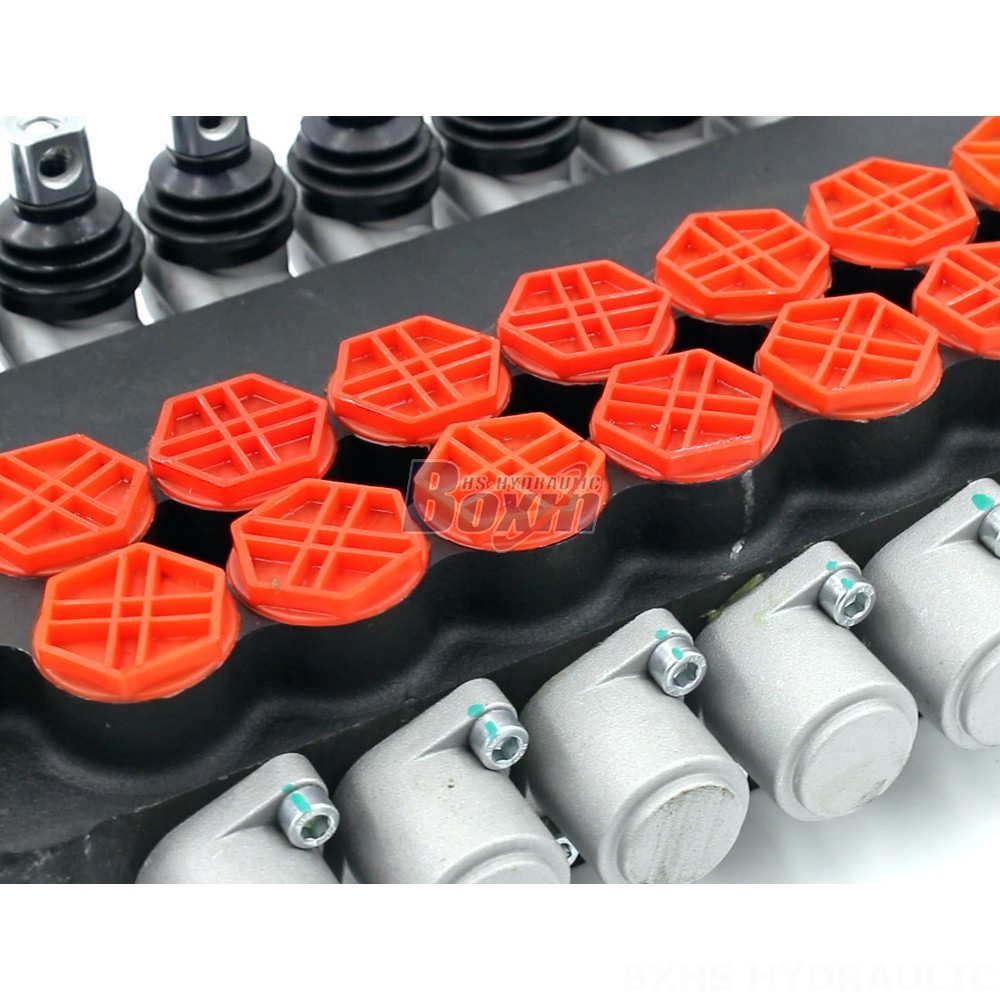

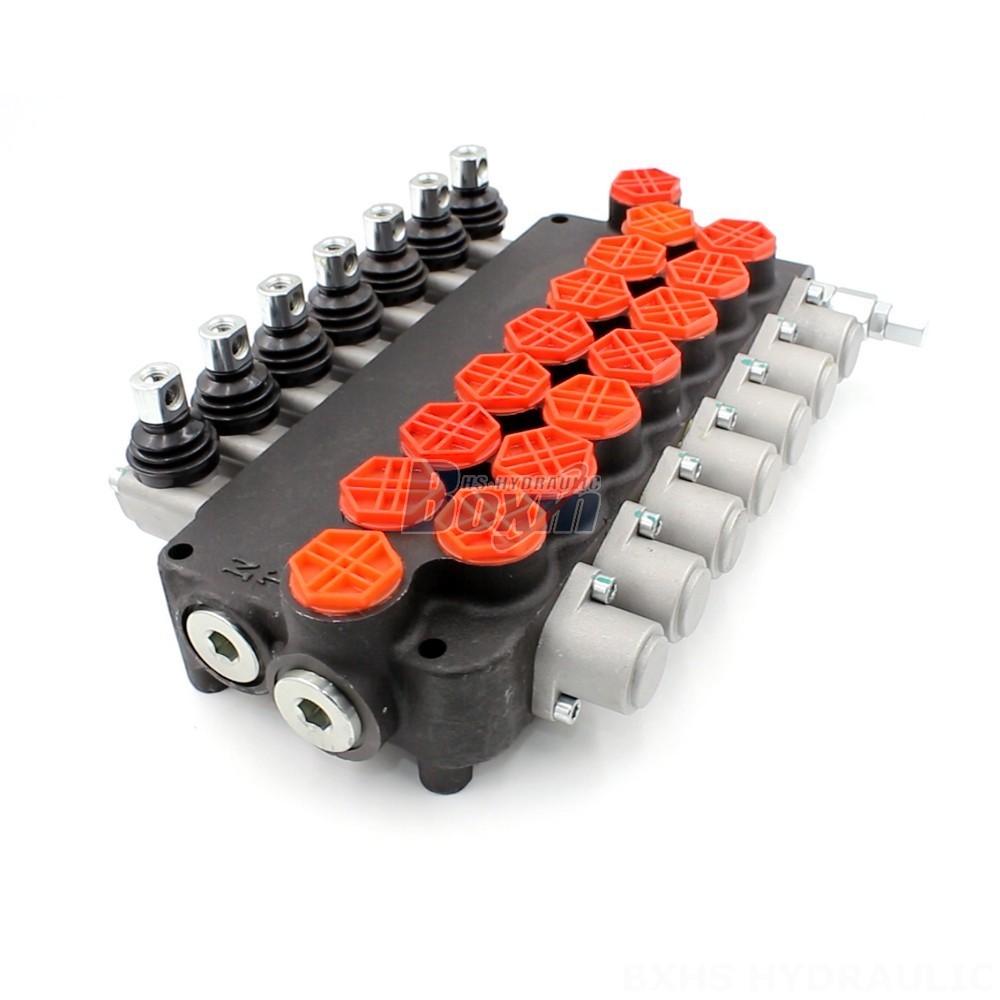

**P80-G34-OT Manual 7 Spool Monoblock Directional Valve**
The P80-G34-OT Manual 7 Spool Monoblock Directional Valve is a robust and reliable hydraulic control component engineered for precision and efficiency. Key features and specifications include:
* **Manual Control:** Allows for precise and responsive operation of the valve.
* **7 Spool Design:** Provides versatile flow control with multiple spool configurations.
* **Monoblock Construction:** Offers a compact and integrated design for space optimization.
* **High Flow Capacity:** Rated flow of 80 L/min ensures efficient fluid transfer.
* **Exceptional Pressure Handling:** Maximum pressure of 250 bar enables operation in high-pressure hydraulic systems.
* **Wide Viscosity Range:** Suitable for applications with operating viscosities ranging from 15 to 75 mm²/s.
* **Durable Construction:** Manufactured with high-quality materials and components for extended service life.
* **Versatile Applications:** Ideal for demanding hydraulic systems in industries such as material handling, construction, agriculture, and industrial vehicles.
