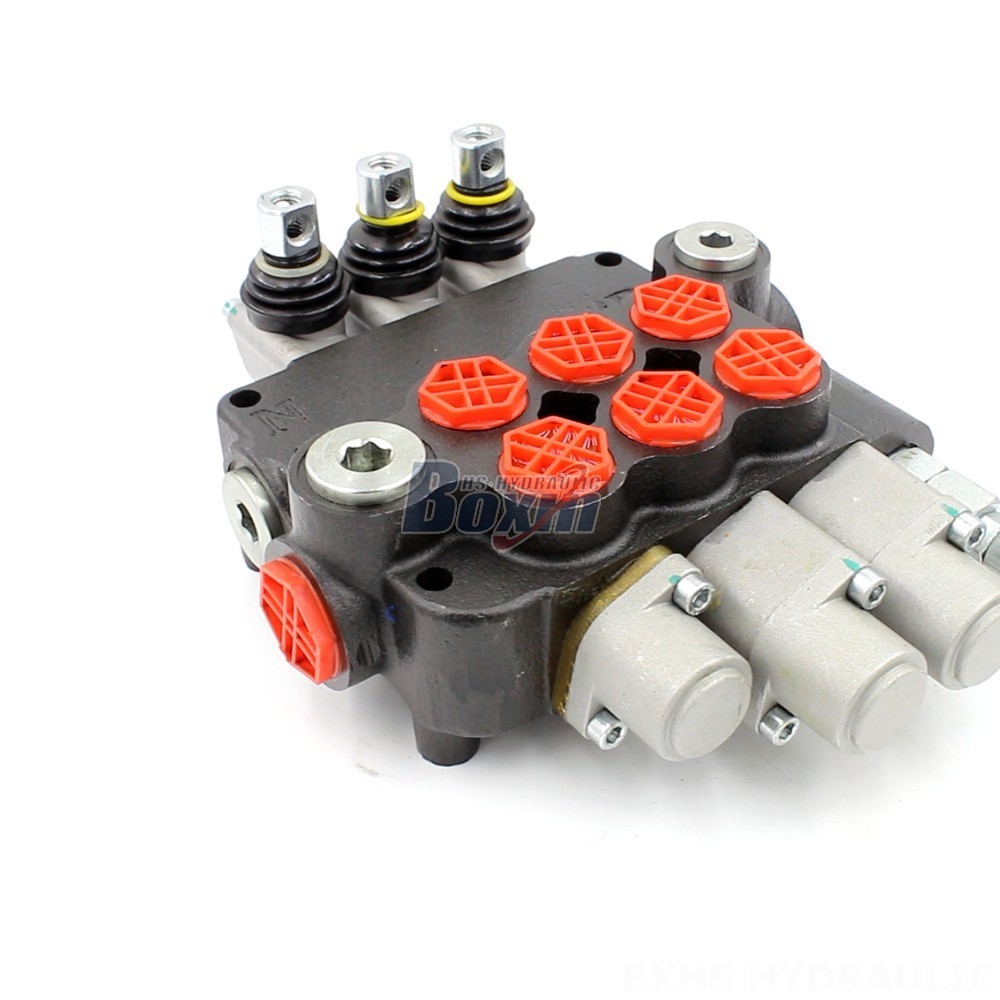

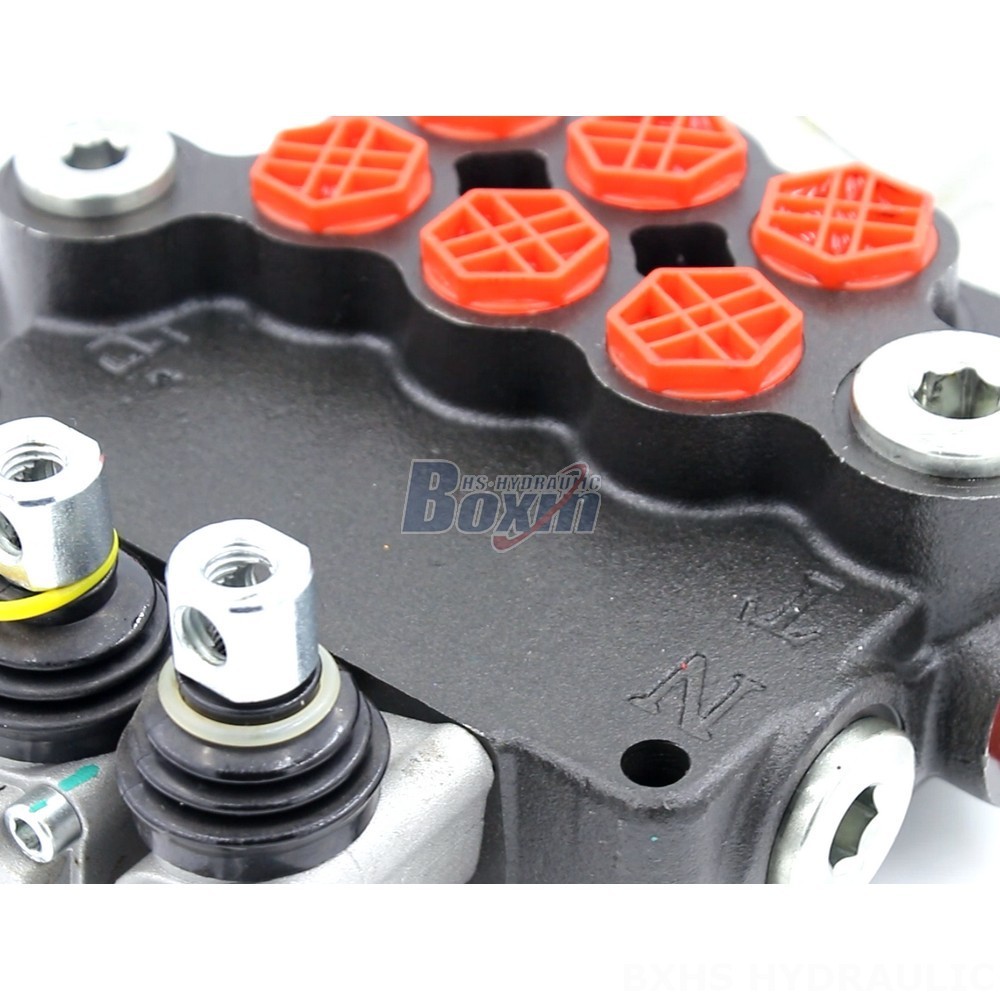

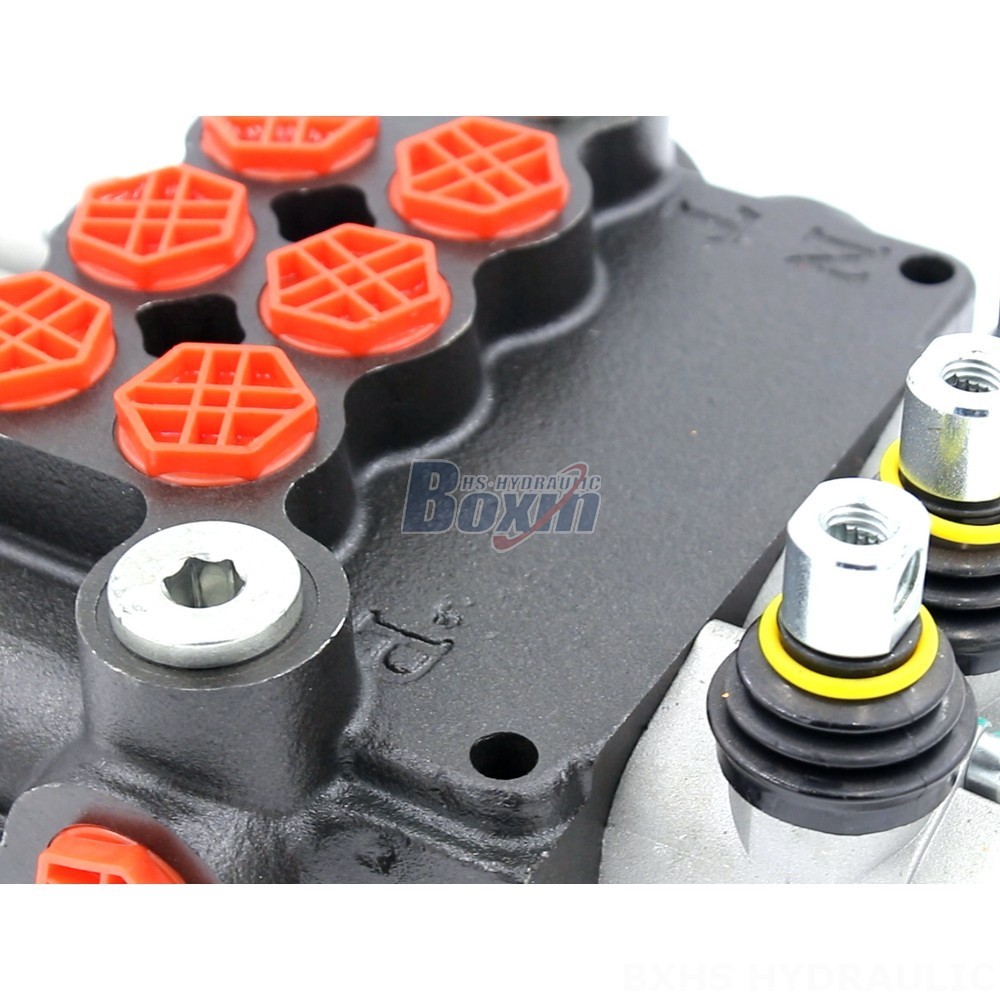

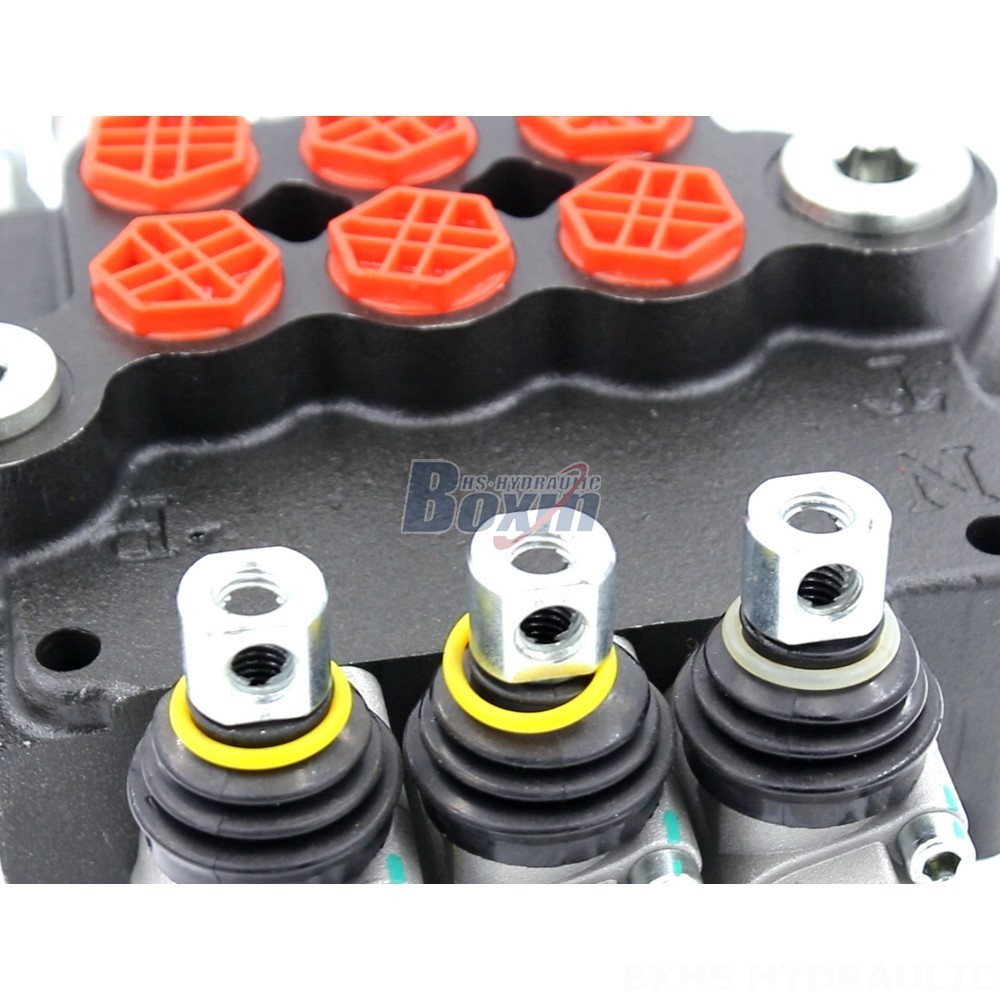

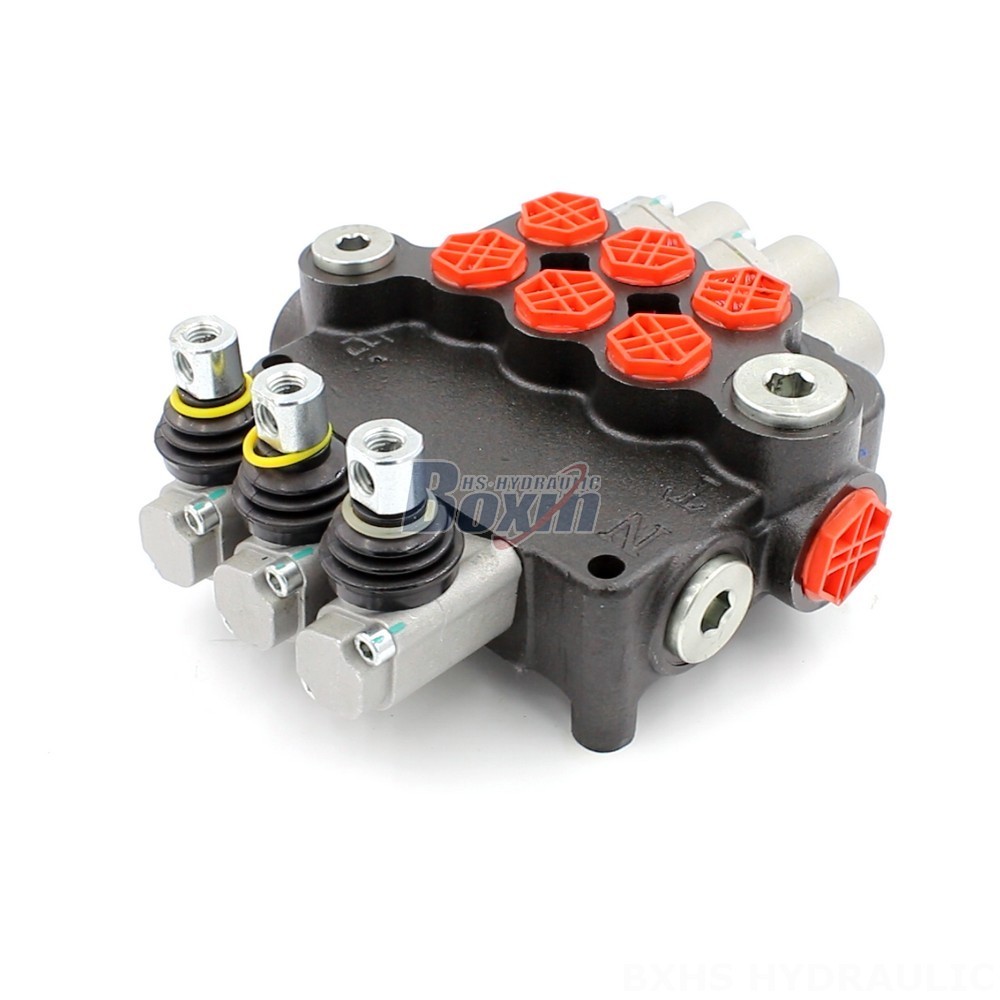

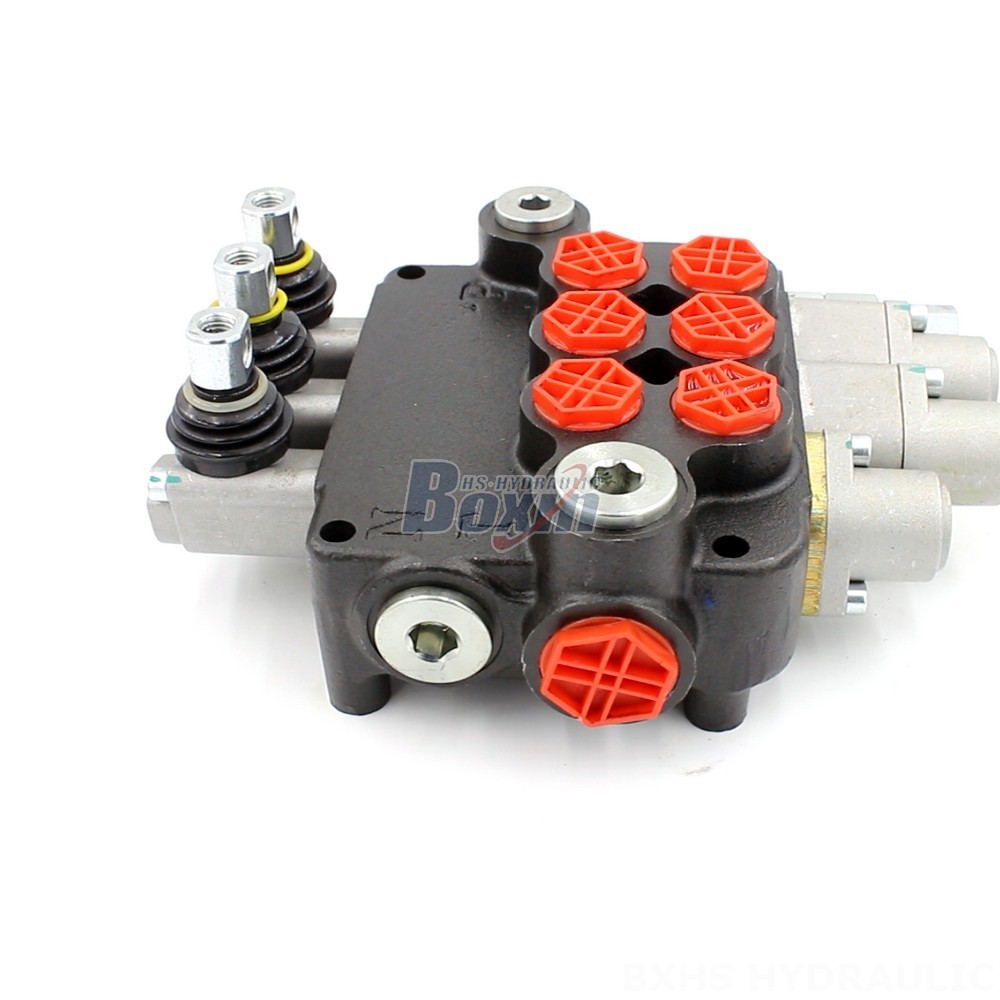

Introducing the P80-G34-G12 Hydraulic Directional Control Valve, expertly crafted for superior performance in demanding hydraulic systems. This robust, 3-section monoblock valve boasts a rated flow of 80 L/min and a remarkable maximum pressure of 250 bar. Its wide operating viscosity range (15 - 75 mm²/s) and ambient temperature tolerance (-40°C to +80°C) ensure exceptional adaptability to diverse operating conditions. With 3 spools and compatibility with a wide range of applications, including material handling, construction, agriculture, and industrial vehicles, this directional control valve delivers unparalleled versatility and reliability.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual control for precise and responsive operation
* Monoblock construction for enhanced structural integrity
* High-pressure capability (up to 250 bar) for demanding applications
* Wide viscosity range compatibility (15 - 75 mm²/s) for use with various hydraulic fluids
* Extended ambient temperature range (-40°C to +80°C) for operation in extreme conditions
* 3 spools for versatile flow control
* Compact design for easy integration into space-constrained systems
* Durable construction for extended service life
**Applications:**
* Material handling equipment: forklifts, cranes, stackers, aerial platforms
* Construction and earth moving machinery: excavators, motor graders, skid steer loaders, compact wheel loaders
* Agricultural machinery: tractors, harvesters, irrigation systems
* Industrial vehicles
