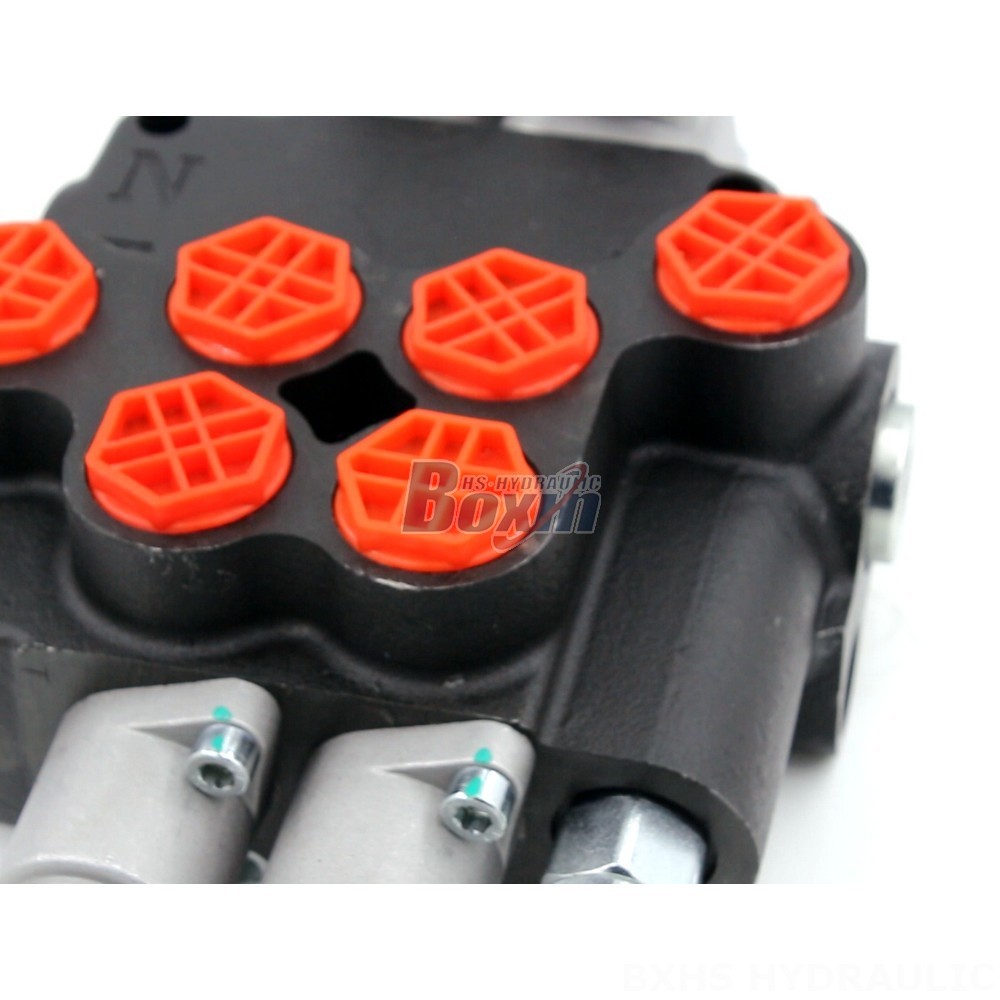

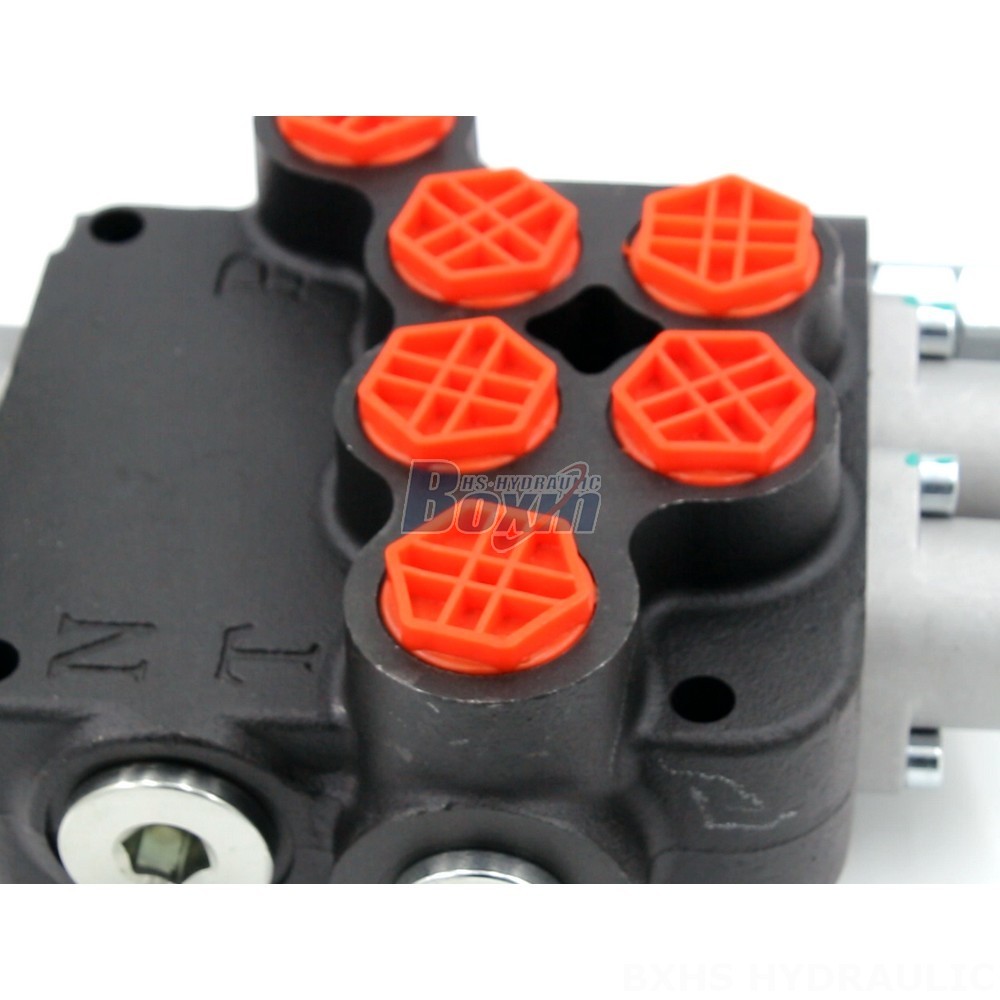

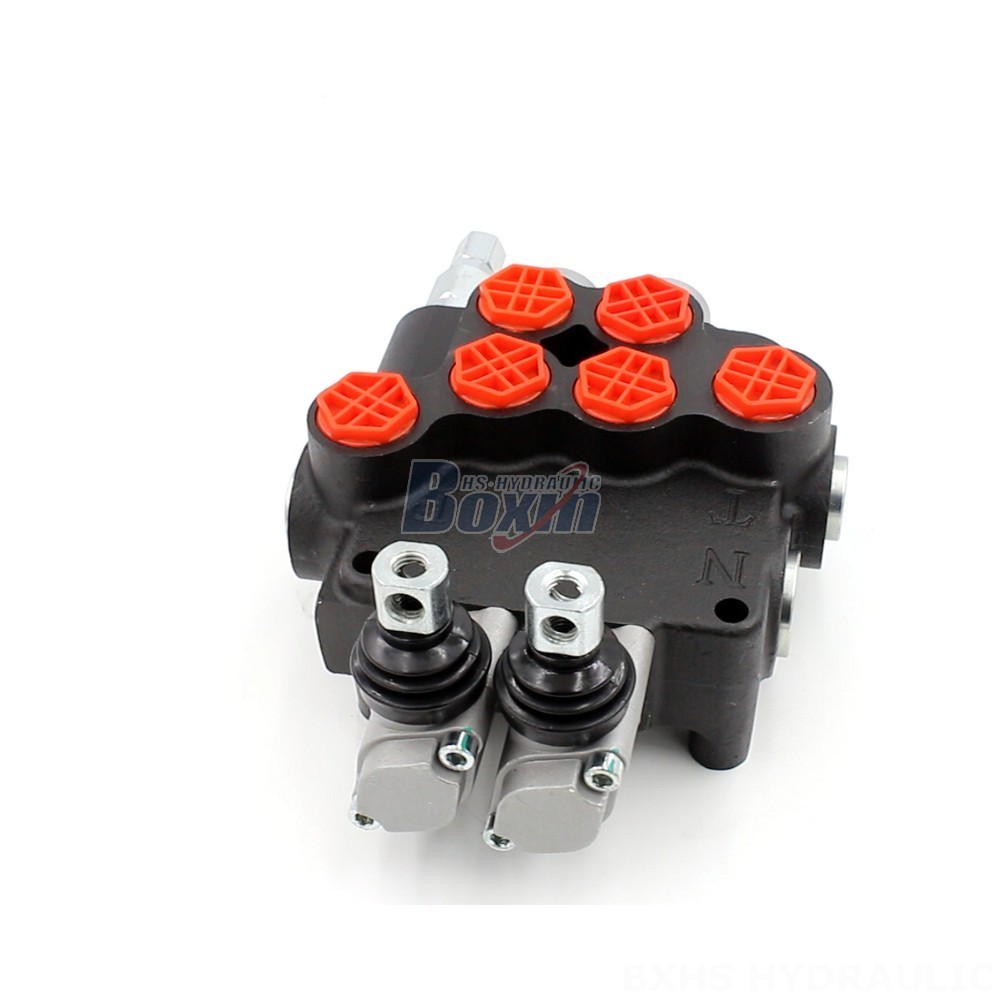

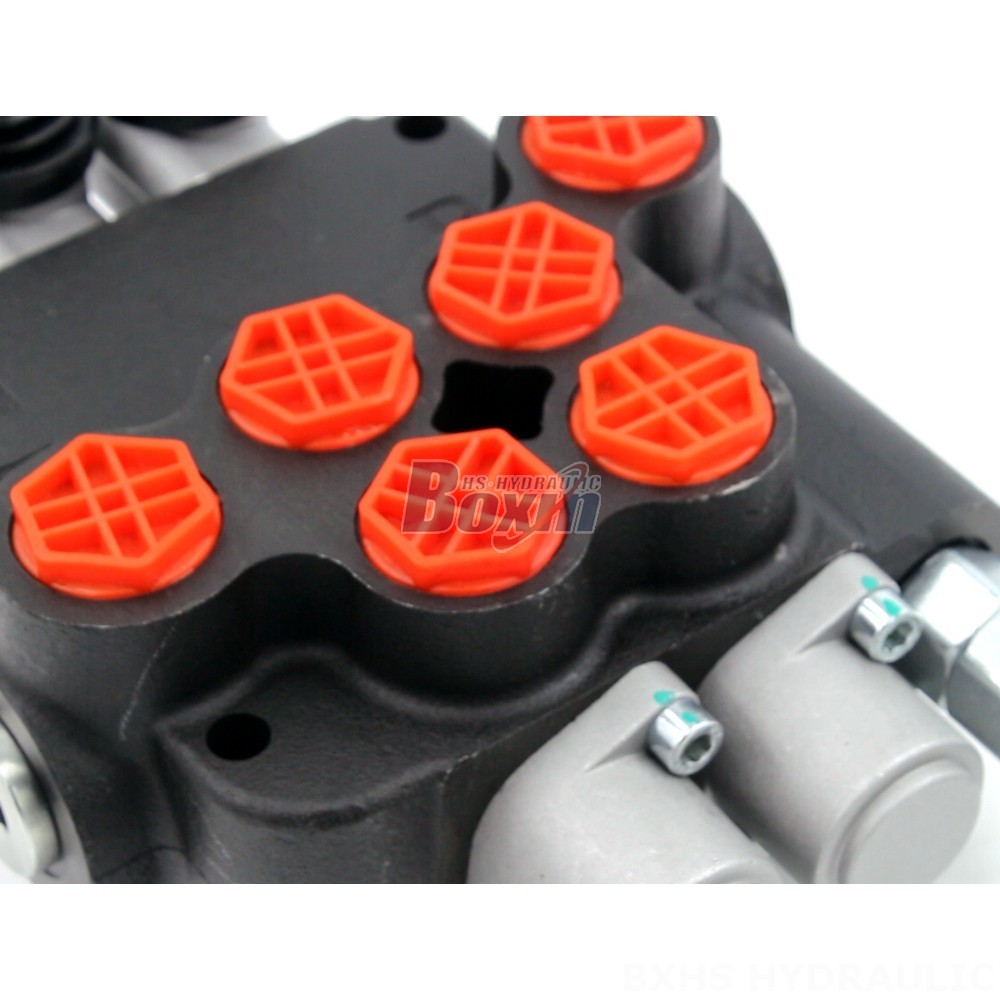

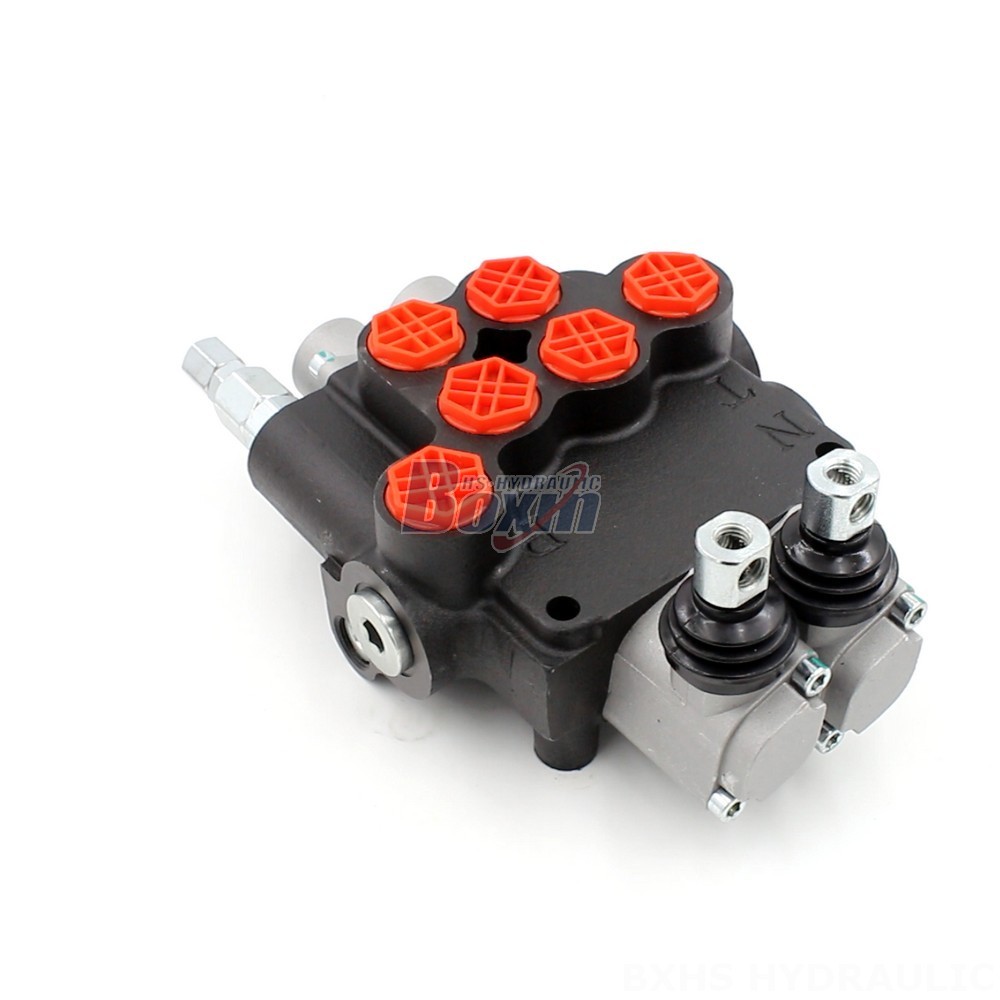

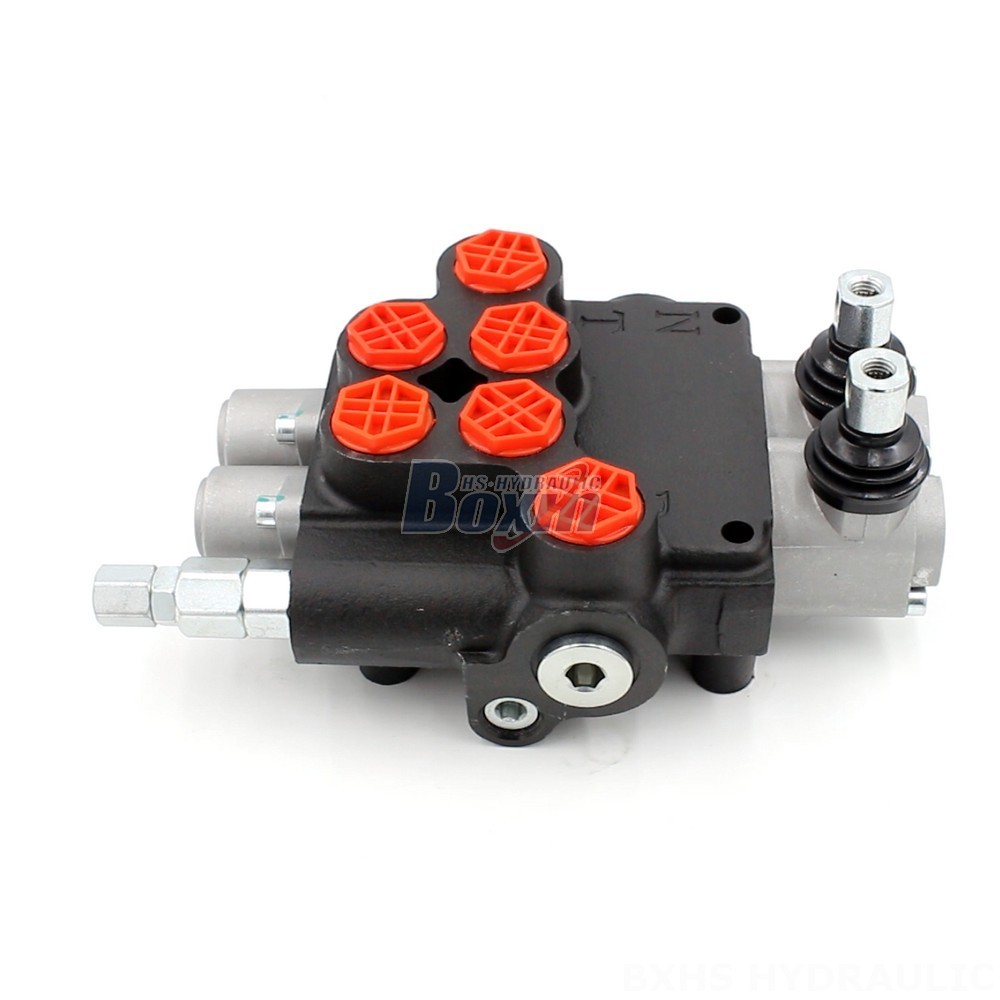

Introducing our P80-G34-G12 2-Spool Hydraulic Directional Valve, a robust and reliable solution for a wide range of industrial applications. Manufactured with precision, this valve offers exceptional performance and durability, ensuring efficient and precise fluid control.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual Control for precise and responsive operation
* Monoblock Valve construction for compact and leak-proof performance
* Rated Flow of 80 L/min (21.2 US gpm) for high-volume flow applications
* Max Pressure of 250 bar (3600 psi) for demanding pressure requirements
* Operating Viscosity Range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluid types
* Ambient Temperature Range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments
**Applications:**
Our P80-G34-G12 2-Spool Hydraulic Directional Valve finds application in diverse industries including:
* Material Handling: Telehandlers, Forklifts
* Construction and Earth Moving: All Terrain Cranes, Stackers
* Agriculture: Aerial Platforms, Motor Graders
* Industrial Vehicles: Midi-Excavators, Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders
As a factory direct supplier, we offer customization options to meet your specific requirements. Contact us for tailored solutions and exceptional support.
