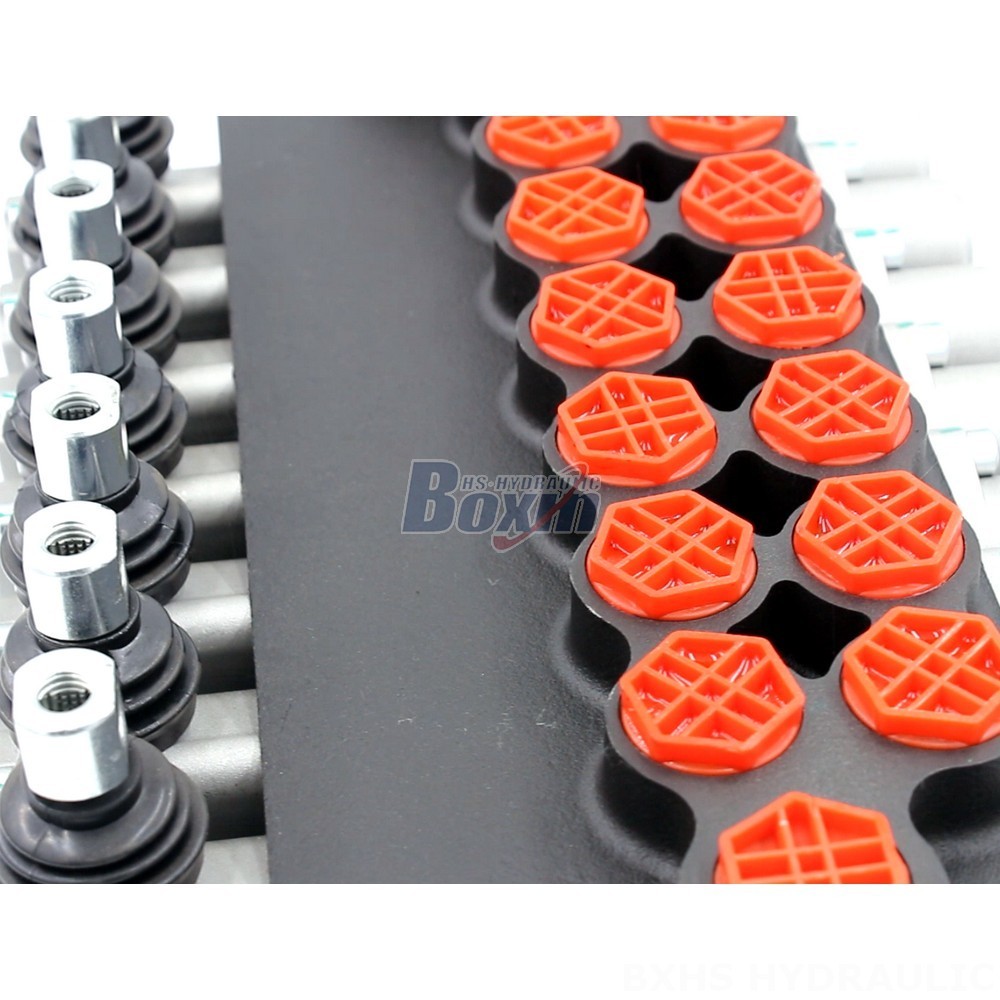

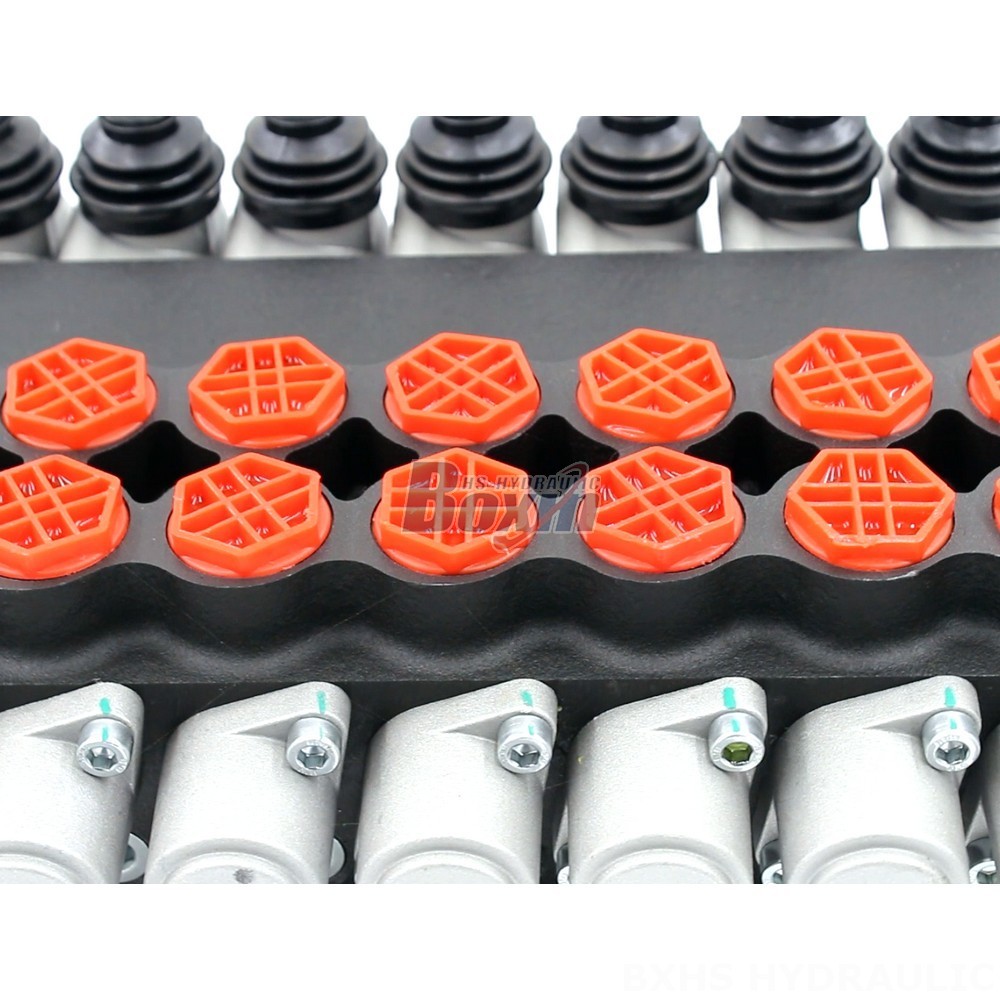

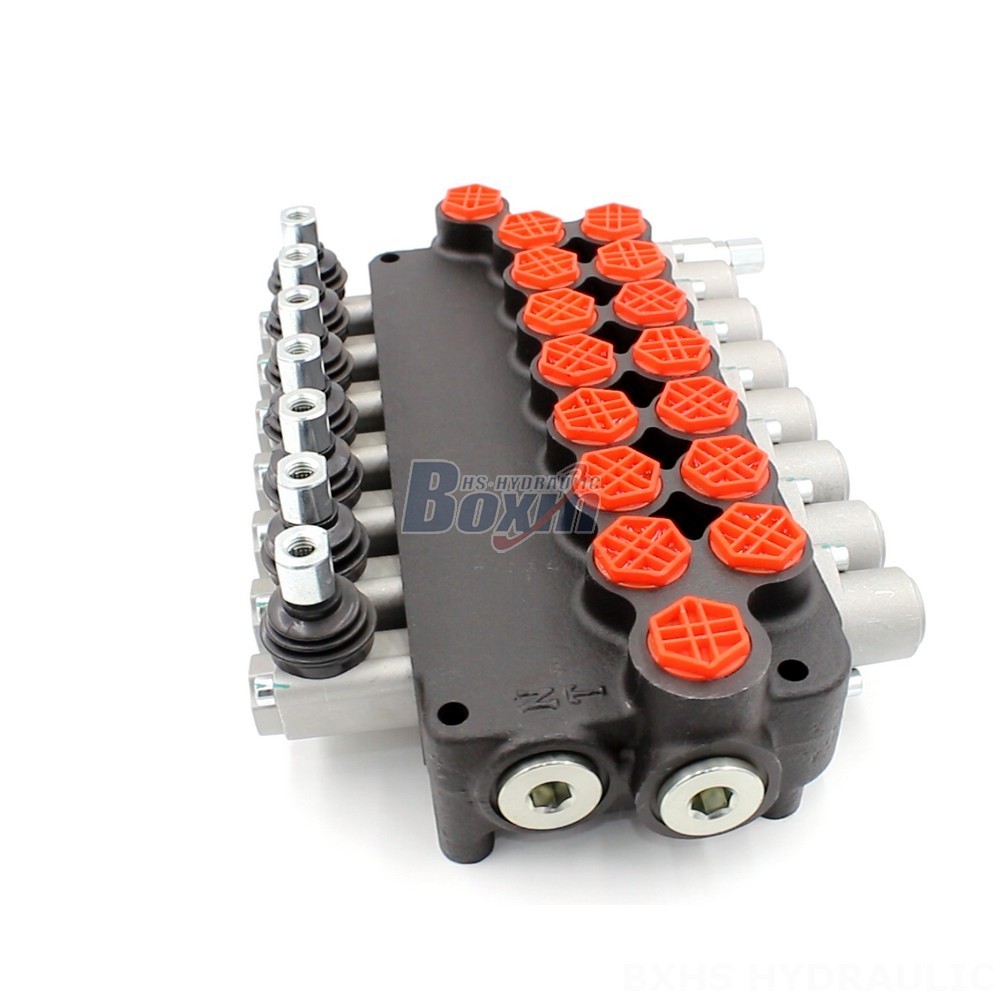

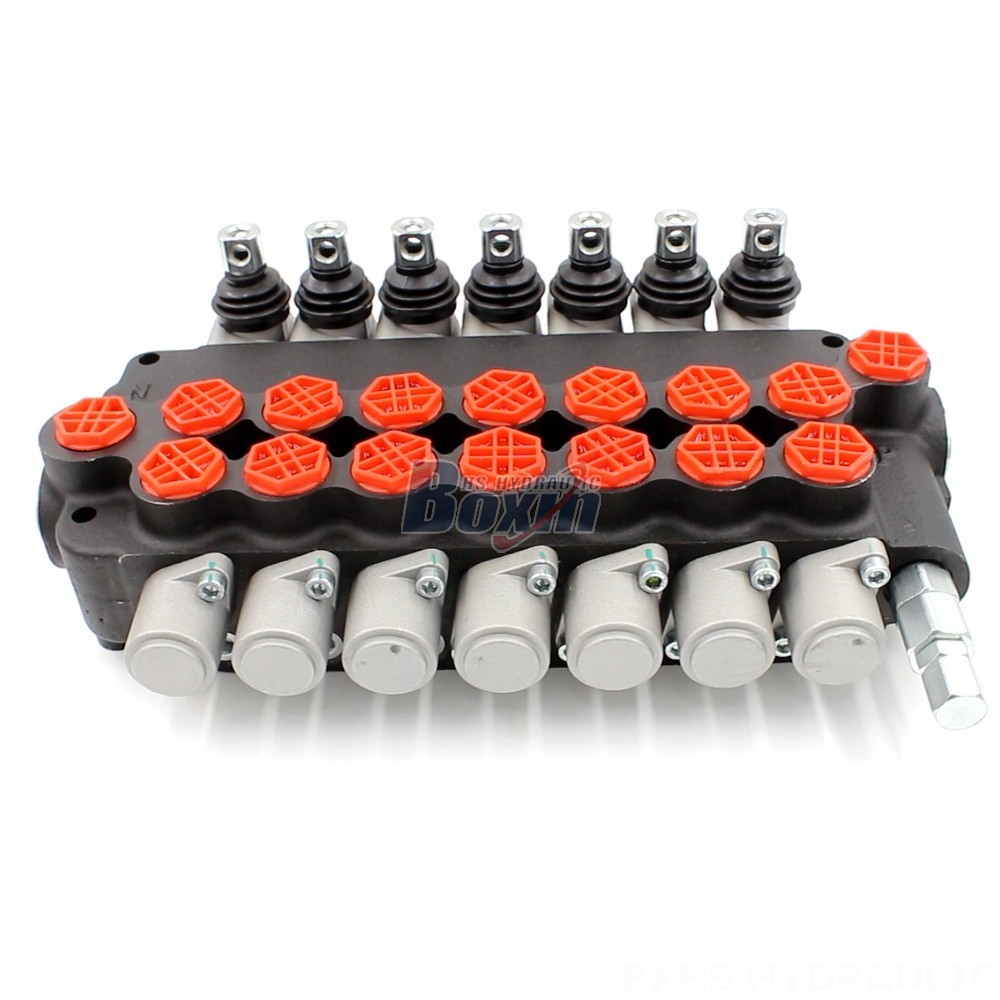

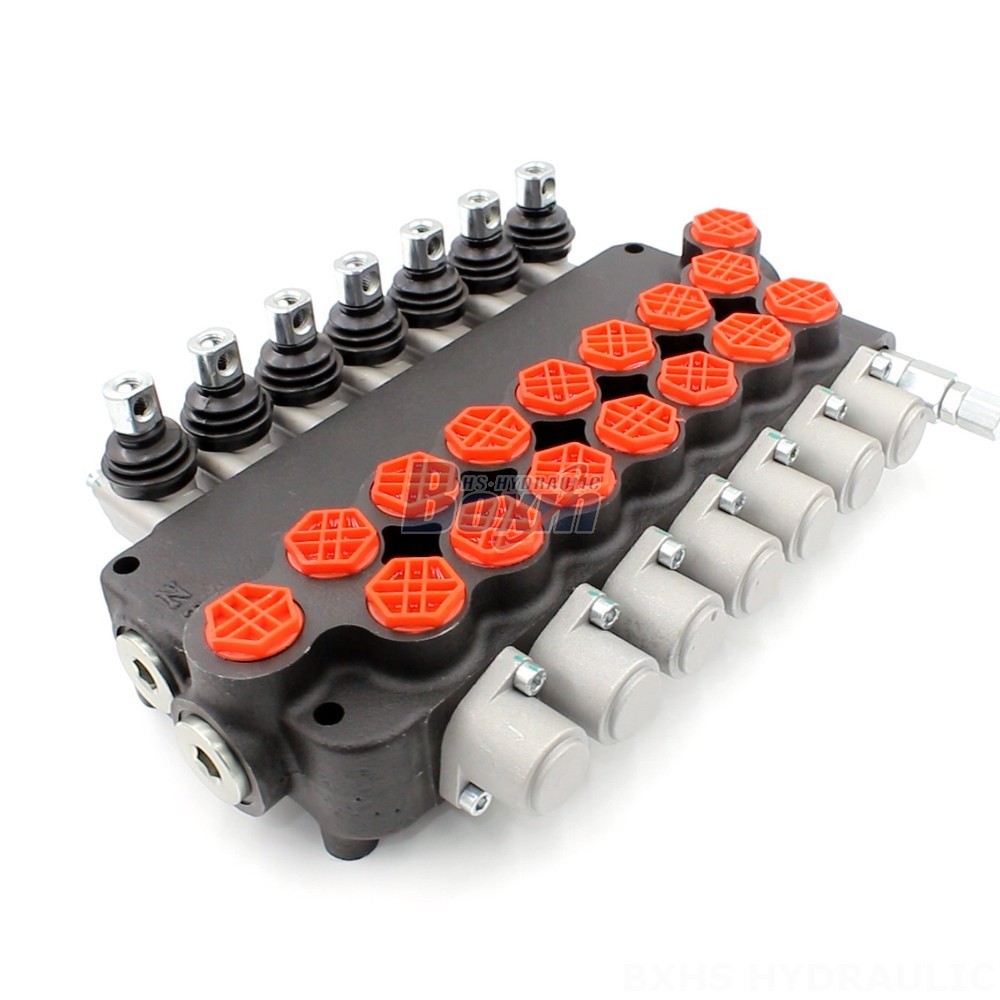

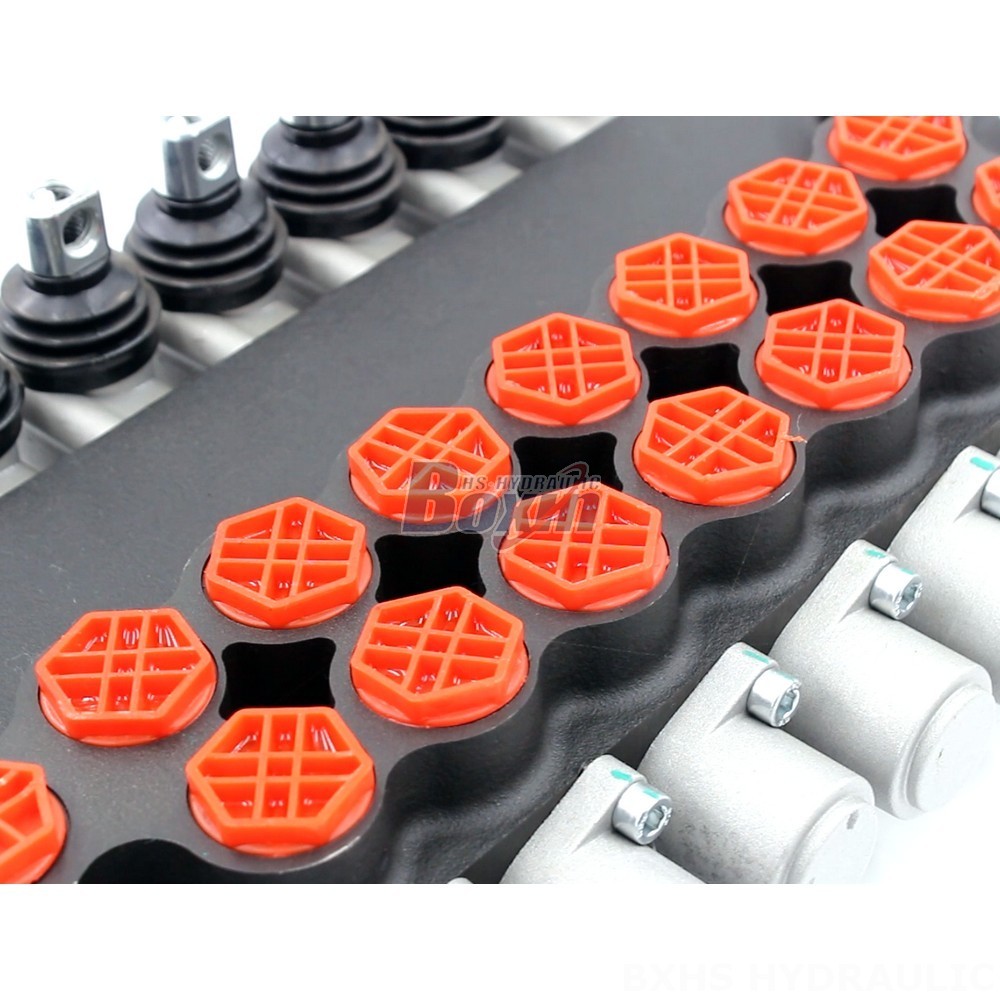

P80-G34-7OT 7-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications in various industries. It features a monoblock construction, manual control, and a rated flow of 80 L/min at a maximum pressure of 250 bar.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G34-7OT 7-Spool Hydraulic Directional Valve offers precise control over hydraulic systems in industrial, construction, agricultural, and material handling applications. Its compact design and robust construction ensure durability and reliability in harsh operating conditions. Key features include:
* Manual control for direct and responsive operation
* Monoblock construction for increased strength and reduced leakage
* 80 L/min rated flow to handle high hydraulic flow demands
* 250 bar maximum pressure for demanding applications
* Versatile 7-spool design to accommodate diverse system requirements
* Wide operating temperature range of -40°C to +80°C for use in extreme environments
* Compatibility with various hydraulic systems in telehandlers, forklifts, cranes, stackers, aerial platforms, and other industrial vehicles.
