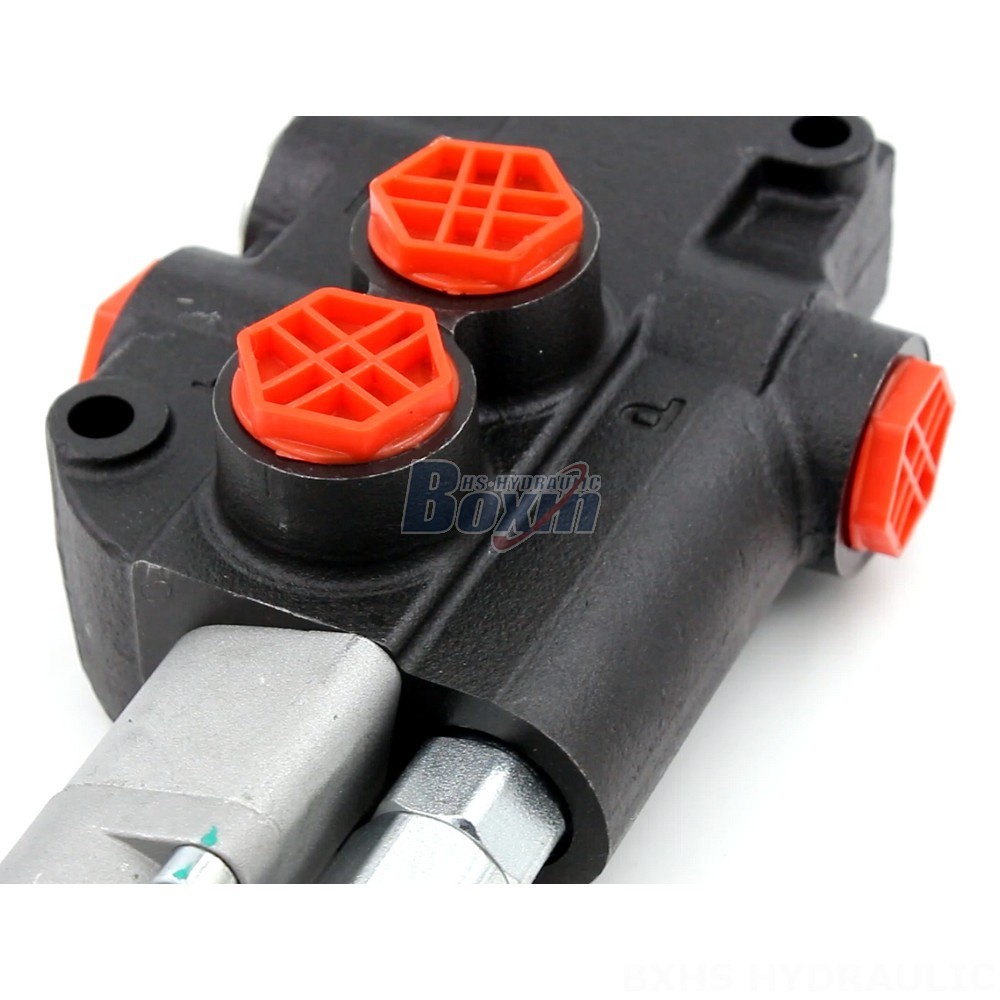

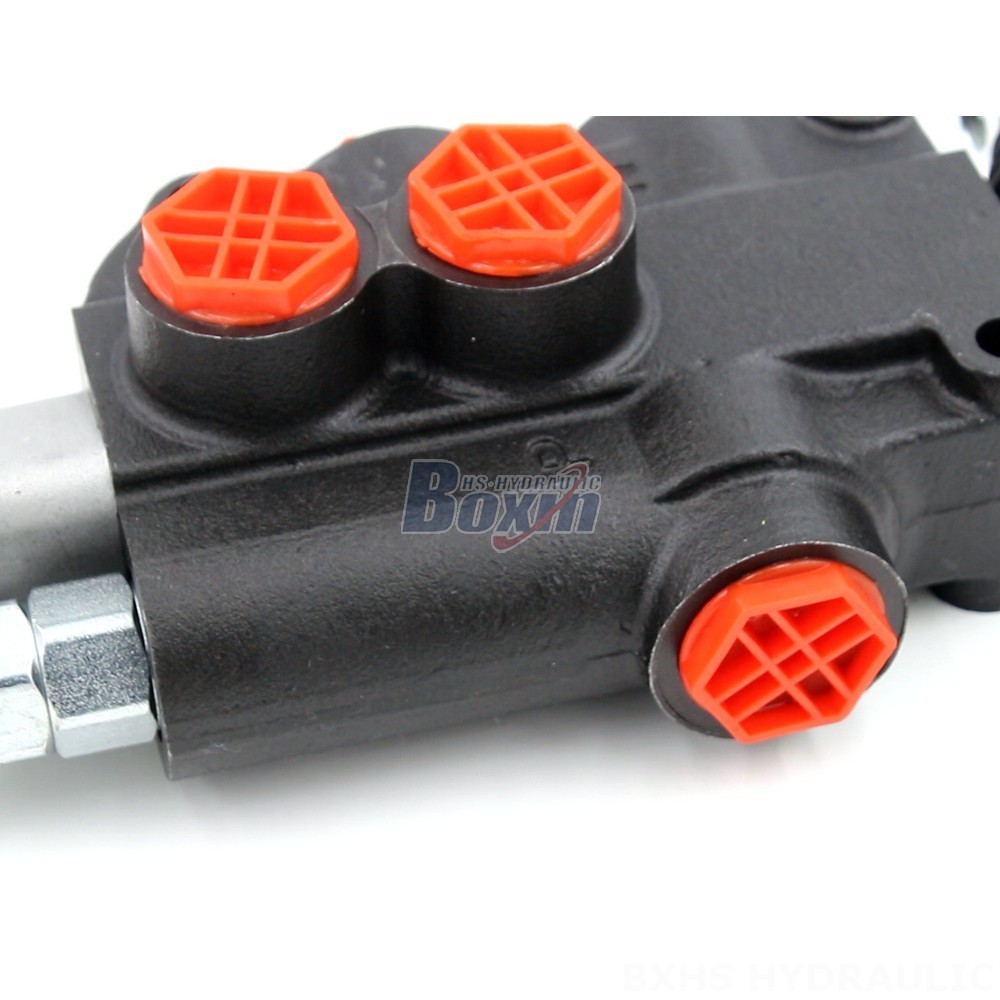

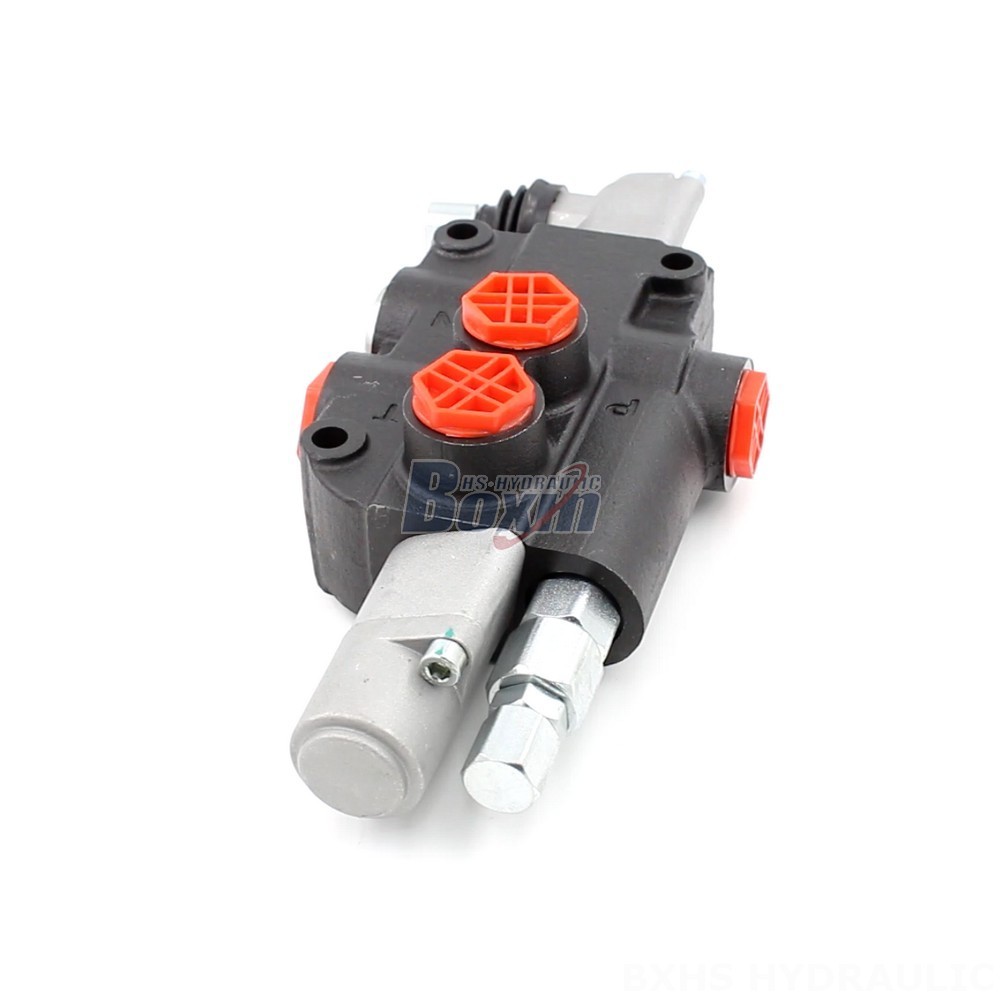

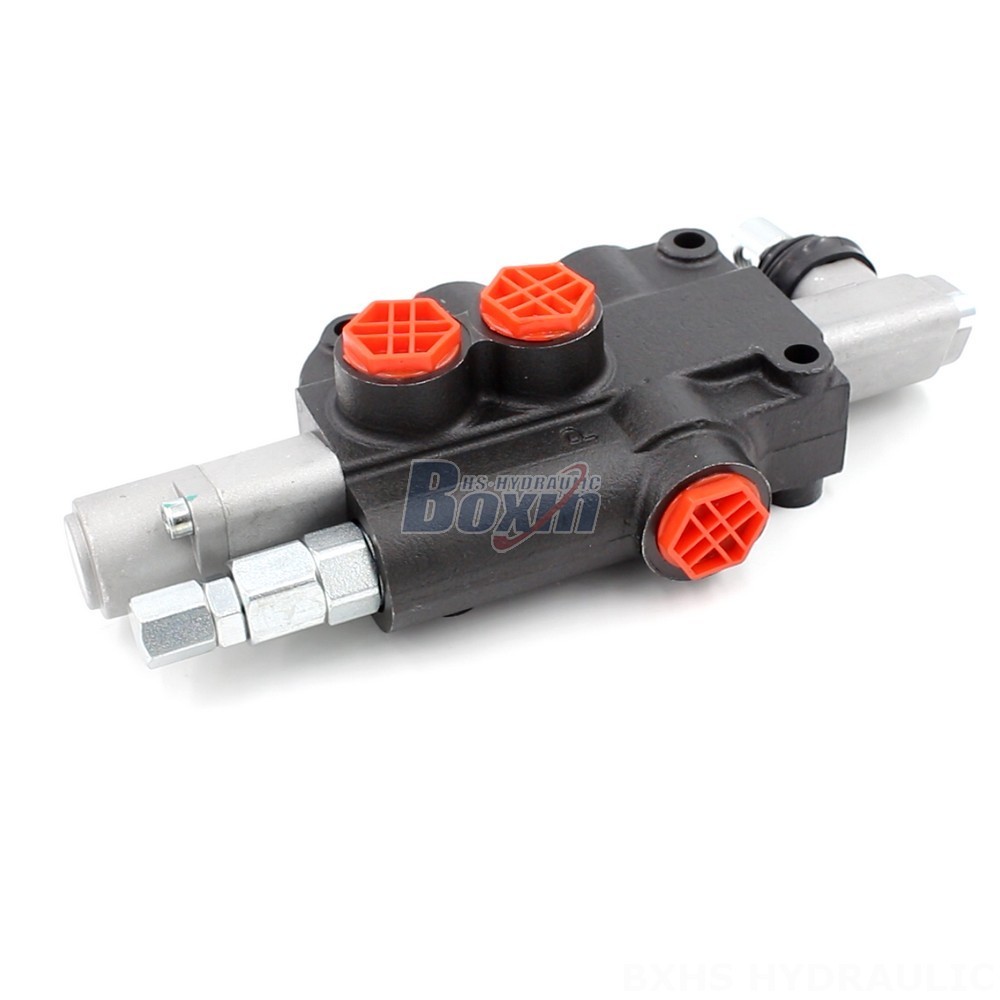

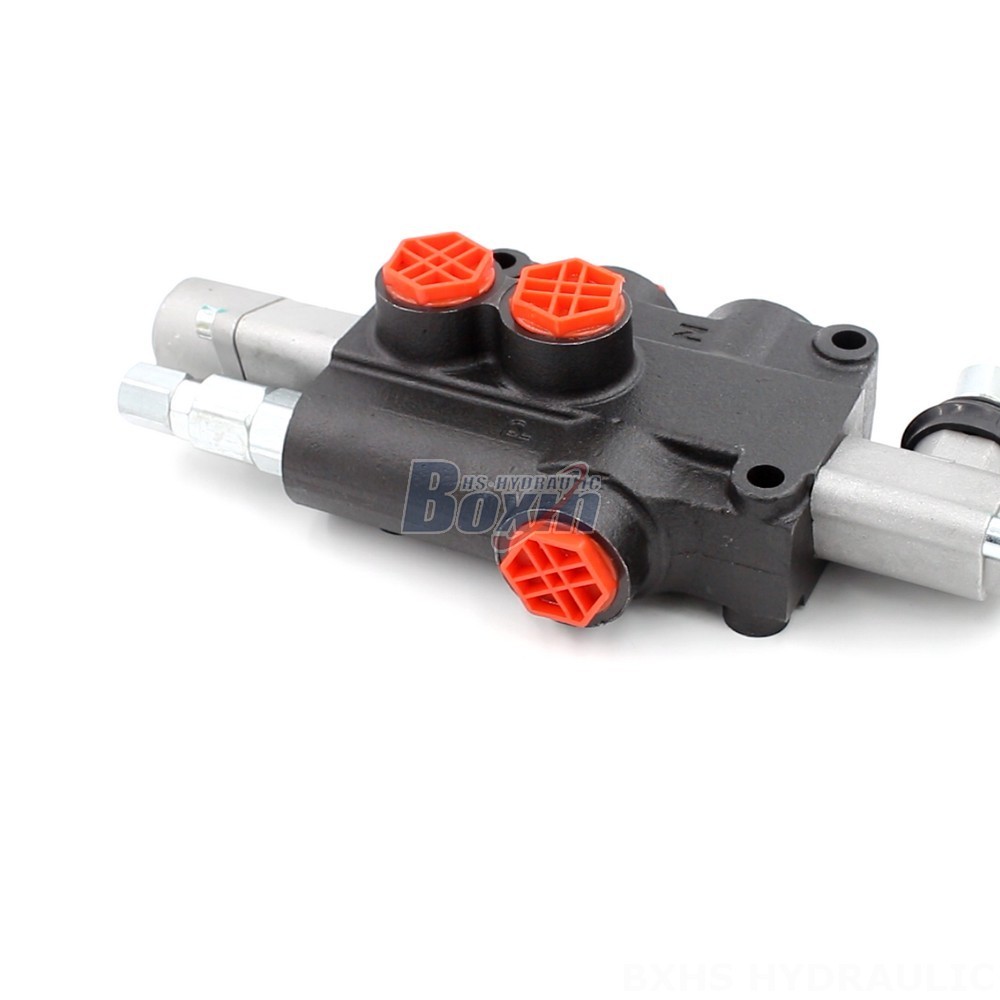

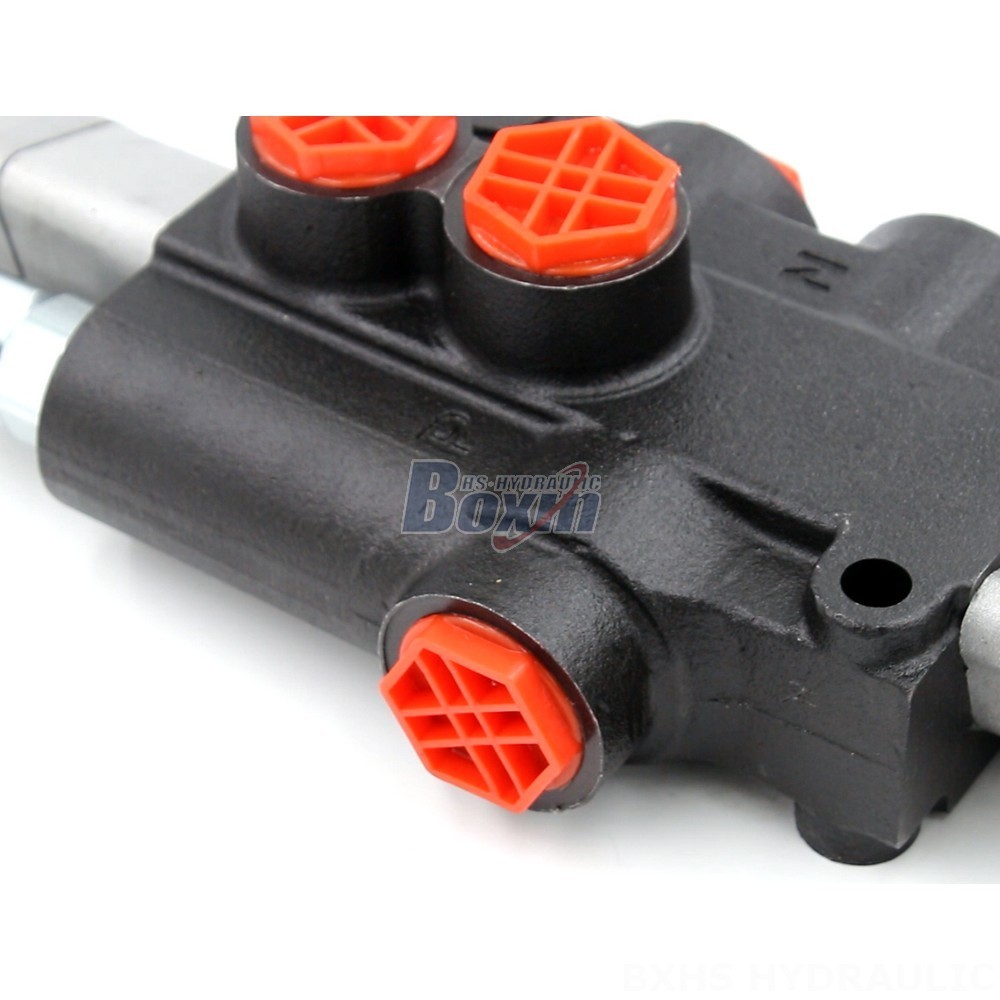

The P80-G12-QTW Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a variety of industrial applications. It features a manual control method, a 1 section structure type, and a rated flow of 80 L/min (21.2 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is suitable for use in material handling, construction and earth moving, agriculture, and industrial vehicles.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Name**: P80-G12-QTW Manual 1 Spool Monoblock Directional Valve
**Control Method**: Manual
**Section**: 1 Section
**Structure Type**: Monoblock valve
**Rated Flow**: 80 L/min (21.2 US gpm)
**Max Pressure**: 250 bar (3600 psi)
**Operating Viscosity Range**: 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range**: -40°C to +80°C (-40°F to +176°F)
**Spool**: 1 Spool
**Series**: P80 Series
**Application Area**: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model**: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
