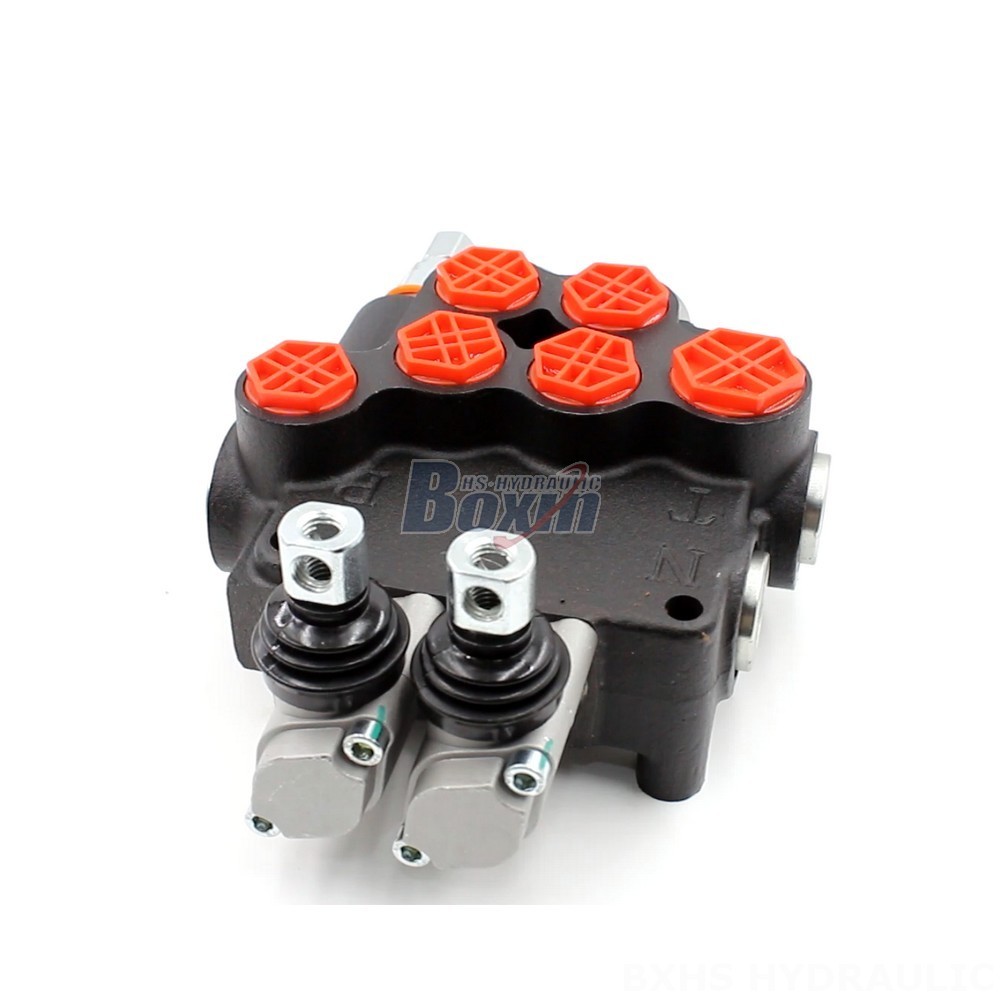

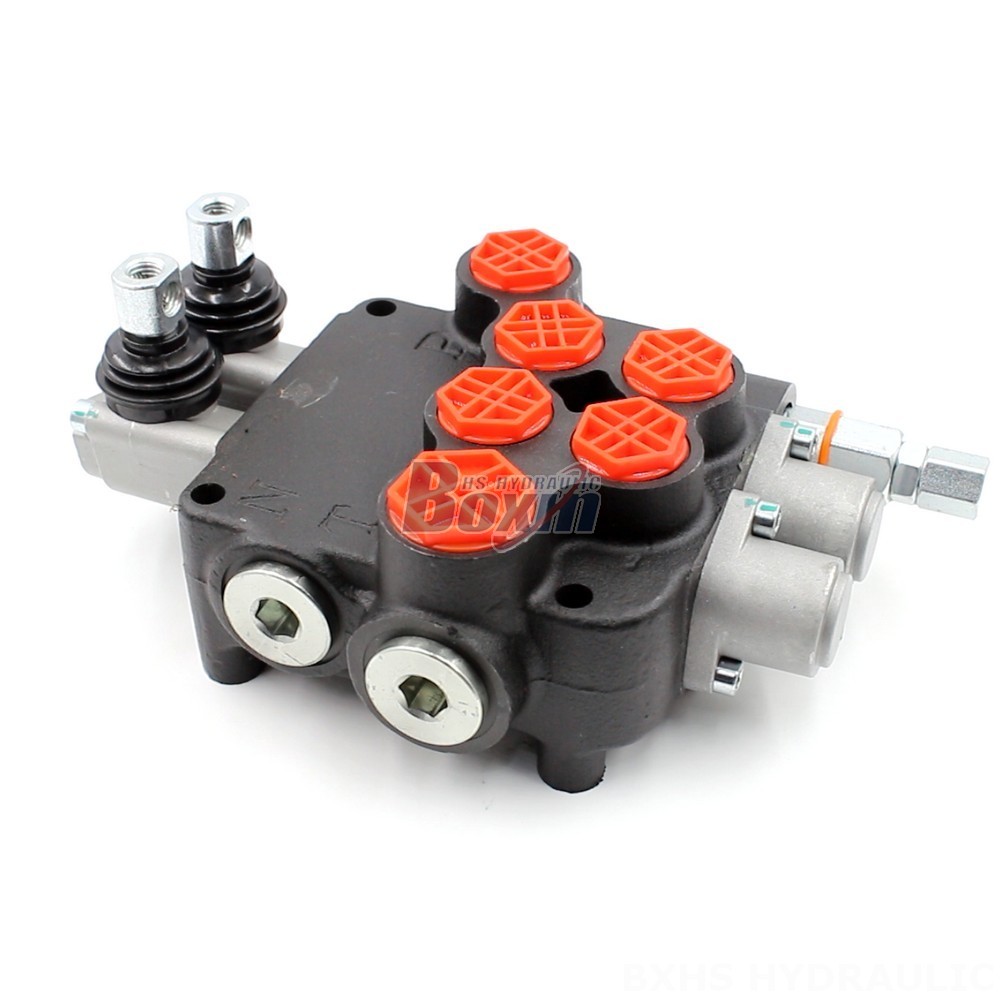

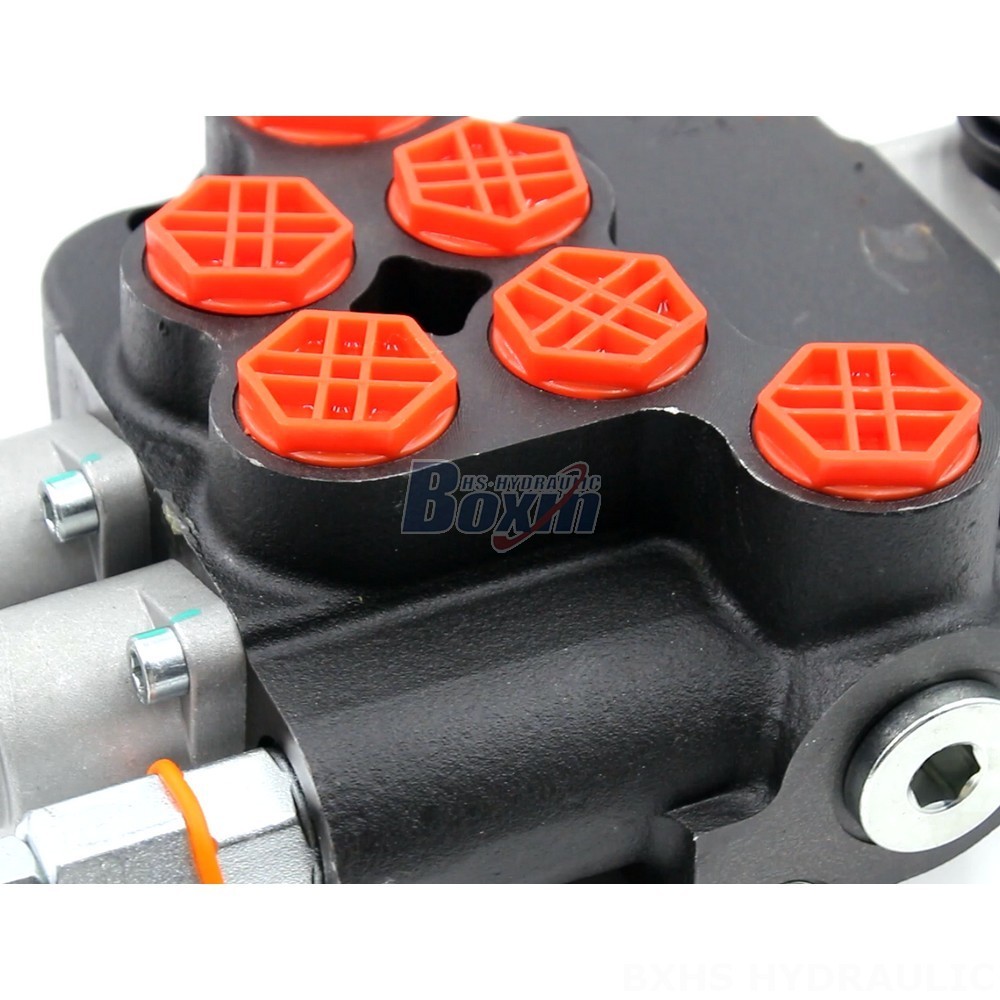

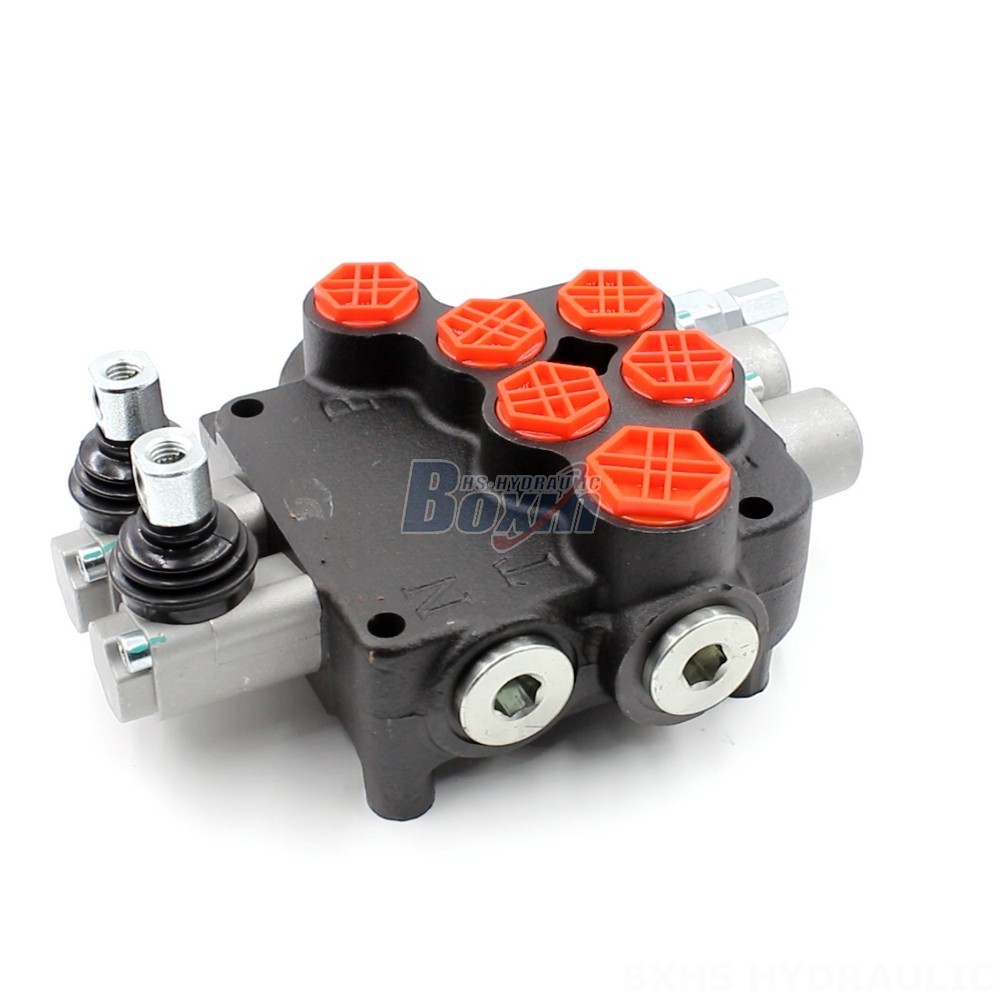

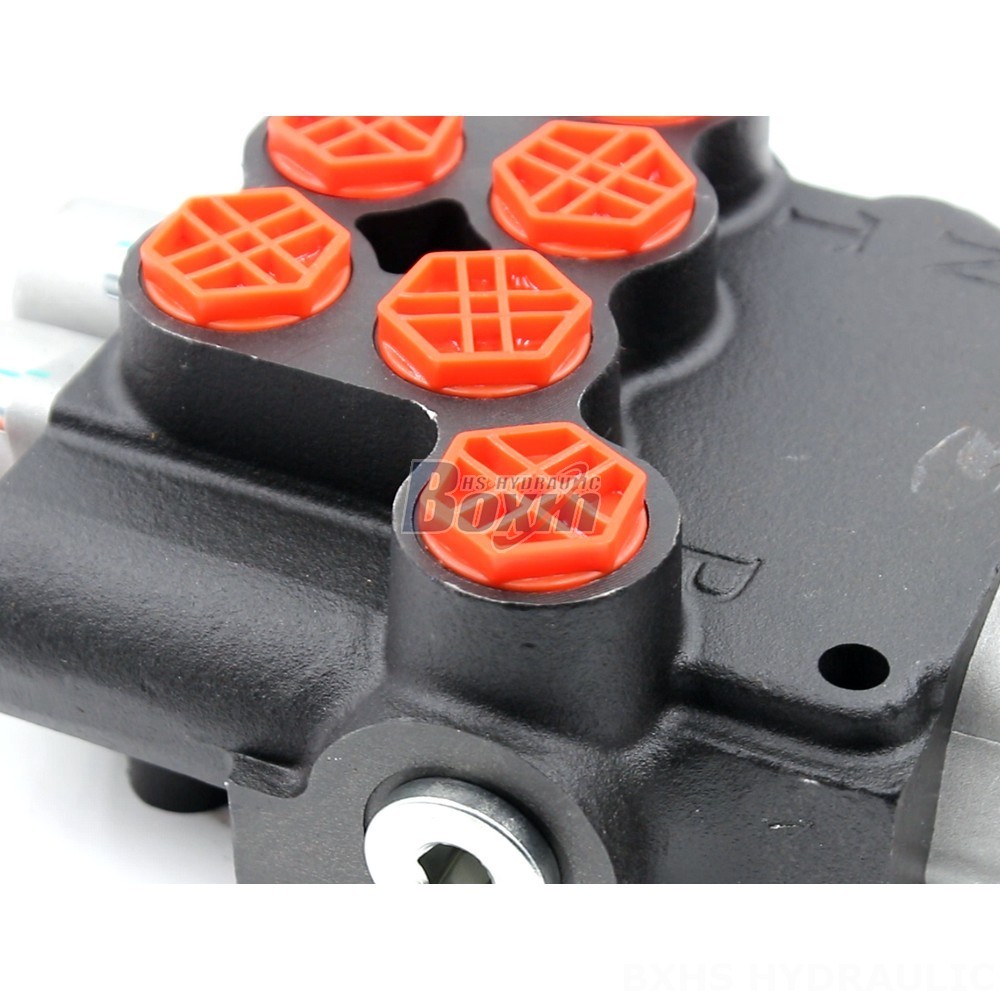

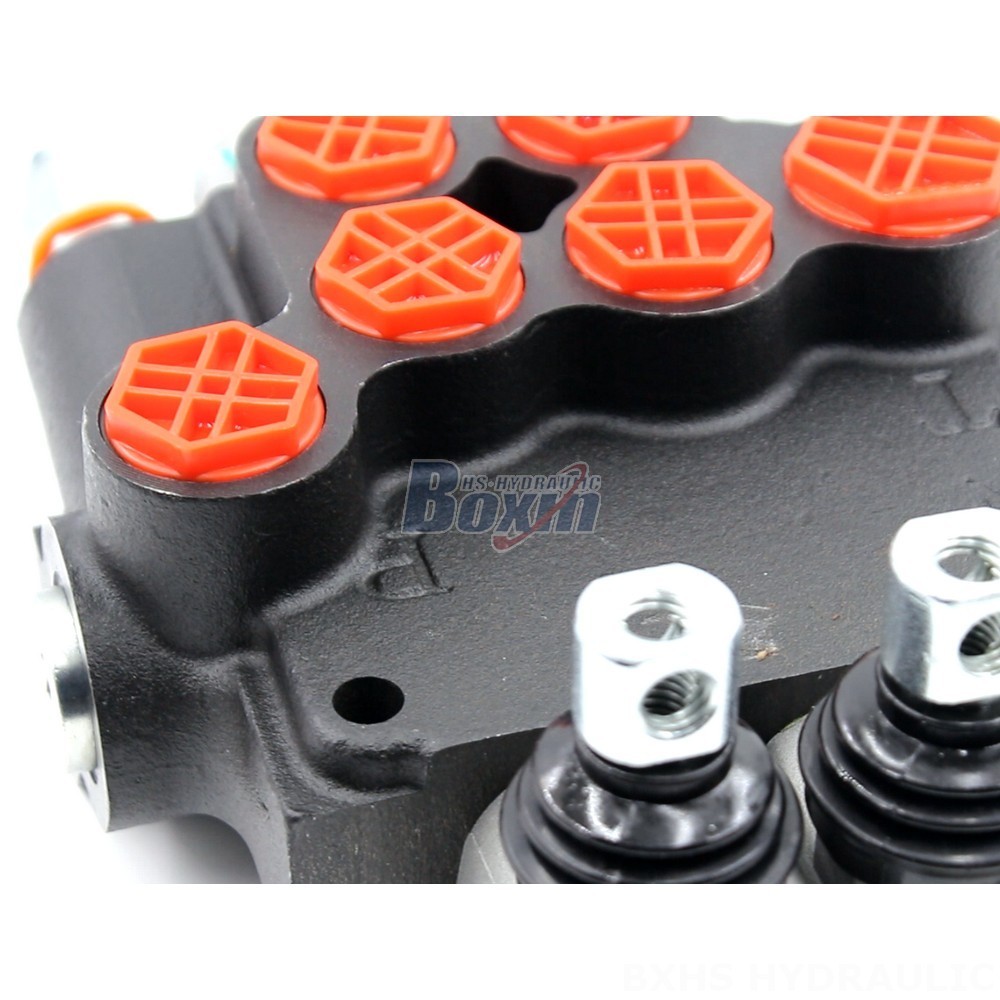

The P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding industrial applications. It features a manual control method, a compact monoblock structure, and a rated flow capacity of 80 L/min (21.2 US gpm). With a maximum pressure rating of 250 bar (3600 psi), this valve can withstand high system pressures.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
* Manual control for precise operation
* Monoblock construction for compact and robust design
* 2 spool configuration for versatile flow control
* Rated flow capacity of 80 L/min (21.2 US gpm) for high flow applications
* Maximum pressure rating of 250 bar (3600 psi) for demanding hydraulic systems
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
* Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in challenging environments
**Applications:**
The P80-AQF-G34-G12-2OT Manual 2 Spool Monoblock Directional Valve is widely used in various industrial applications, including:
* Material handling equipment
* Construction and earth moving machinery
* Agricultural machinery
* Industrial vehicles
* Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, bale wrappers, backhoes, seeding machines, sprayers, balers
