P80-AQF-G Series Monoblock Directional Valve: Wholesale & OEM

Méthode de contrôle:Manuel

Distributeur:6 tiroirs

Débit nominal:80 L/min (21,2 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/4

Orifice de sortie:G3/4

Dimension du raccord:G1/2

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P80 Vanne directionnelle monobloc

Taille de l'emballage:26*36*11

Poids brut:18.60 kg

Disponibilité: En stock

1046 personnes consultent ce produit

P80-AQF-G Series Monoblock Directional Valve: Wholesale & OEM

P80-AQF-G Series Monoblock Directional Valve: Wholesale & OEM

P80-AQF-G Series Monoblock Directional Valve: Wholesale & OEM drawing image

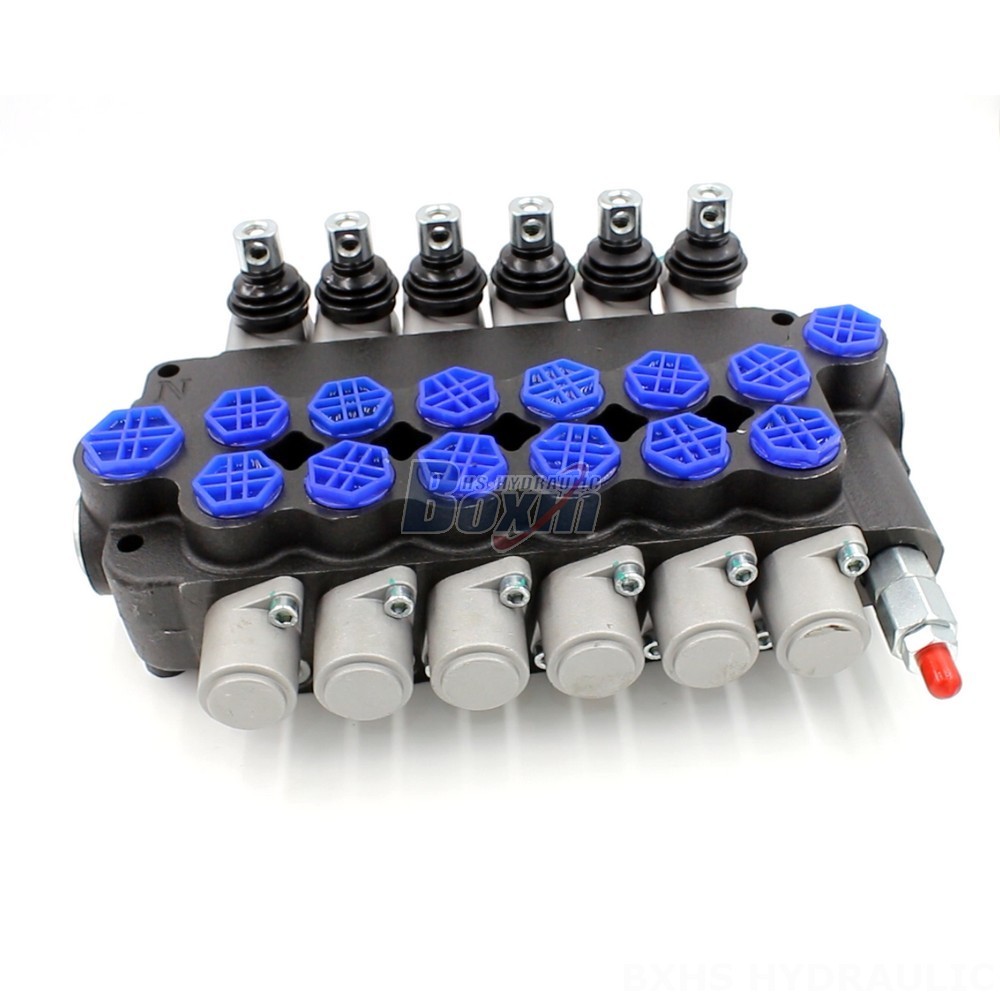

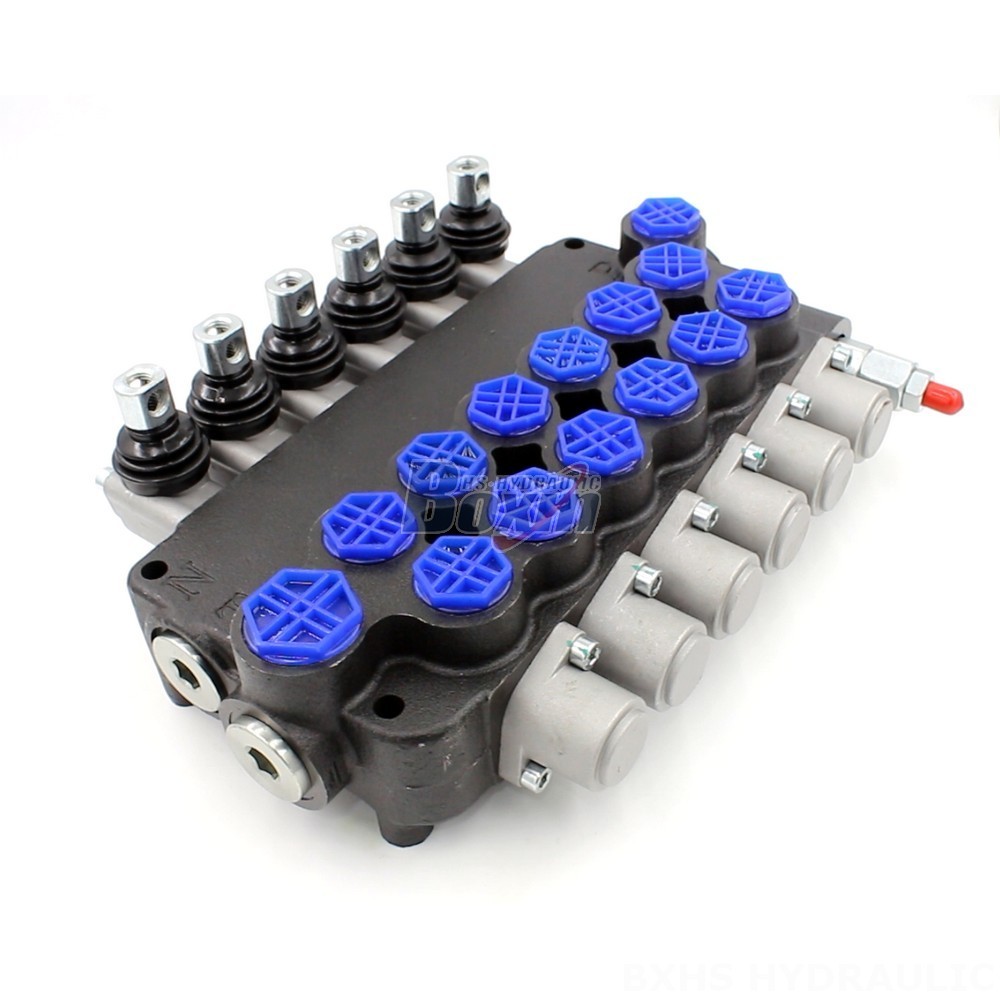

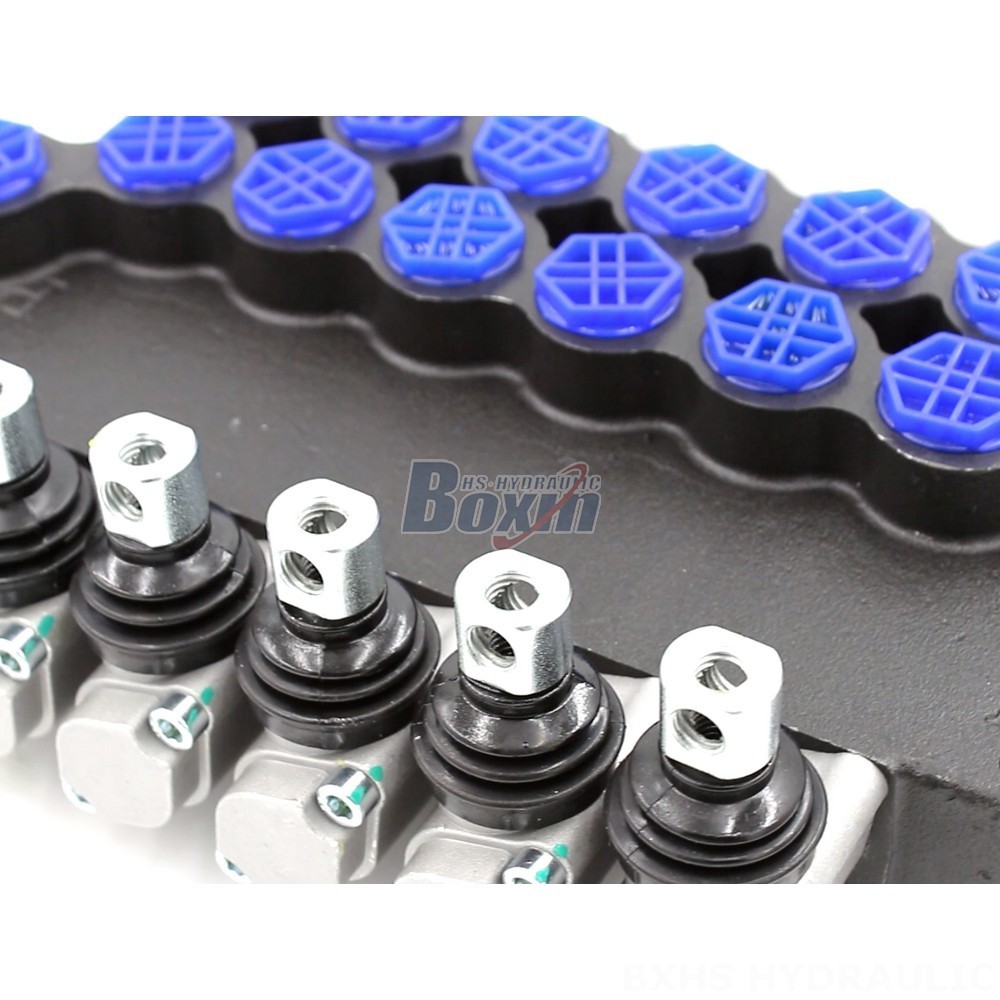

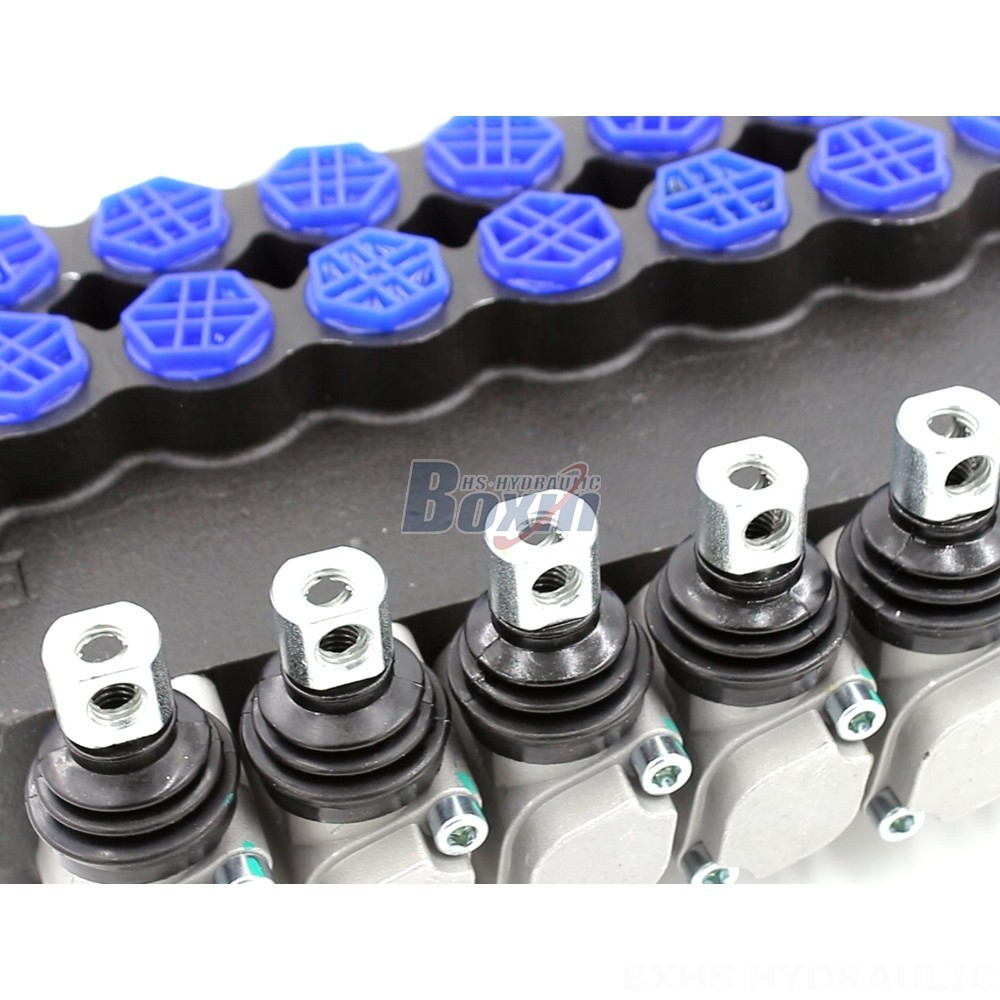

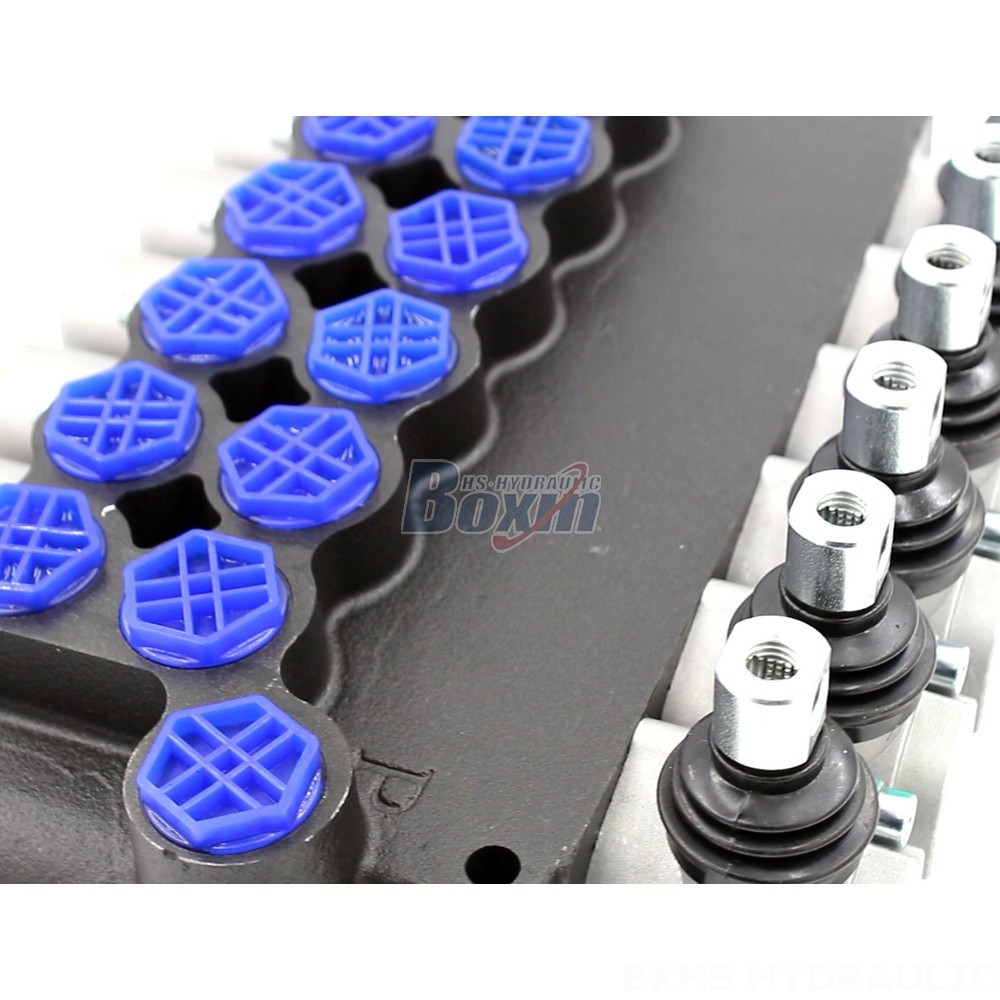

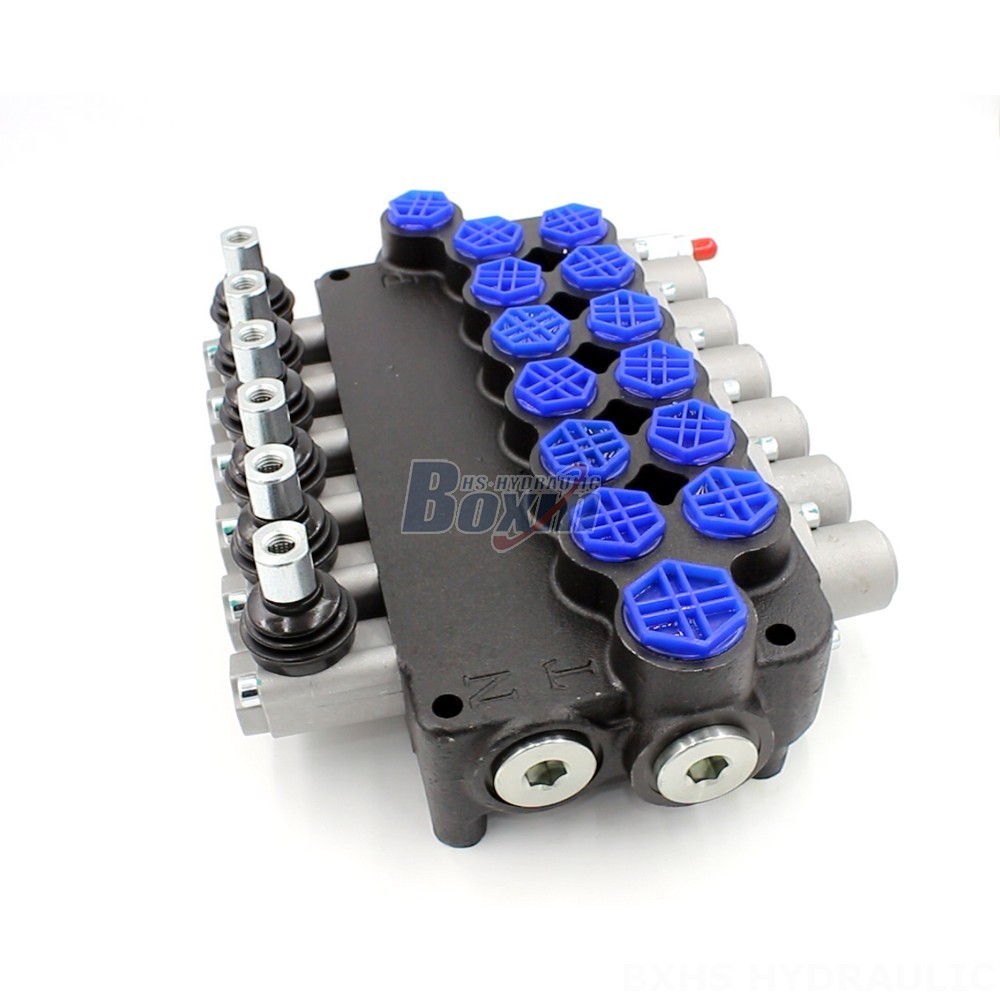

The P80-AQF-G Series Monoblock Directional Valve is a high-performance hydraulic control valve designed for a wide range of applications, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This 6-section valve features a rated flow of 80 L/min and a maximum pressure rating of 250 bar, making it ideal for demanding applications.

Série P80 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 80 L/min (21,2 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Orifice de sortie G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Dimension du raccord G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This Three Way Hydraulic Control Valve, part of the P80-AQF-G series, is a robust monoblock directional valve designed for demanding applications in industries such as material handling, construction, and earthmoving. This 6-section valve boasts a rated flow of 80 L/min and a maximum pressure rating of 250 bar, ensuring high performance and reliability. Its manual control method offers user-friendly operation. With a wide operating viscosity range of 15 to 75 mm²/s and an ambient temperature range of -40°C to +80°C, this valve is suitable for diverse operating environments. Its 6-spool design provides versatility and control for various hydraulic circuits. This valve is perfect for a wide range of machinery, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer wholesale and OEM options for this valve, catering to diverse needs. Contact us for more details and customized solutions.
