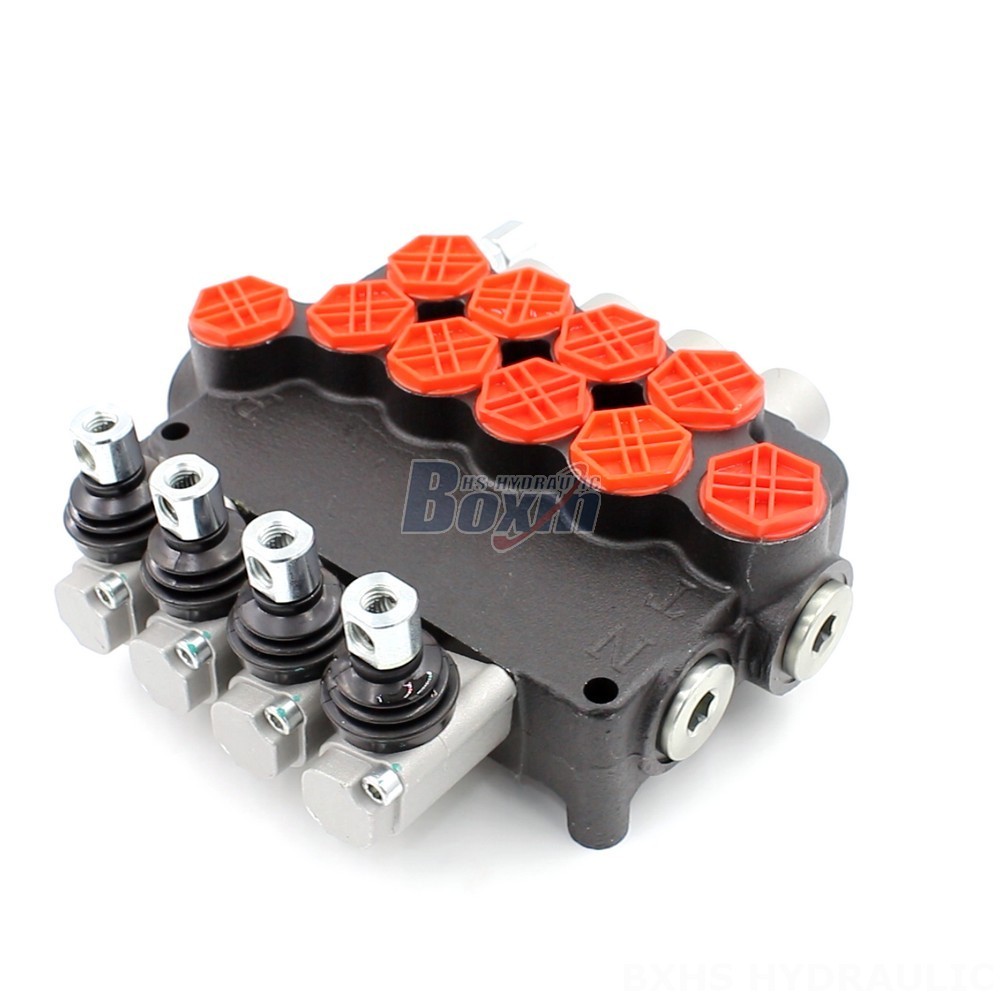

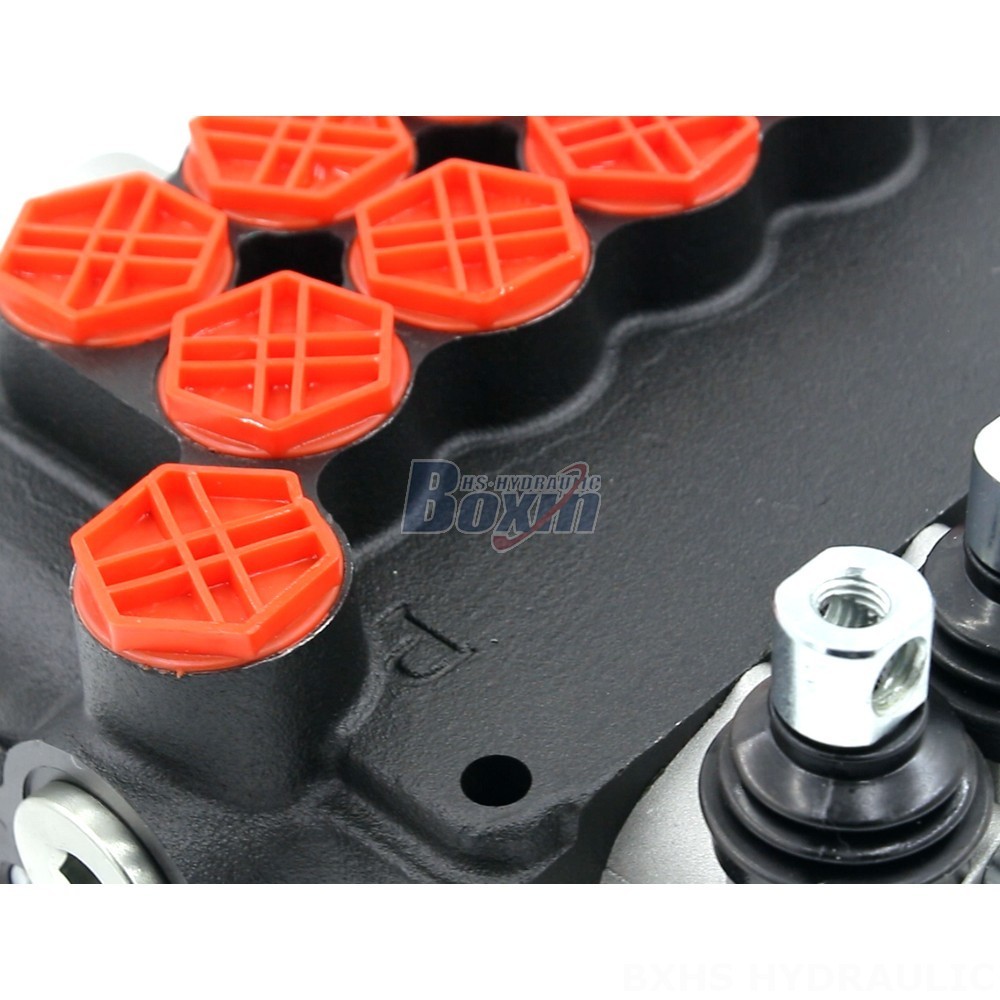

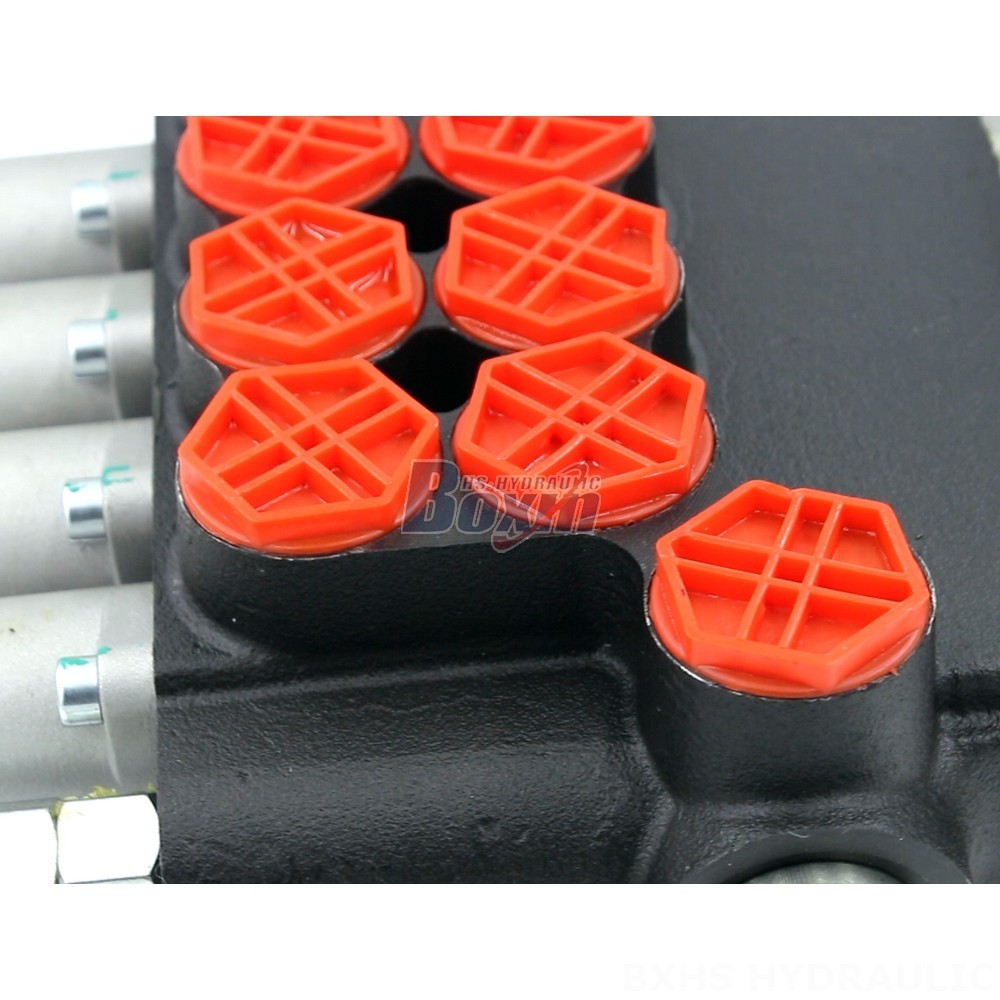

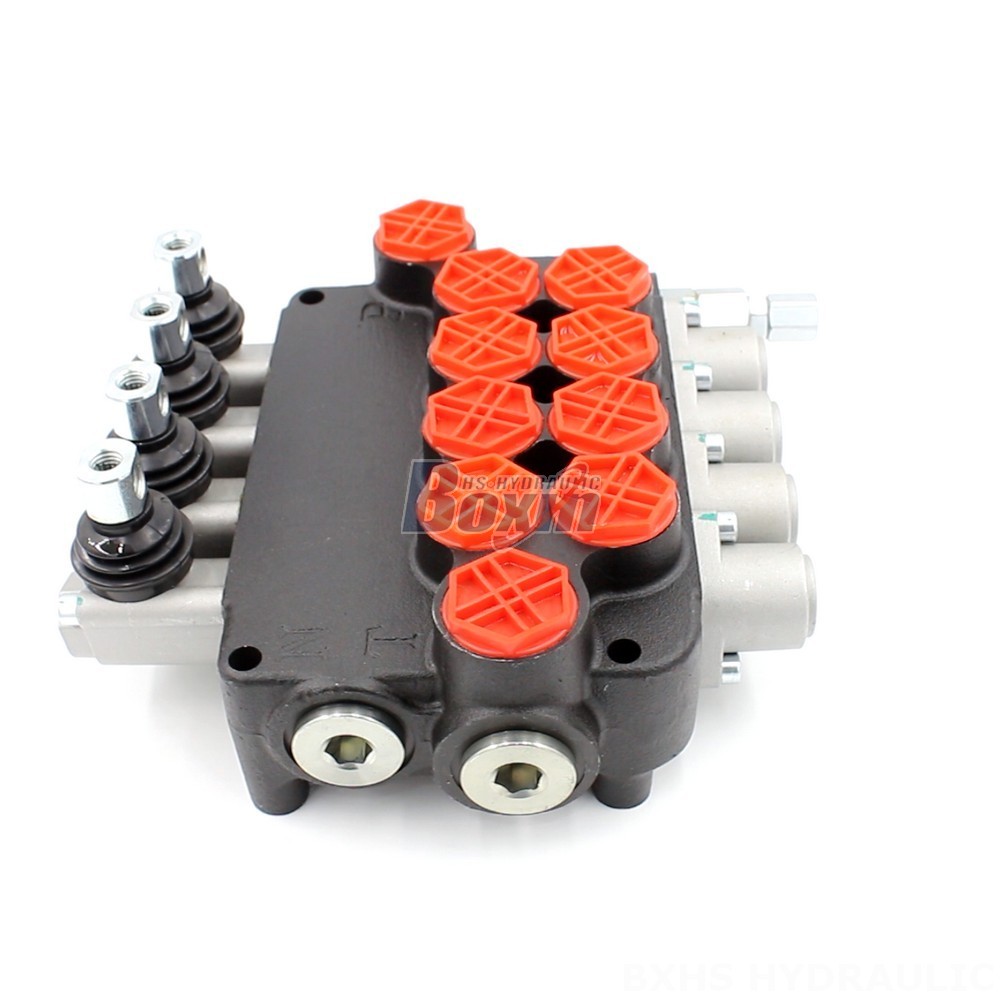

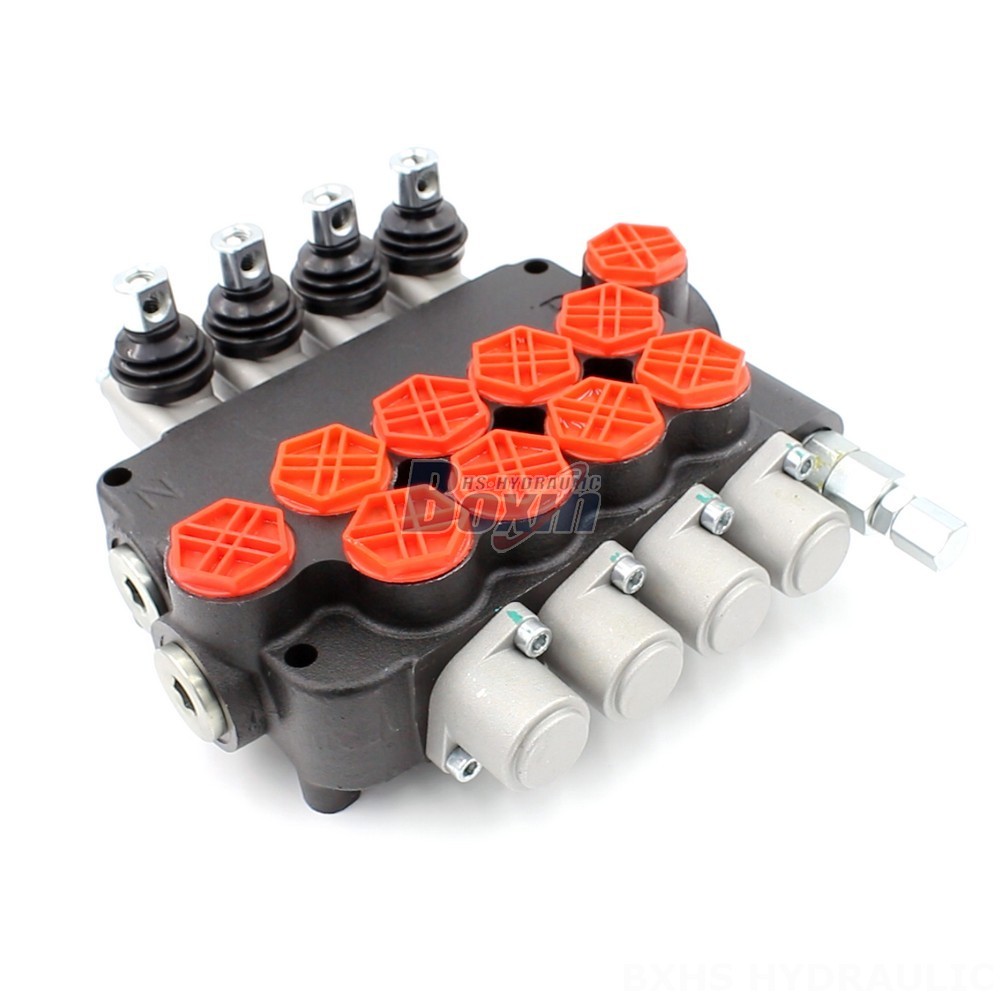

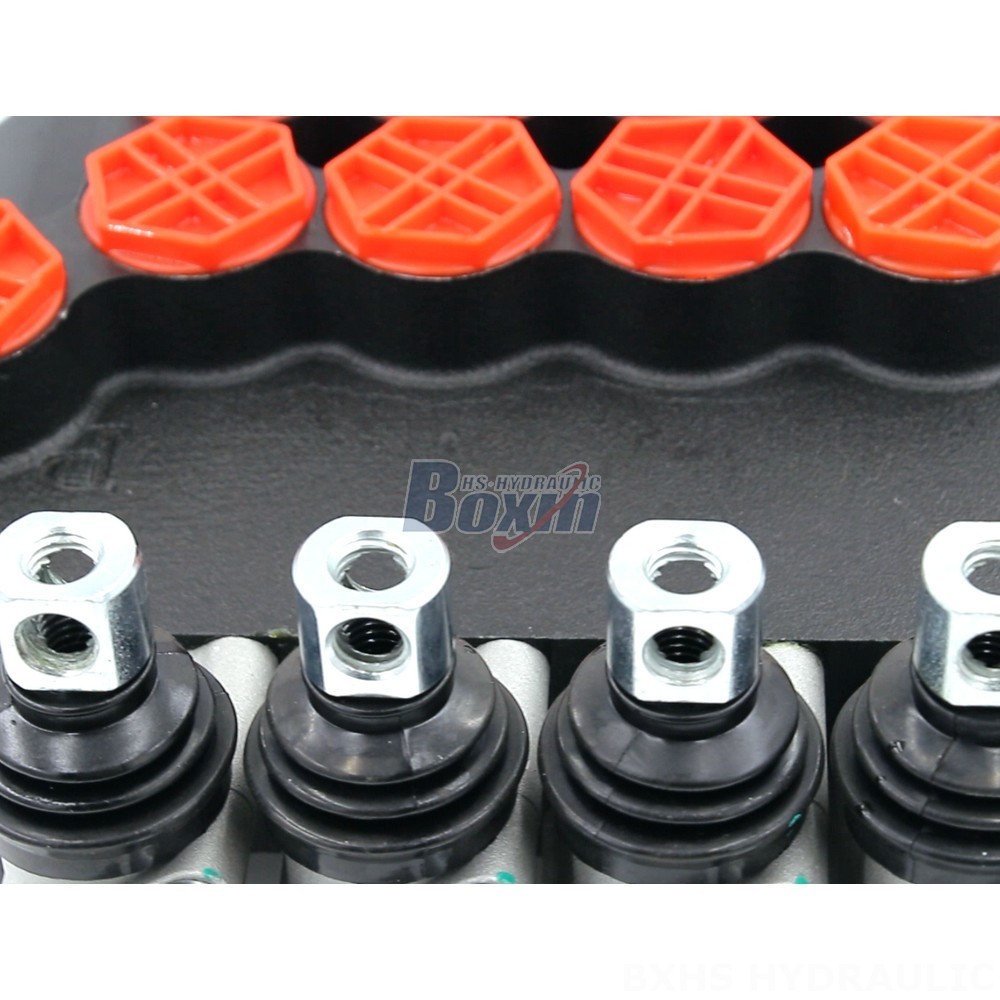

The P80 Series Hydraulic Directional Valve is a high-performance, 4-section monoblock valve designed for heavy-duty applications in construction, material handling, and industrial vehicles. It features manual control, a rated flow of 80 L/min, and a max pressure of 250 bar. This versatile valve is customizable to meet specific requirements and is available direct from the factory.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series Hydraulic Directional Valve is a powerful and reliable solution for controlling hydraulic systems in various applications. It's a 4-section monoblock valve with manual control, providing precise and efficient operation. The valve boasts a high flow rate of 80 L/min, making it suitable for demanding applications. Its maximum pressure rating of 250 bar ensures robust performance under pressure. This valve is ideal for a wide range of applications, including telehandlers, forklifts, excavators, wheel loaders, and other construction and industrial equipment. It's customizable to meet specific requirements and is available direct from the factory.
