Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1157 personnes consultent ce produit

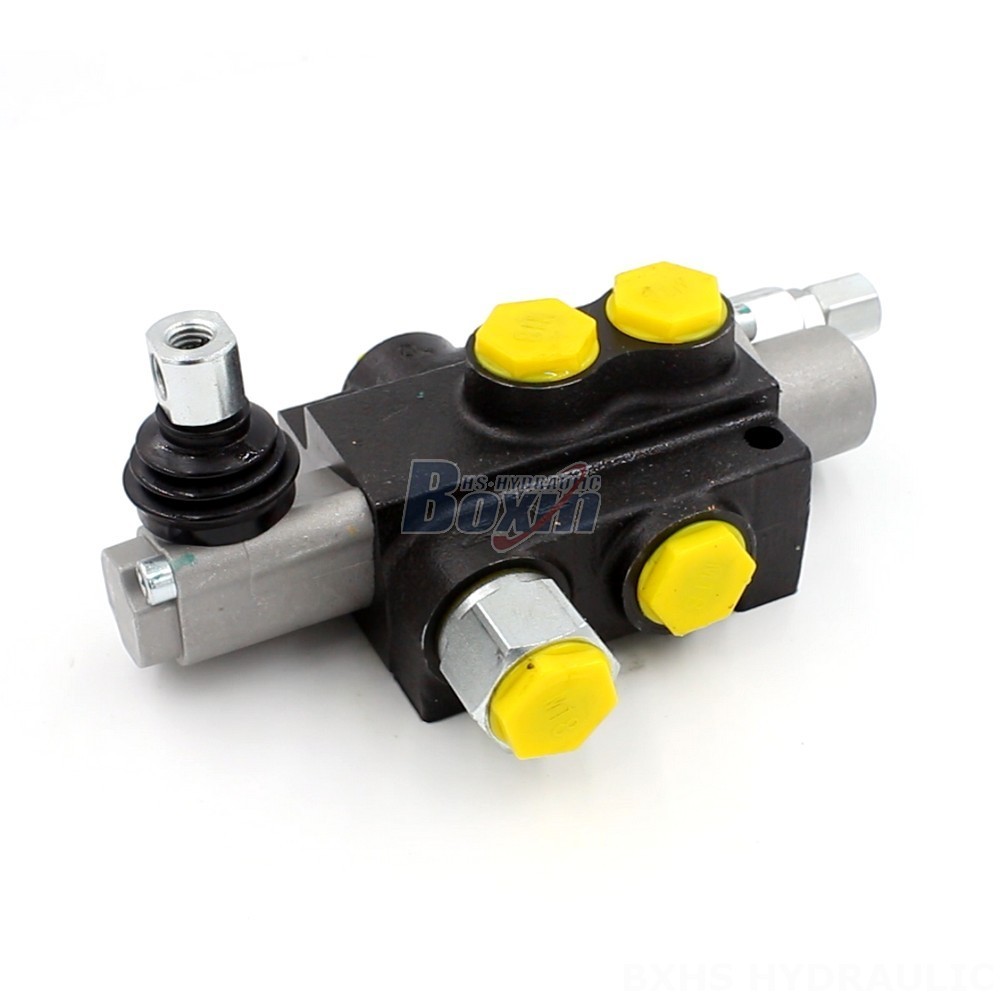

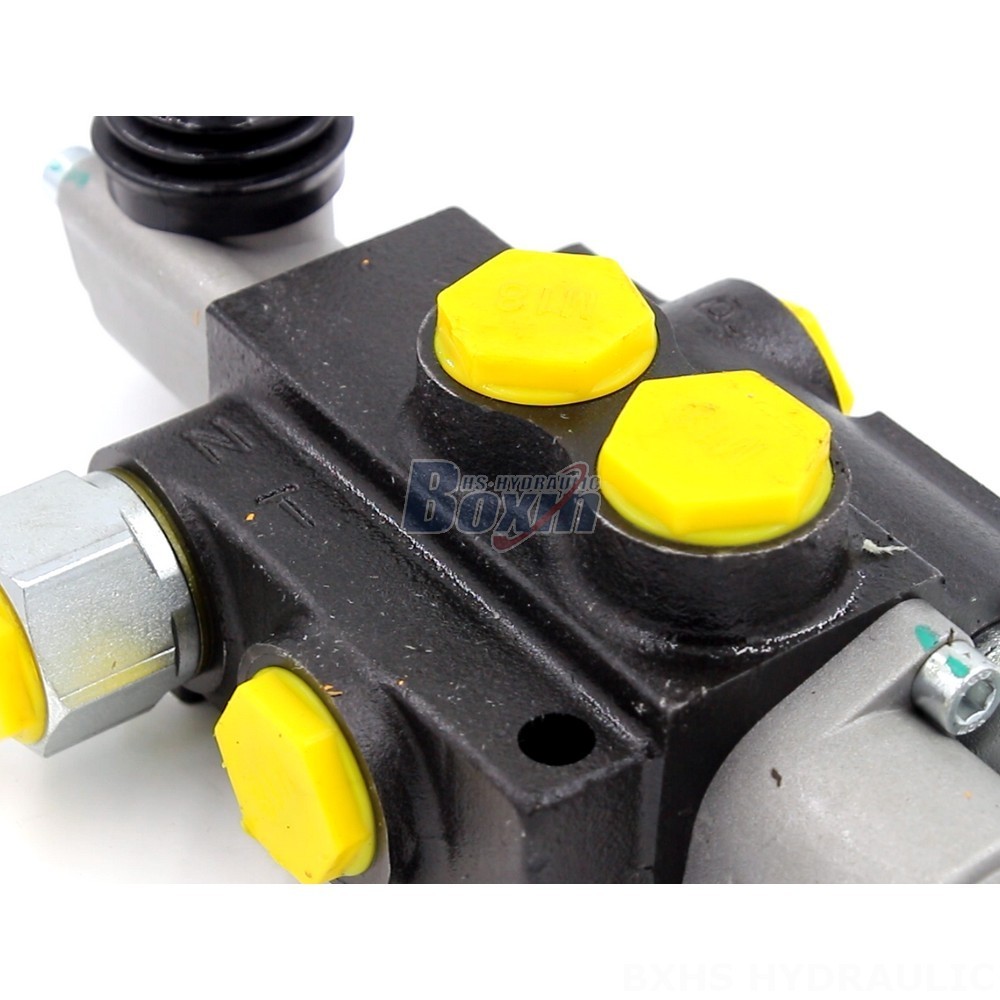

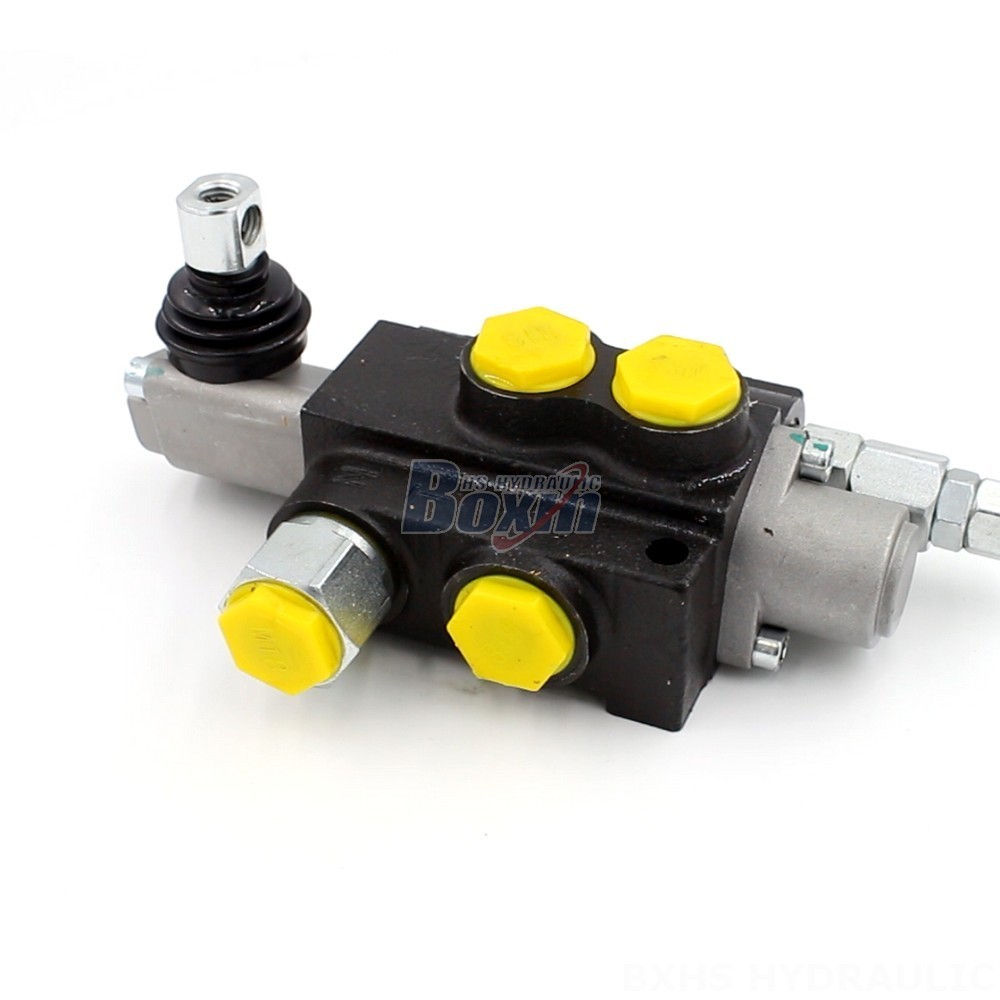

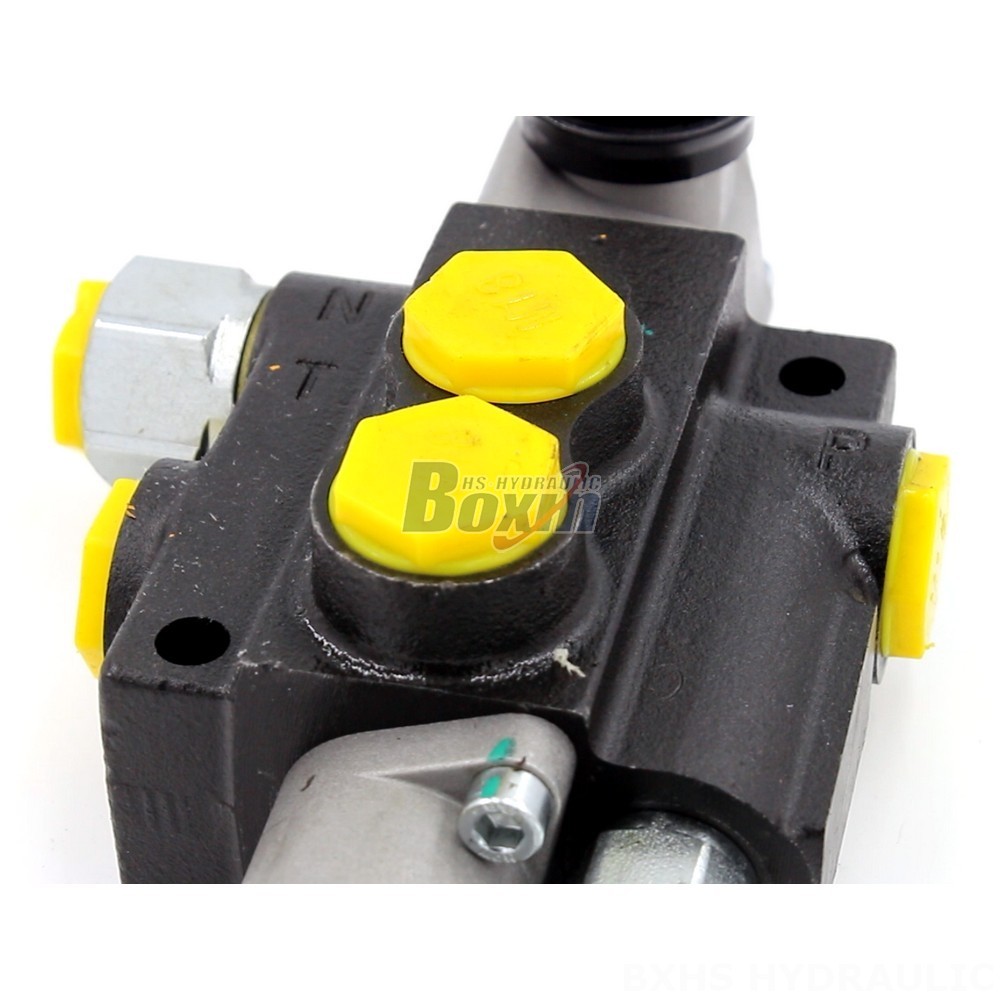

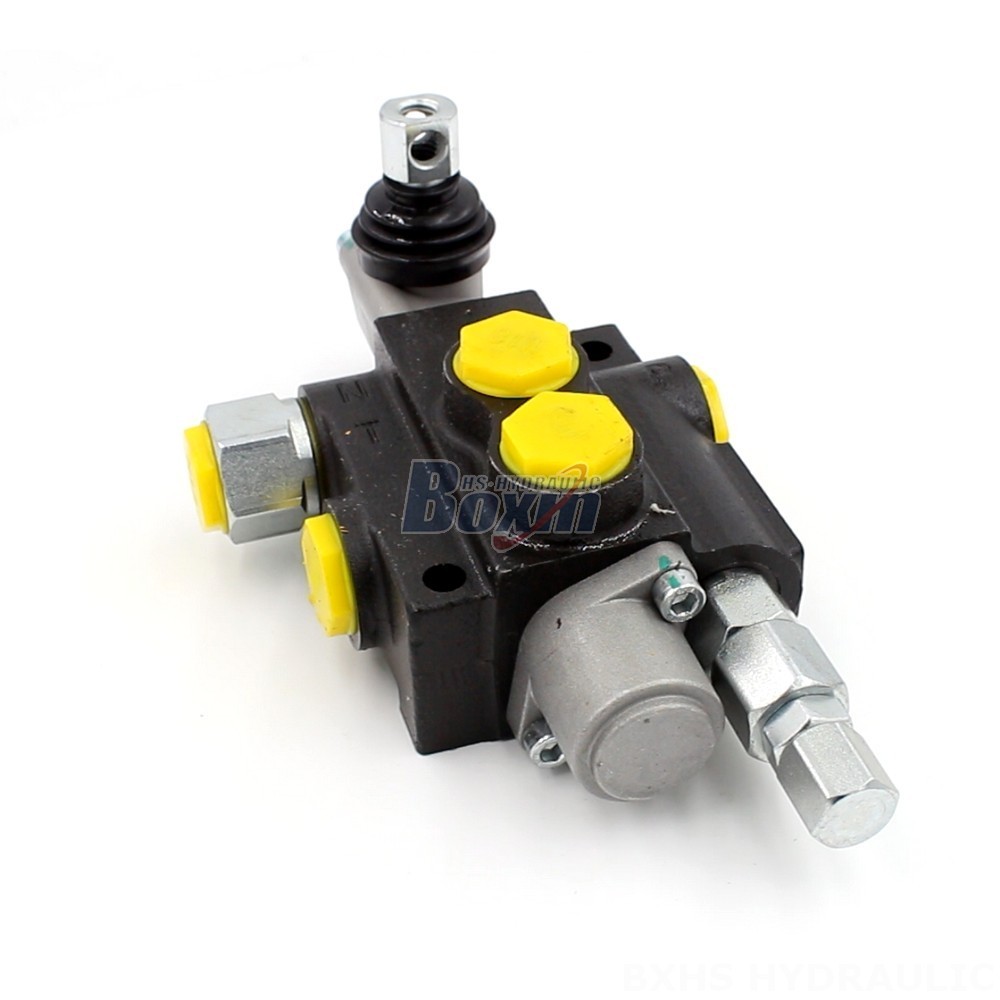

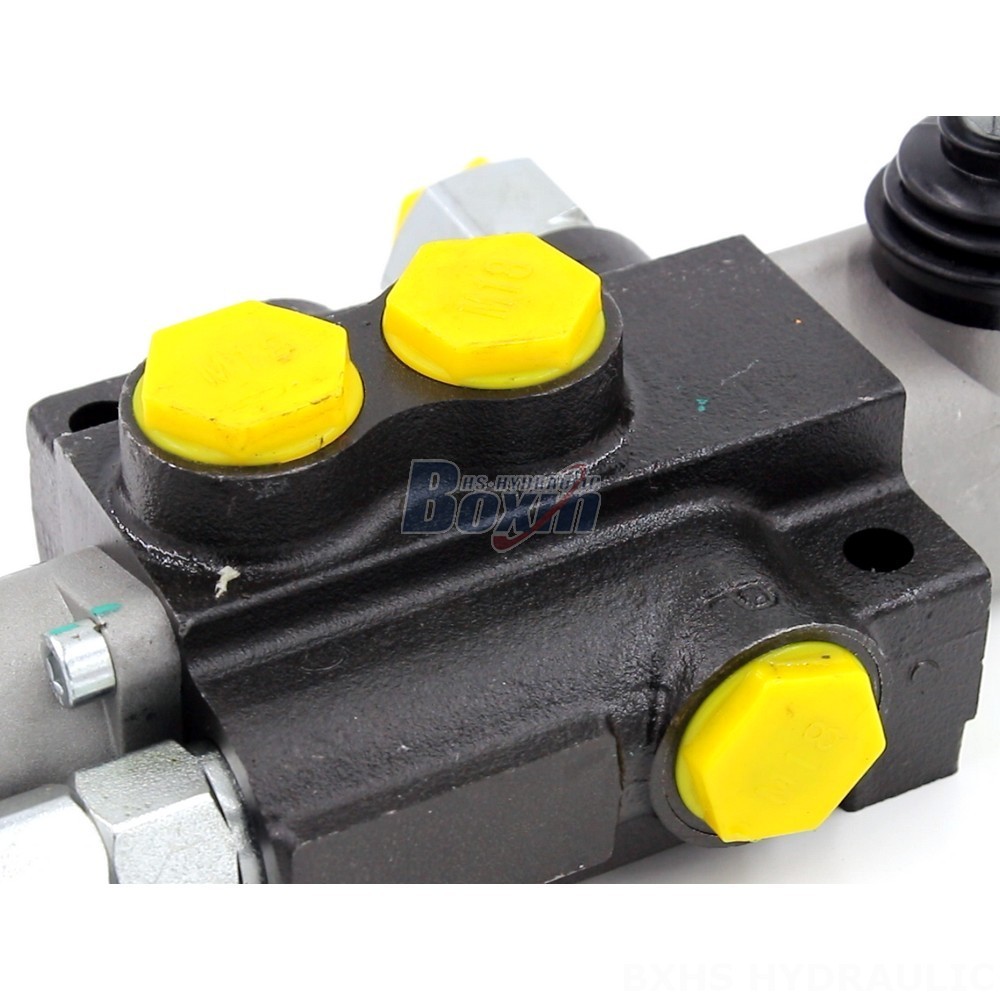

The P40J Hydraulic Directional Control Valve is a robust and reliable monoblock valve designed for a variety of applications, including material handling, construction, and agriculture. This manual control valve features a 40 L/min flow rate and a 250 bar maximum pressure, making it suitable for various hydraulic systems.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40J Hydraulic Directional Control Valve is a single-section monoblock valve with a manual control method. It features a 40 L/min flow rate and a 250 bar maximum pressure, making it ideal for applications requiring reliable and efficient hydraulic control. The valve operates within a viscosity range of 15-75 mm²/s and is designed to withstand ambient temperatures from -40°C to +80°C. This versatile valve is suitable for a wide range of applications including material handling equipment like telehandlers, forklifts, and stackers, as well as construction and earthmoving equipment like cranes, motor graders, excavators, and skid steer loaders. It's also suitable for agricultural equipment and industrial vehicles.
