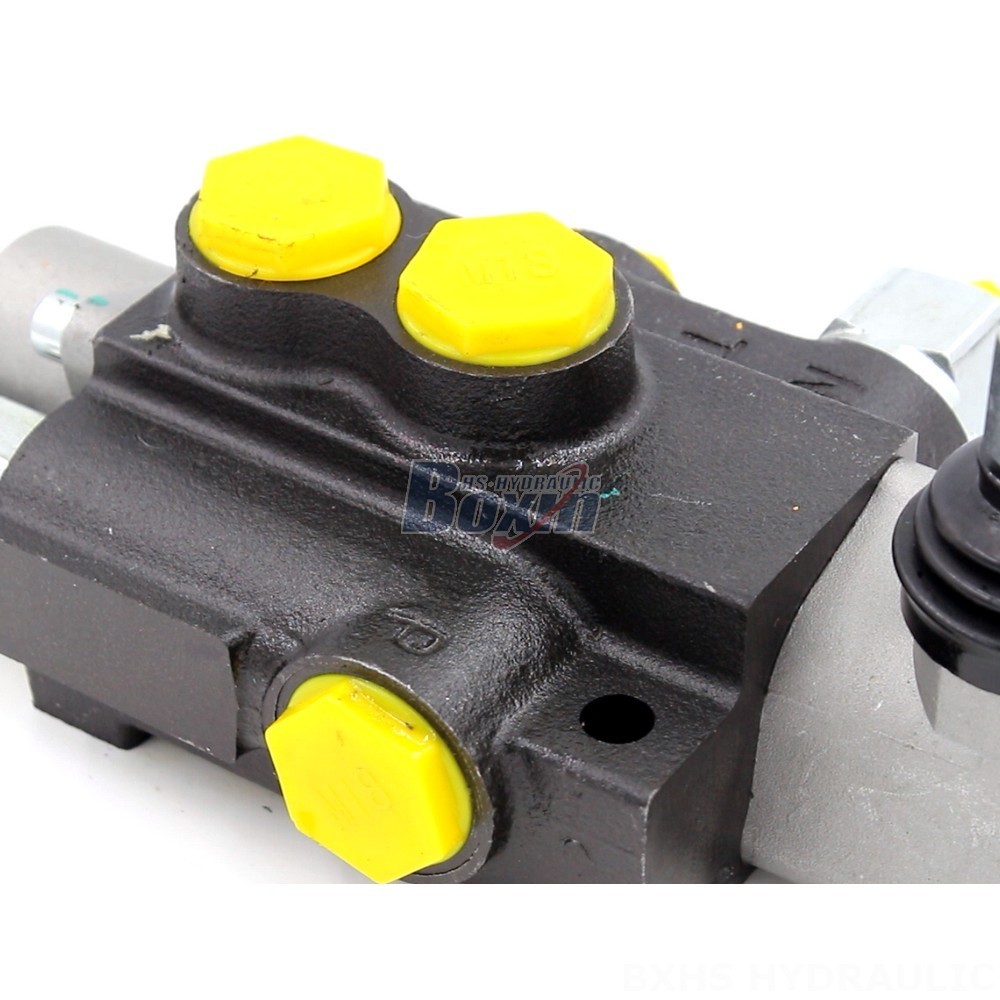

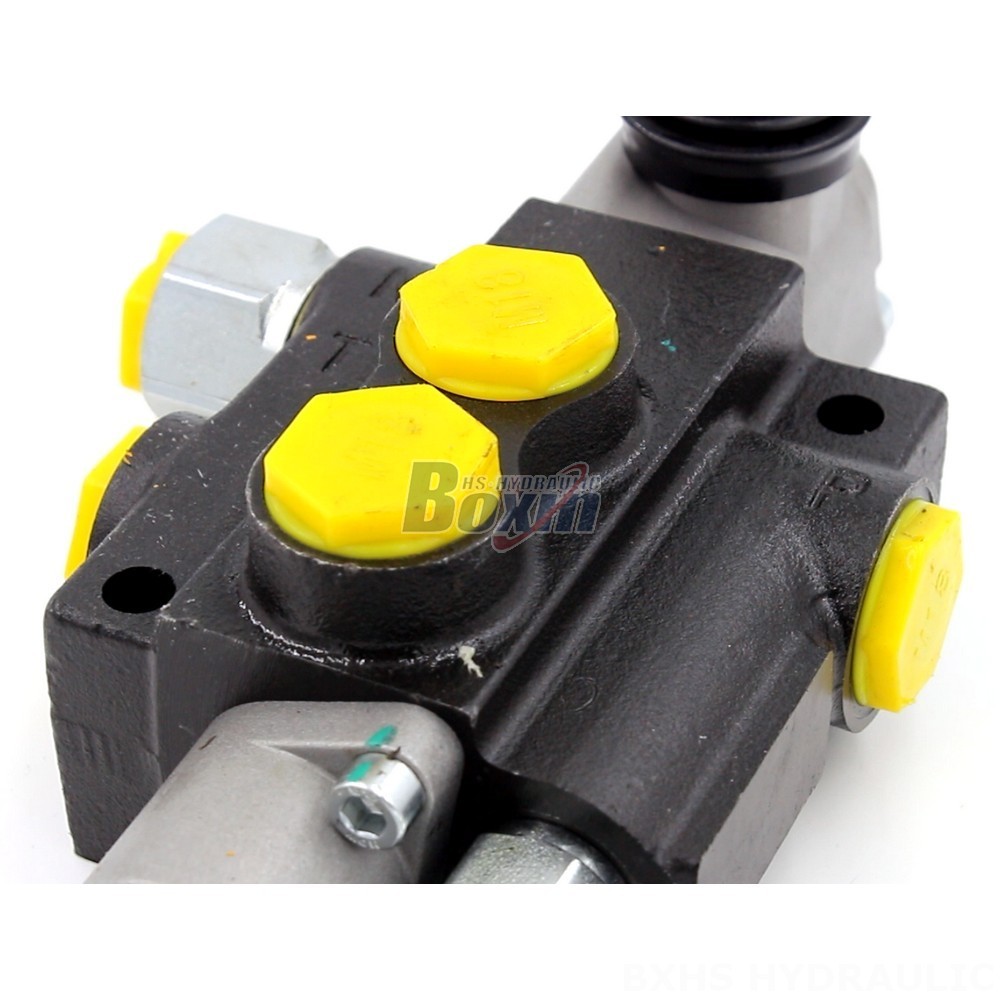

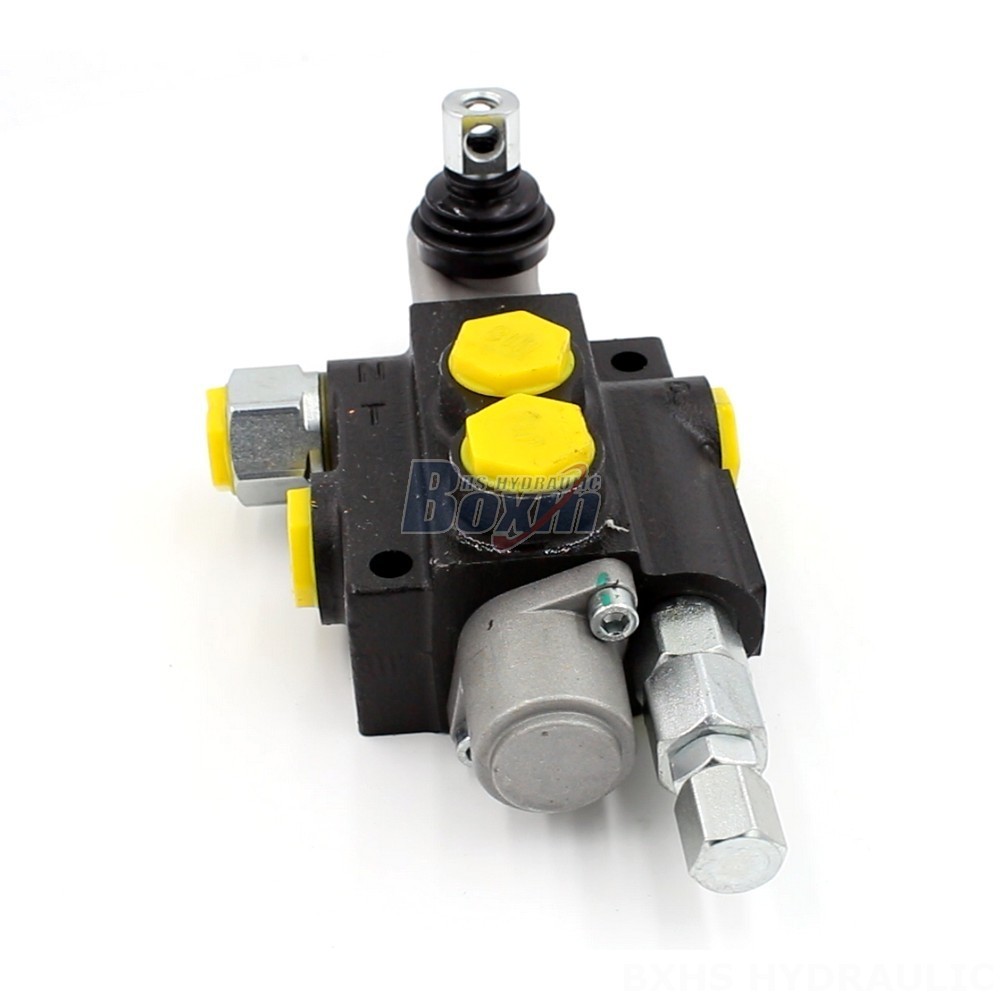

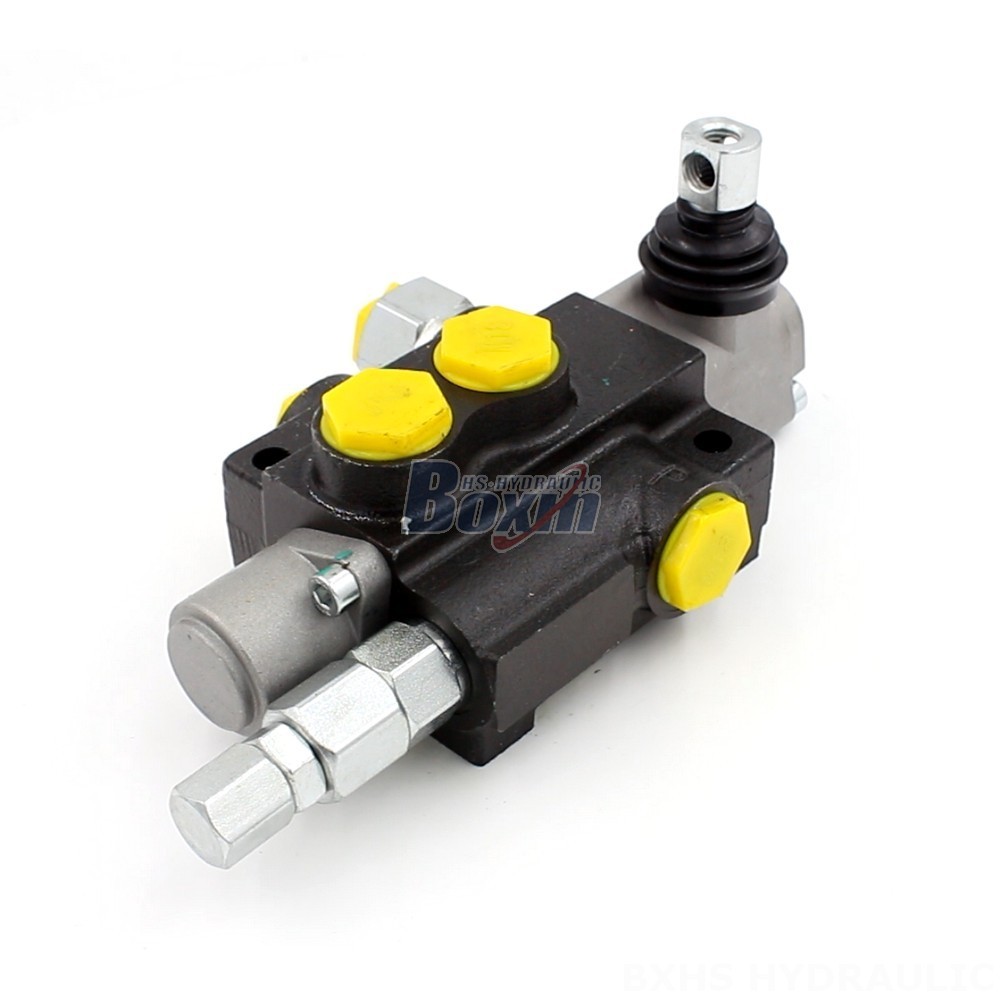

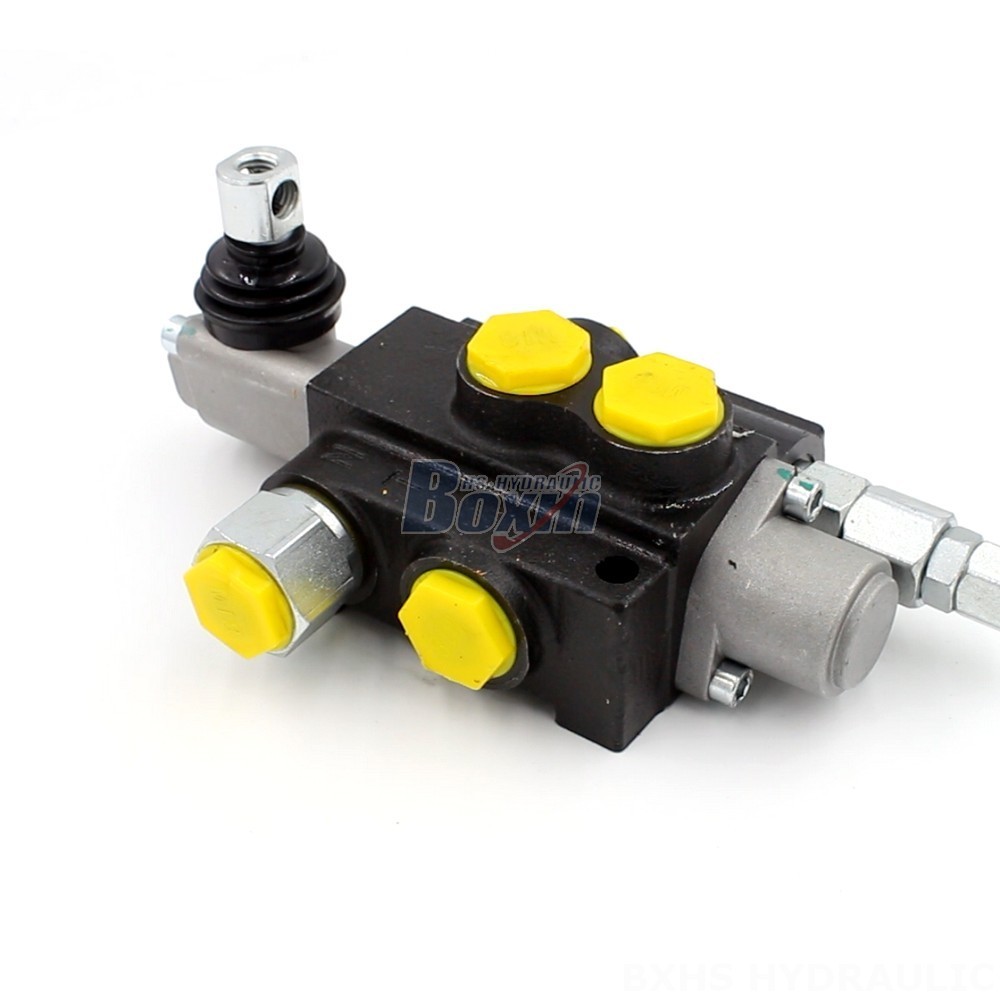

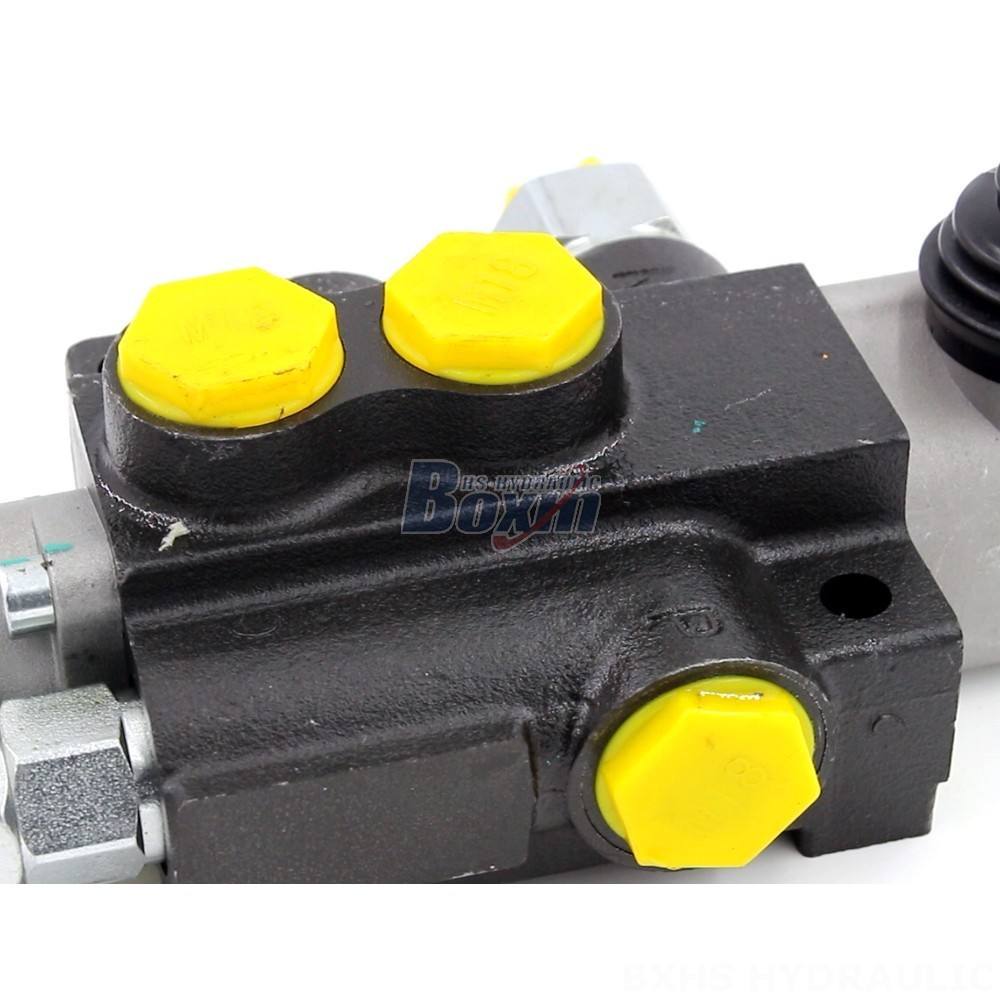

The Excavator Hydraulic Joystick Operation Valve P40J is a durable and reliable monoblock valve designed for use in a variety of construction, material handling, and industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in telehandlers, forklifts, mini-excavators, and other equipment.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Excavator Hydraulic Joystick Operation Valve P40J is a high-performance monoblock valve designed for use in demanding applications. This valve features a compact and robust design, making it ideal for use in a variety of construction, material handling, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling heavy loads and demanding operating conditions. The P40J valve is available with a variety of spool configurations and control options to meet your specific application requirements. Its durable construction and reliable performance make it a popular choice for users who demand the best in hydraulic valve technology.
