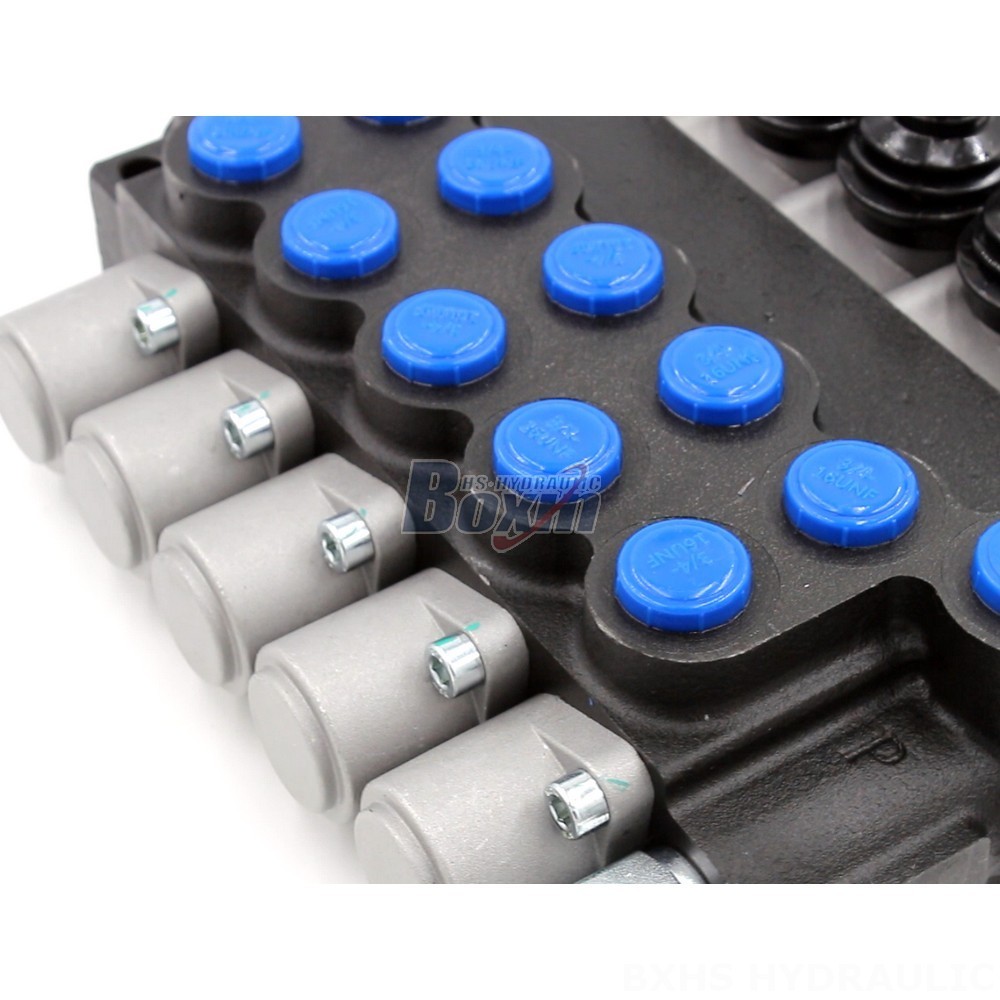

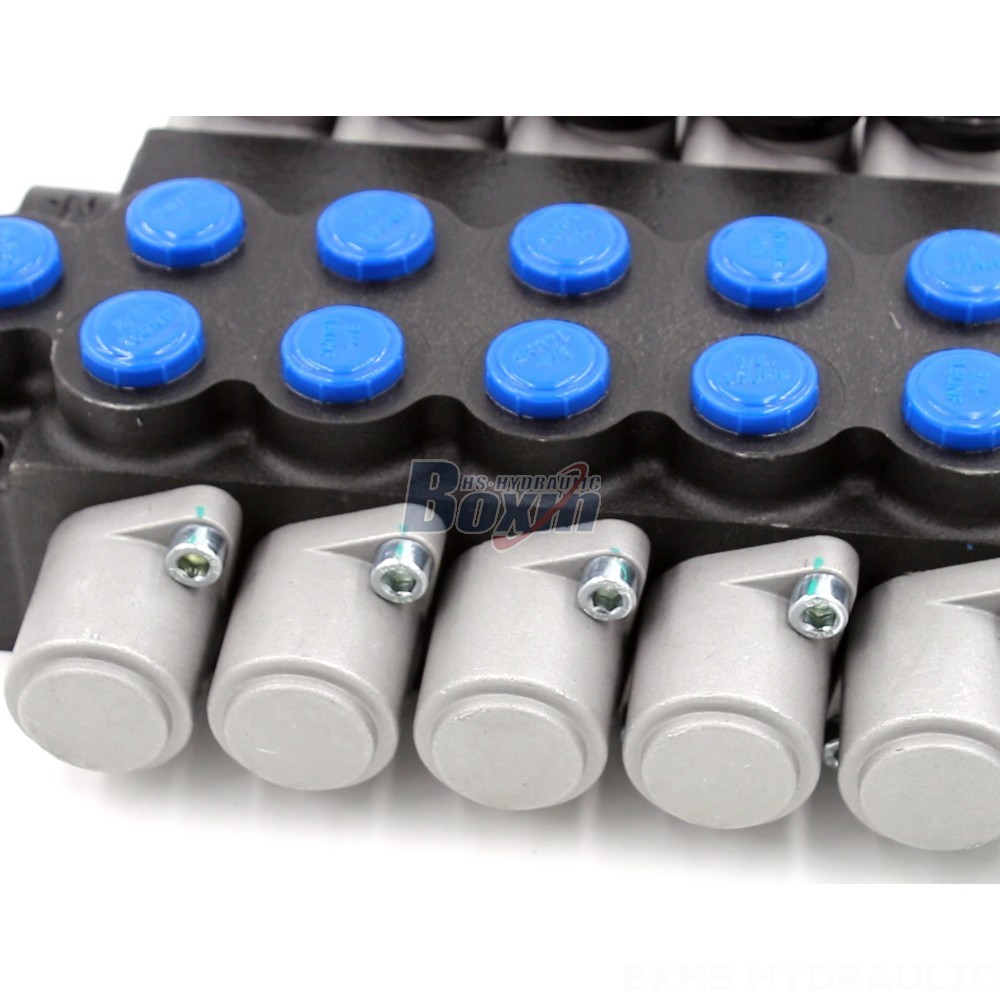

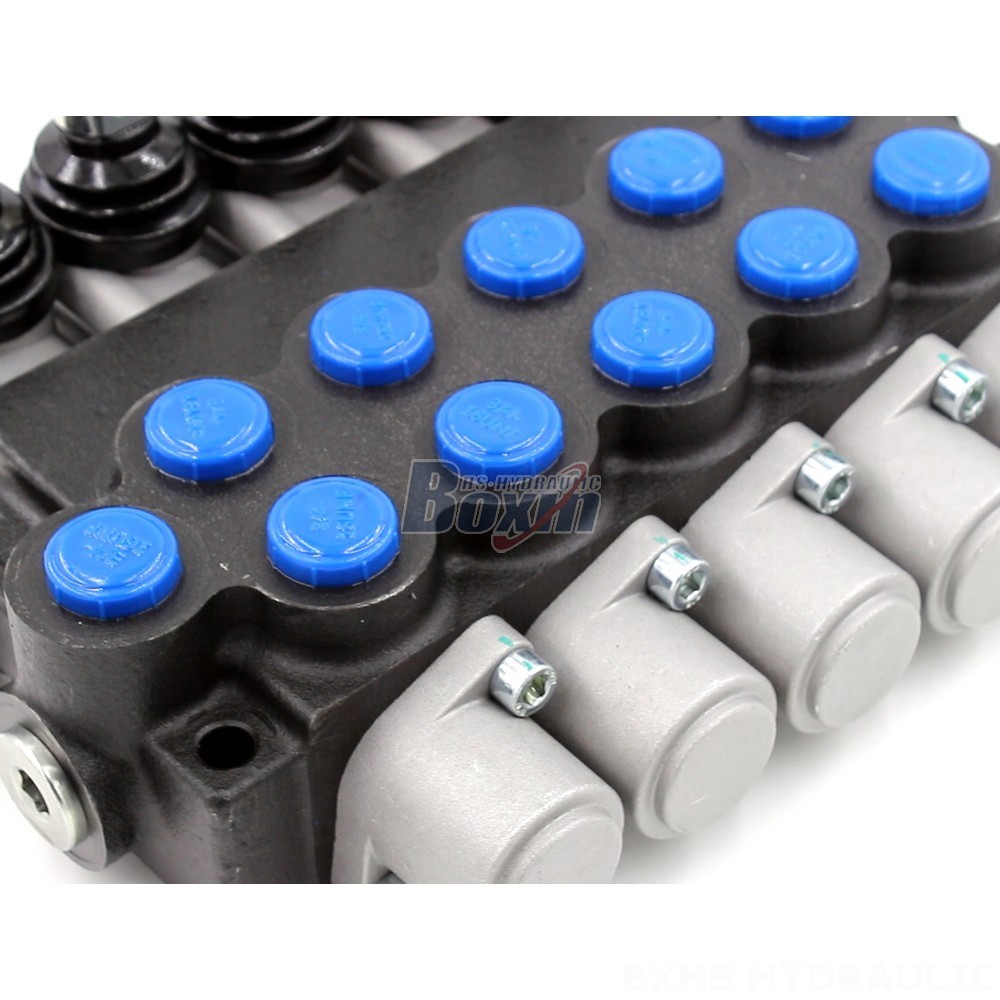

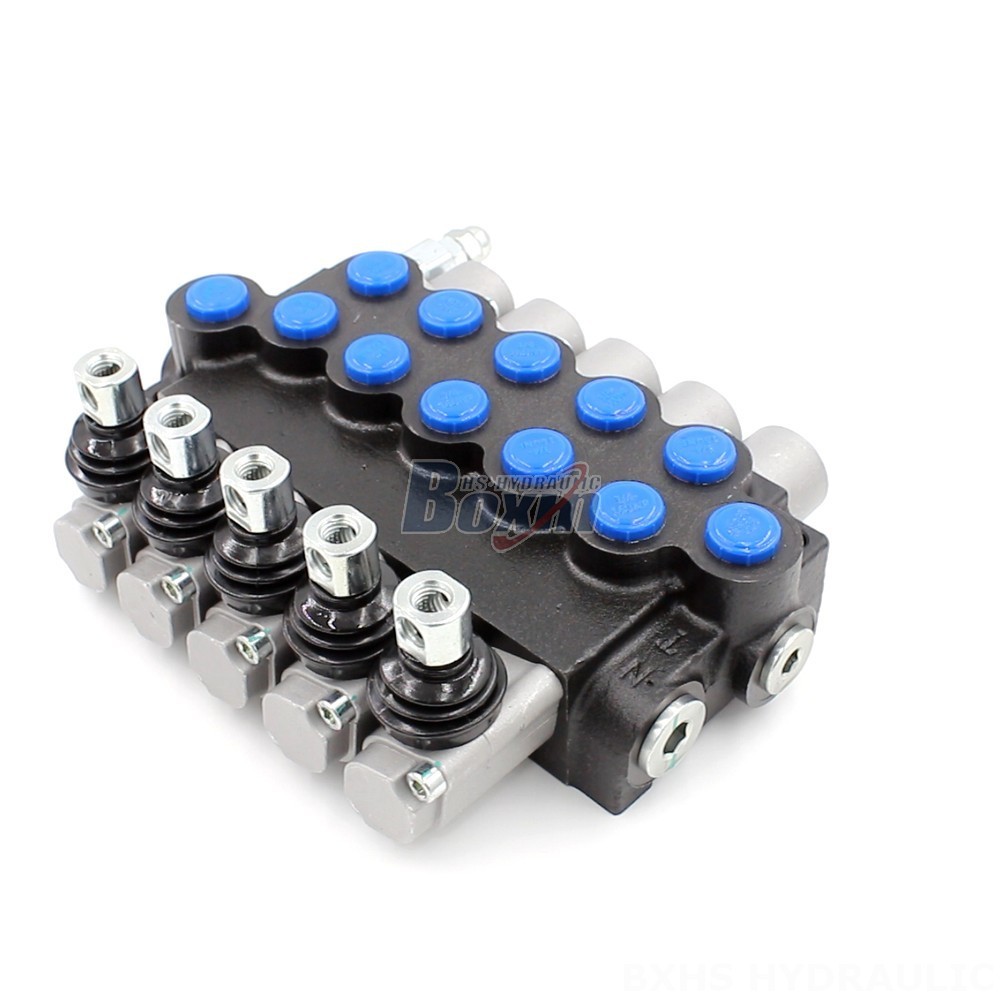

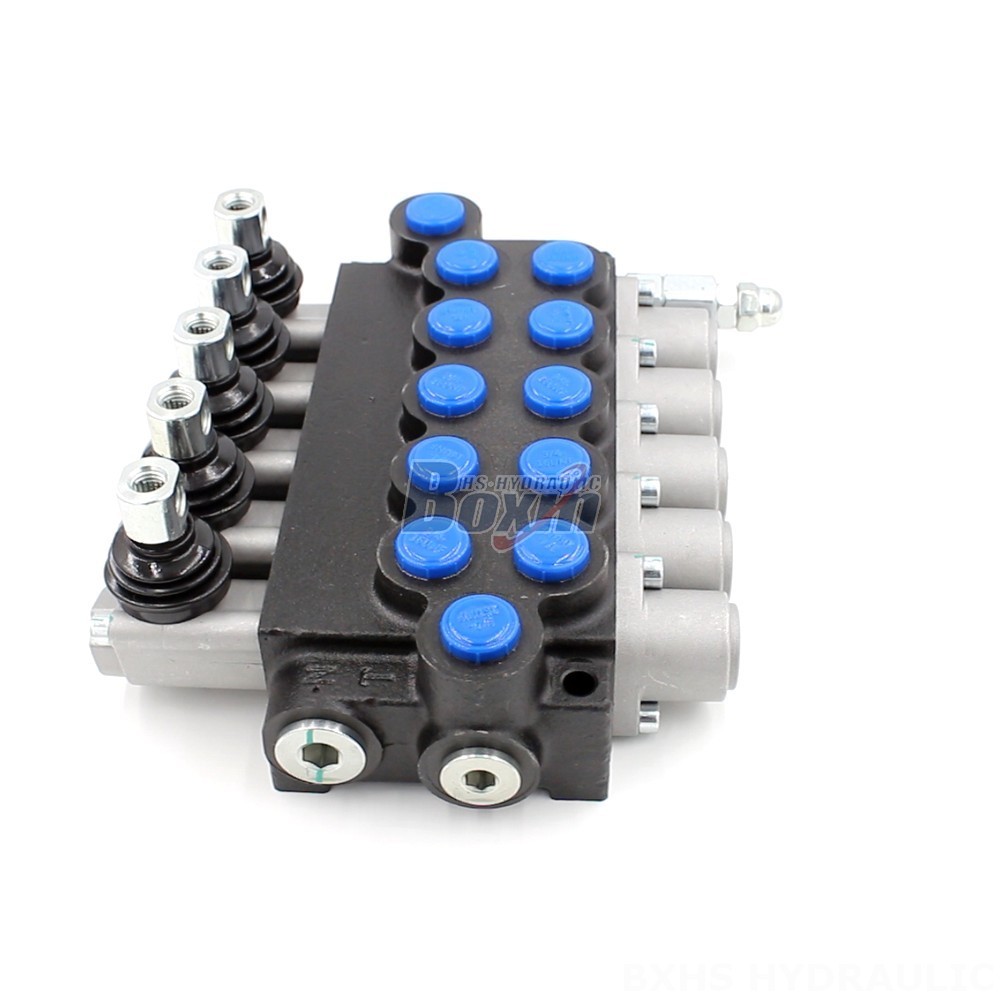

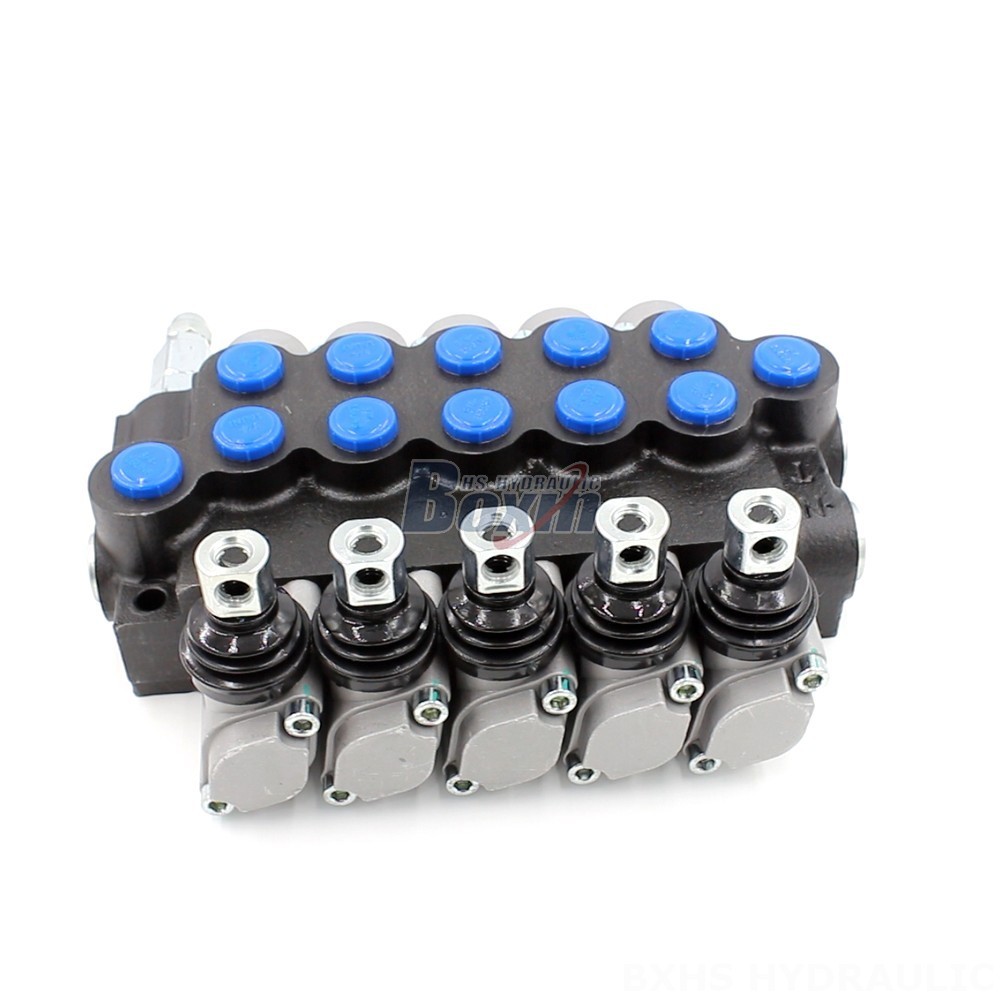

The P40-U78 5-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of applications. It features a robust monoblock construction, 5-spool design, and a rated flow of 40 L/min. The valve is suitable for use with hydraulic systems operating at pressures up to 250 bar and temperatures from -40°C to +80°C.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U78 5-Spool Hydraulic Directional Valve is a versatile and reliable valve that is ideal for use in a variety of applications. Its key features include:
- Monoblock construction for strength and durability
- 5-spool design for precise control
- Rated flow of 40 L/min for high performance
- Max pressure of 250 bar for demanding applications
- Operating viscosity range of 15 - 75 mm²/s for compatibility with a wide range of fluids
- Ambient temperature range of -40°C to +80°C for use in harsh environments
- Suitable for use in a variety of applications, including MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES
