Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
875 personnes consultent ce produit

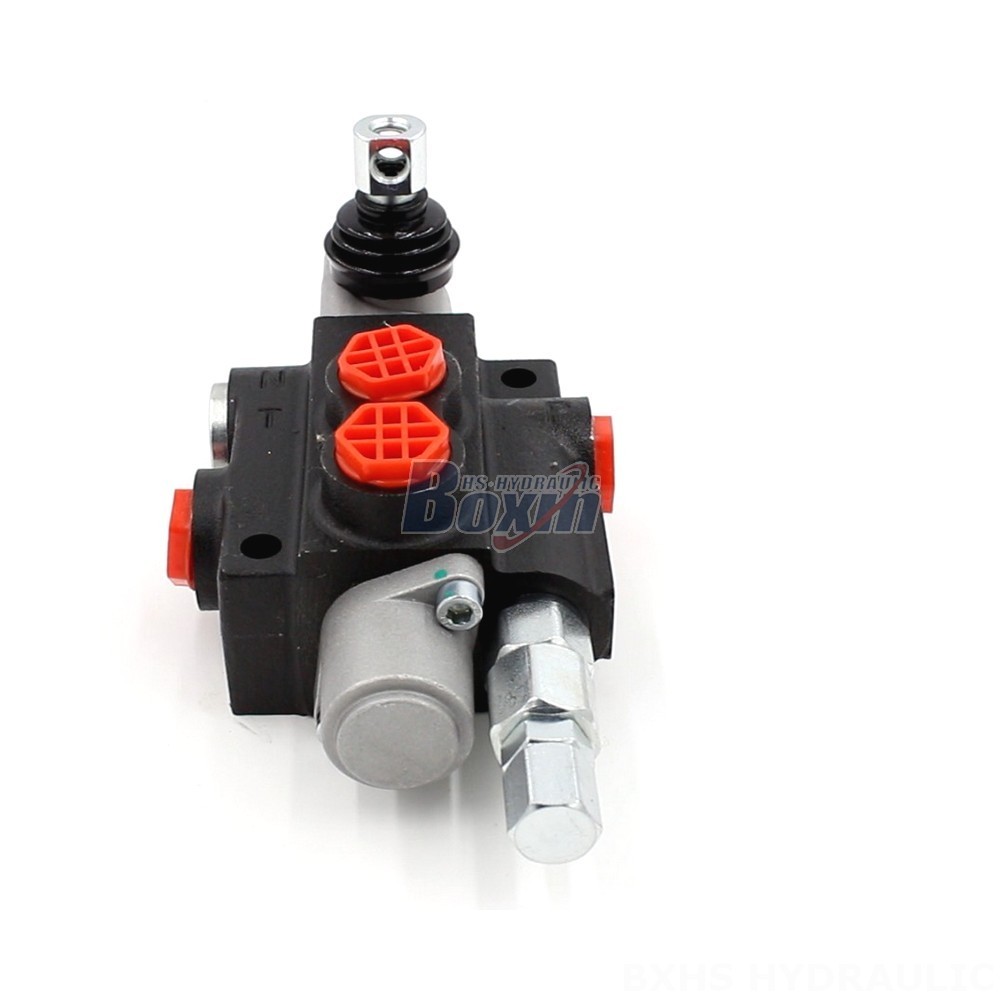

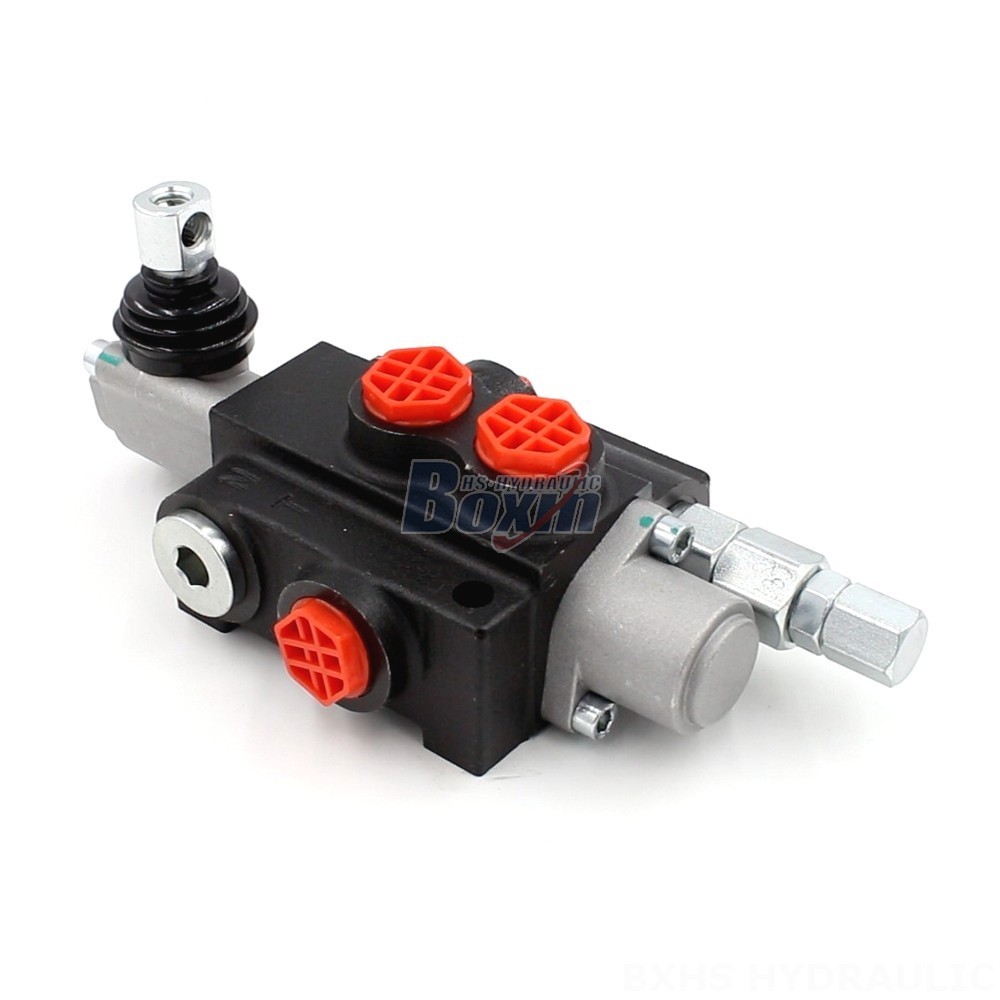

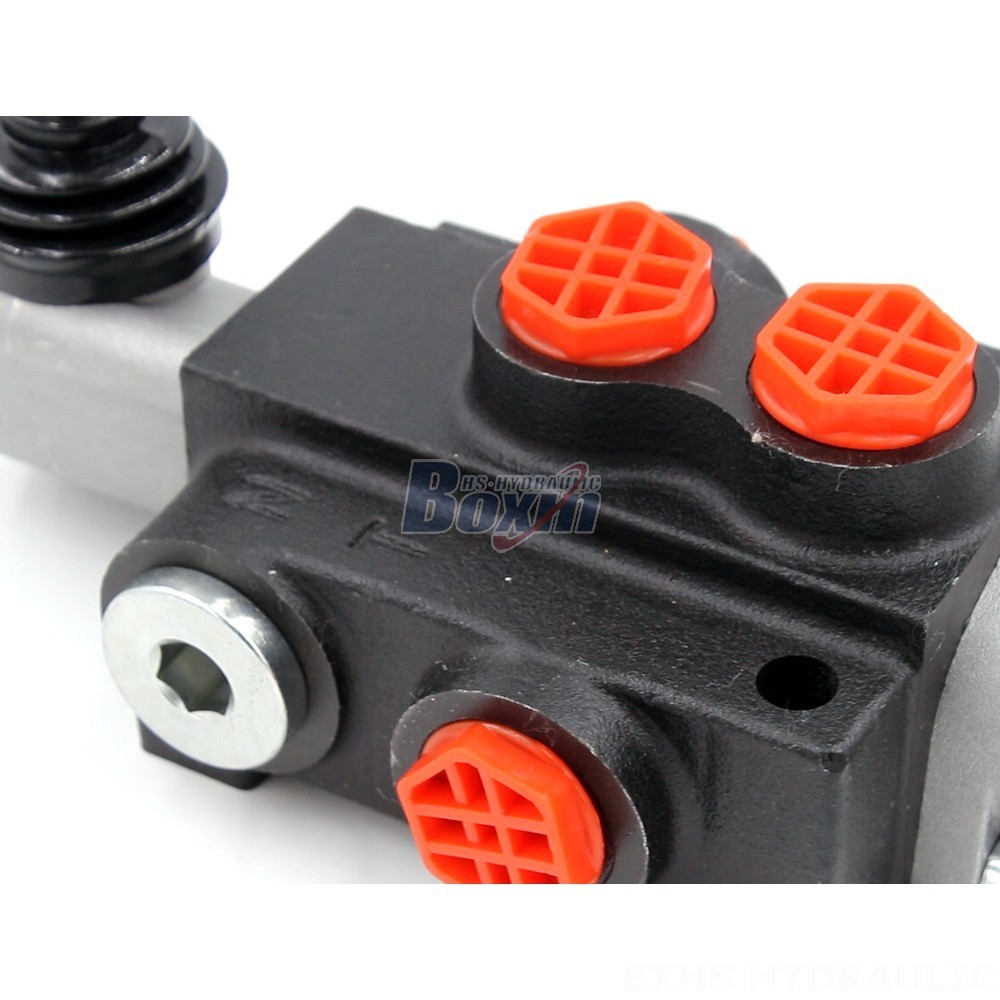

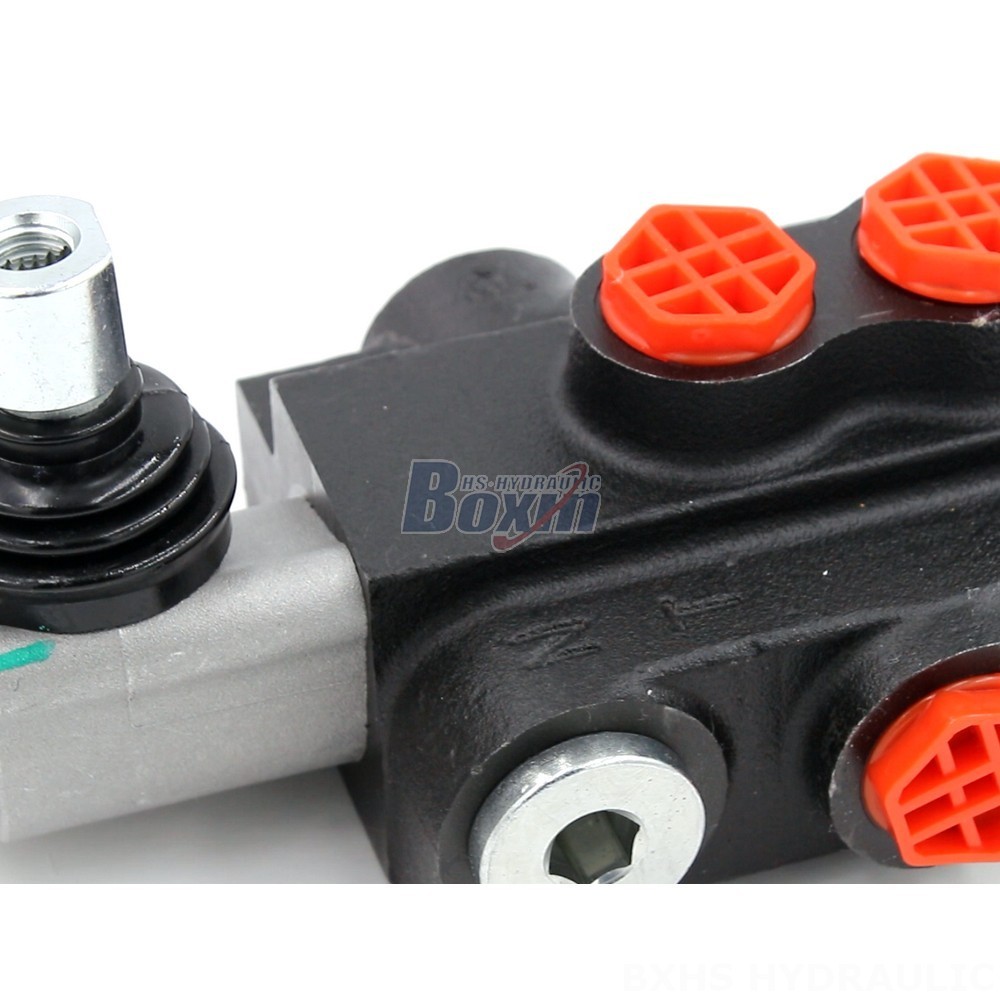

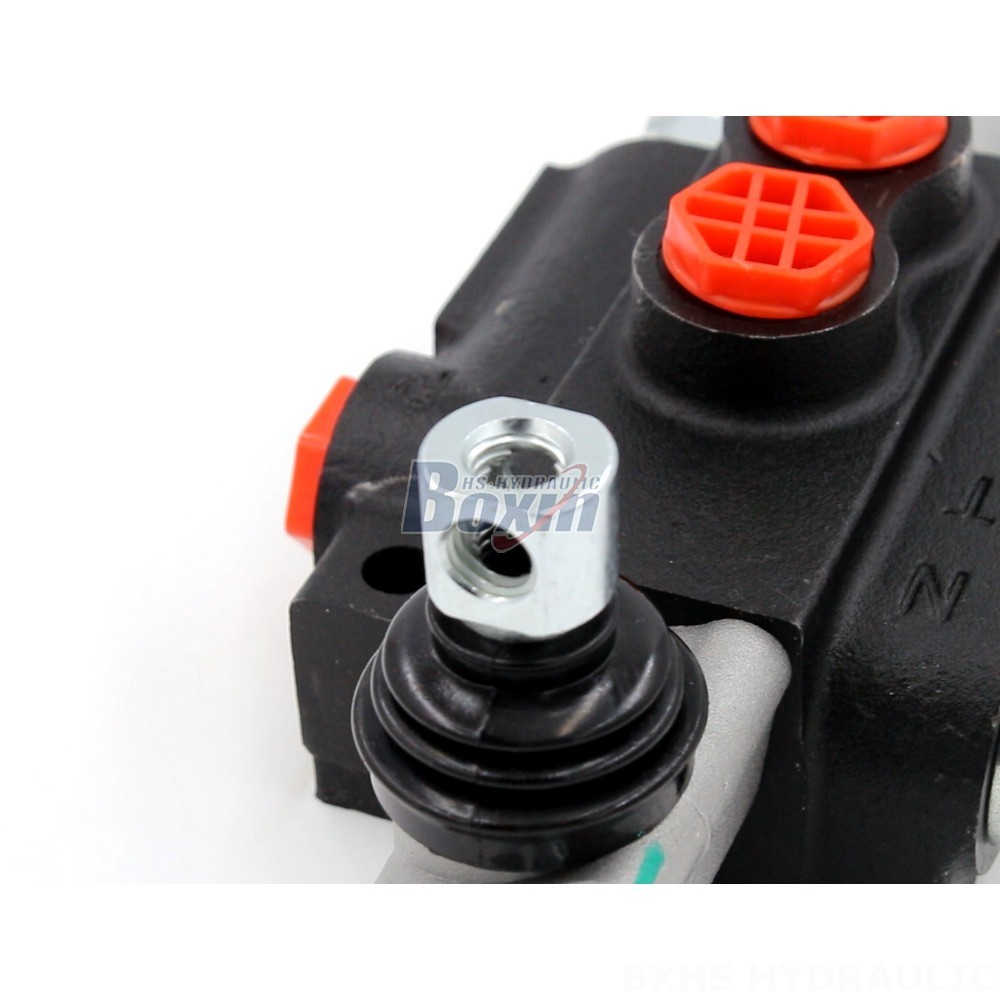

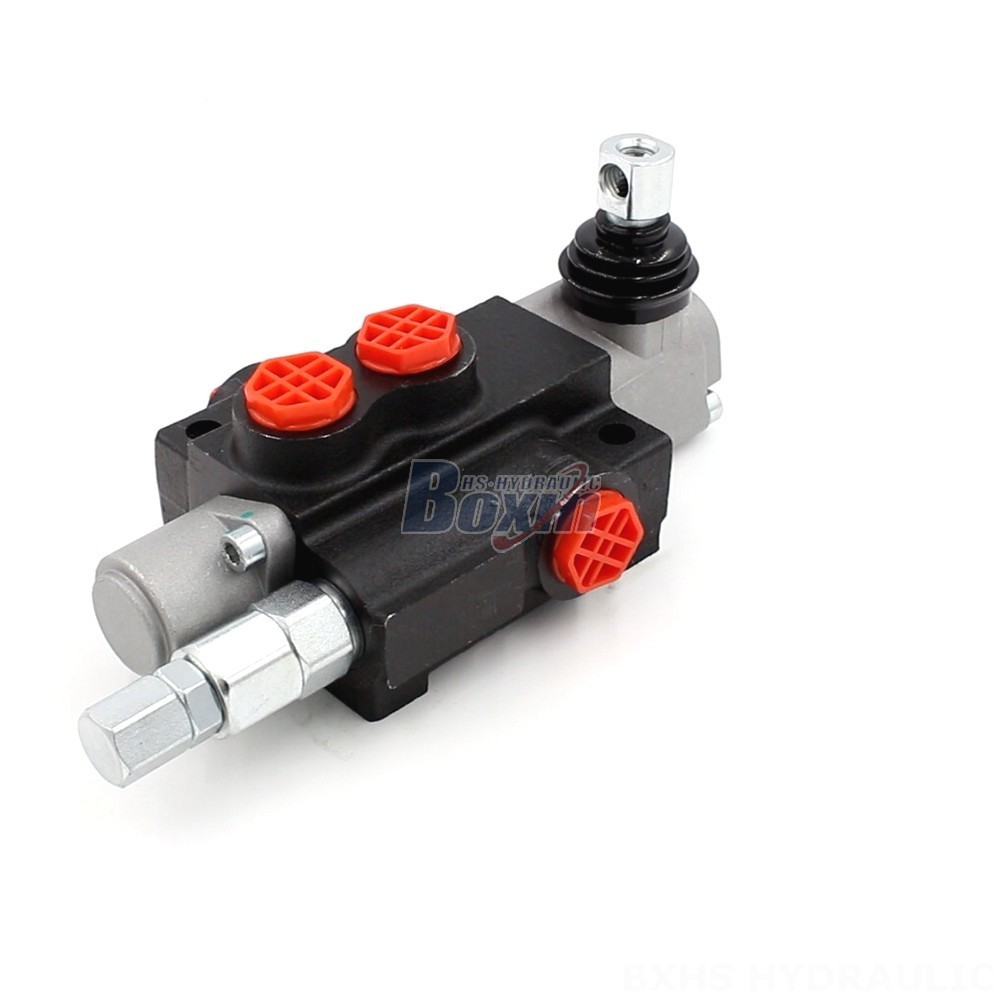

The P40-G38 Valve is a highly customizable hydraulic valve designed to meet the specific requirements of various applications. With its manual control, monoblock structure, and tailored hydraulic solutions, this valve offers exceptional performance and reliability.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38 Valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its single spool design provides precise flow control, making it suitable for a wide range of applications. As a leading manufacturer of hydraulic products, we offer OEM, ODM, and private label services. Our team of experts can work closely with you to design and manufacture hydraulic solutions that meet your exact specifications. Whether you require customized components or complete systems, we have the expertise and capabilities to deliver tailored hydraulic solutions that exceed your expectations.
