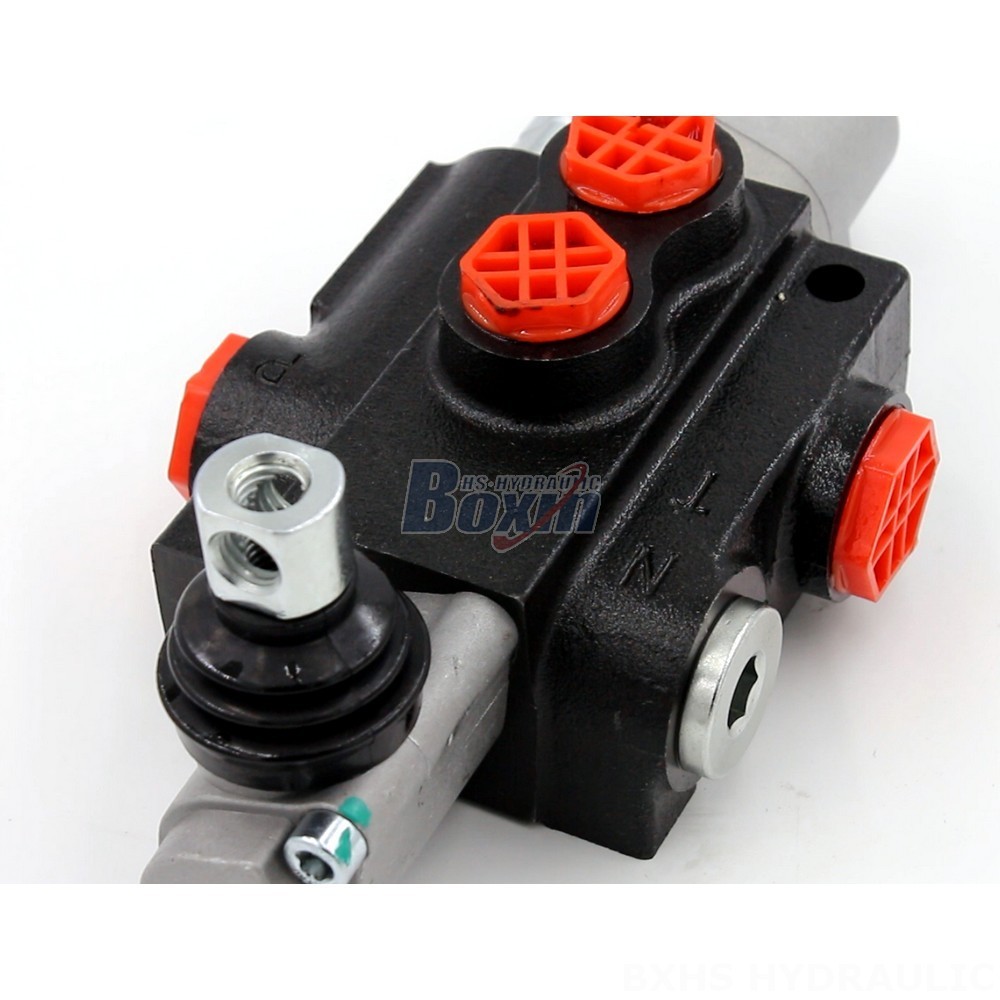

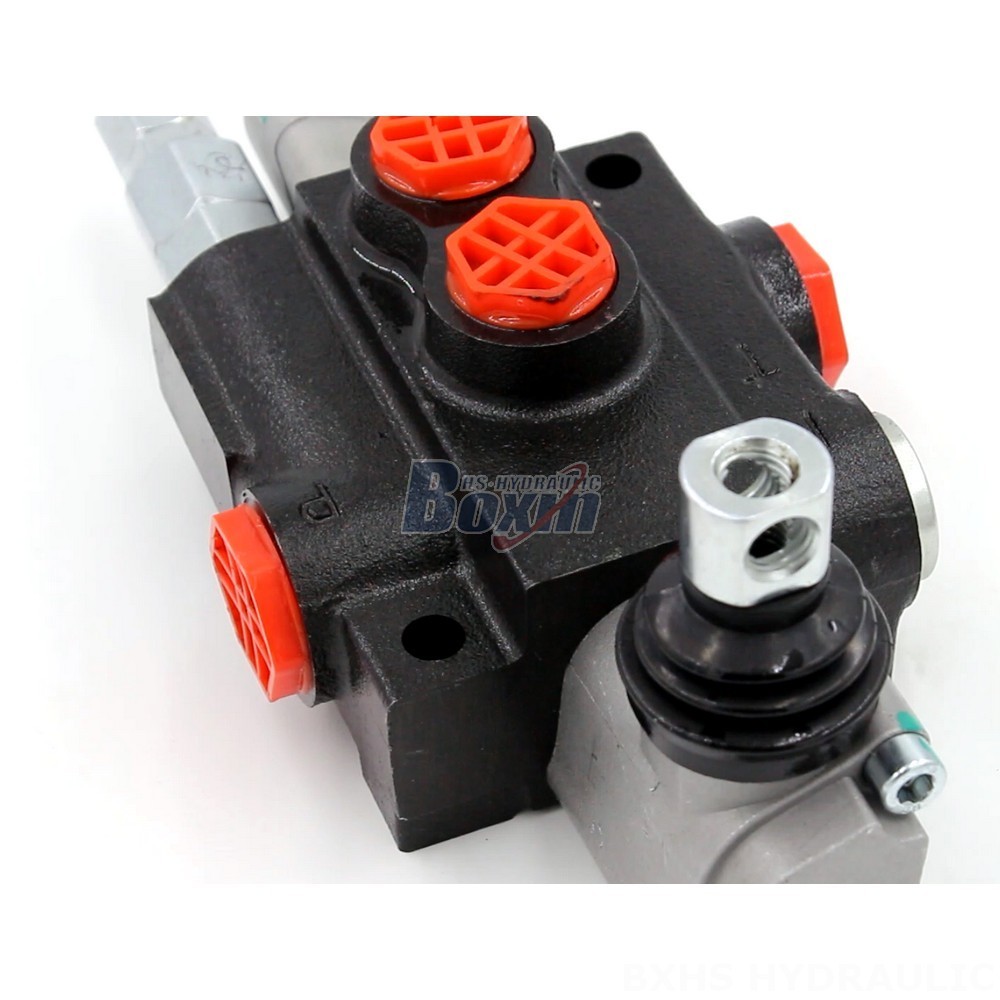

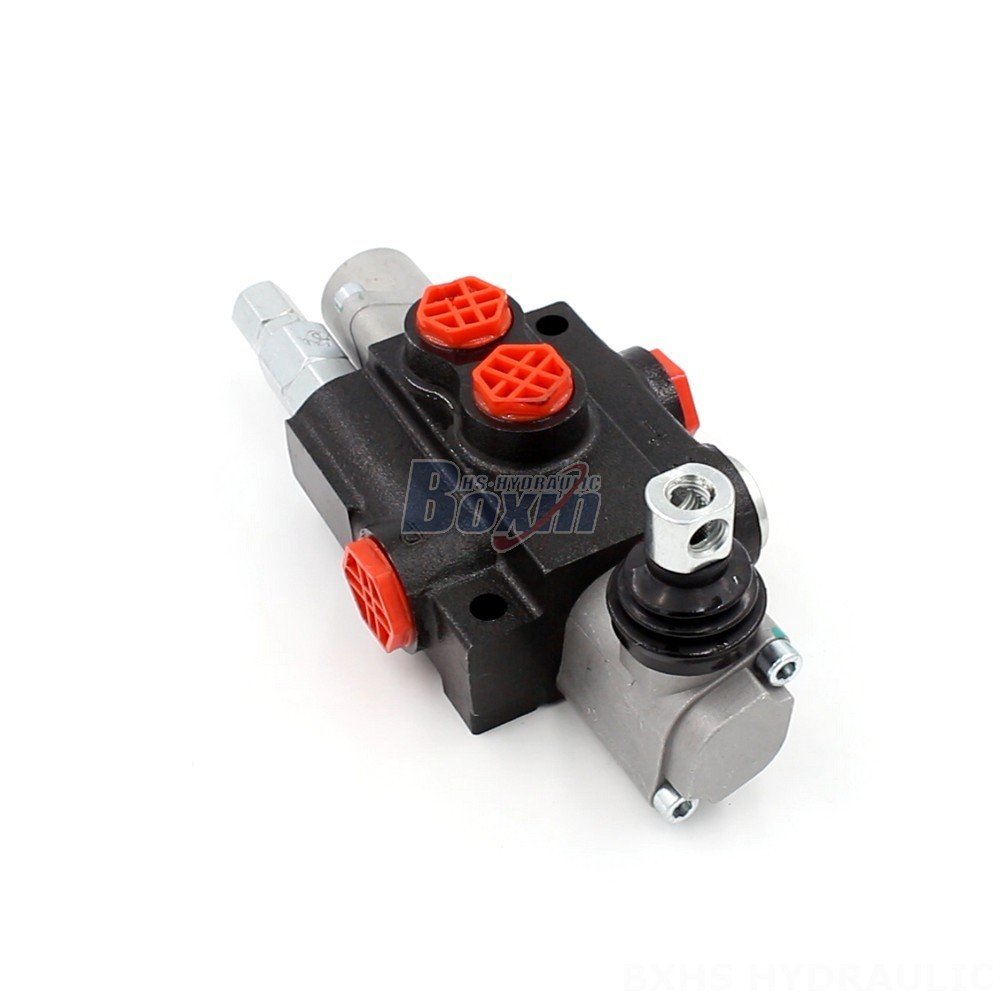

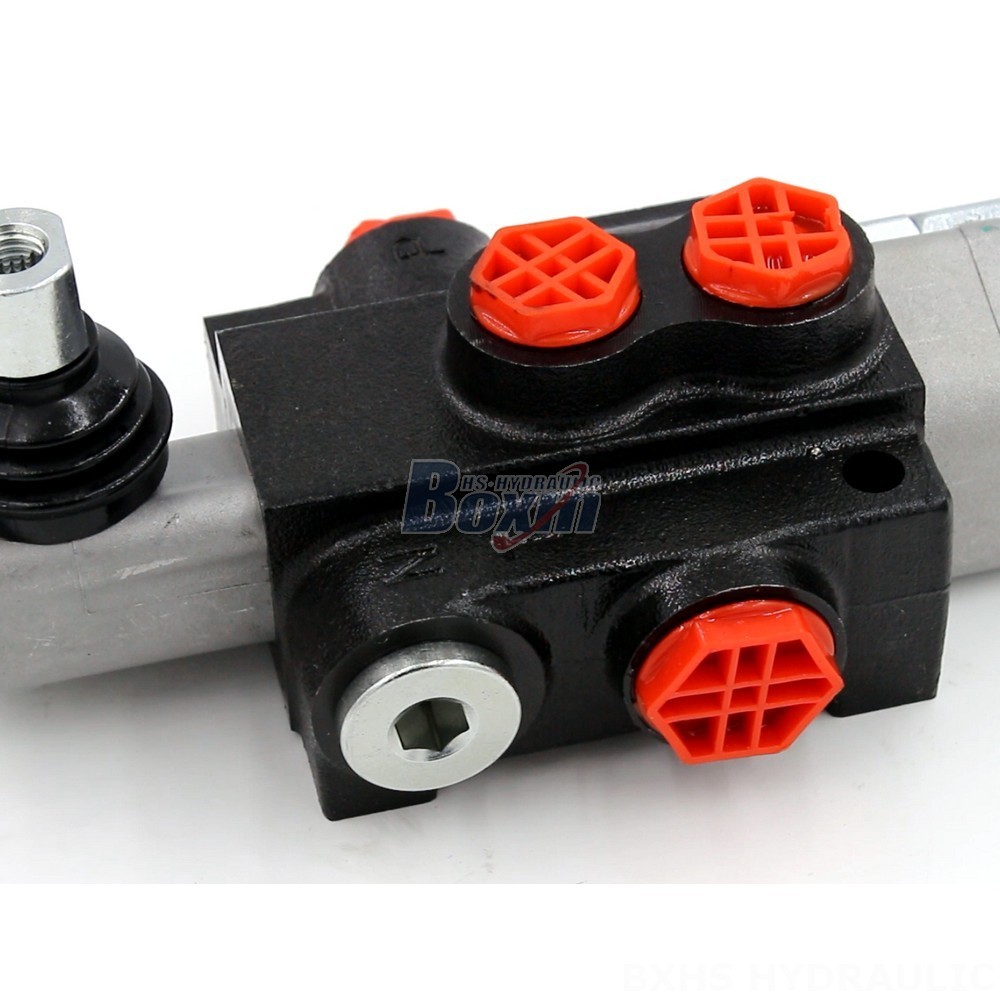

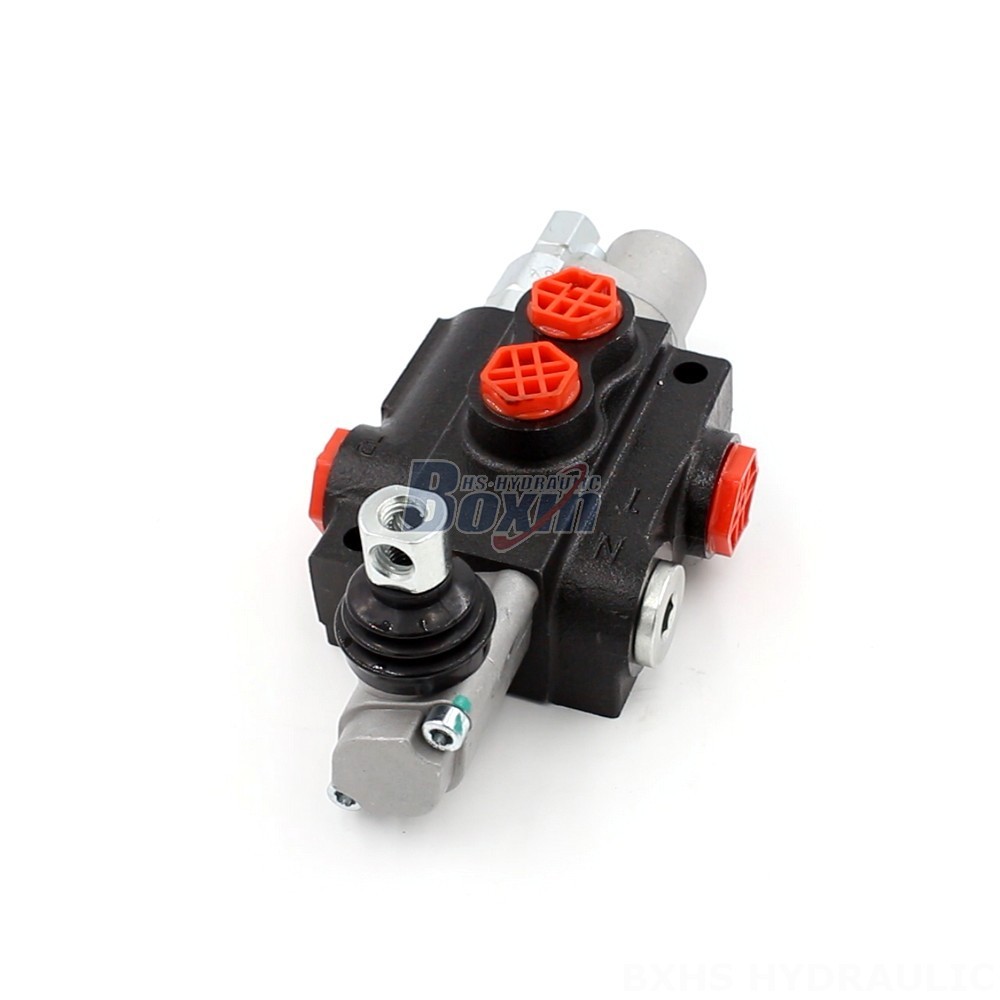

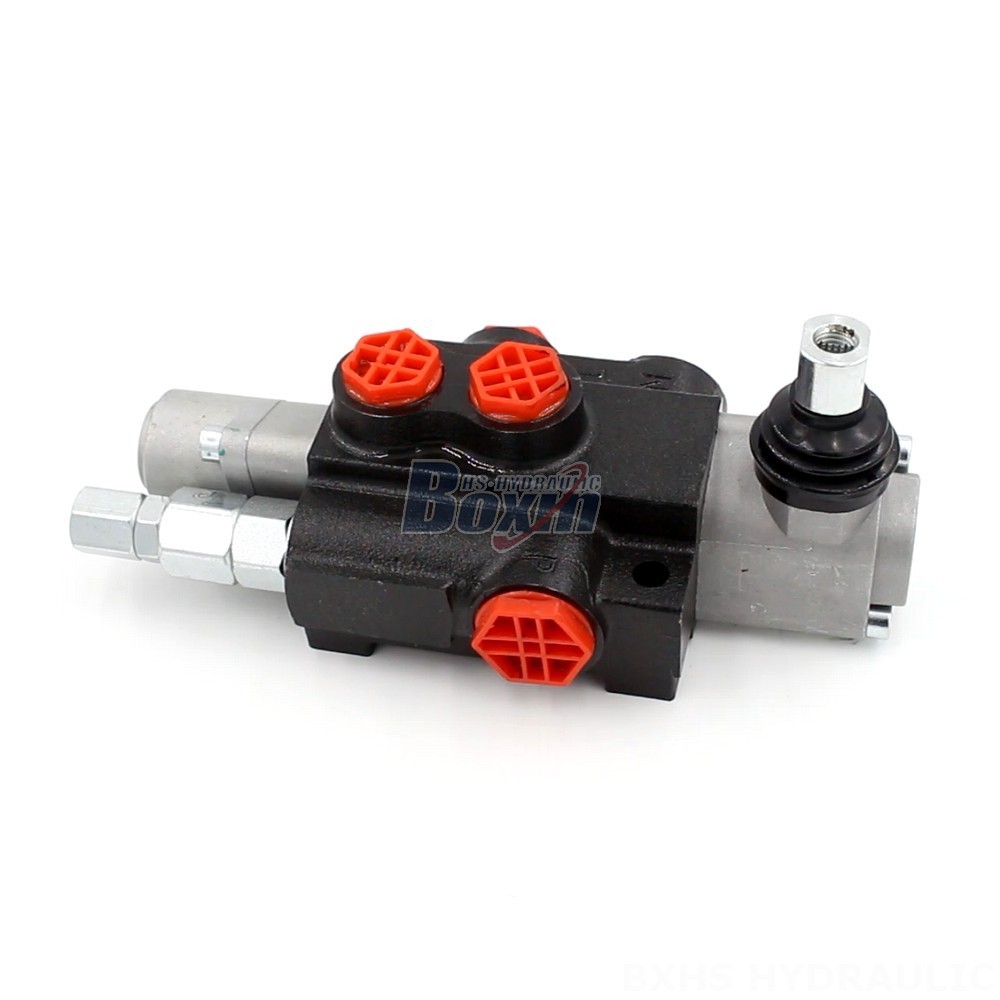

The P40-G38-OT is a manually operated, monoblock directional valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It features a flow rate of 40 L/min, a maximum pressure of 250 bar, and a temperature range of -40°C to +80°C.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38-OT is a versatile directional valve that offers precise control and reliability in demanding hydraulic systems. Its key features include:
* **Manual Operation:** Allows for direct and intuitive control of fluid flow.
* **Monoblock Construction:** Provides a compact and robust design, ensuring durability and leak-free performance.
* **High Flow Rate:** Delivers up to 40 L/min of flow, suitable for a variety of applications.
* **High Pressure Rating:** Withstands pressures up to 250 bar, making it ideal for heavy-duty applications.
* **Wide Temperature Range:** Operates effectively in temperatures ranging from -40°C to +80°C, ensuring performance in diverse environments.
* **Single Spool Design:** Offers simple and efficient flow control with a single spool.
* **Versatile Applications:** Suitable for a range of industrial applications, including construction, material handling, agriculture, and industrial vehicles.
