P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

Méthode de contrôle:Manuel

Distributeur:1 tiroir

Débit nominal:40 L/min (10,5 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/8

Orifice de sortie:G3/8

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P40 Vanne directionnelle monobloc

Taille de l'emballage:23*16*11

Poids brut:3.00 kg

Disponibilité: En stock

945 personnes consultent ce produit

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance

P40-G38 Hydraulic Valve: Advanced Technology for Superior Performance drawing image

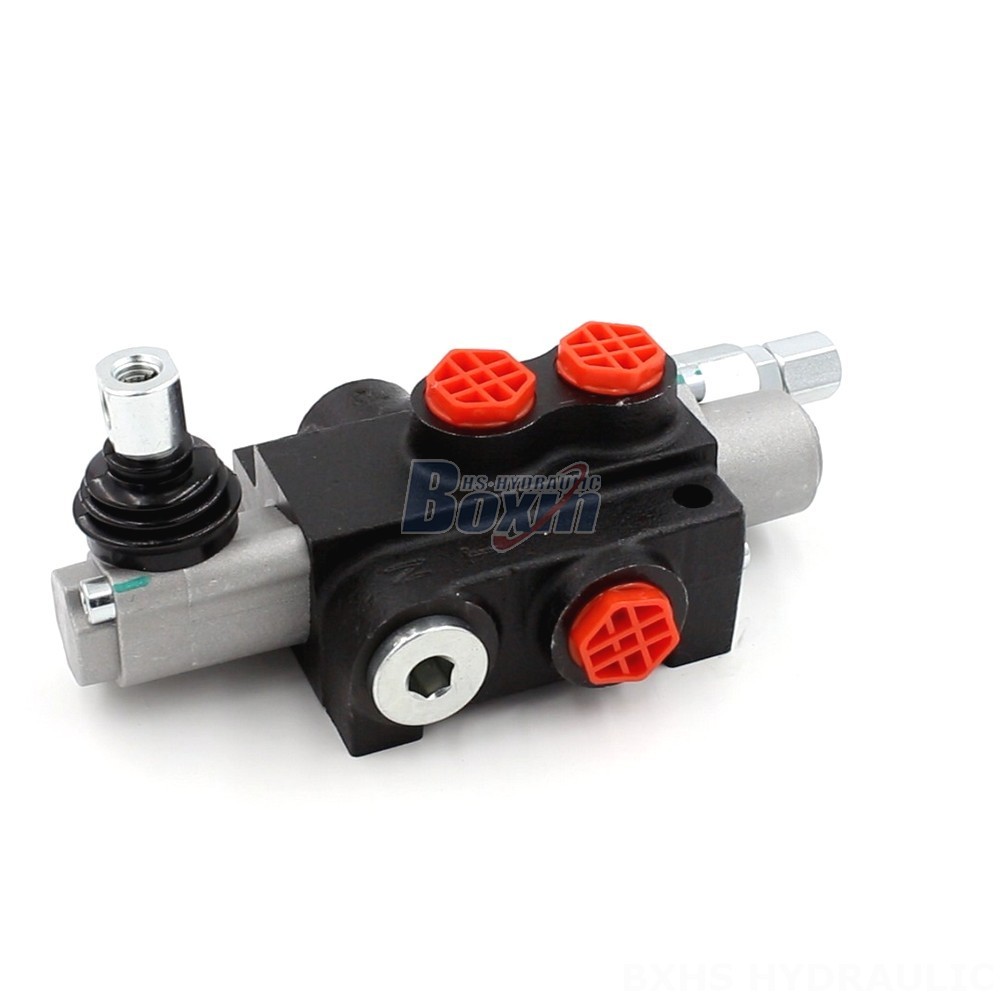

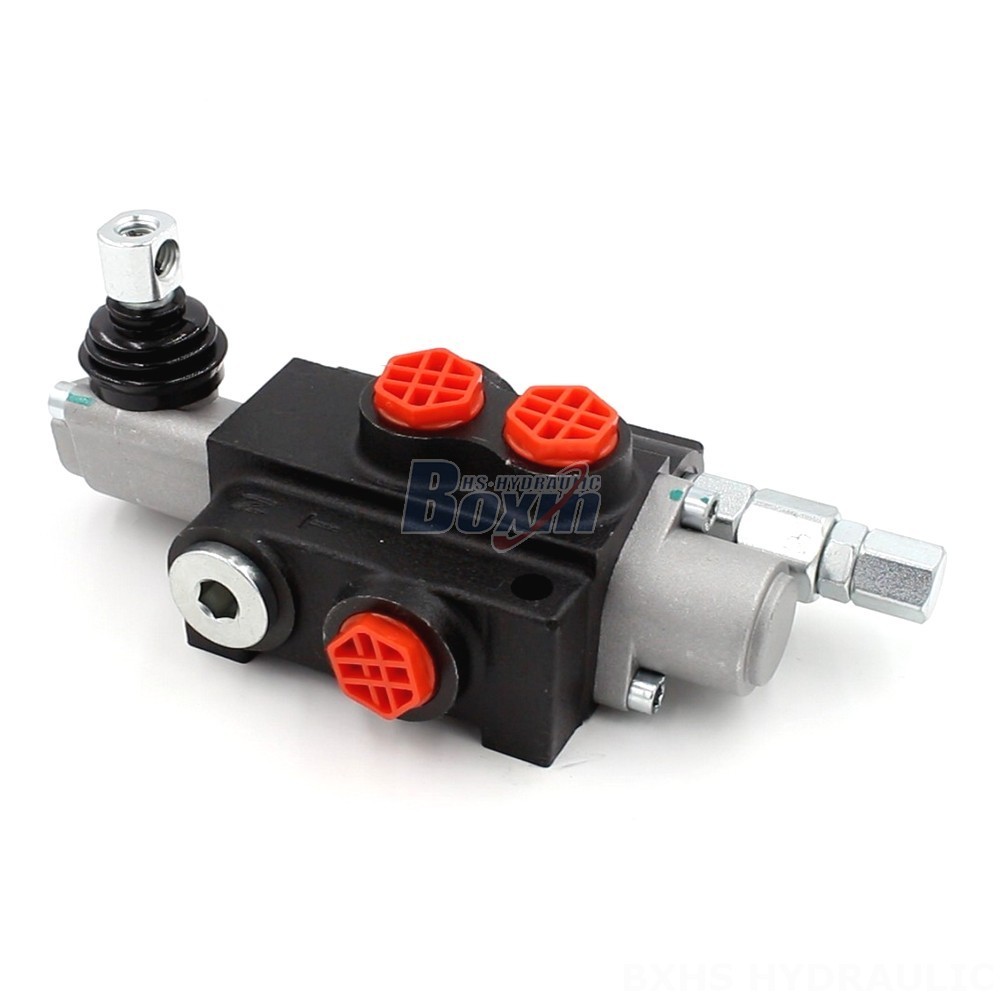

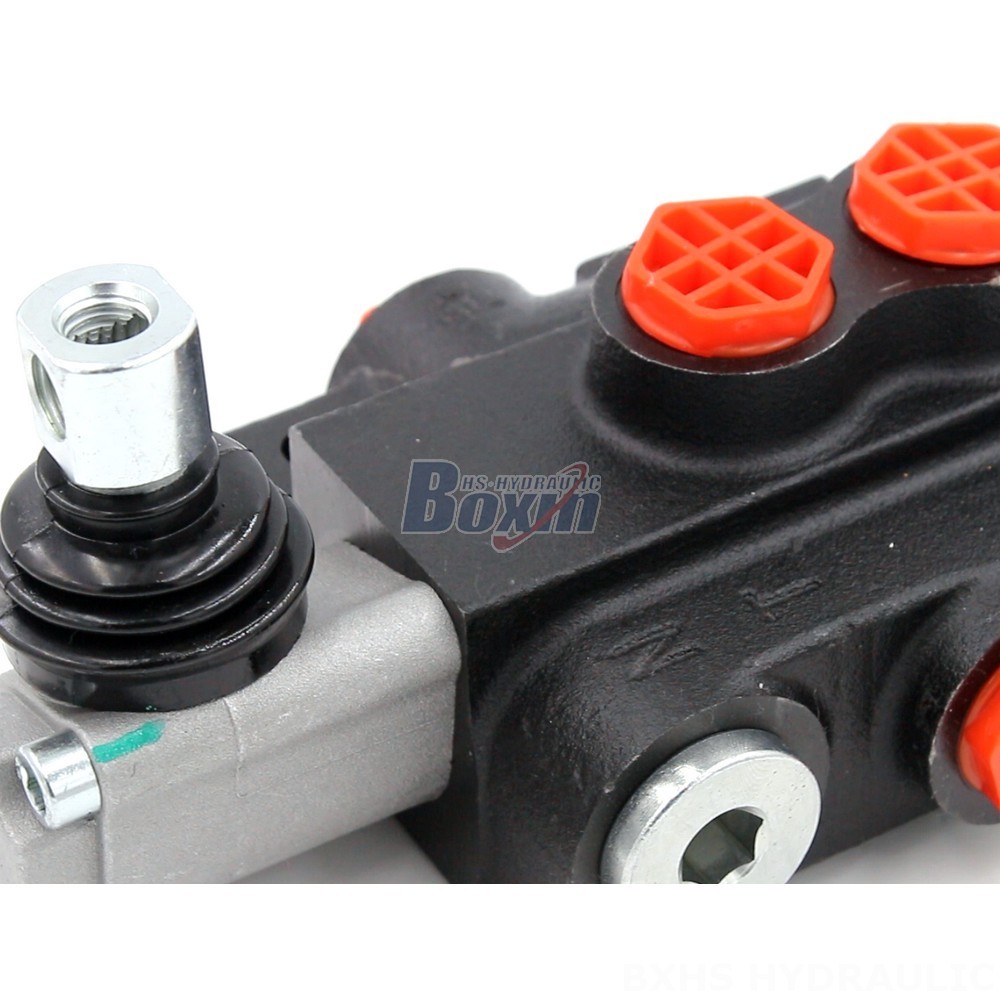

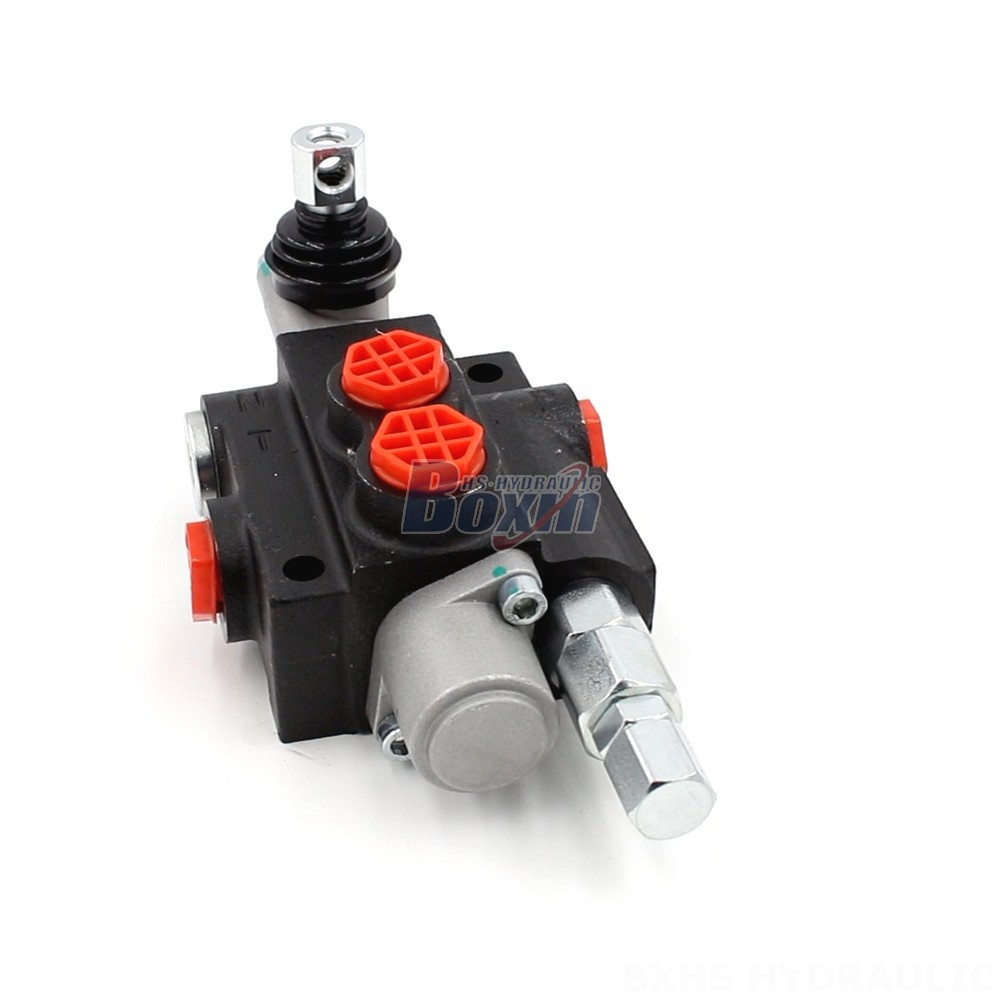

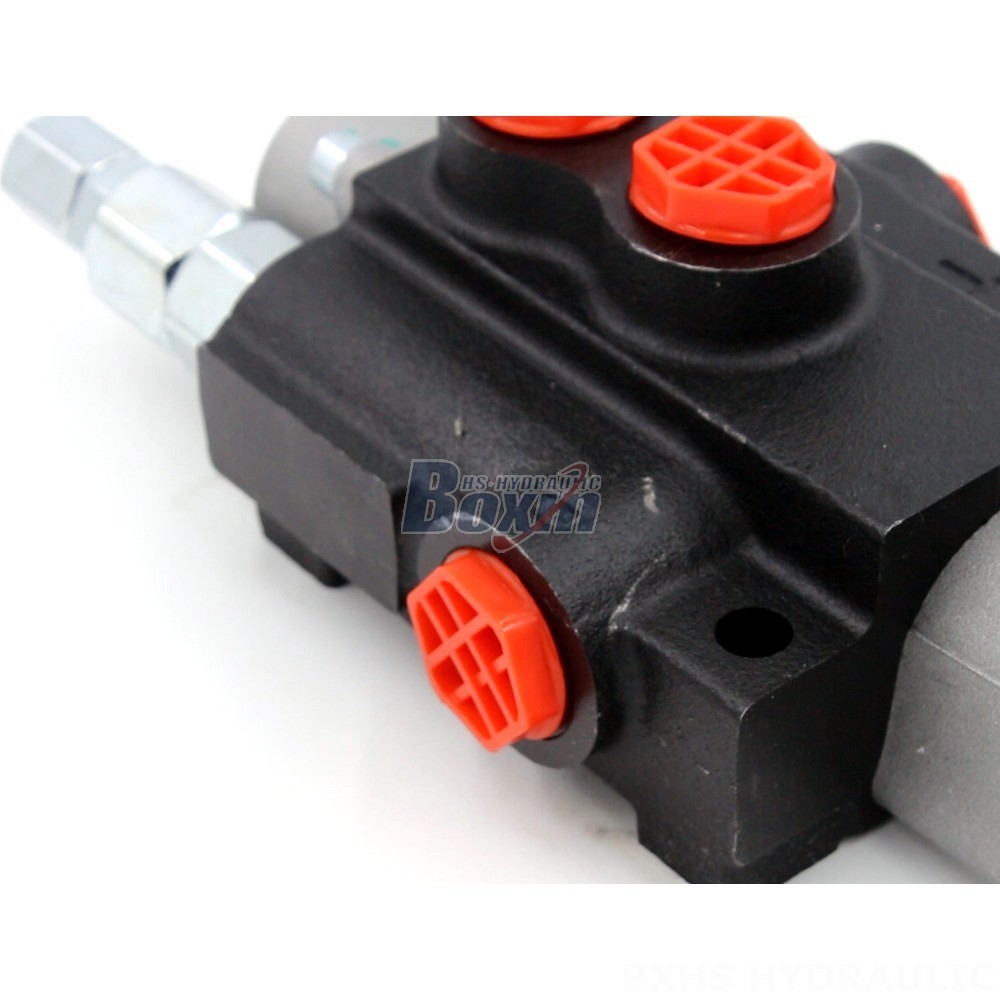

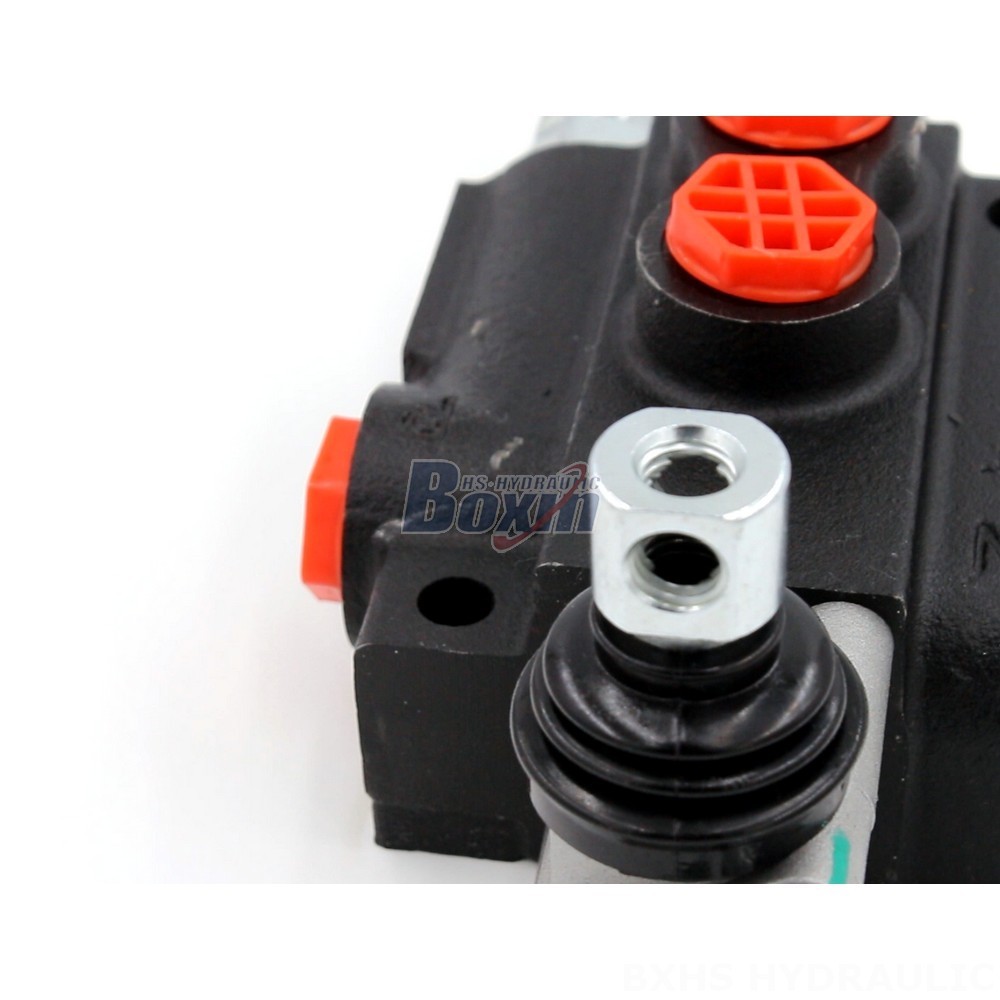

The P40-G38 6 Port Hydraulic Valve is a high-performance, manual, monoblock valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. This valve features a rated flow of 40 L/min and a maximum pressure of 250 bar.

Série P40 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 40 L/min (10,5 US gpm)
Pression maximale 250 bar (3 600 psi)
Orifice d'entrée G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Orifice de sortie G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Dimension du raccord G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G38 6 Port Hydraulic Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of applications. This manual, monoblock valve provides superior performance with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its robust design ensures durability and long-lasting operation in demanding environments. The valve is suitable for operating viscosities between 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its compact and versatile design makes it ideal for use in various machines, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This advanced hydraulic valve offers reliable control and precision, enhancing the overall performance of your equipment.
