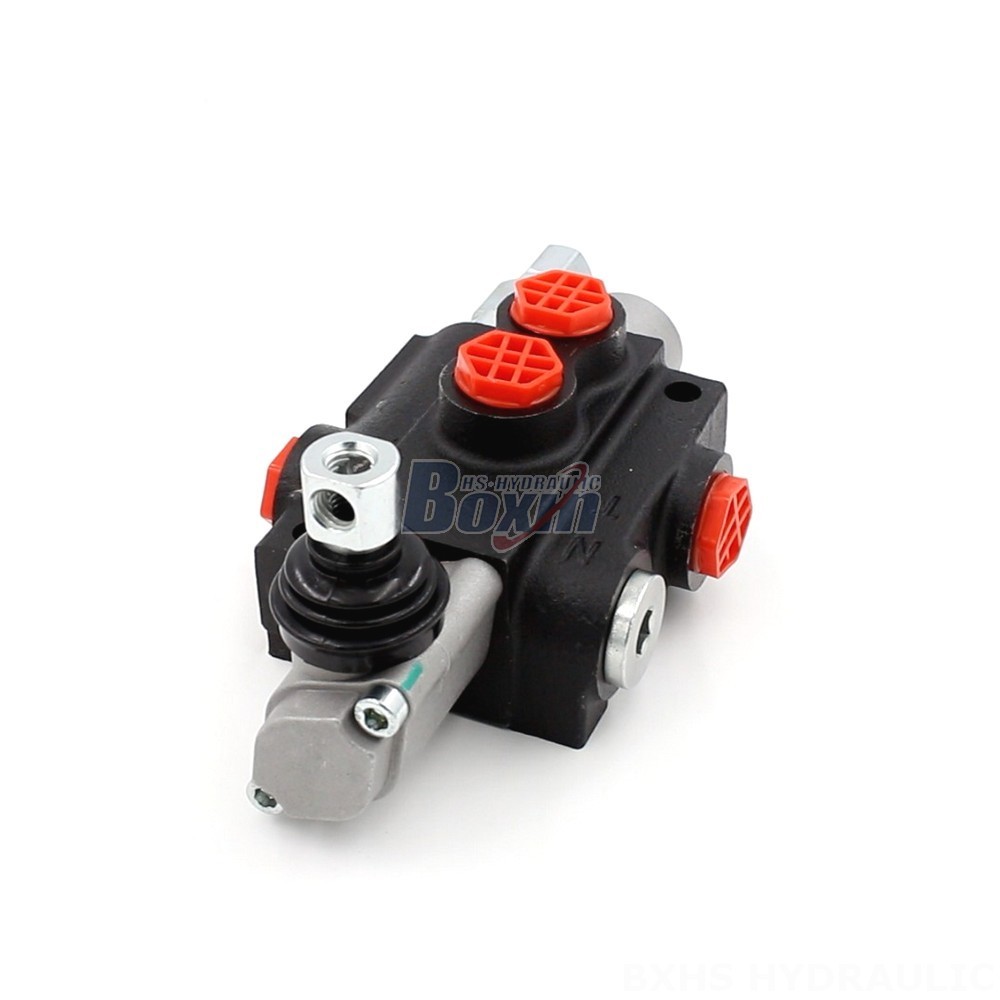

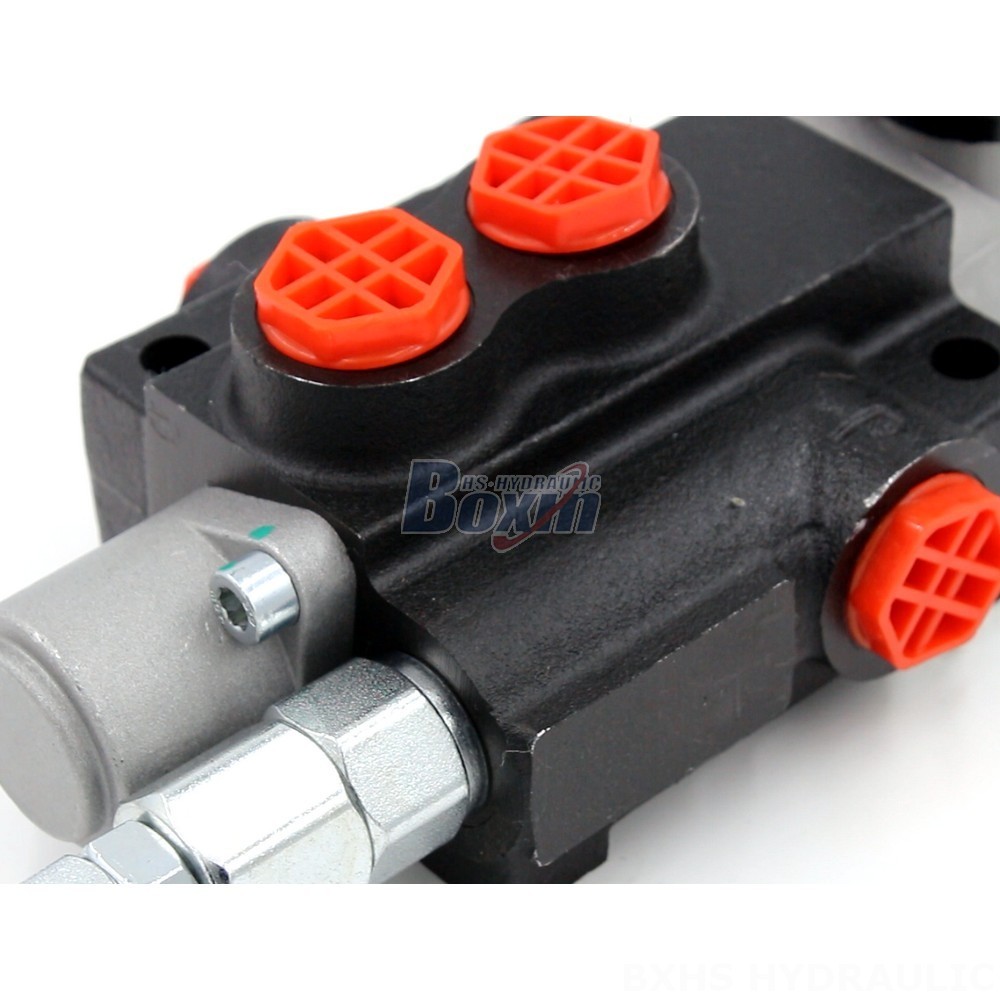

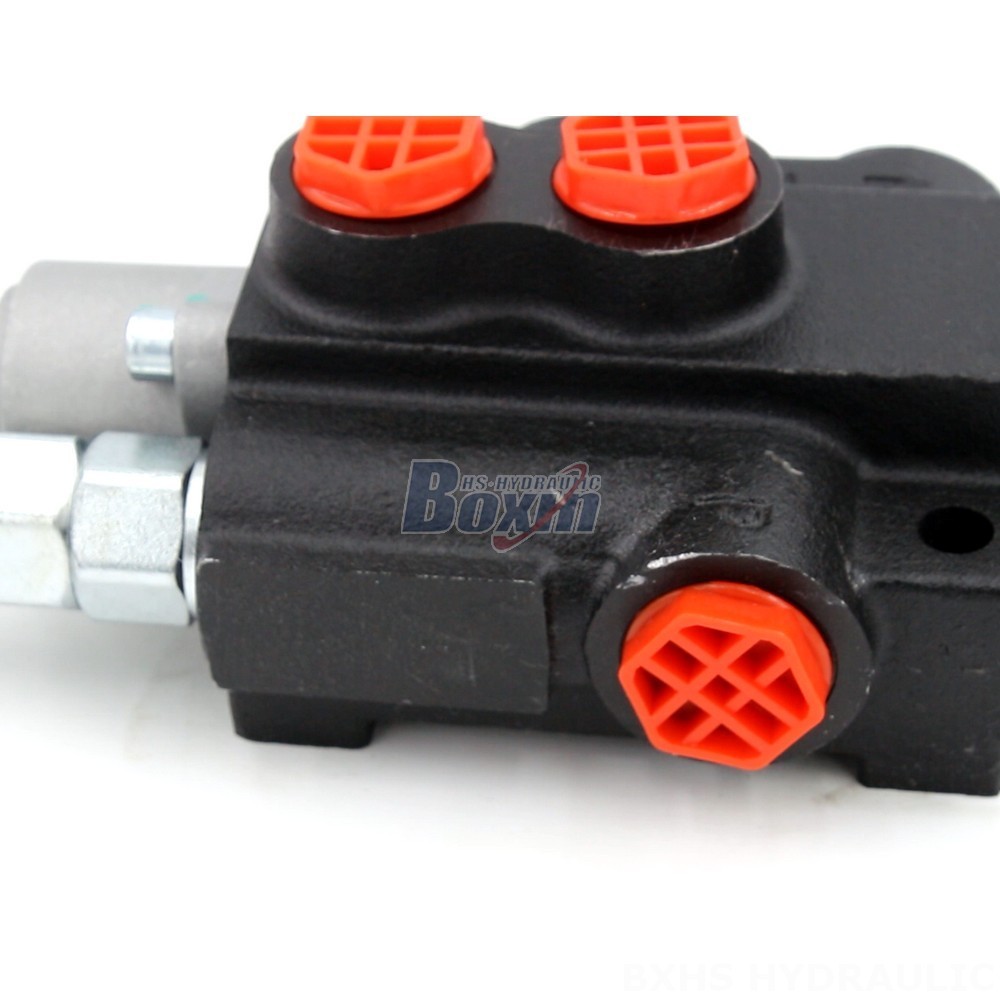

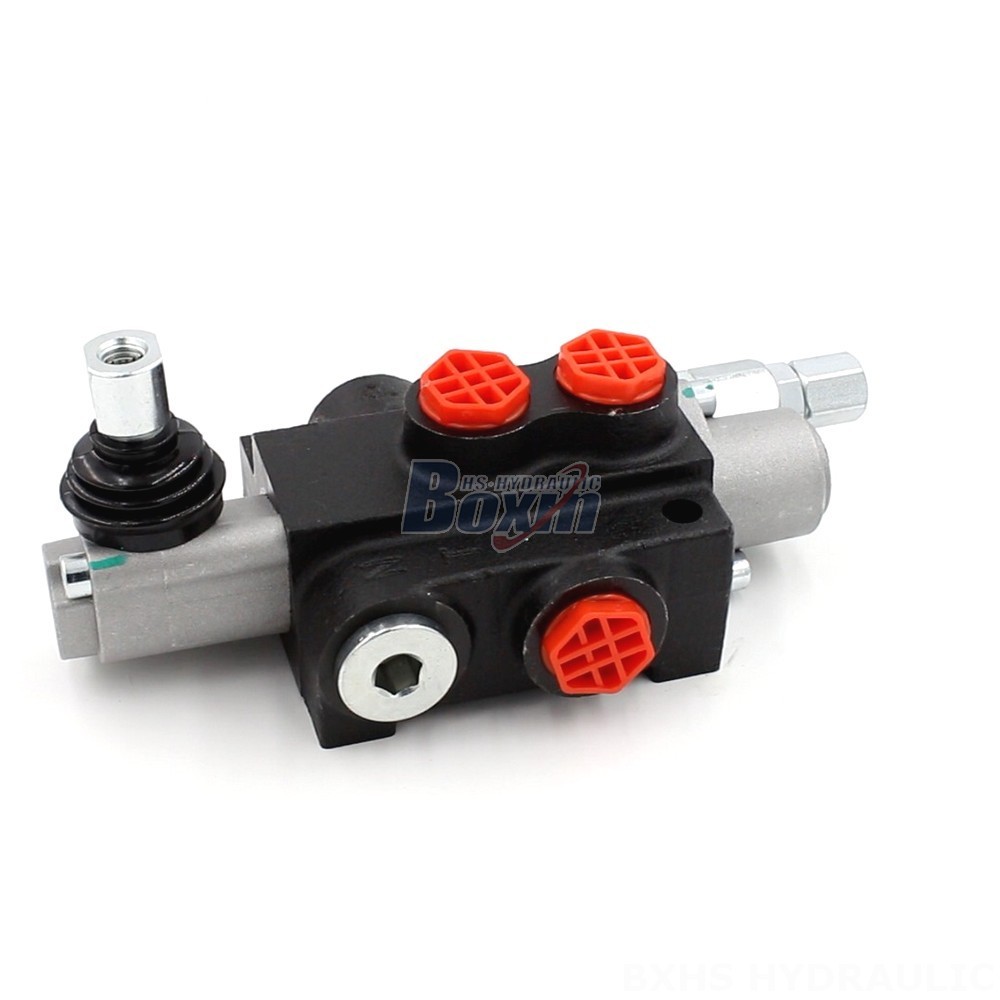

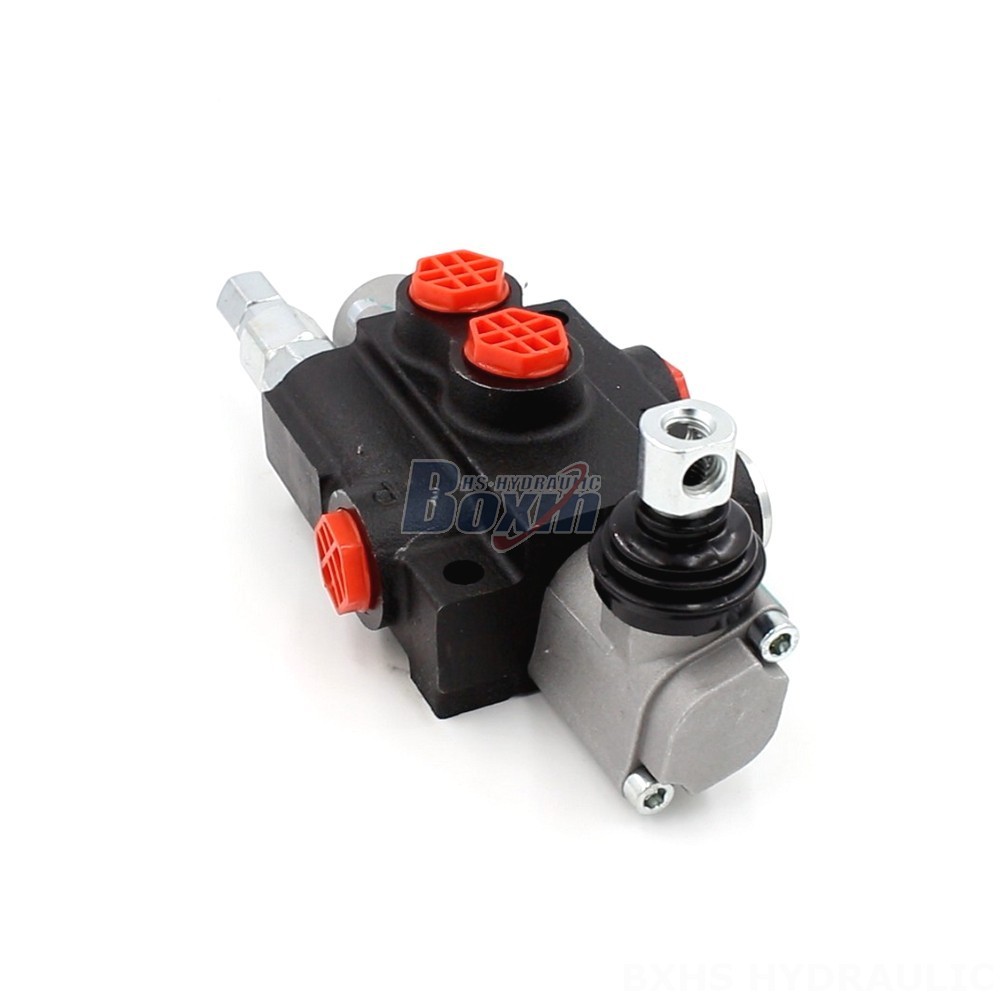

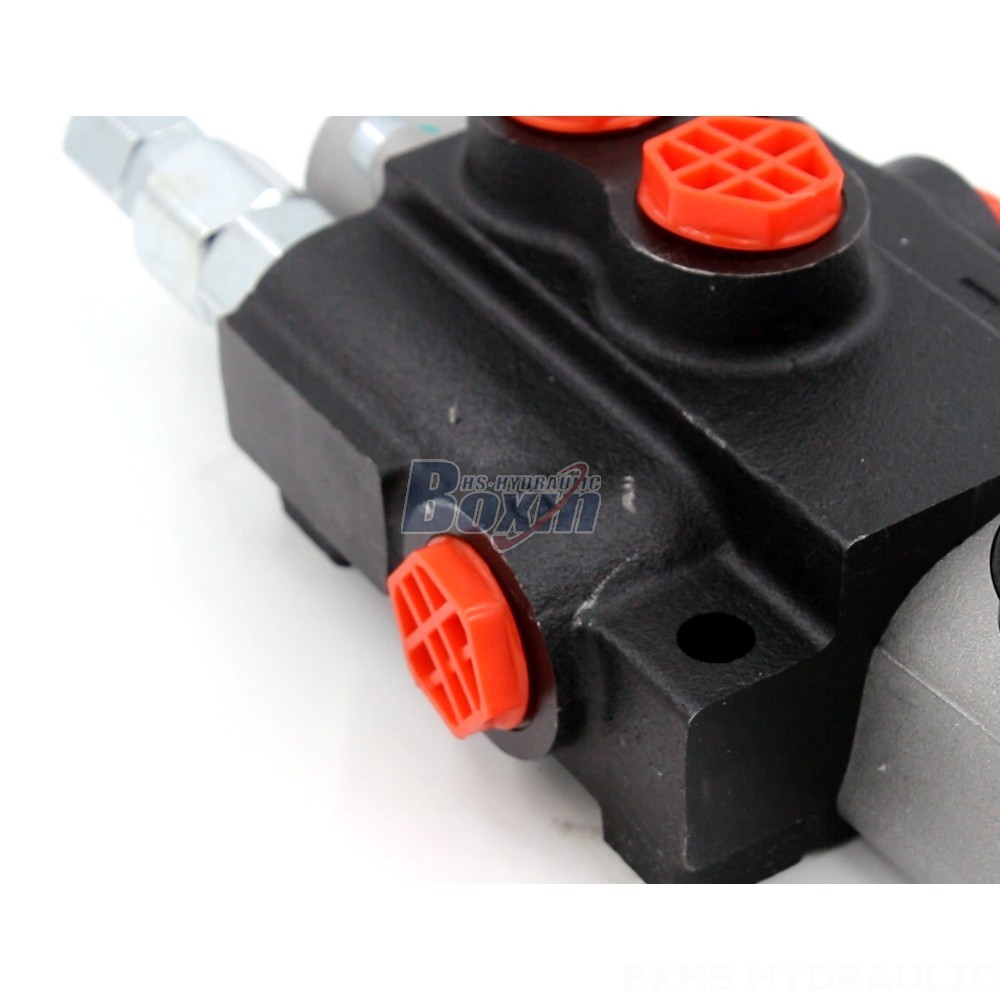

The Hydraulic Flow Divider P40-G38 Directional Valve is a reliable and efficient solution for controlling hydraulic flow in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This manual control valve features a monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 250 bar, making it suitable for telehandlers, forklifts, cranes, stackers, aerial platforms, and more.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38 Directional Valve is a 1-section monoblock valve designed for manual control of hydraulic flow. It features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is compatible with operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its 1-spool design ensures precise control of hydraulic flow, while its robust construction ensures long-lasting performance. The P40-G38 Directional Valve is an ideal choice for a variety of applications, including material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
