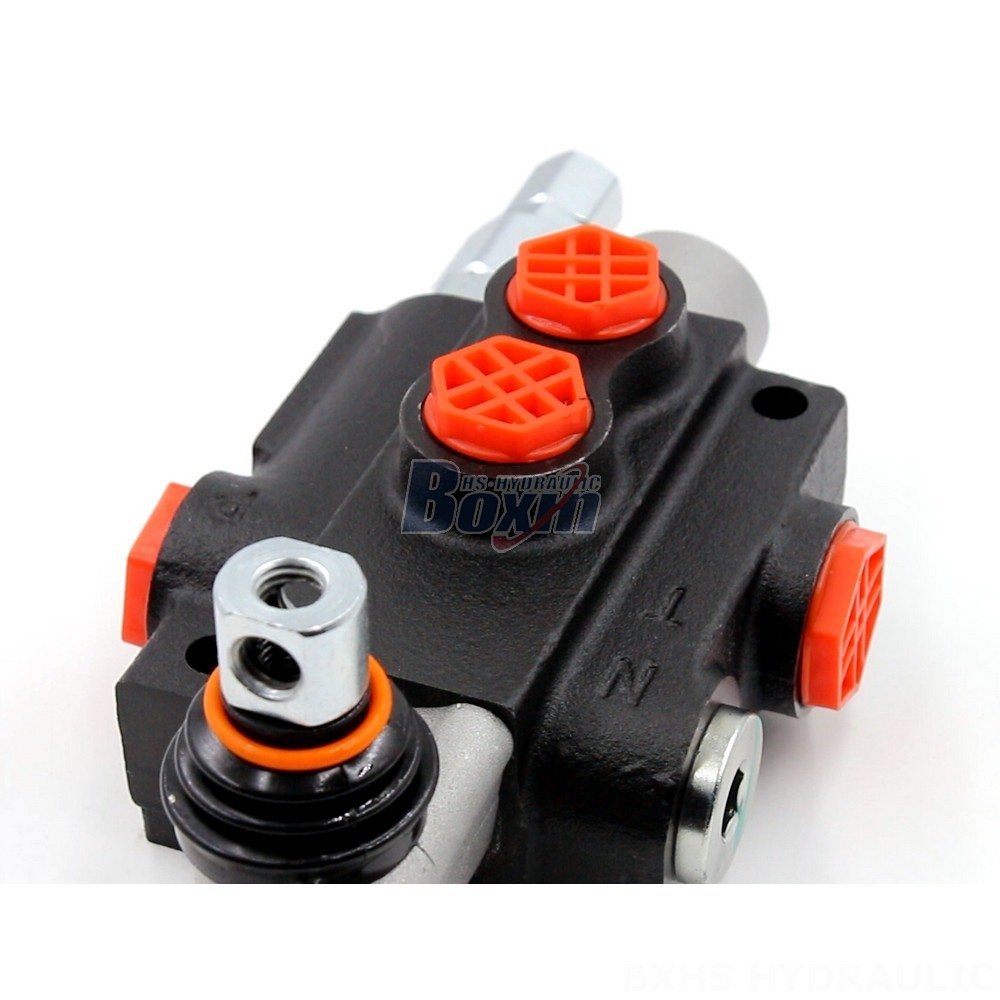

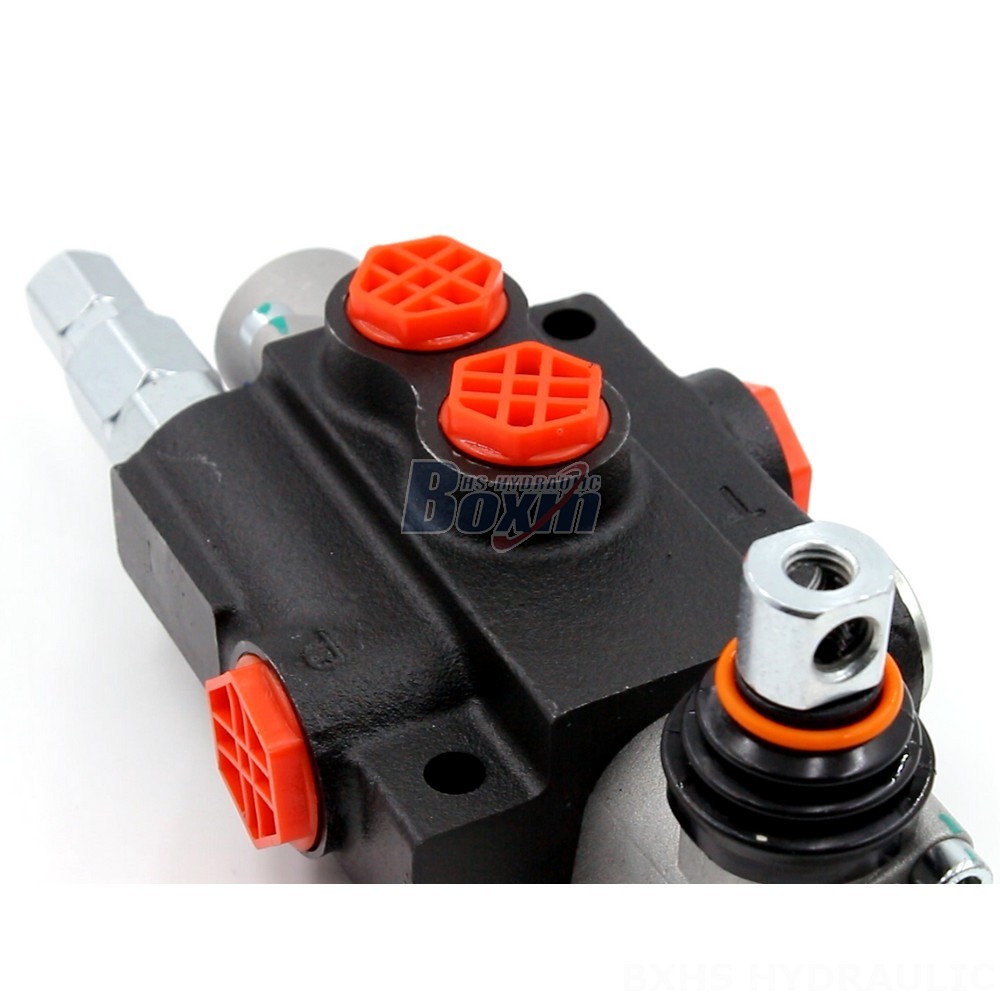

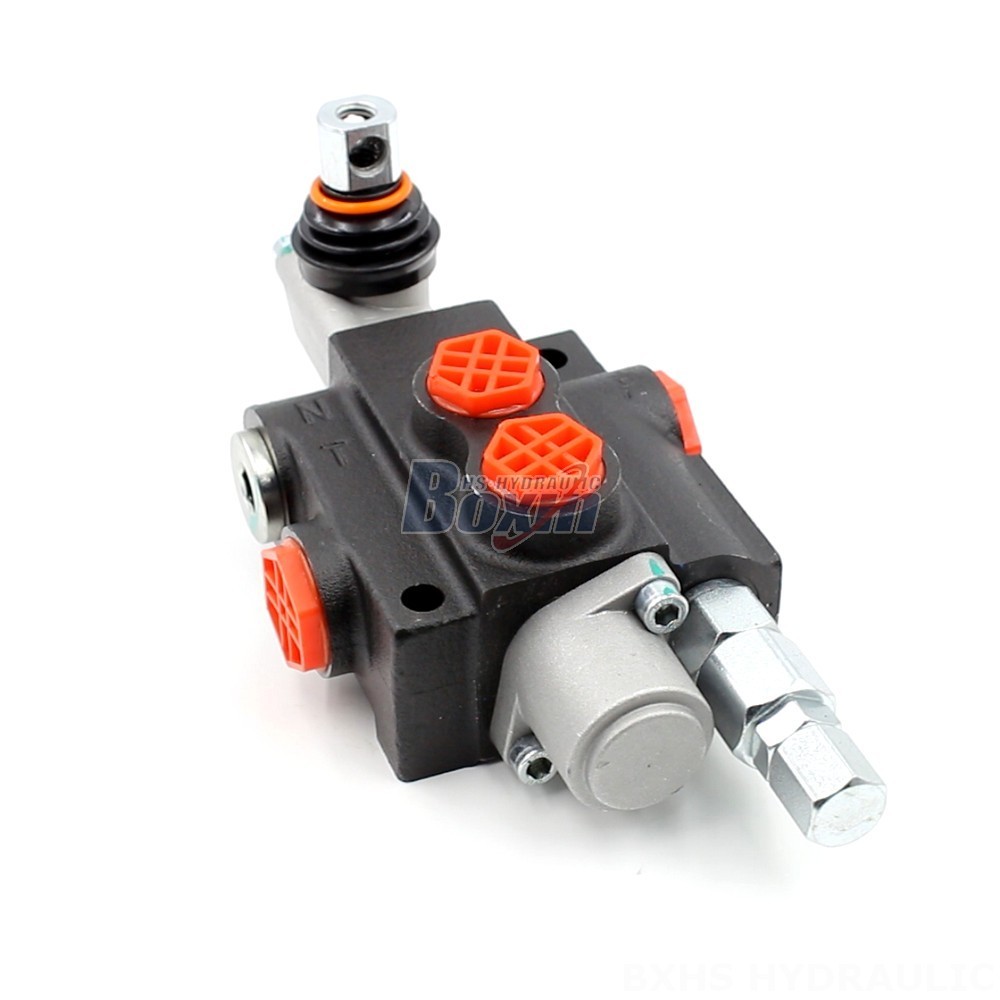

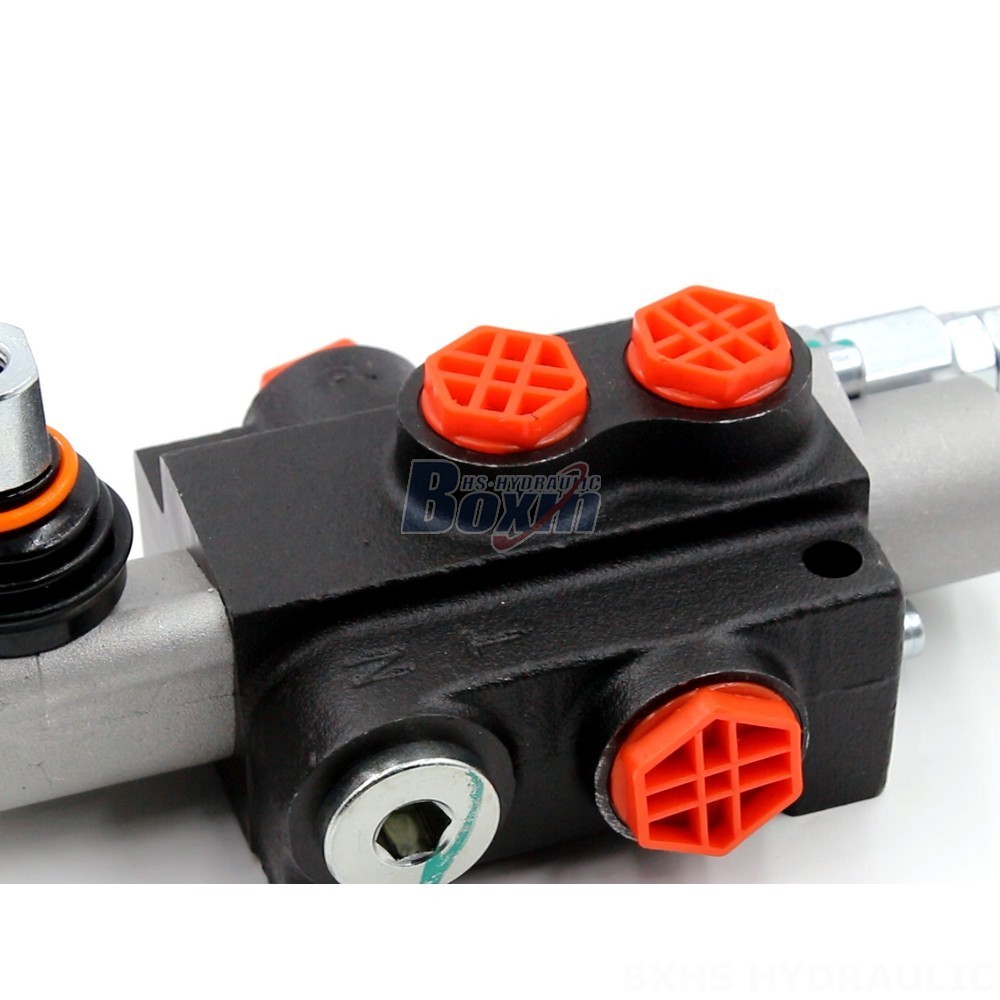

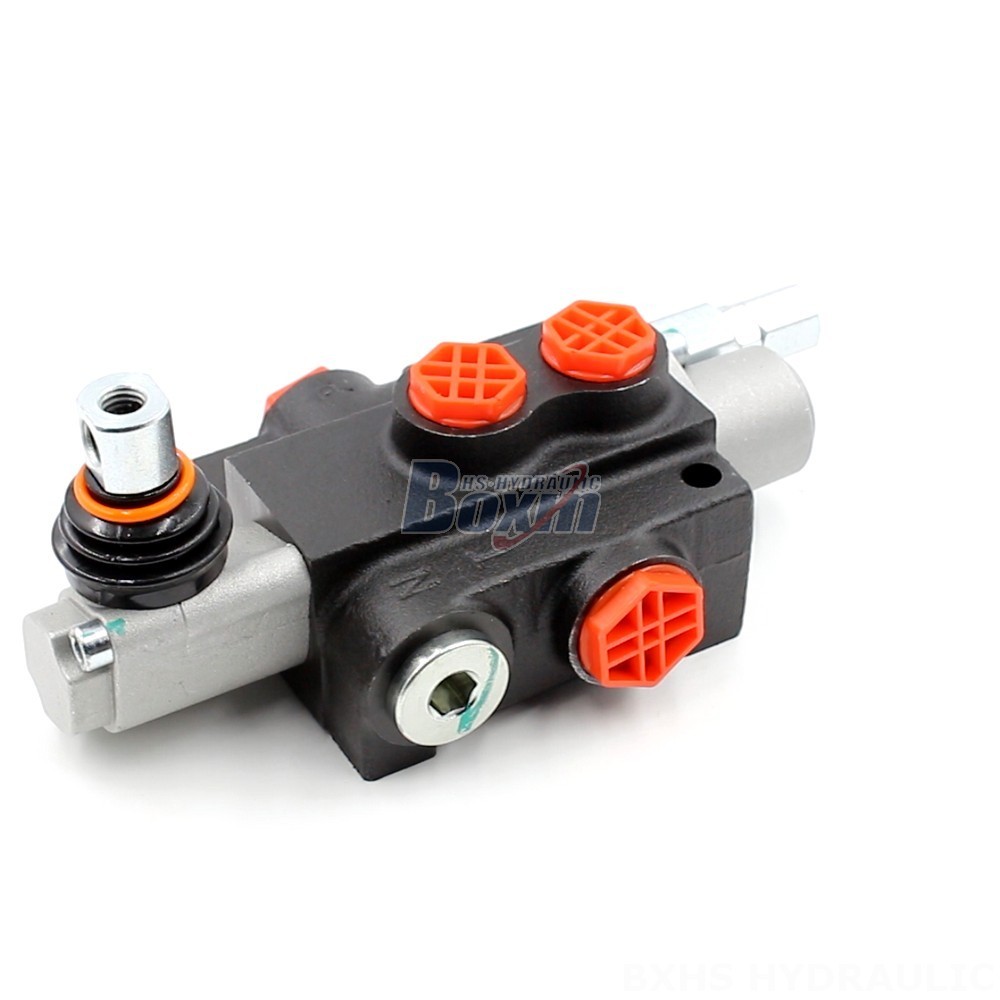

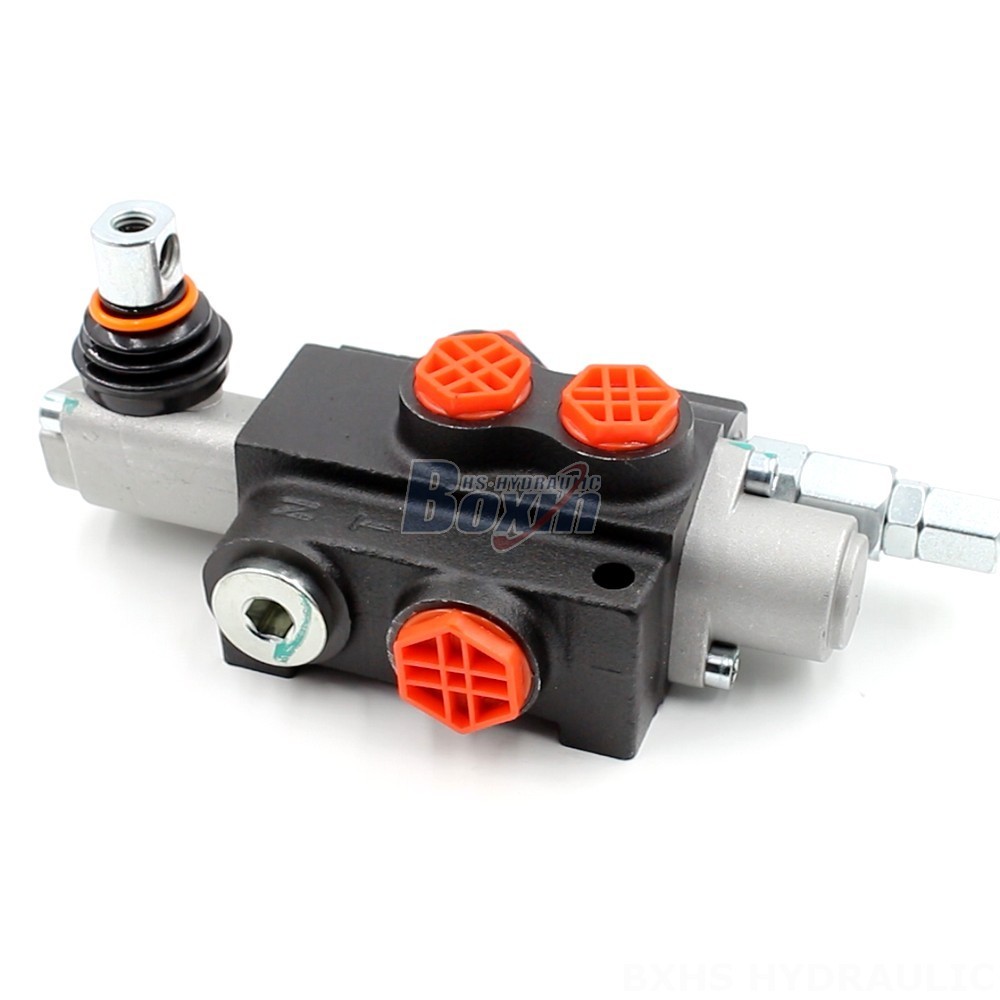

The P40-G12-YW Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control and offers a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). Its operating viscosity range spans from 15 to 75 mm²/s (15 cSt to 75 cSt), and it can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F).
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features and Benefits:**
* **Manual Control:** Allows for precise and responsive operation.
* **Monoblock Valve:** Provides a compact and durable design with reduced leakage potential.
* **High Flow Capacity:** Delivers up to 40 L/min (10.5 US gpm) to meet the demands of demanding applications.
* **Robust Construction:** Built to withstand harsh operating conditions, ensuring long-lasting performance.
* **Wide Operating Range:** Can handle a wide range of fluid viscosities and temperatures, making it suitable for diverse applications.
**Applications:**
The P40-G12-YW Directional Control Valve finds applications in a variety of hydraulic systems, including:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
