Production et livraison
Délai de production de 15 à 30 jours
Innovation drives development Technology forges future
933 personnes consultent ce produit
Our P40-G12-G38-OT-QTW 2-Spool Hydraulic Directional Valve is a high-performance valve designed for various industrial applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers precise control and durability. The manual and joystick control options provide versatility and ease of use.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

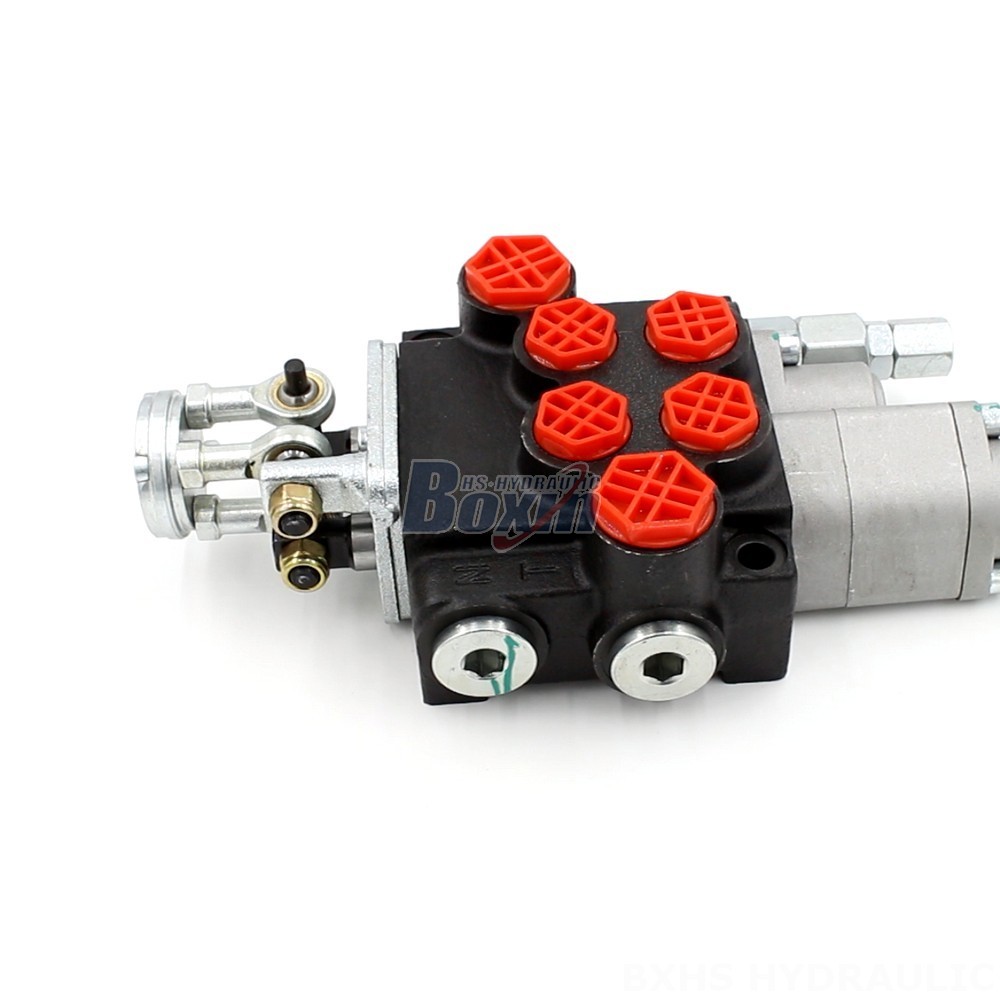

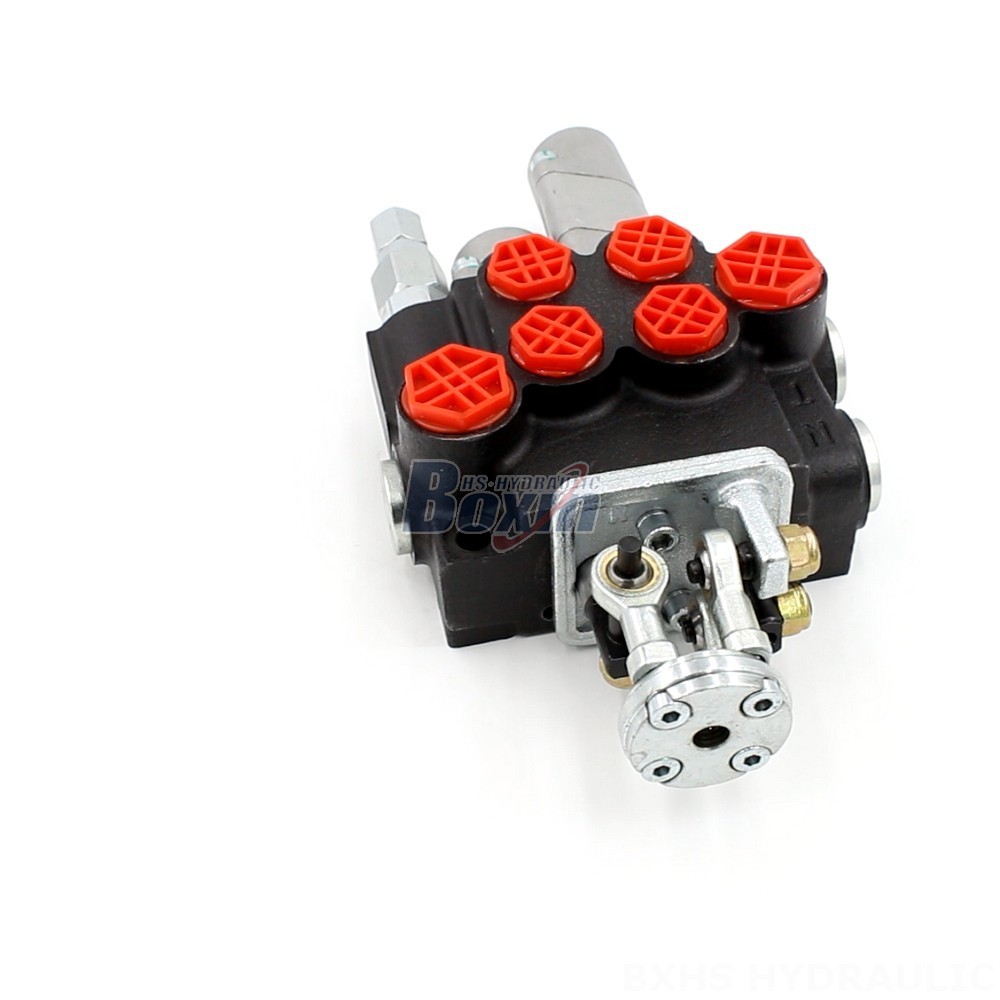

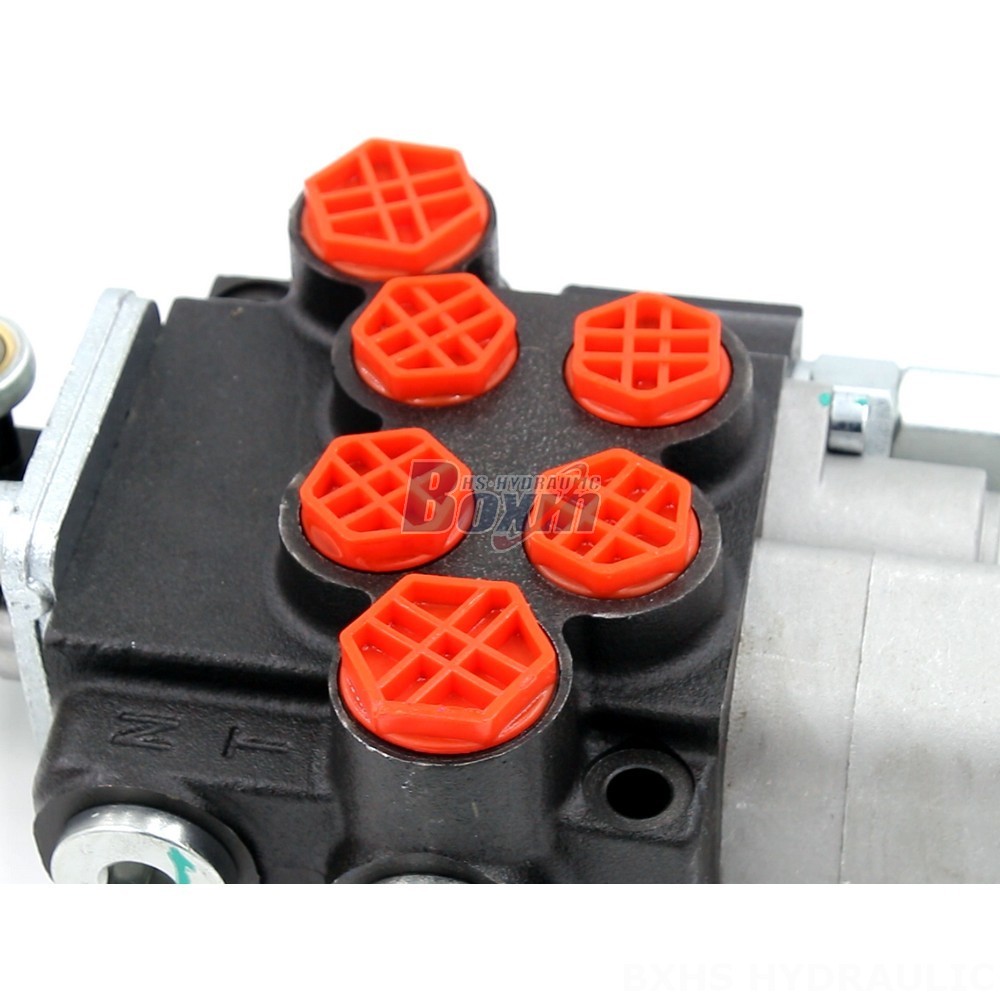

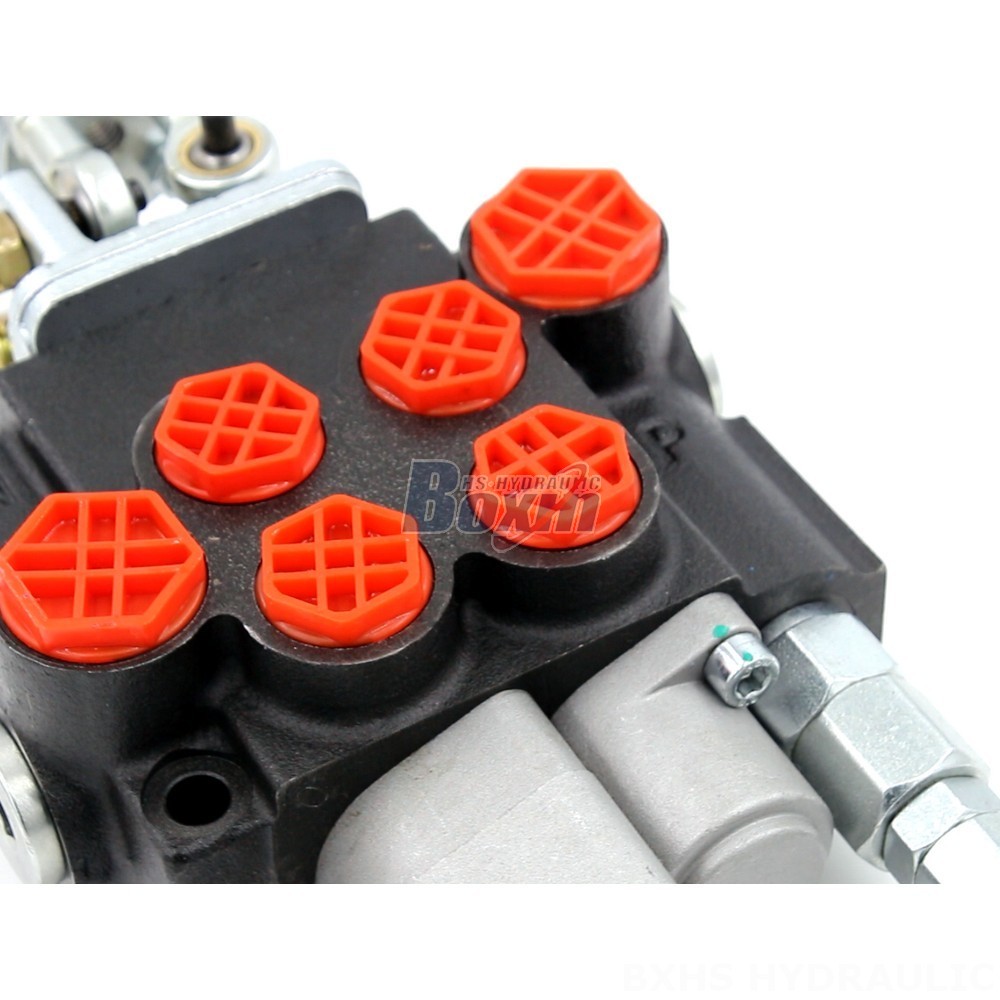

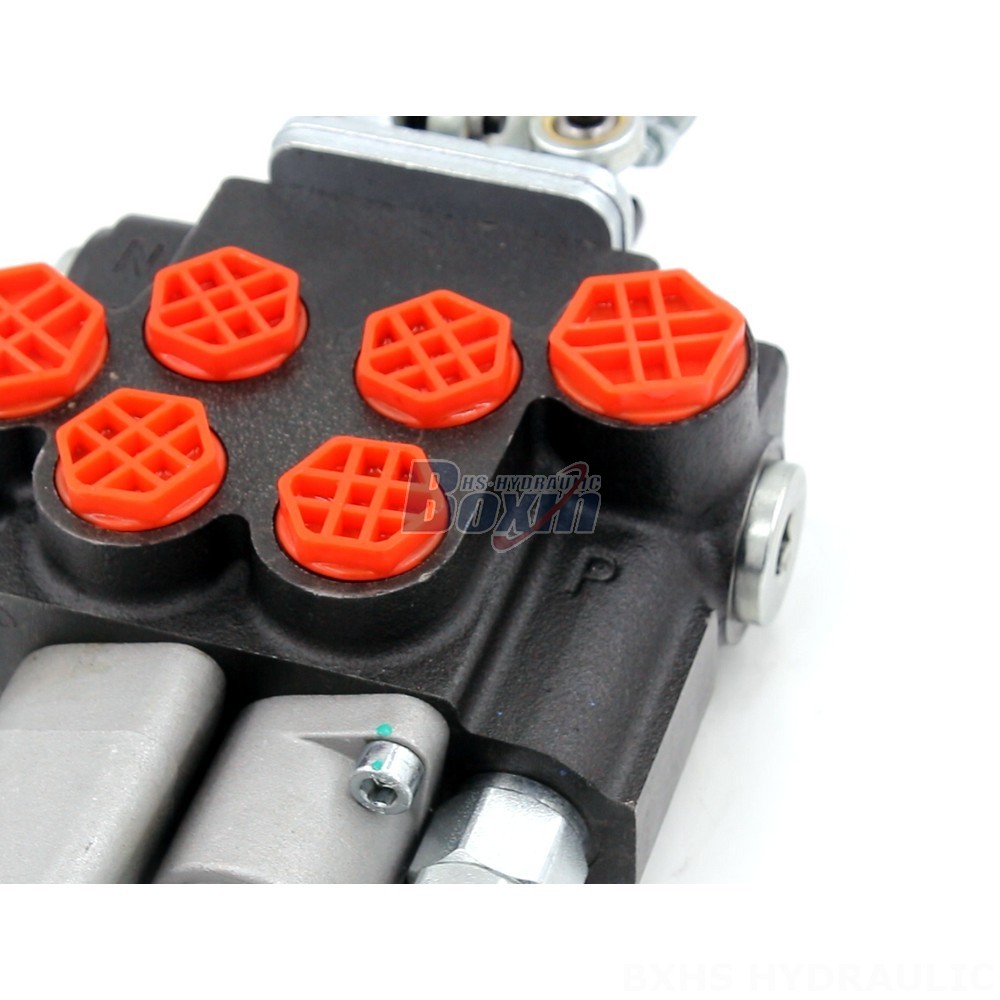

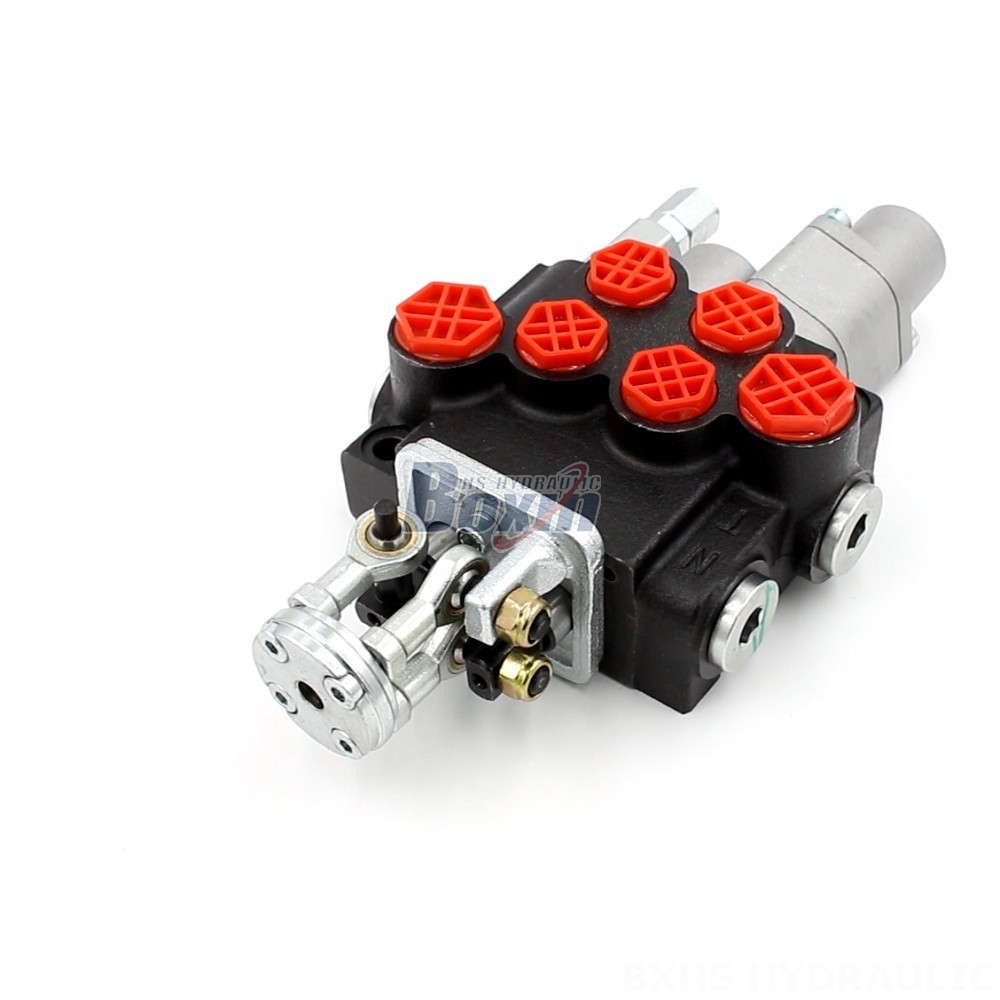

**P40-G12-G38-OT-QTW 2-Spool Hydraulic Directional Valve**
**Product Overview:**
- 2-spool hydraulic directional valve with manual and joystick control options
- Monoblock valve construction for compact and reliable design
- Rated flow: 40 L/min (10.5 US gpm)
- Maximum pressure: 250 bar (3600 psi)
- Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
**Key Features:**
- Precise flow control and smooth operation
- Durable construction for demanding applications
- Versatile control options for ease of use
- Suitable for a wide range of hydraulic systems
**Applications:**
- Material handling equipment (forklifts, telehandlers, stackers)
- Construction machinery (excavators, graders, skid steer loaders)
- Agricultural machinery (tractors, harvesters, sprayers)
- Industrial vehicles (aerial platforms, compact wheel loaders)
