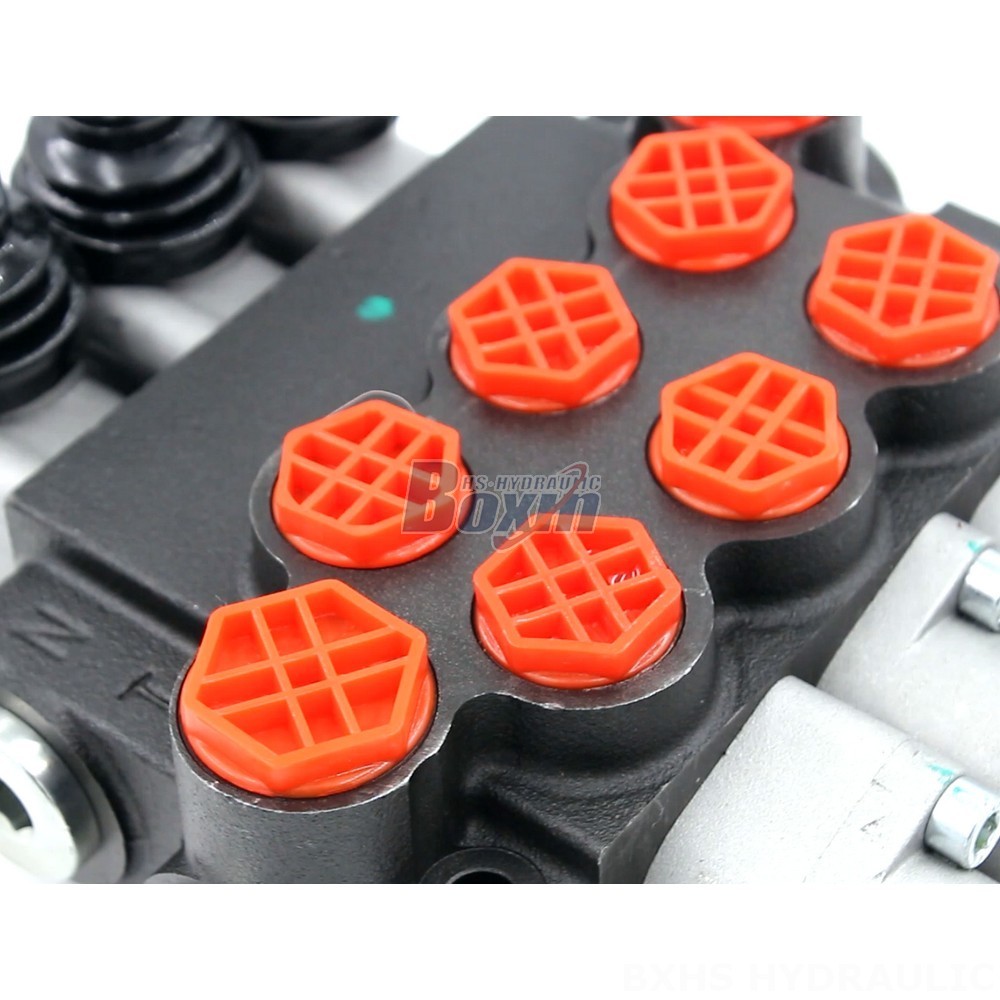

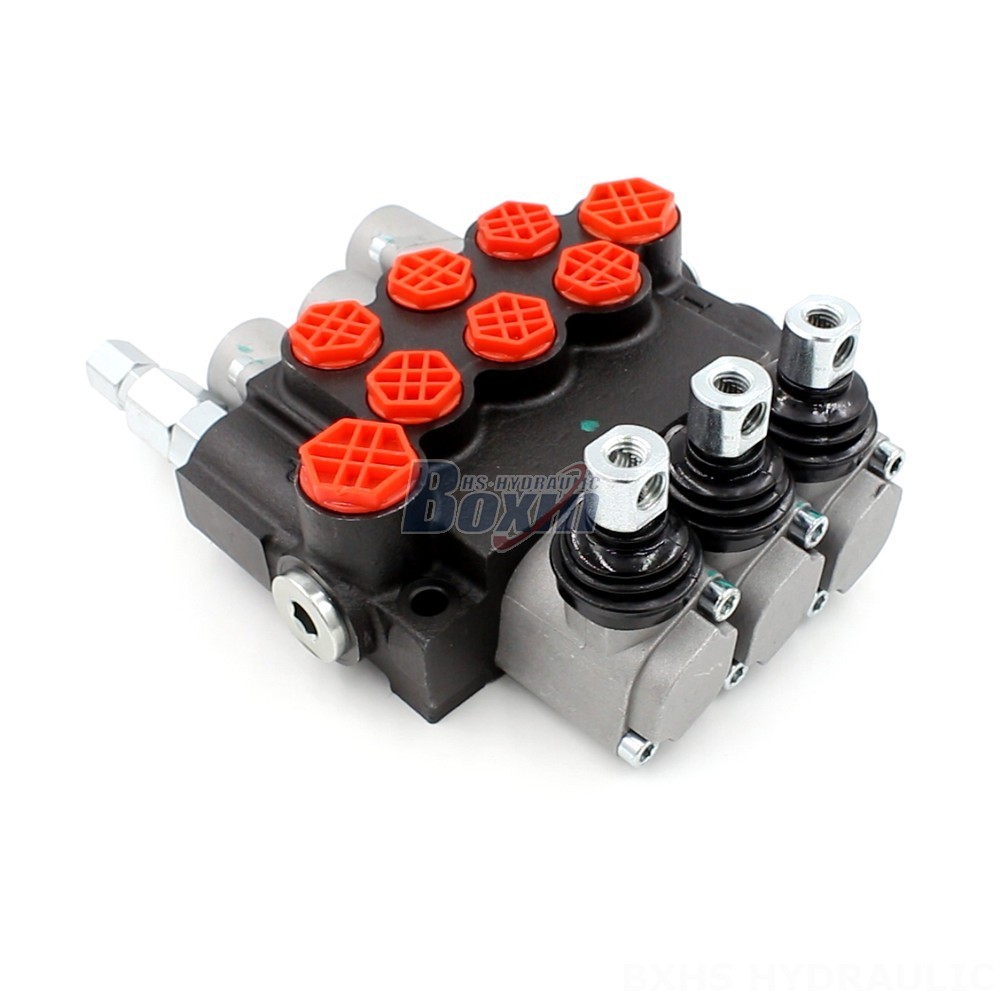

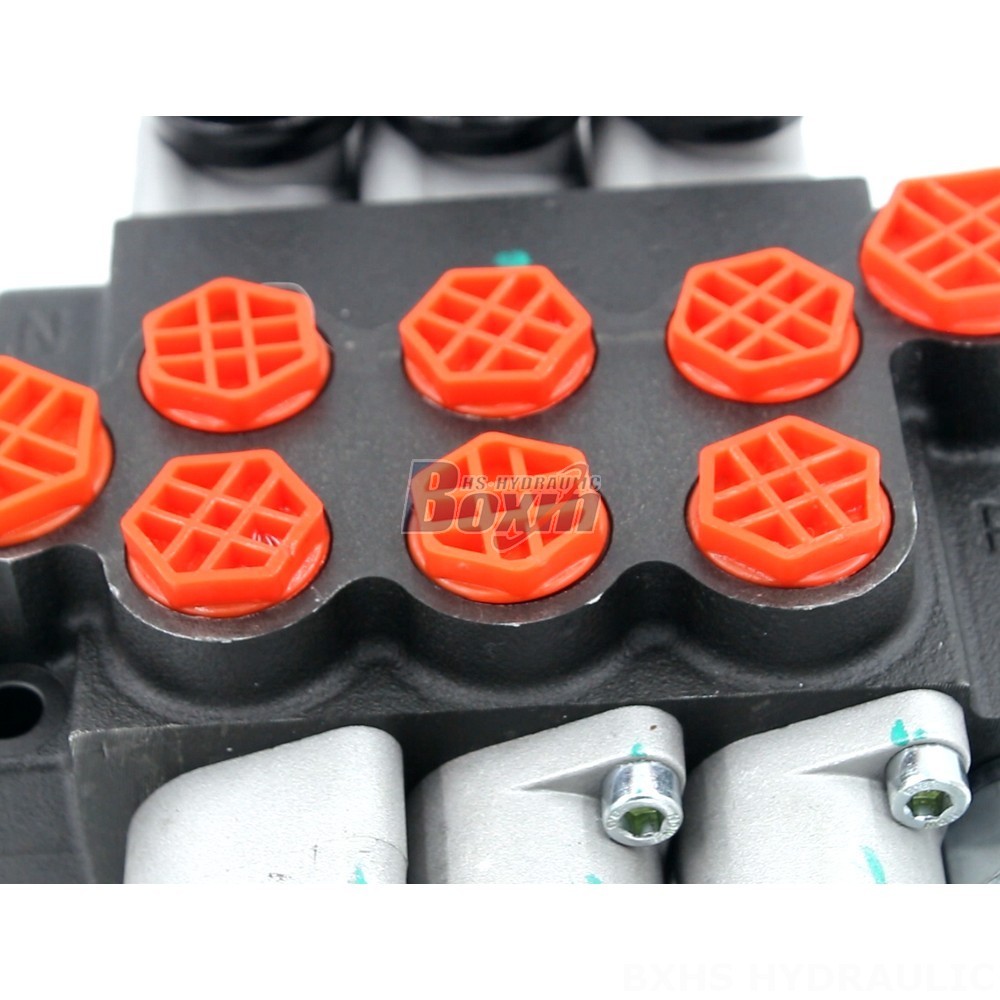

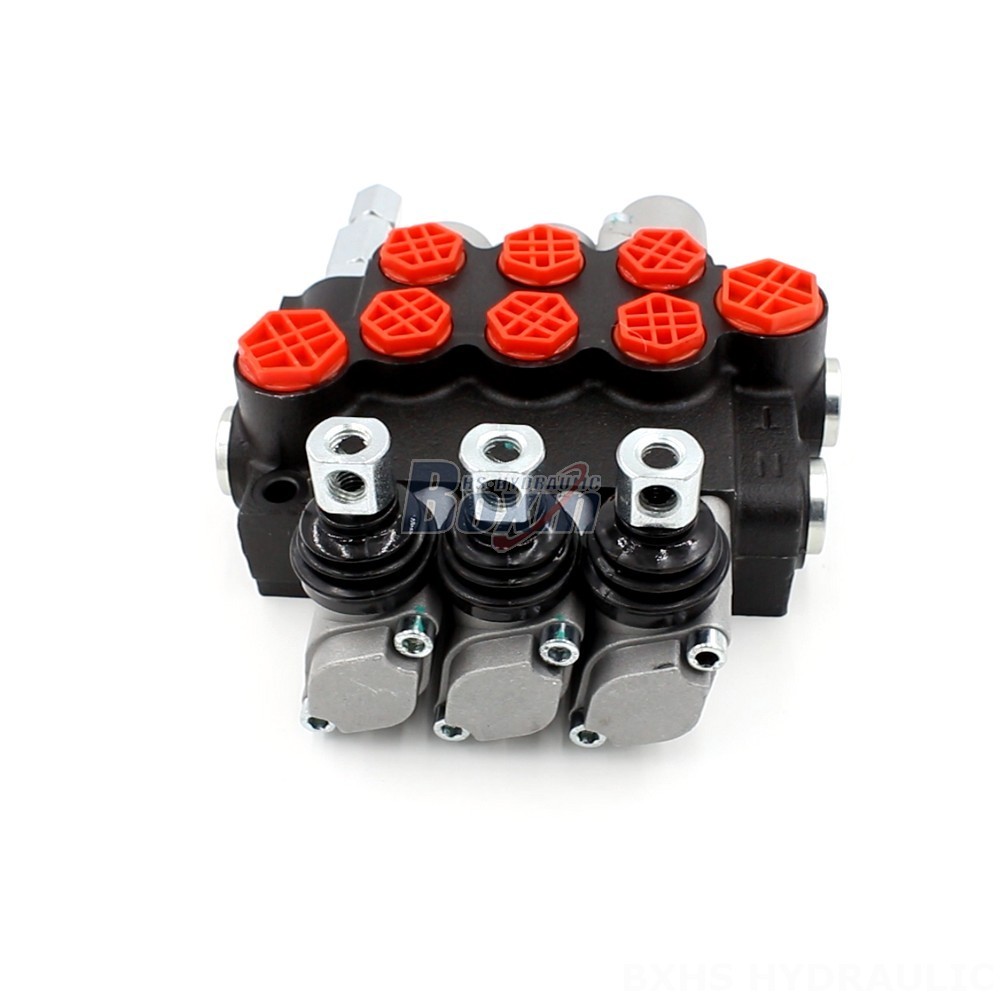

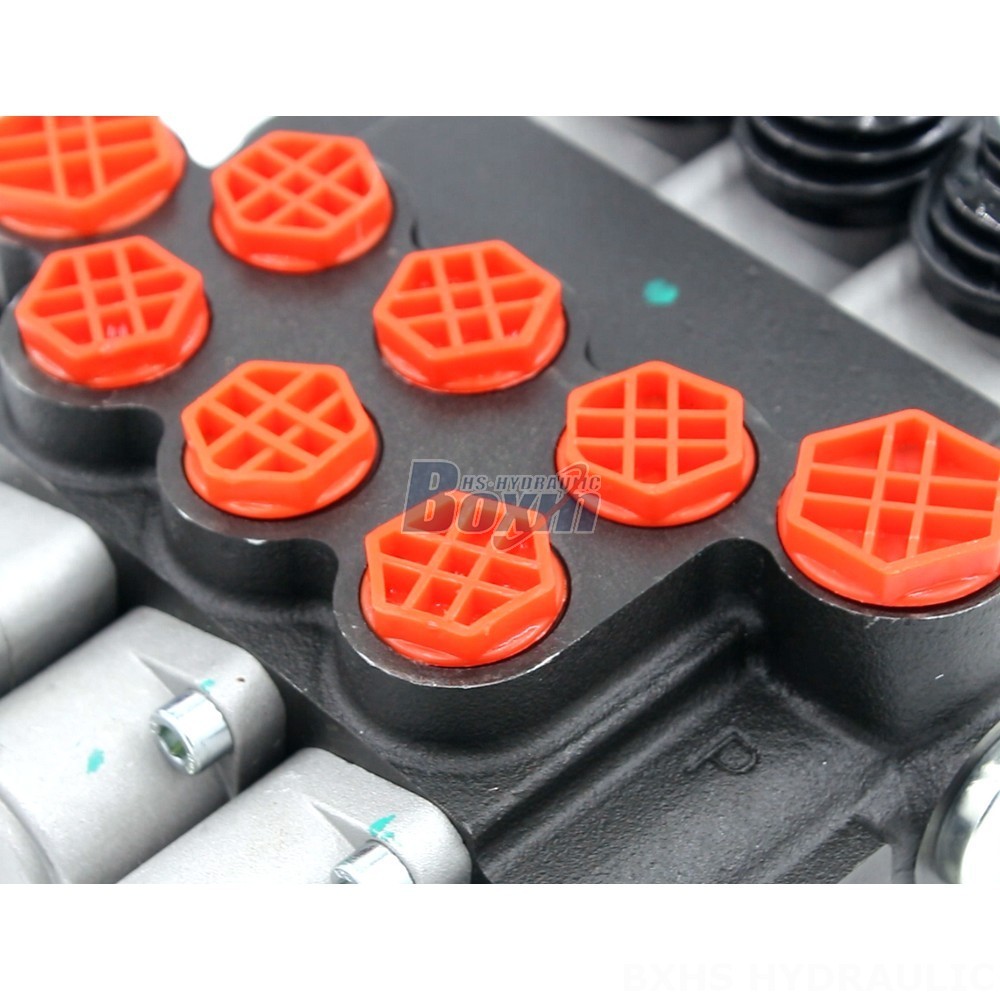

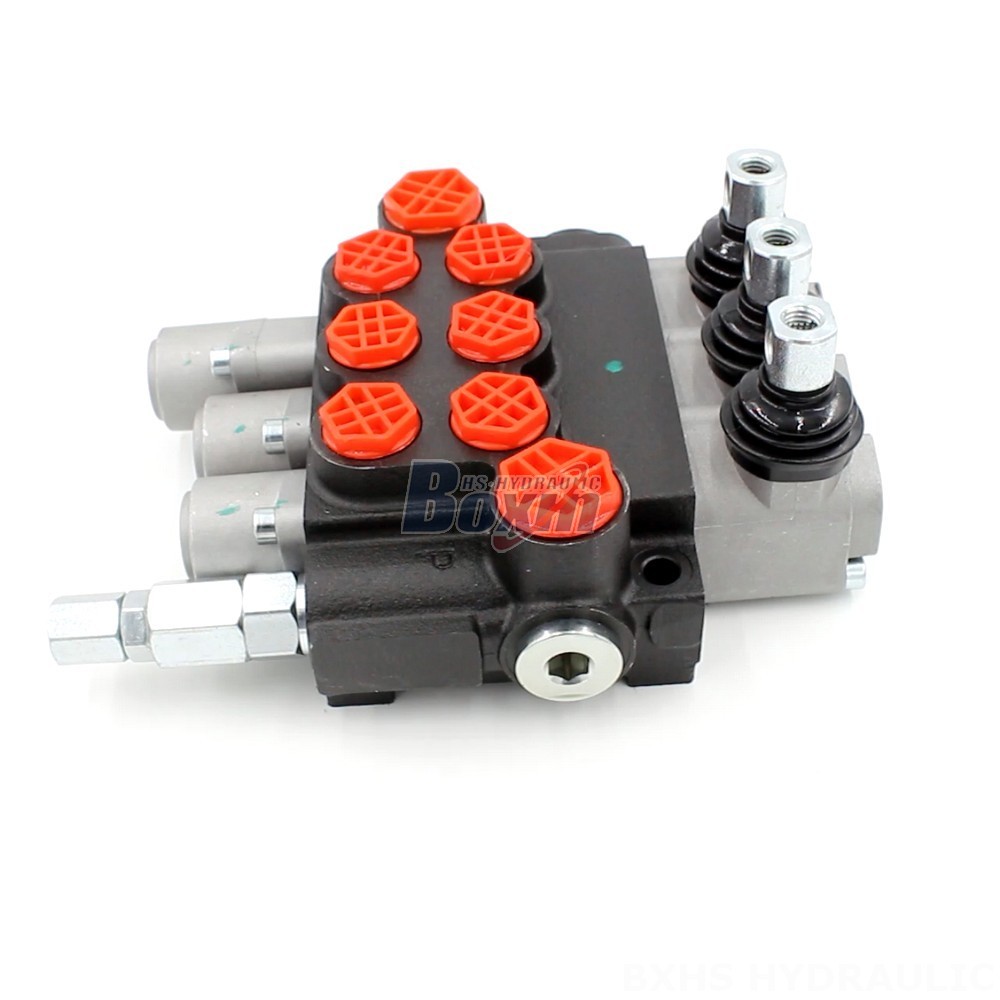

The P40-G12-G38-OT-OT-OT Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in various industrial and mobile applications. It features a compact and robust monoblock construction, ensuring reliability and durability in demanding operating conditions.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* Manual control for precise operation
* Three spool design for versatile flow control
* Monoblock construction for compact and leak-free performance
* Rated flow capacity of 40 L/min (10.5 US gpm)
* Maximum pressure rating of 250 bar (3600 psi)
* Operating viscosity range from 15 to 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range from -40°C to +80°C (-40°F to +176°F)
**Applications:**
* Material handling equipment (e.g., forklifts, telehandlers)
* Construction and earth moving machinery (e.g., excavators, loaders)
* Agricultural machinery (e.g., tractors, harvesters)
This valve is part of the P40 Series, which offers a wide range of directional valves with varying spool configurations, flow capacities, and pressure ratings to meet the specific requirements of various hydraulic systems.
