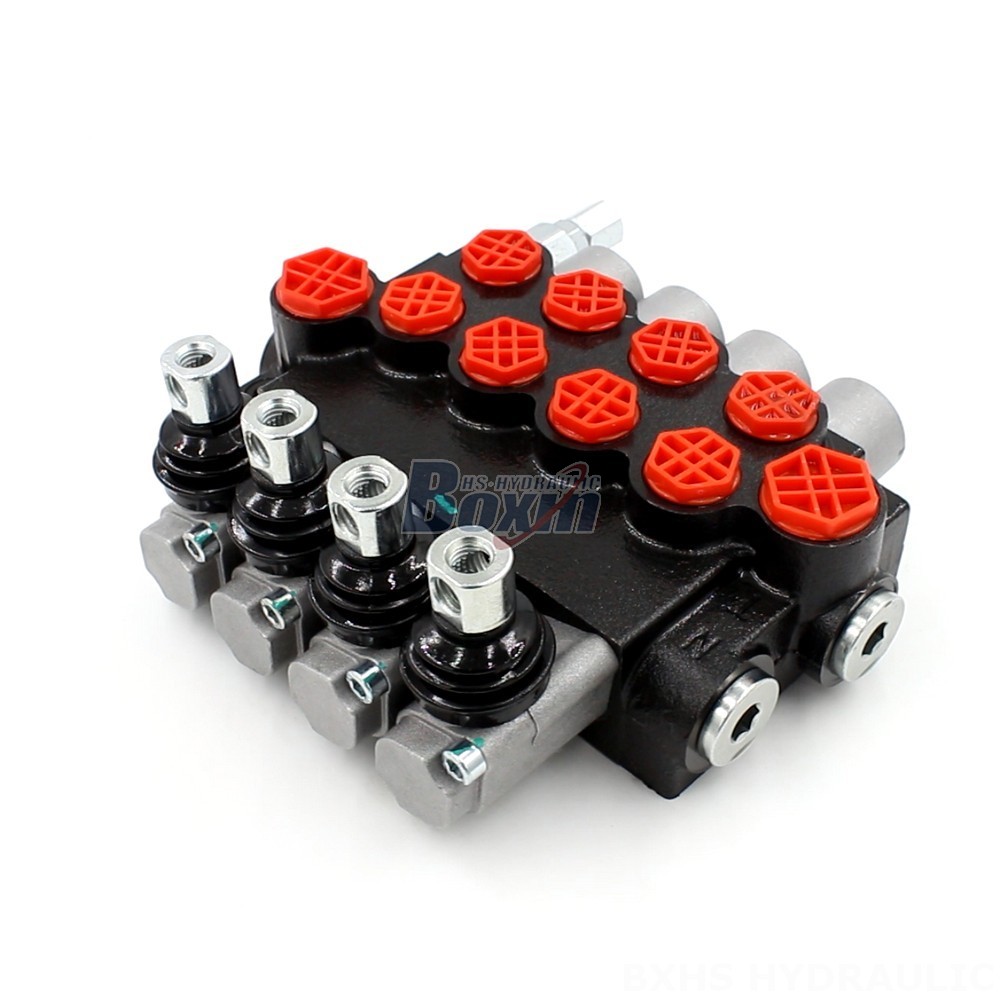

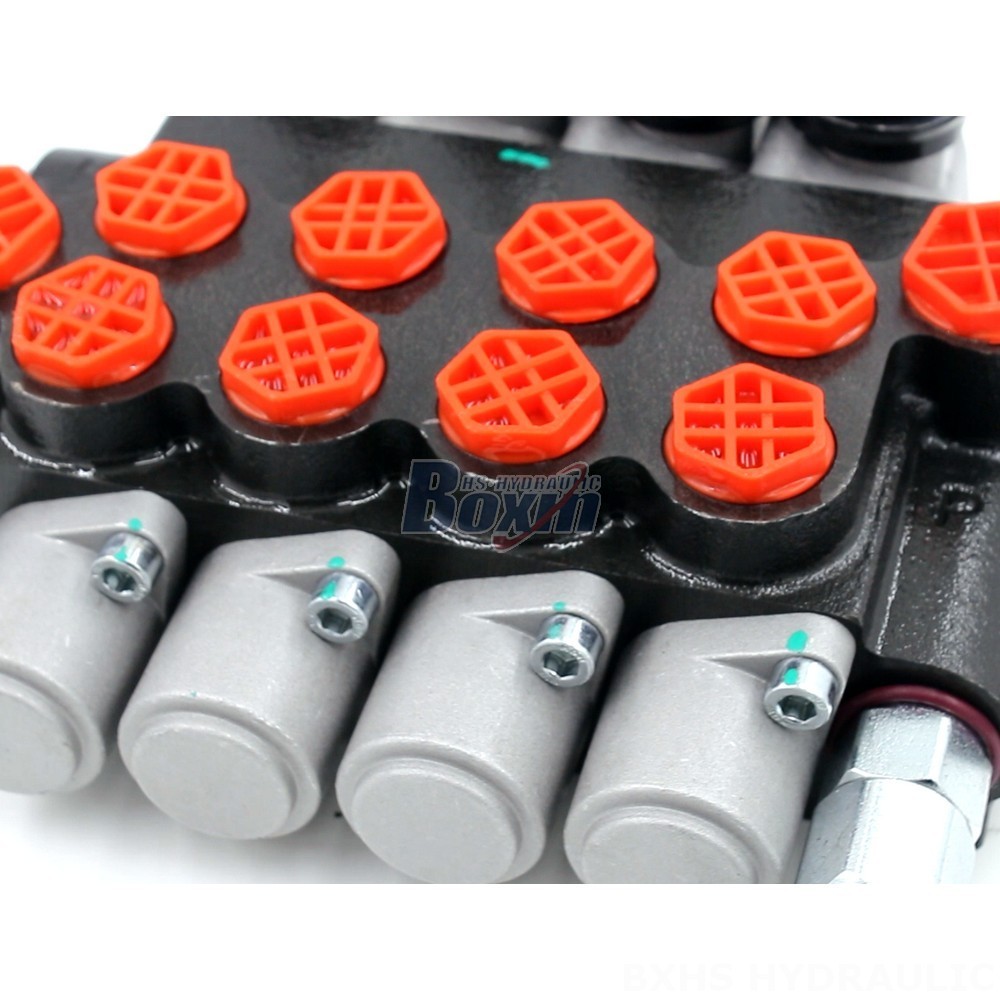

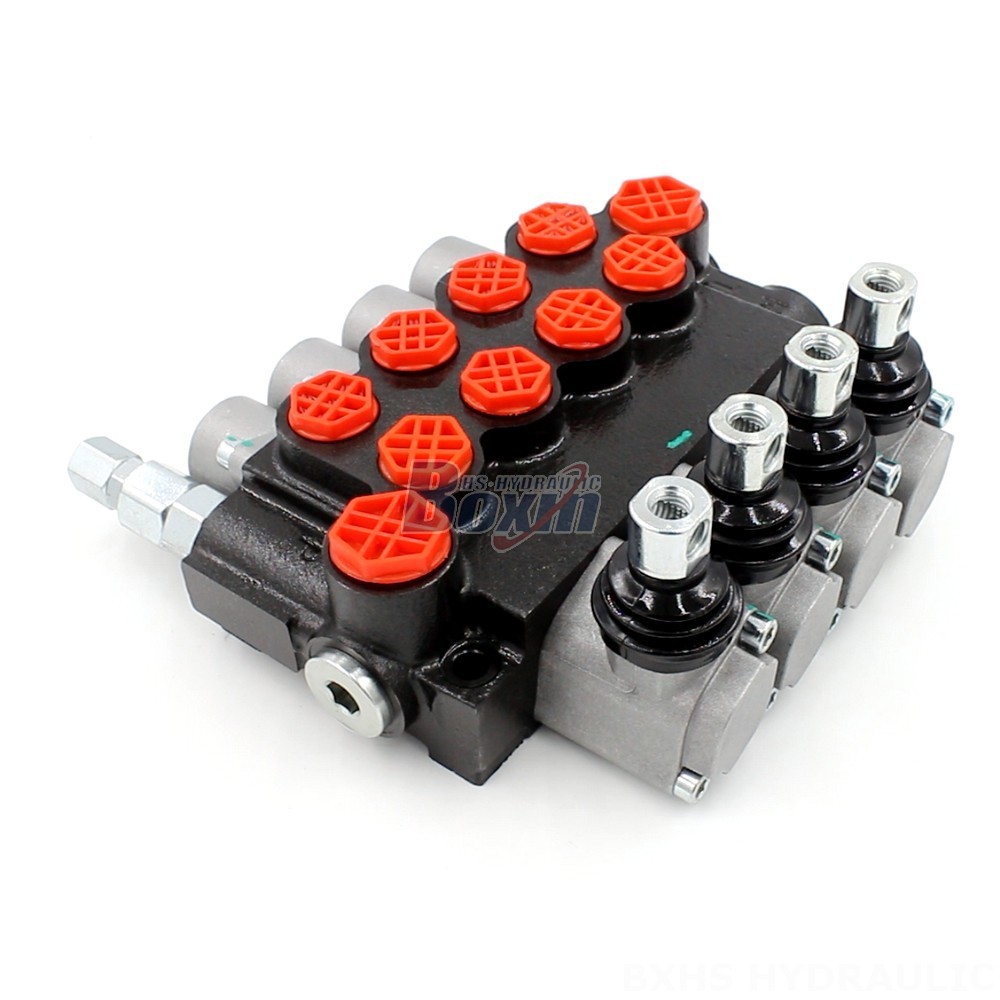

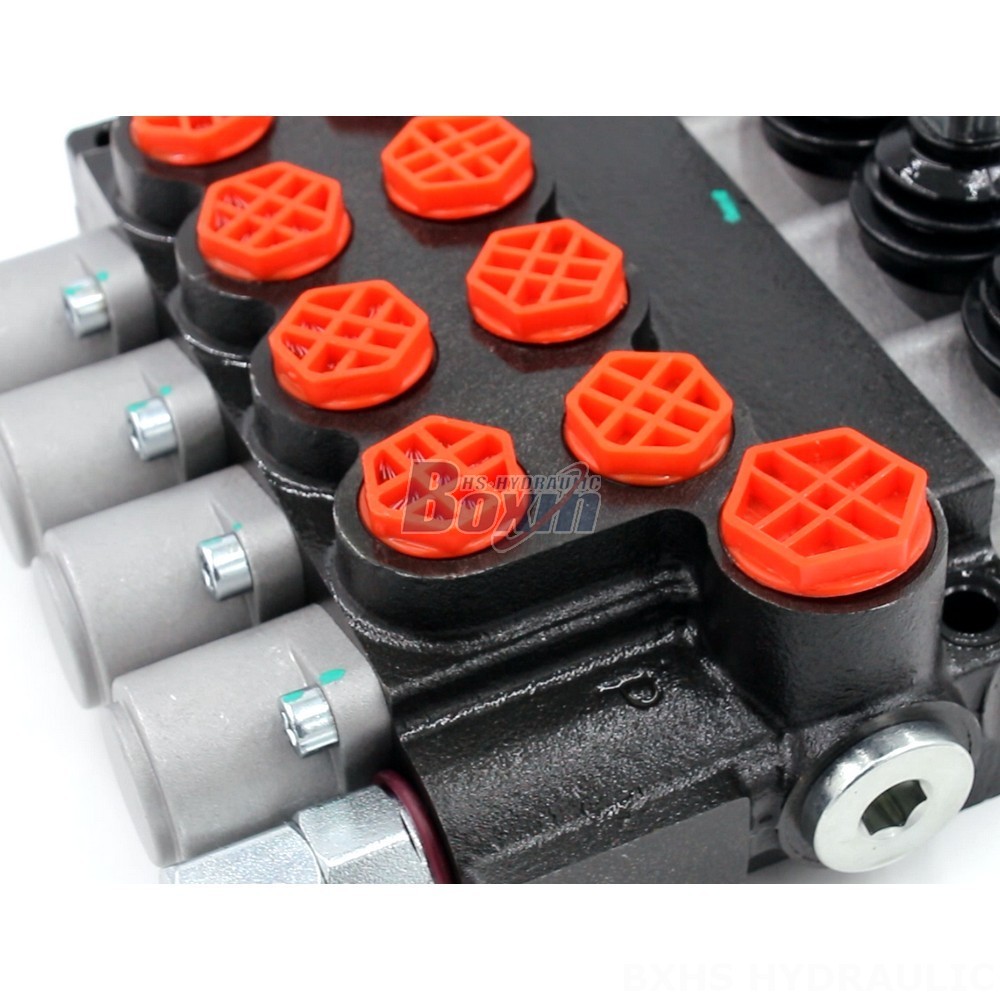

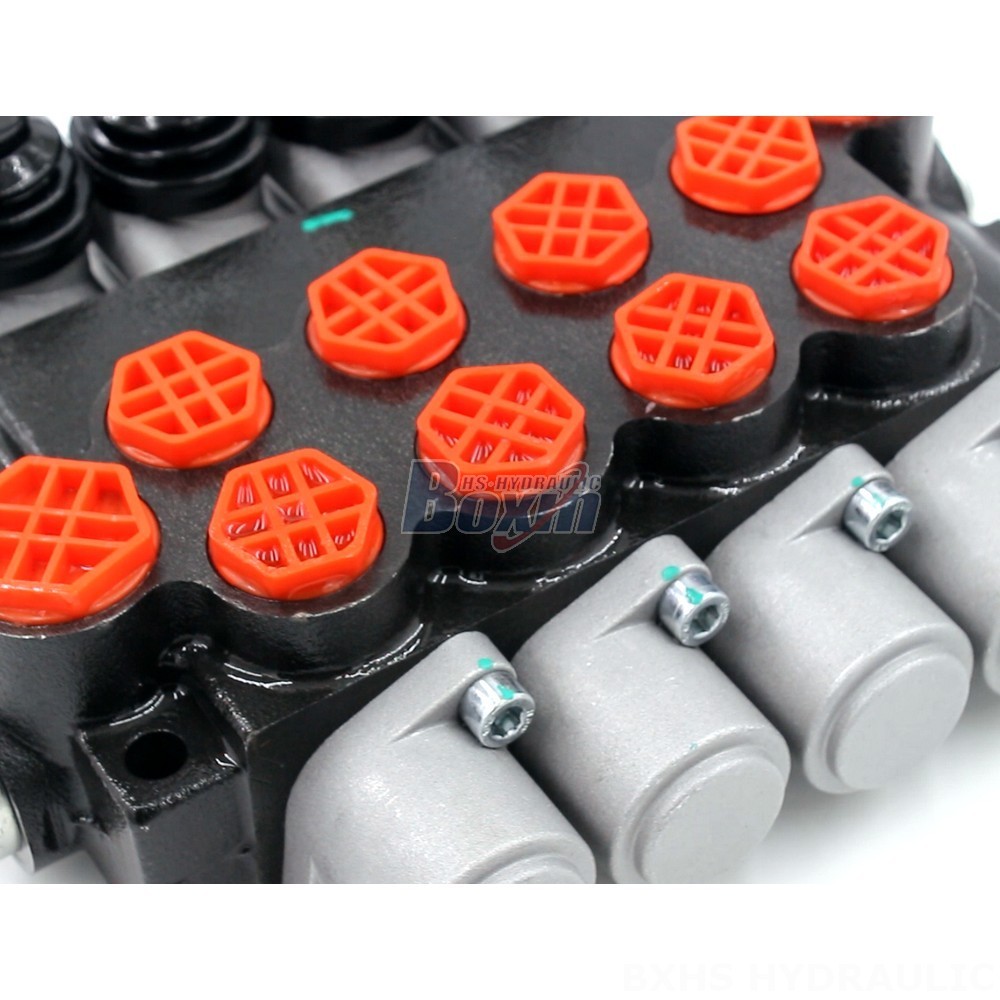

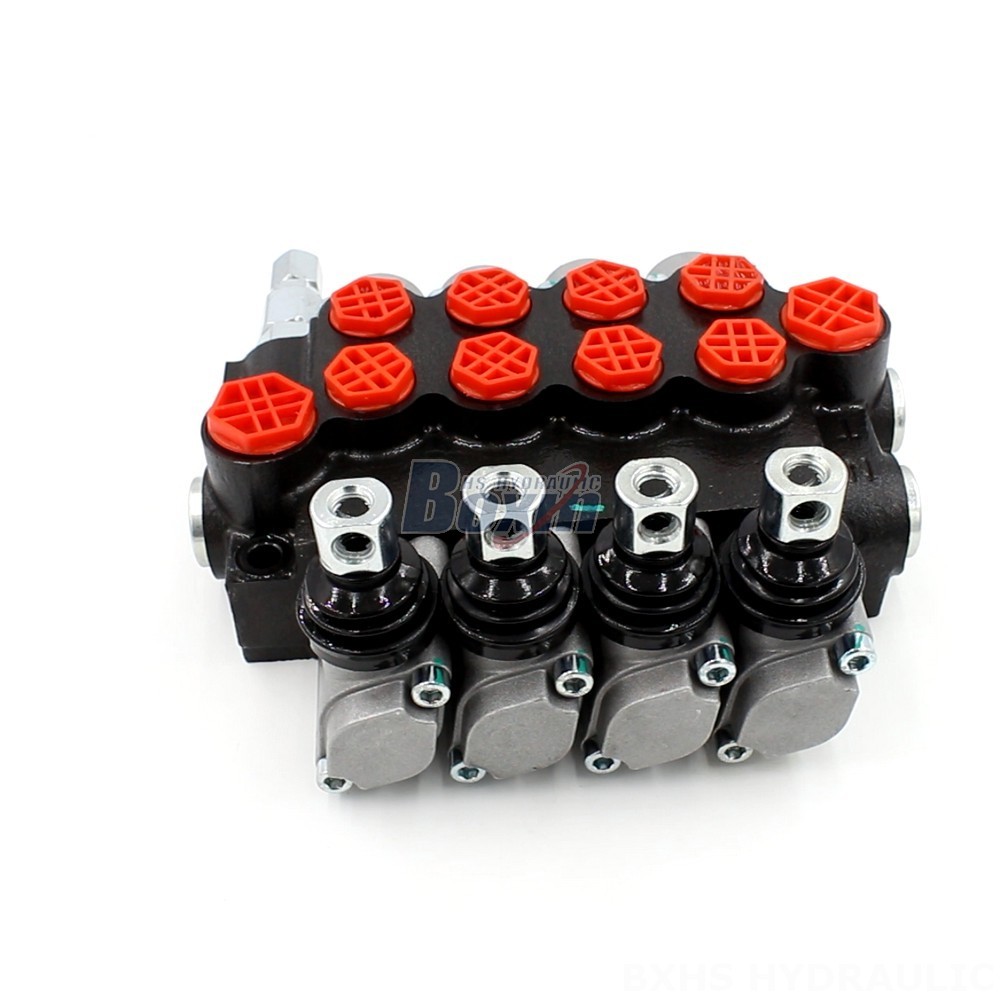

The P40-G12-G38-OT 4-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding hydraulic systems. With its robust monoblock construction, it offers exceptional durability and reliability. The valve features a 40 L/min rated flow capacity and a maximum pressure of 250 bar, making it suitable for a wide range of applications.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* Manual control for precise operation
* Monoblock design for improved durability and reduced leakage
* 4-spool configuration for versatile control
* Rated flow of 40 L/min for efficient system operation
* Maximum pressure of 250 bar for handling high-pressure applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for operation in extreme conditions
**Applications:**
* Material handling equipment
* Construction equipment
* Agricultural equipment
* Industrial vehicles
