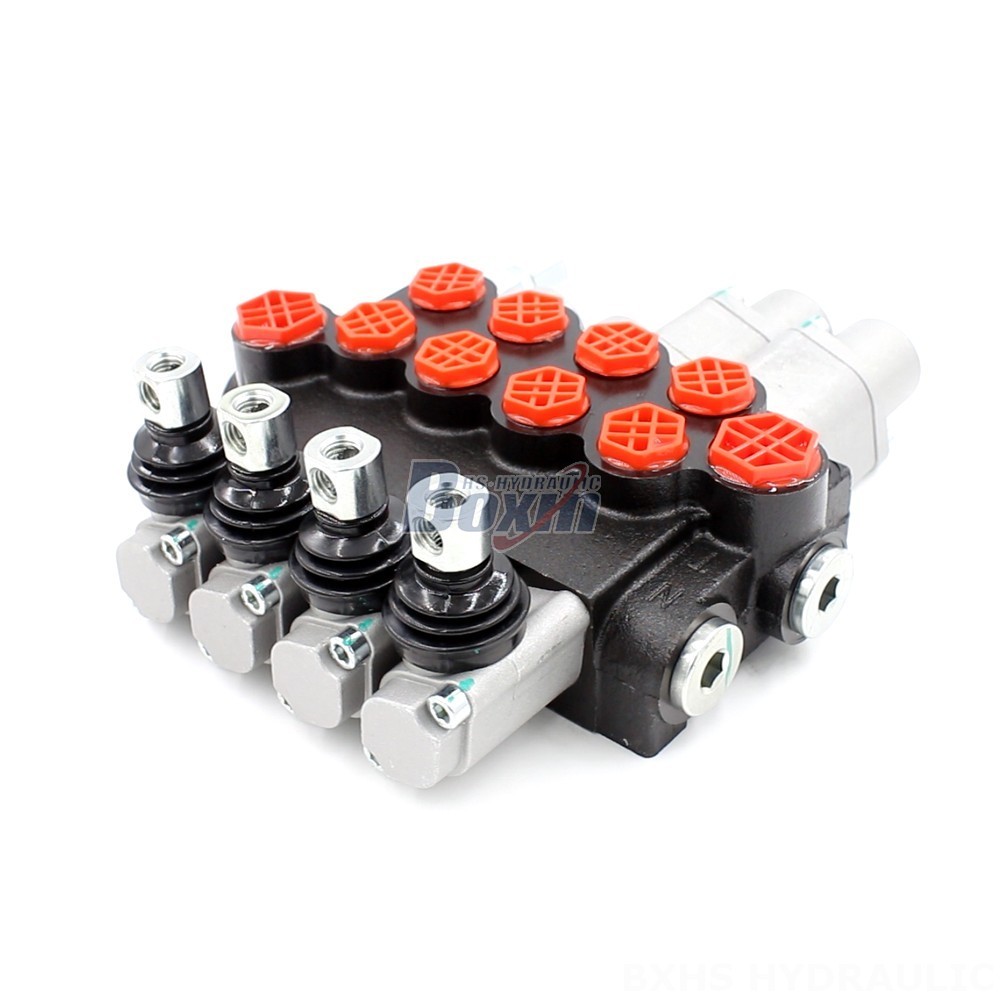

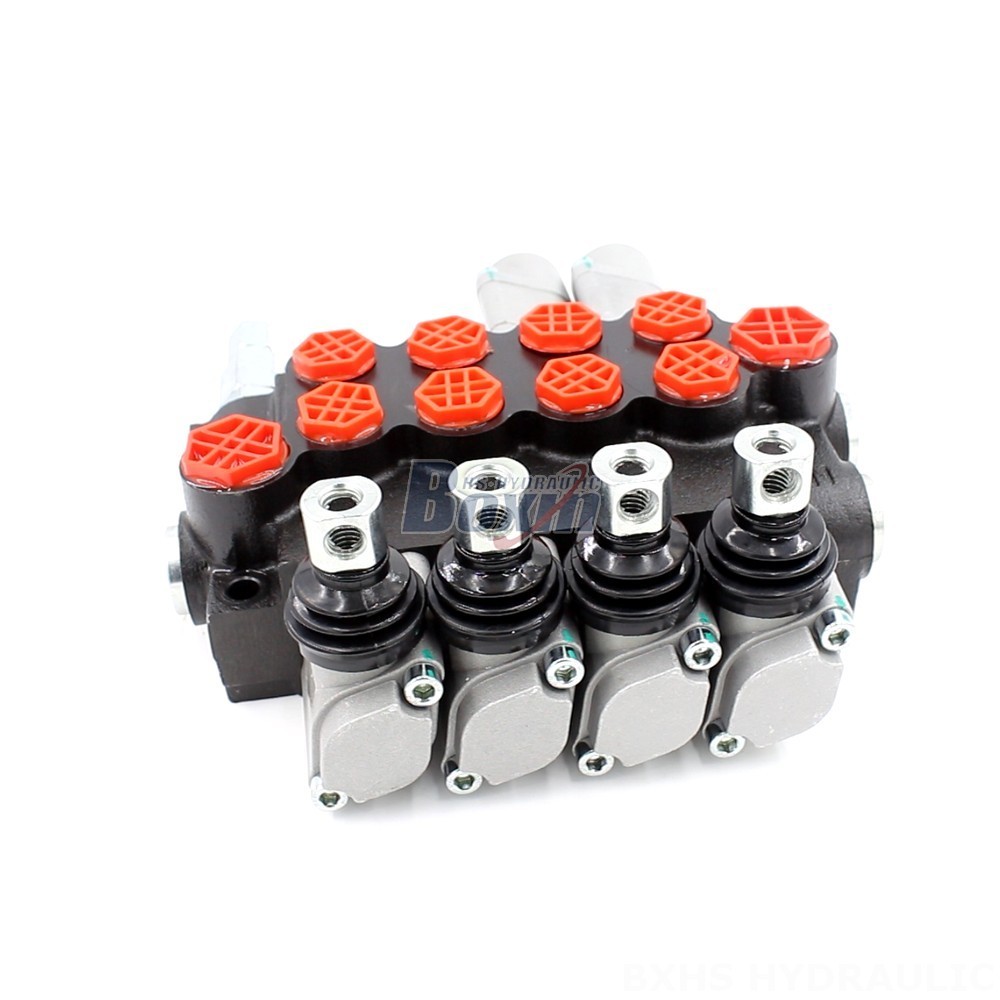

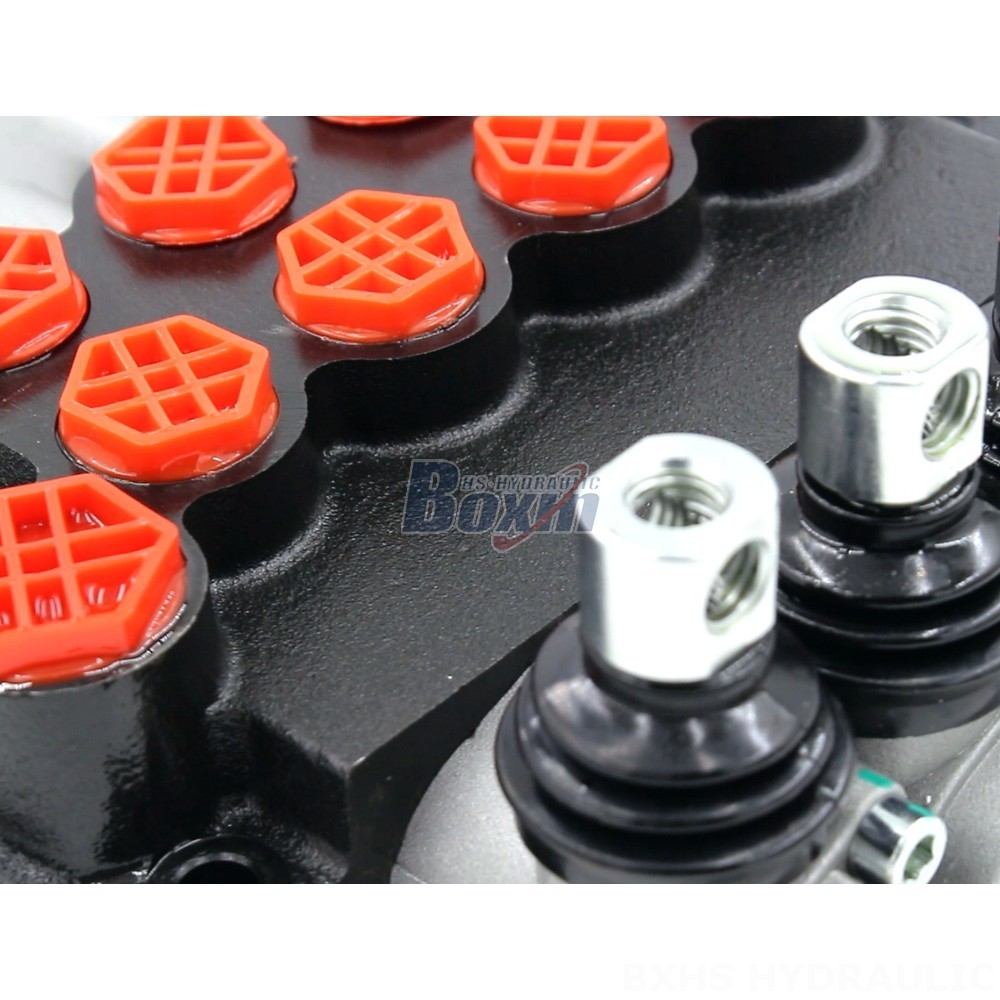

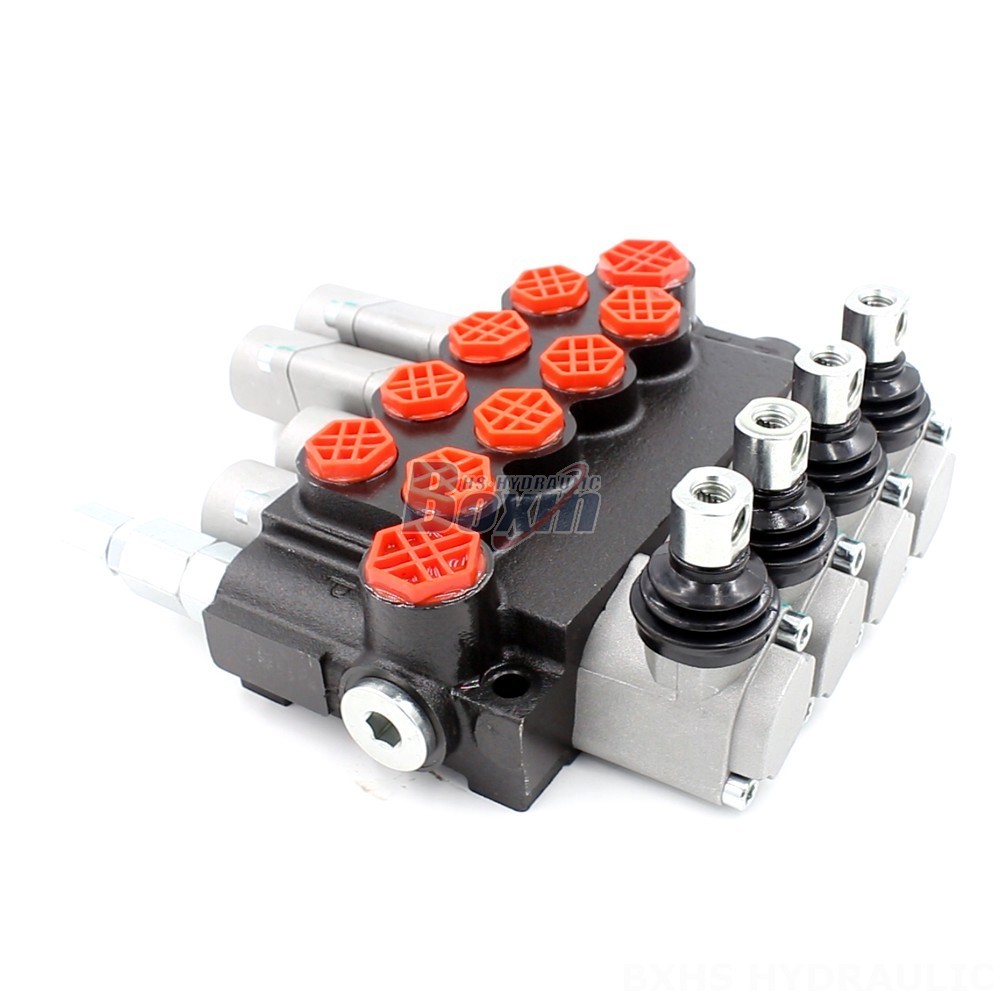

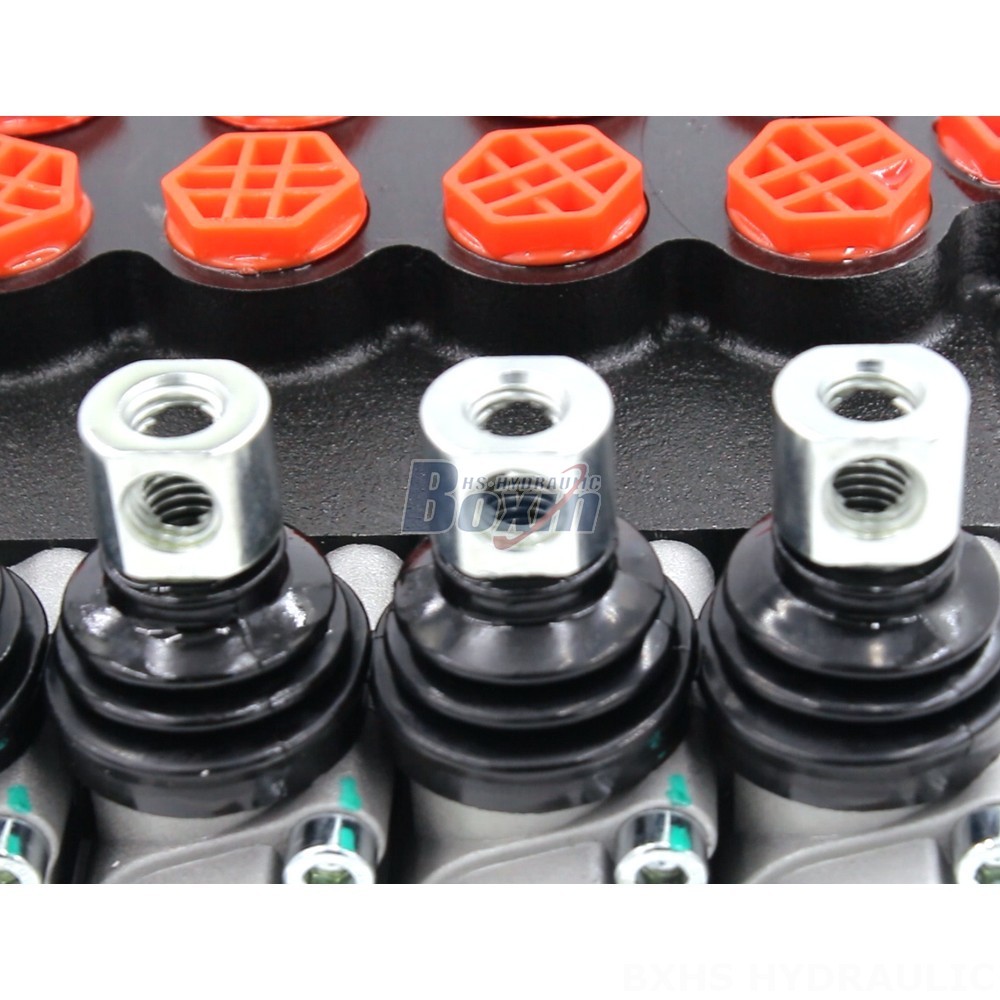

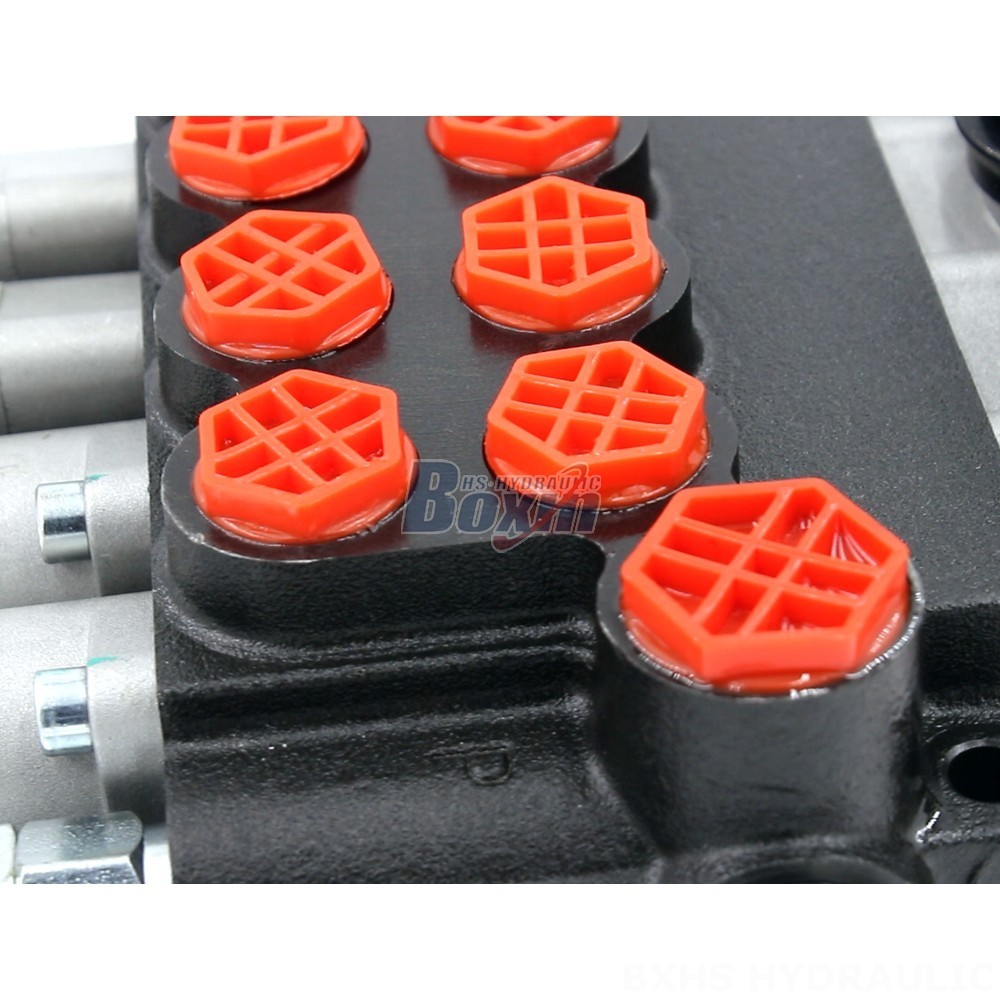

Introducing the P40-G12-G38 Monoblock Directional Valve, a high-performance hydraulic valve designed for precision and durability in demanding hydraulic applications. This 4-section, manually controlled valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of hydraulic systems.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-G38 Monoblock Directional Valve: Precision and Durability in Hydraulics**
**Key Features:**
- **Manual Control** for precise and reliable operation
- **4 Section** design for versatile hydraulic system configurations
- **Monoblock Valve** construction for compact and robust performance
- **Rated Flow of 40 L/min** for efficient hydraulic fluid flow
- **Maximum Pressure of 250 bar** for demanding hydraulic applications
- **Operating Viscosity Range of 15 - 75 mm²/s** for compatibility with various hydraulic fluids
- **Ambient Temperature Range of -40°C to +80°C** for reliable operation in harsh environments
- **4 Spool** design for precise flow control
- **P40 Series** compatibility for seamless integration with other hydraulic components
**Application Areas:**
- Material Handling (e.g., forklifts, telehandlers)
- Construction and Earth Moving (e.g., excavators, motor graders)
- Agriculture (e.g., tractors, harvesters)
- Industrial Vehicles (e.g., skid steer loaders, compact wheel loaders)
**Applicable Models:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
The P40-G12-G38 Monoblock Directional Valve is the ideal choice for hydraulic systems that demand precision, durability, and reliable performance. Its advanced design and robust construction ensure long-lasting operation even in the most challenging hydraulic applications.
