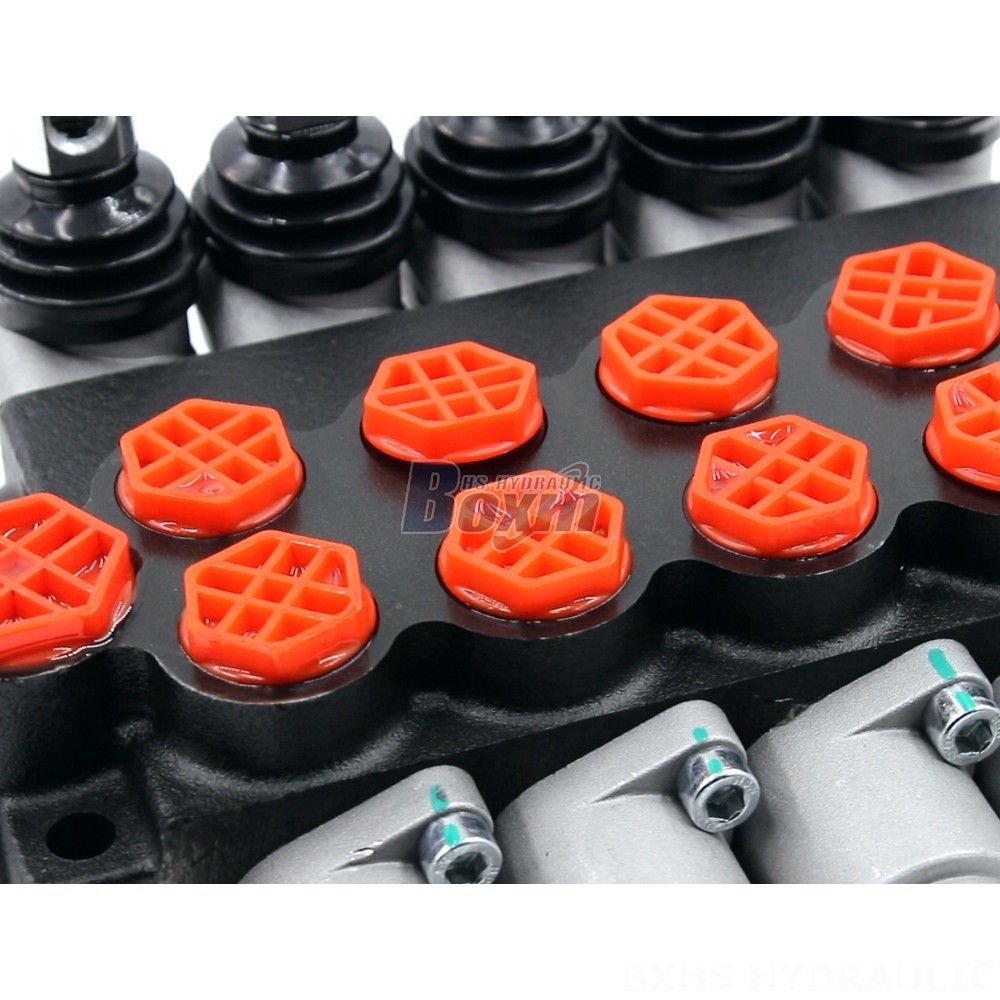

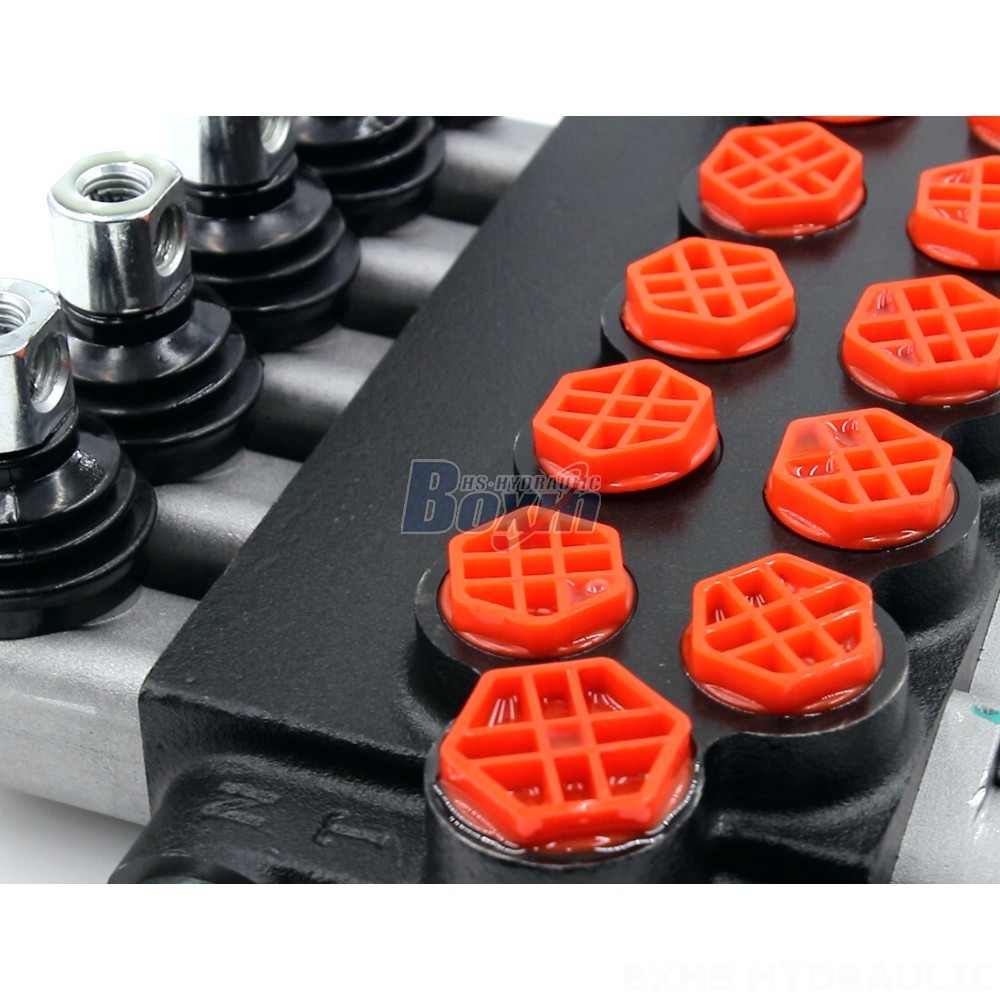

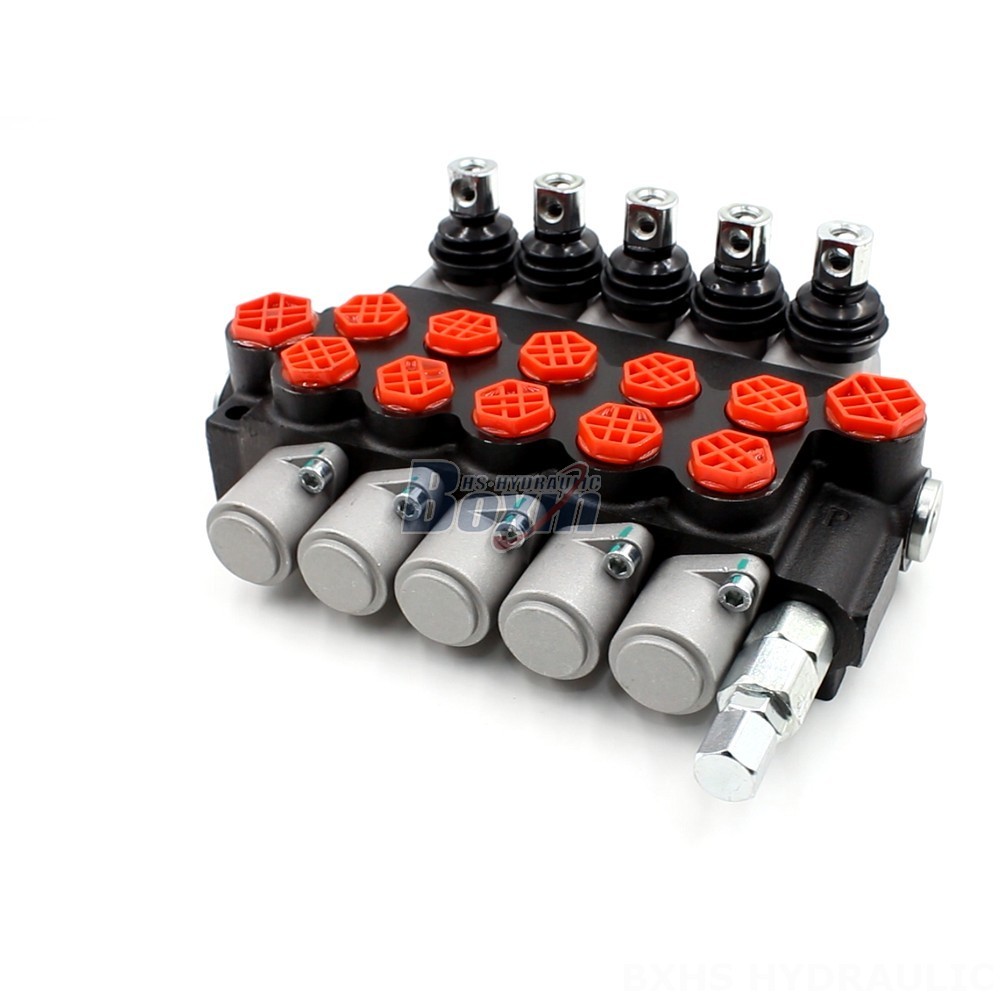

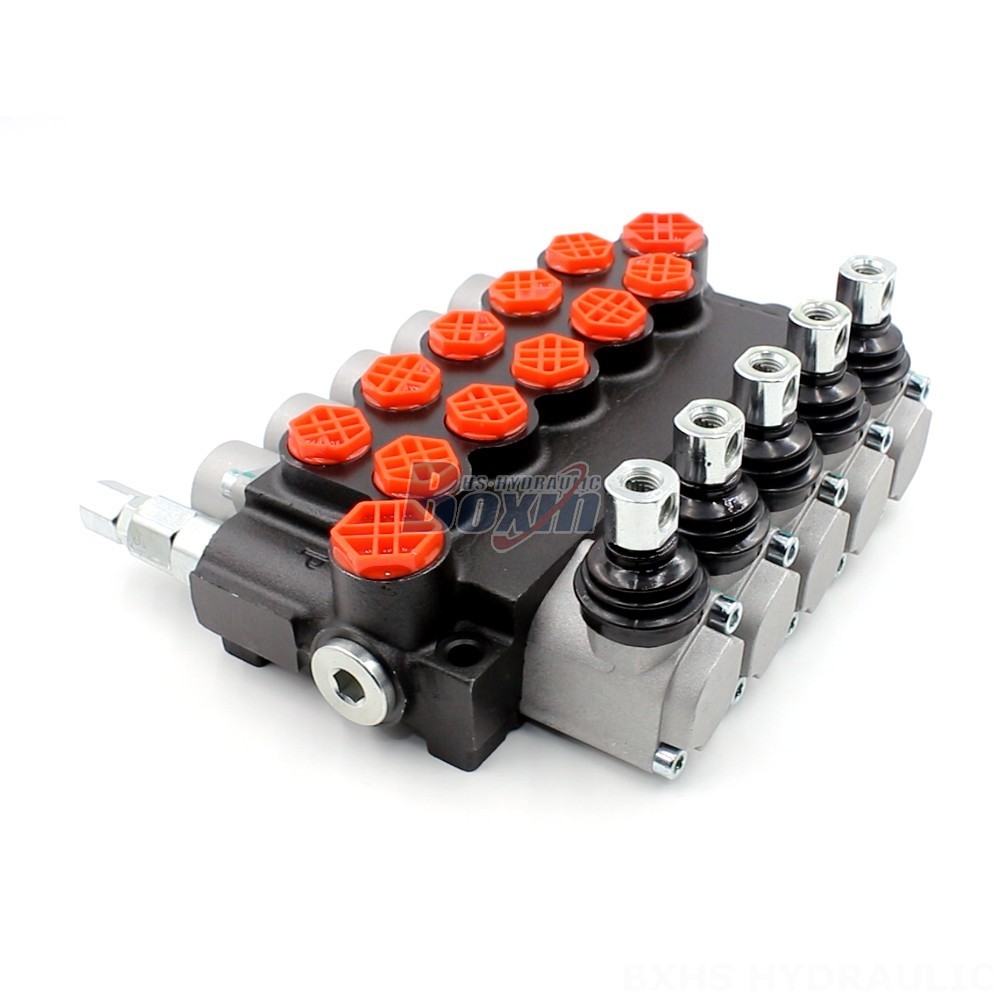

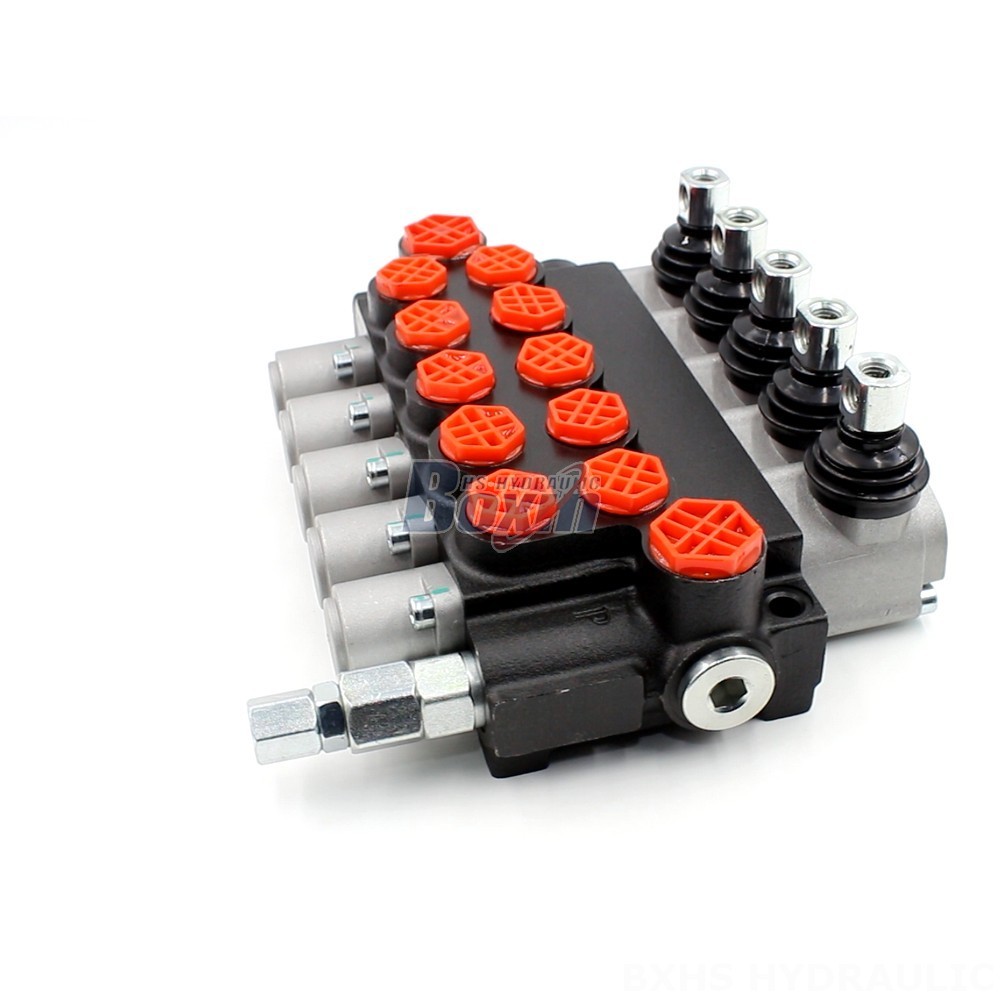

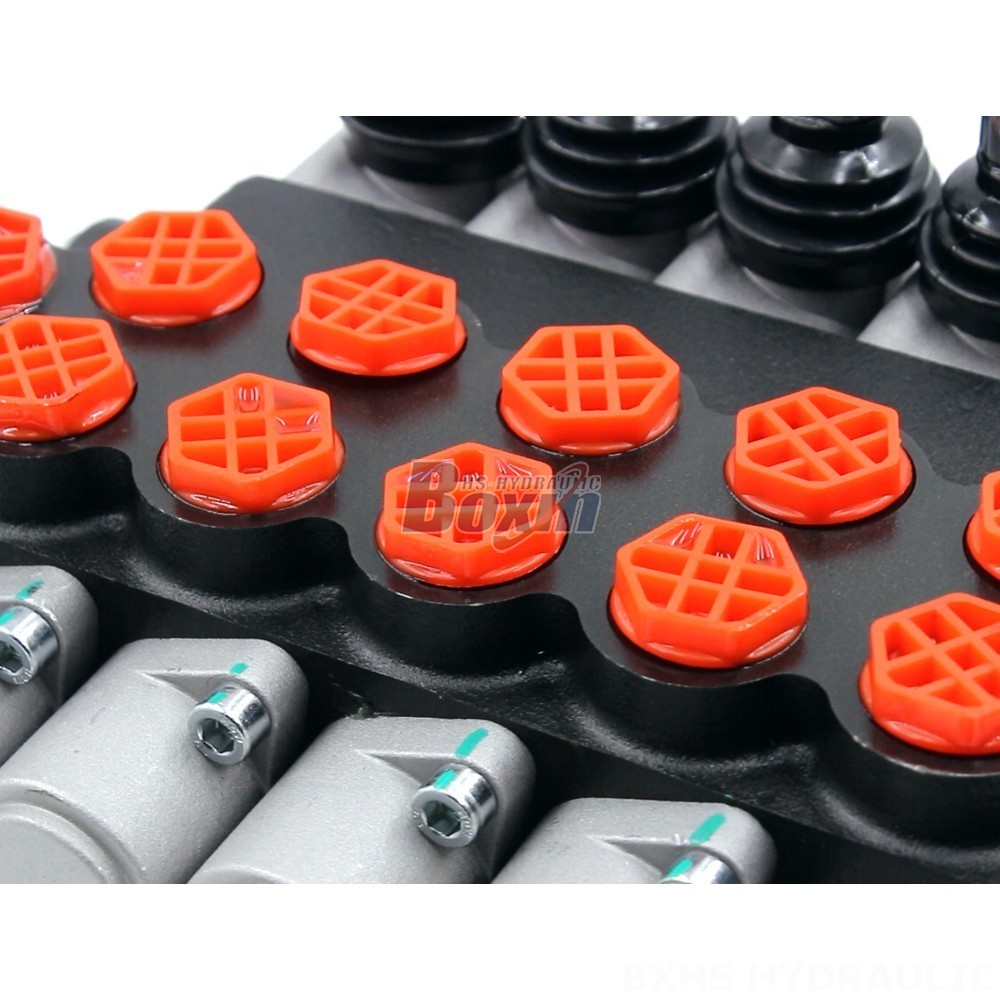

The P40-G12-G38 Manual Directional Control Valve is a versatile hydraulic component designed to control the flow of hydraulic fluid in a variety of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable performance in demanding conditions.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features of the P40-G12-G38 Manual Directional Control Valve:**
- **Manual control:** Allows for precise and responsive flow control.
- **Monoblock valve:** Compact and robust design for durability and reliability.
- **High flow capacity:** Rated flow of 40 L/min for efficient operation.
- **High pressure capability:** Maximum pressure of 250 bar for demanding applications.
- **5 section, 5 spool:** Versatile configuration for a wide range of control requirements.
- **Wide range of applications:** Suitable for material handling, construction, agriculture, and industrial vehicles.
- **OEM, ODM, and Private Label services:** Available to meet specific customer requirements and branding needs.
- **Distribution and wholesale opportunities:** Open to partnering with distributors, wholesalers, and agents for global market reach.
