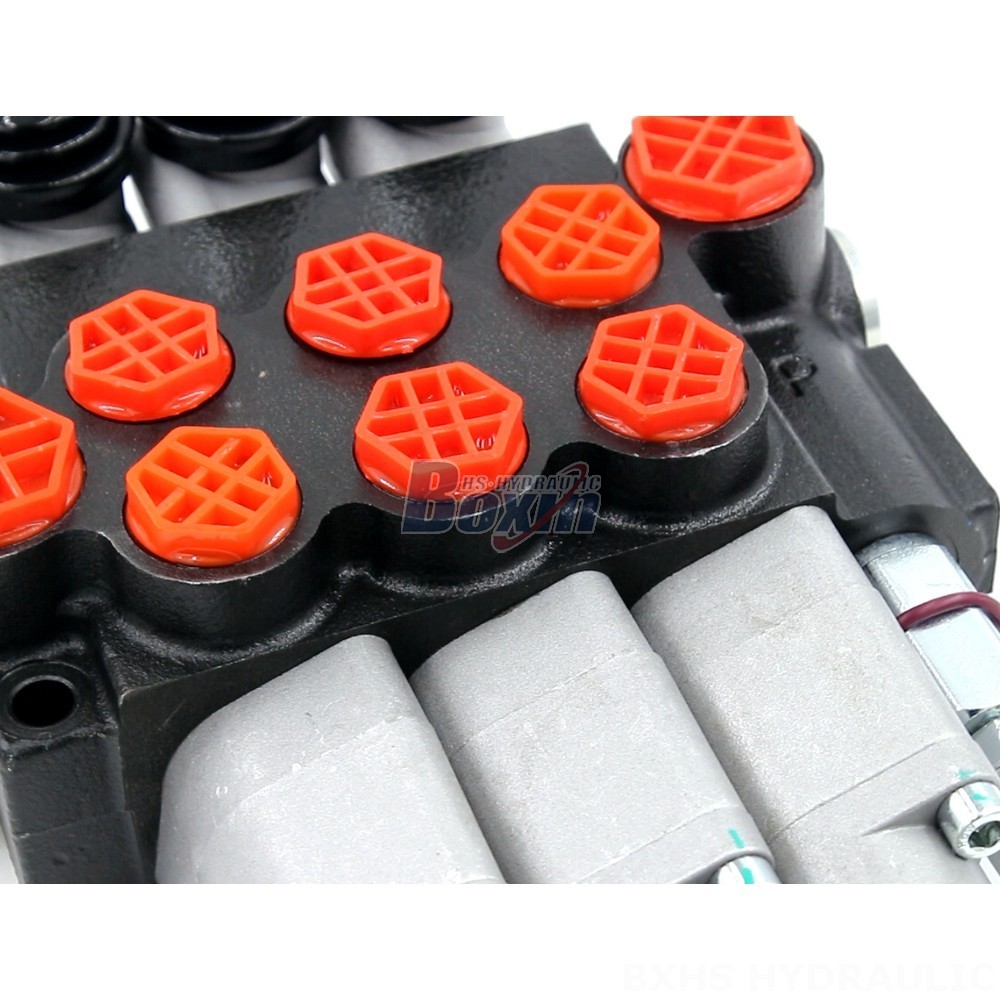

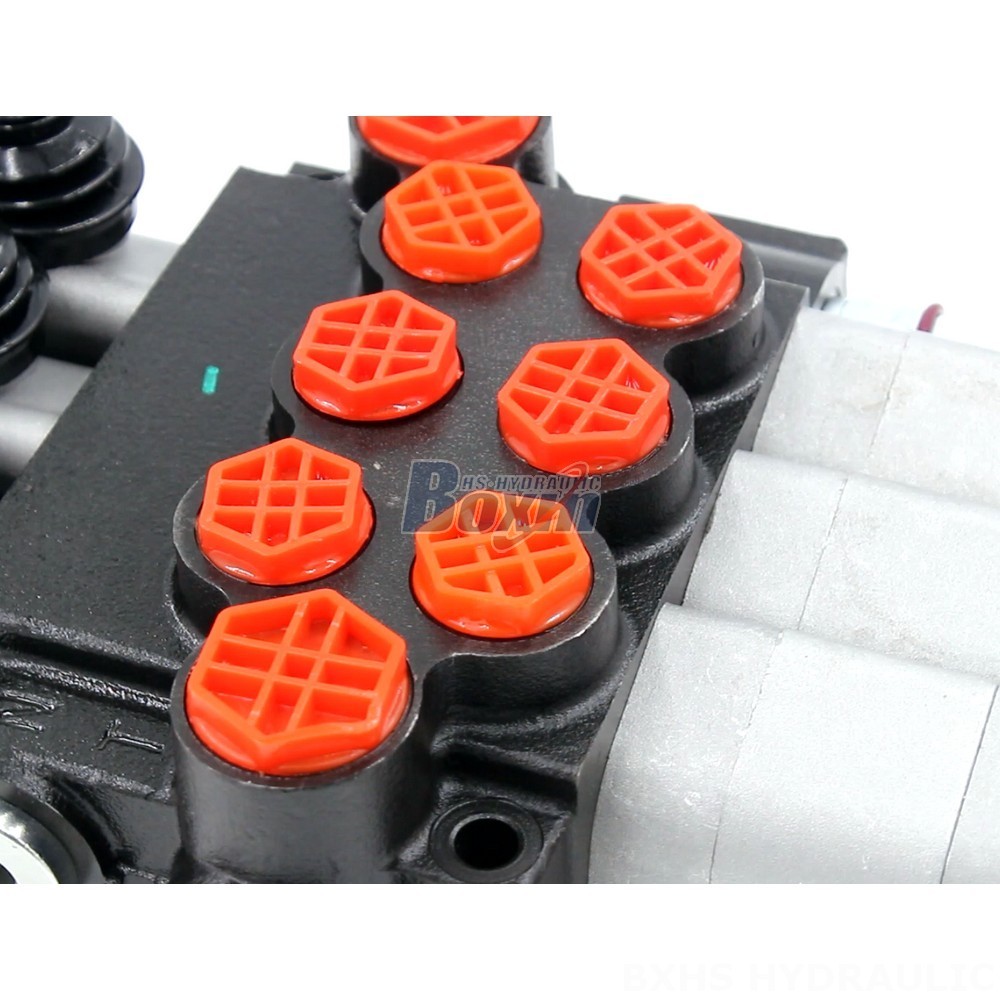

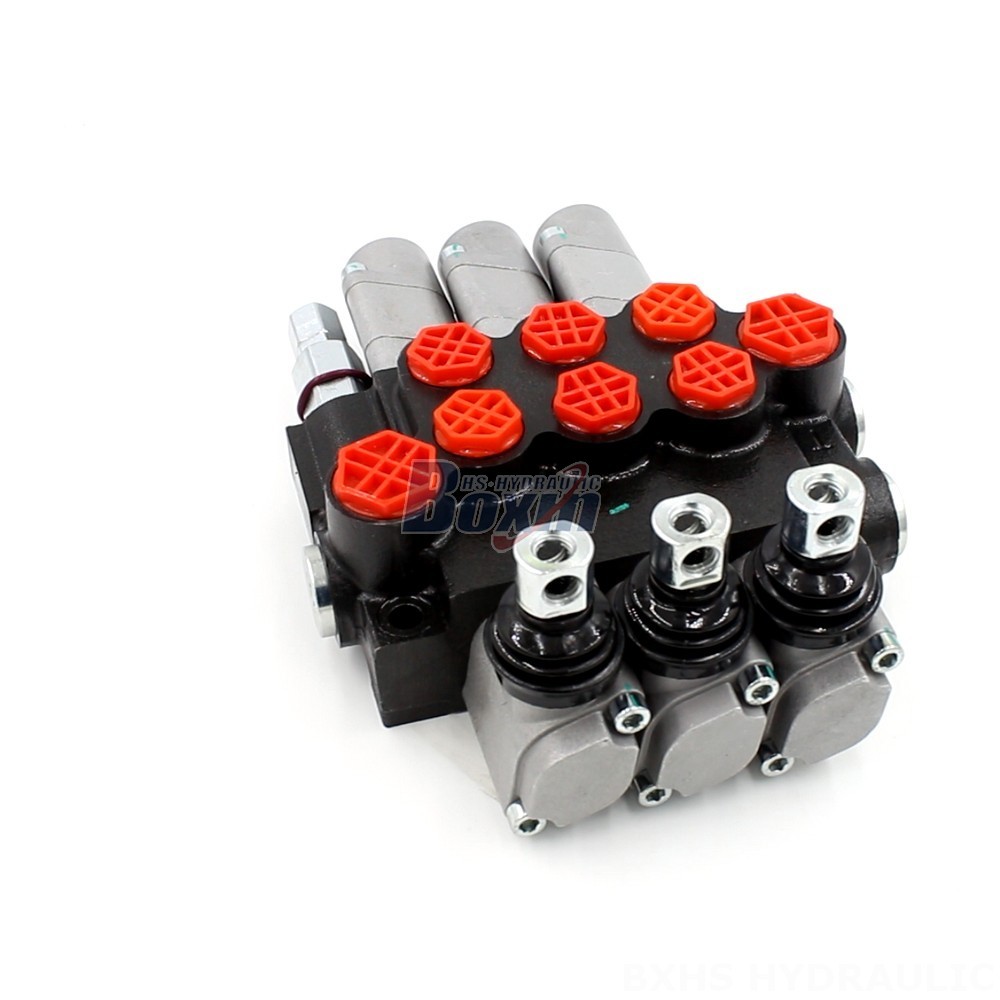

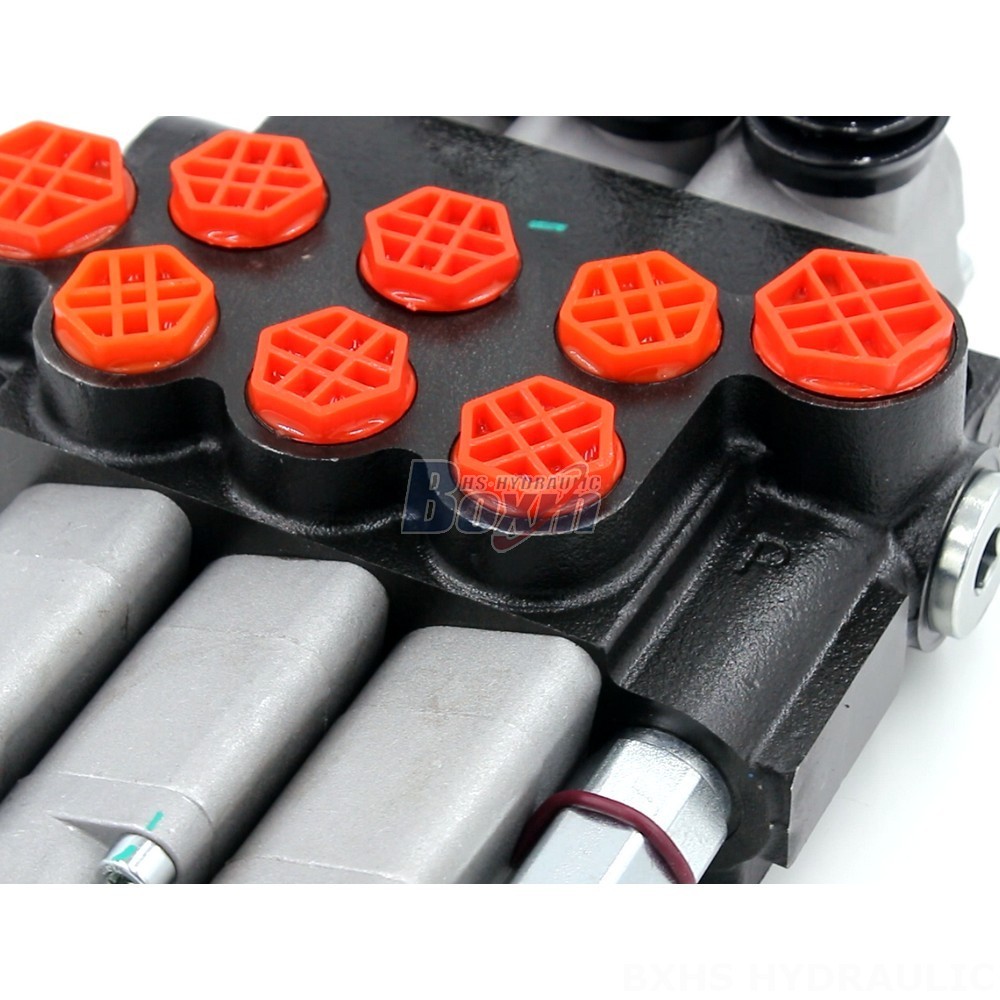

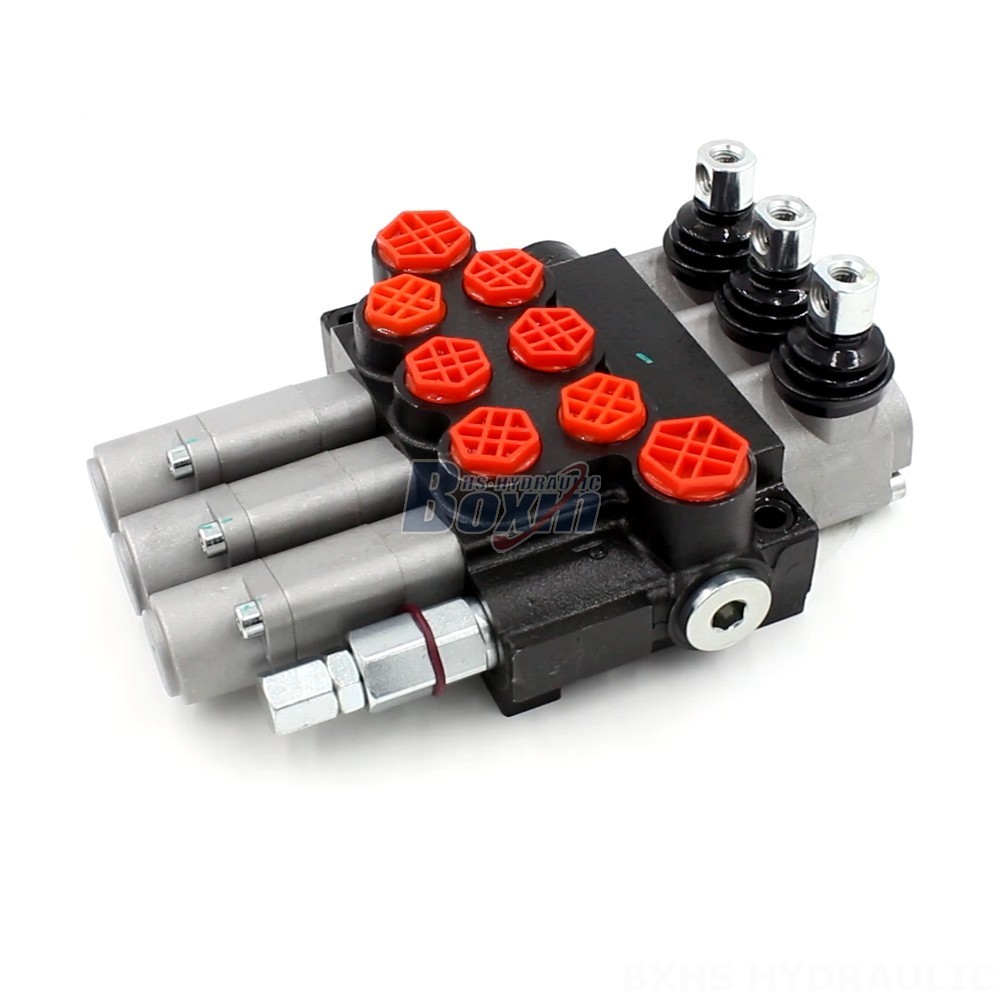

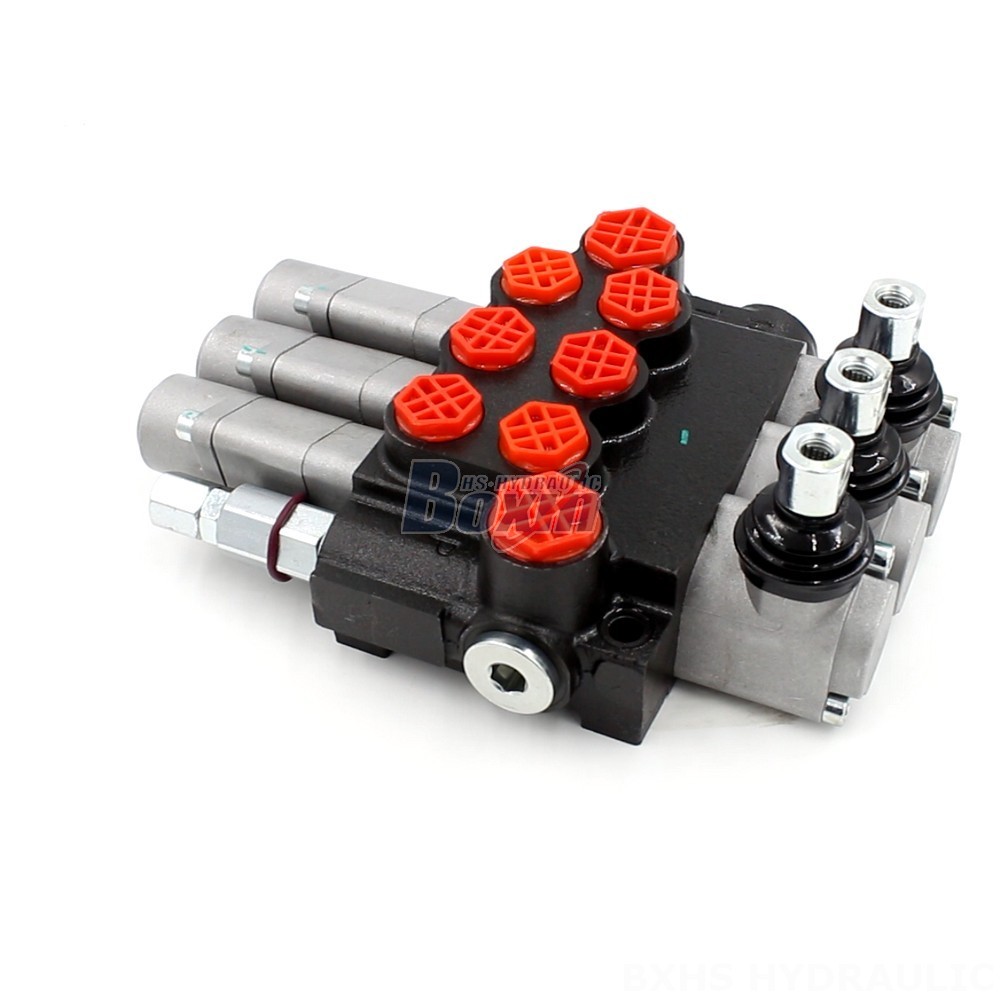

The P40-G12-G38-3QTW Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With its robust monoblock design, manual control, and flow rate of 40 L/min (10.5 US gpm), this valve ensures precise and reliable control of hydraulic systems.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Product Features:**
- Manual control for precise operation
- 3 spool design for versatile hydraulic system configurations
- Monoblock construction for durability and compact size
- Rated flow of 40 L/min (10.5 US gpm) for efficient performance
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in diverse environments
**Applications:**
This directional valve is ideal for a wide range of applications, including:
- Material Handling: Telehandlers, forklifts, stackers, aerial platforms
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders, wheel loaders, backhoe loaders
- Agriculture: Tractors, harvesters, irrigation systems
- Industrial Vehicles: Dumpers, concrete boom pumps, pave rollers, rotary drilling equipment, crushers, stone cutters
