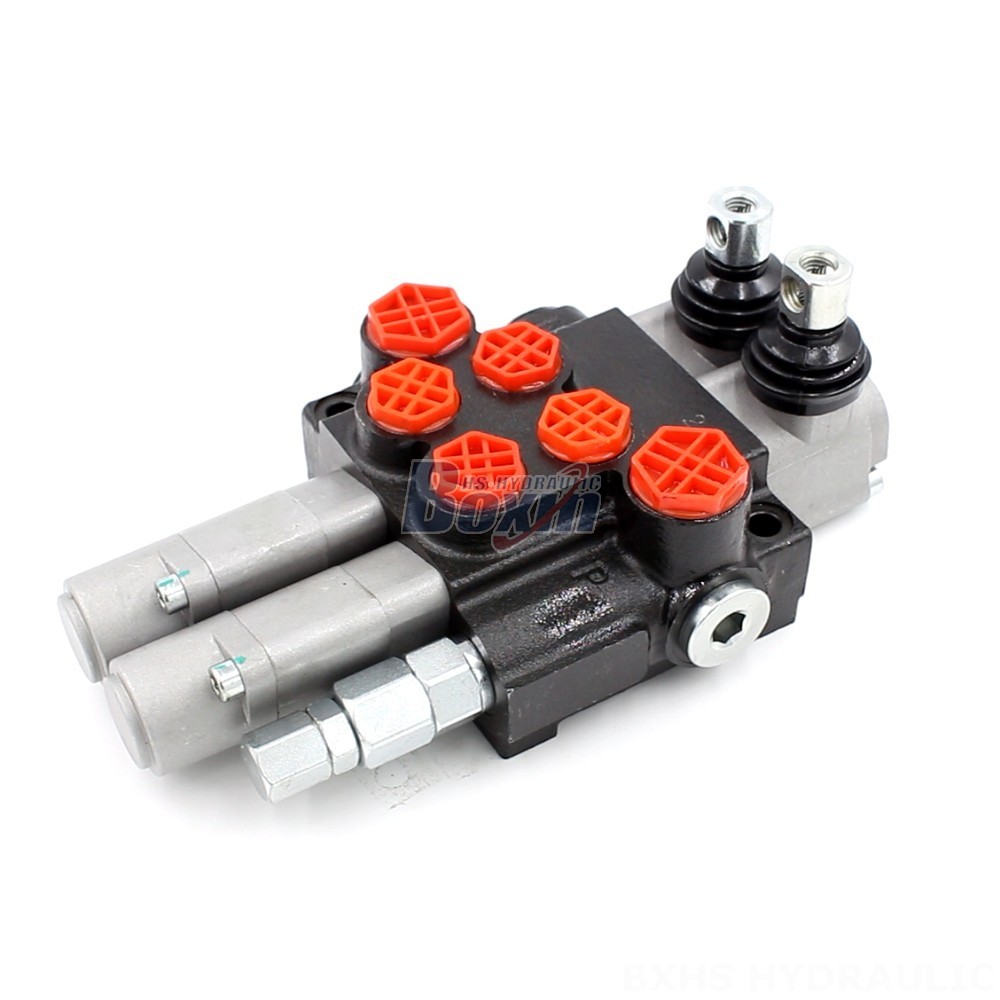

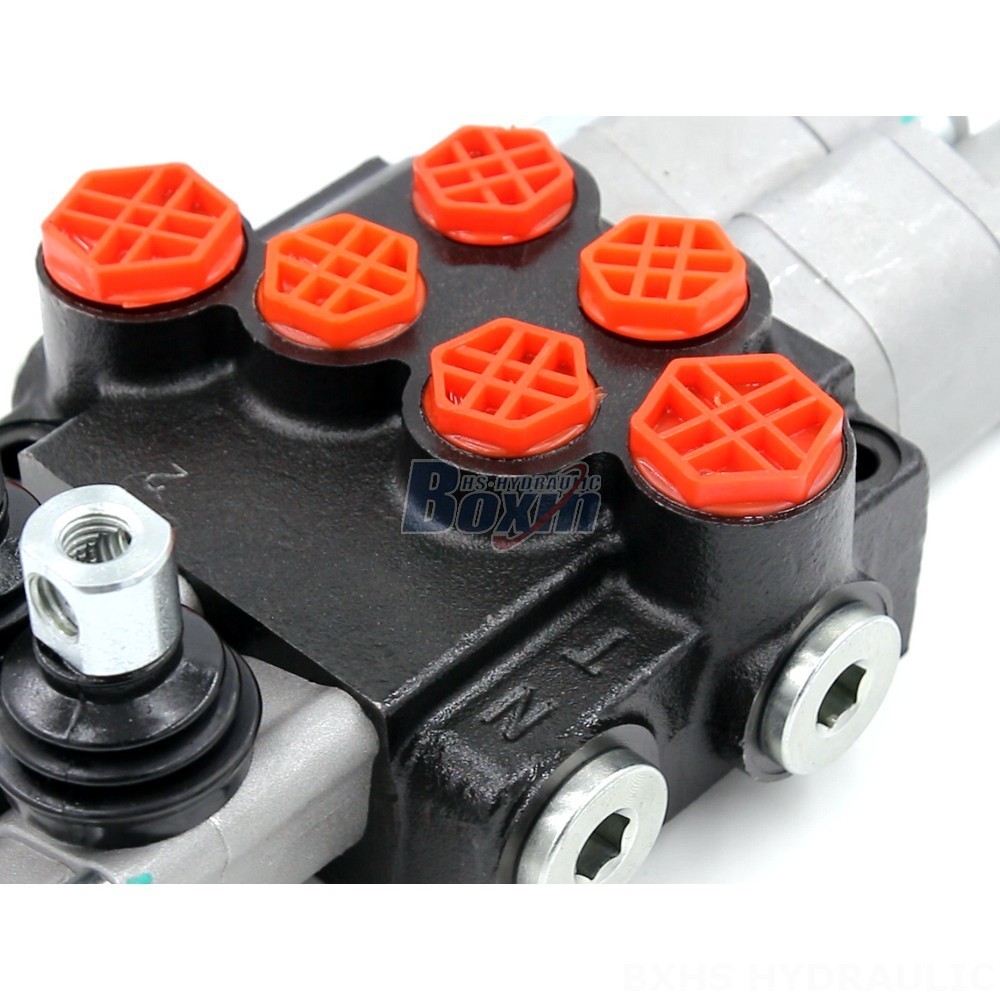

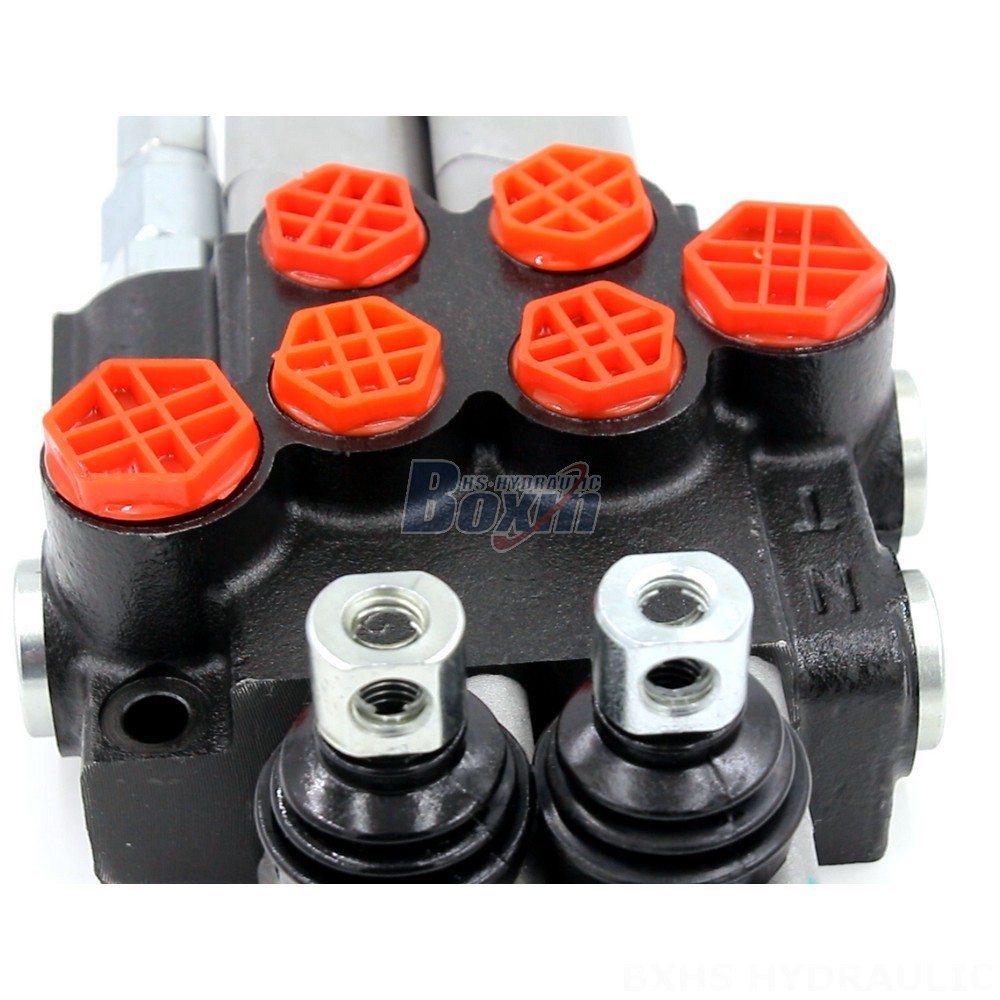

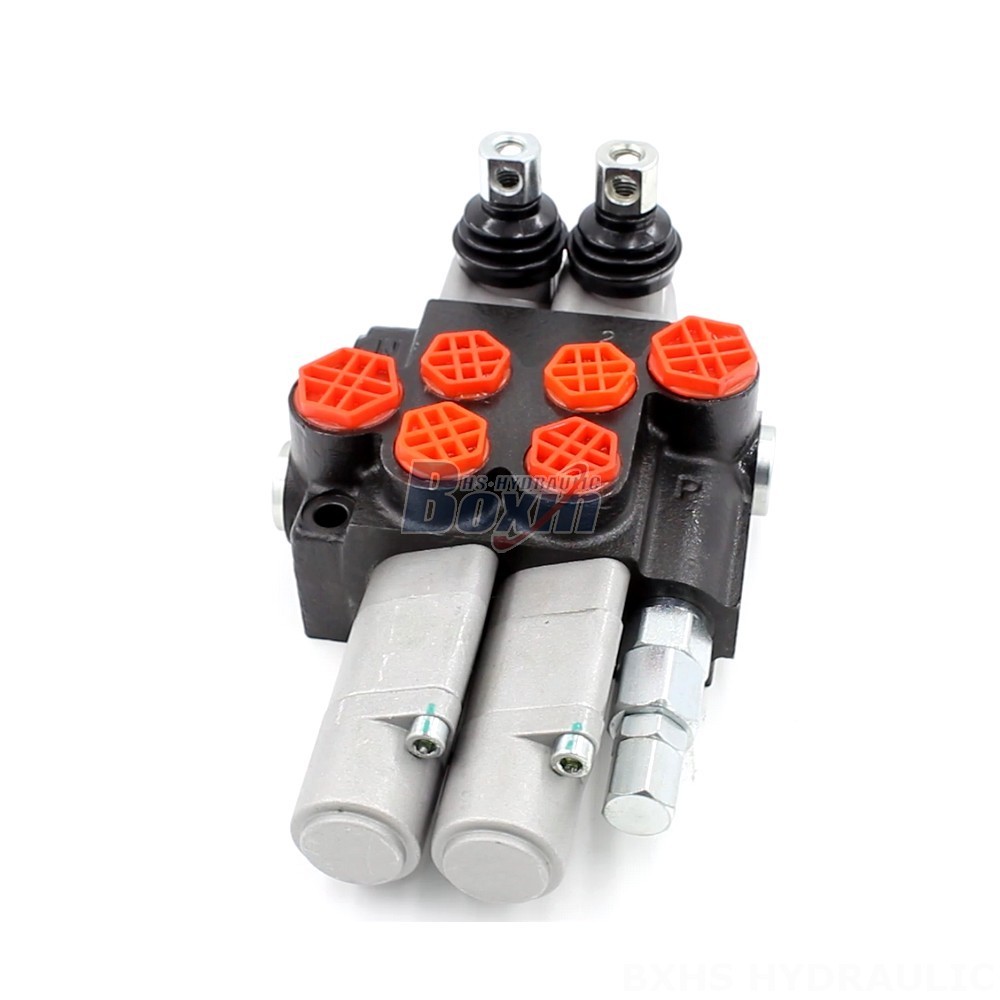

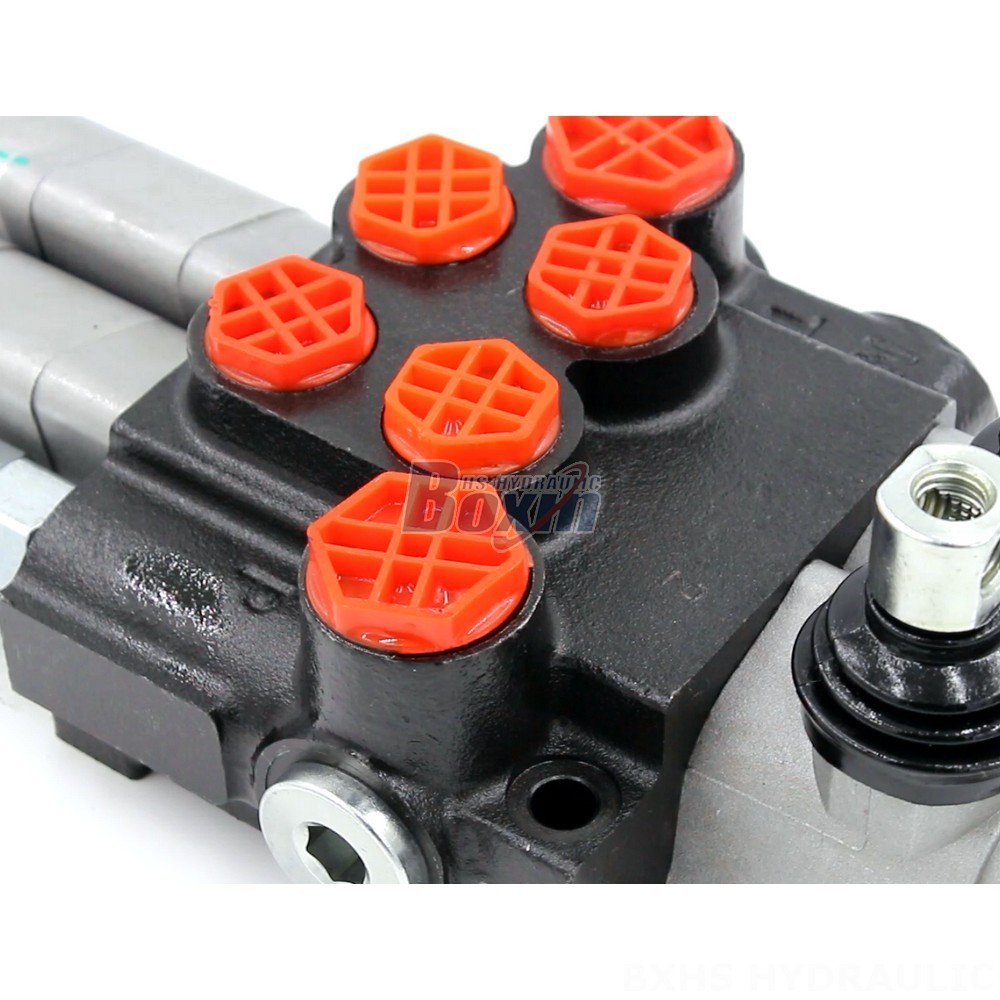

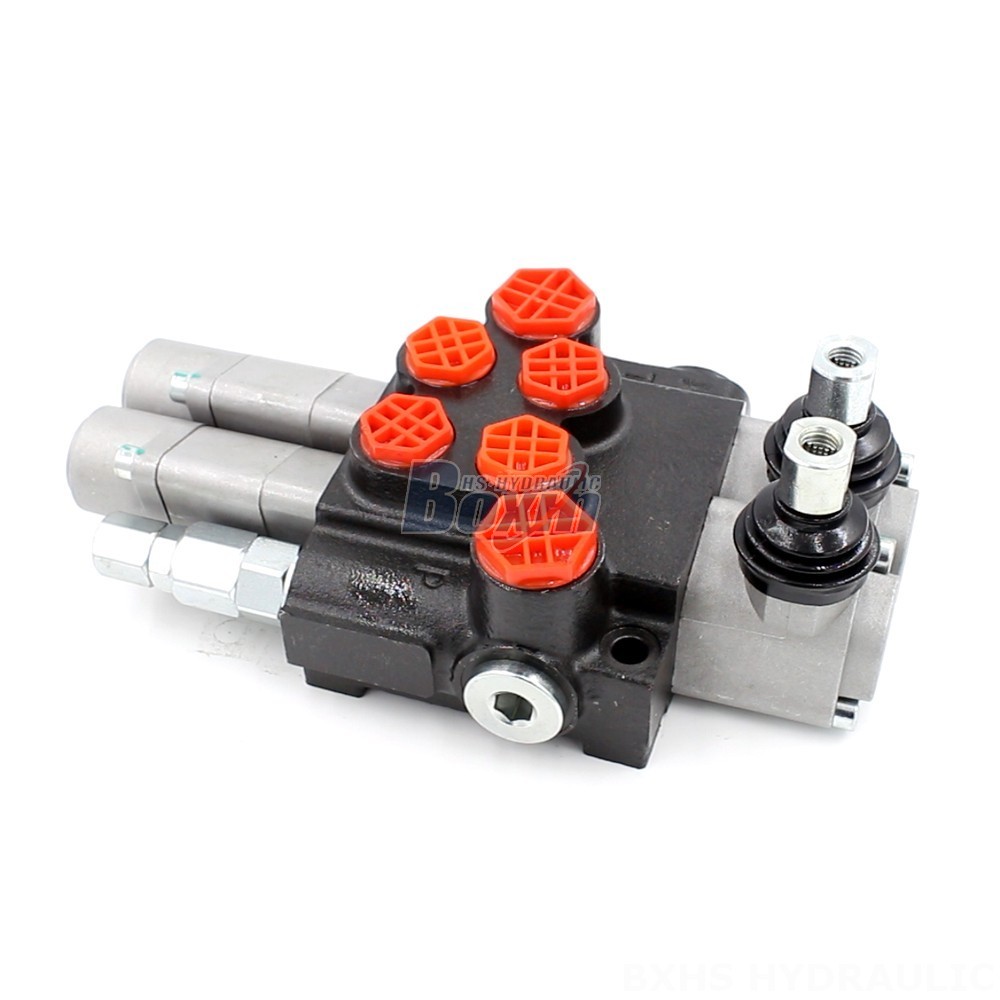

The P40-G12-G38-2QTW Manual Monoblock Directional Valve is a high-performance valve designed for use in a wide range of hydraulic systems. It features a manual control method, 2 section construction, and a rated flow of 40 L/min. The valve has a maximum pressure of 250 bar and an operating viscosity range of 15 - 75 mm²/s. It also has an ambient temperature range of -40°C to +80°C and is available with 2 spool options. This valve is ideal for use in applications such as material handling, construction and earth moving, agriculture, and industrial vehicles.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-G38-2QTW Manual Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P40 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
