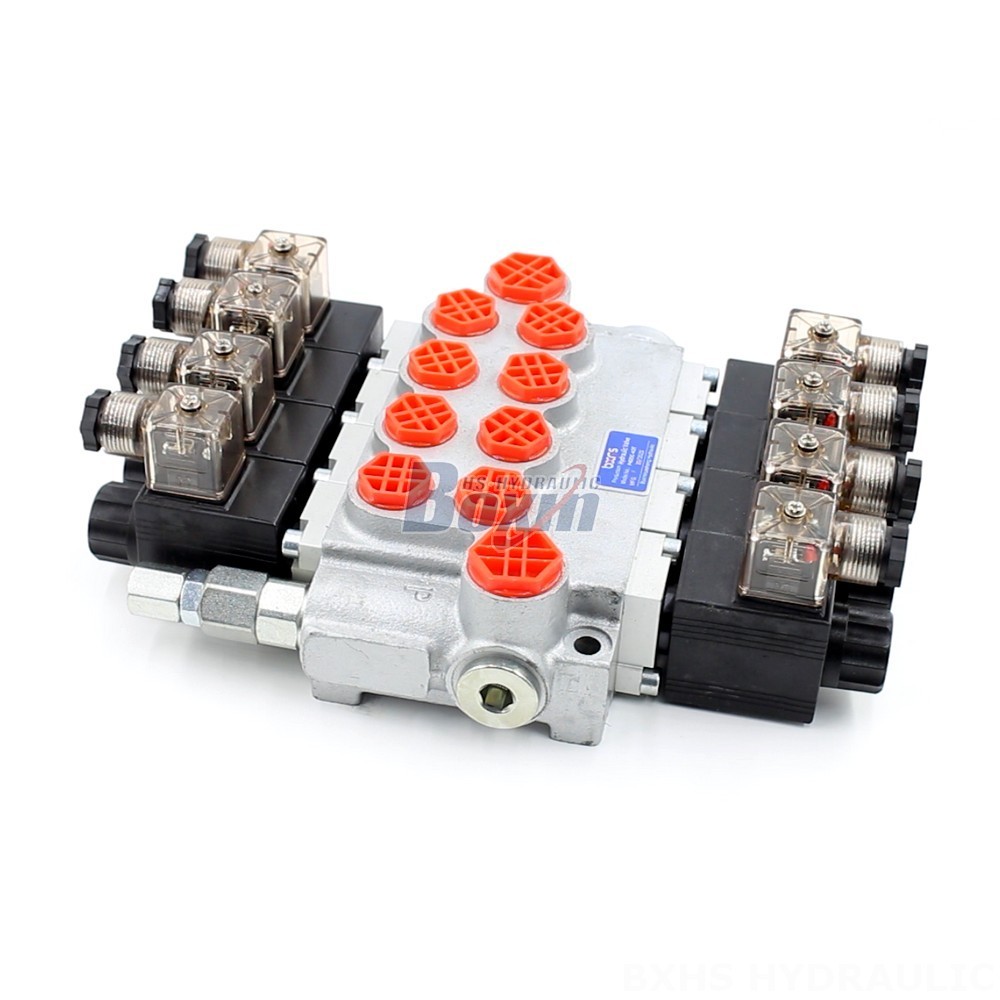

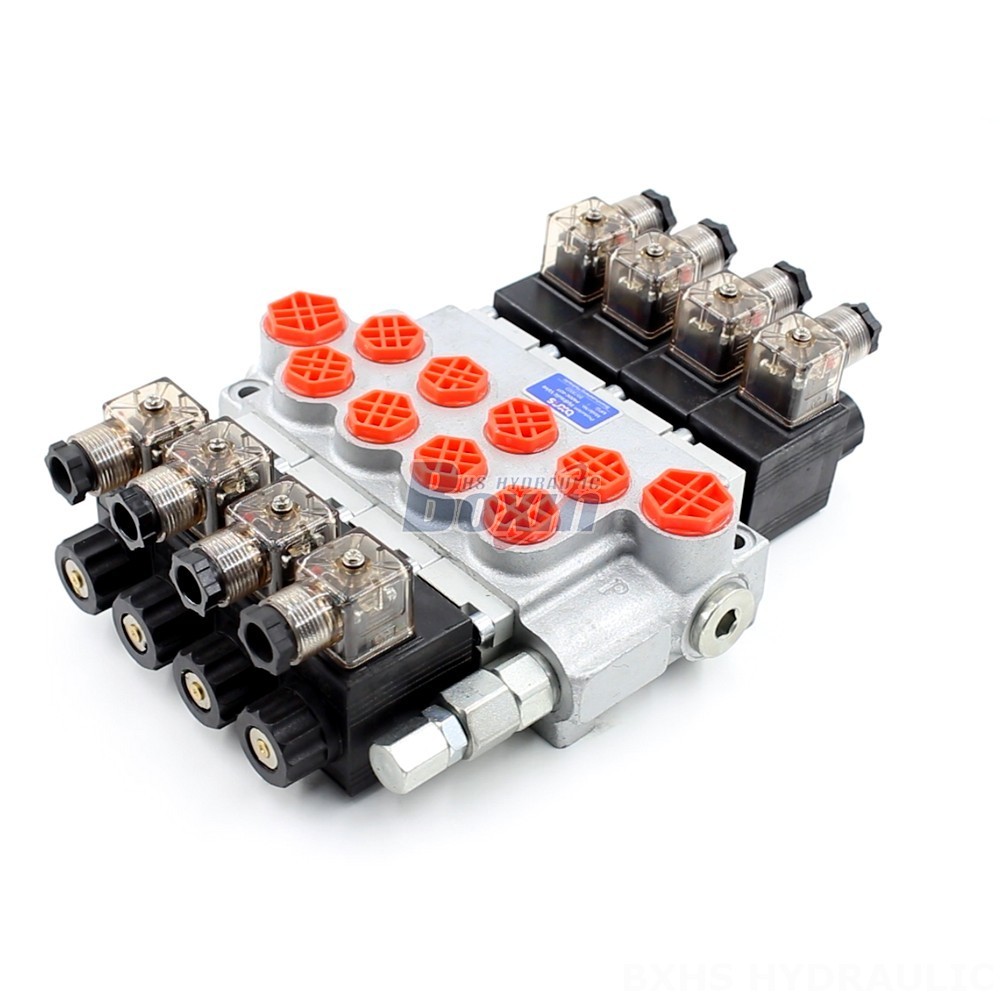

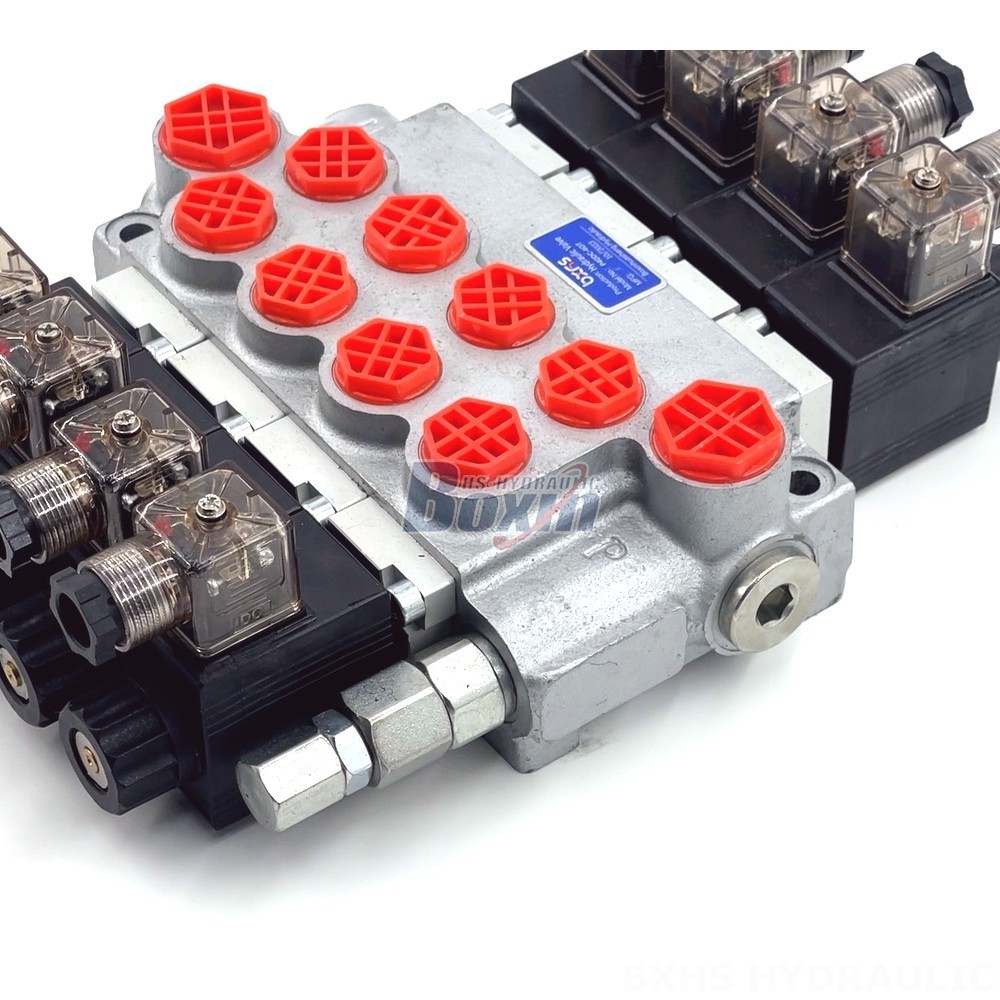

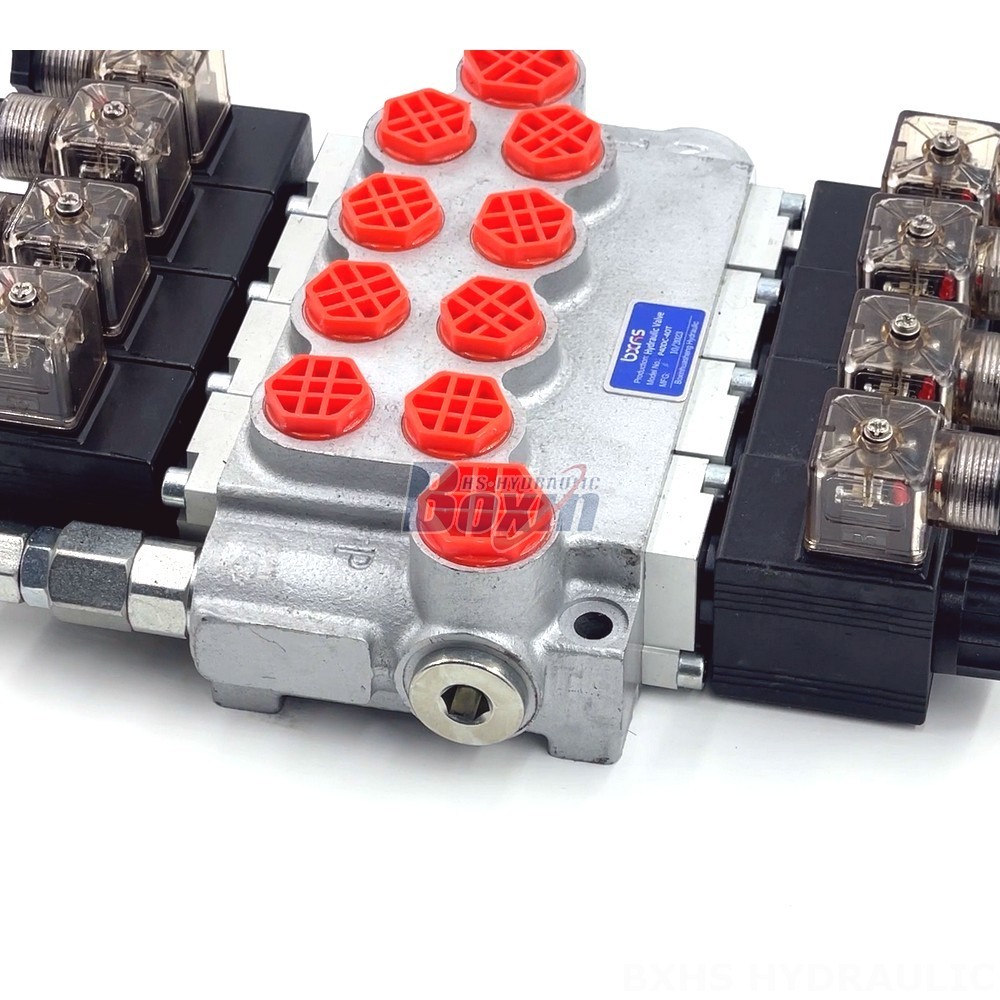

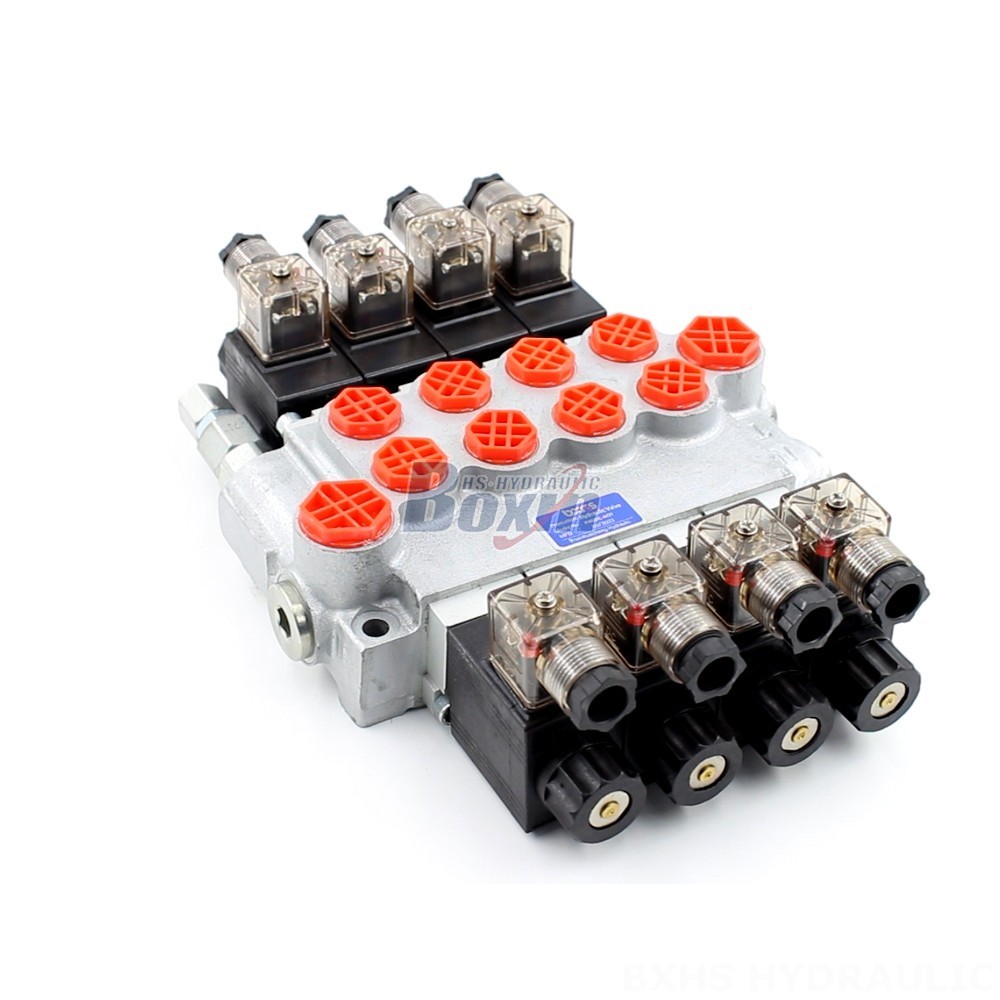

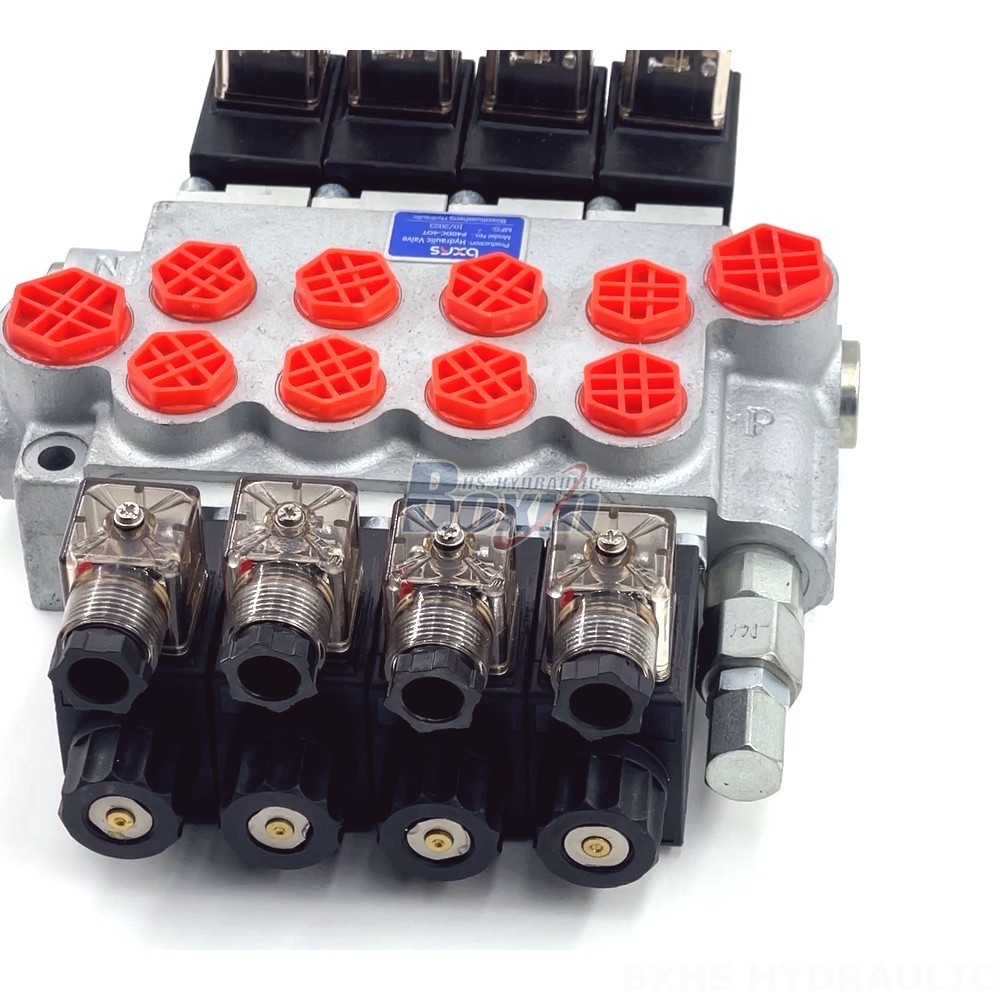

The P40-DKL Series Hydraulic Distributor is a high-performance, 4-section solenoid directional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve offers a rated flow of 40 L/min, a maximum pressure of 250 bar, and a wide operating viscosity range.
| Série P40-DKL Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
The P40-DKL Series Hydraulic Distributor is a reliable and efficient solution for controlling hydraulic systems in a variety of applications. It features a compact and robust monoblock design with 4 sections and 4 spools, providing precise control over hydraulic fluid flow. The valve is capable of handling a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for heavy-duty applications. Its wide operating viscosity range ensures reliable performance in a variety of operating conditions. The P40-DKL Series is ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
