P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

Méthode de contrôle:Manuel

Distributeur:2 tiroirs

Débit nominal:40 L/min (10,5 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G3/8

Orifice de sortie:G3/8

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P40-DKL Vanne directionnelle monobloc

Taille de l'emballage:23*18*13

Poids brut:5.00 kg

Disponibilité: En stock

1180 personnes consultent ce produit

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable

P40-DKL 2-Spool Hydraulic Valve: Factory Direct & Customizable drawing image

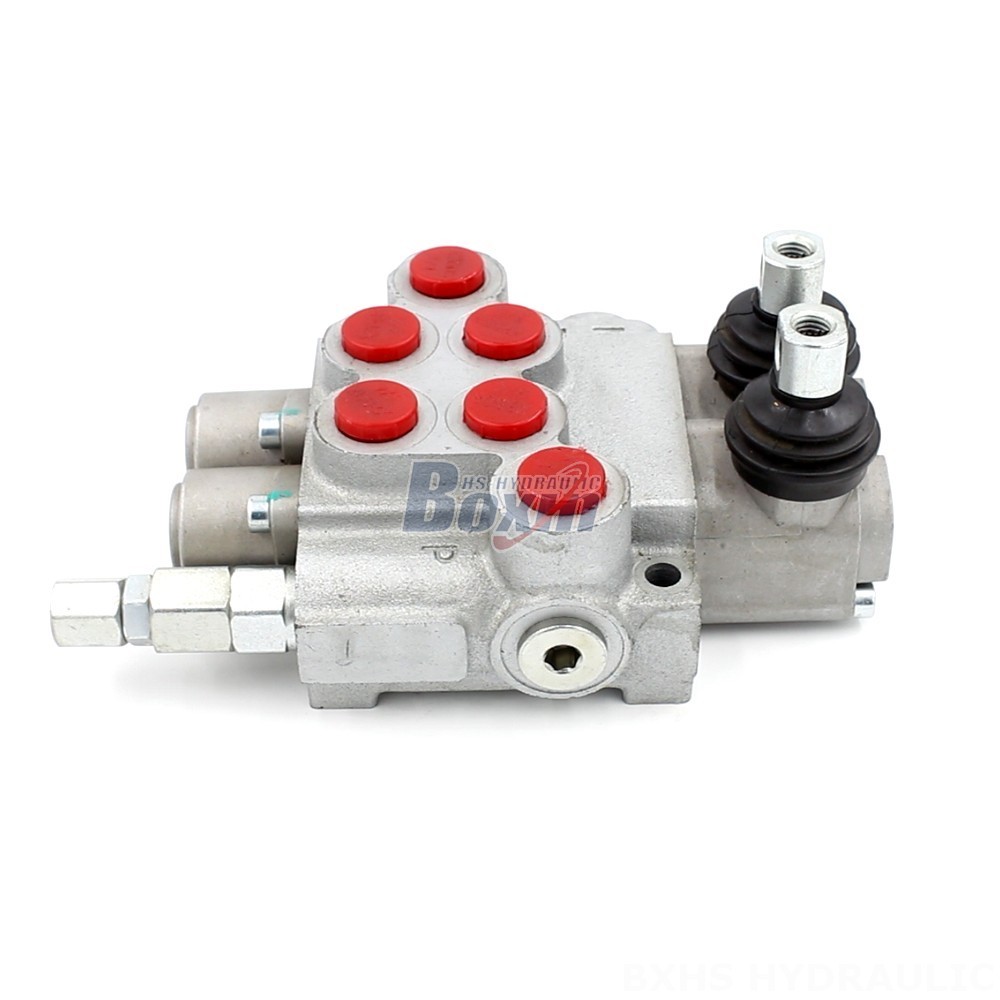

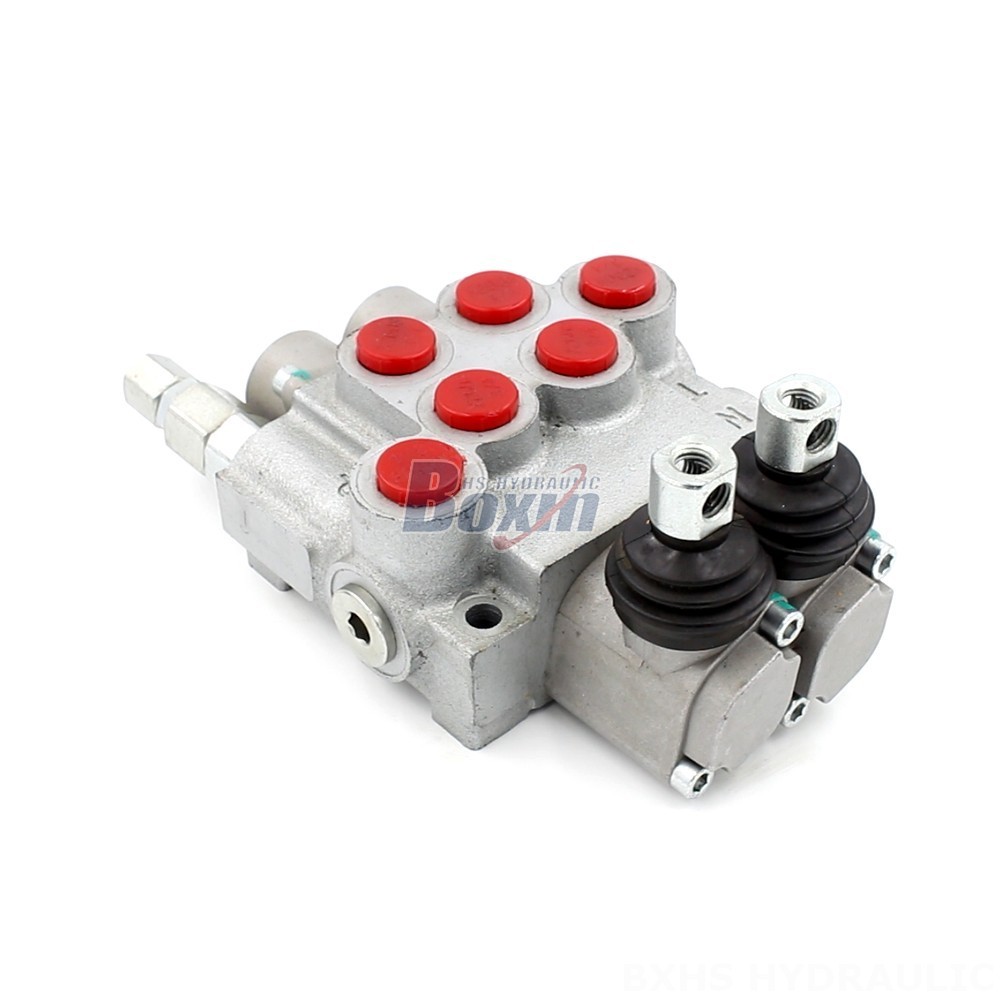

The P40-DKL 2-Spool Hydraulic Valve is a manual speed control valve designed for hydraulic cylinders in various applications, including material handling, construction, and agriculture. This 2-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment.

Série P40-DKL Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Débit nominal 40 L/min (10,5 US gpm)
Pression maximale 250 bar (3 600 psi)
Orifice d'entrée G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Orifice de sortie G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Dimension du raccord G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Type de structure Distributeur monobloc
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)

The P40-DKL 2-Spool Hydraulic Valve is a high-quality, durable valve designed for controlling the speed of hydraulic cylinders. It features a manual control method and a 2-section monoblock structure. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for use in a wide range of operating conditions, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is compatible with a variety of hydraulic fluids, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This versatile valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
