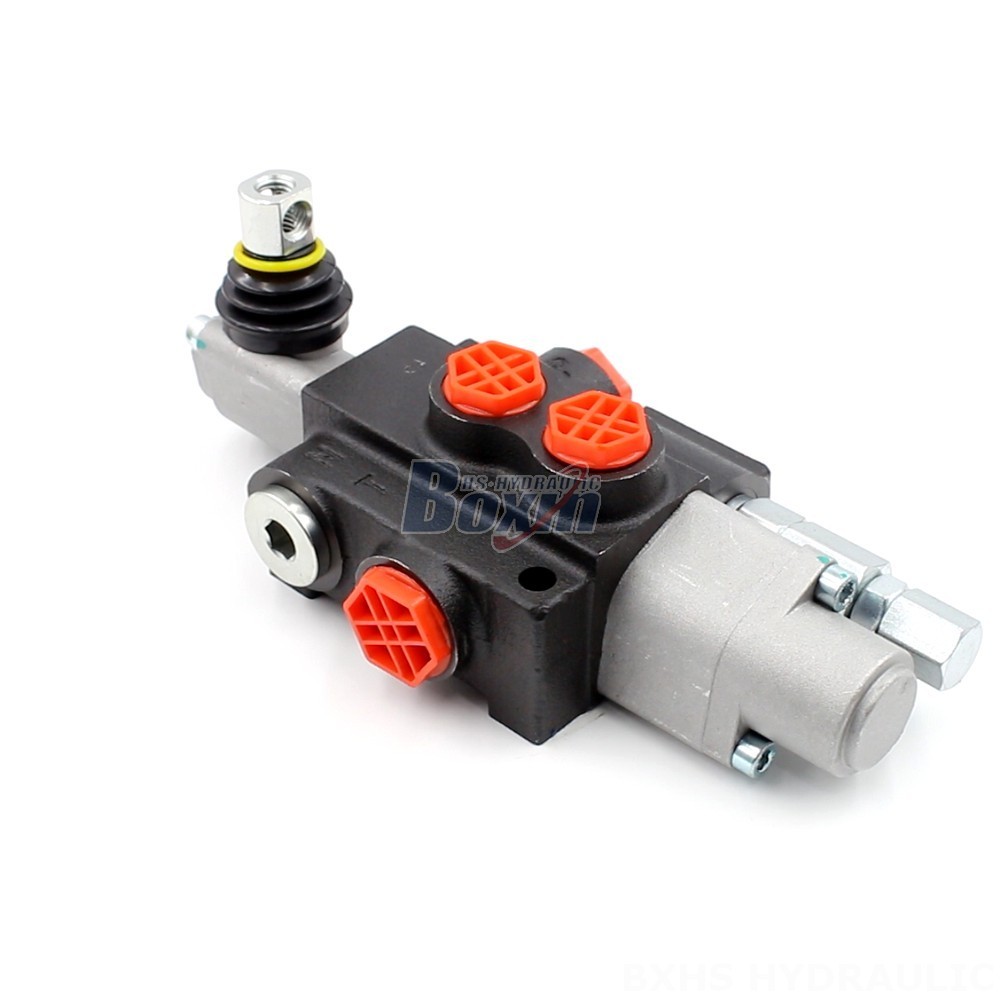

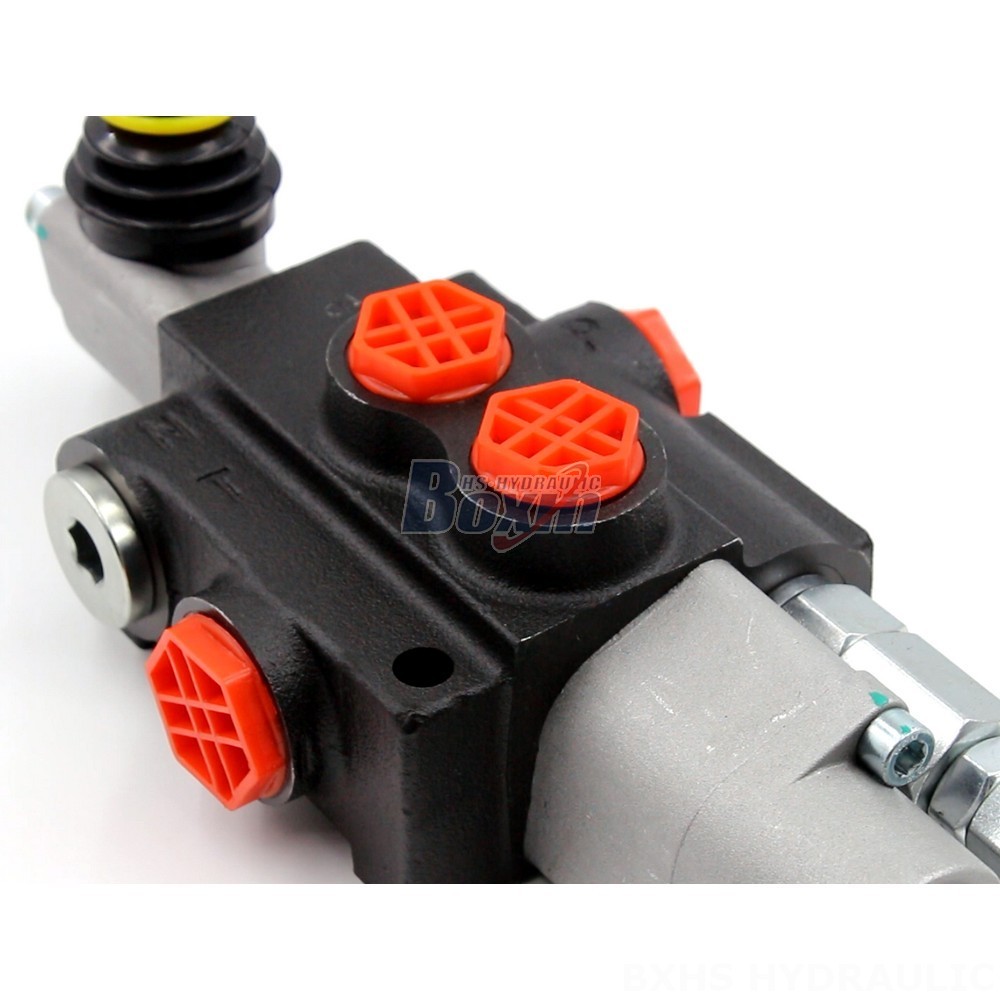

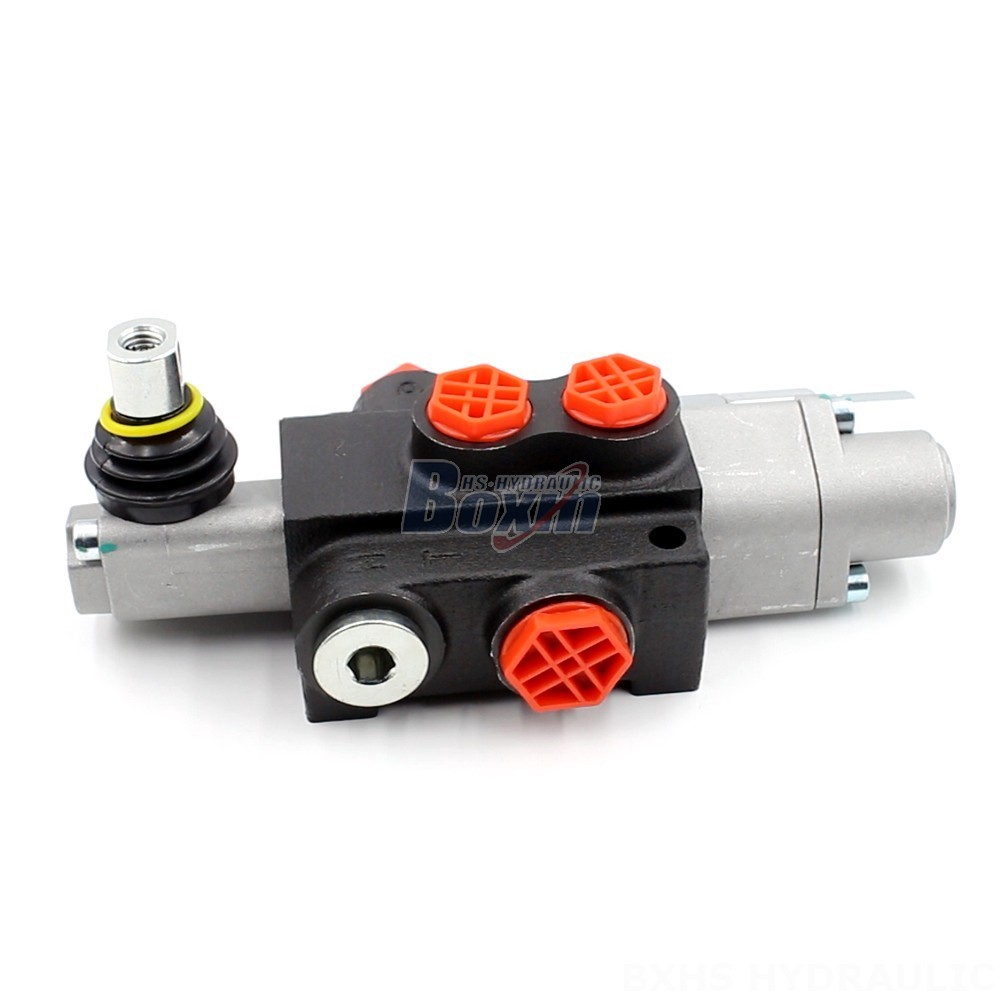

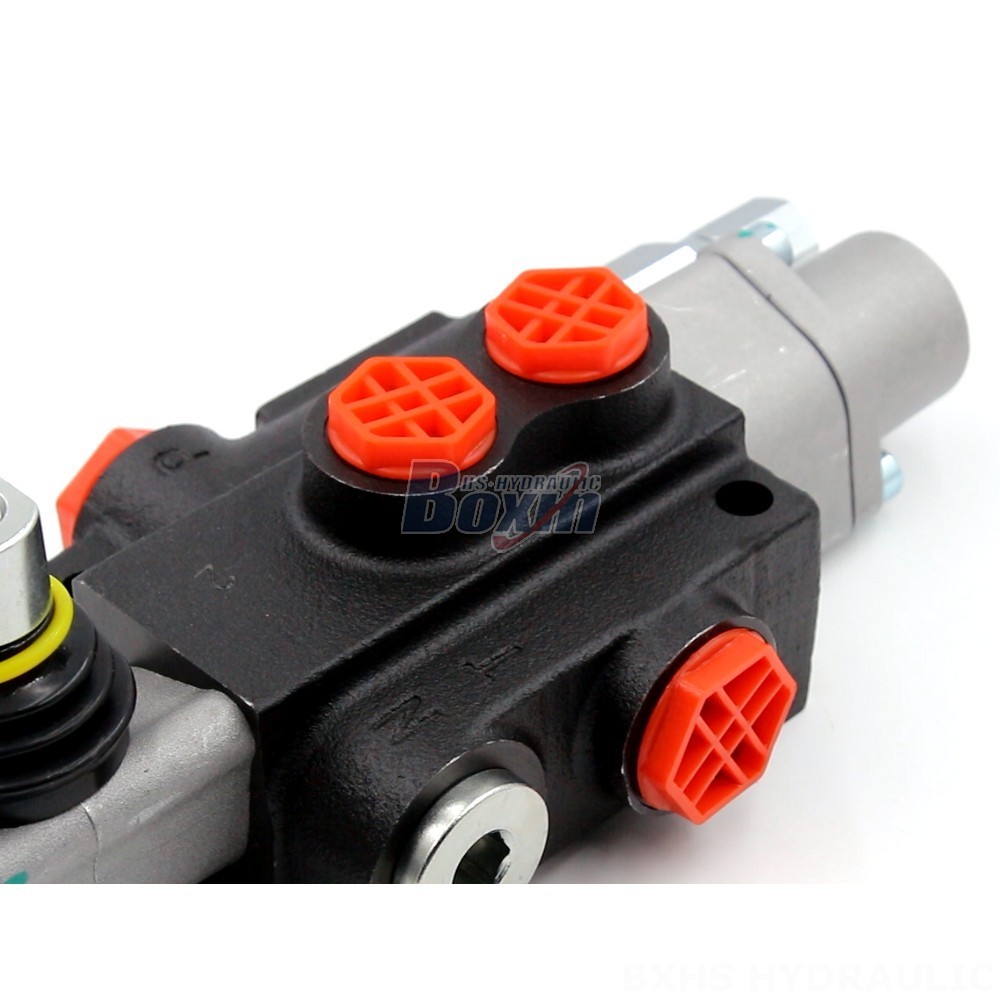

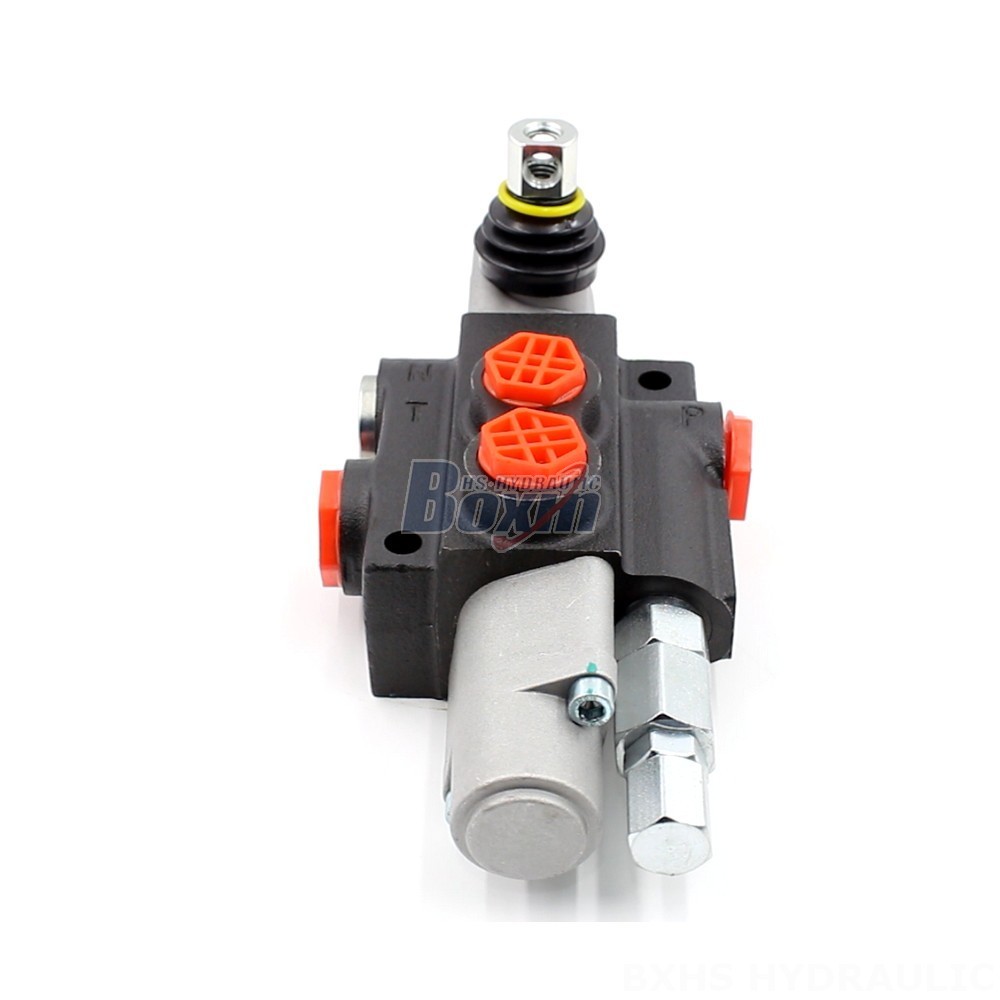

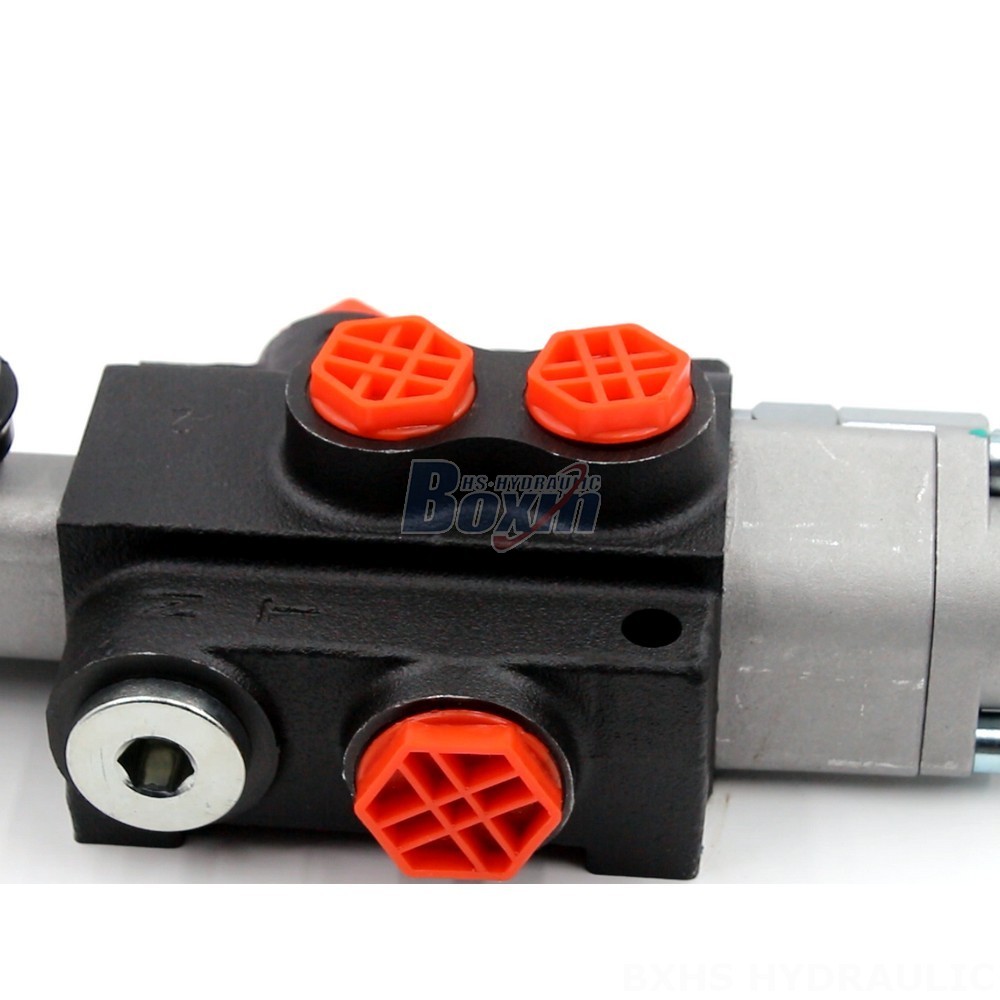

The Valve Wood Splitter P40 1-Spool Hydraulic Directional Valve is a high-performance, durable valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, a rated flow of 40 L/min, and a maximum pressure of 250 bar. Available for customization, this valve is perfect for a variety of applications including telehandlers, forklifts, all terrain cranes, stackers, and aerial platforms.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This Valve Wood Splitter P40 1-Spool Hydraulic Directional Valve is a manual control, 1-section, monoblock valve. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve can handle demanding applications. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt) and it operates in an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, and aerial platforms. This valve is available for customization and is factory direct.
