The P120-G1-OT Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in industries such as MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES. With its 120 L/min rated flow and 250 bar max pressure, it ensures efficient and reliable operation in demanding hydraulic systems.
| Série P120 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 120 L/min (31.7 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Orifice de sortie | G1, SAE 16, 1 NPT, M36×2 |
| Dimension du raccord | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |

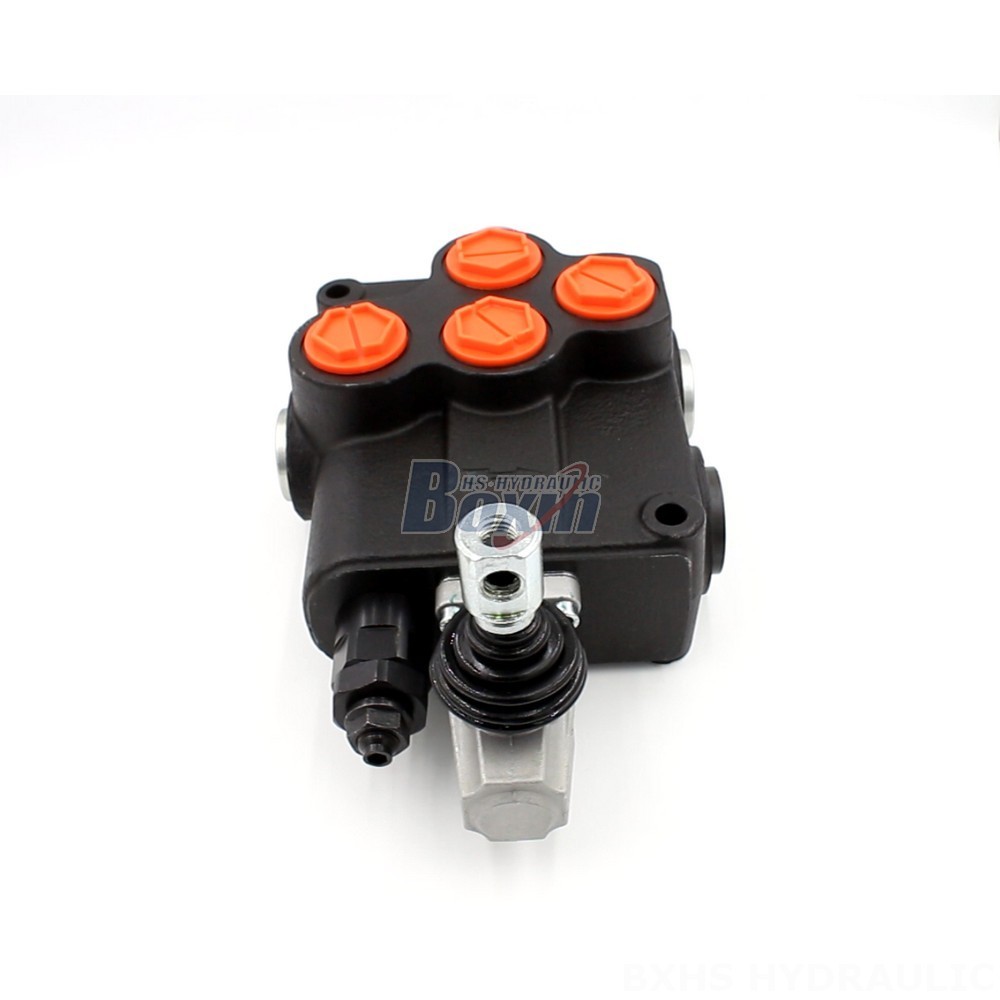

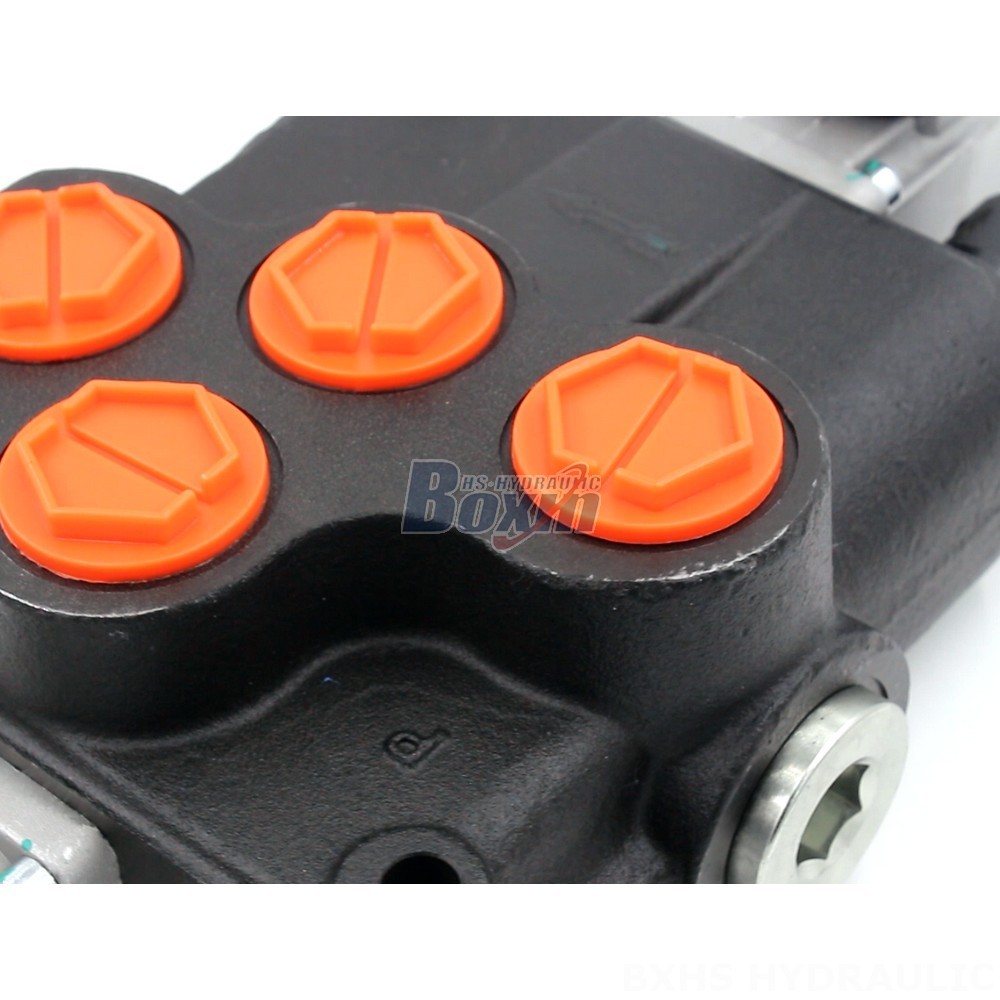

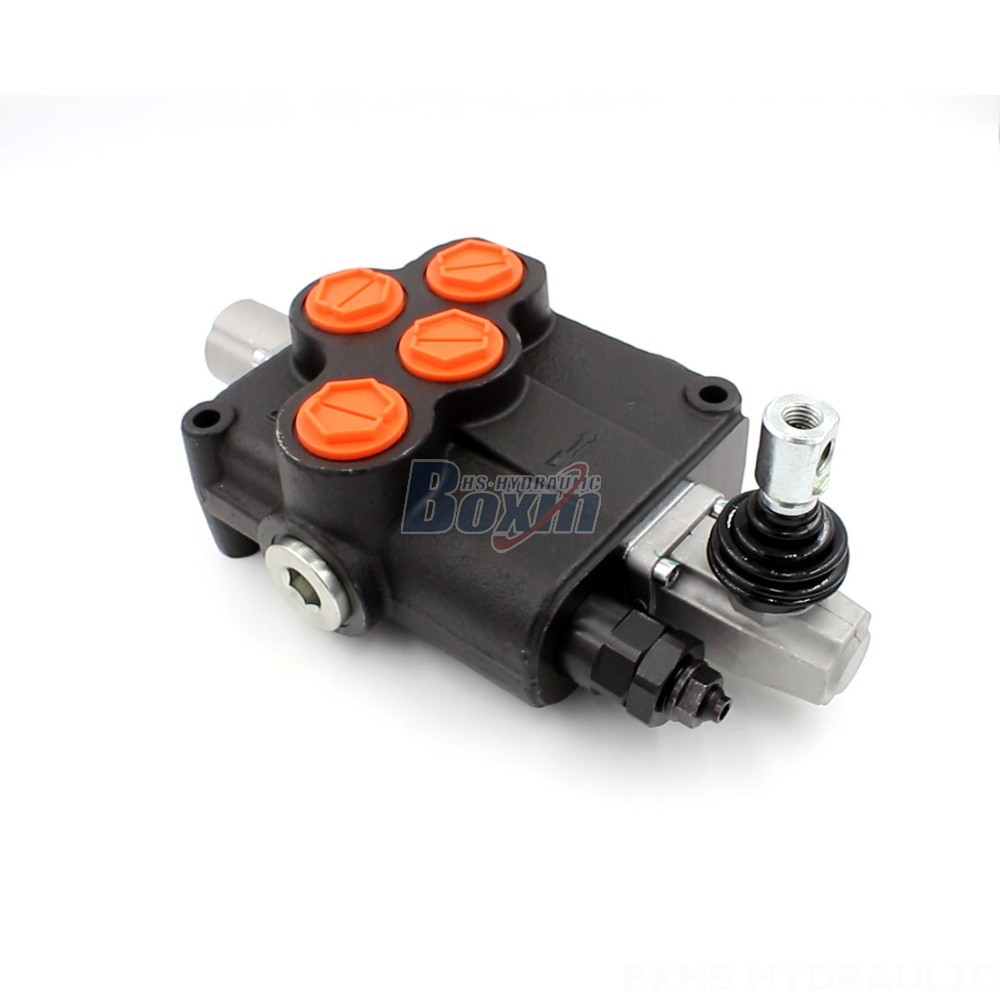

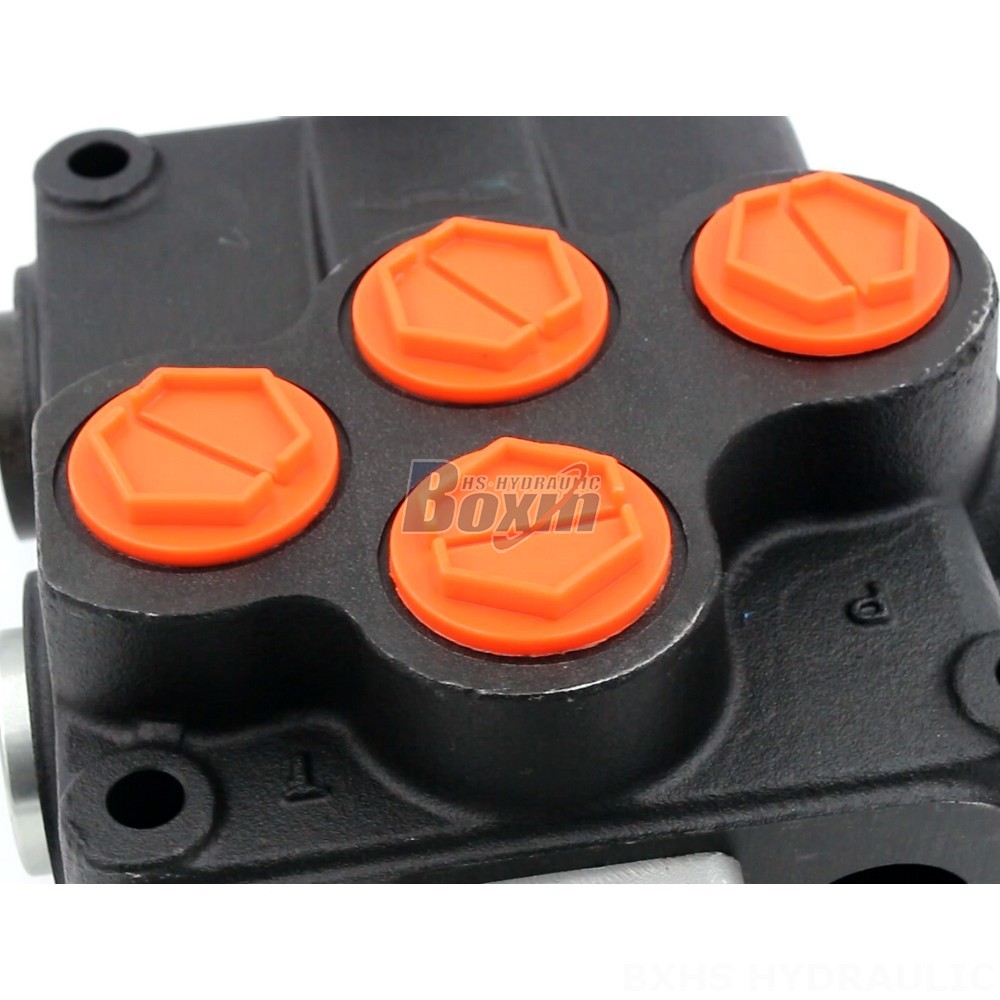

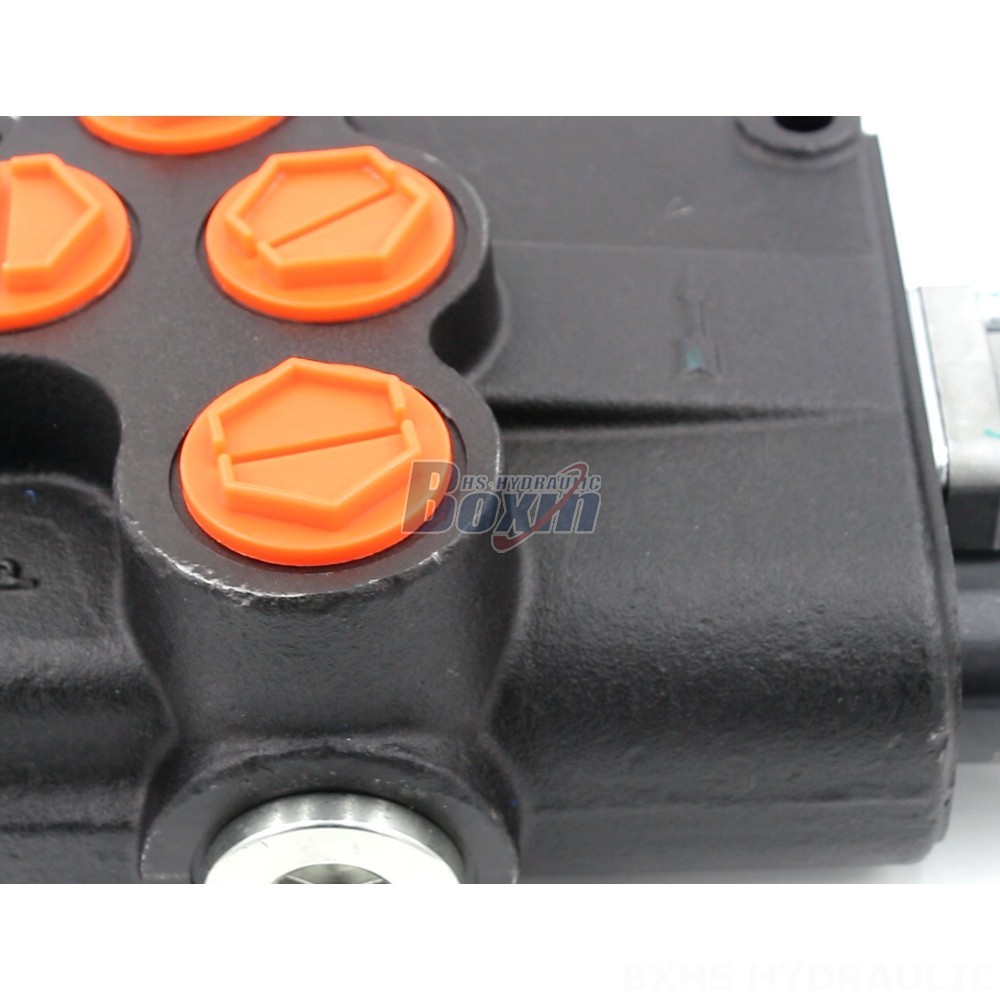

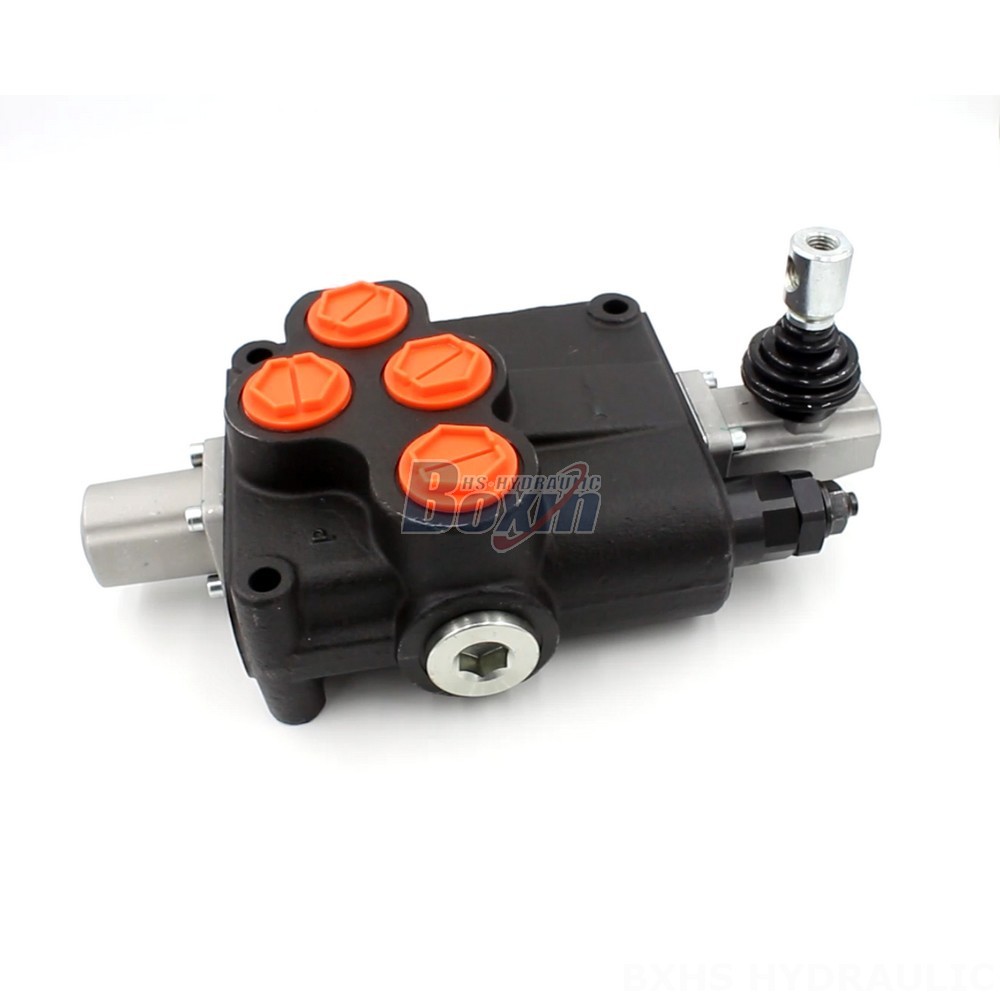

**P120-G1-OT Manual 1 Spool Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P120 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, WHEEL LOADER, HARVESTER, BALE WRAPPER, SEEDING MACHINE
