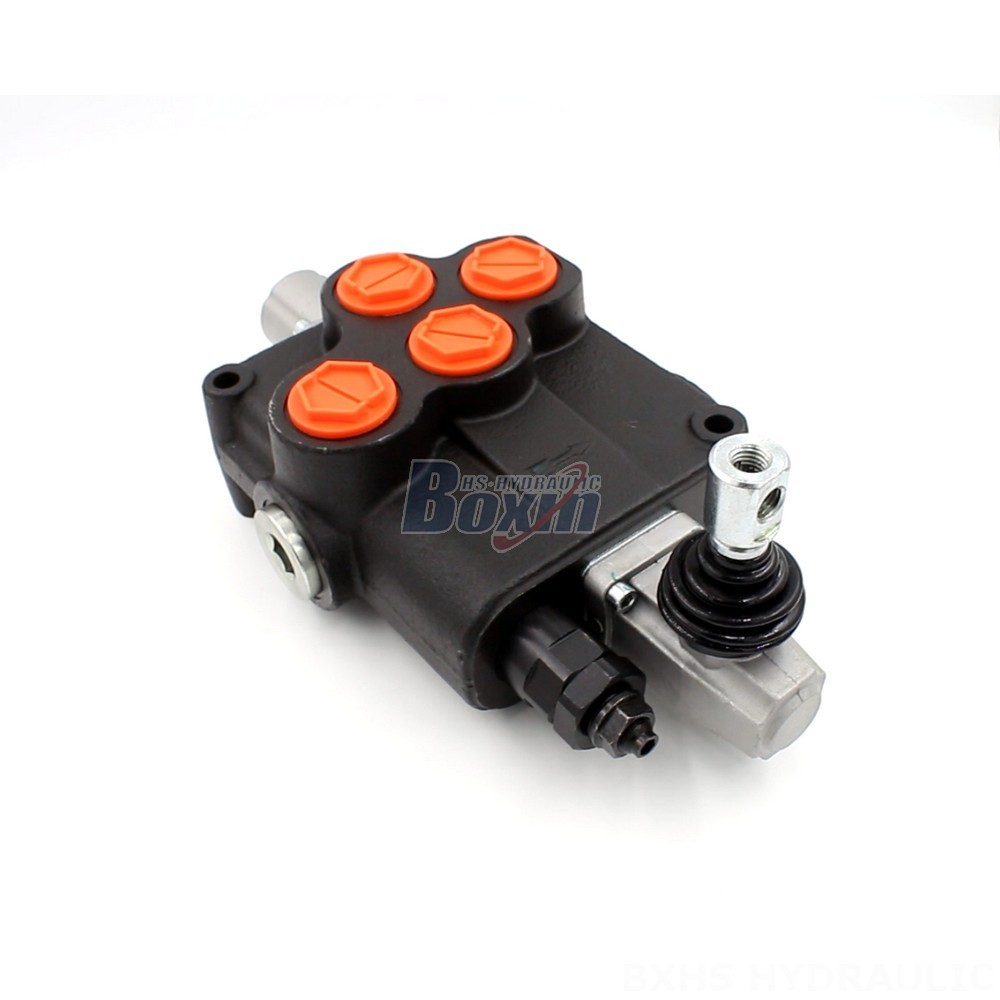

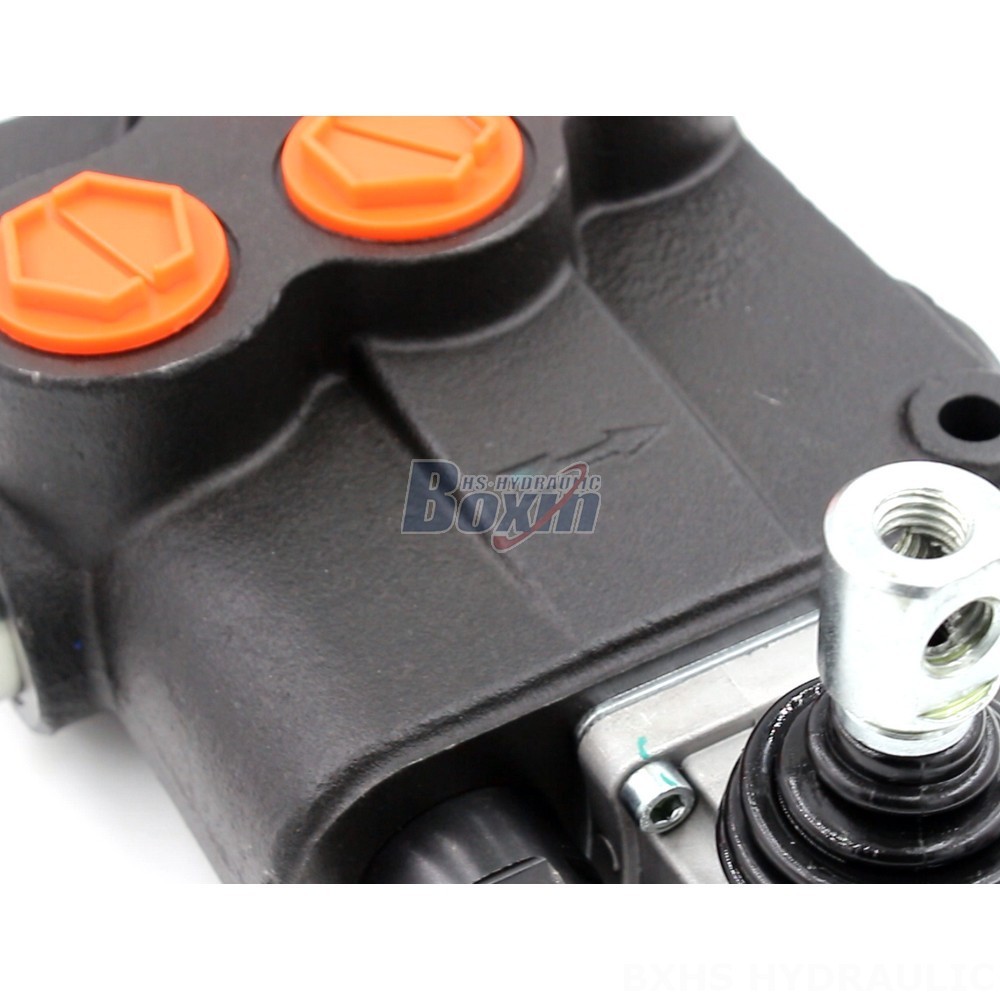

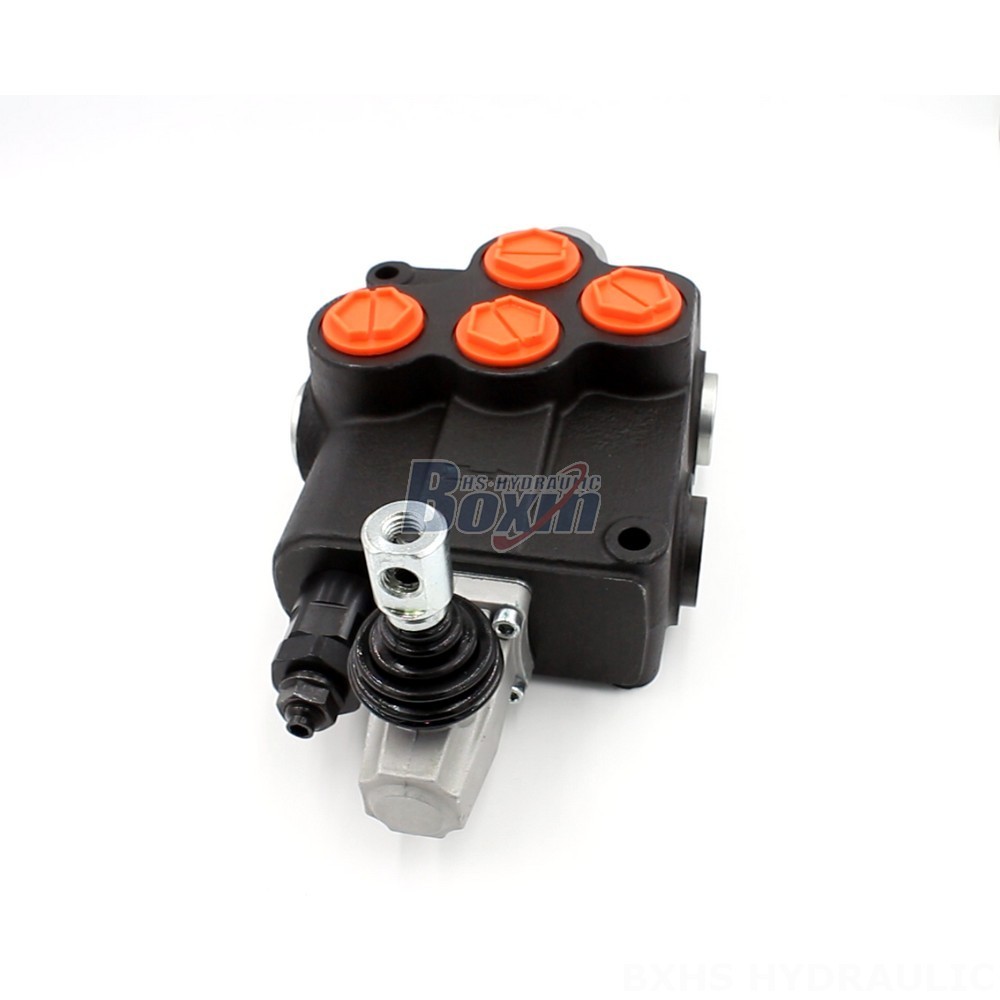

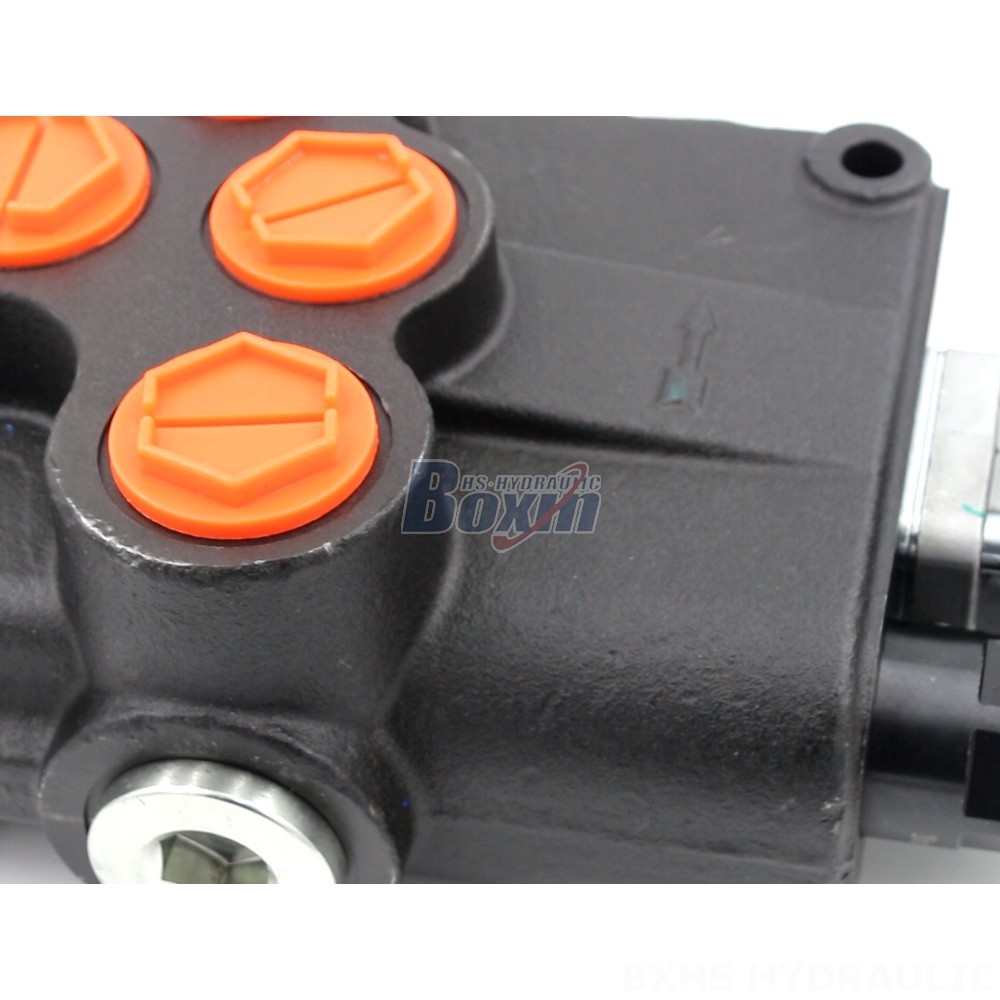

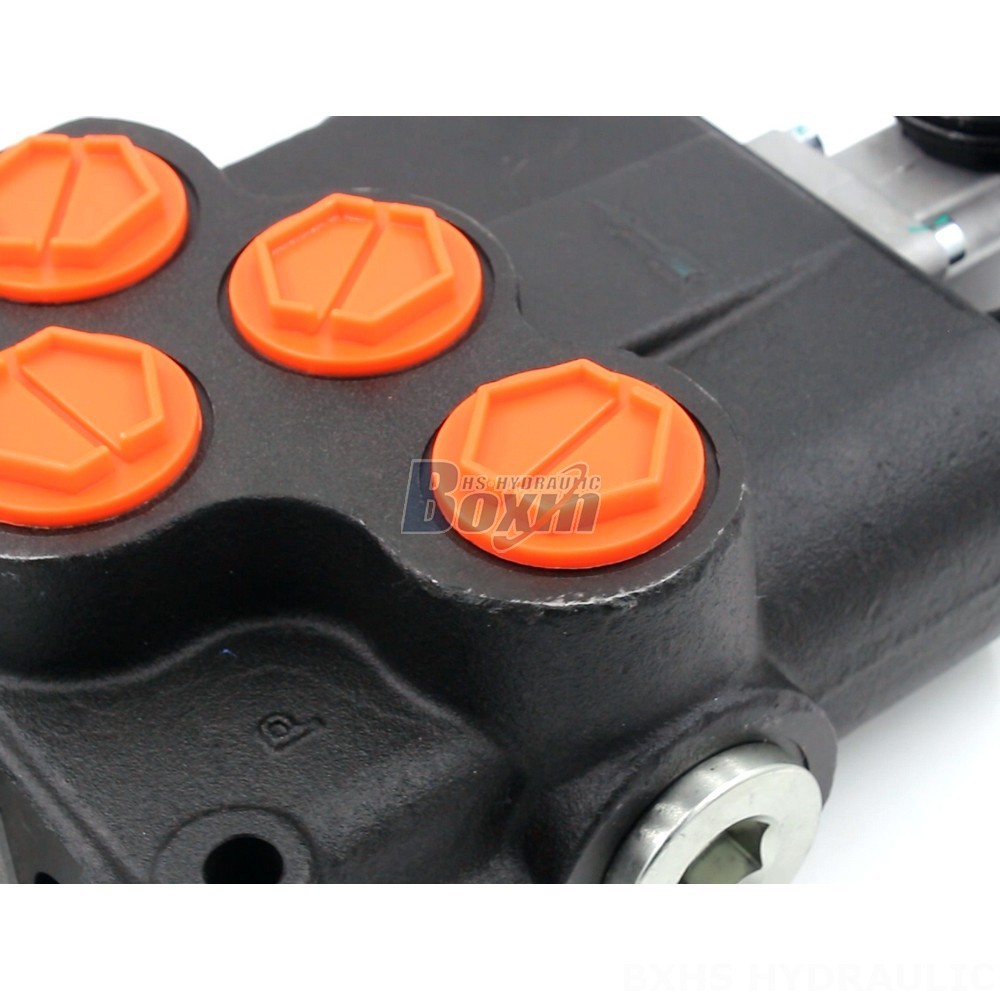

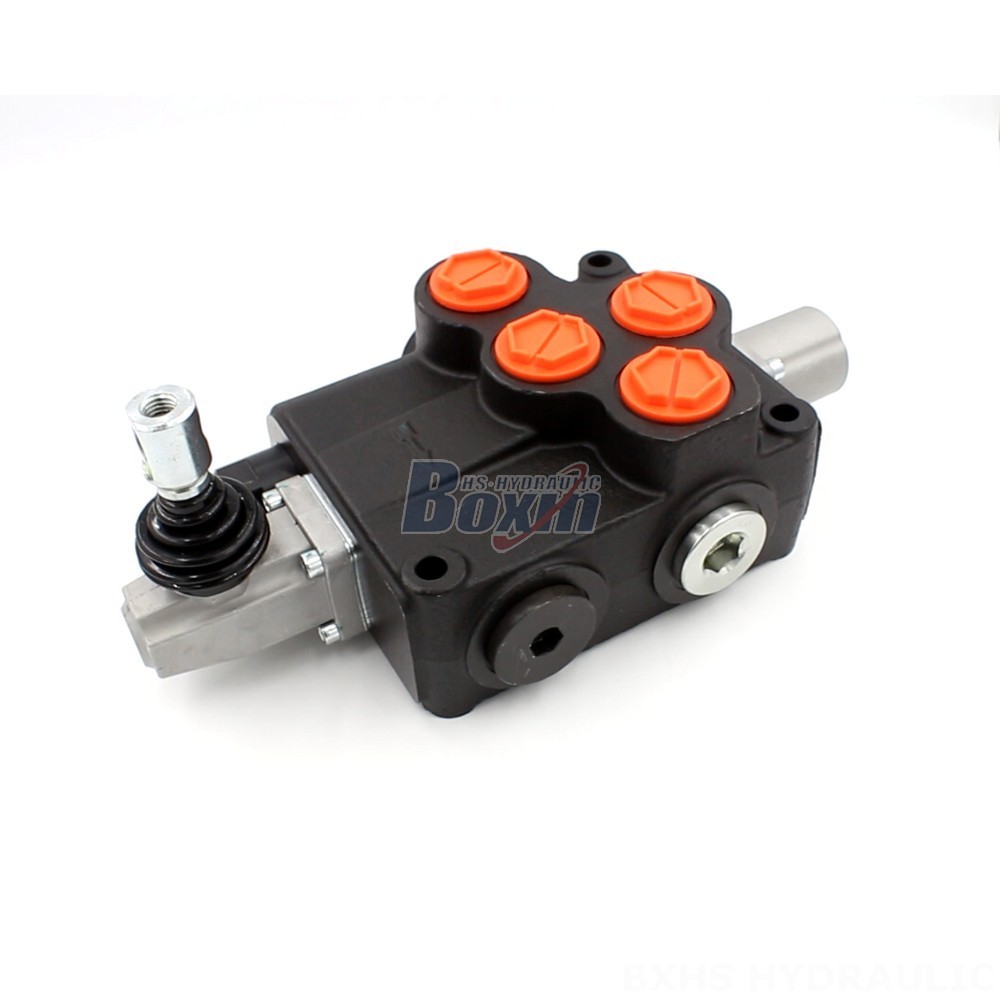

The P120-G1-OT 1-Spool Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of applications, including construction, material handling, agriculture, and industrial vehicles. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable control of hydraulic systems.
| Série P120 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 120 L/min (31.7 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Orifice de sortie | G1, SAE 16, 1 NPT, M36×2 |
| Dimension du raccord | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
**Product Name:** P120-G1-OT 1-Spool Hydraulic Directional Valve
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P120 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MINI-EXCAVATOR,SKID STEER LOADER,WHEEL LOADER,HARVESTER,BALE WRAPPER,SEEDING MACHINE
