NSH-10 Hydraulic Pump offers premium quality, competitive pricing, and worldwide shipping. Features include displacement options (100 cc/rev, 10 cc/rev, 40 cc/rev, 50 cc/rev), rated pressure of 18 MPa (2610 psi), rated speed of 2000 r/min, max speed of 4200 r/min, left rotation, external gear pump structure, and aluminium material. Ideal for applications in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES.
| Série NSH Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 32 cc/tr, 40 cc/tr, 50 cc/tr, 100 cc/tr |
| Pression nominale | 18 MPa (2610 psi) |
| Pression maximale | 20 MPa (2900 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 4 200 tr/min |
| Rotation | L : Gauche (antihoraire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | B - Bride carrée |
| Type d'arbre | X : Cannelures hélicoïdales |

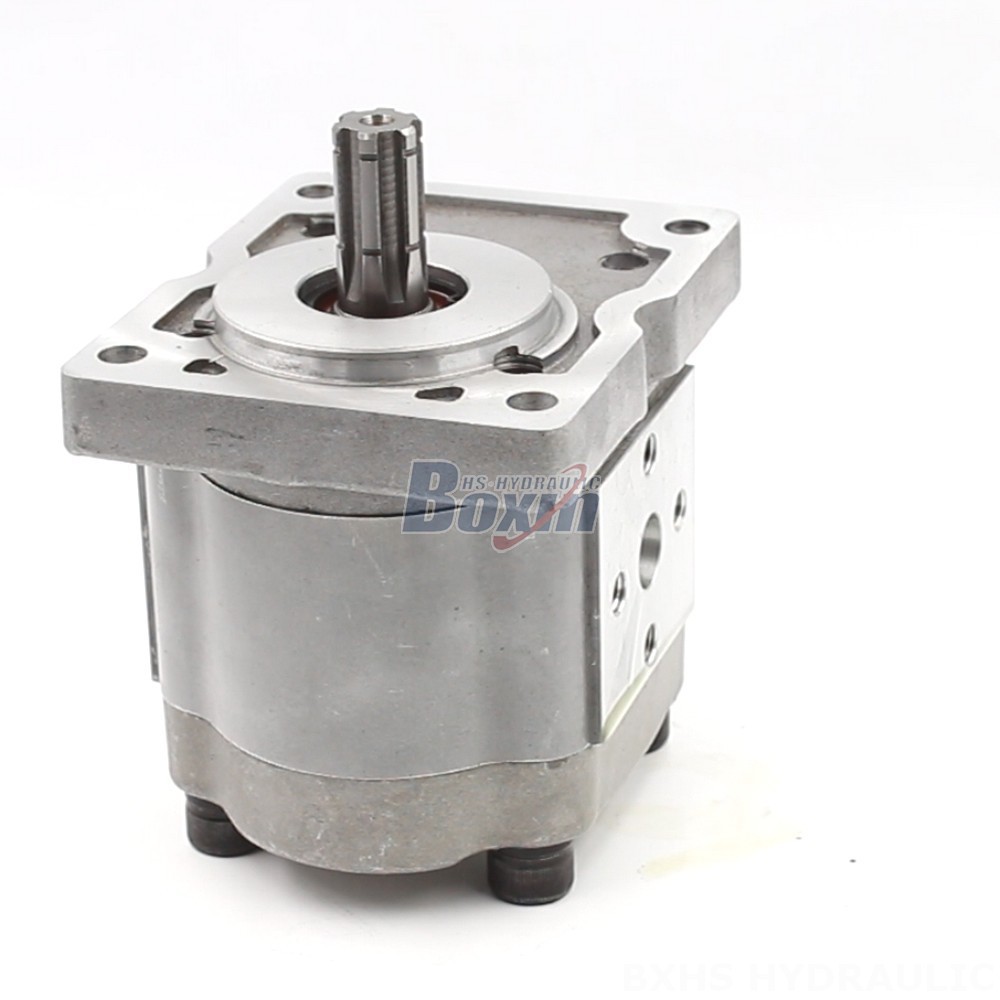

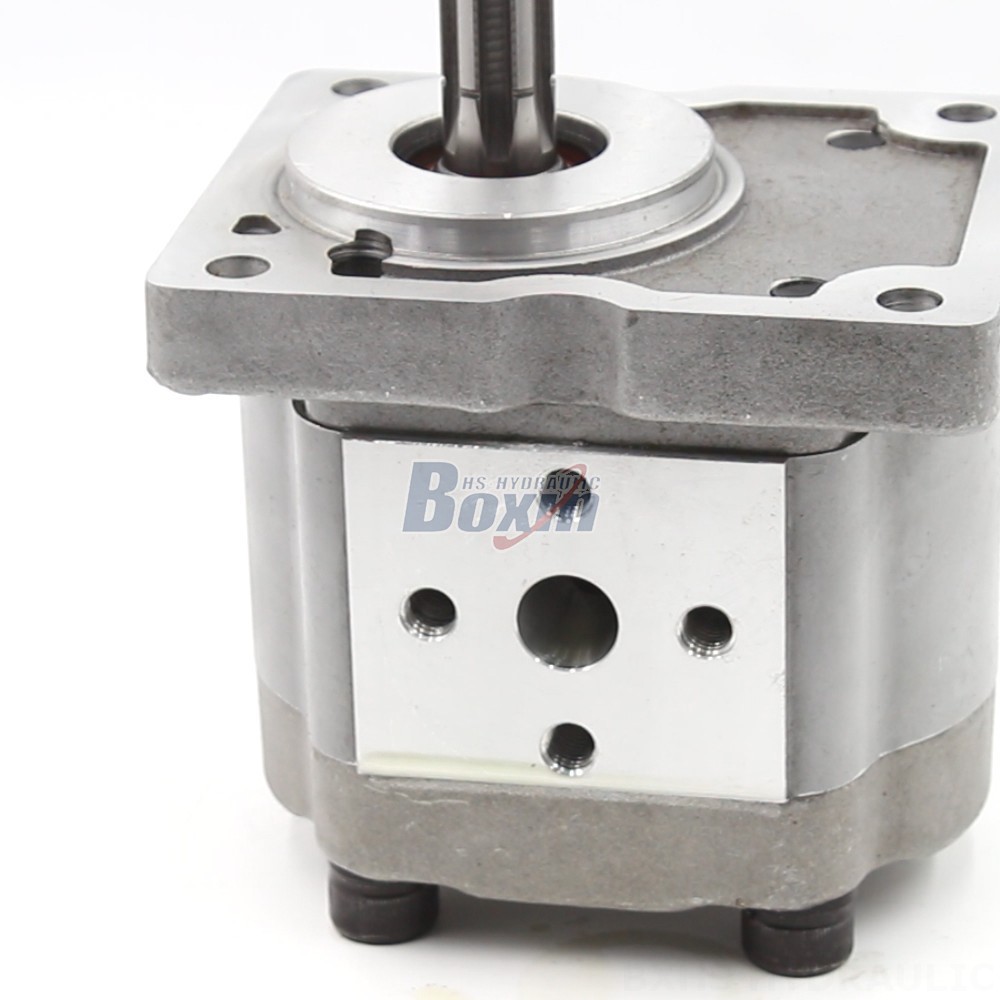

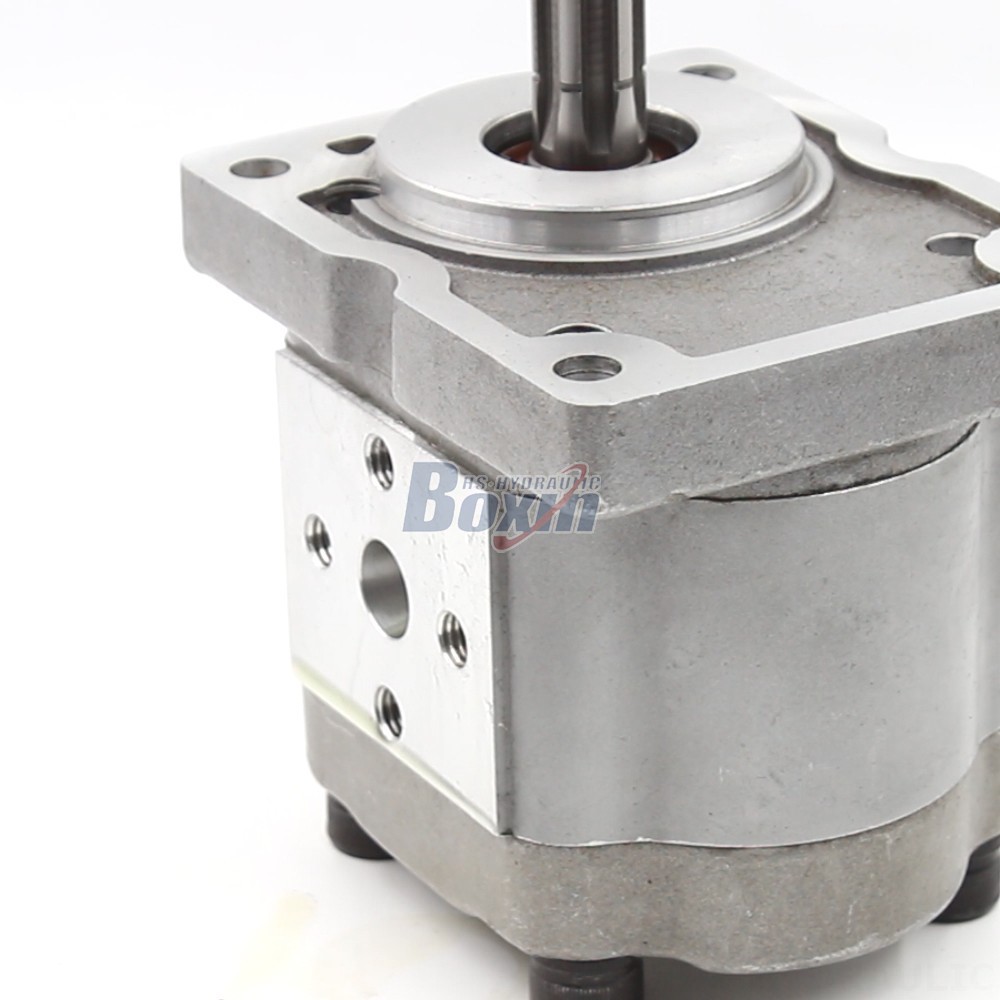

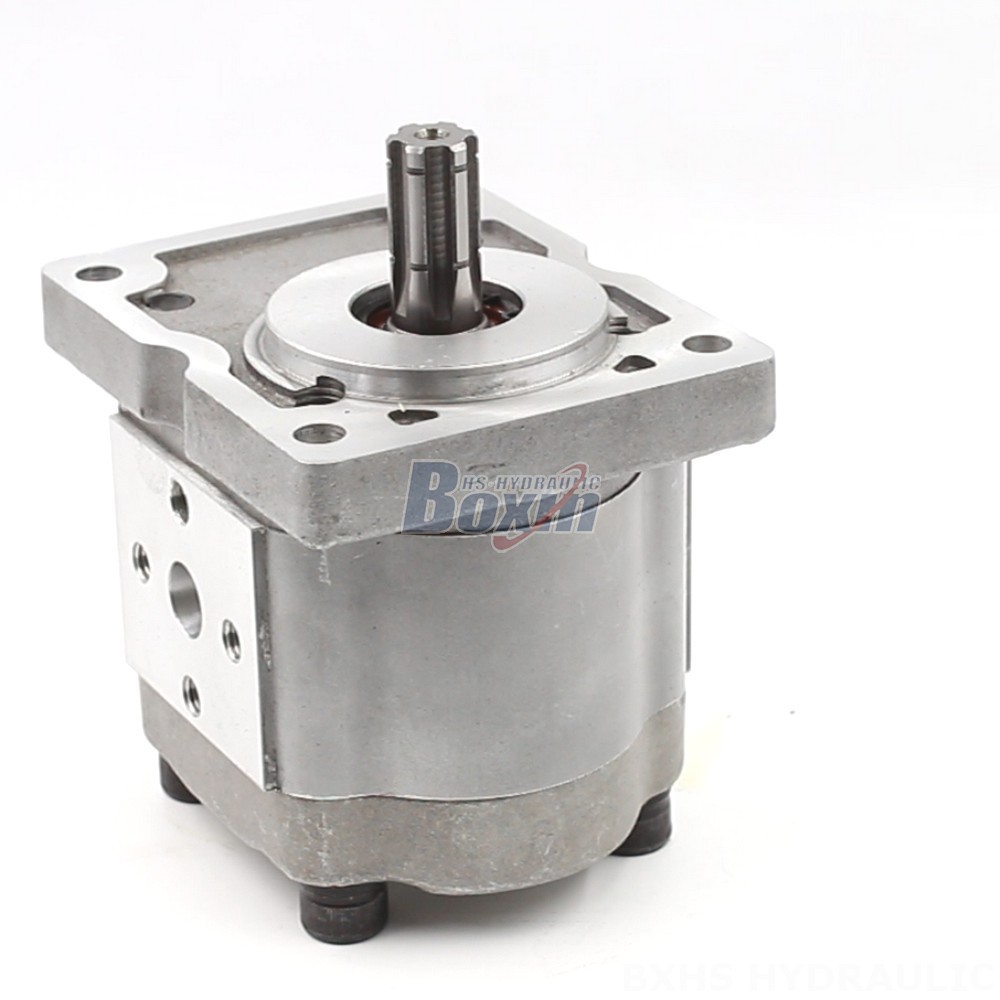

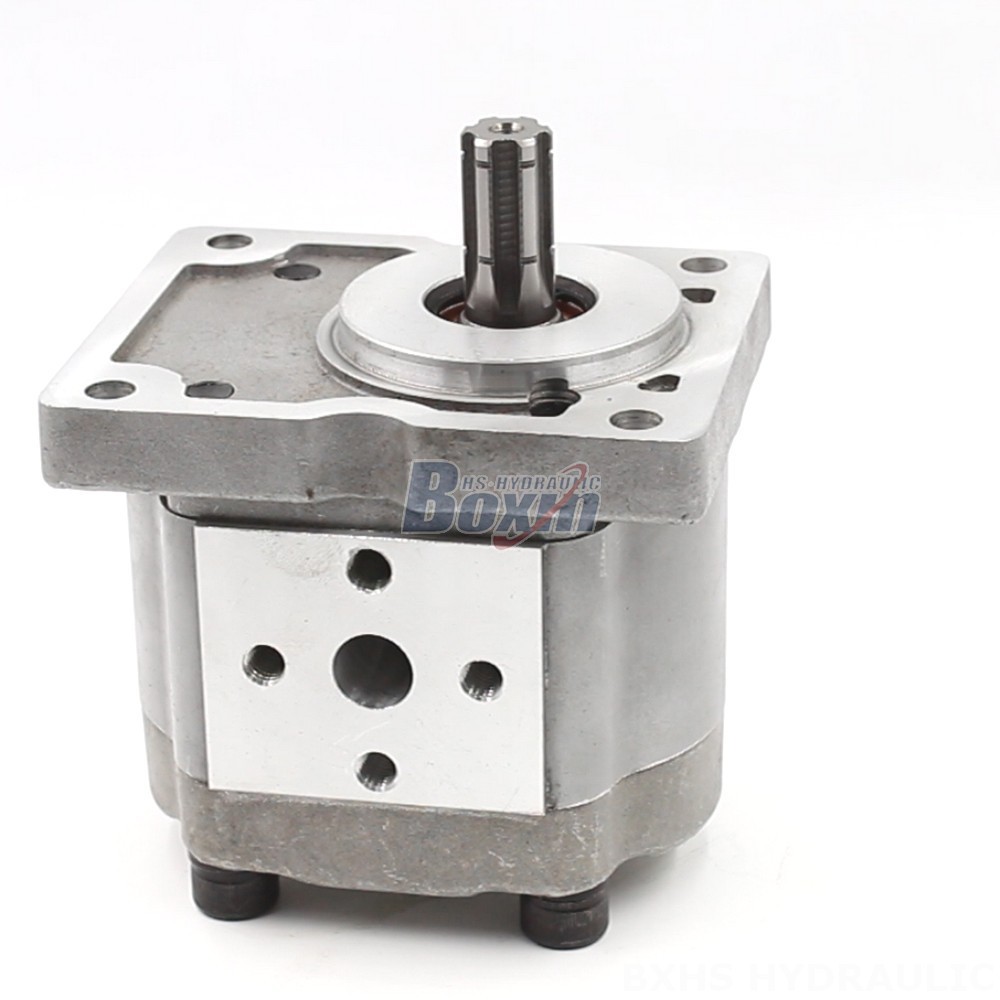

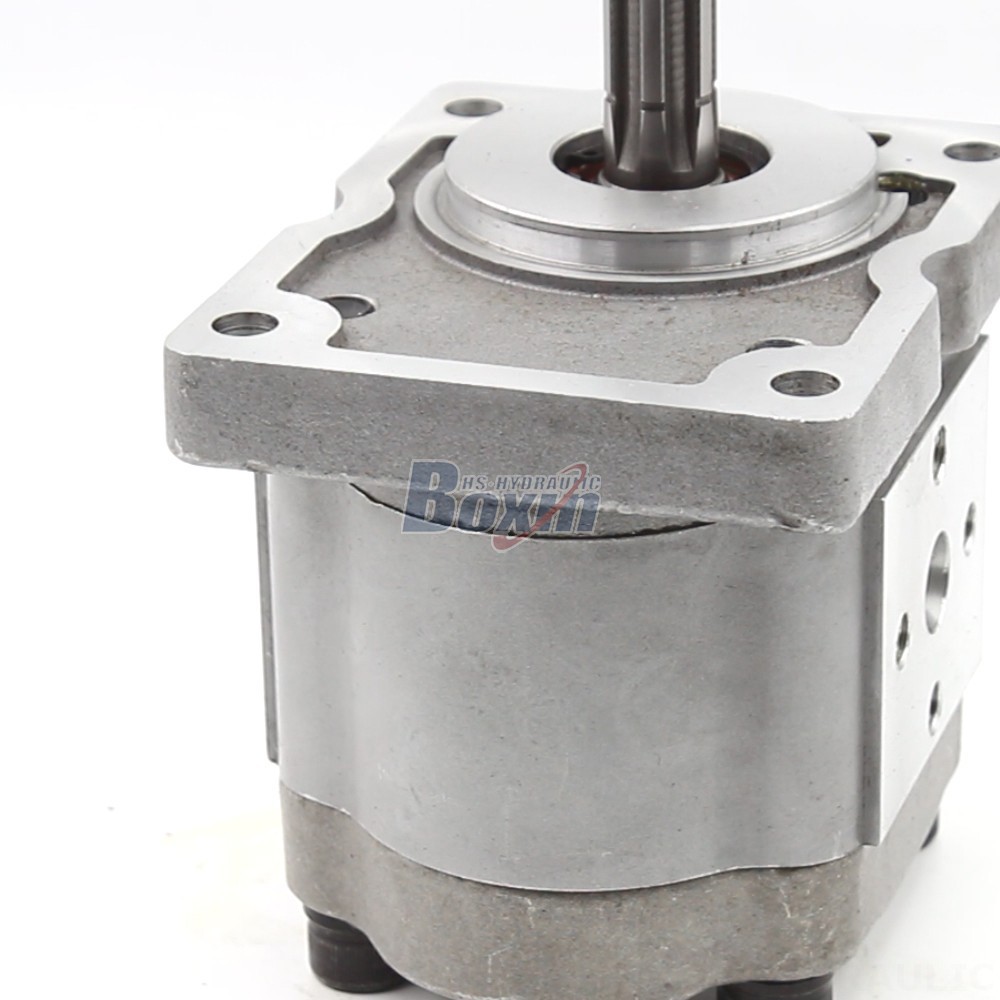

**NSH-10 Hydraulic Pump**
**Key Features:**
- Displacement: 100 cc/rev, 10 cc/rev, 40 cc/rev, 50 cc/rev
- Rated Pressure: 18 MPa (2610 psi)
- Rated Speed: 2000 r/min
- Max Speed: 4200 r/min
- Rotation: Left (counter-clockwise)
- Structure: External Gear Pump
- Material: Aluminium
- Flange Version: B-Square Flange
- Shaft Type: Involute Spline
**Applications:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Models:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
