Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1331 personnes consultent ce produit

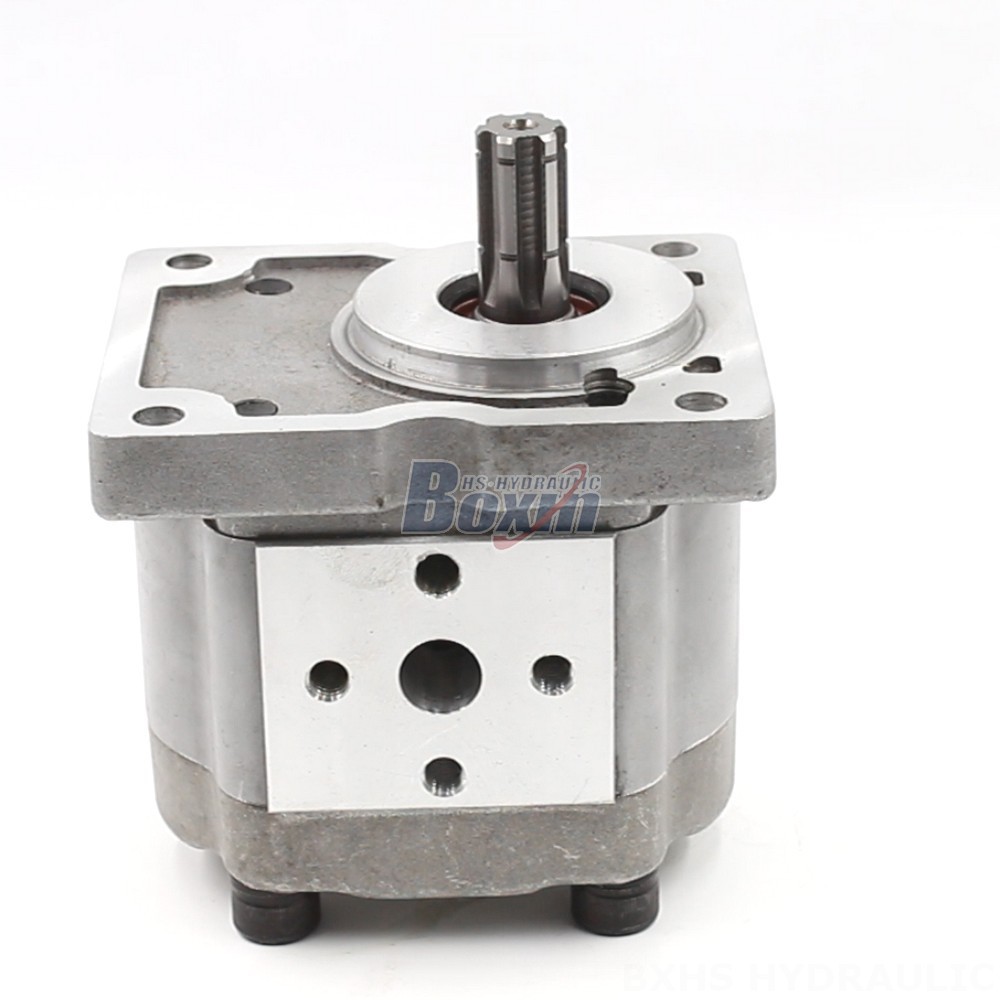

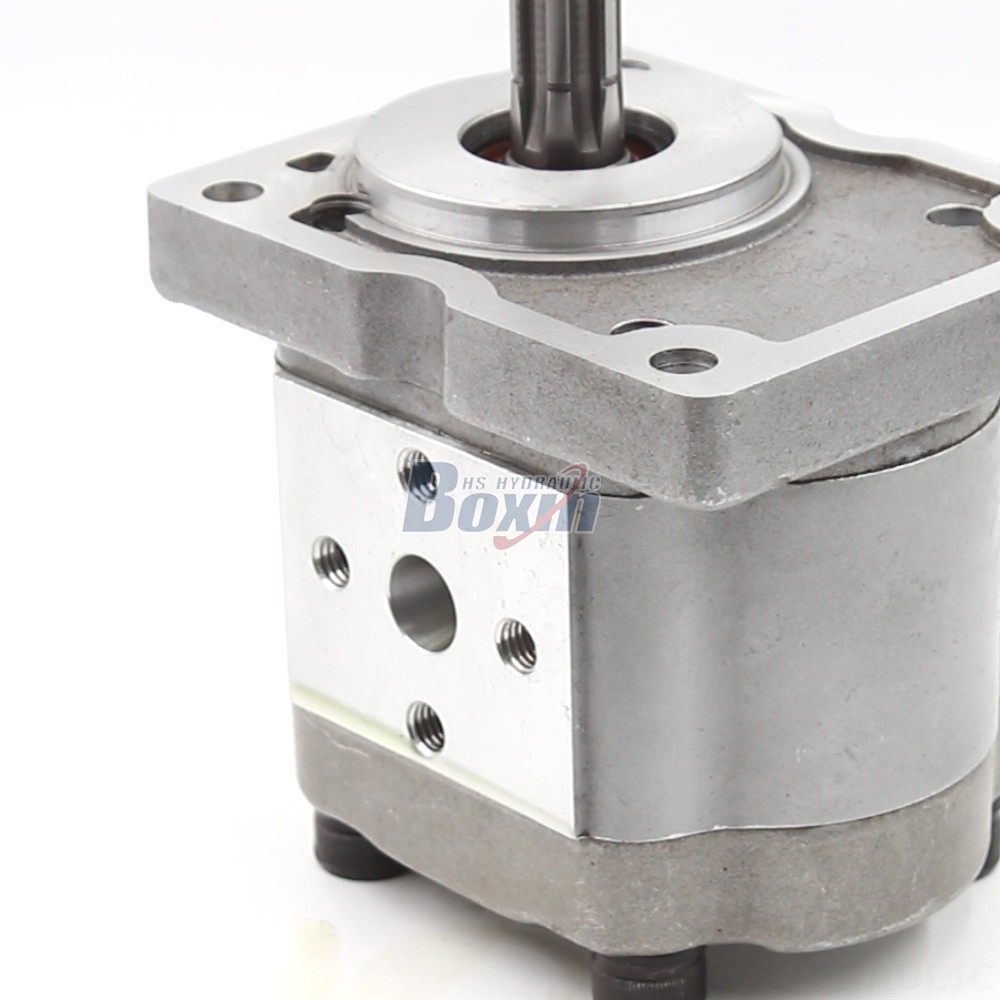

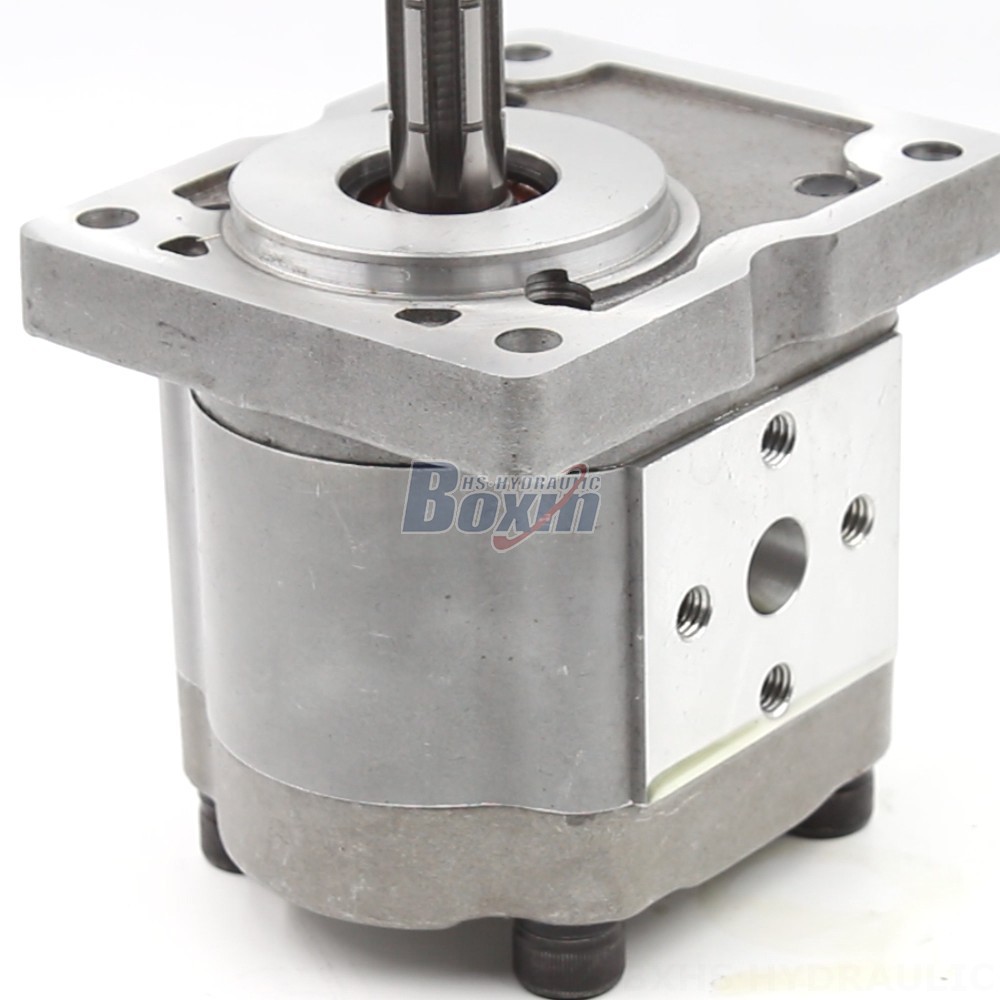

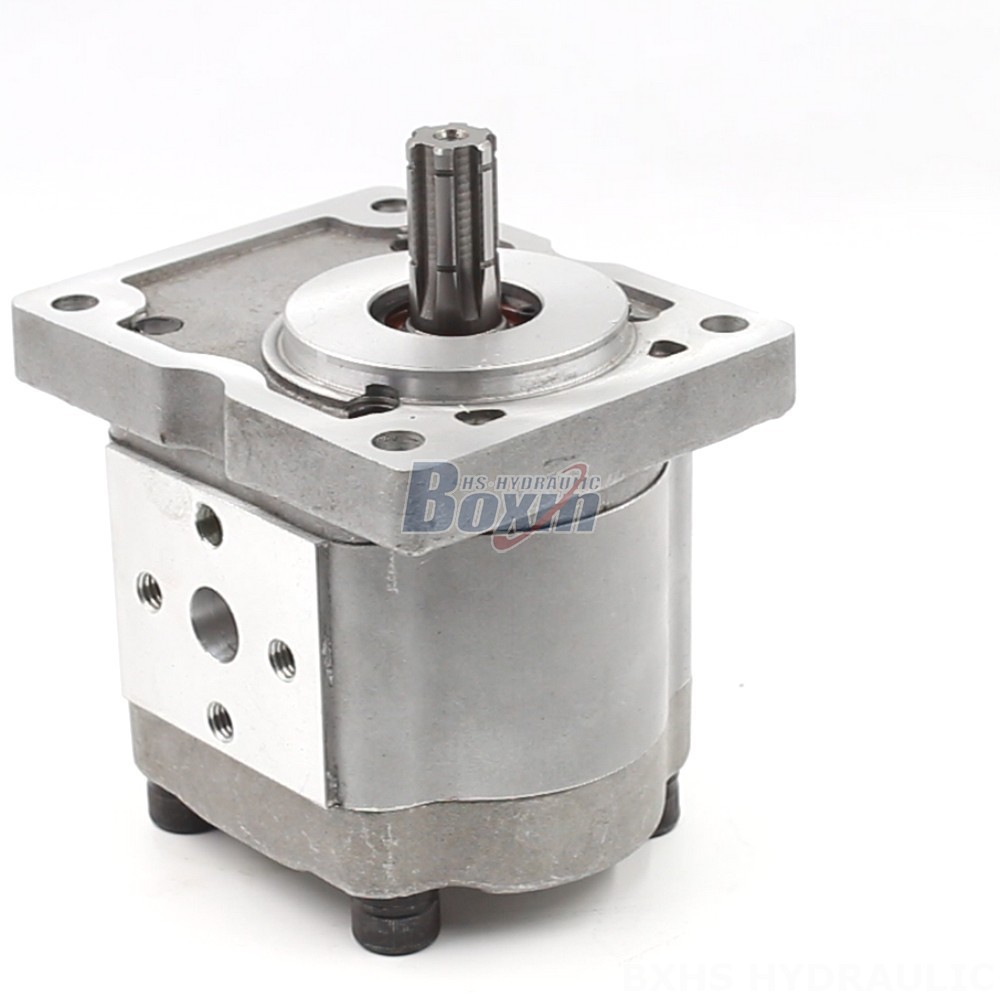

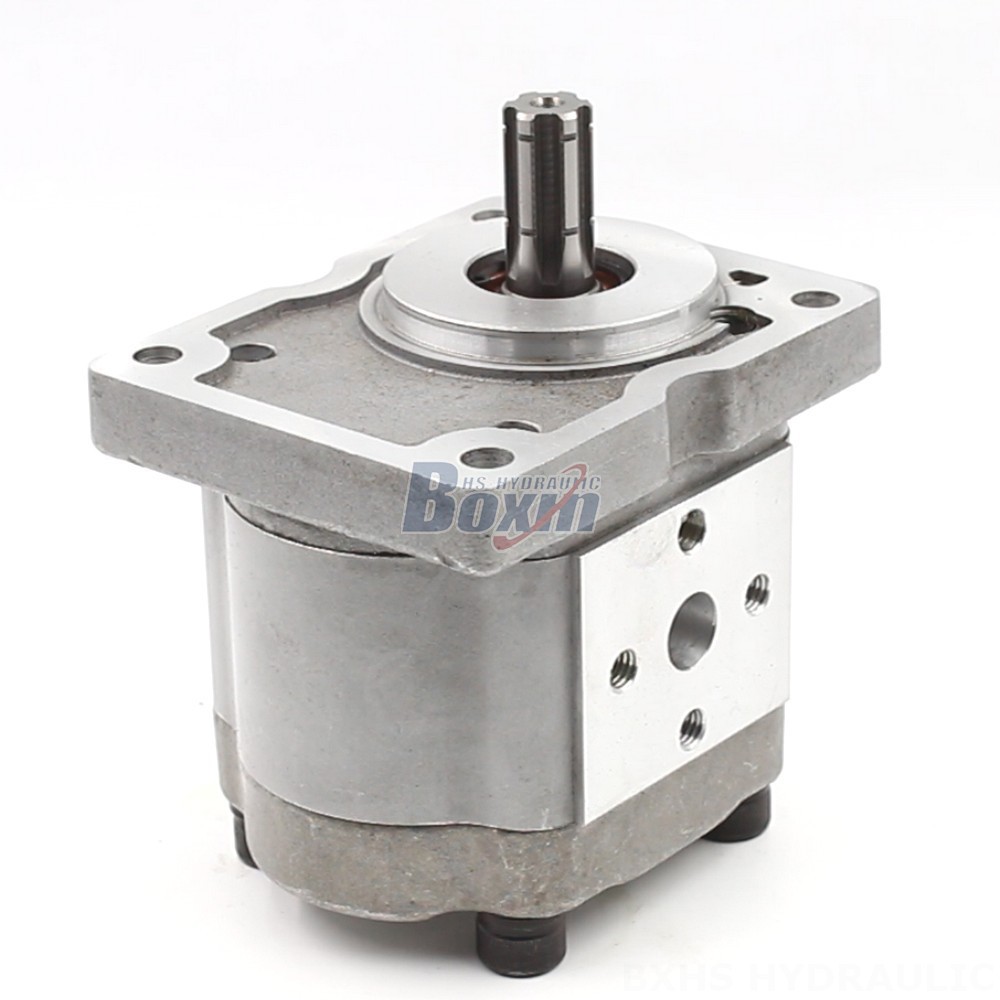

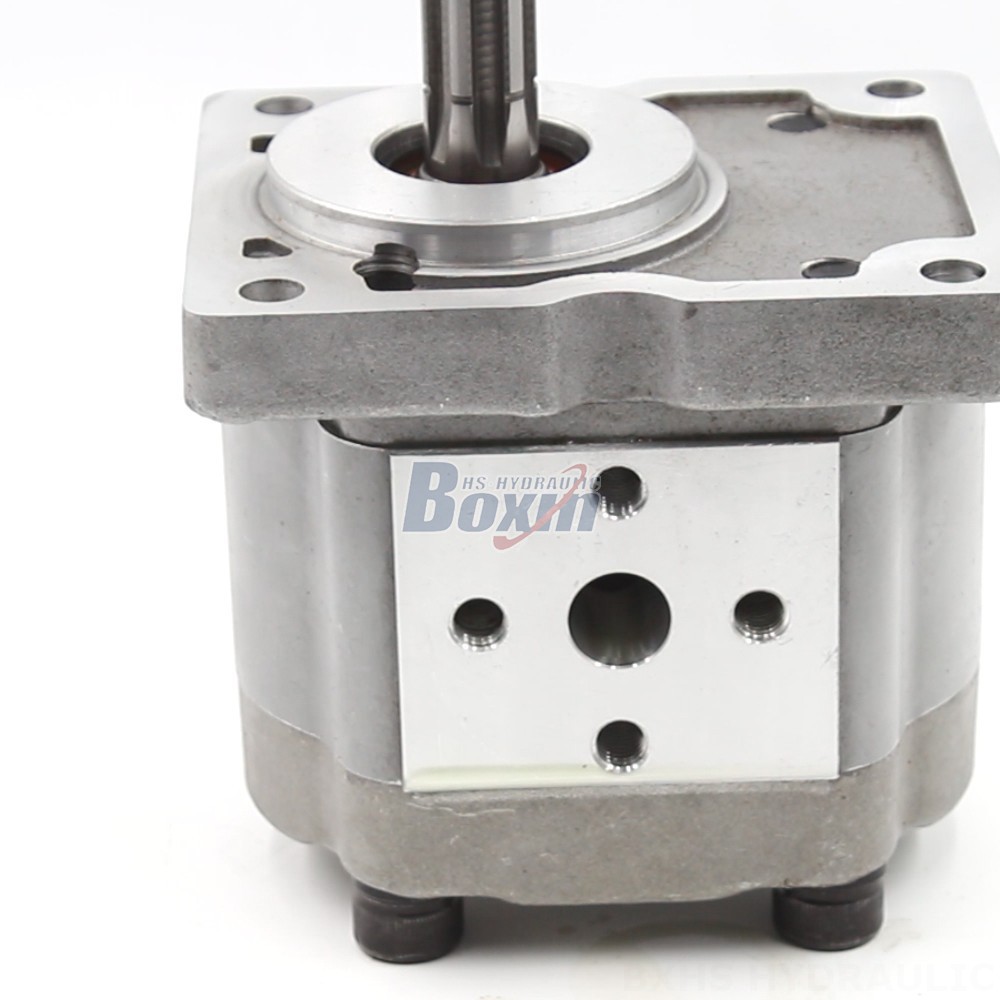

The NSH-10 Gear Pump is a high-performance and reliable hydraulic gear pump designed for fluid power systems. It features a displacement of 100 cc/rev, 10 cc/rev, 40 cc/rev, or 50 cc/rev, a rated pressure of 18 MPa (2610 psi), and a rated speed of 2000 r/min. The pump is constructed from aluminium and has a B-Square flange version and an involute spline shaft type.
| Série NSH Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 32 cc/tr, 40 cc/tr, 50 cc/tr, 100 cc/tr |
| Pression nominale | 18 MPa (2610 psi) |
| Pression maximale | 20 MPa (2900 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 4 200 tr/min |
| Rotation | L : Gauche (antihoraire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | B - Bride carrée |
| Type d'arbre | X : Cannelures hélicoïdales |
The NSH-10 Gear Pump is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is commonly used in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders. The pump's external gear design provides high efficiency and low noise levels, while its aluminium construction ensures durability and corrosion resistance.
