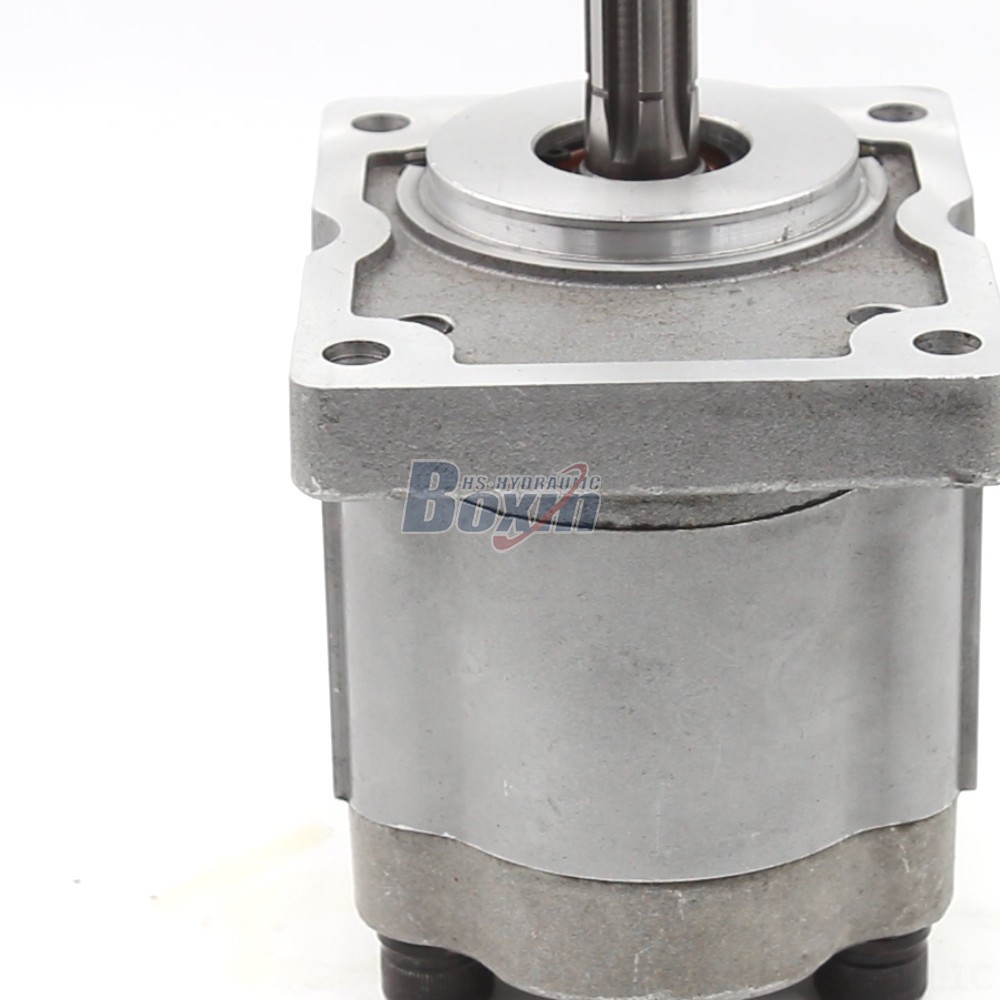

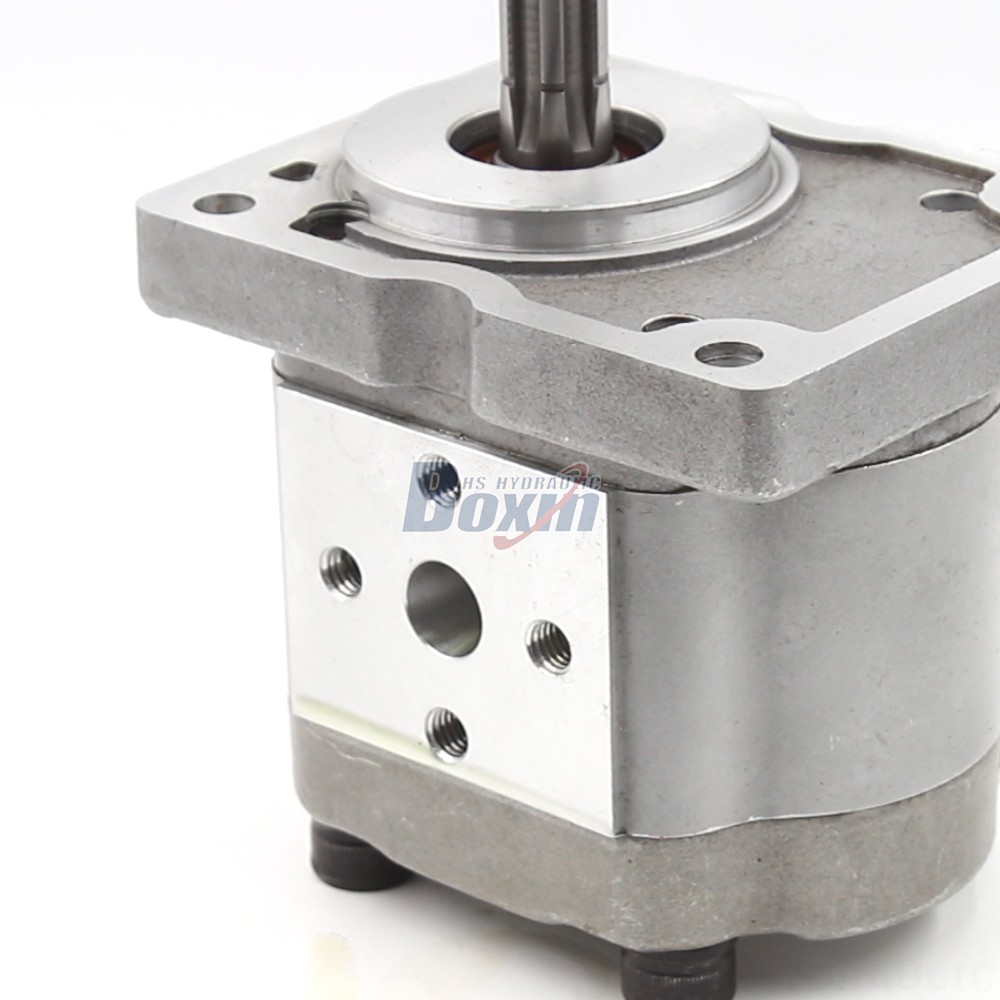

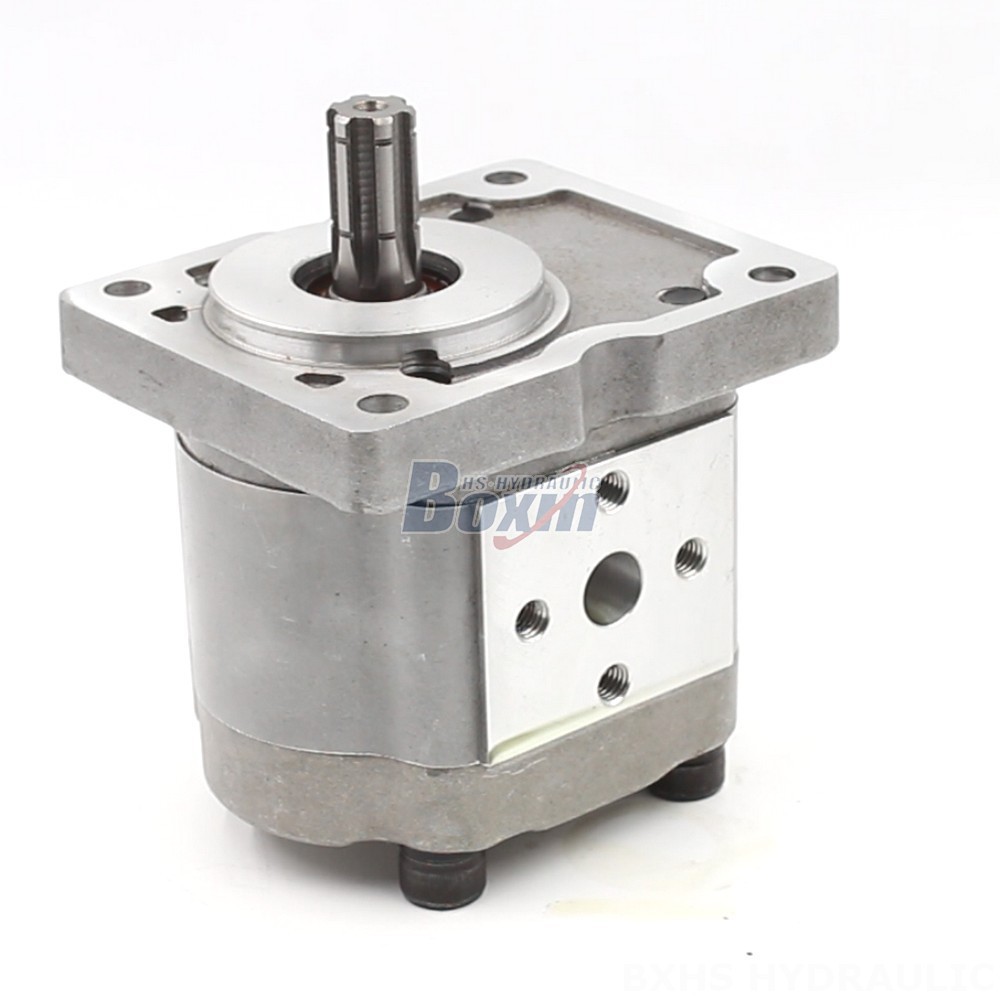

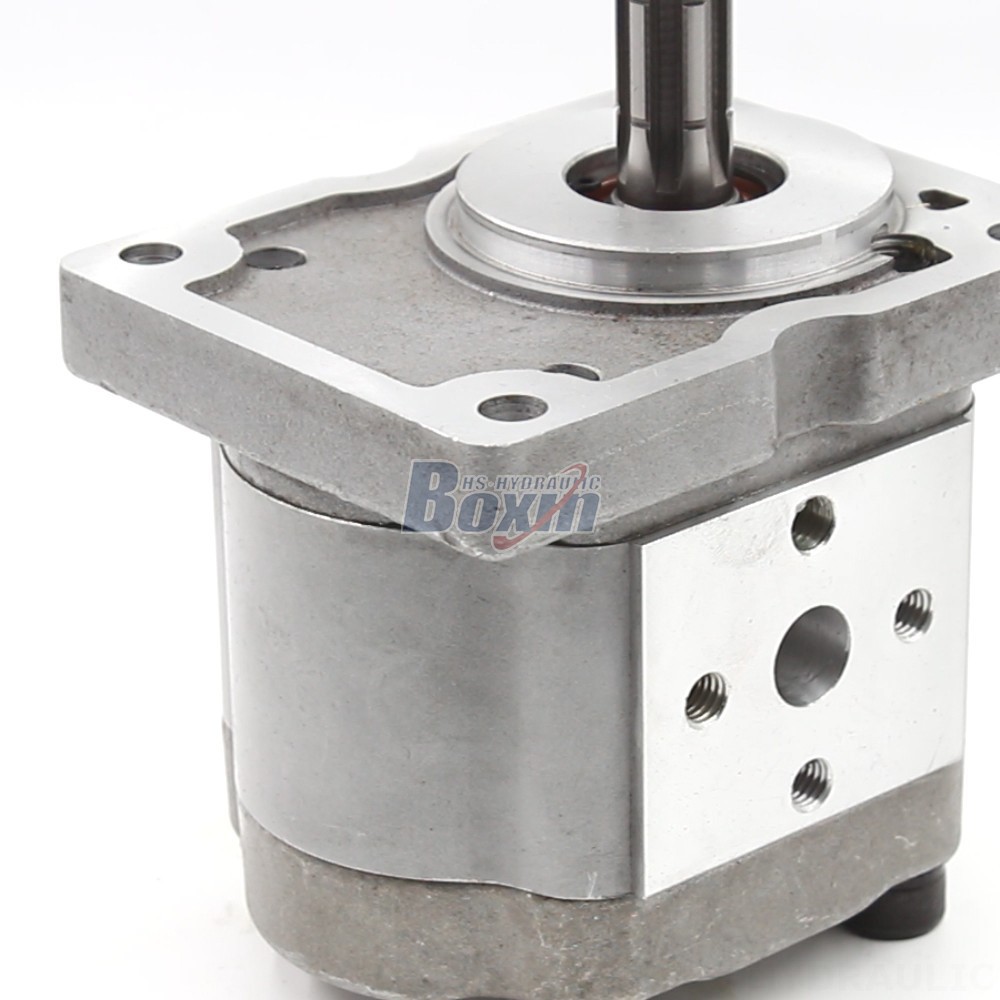

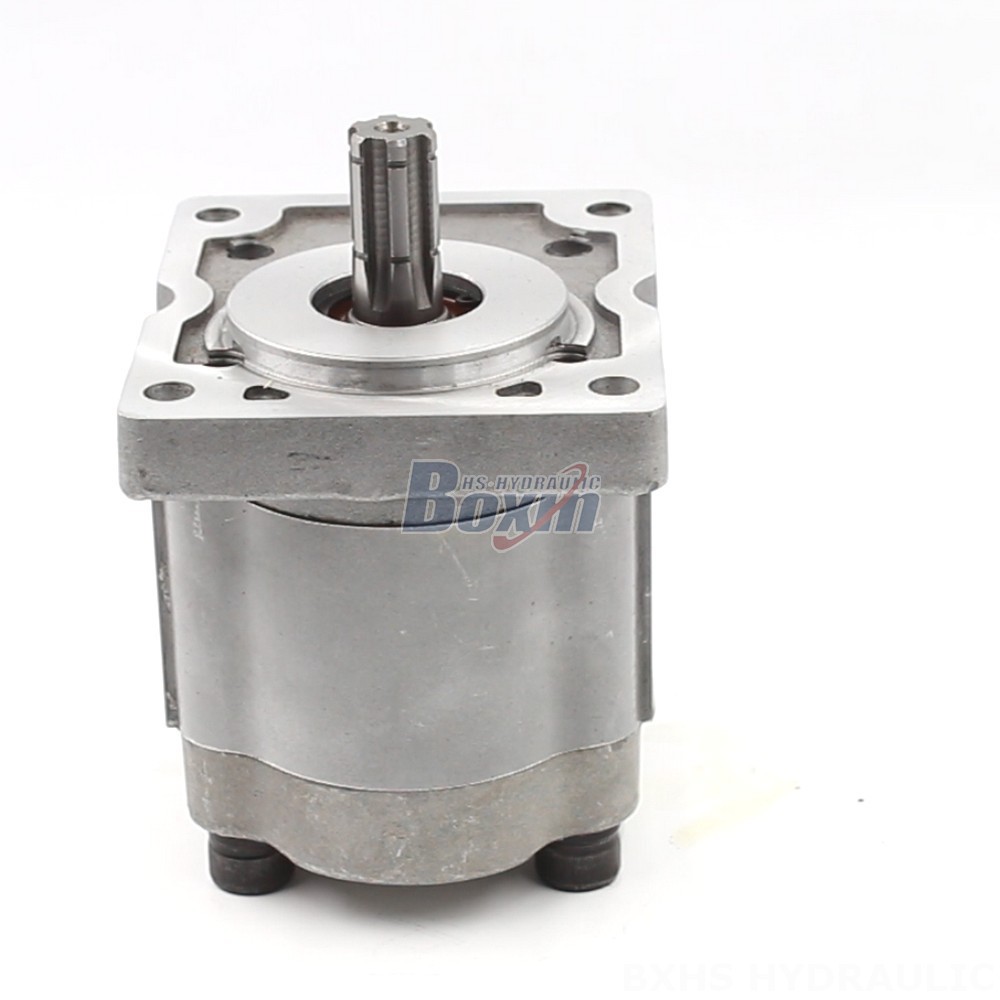

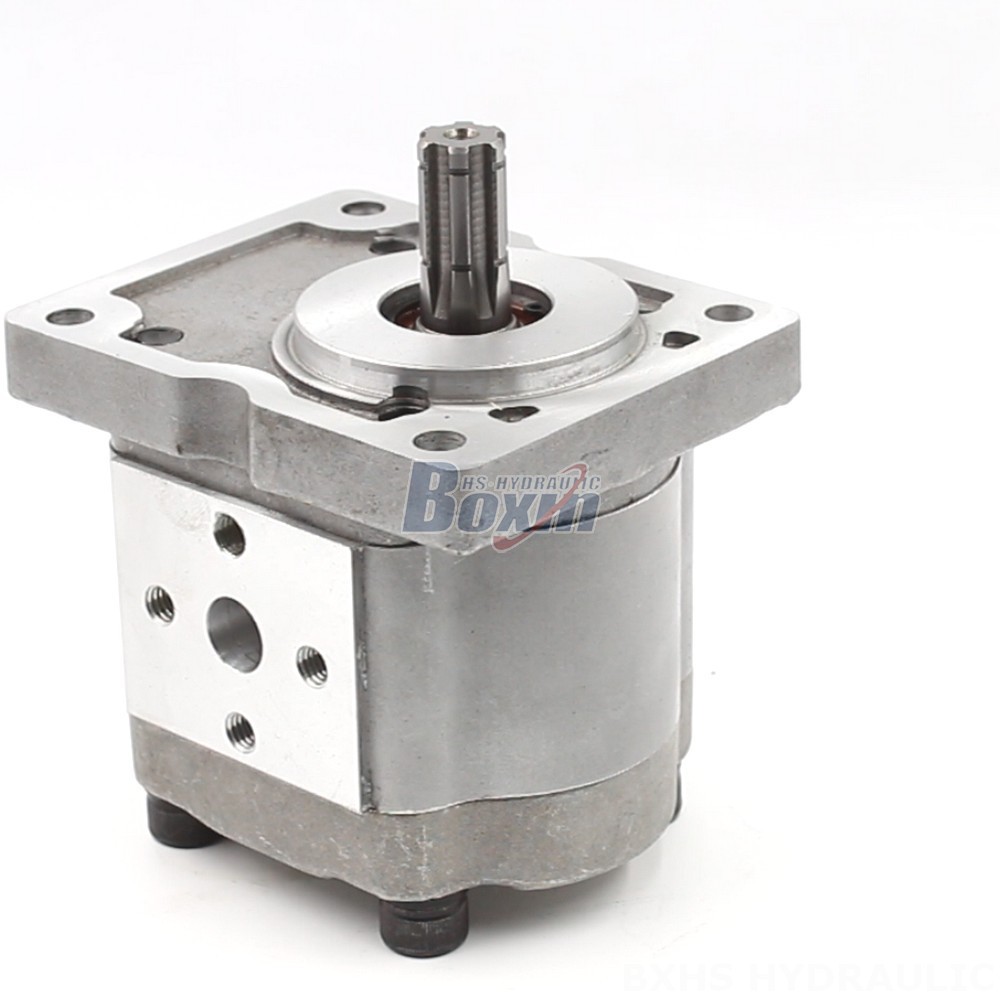

The NSH-10 10 cc/rev Gear Pump is a high-performance hydraulic pump designed for a wide range of industrial applications. With a rated pressure of 18 MPa (2610 psi) and a rated speed of 2000 r/min, this pump delivers reliable and efficient hydraulic power.
| Série NSH Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 32 cc/tr, 40 cc/tr, 50 cc/tr, 100 cc/tr |
| Pression nominale | 18 MPa (2610 psi) |
| Pression maximale | 20 MPa (2900 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 4 200 tr/min |
| Rotation | L : Gauche (antihoraire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | B - Bride carrée |
| Type d'arbre | X : Cannelures hélicoïdales |
**Product Name:** NSH-10 10 cc/rev Gear Pump
**Key Specifications:**
* Displacement: 10 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: L: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminium
* Flange Version: B-Square Flange
* Shaft Type: X: Involute Spline
* Series: NSH Series
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* TELEHANDLER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
