Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

Méthode de contrôle:Manuel

Distributeur:2 tiroirs

Débit nominal:40 L/min (10,5 US gpm)

Pression maximale:250 bar (3 600 psi)

Orifice d'entrée:G1/2

Orifice de sortie:G1/2

Dimension du raccord:G1/2

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série P40 Vanne directionnelle monobloc

Taille de l'emballage:23*18*13

Poids brut:5.00 kg

Disponibilité: En stock

944 personnes consultent ce produit

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages drawing image

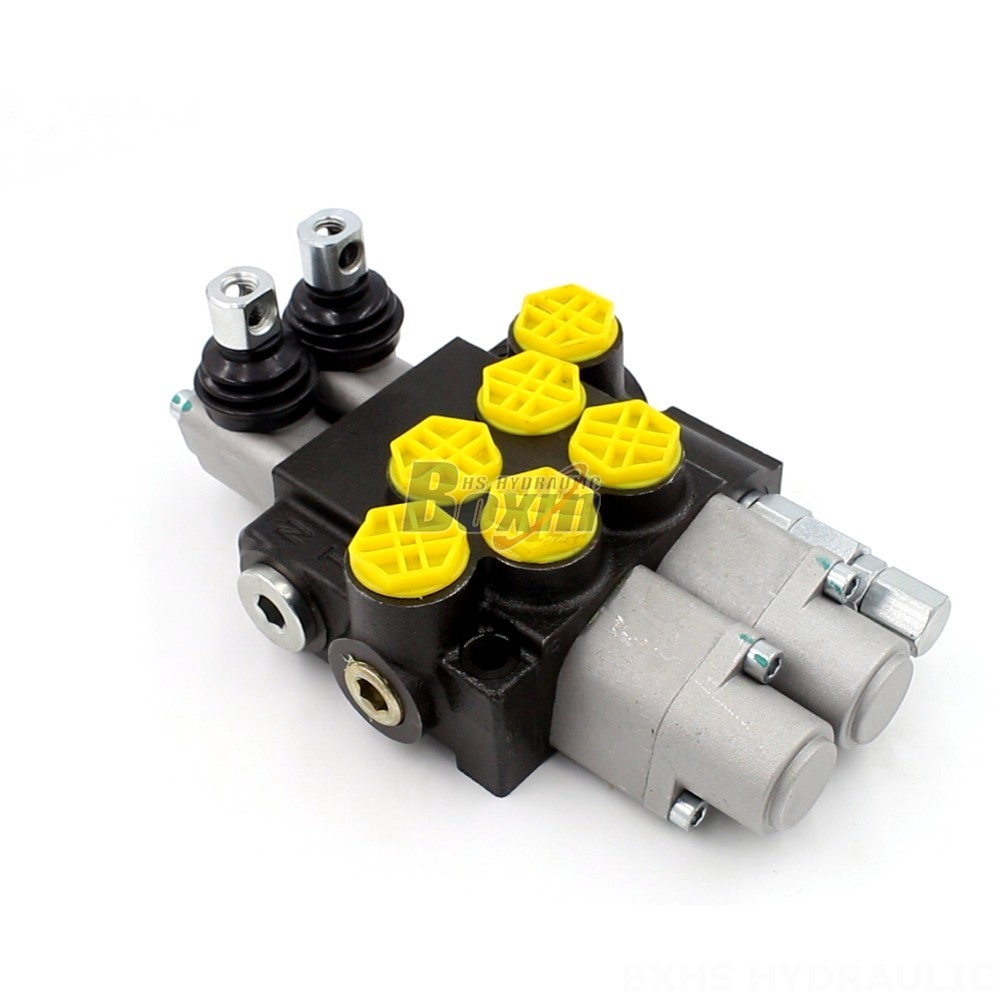

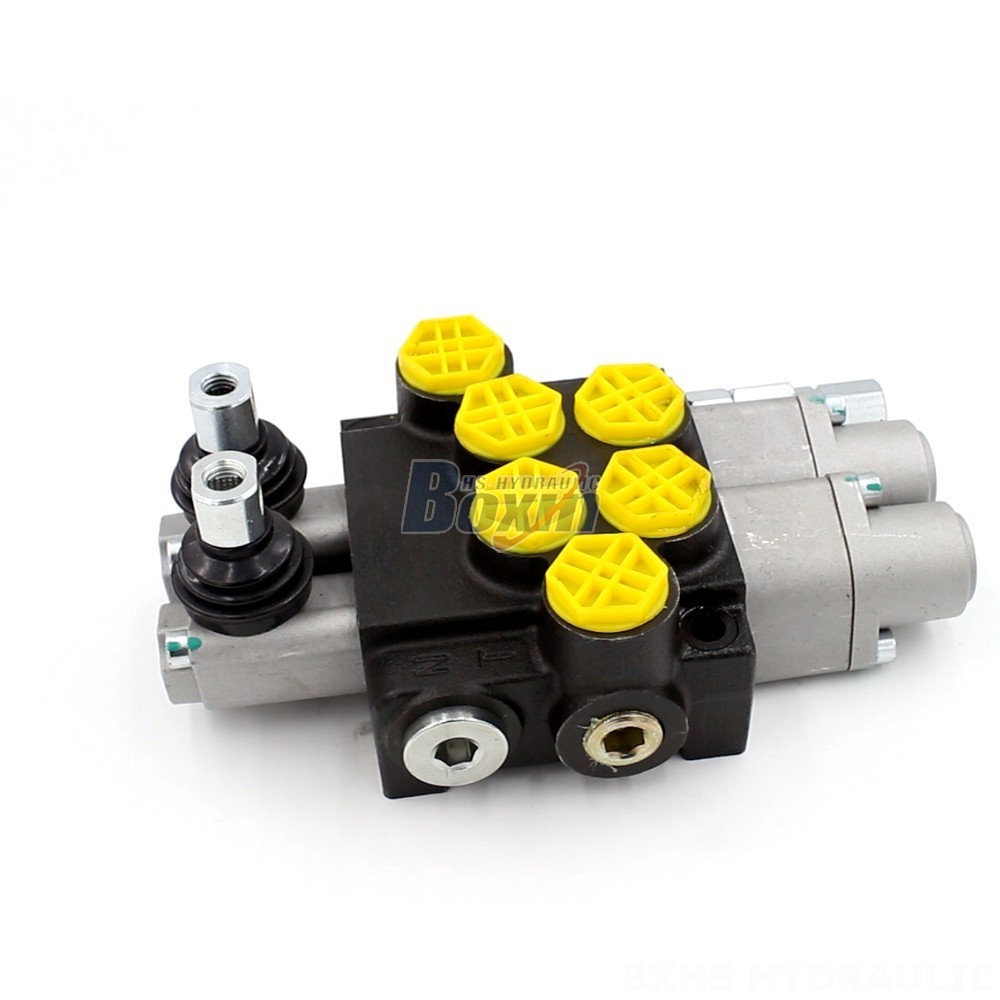

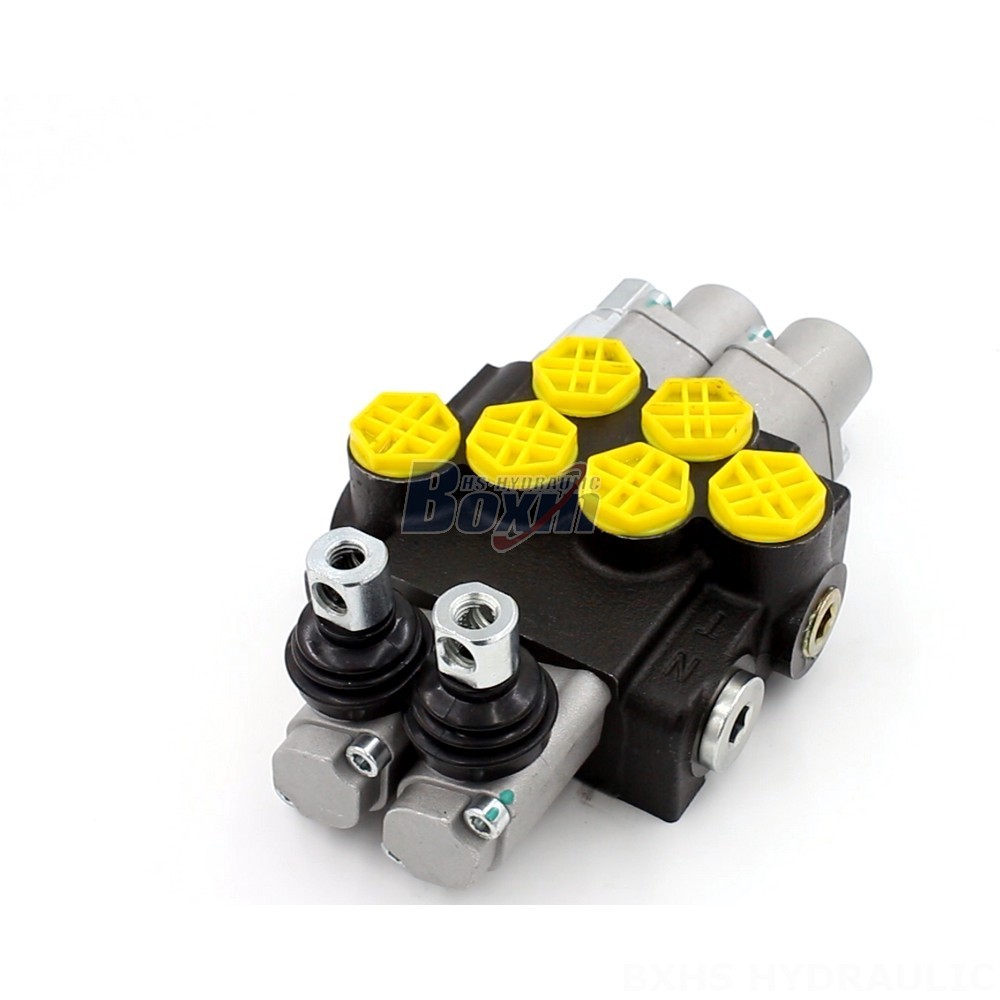

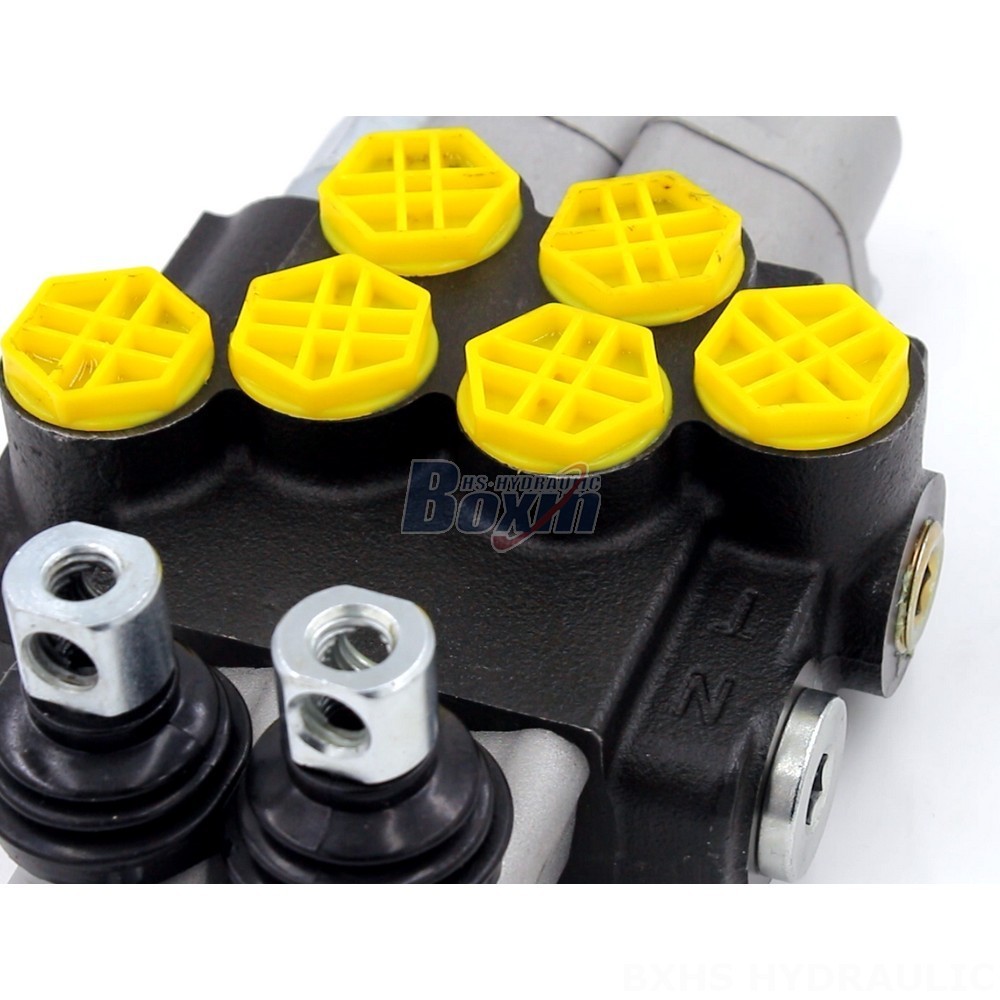

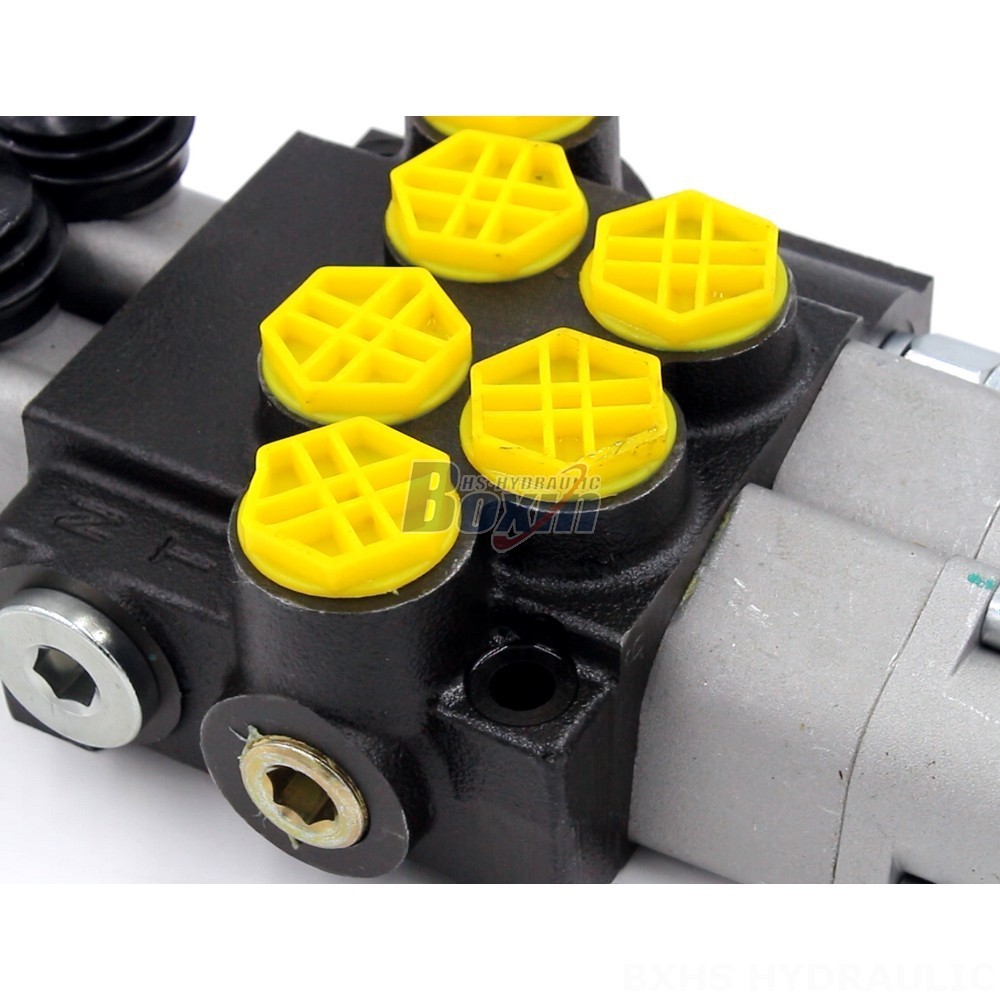

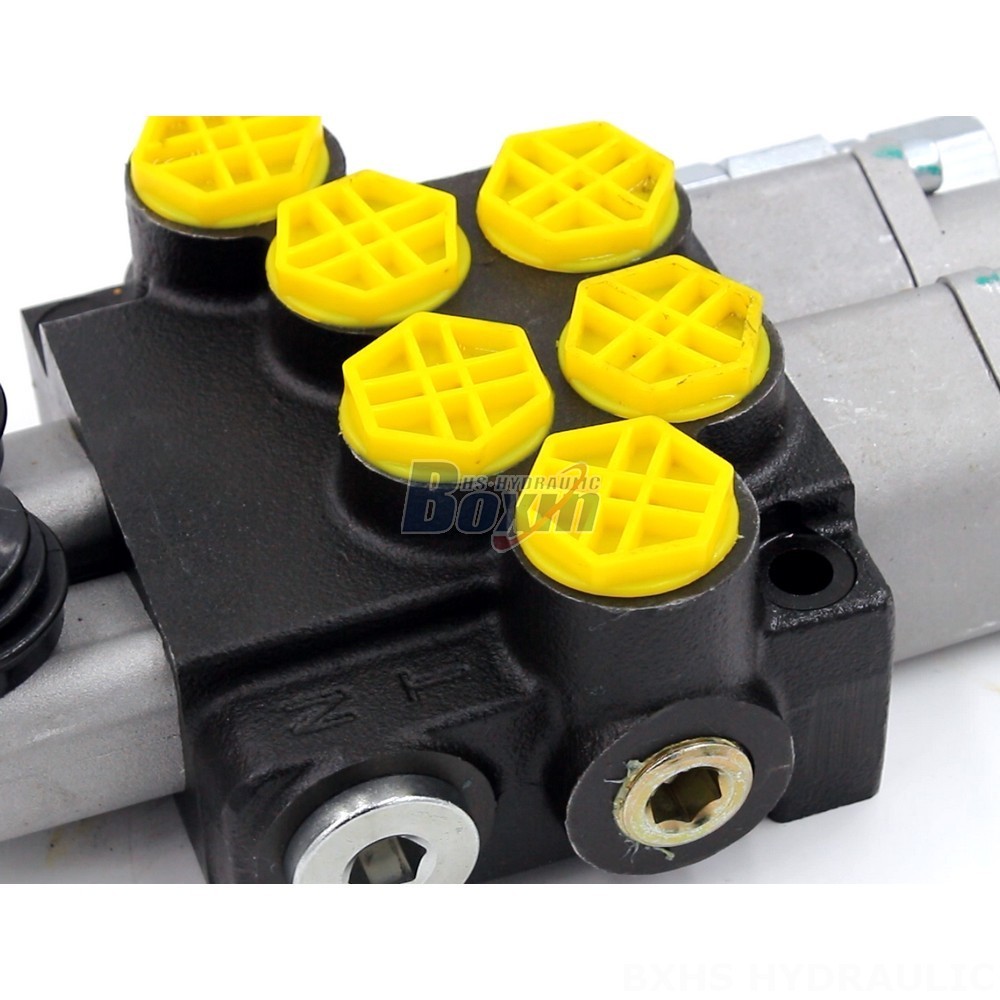

The P40-G12-2OT Directional Control Monoblock Valve is a robust and reliable hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 2-section, manually controlled valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of equipment, including telehandlers, forklifts, cranes, and excavators.

Série P40 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 40 L/min (10,5 US gpm)
Pression maximale 250 bar (3 600 psi)
Orifice d'entrée G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Orifice de sortie G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Dimension du raccord G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 series monoblock directional valve offers a compact and efficient solution for controlling hydraulic systems. Its manual control method provides simple and direct operation, while its 2-section design allows for versatile control configurations. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle a variety of hydraulic applications. Its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure reliable performance in diverse environments. This valve is specifically suited for equipment like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
