The SDS180 Series Hydraulic Solenoid Directional Valve is a 4-spool manual valve designed for heavy-duty applications in construction, material handling, and agriculture. With a rated flow of 160 L/min and a max pressure of 350 bar, this valve is suitable for use in a wide range of equipment.
| Série SDS180 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Hydraulique |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 160 L/min (42,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi), 350 bar (5 100 psi) |
| Orifice d'entrée | G3/4, G1, SAE 12 |
| Orifice de sortie | G1, SAE 16 |
| Dimension du raccord | G3/4, G1, SAE 12 |

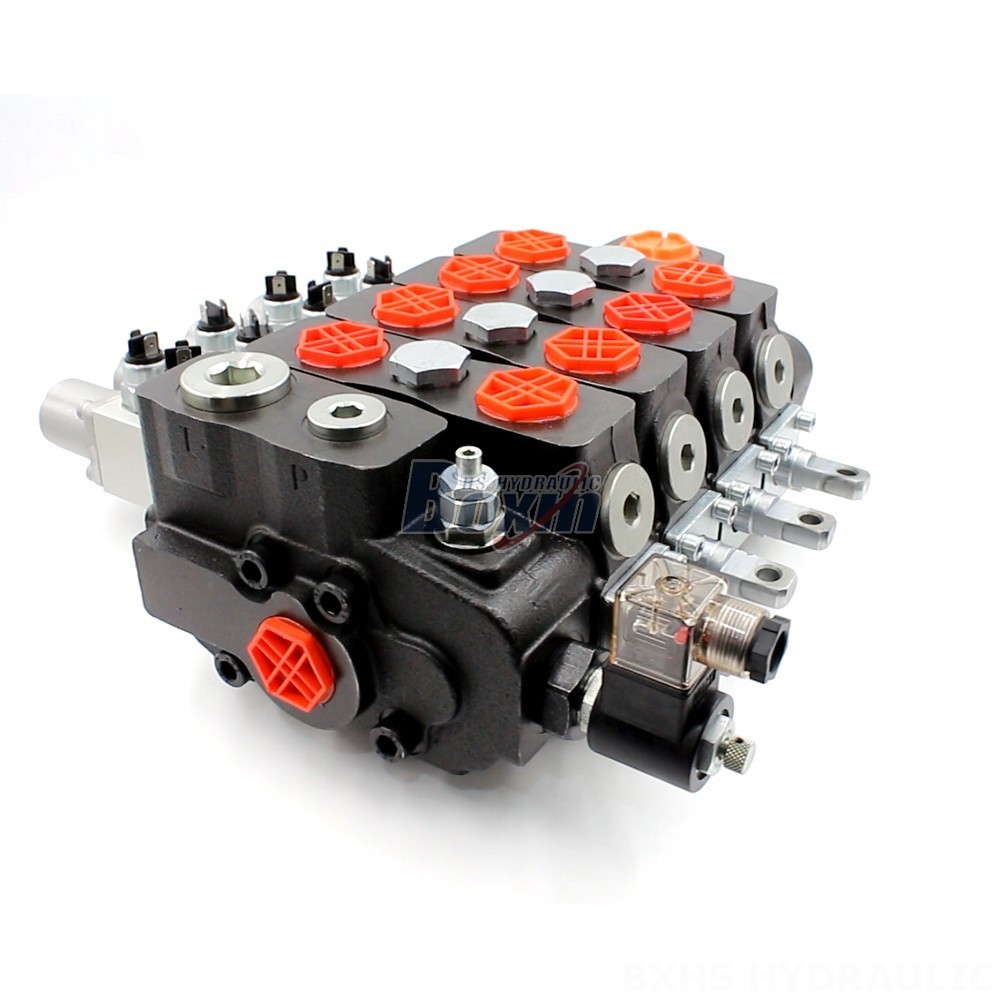

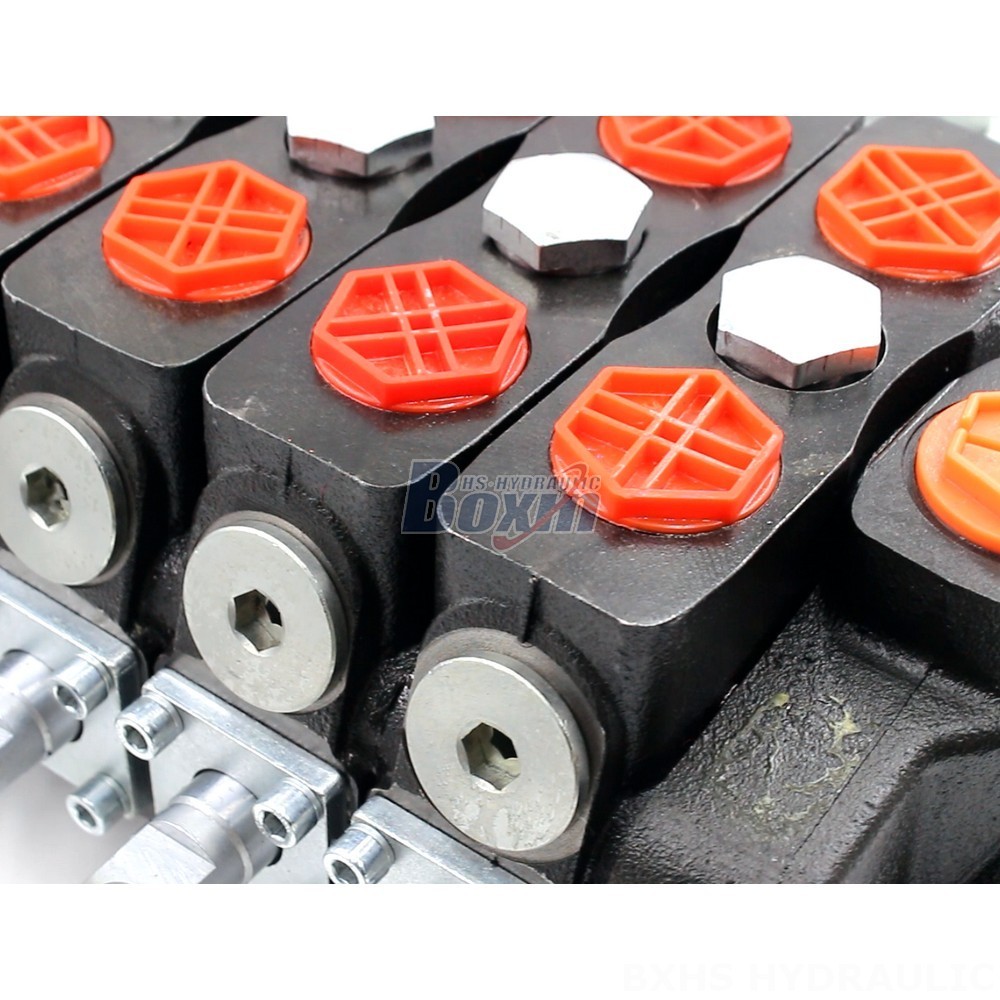

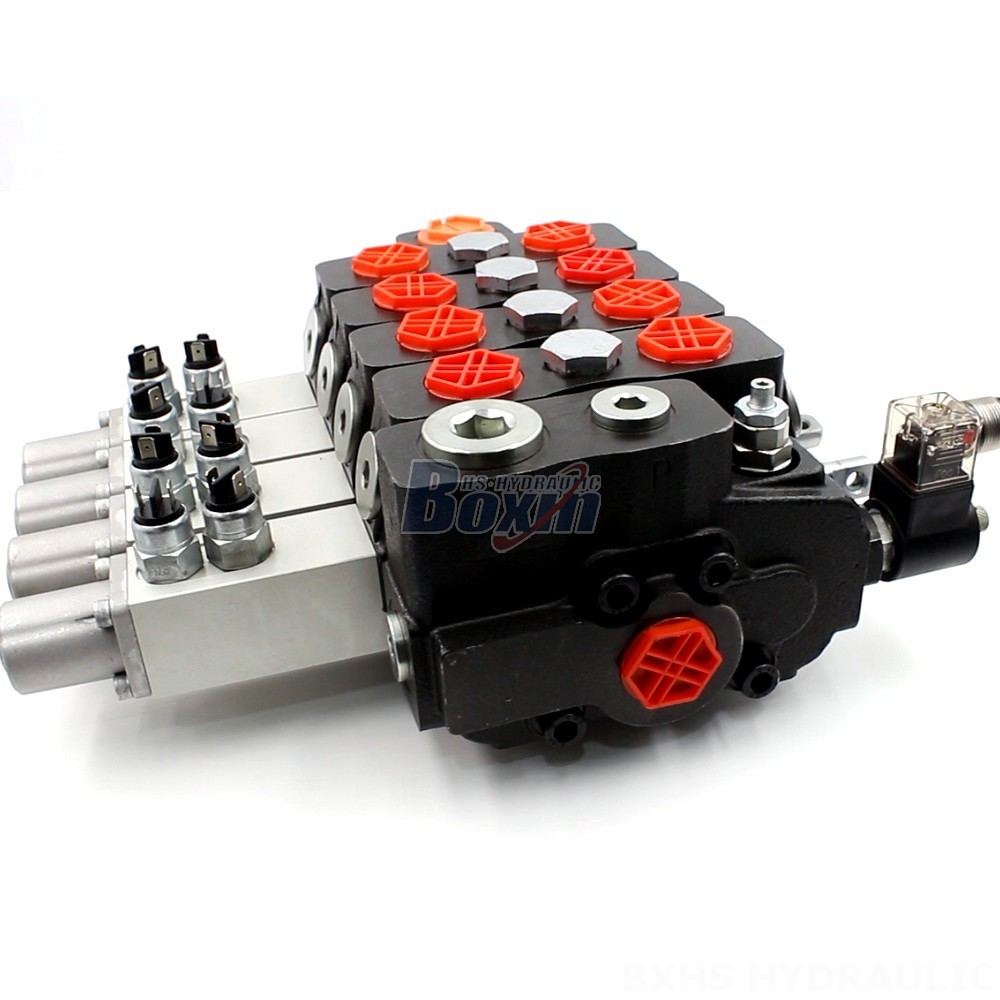

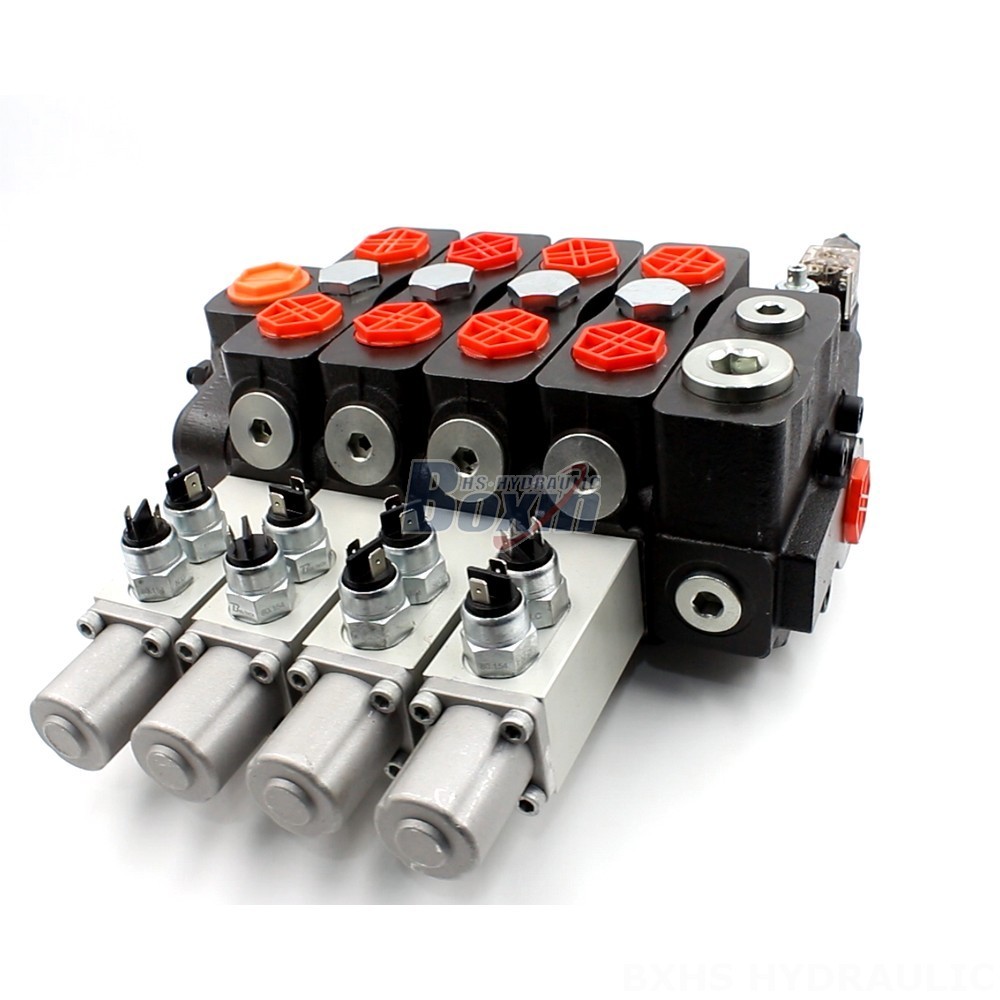

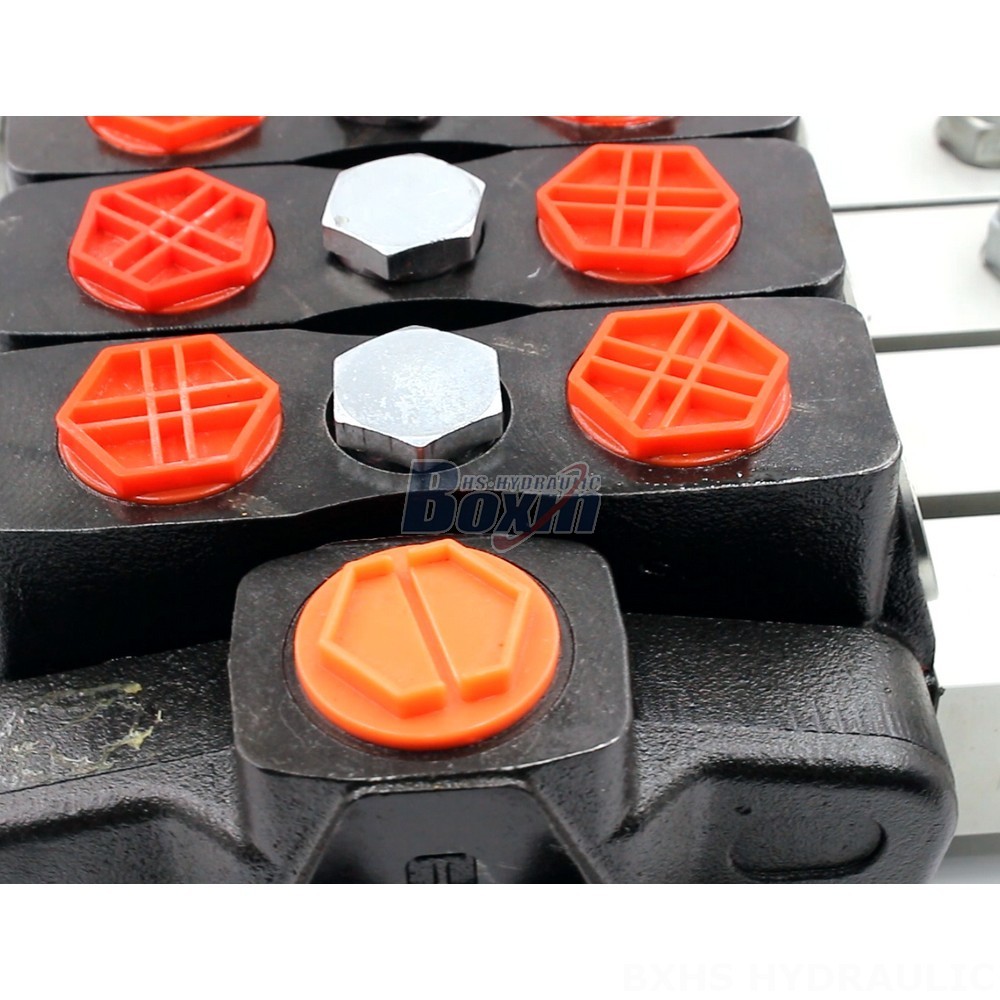

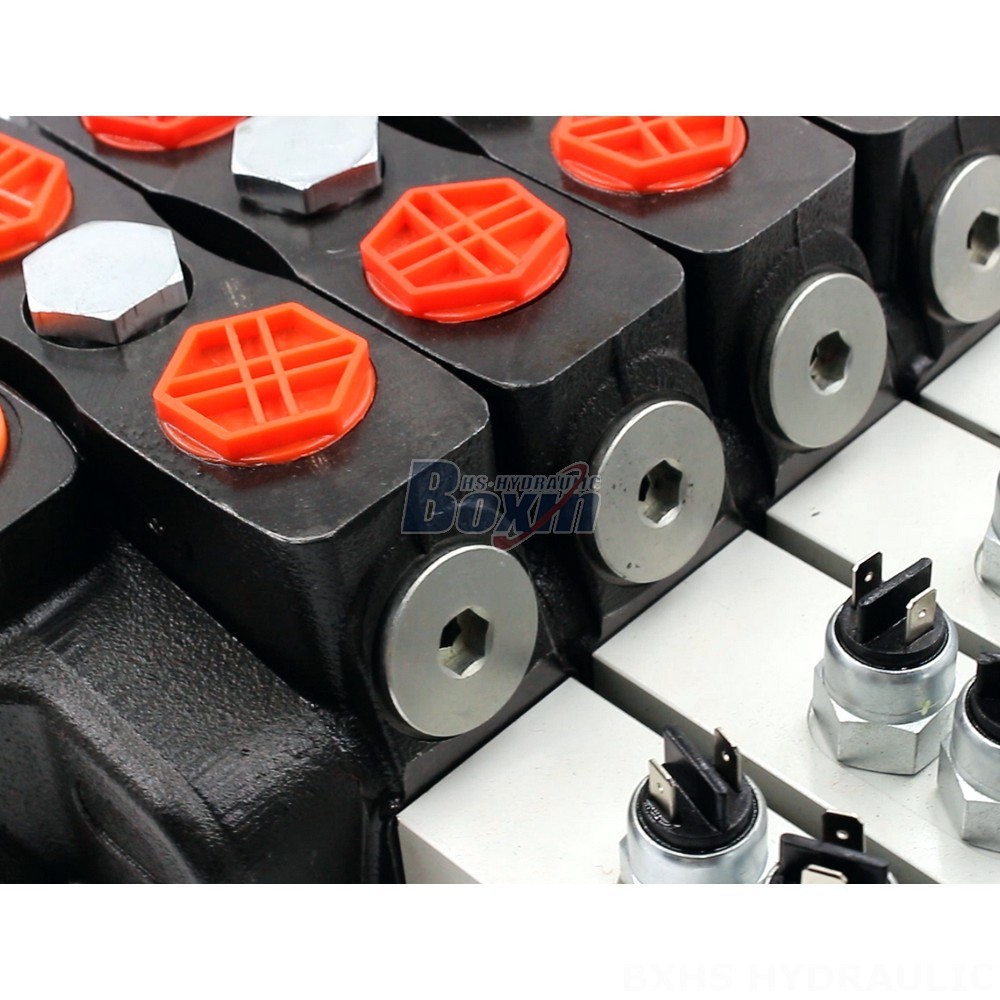

The DLS180 Manual 4 Spool Hydraulic Solenoid Directional Valve is a robust and reliable valve designed for demanding applications. It features a manual control method, a 4-section design, and a sectional valve structure. This valve has a rated flow of 160 L/min (42.2 US gpm) and a max pressure of 350 bar (5100 psi). It operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). The DLS180 is suitable for a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. It is ideal for use in applications requiring precise and efficient hydraulic control.
