Production & Delivery
15-30 Days Production Lead Time
L'innovation favorise le développement ; la technologie forge l'avenir
1818 personnes consultent ce produit

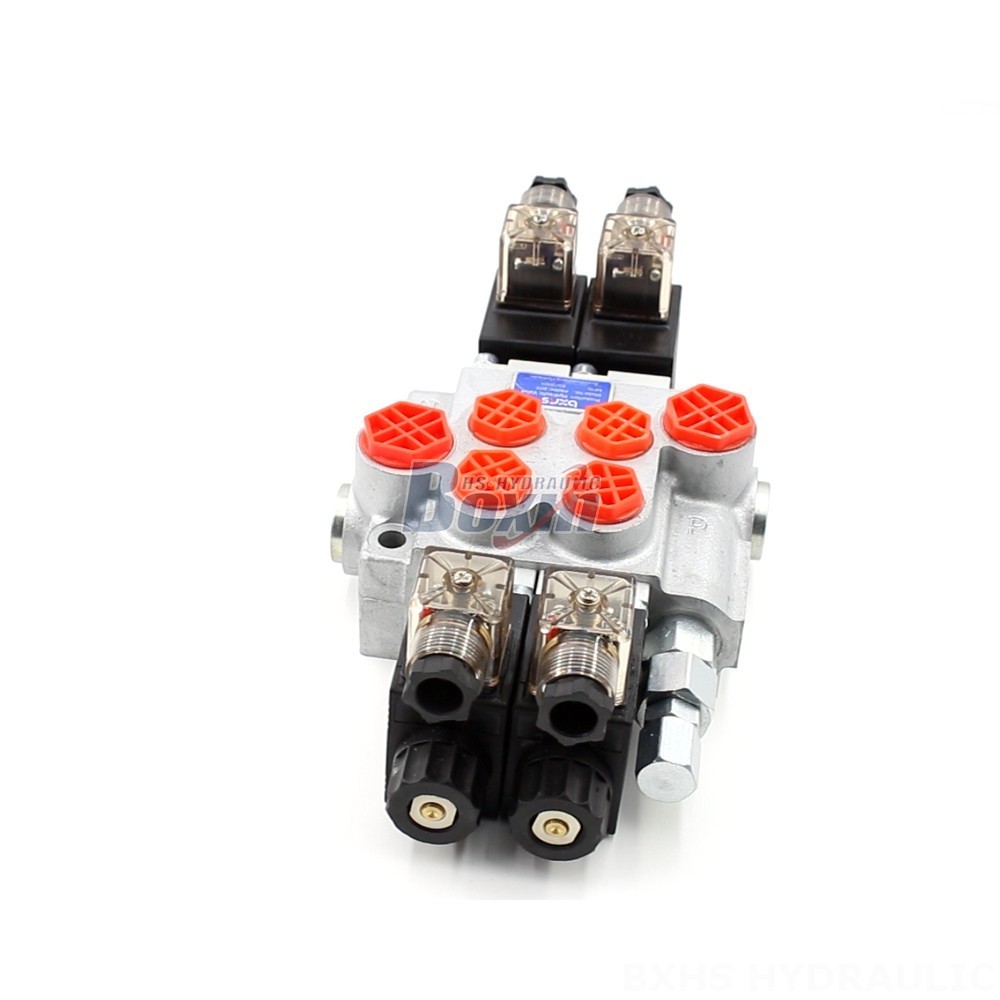

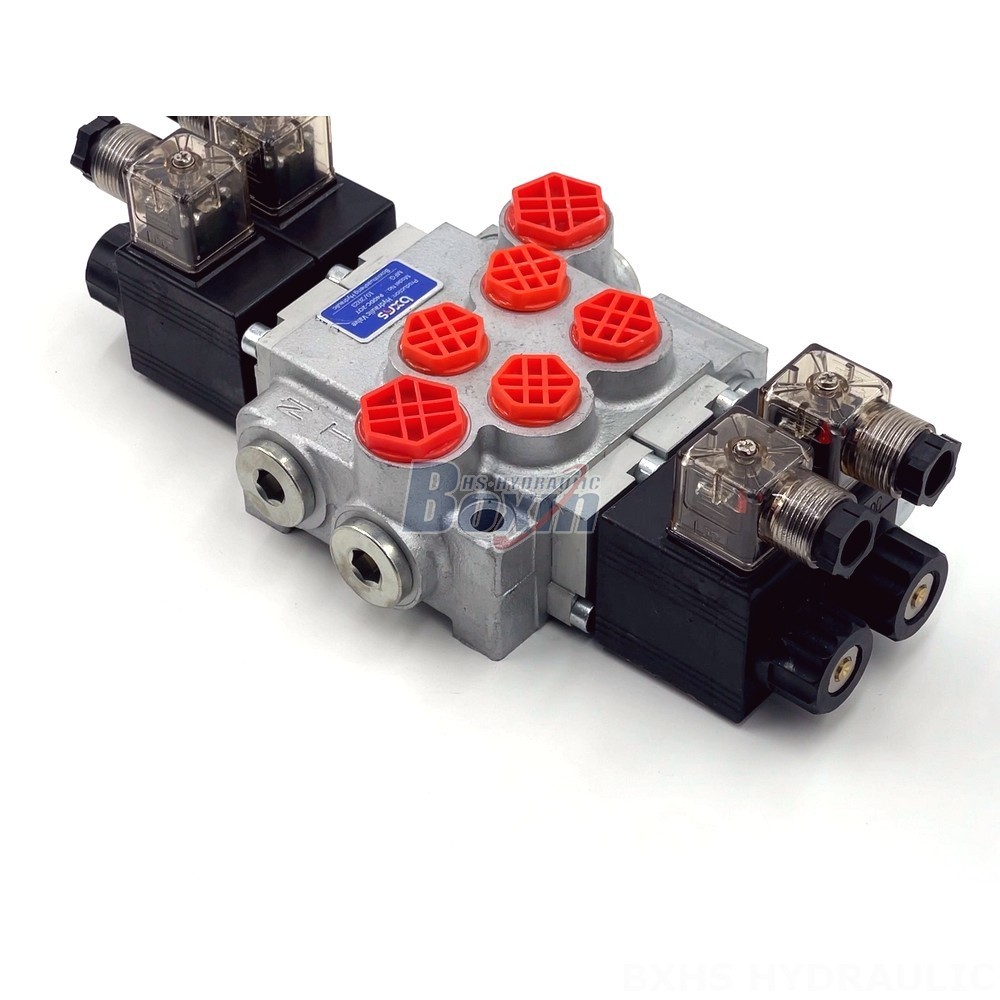

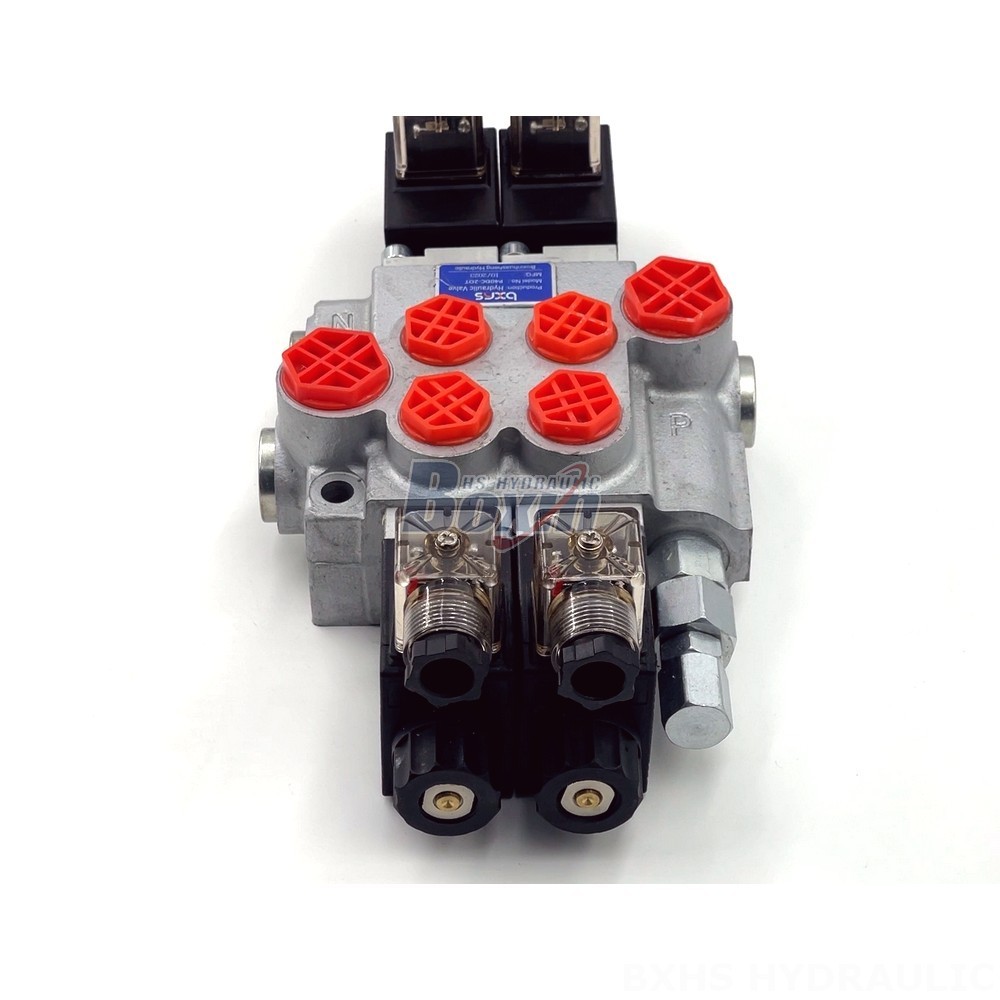

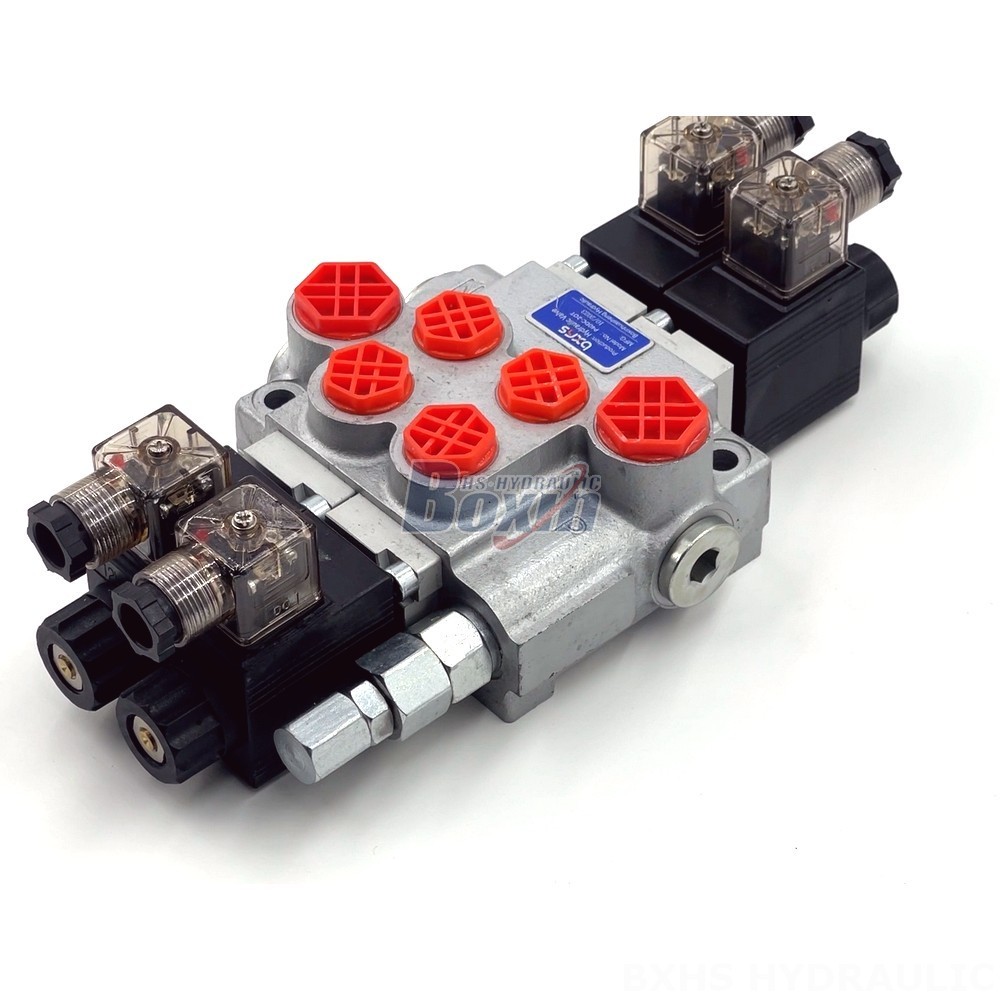

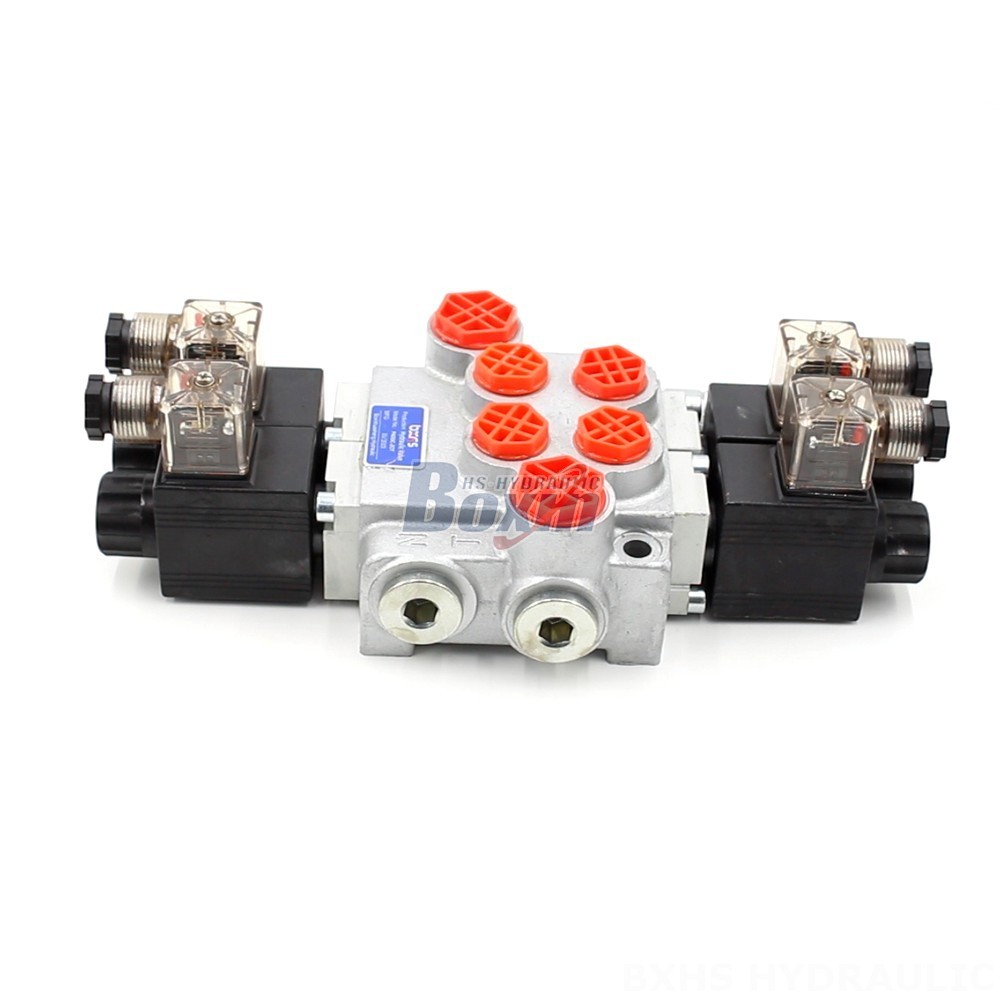

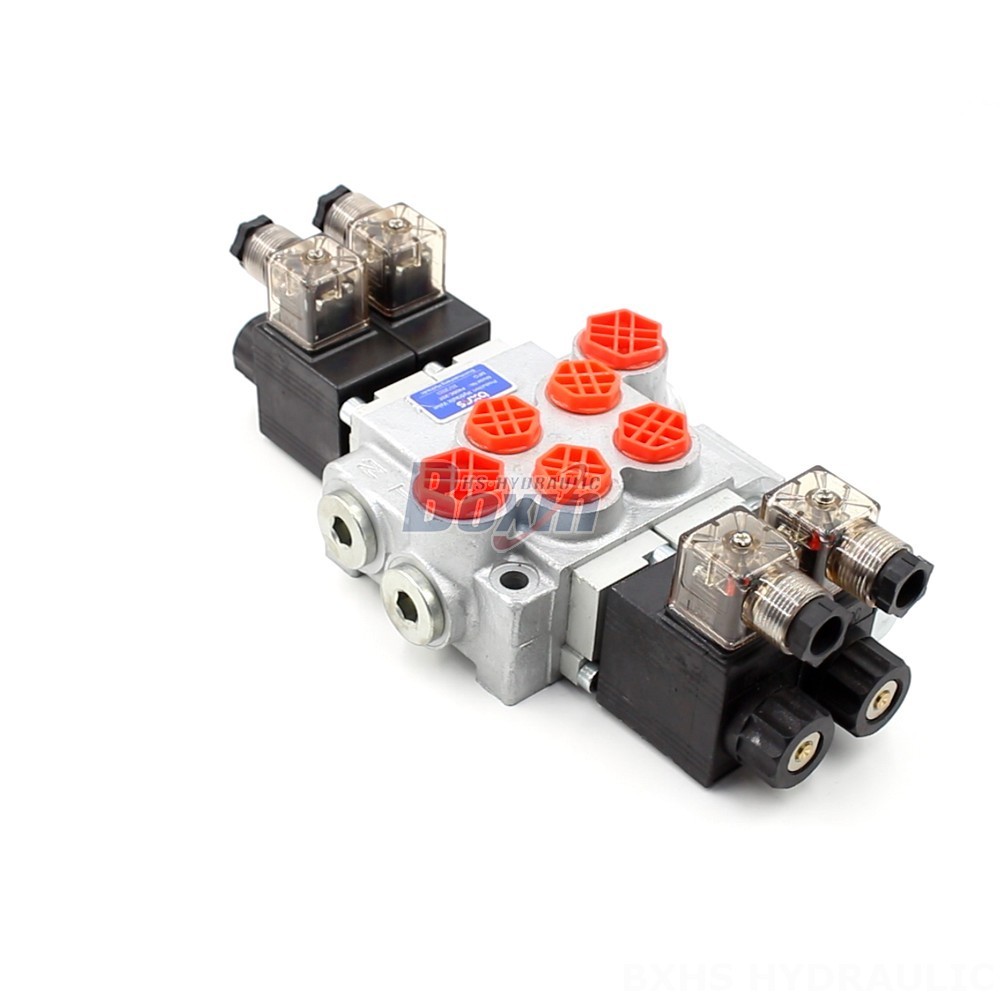

The P40-DKL Monoblock Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its solenoid control, 2 section design, 40 L/min rated flow, and 250 bar max pressure, this valve offers precise and reliable control of hydraulic systems. It operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
| Série P40-DKL Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
**Key Features:**
* Solenoid control for precise and responsive operation
* 2 section design for versatile flow control
* 40 L/min rated flow to handle demanding hydraulic systems
* 250 bar max pressure for high-pressure applications
* 15 - 75 mm²/s operating viscosity range for compatibility with various fluids
* -40°C to +80°C ambient temperature range for reliable performance in diverse environments
* 2 spool for efficient flow management
* Rugged construction for durability and long service life
* CE certified and ISO standard compliant for quality assurance
**Applications:**
The P40-DKL Monoblock Valve is widely used in a variety of industries, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
