The P80-U78-4OT series is a 4-section, manual monoblock directional valve designed for exceptional performance in demanding applications. Suitable for a wide range of industries, including material handling, construction, and agriculture, this valve offers exceptional control and reliability with a rated flow of up to 80 L/min, a max pressure of 250 bar, and a broad operating viscosity range.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

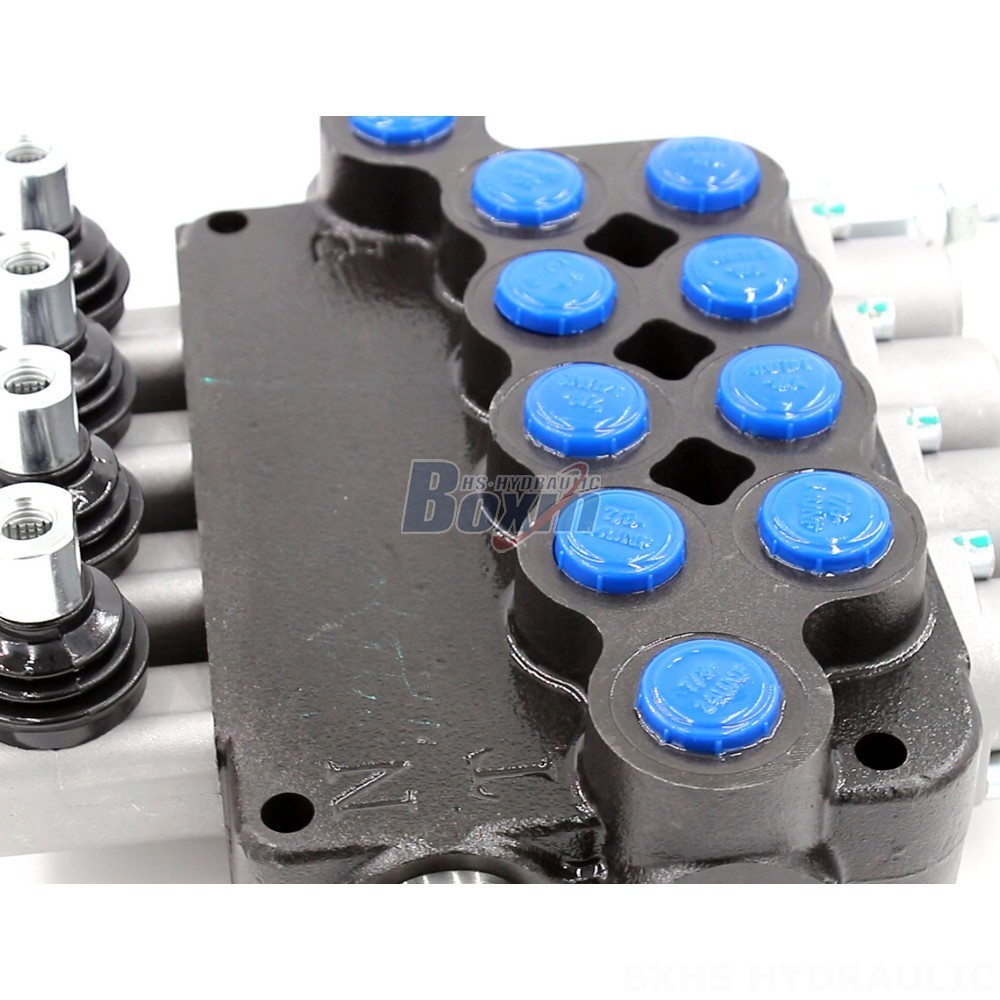

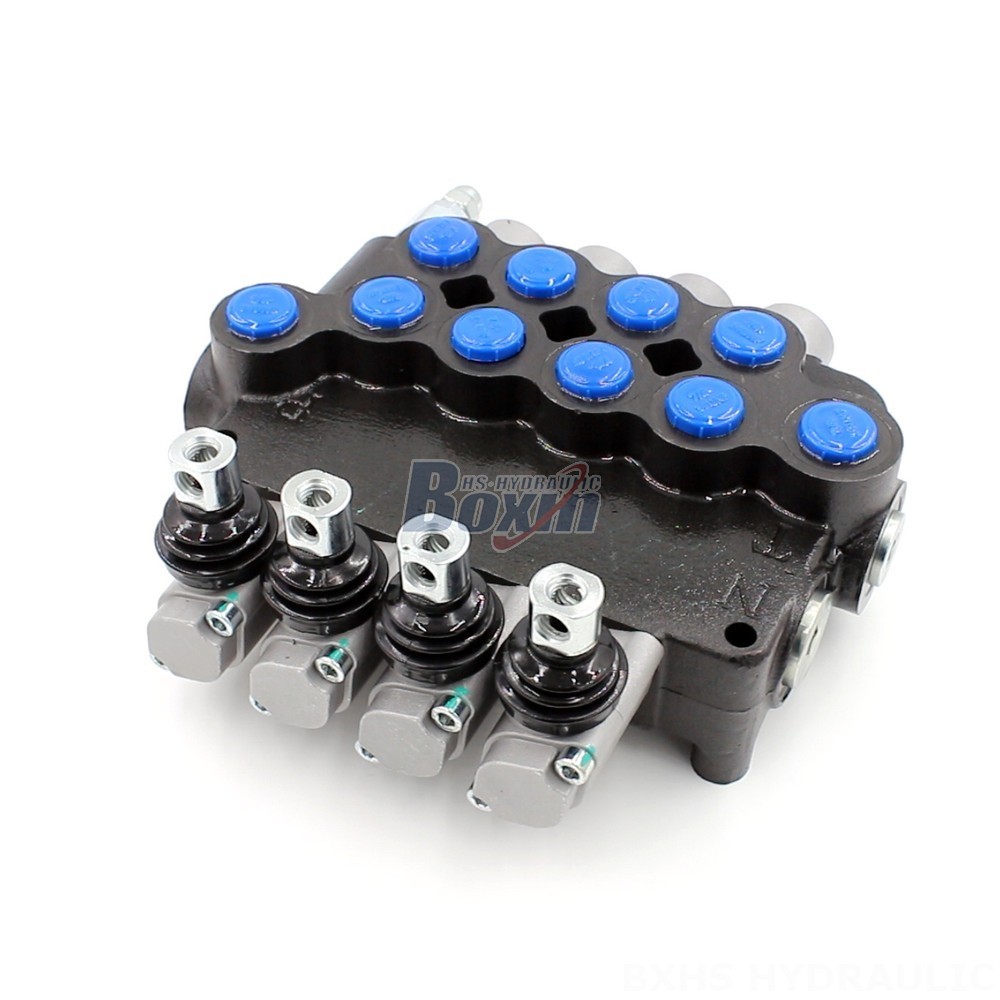

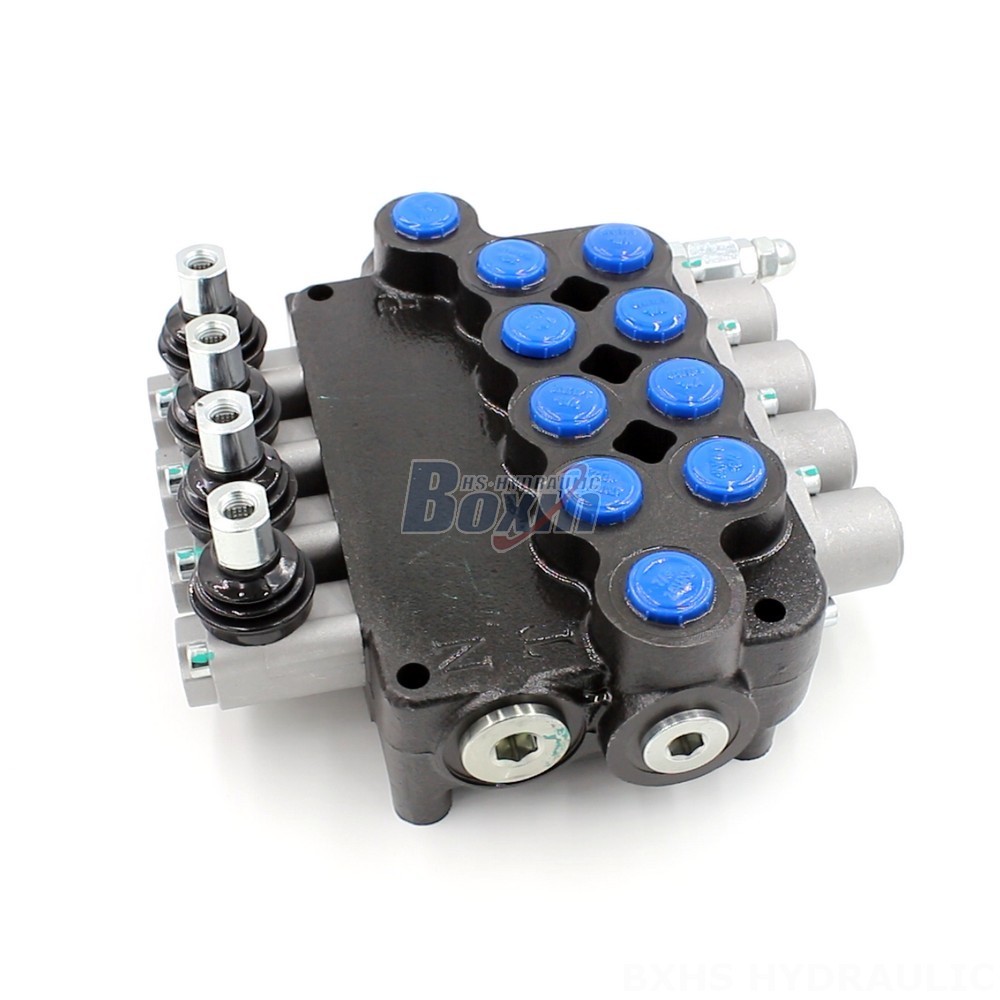

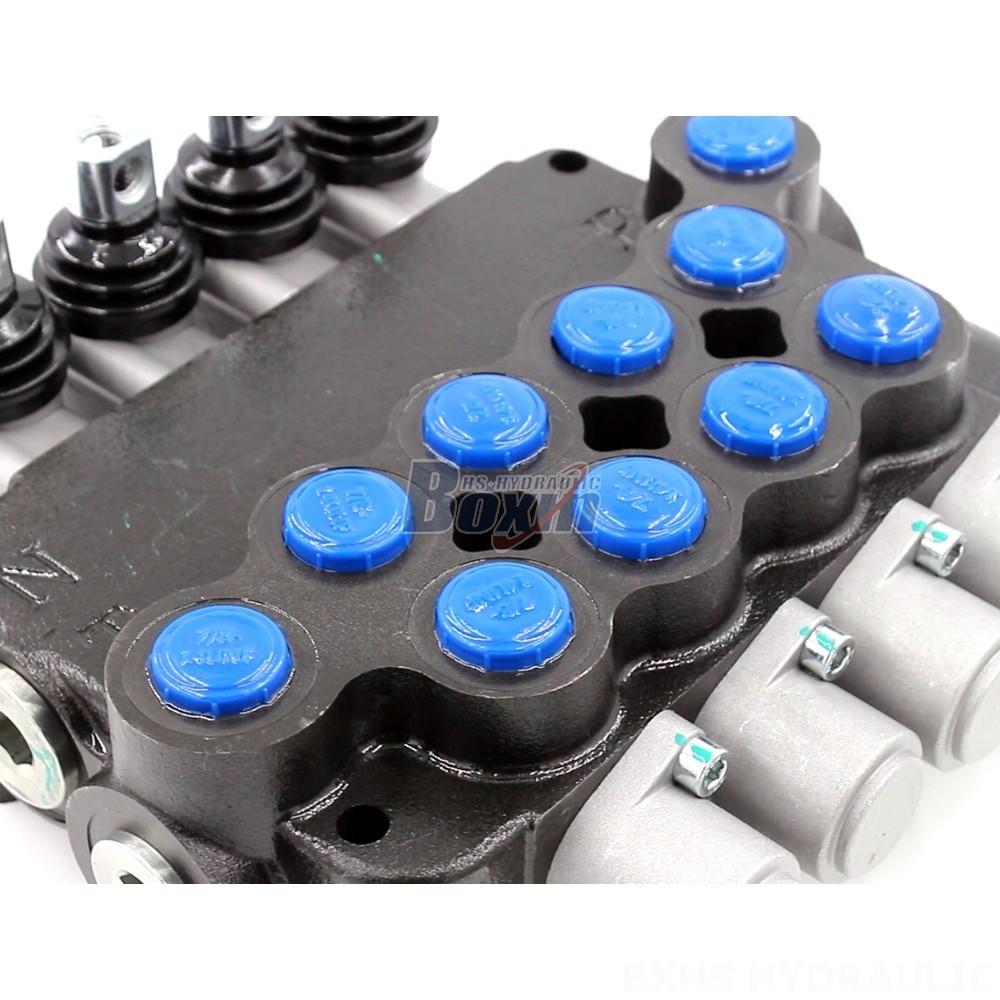

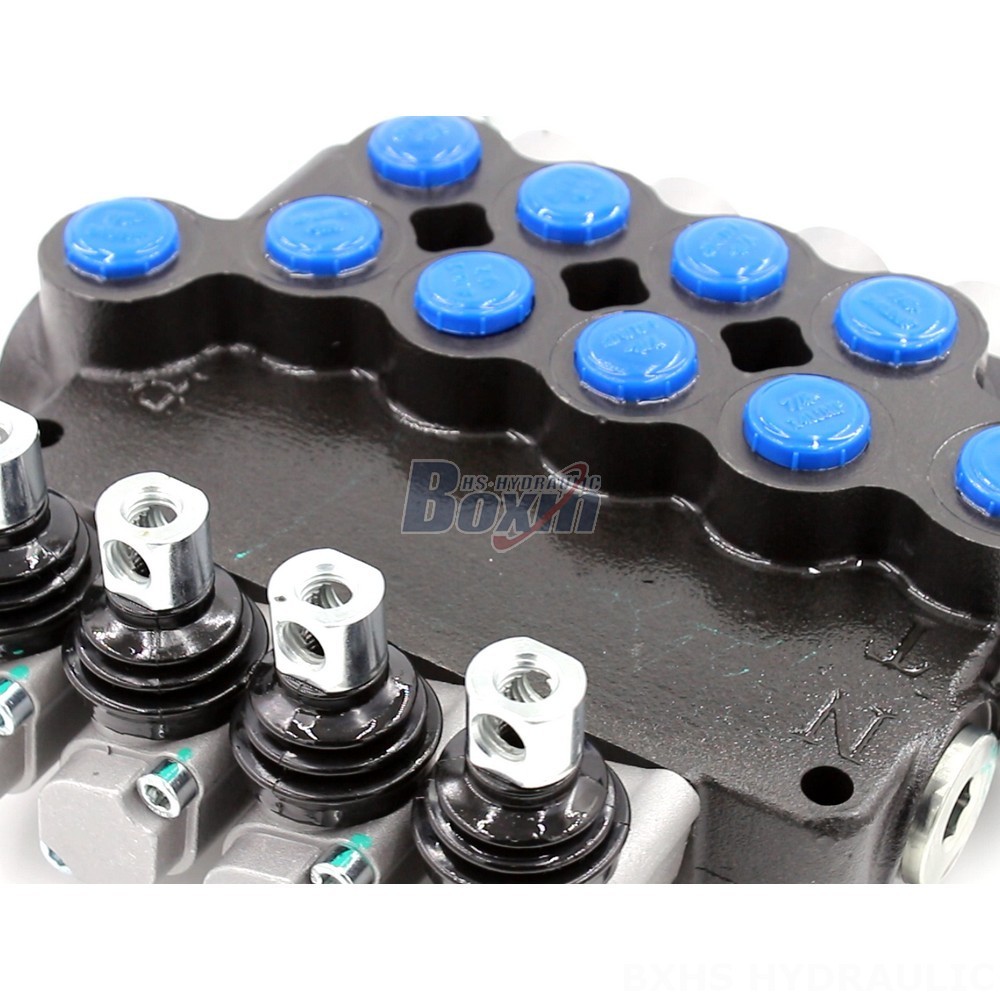

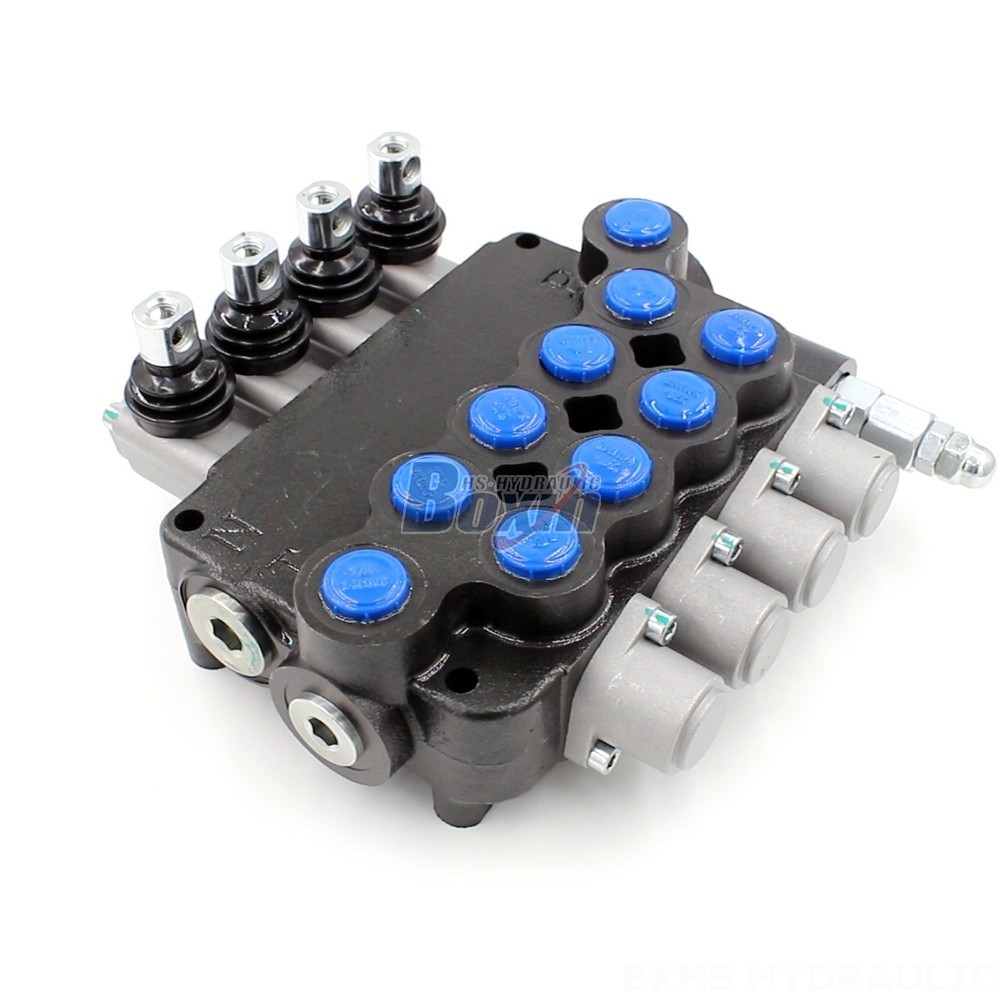

**P80-U78-4OT Series Manual Monoblock Directional Valve: Engineered for Performance**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** P80 Series
**Key Features:**
- Robust and durable monoblock construction
- High flow capacity and pressure rating
- Precise and reliable manual control
- Versatile design suitable for a variety of applications
**Applications:**
- Material Handling Equipment (Forklifts, Telehandlers)
- Construction and Earth Moving Machinery (Excavators, Loaders)
- Agricultural Vehicles (Tractors, Harvesters)
- Industrial Vehicles (Aerial Platforms, Compact Loaders)
