The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is a high-performance valve designed for use in a wide range of hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in demanding applications. The valve is constructed from high-quality materials and is designed to provide long service life.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

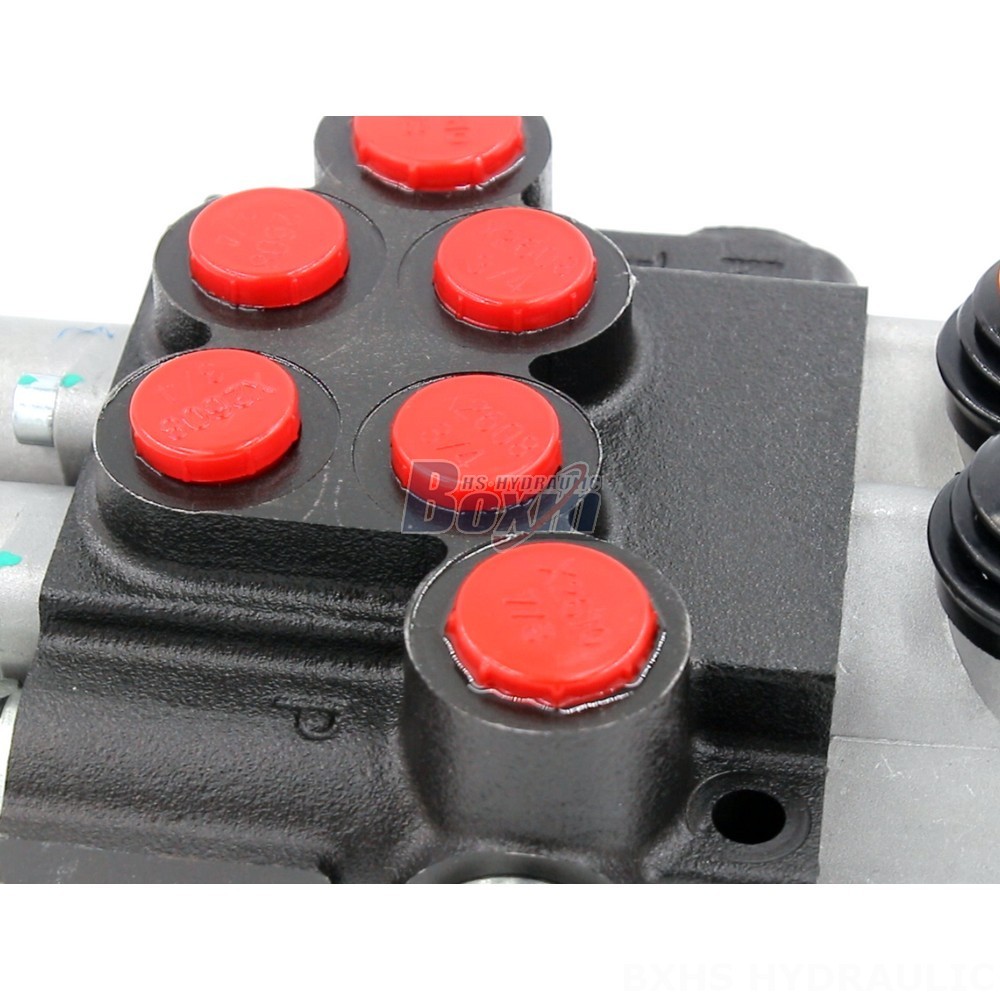

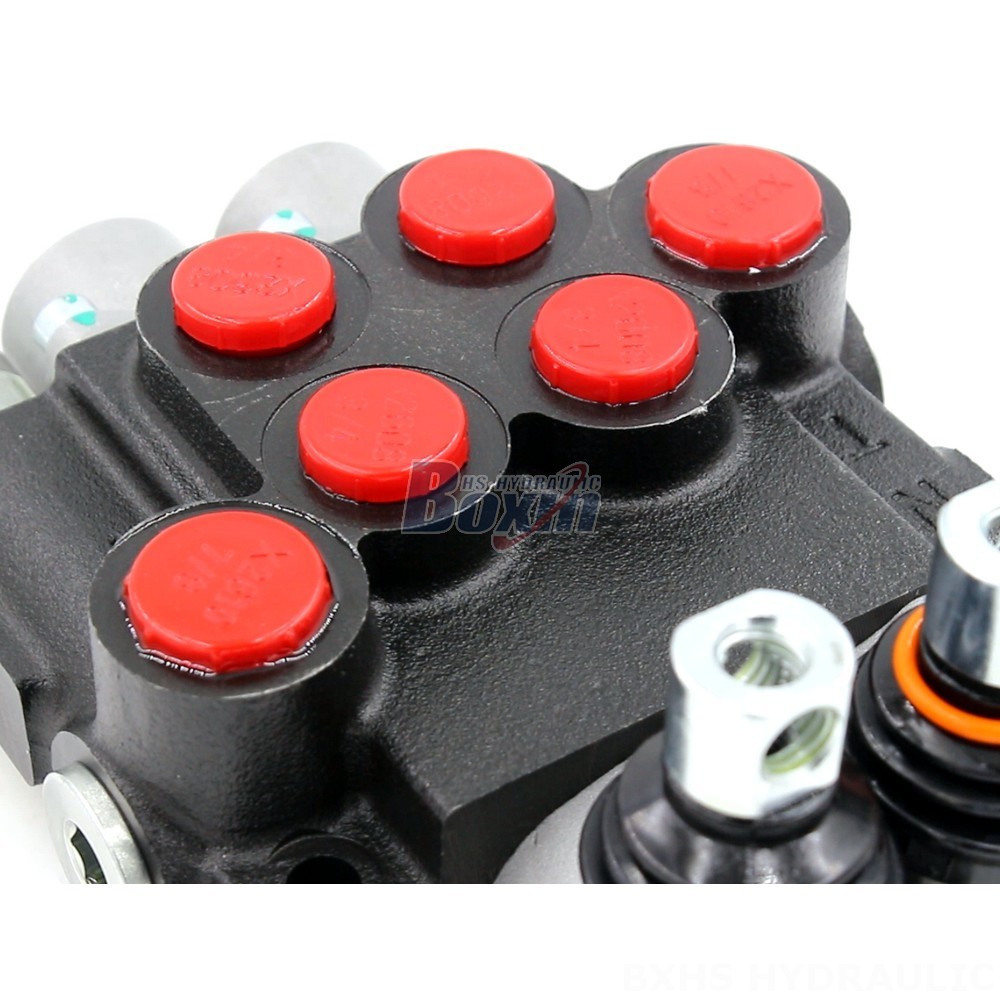

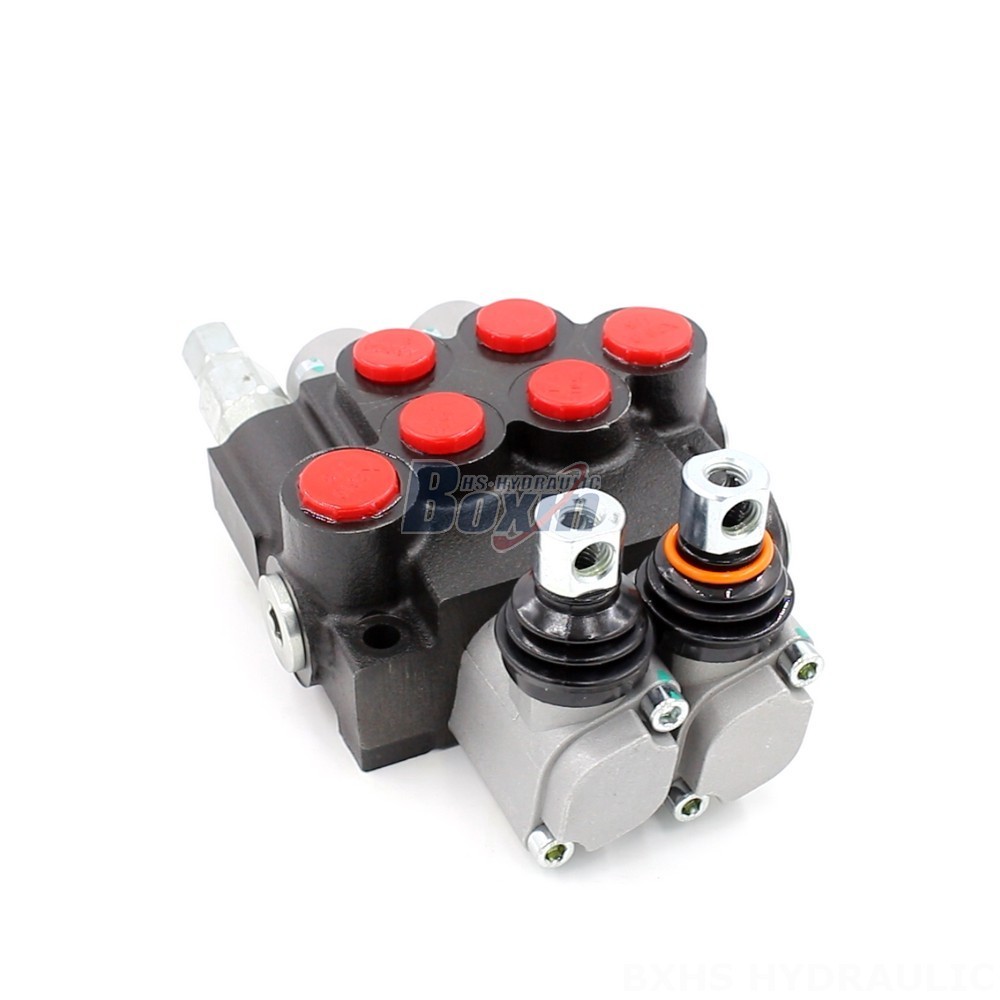

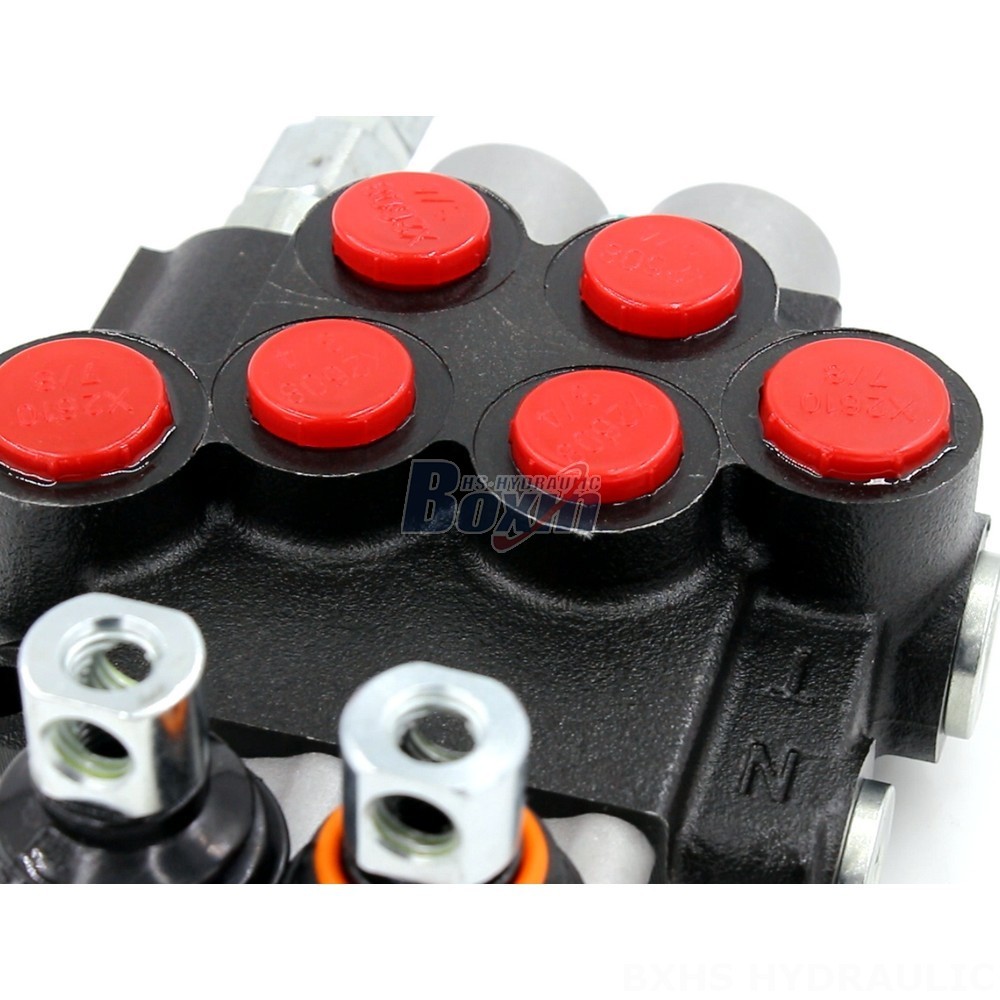

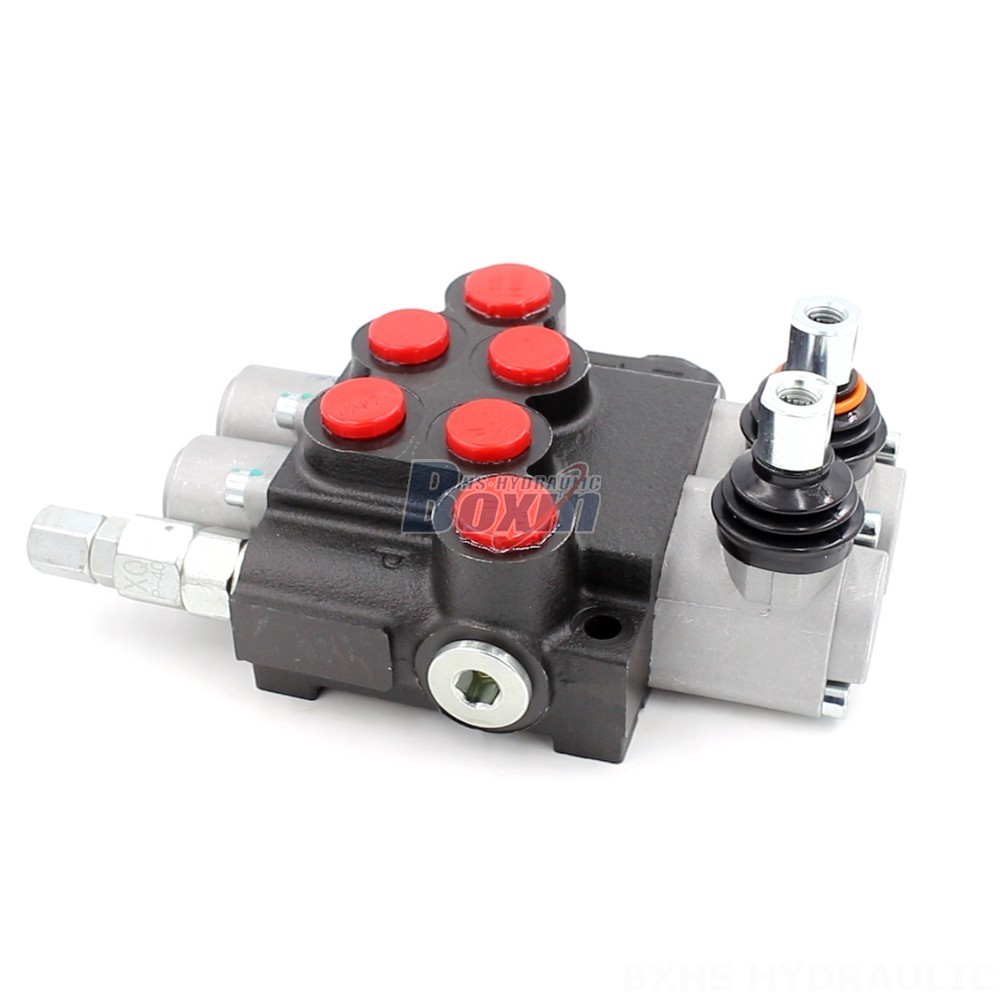

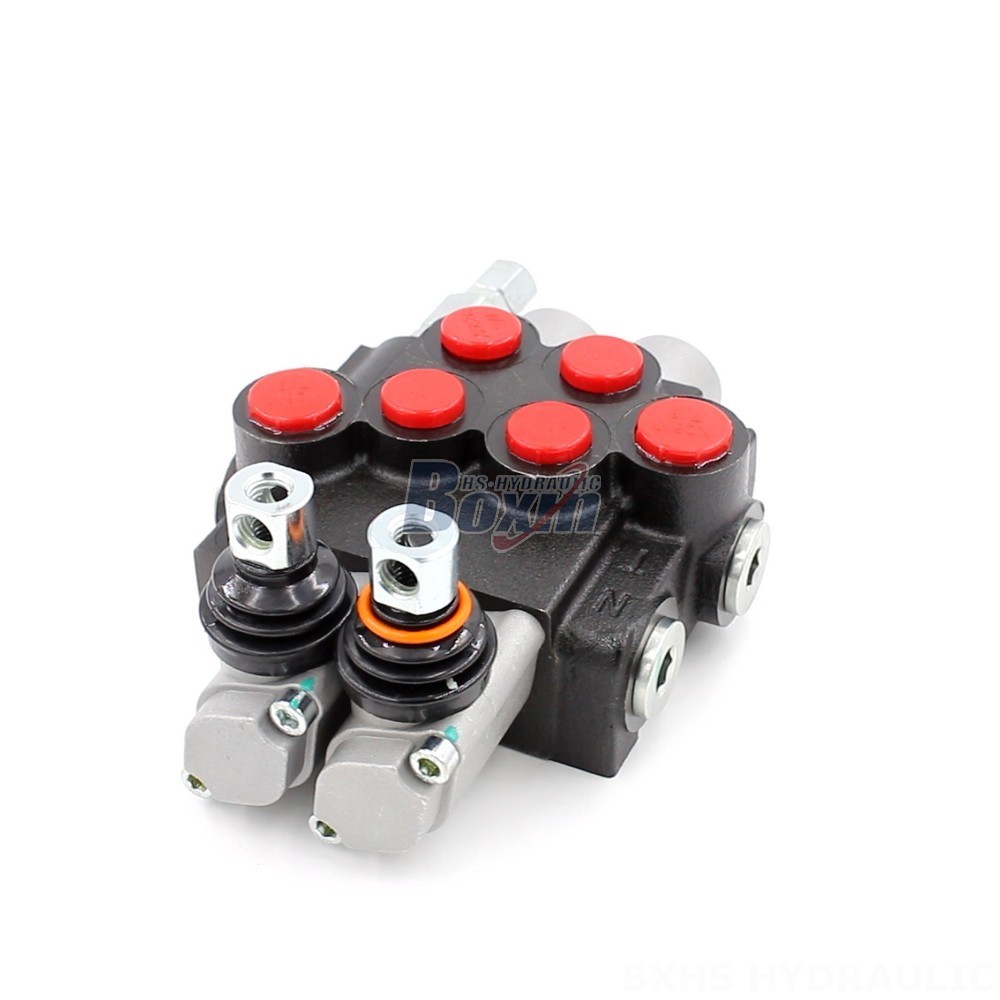

**Manual Monoblock Directional Valve - P40-U78-U34-OT-YW Series**
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is a compact and lightweight valve that is ideal for use in mobile hydraulic systems. The valve is constructed from high-strength aluminum alloy and is designed to withstand the harsh conditions of mobile applications. The valve is also equipped with a manual override lever that allows the operator to manually control the valve in the event of a power failure.
**Key Features:**
* Rated flow: 40 L/min (10.5 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
* Series: P40 Series
**Applications:**
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is suitable for use in a wide range of mobile hydraulic applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Benefits:**
* Compact and lightweight design
* High strength aluminum alloy construction
* Manual override lever
* Long service life
