The Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series is a 2-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is available with 2 spools and is part of the P40 Series. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

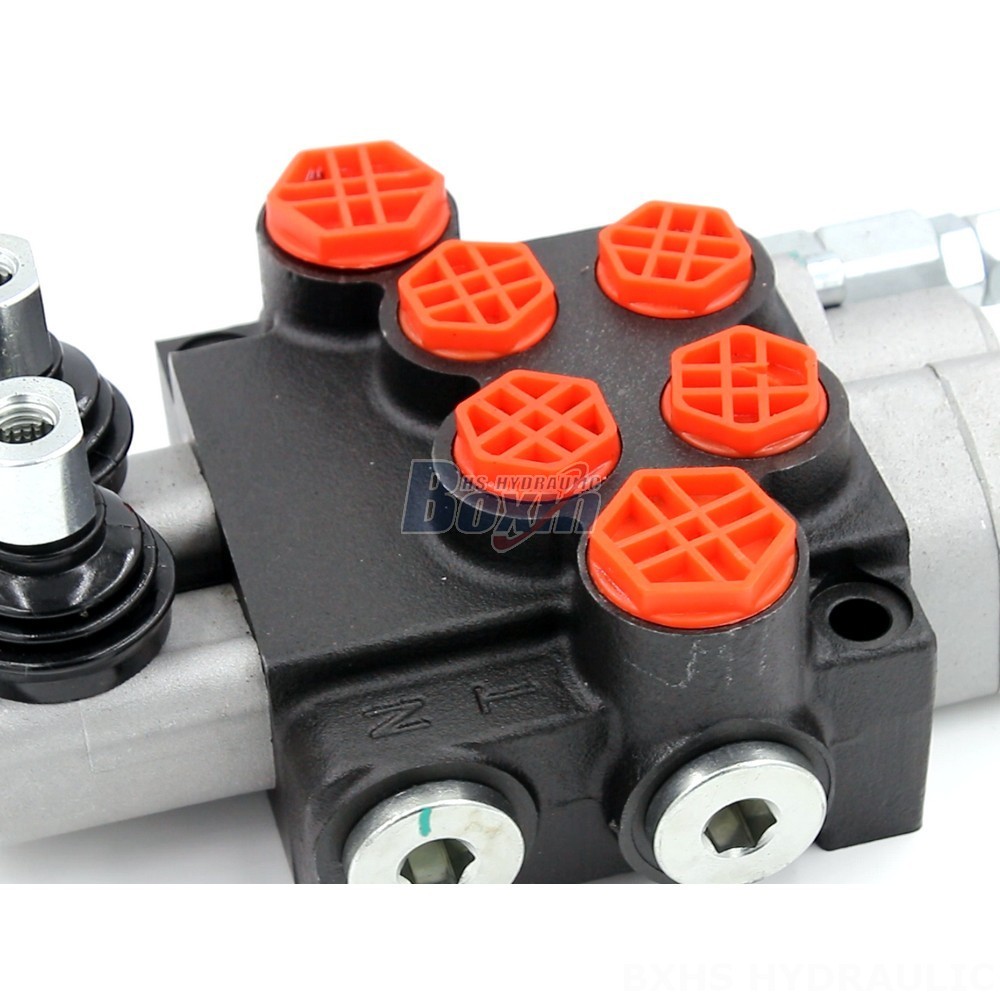

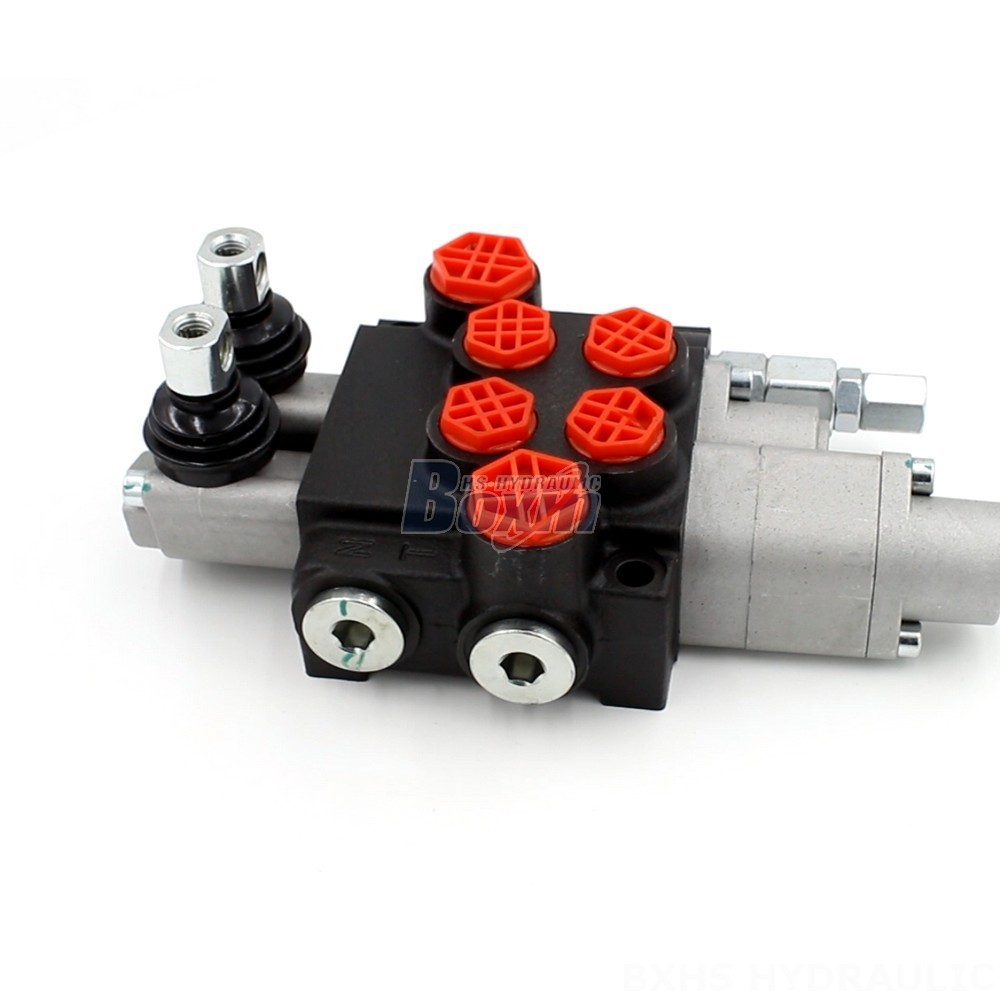

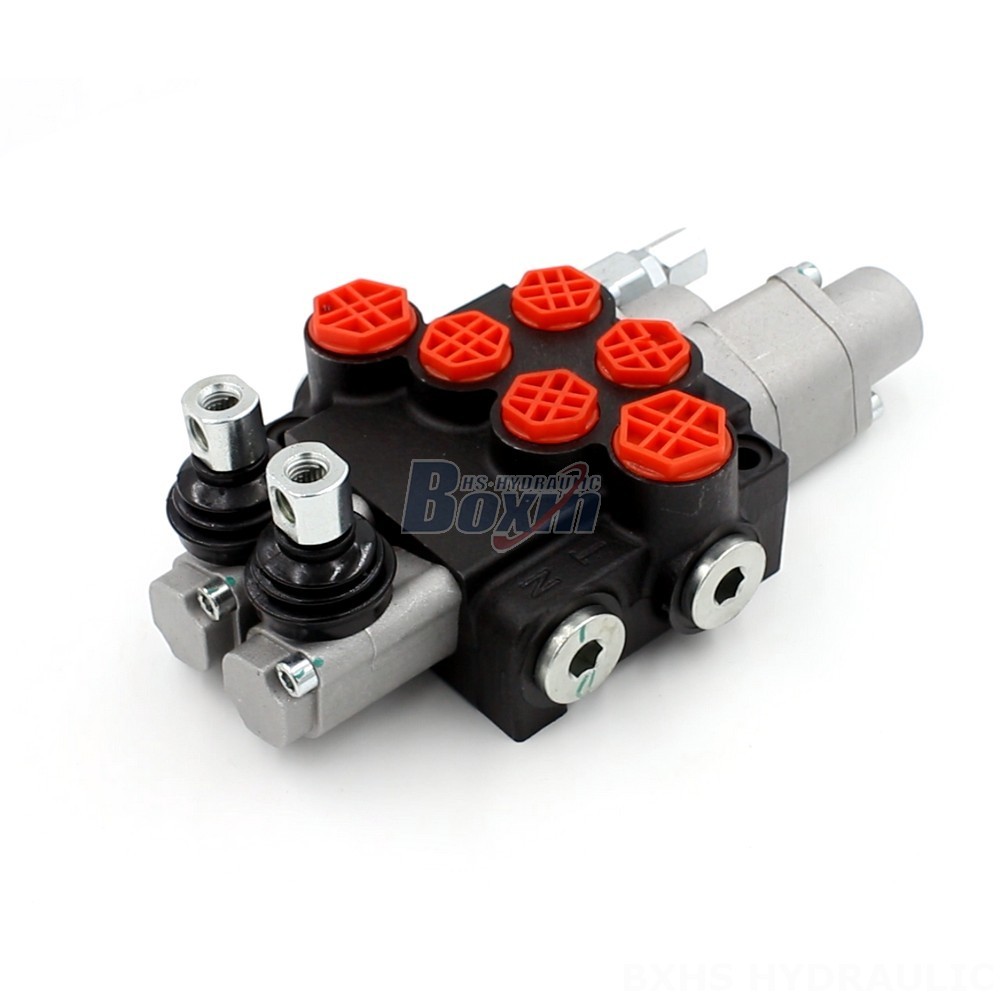

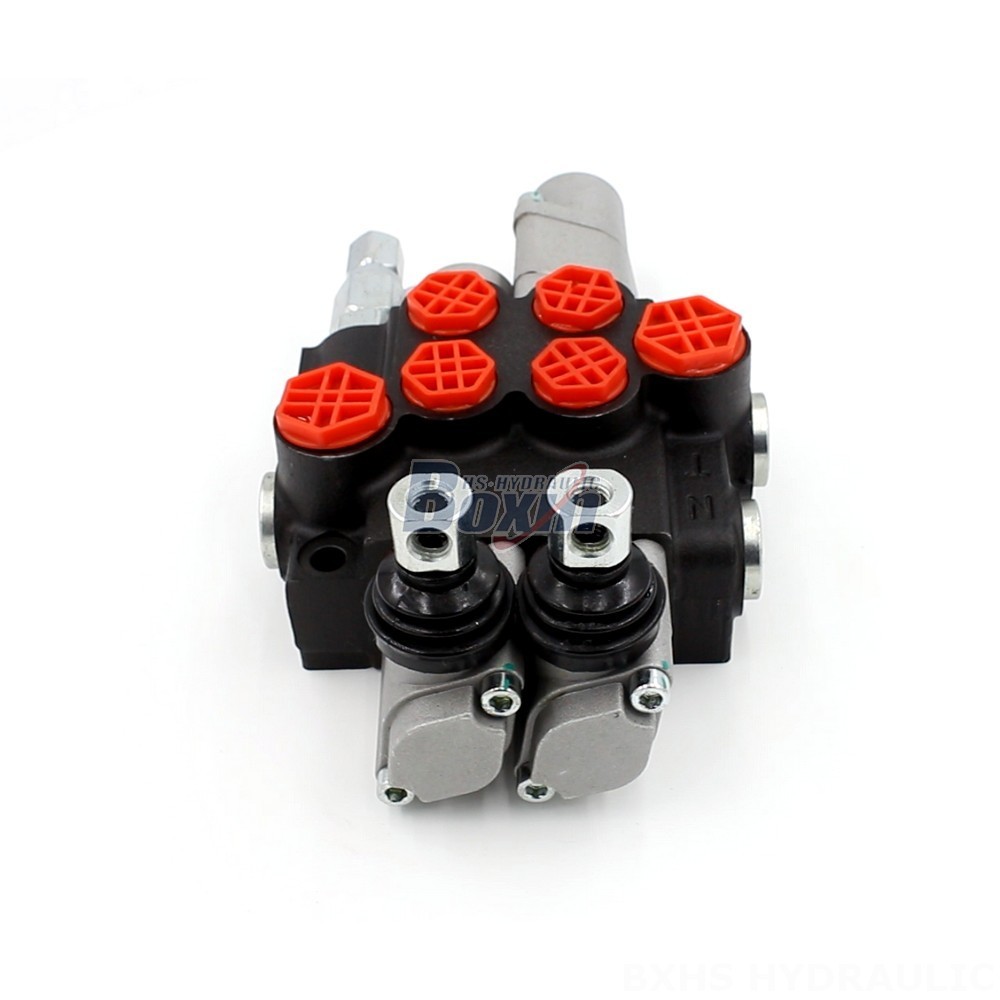

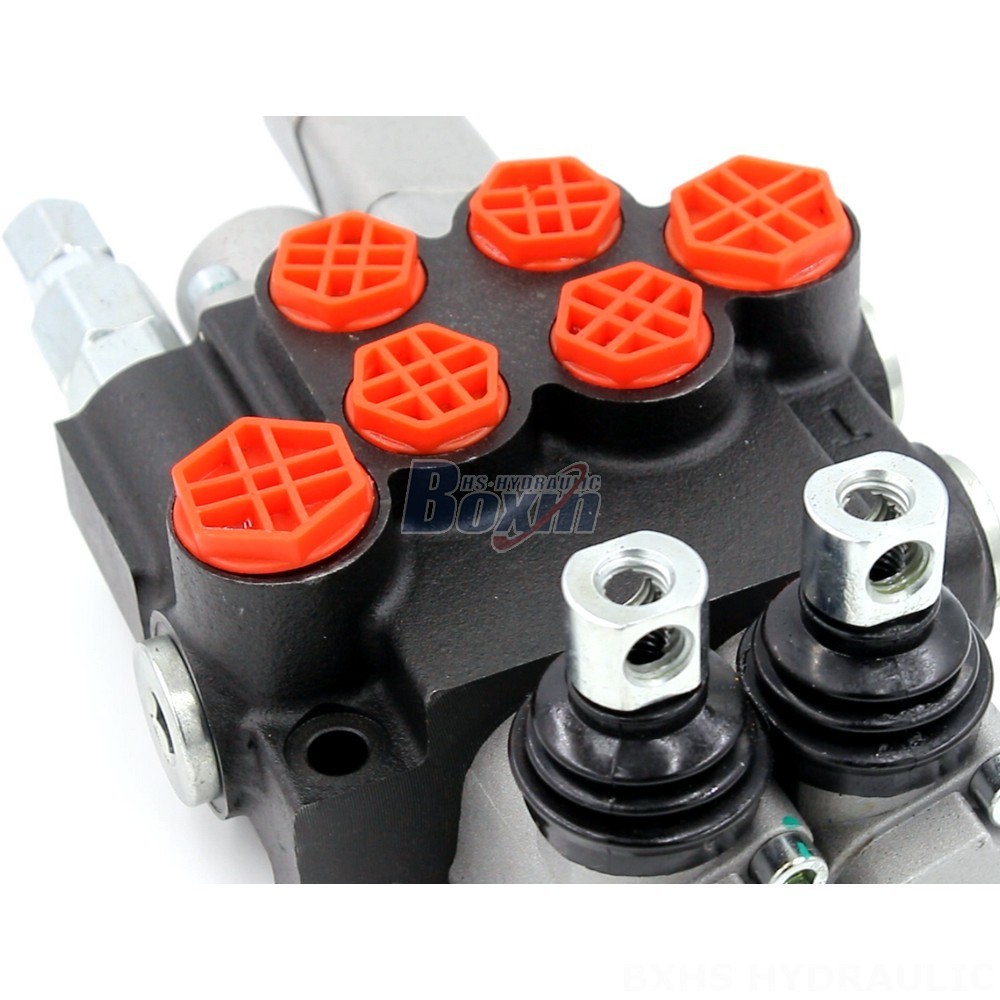

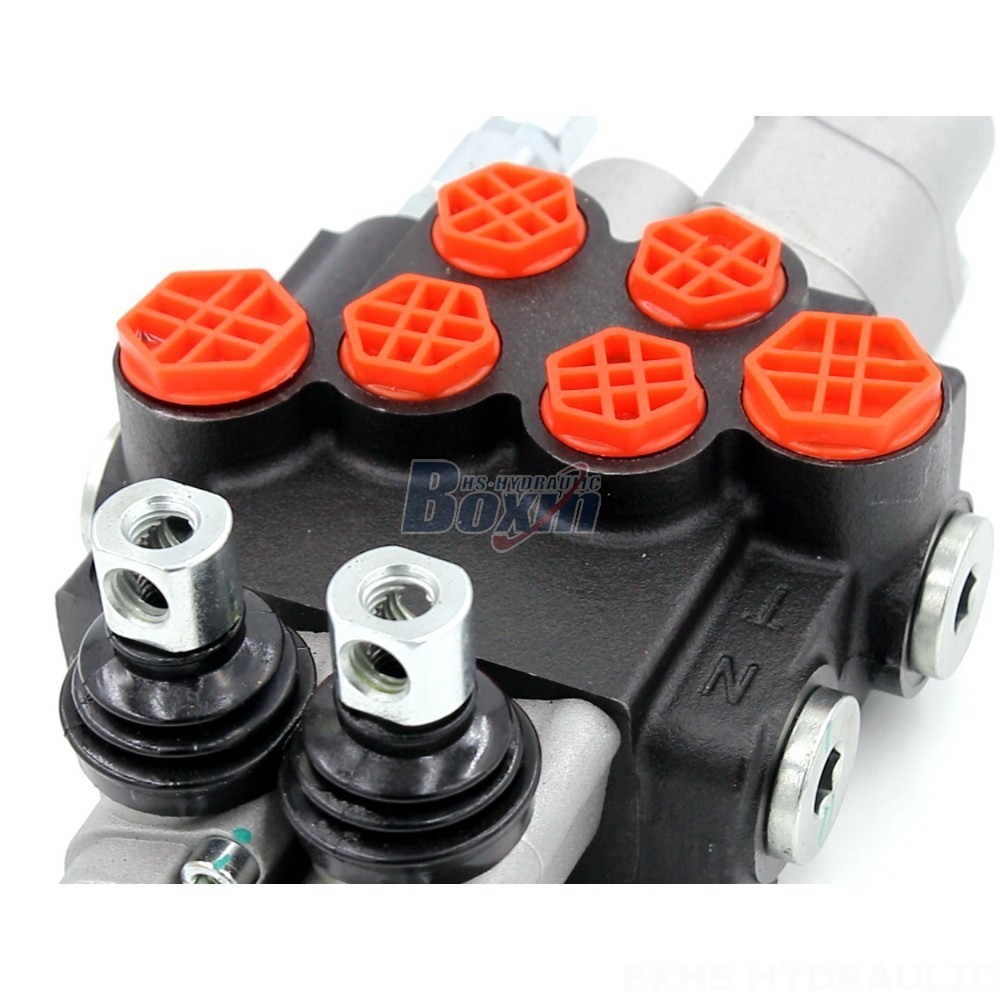

**Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series**
The Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series is a high-quality, durable valve that is designed to meet the demands of a variety of applications. It is constructed from high-strength materials and is precision-machined to ensure a long service life.
**Key Features:**
* Manual control
* 2 section
* Monoblock valve
* 40 L/min rated flow
* 250 bar max pressure
* 15 - 75 mm²/s operating viscosity range
* -40°C to +80°C ambient temperature range
* 2 spool
* P40 Series
**Applications:**
The Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
**Benefits:**
The Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series offers a number of benefits, including:
* High quality and durability
* Precision-machined for a long service life
* Suitable for a wide range of applications
* Easy to install and maintain
