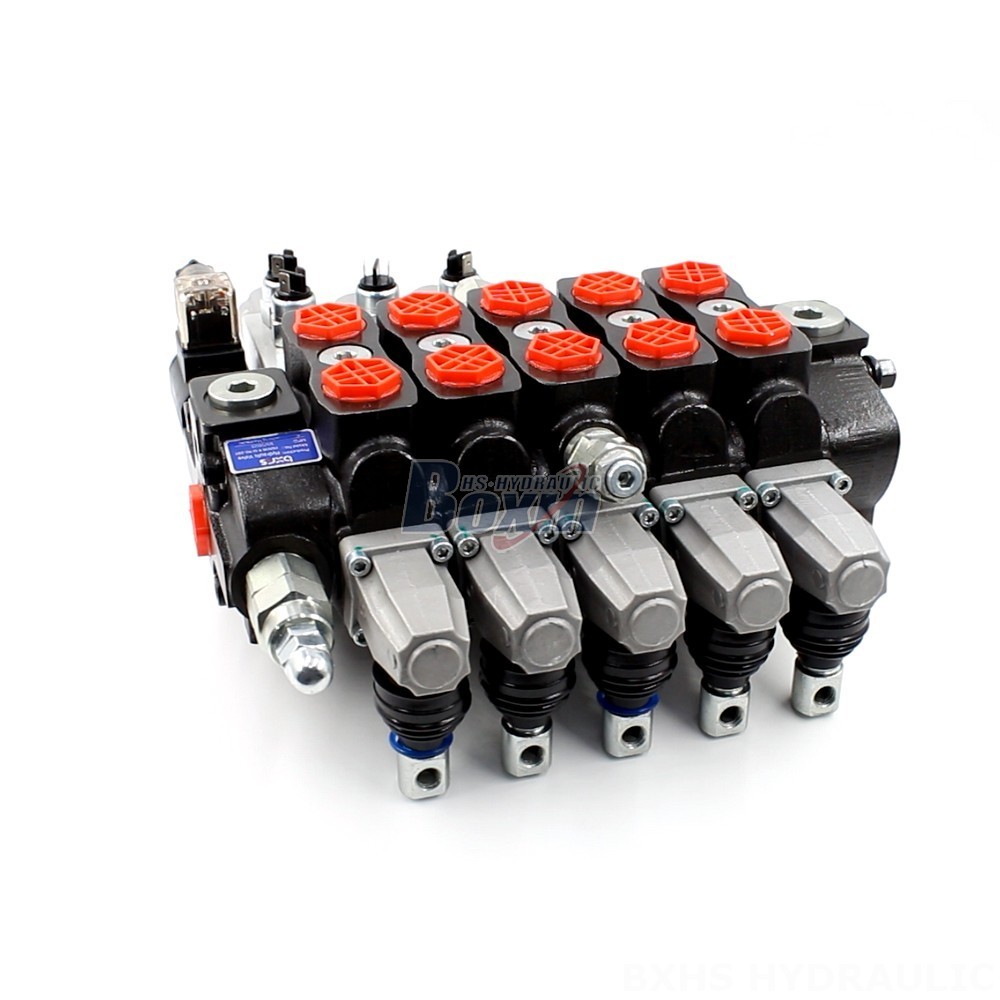

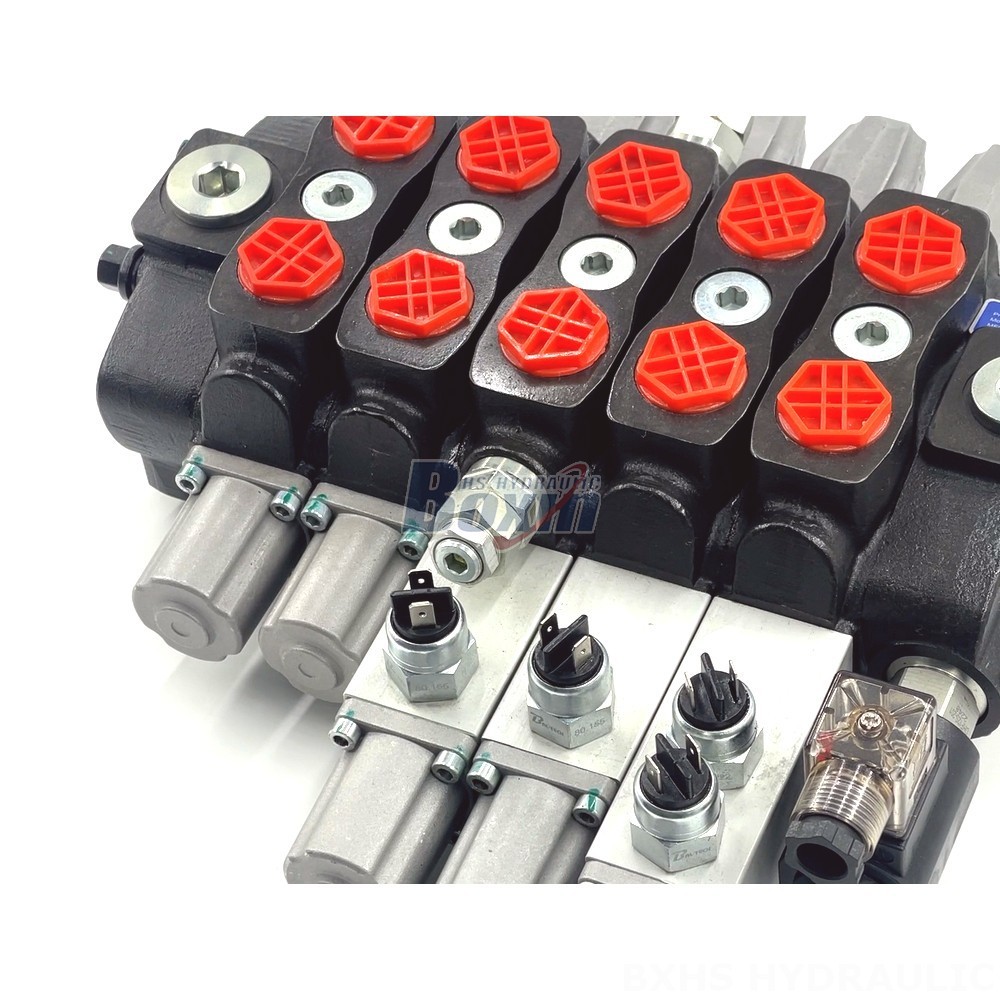

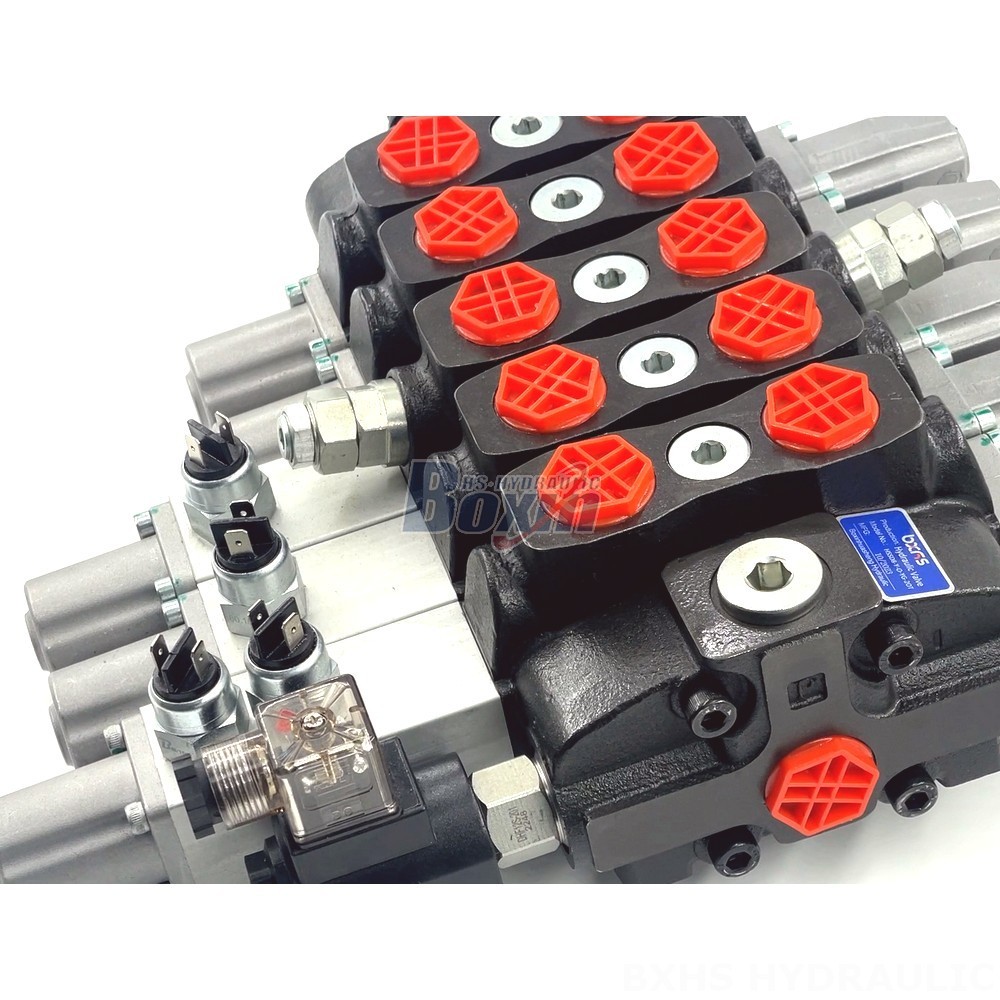

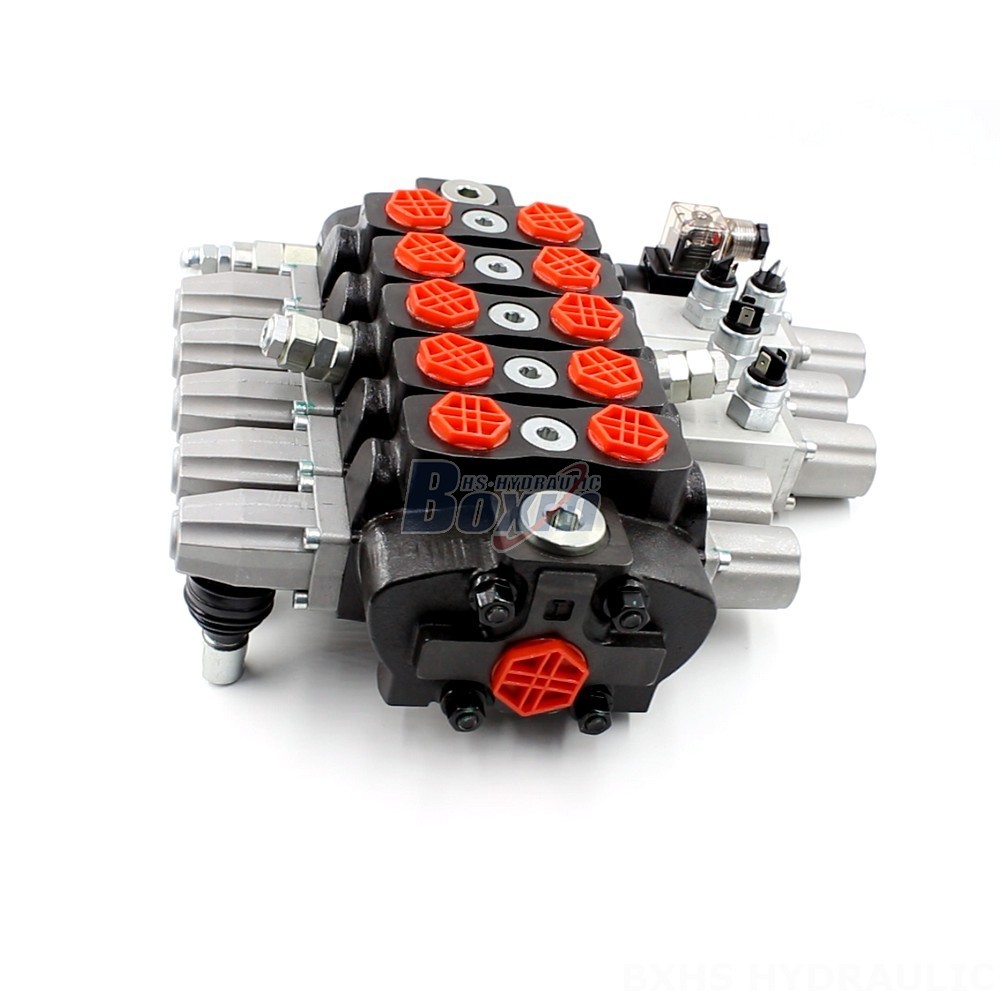

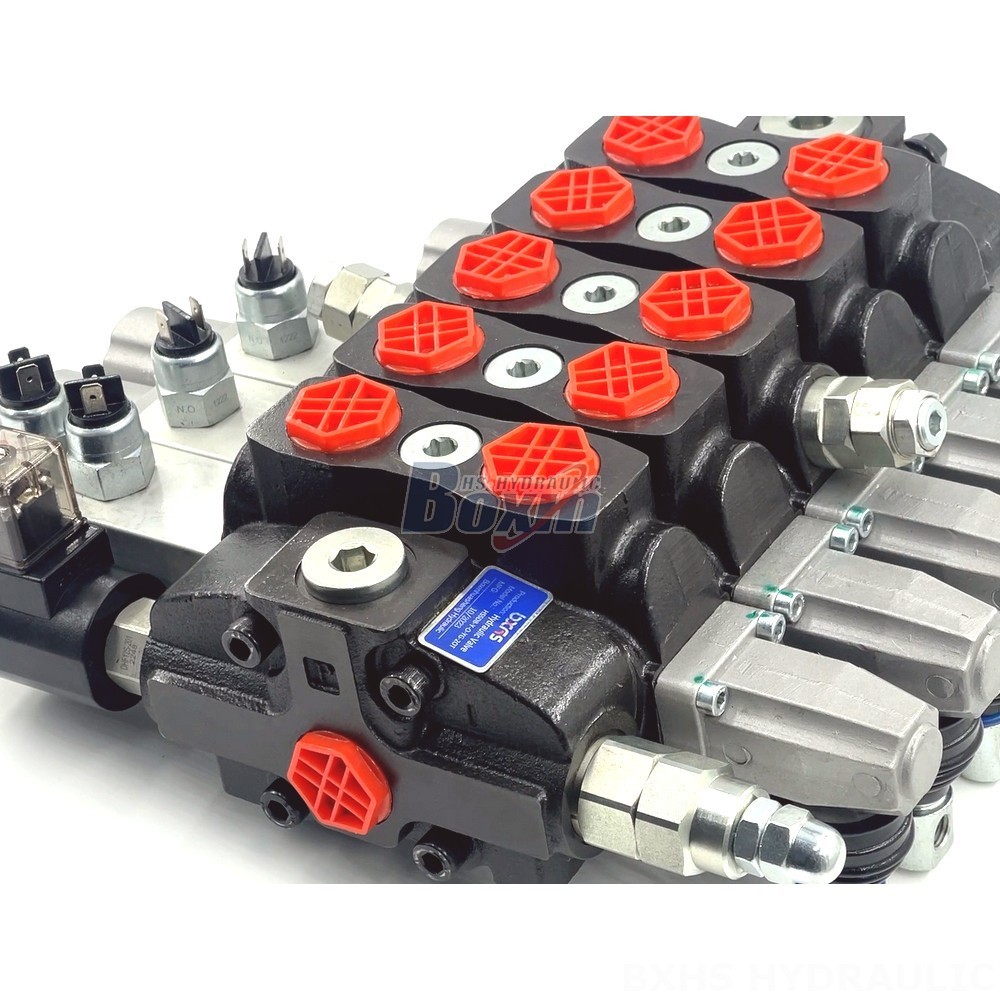

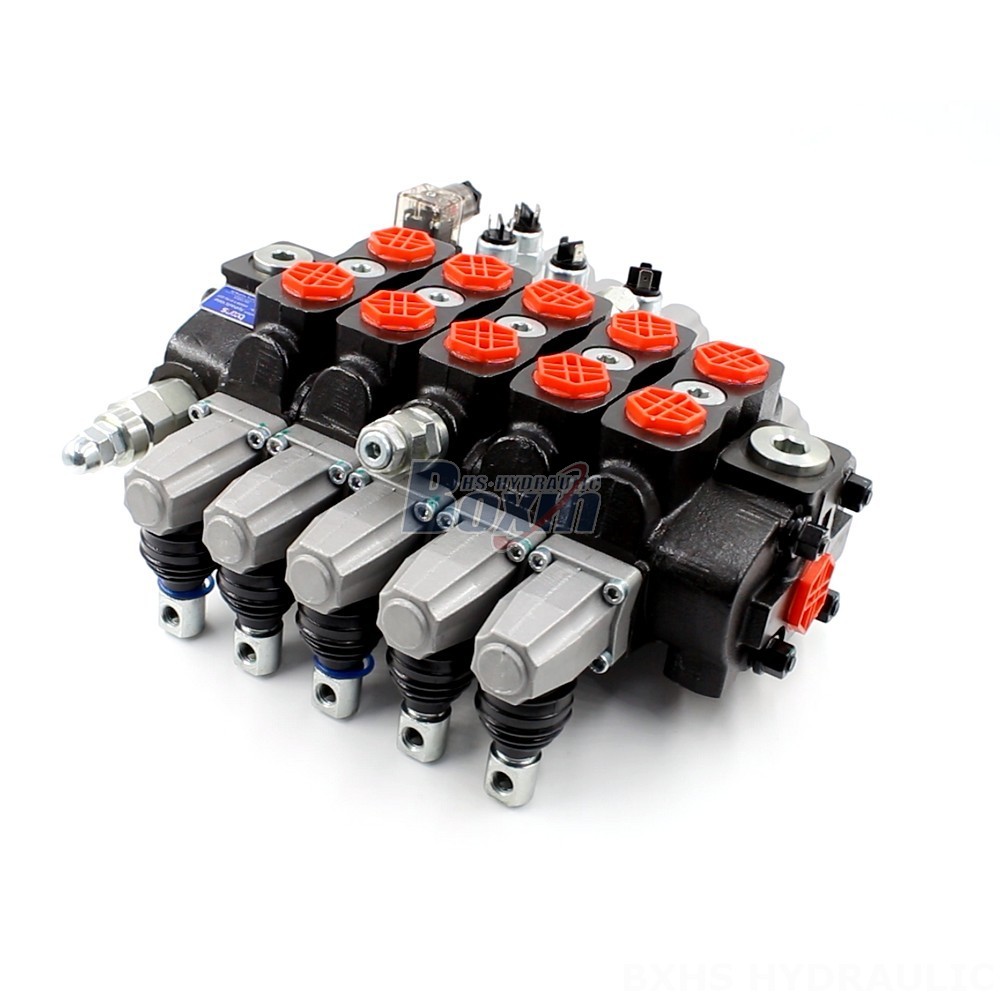

This 5-spool, sectional hydraulic directional valve is designed for manual control of hydraulic tipper systems. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of construction, agricultural, and industrial vehicles.
| Série SD8 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 90 L/min (23,8 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, SAE 10 |
| Orifice de sortie | G1/2, G3/4, SAE 10, 3/4 NPT |
| Dimension du raccord | G1/2, SAE 10 |
This manual hydraulic directional valve is specifically designed for tipper control applications. With its 5-spool, sectional design, it offers precise and reliable control of hydraulic functions. The valve has a rated flow of 90 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of applications. It is designed to operate within a viscosity range of 12 to 400 mm²/s and withstand ambient temperatures from -40°C to +80°C. The valve is suitable for a variety of vehicles, including forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters.
