Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1045 personnes consultent ce produit

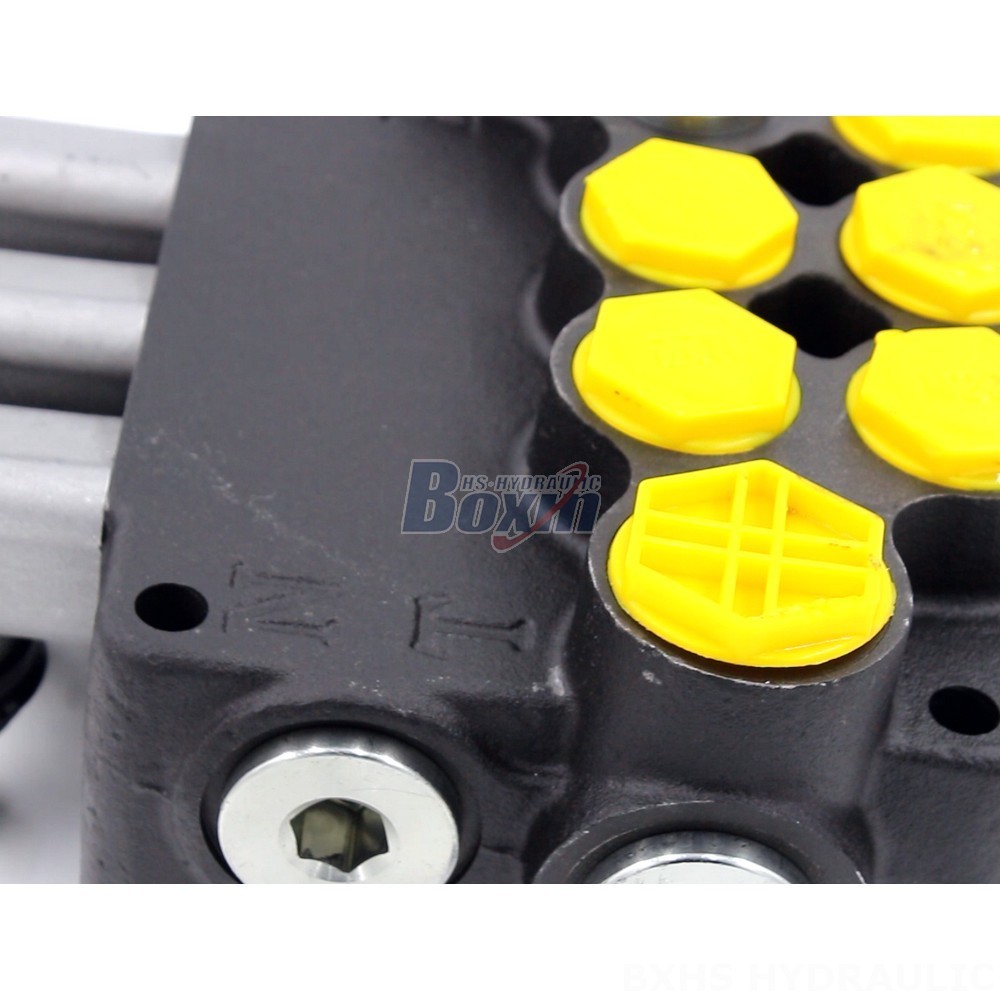

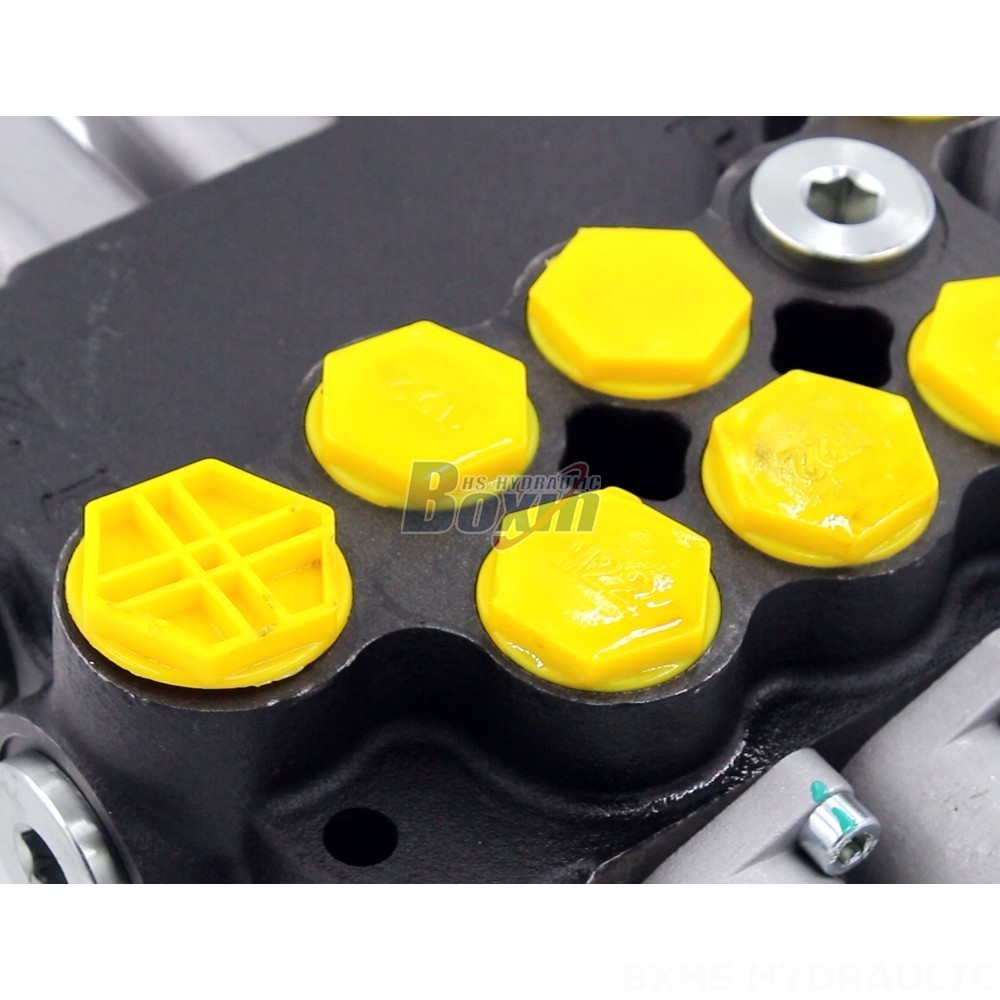

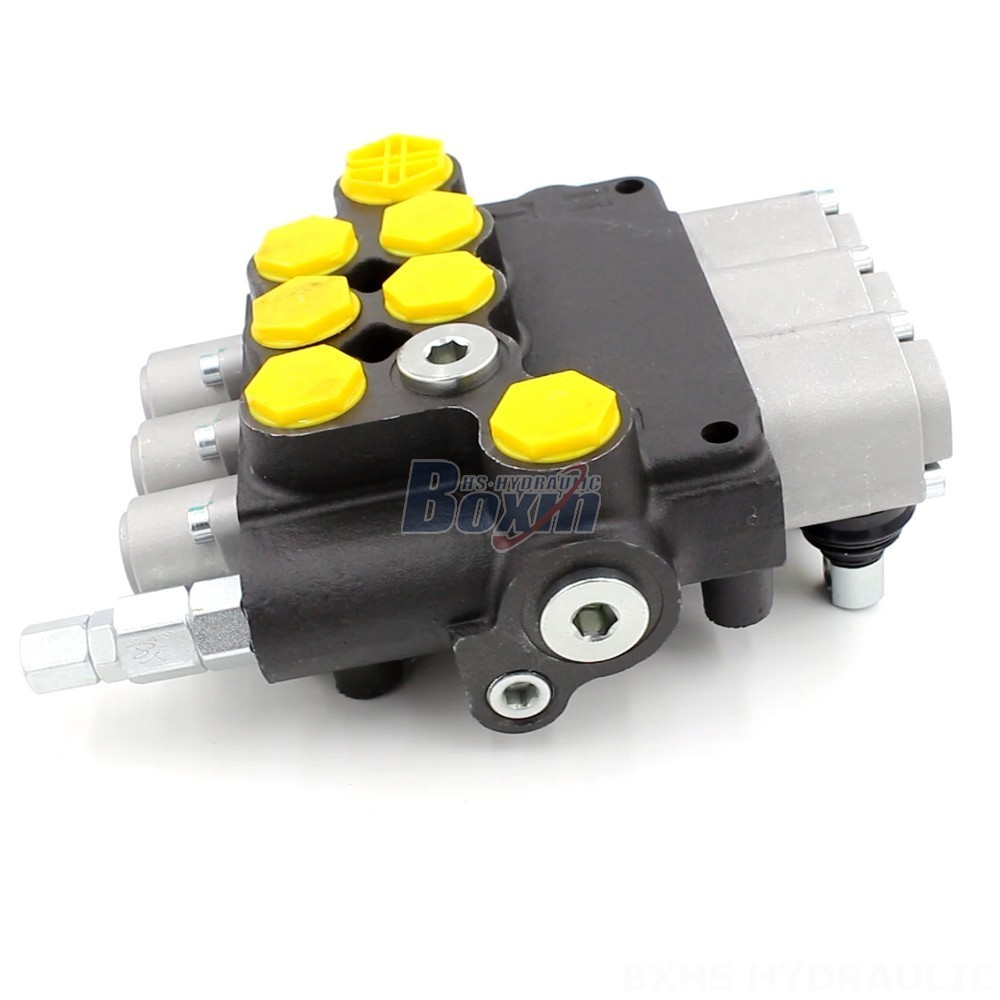

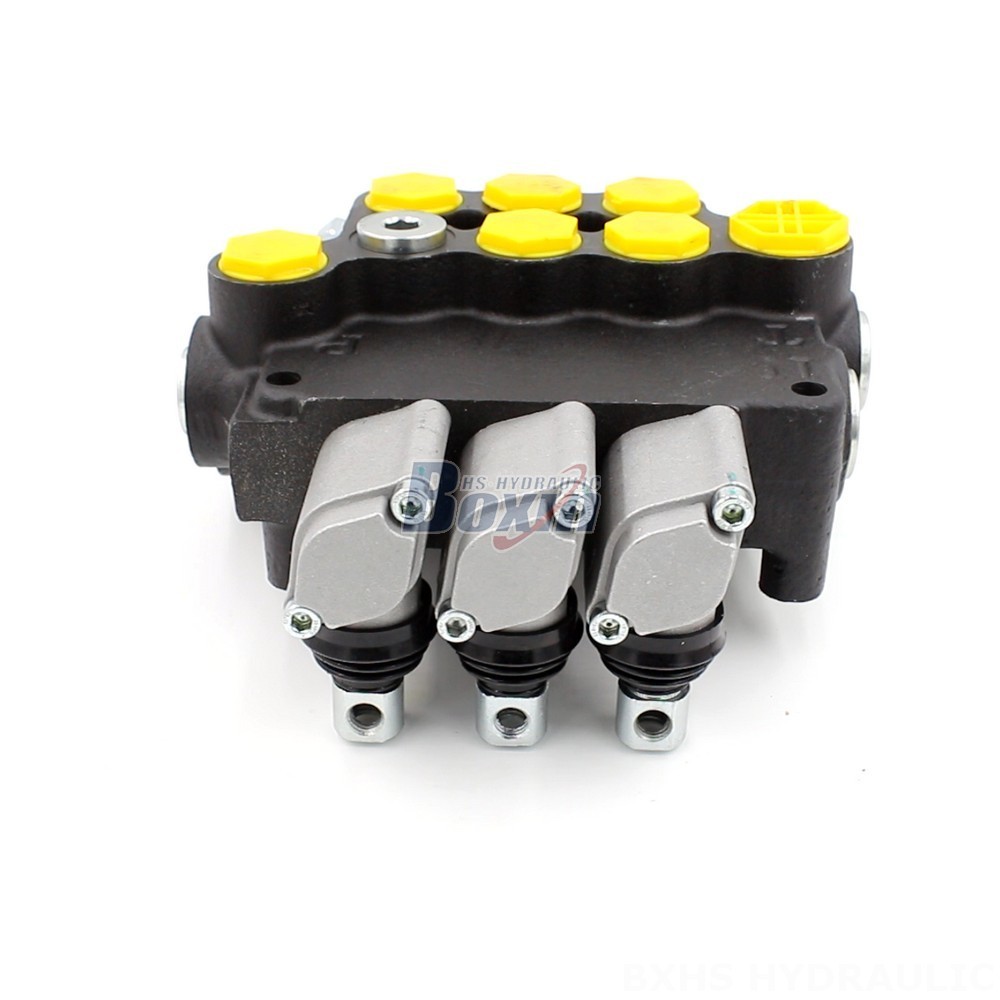

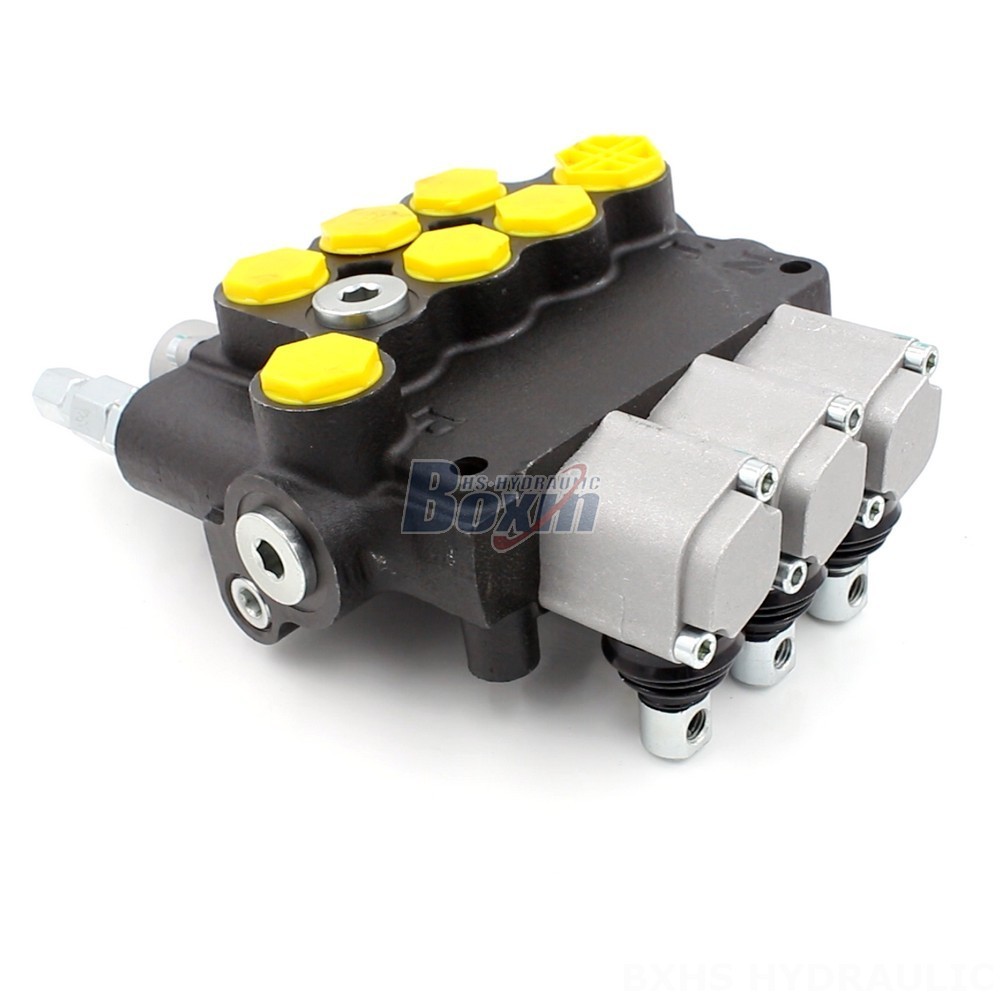

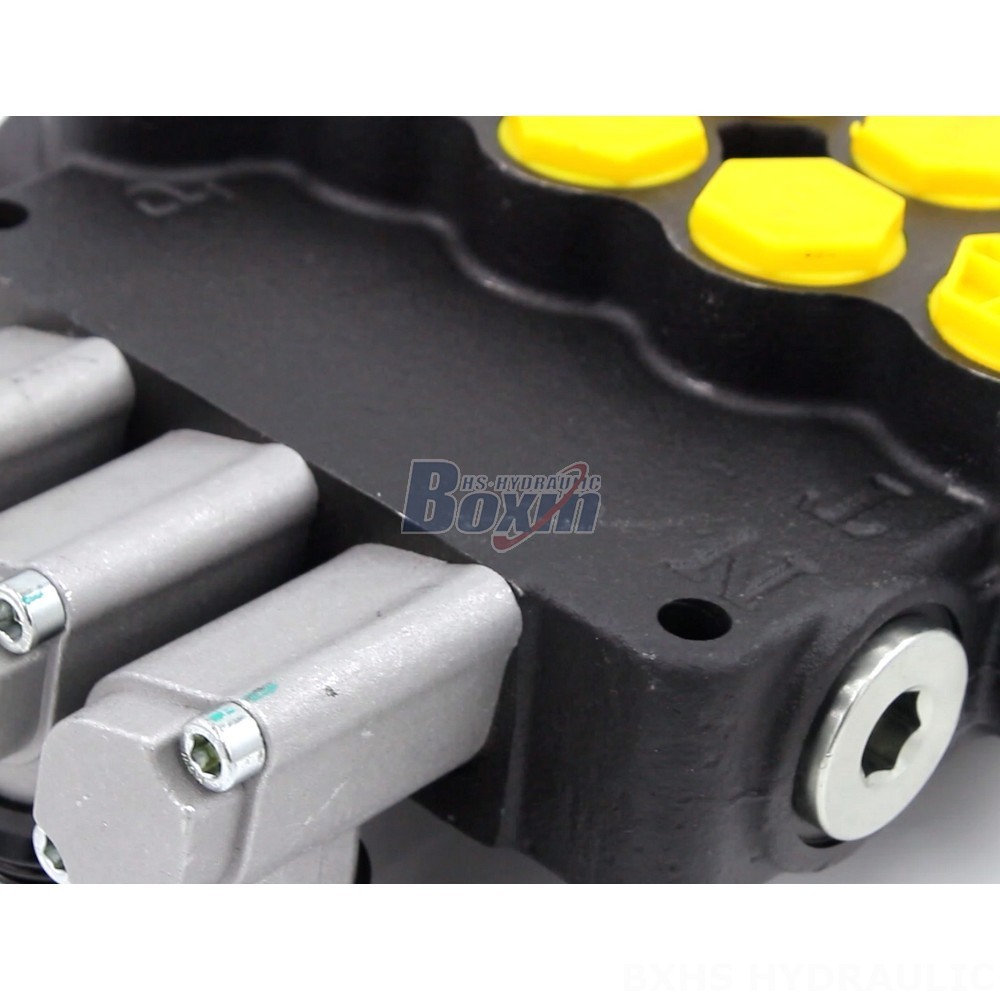

The P80-G12-G34-AT-2OT is a high-performance, manual control, 3-spool monoblock directional valve designed for heavy-duty applications in material handling, construction, and agriculture. It offers a rated flow of 80 L/min, a maximum pressure of 250 bar, and a robust design for reliable operation.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This 3-section, monoblock directional valve features a manual control method, providing precise and reliable operation. The P80 series valve boasts a rated flow of 80 L/min, a maximum pressure rating of 250 bar, and a wide operating viscosity range from 15 to 75 mm²/s. Designed for demanding environments, the valve offers an ambient temperature range from -40°C to +80°C. Its versatility makes it suitable for a range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
