Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1003 personnes consultent ce produit

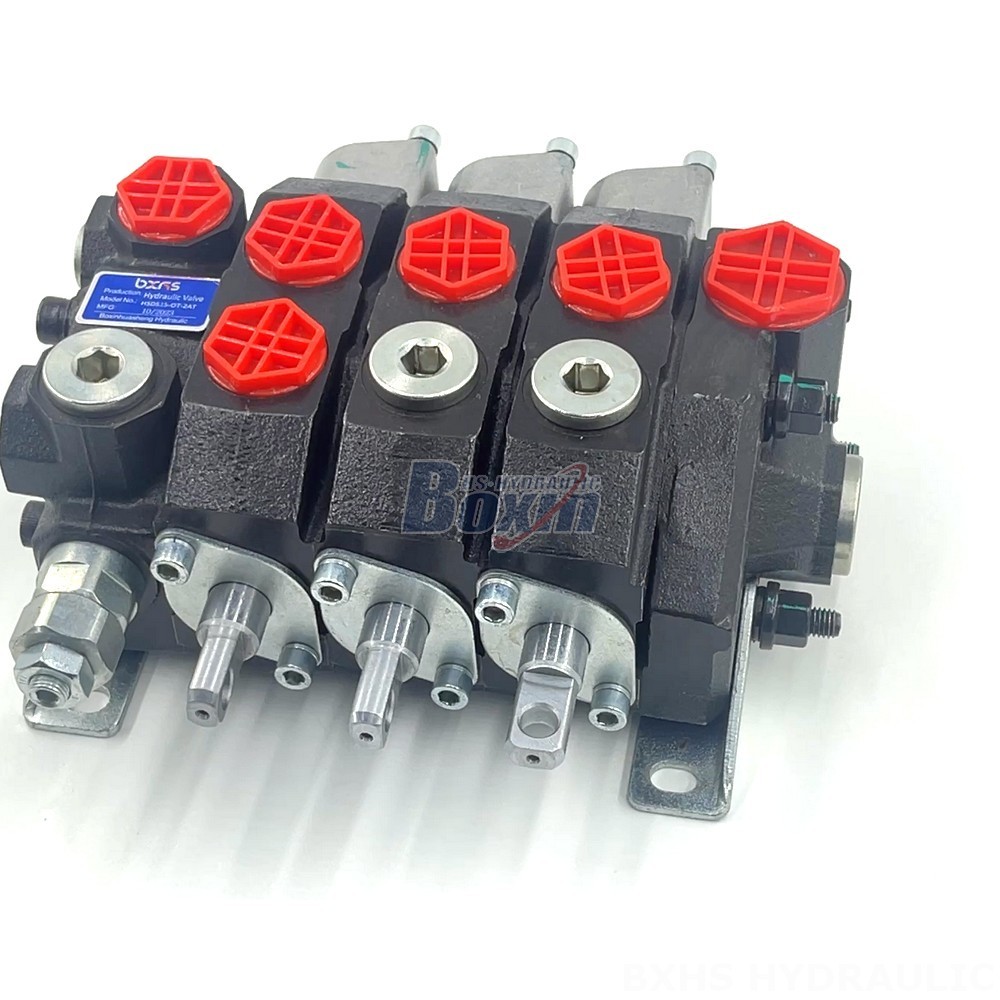

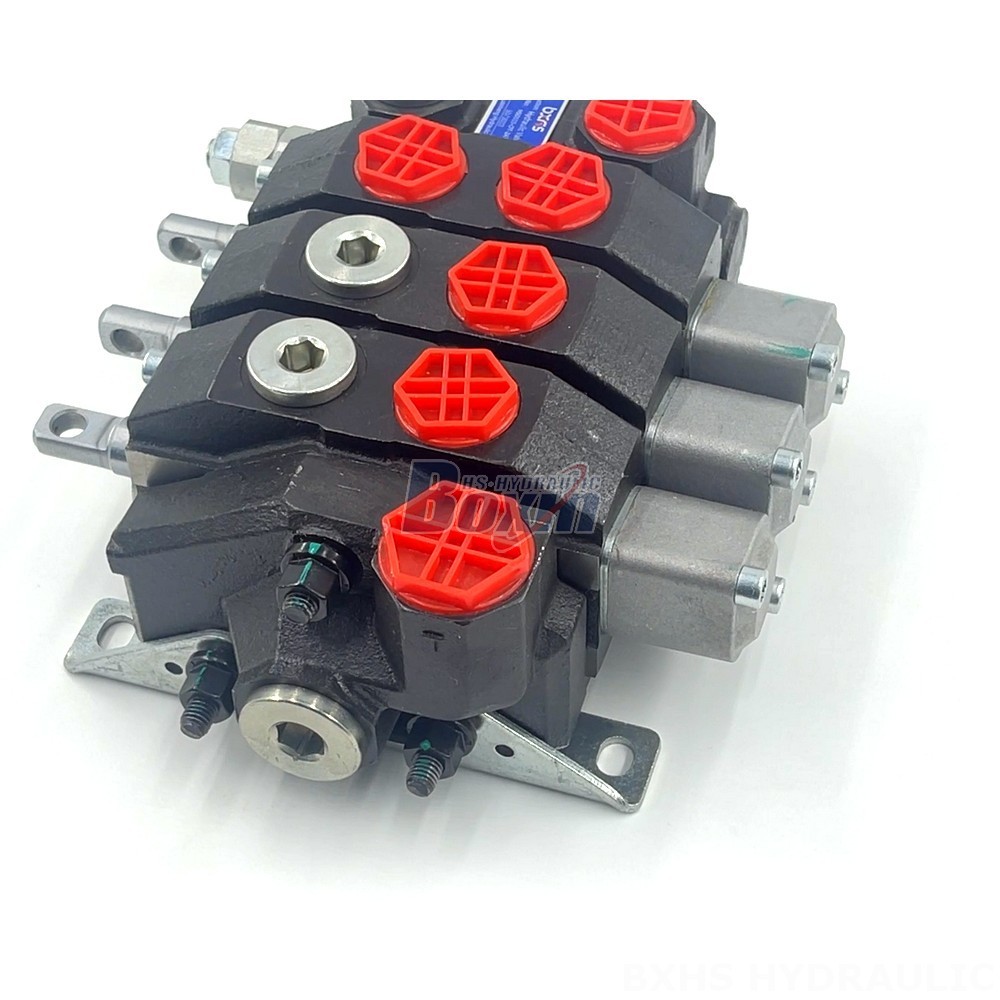

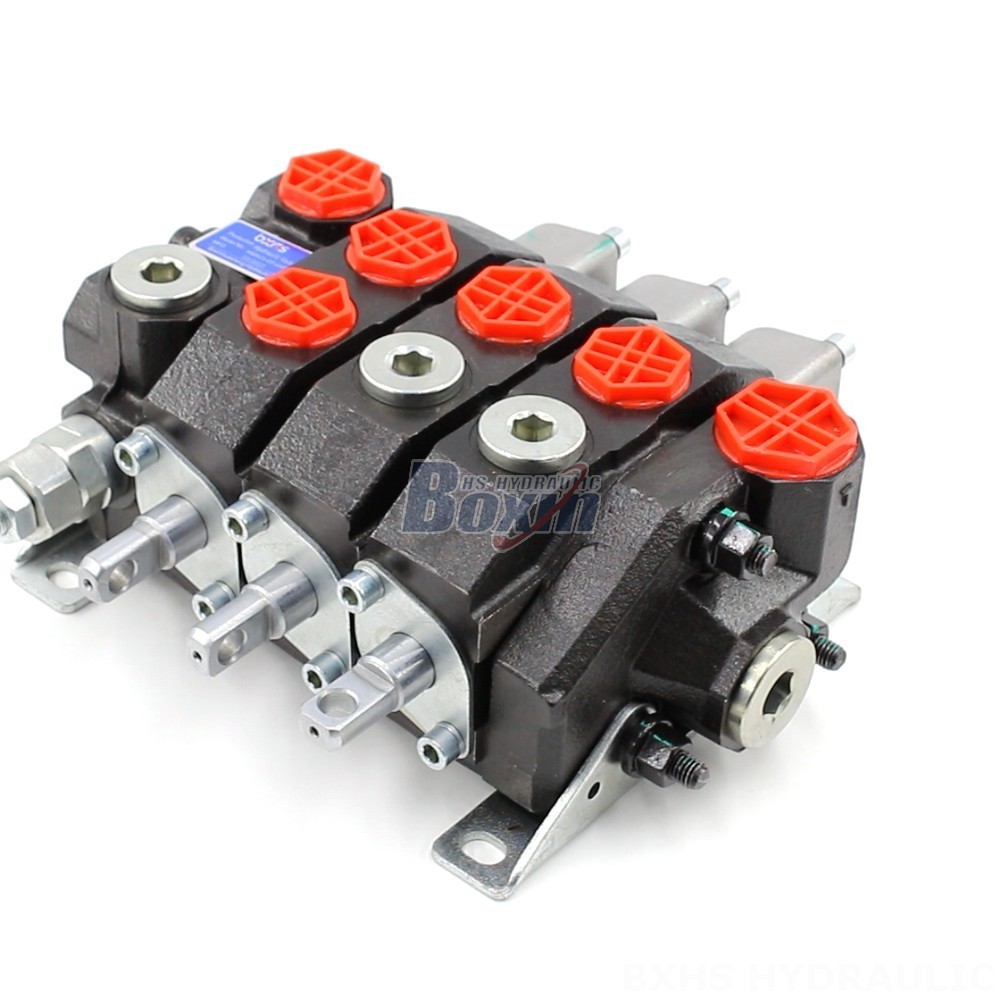

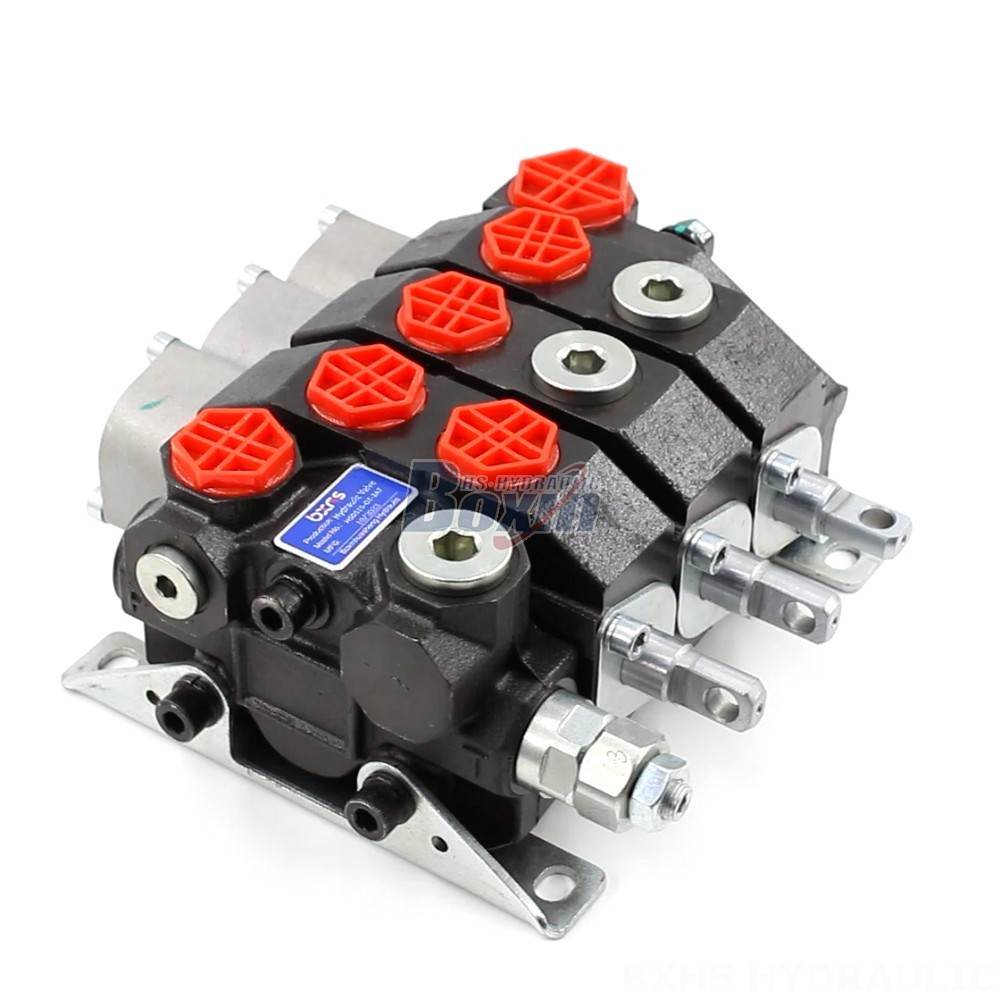

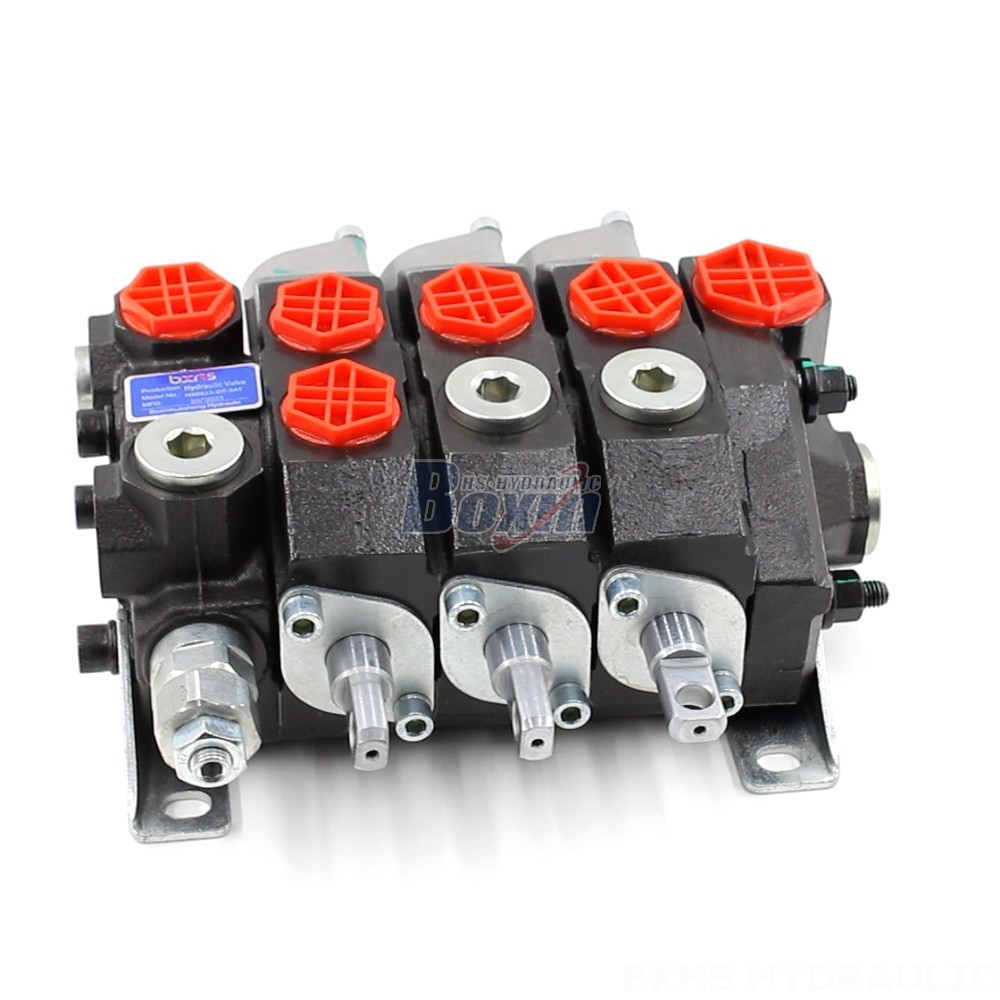

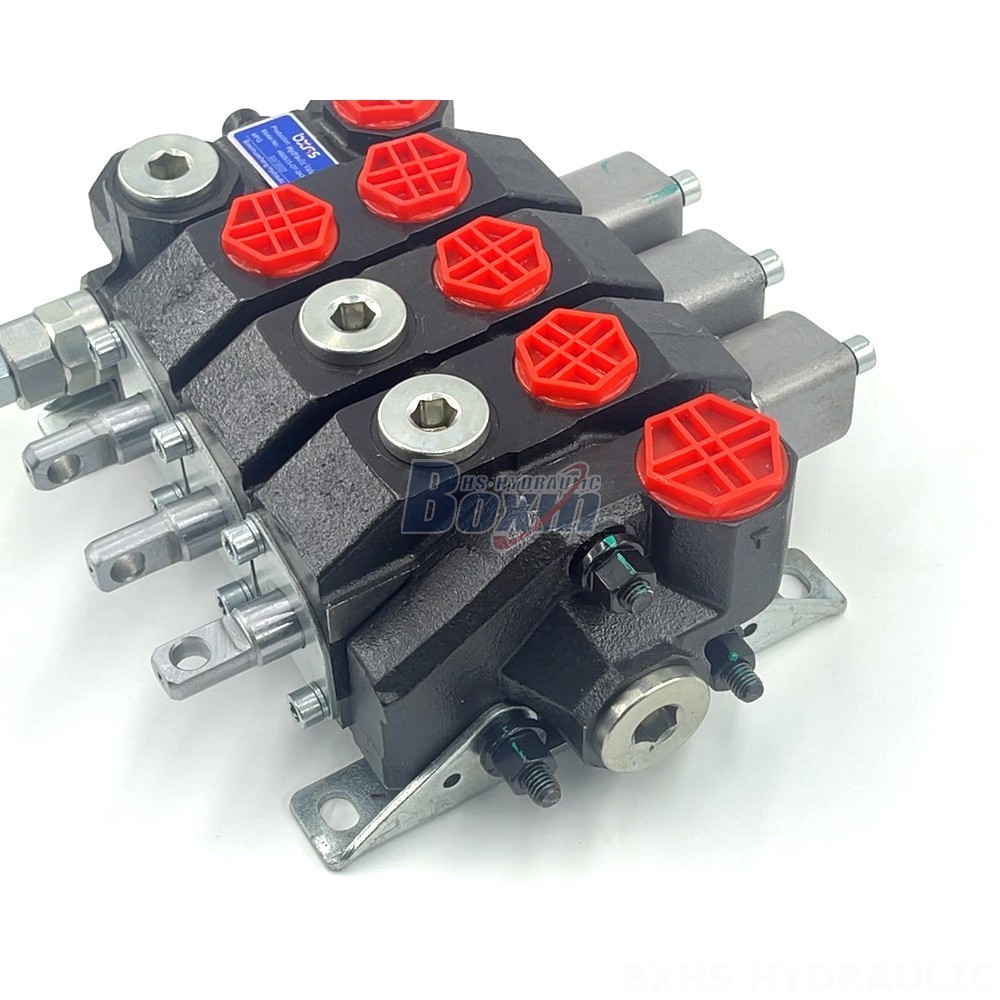

The HSDS15 Series Manual 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a robust design, high flow rate, and exceptional durability, making it ideal for demanding operating environments.
| Série HSDS15 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Débit nominal | 60 L/min (15,8 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G1/2, SAE 8 |
| Orifice de sortie | G1/2, G3/4, SAE 8 |
| Dimension du raccord | G1/2, SAE 8 |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Type de structure | Distributeur à clapets |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
This manual 3-spool monoblock directional valve is part of the HSDS15 series. It is a sectional valve designed for demanding applications in various industries such as material handling, construction, earthmoving, agriculture, and industrial vehicles. The valve has a rated flow of 60 L/min (15.8 US gpm) and can withstand a maximum pressure of 315 bar (4600 psi). It operates effectively in a viscosity range of 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This robust valve is specifically designed for use in a variety of equipment including forklifts, telehandlers, mini- excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, backhoes, and sprayers.
