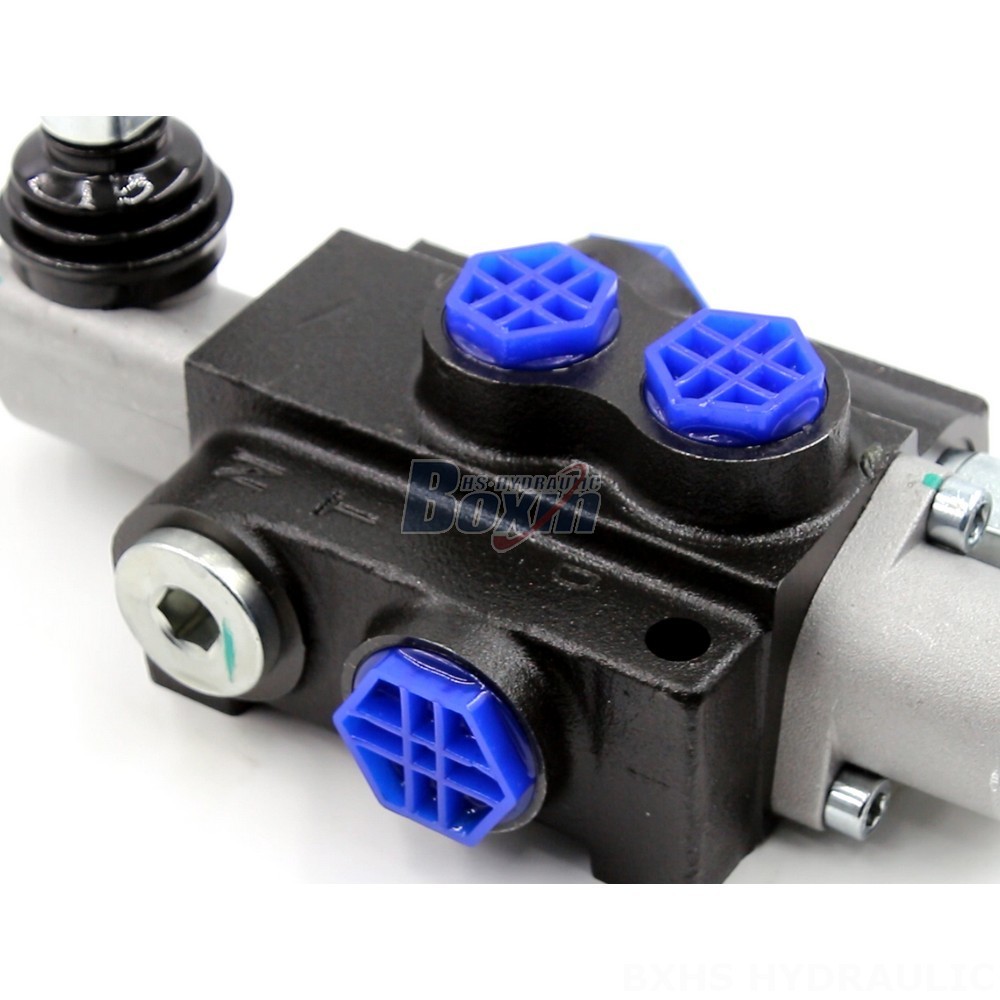

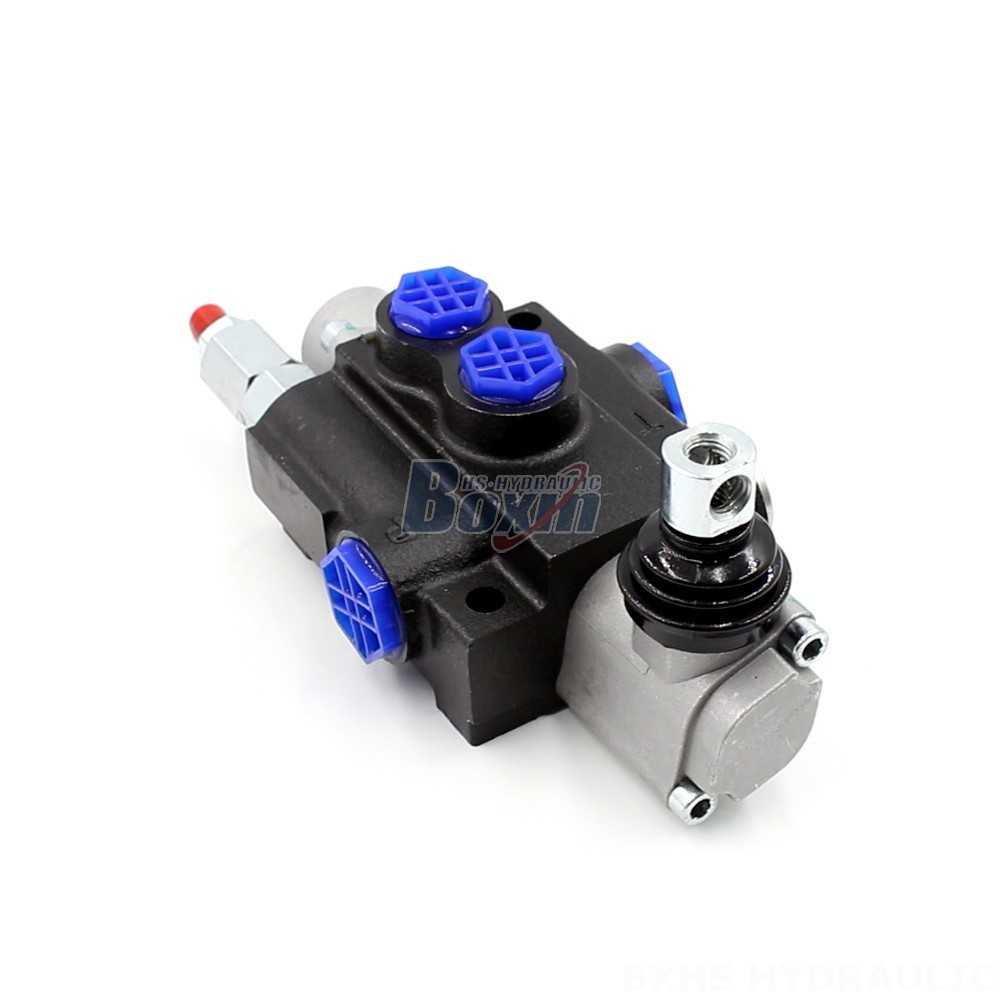

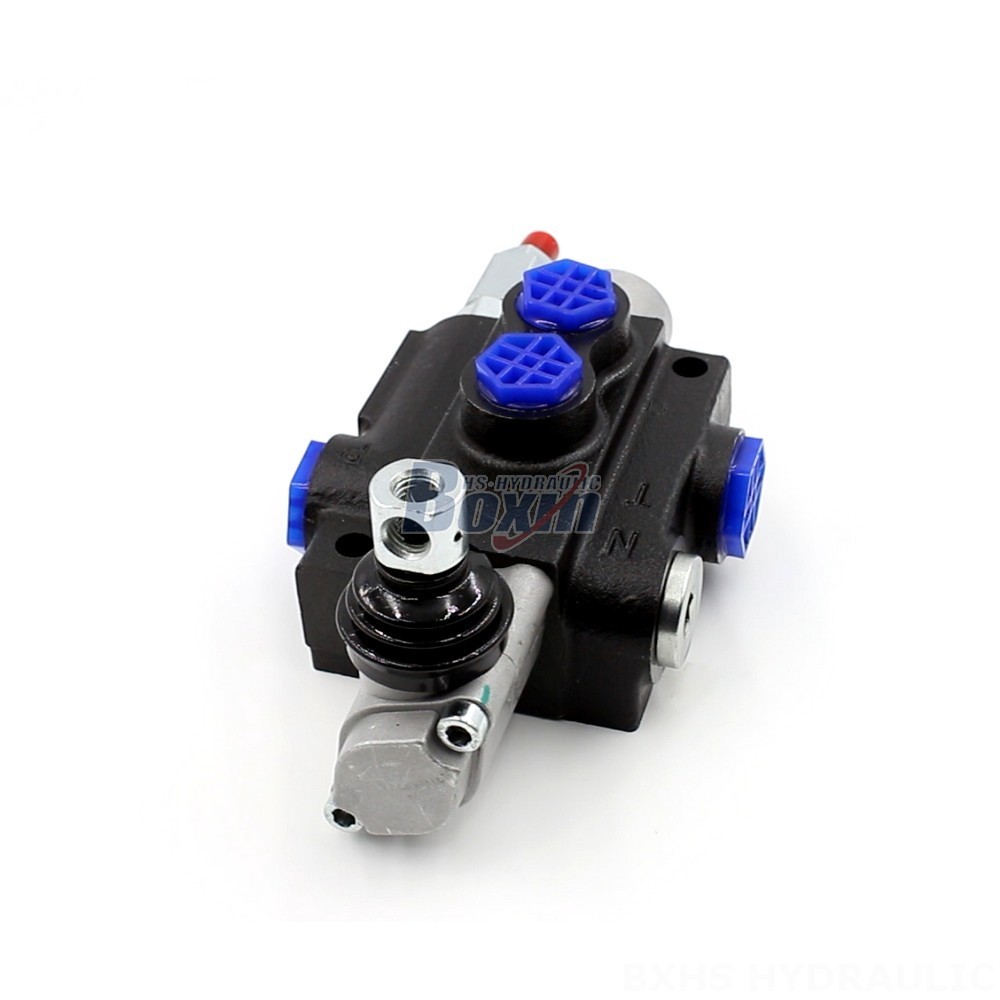

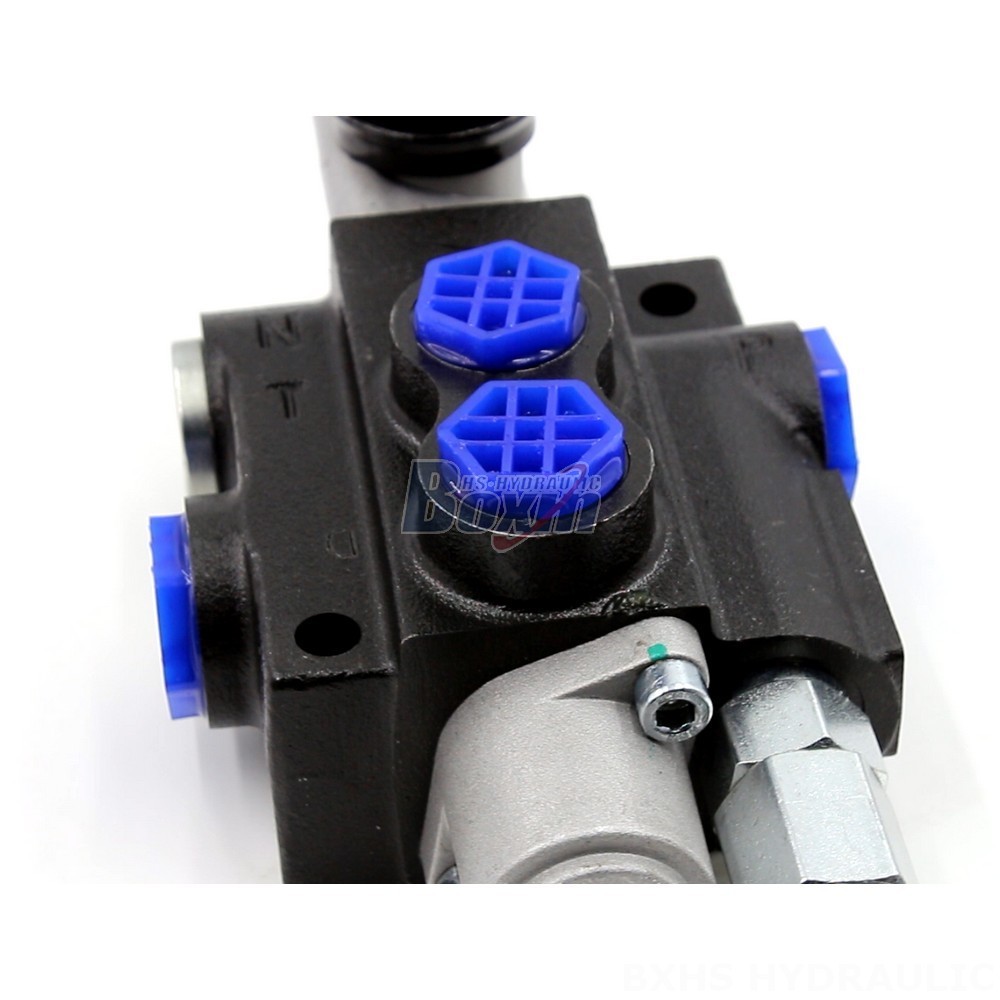

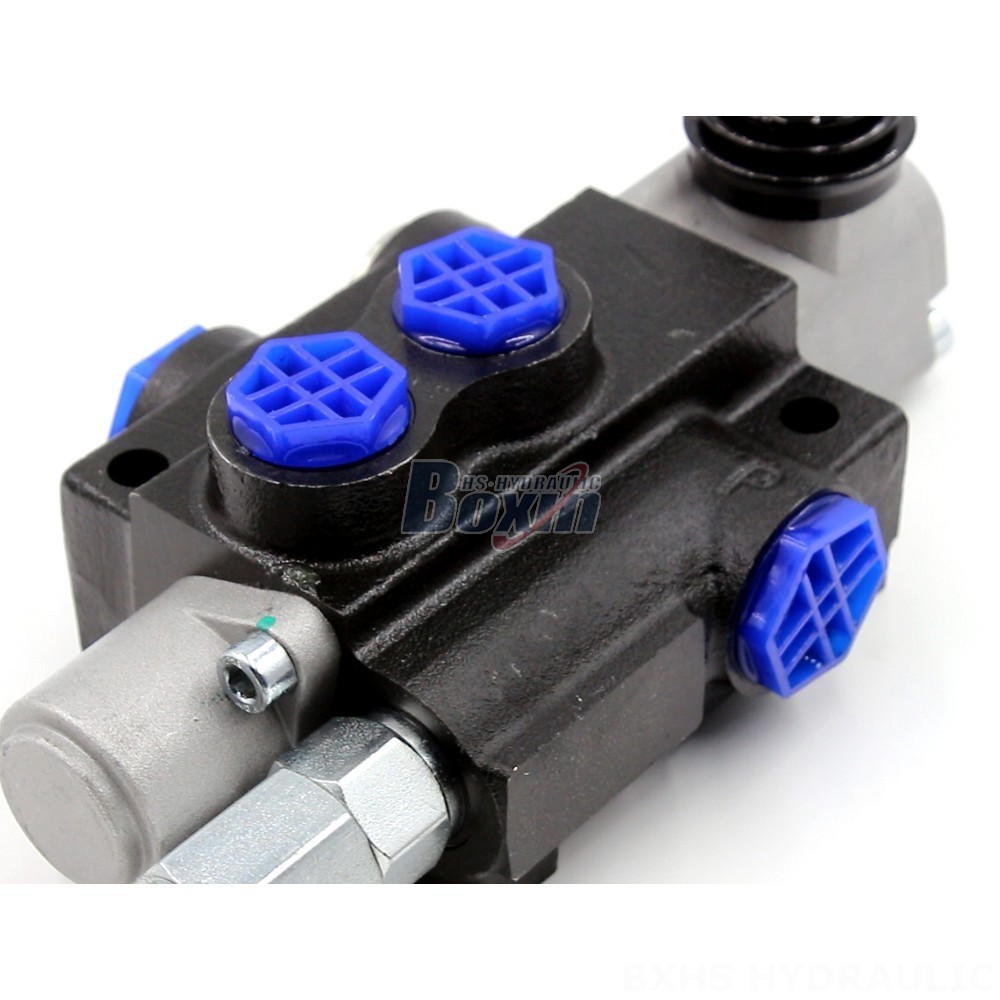

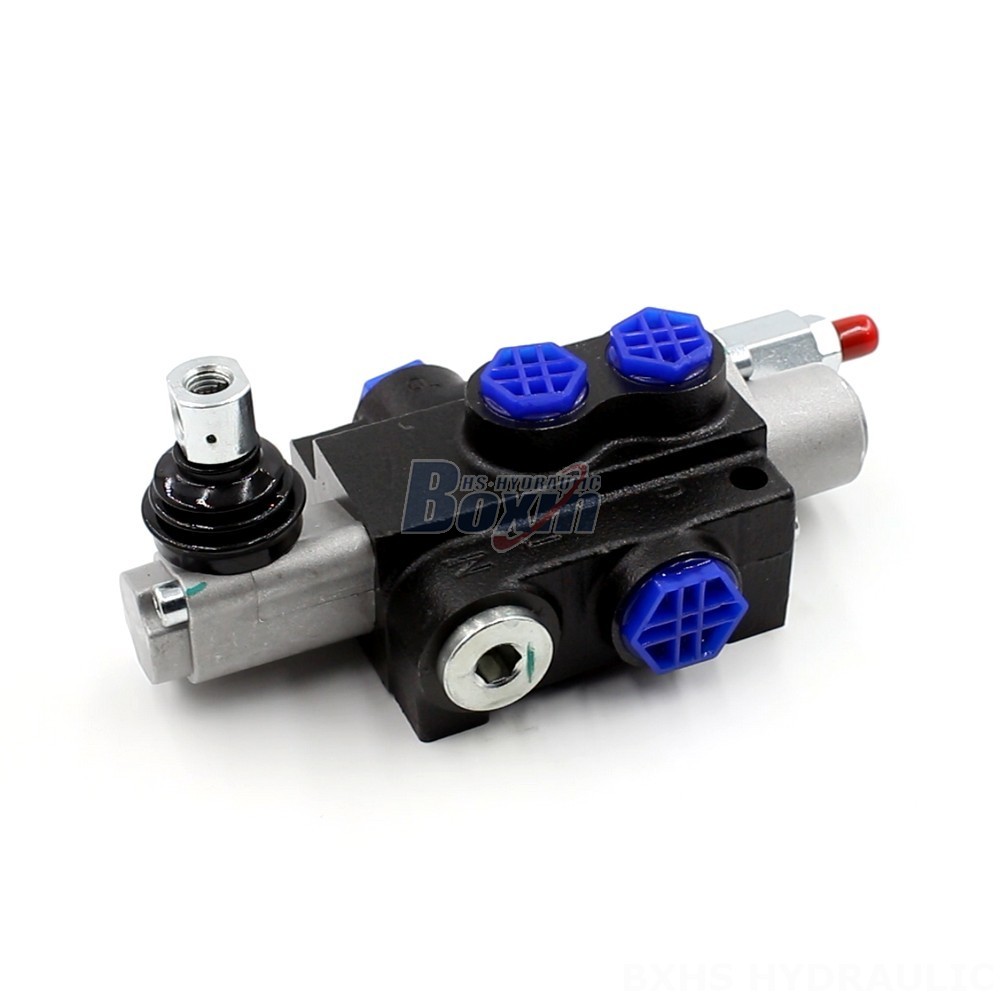

The P40-G12 Series Directional Control Valve is a manual, 1-spool monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 40 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-G12 Series Directional Control Valve is a high-quality, reliable hydraulic component designed for manual operation. It features a 1-spool monoblock construction, providing a compact and efficient design. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications in various industries. Its operating viscosity range of 15-75 mm²/s ensures optimal performance across a wide range of temperatures. The valve is designed for use in various equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve in wholesale quantities and are also available for OEM applications. Contact us for more information on this product and its suitability for your specific requirements.
