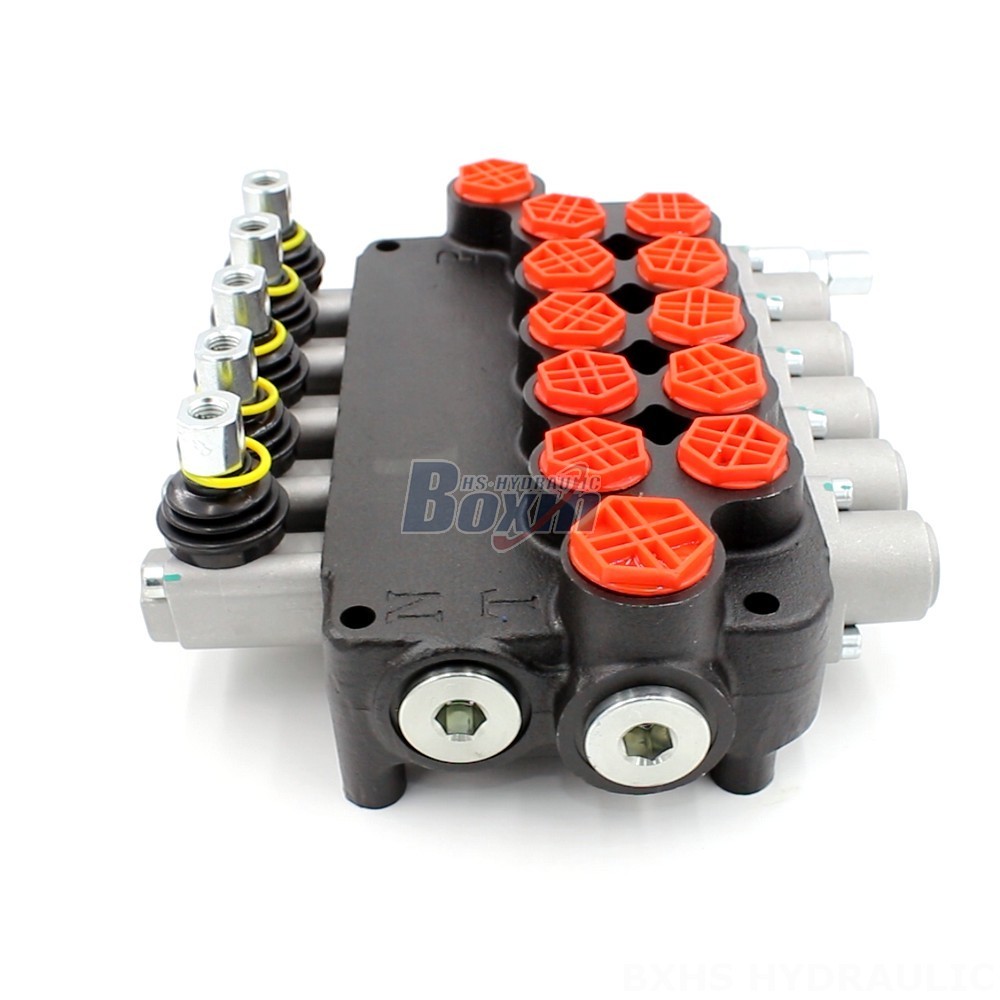

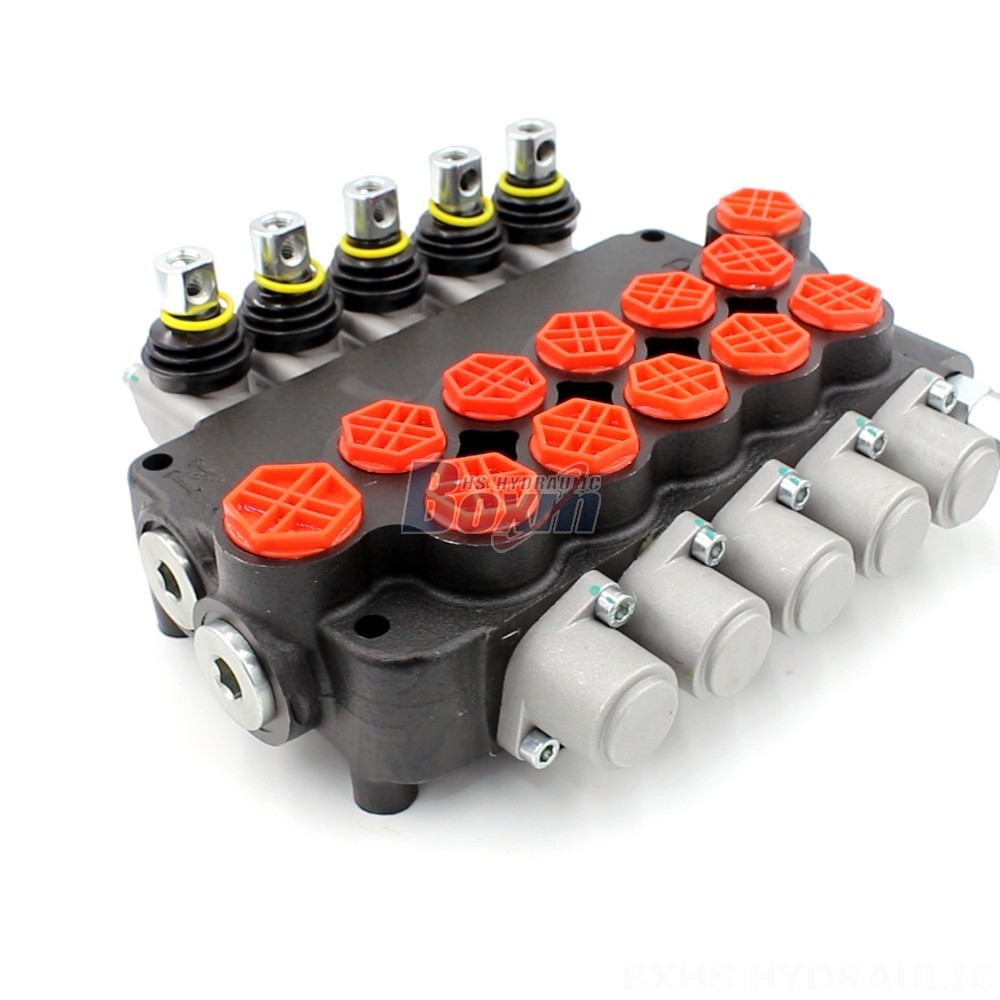

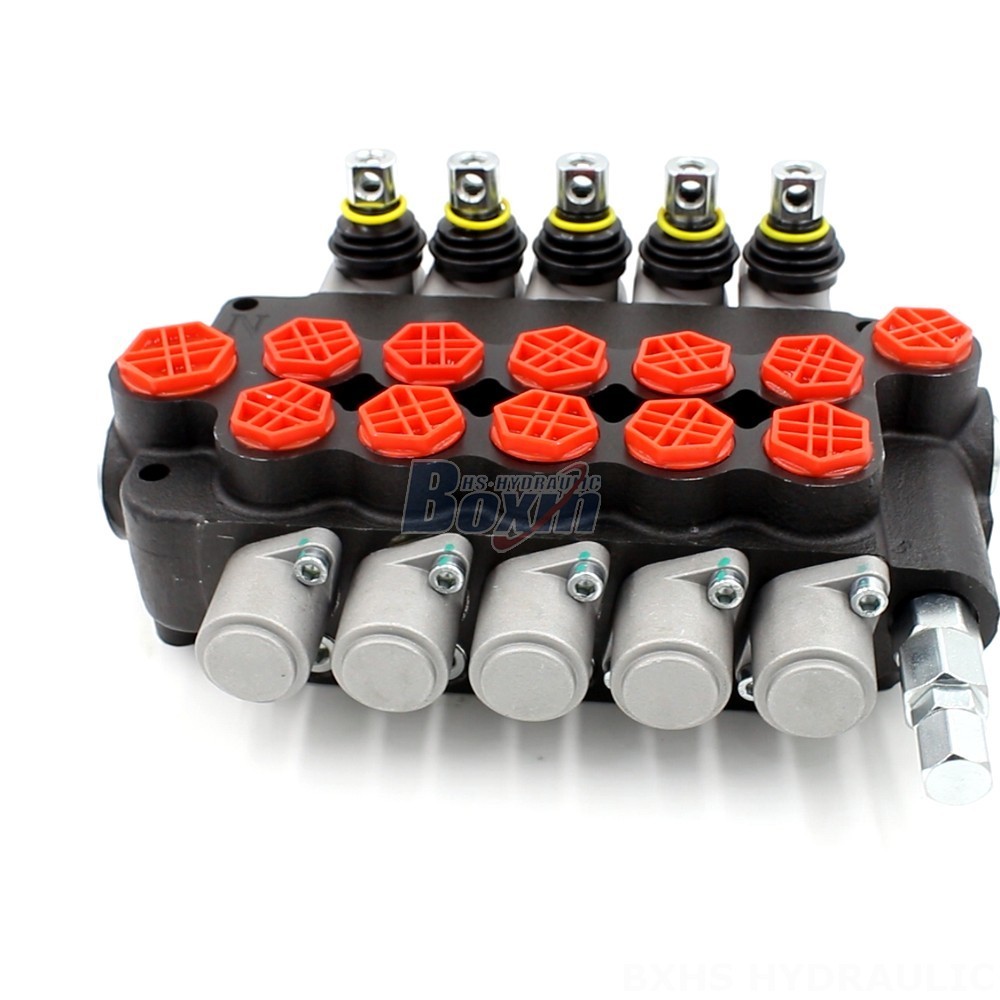

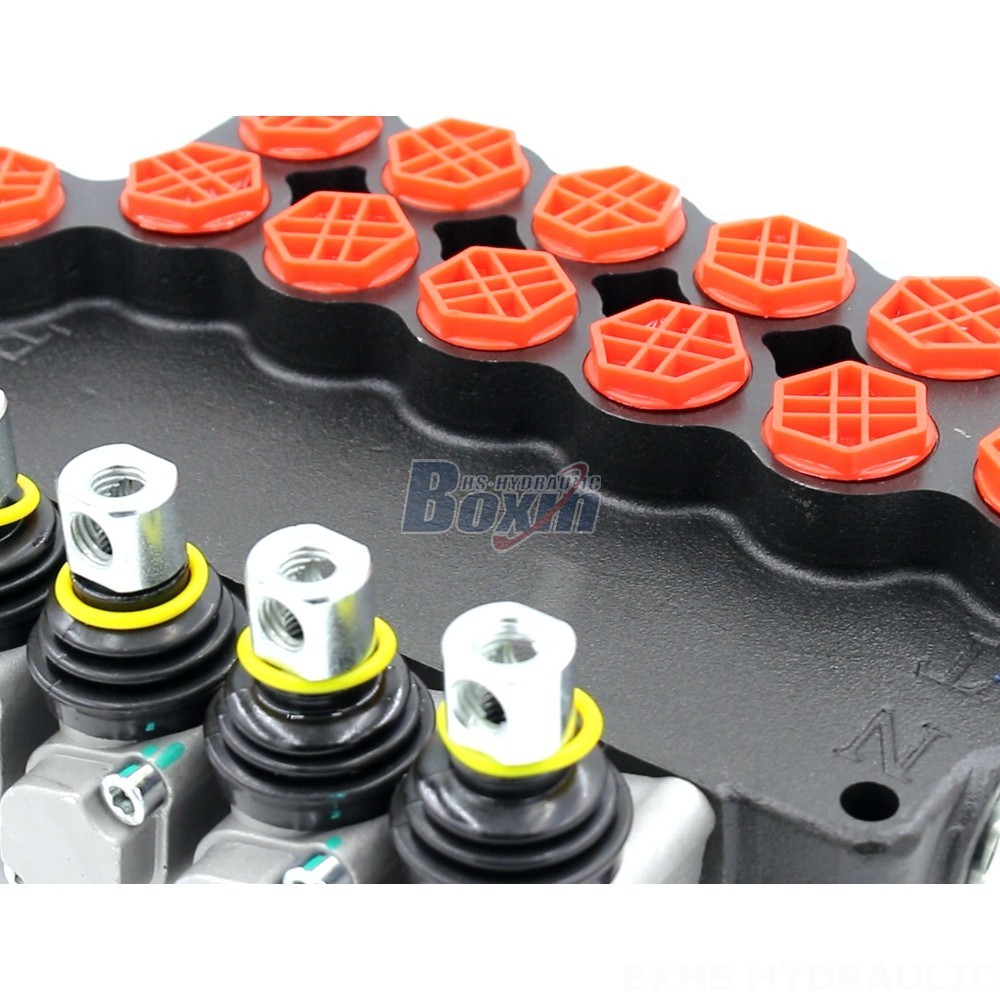

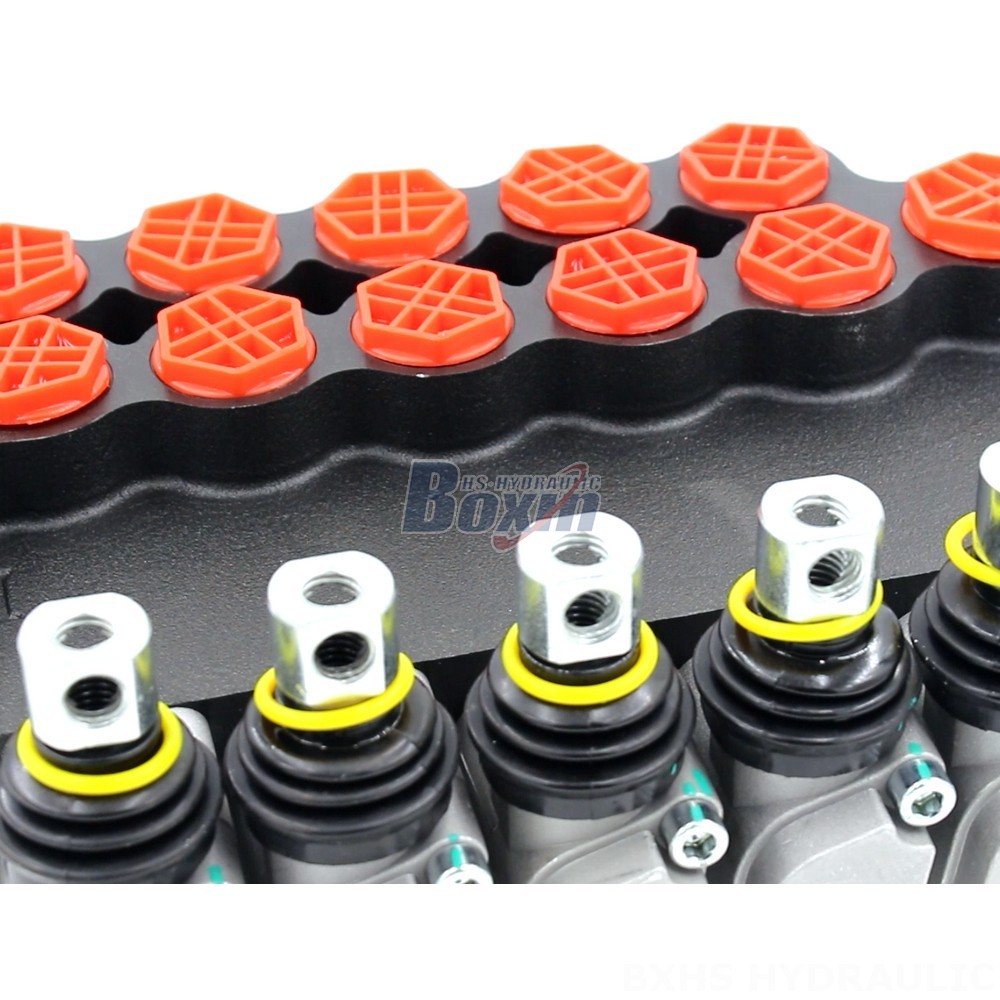

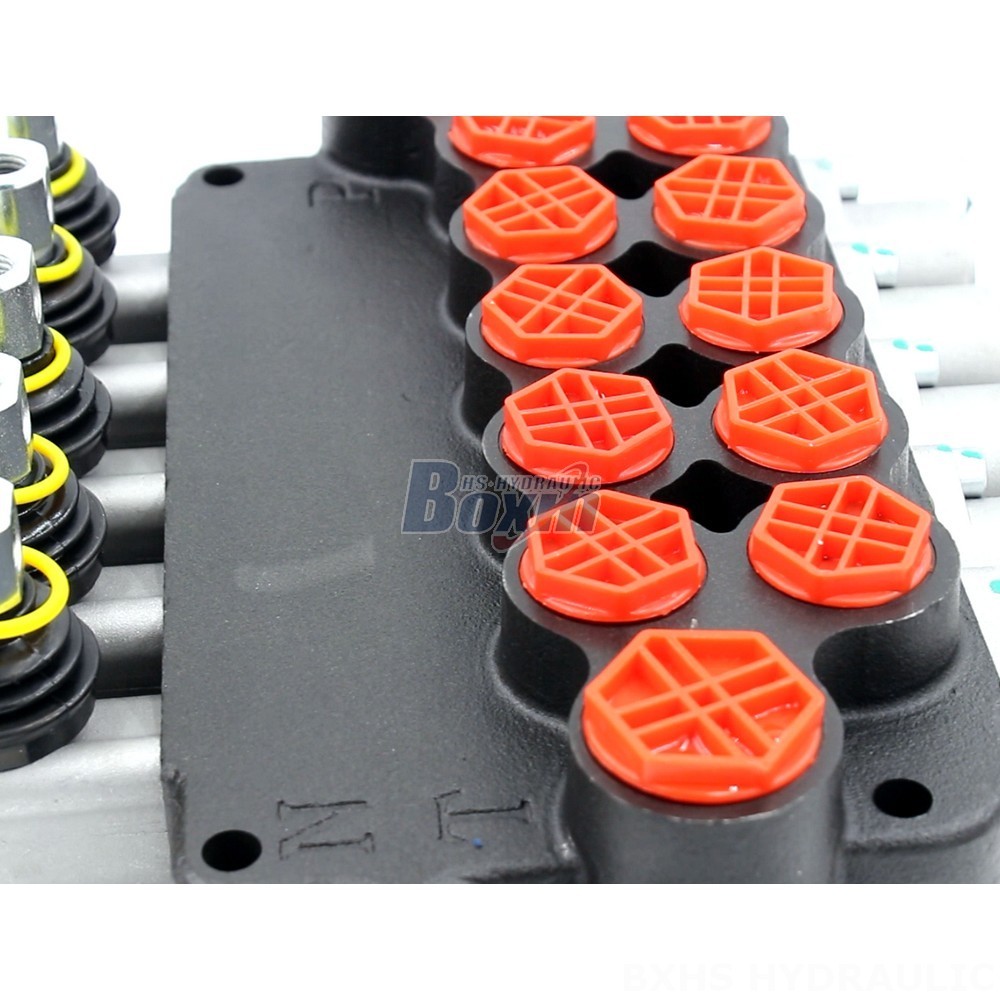

The P80-G12-G38-OW Series of hydraulic valves offers a robust and customizable solution for various applications. With a rated flow capacity of 80 L/min, a maximum pressure of 250 bar, and a wide operating viscosity range, these valves are versatile and reliable. Their monoblock structure ensures durability, while the manual control provides precise and responsive operation. This series is suitable for a wide range of applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Features and Benefits:**
* **OEM/ODM Customization:** Can be customized to meet specific requirements.
* **Manual Control:** Precise and responsive operation.
* **5 Section:** Multiple spool configurations for complex hydraulic systems.
* **Monoblock Valve:** Compact and durable design.
* **Rated Flow: 80 L/min (21.2 US gpm):** Suitable for high flow applications.
* **Max Pressure: 250 bar (3600 psi):** High-pressure capability.
* **Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt):** Suitable for various fluid viscosities.
* **Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F):** Wide operating temperature range.
* **5 Spool:** Multiple spool options for diverse applications.
* **P80 Series:** Part of a reliable and well-established product line.
* **Application Area:** Ideal for applications in material handling, construction, agriculture, and industrial vehicles.
* **Applicable Models:** Suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
