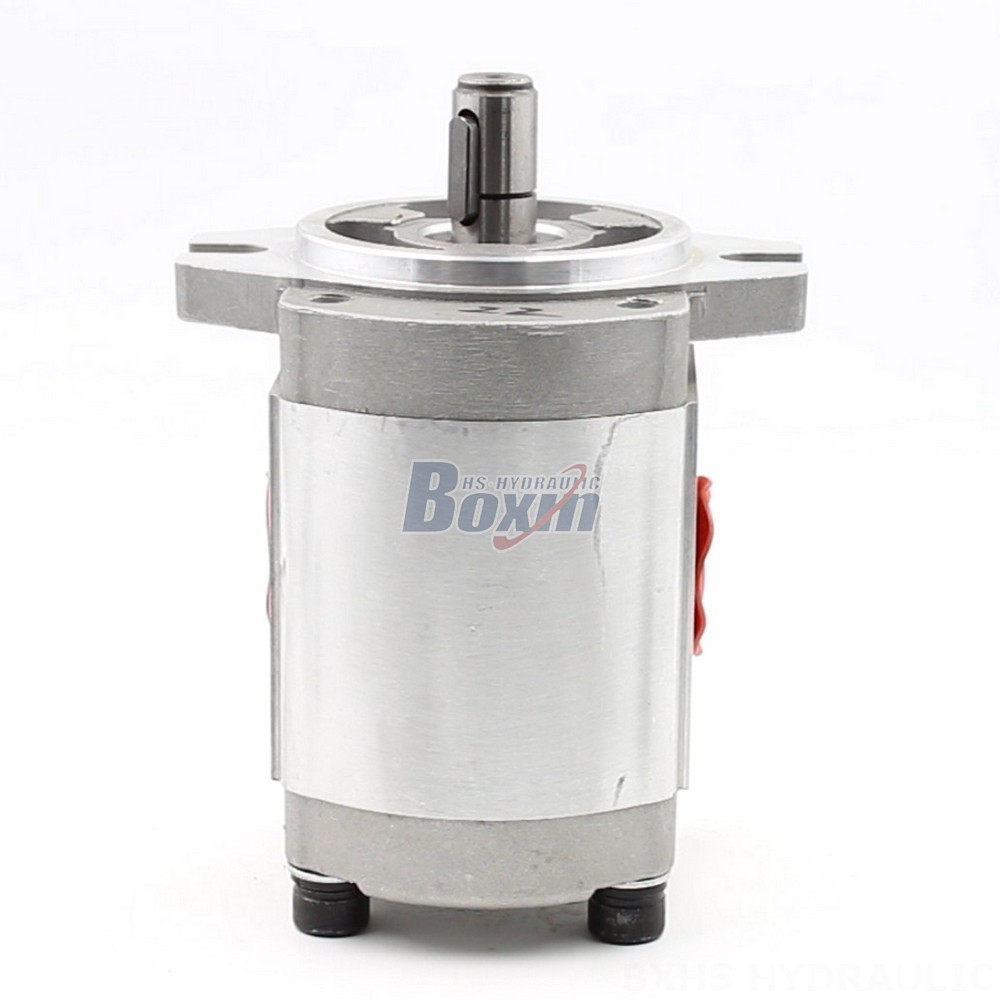

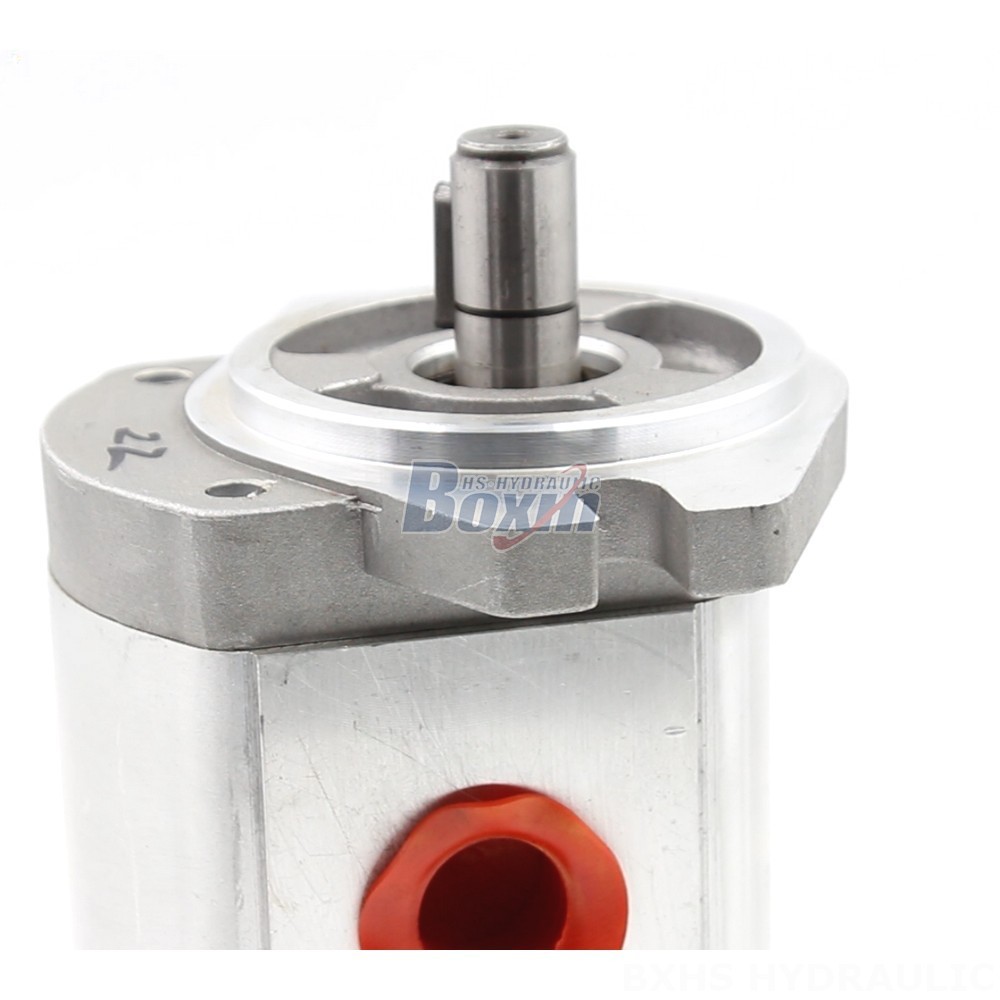

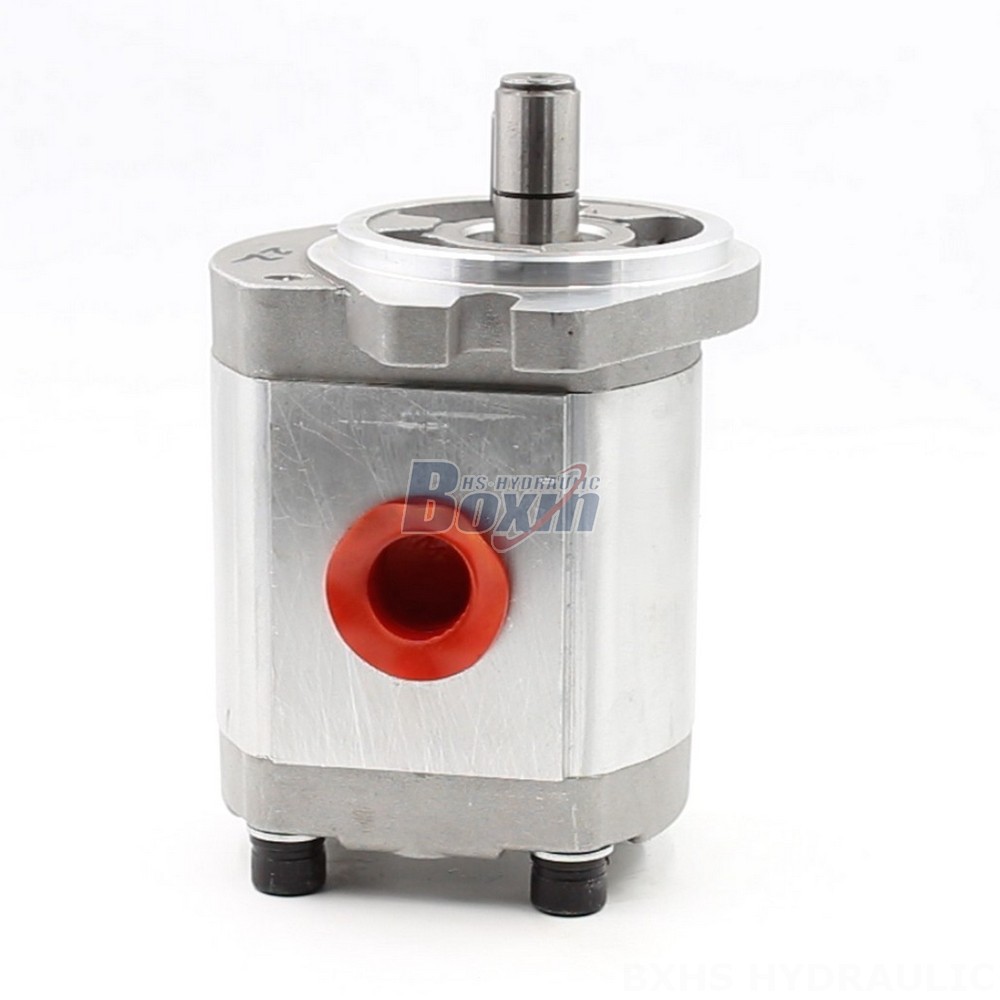

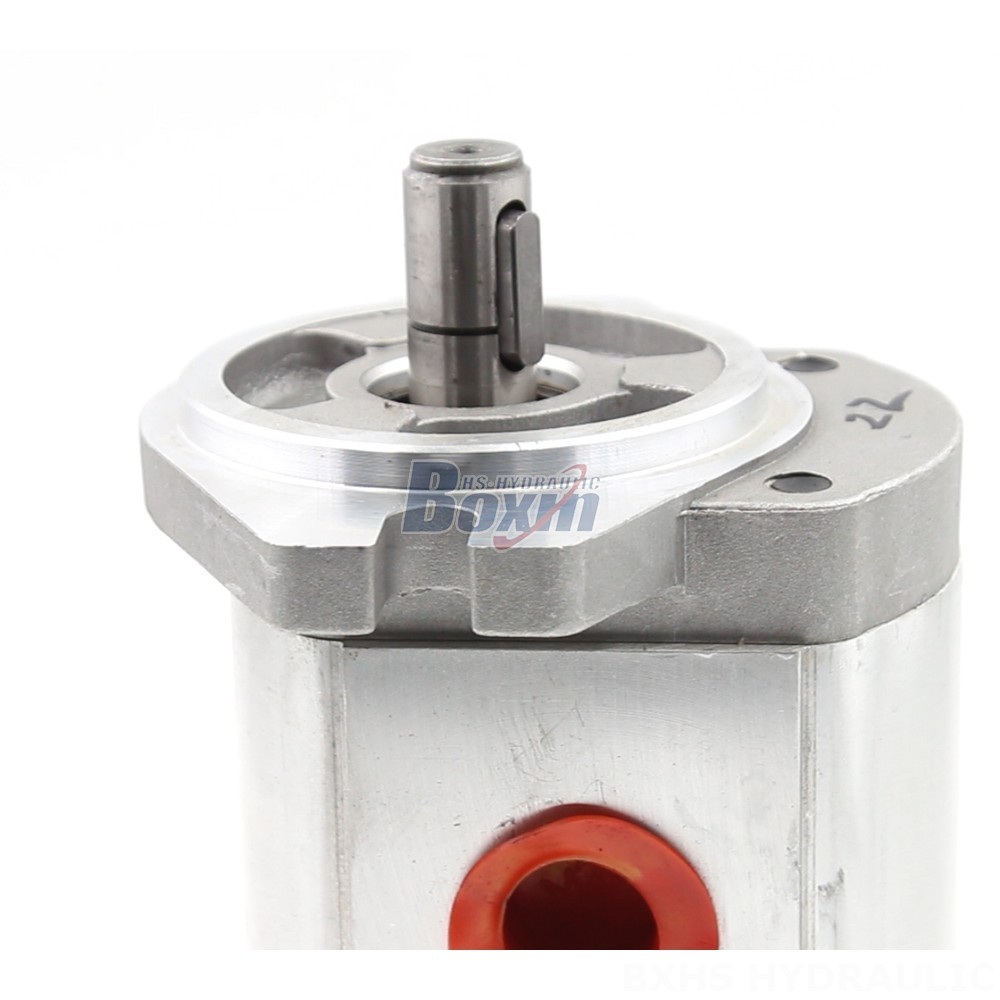

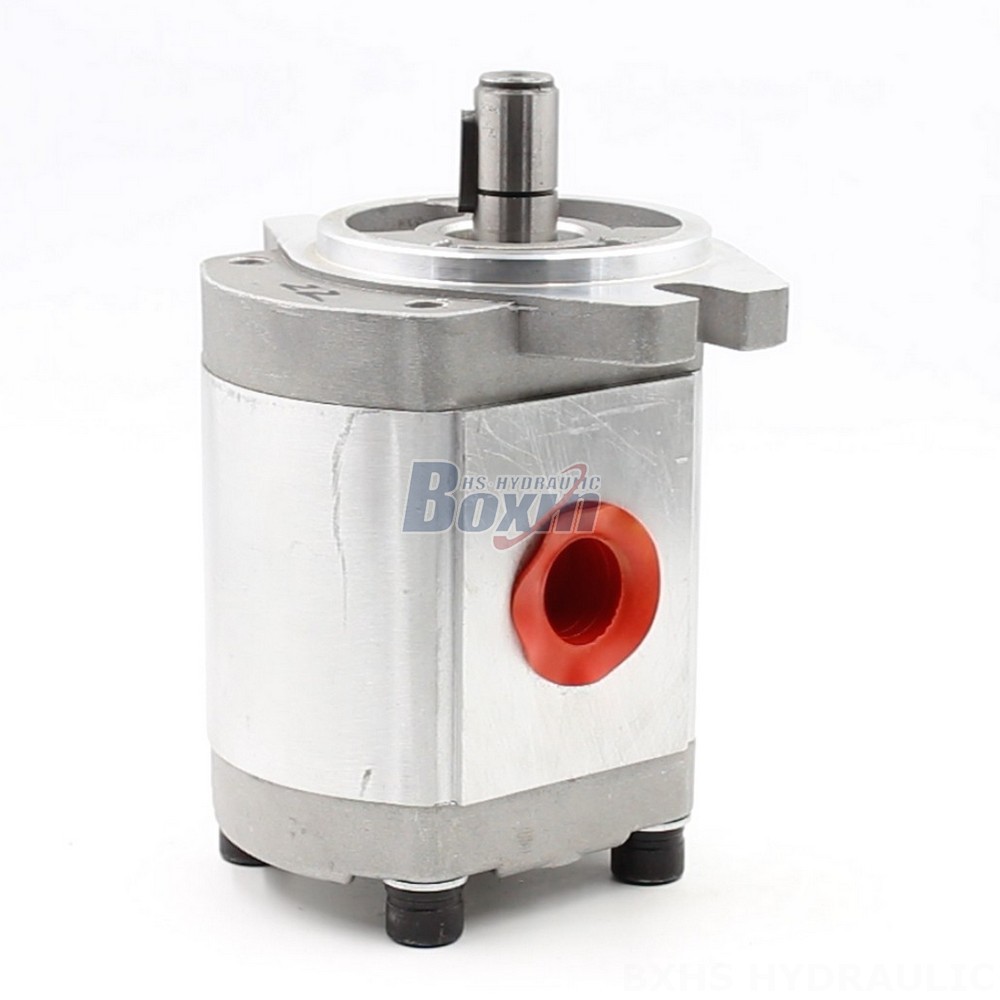

The CBHS-FL304 Industrial Hydraulic Gear Pump is a high-performance, low-noise pump designed for demanding applications in construction, agriculture, industrial vehicles, and material handling. With a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), this pump delivers high flow rates while maintaining quiet operation.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
The CBHS-FL304 is a robust internal gear pump constructed from aluminium, featuring an A-Oval flange and a plain key shaft. It boasts a rated speed of 2000 r/min and a maximum speed of 3000 r/min, ensuring reliable performance in various applications. Specifically designed for construction and earth moving, agriculture, industrial vehicles, and material handling, it is suitable for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and balers.
