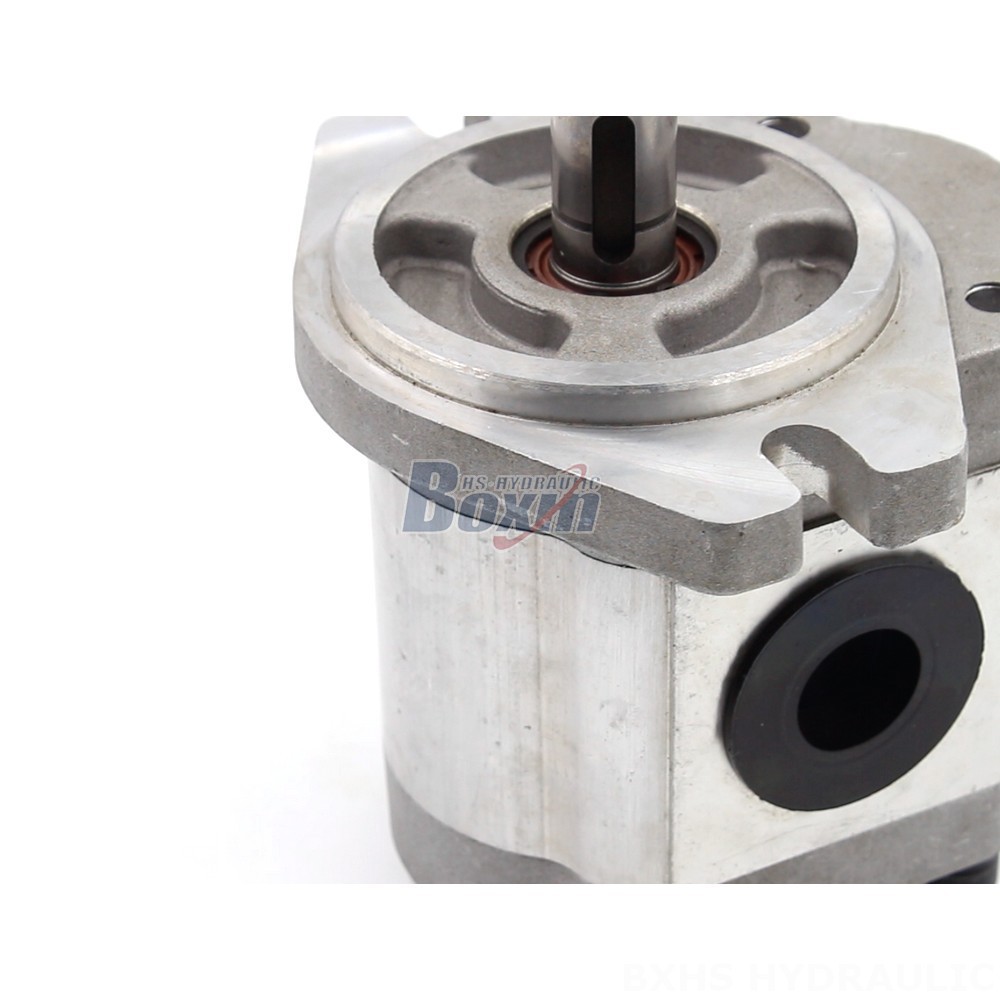

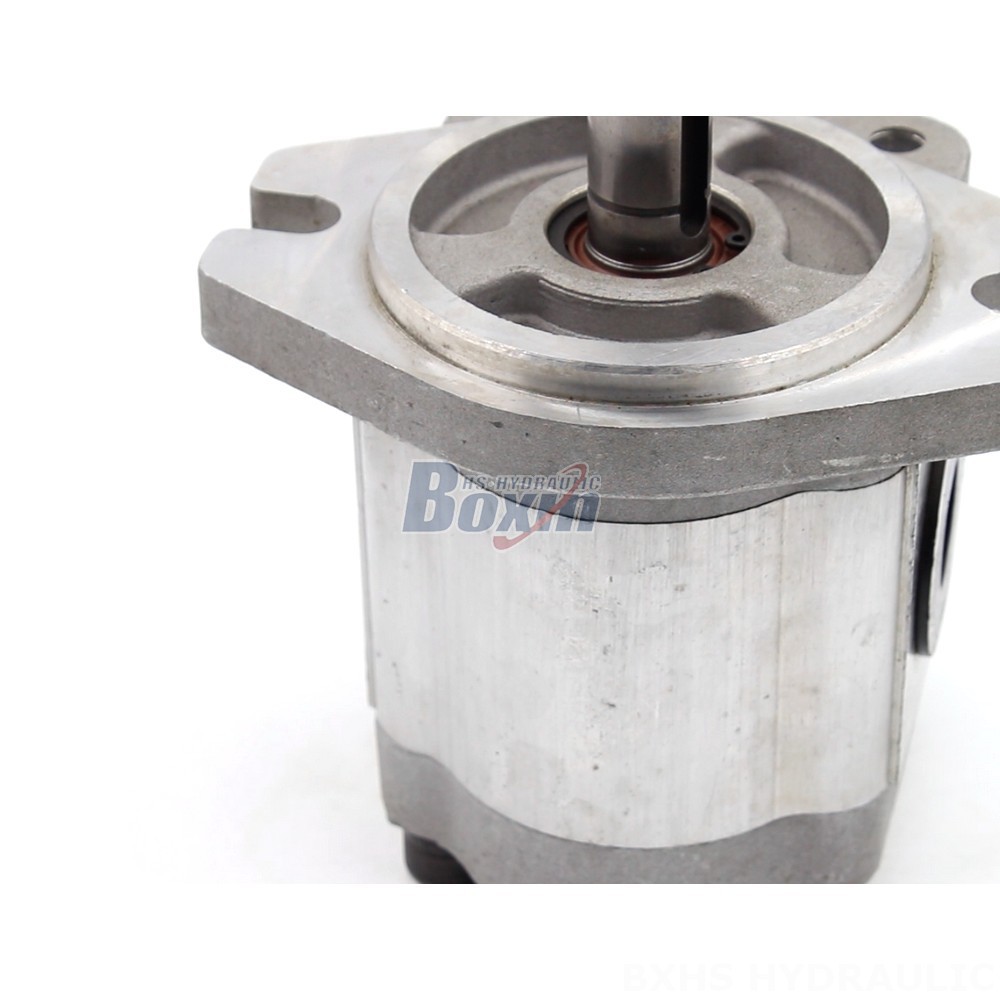

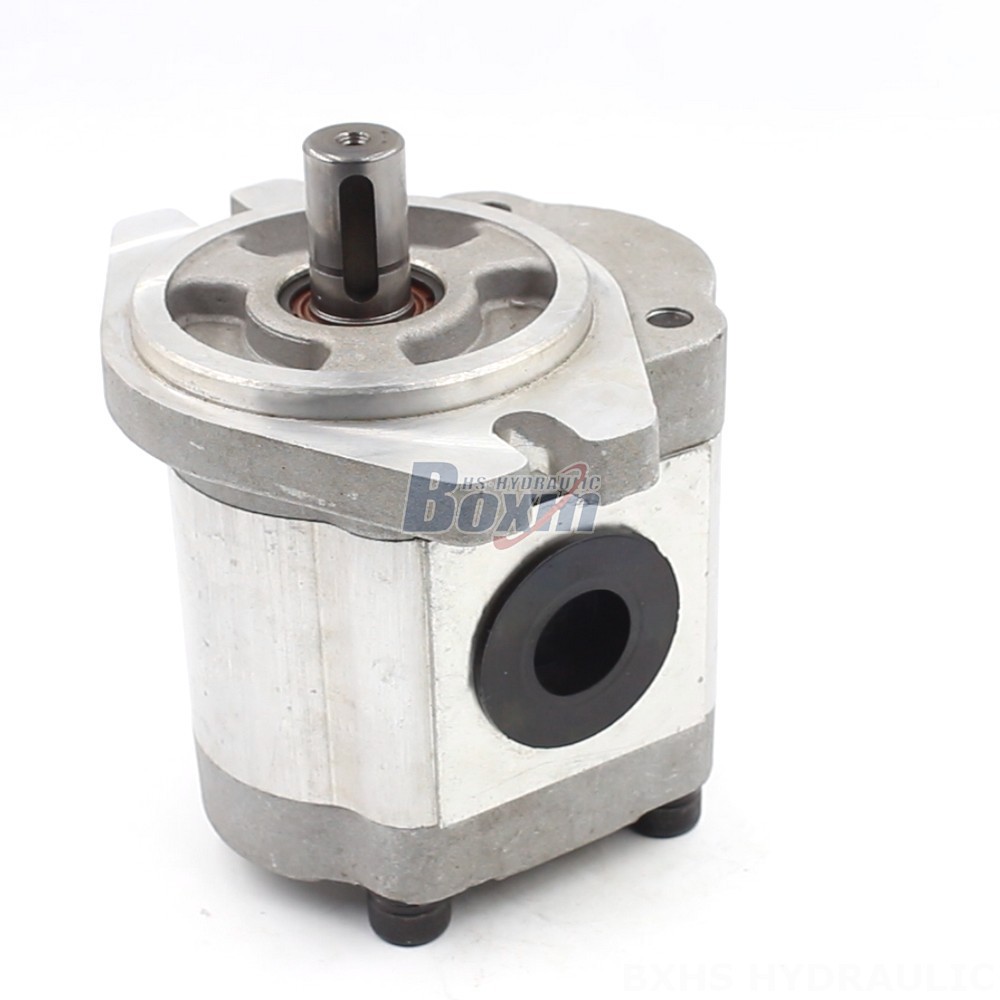

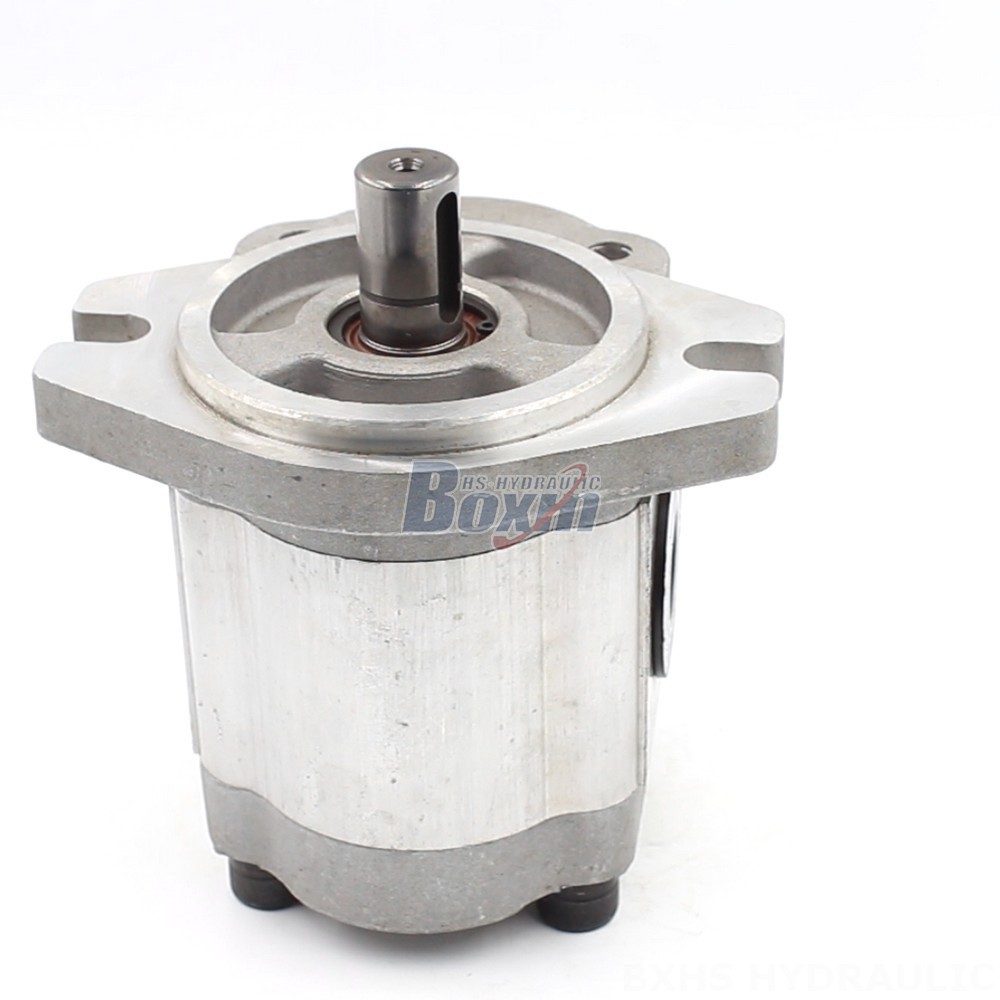

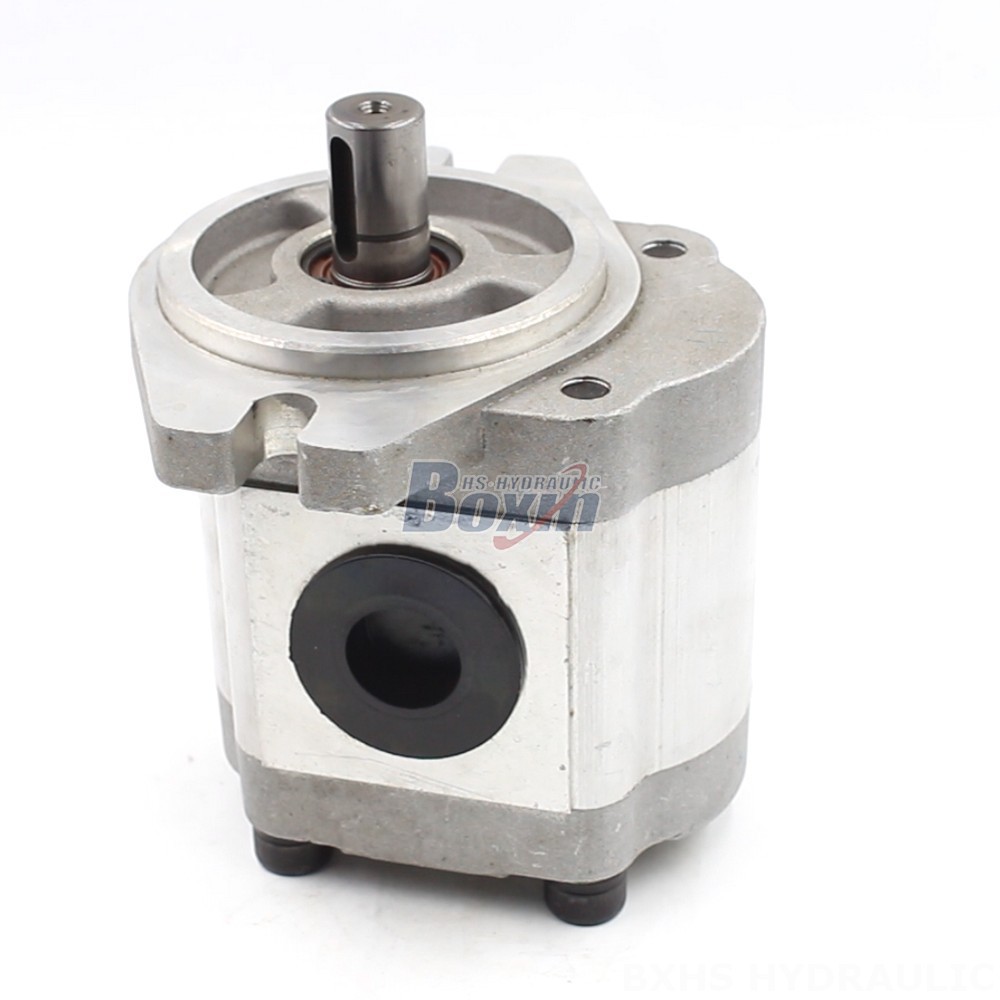

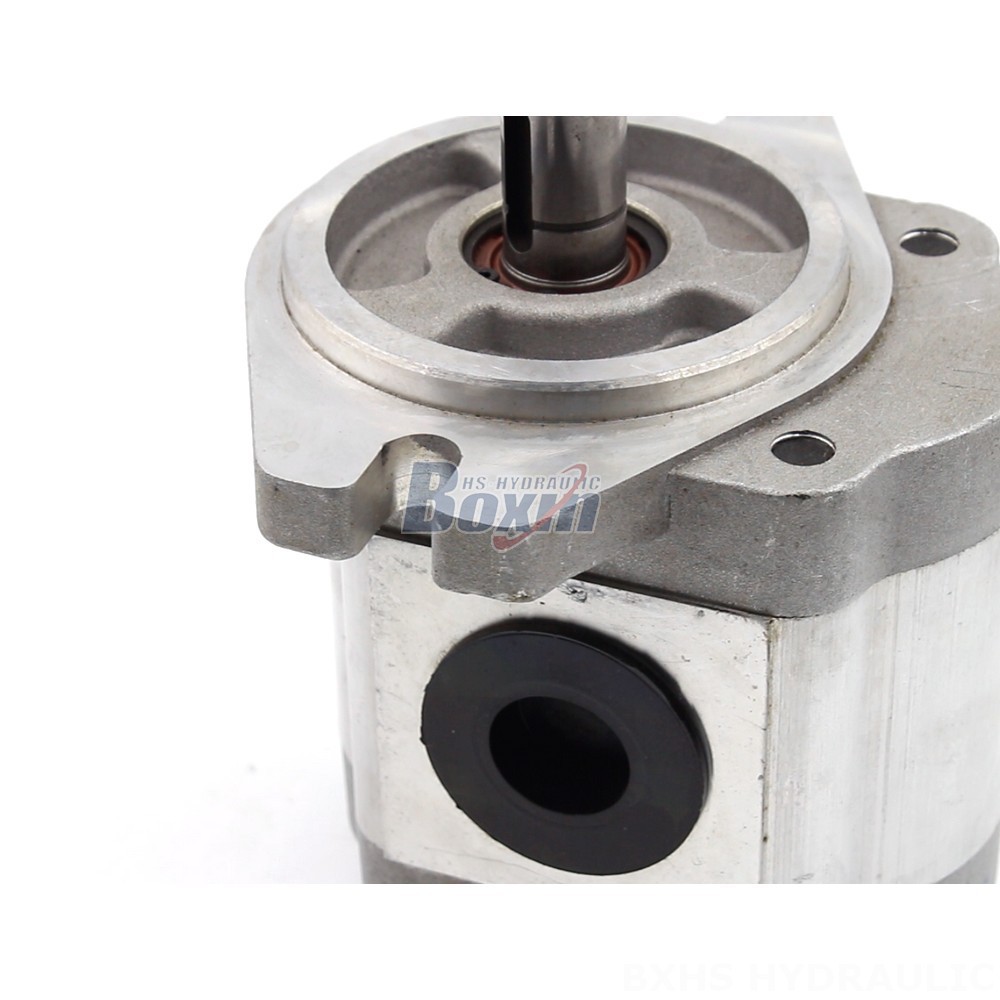

This industrial-grade 14 cc/rev hydraulic gear pump offers customizable solutions for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The pump is constructed with an internal gear design and aluminium material, providing reliable performance and durability.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
This high-performance hydraulic gear pump is designed for demanding industrial applications. It boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), ensuring powerful and efficient operation. The pump can handle speeds up to 3000 r/min and is available in both left and right rotation configurations. Its internal gear pump design, combined with its robust aluminium construction, provides exceptional durability and reliability. The A-Oval flange and plain key shaft make it compatible with a wide range of systems. This versatile pump is ideally suited for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors, making it a valuable asset for various industries.
