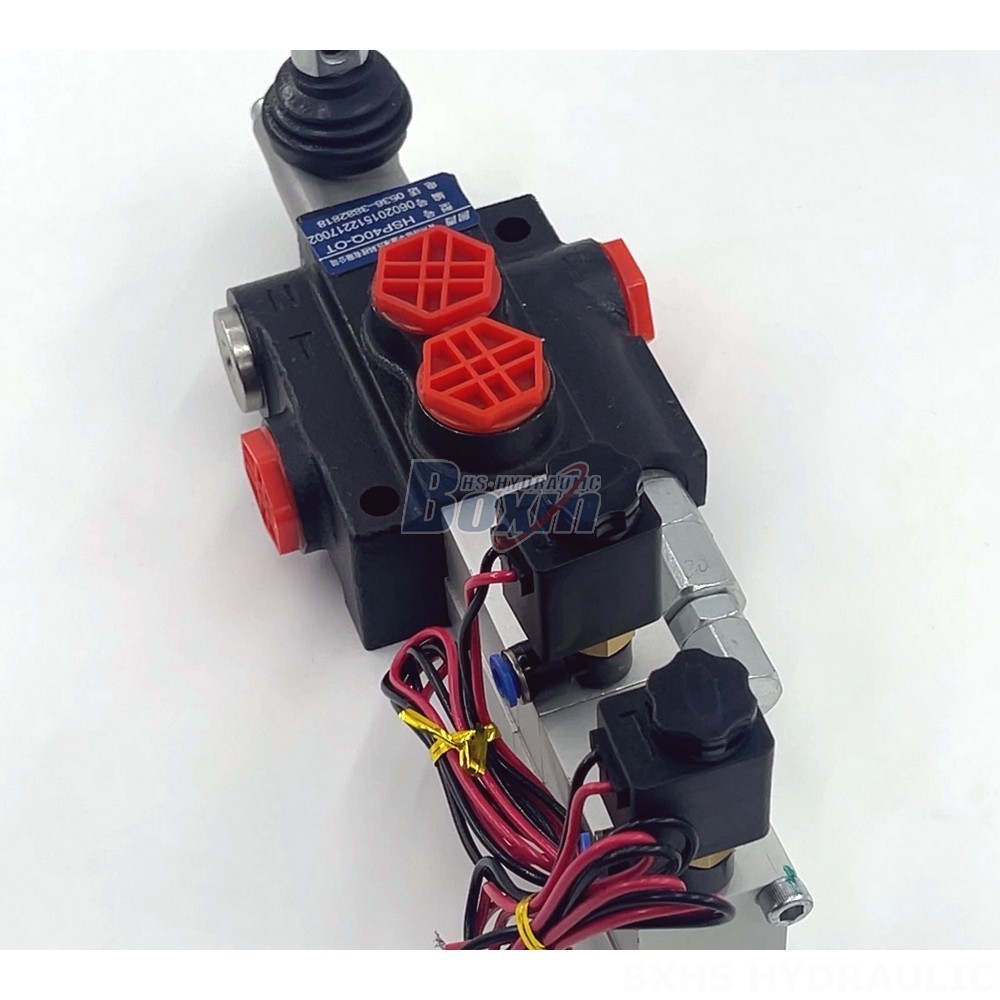

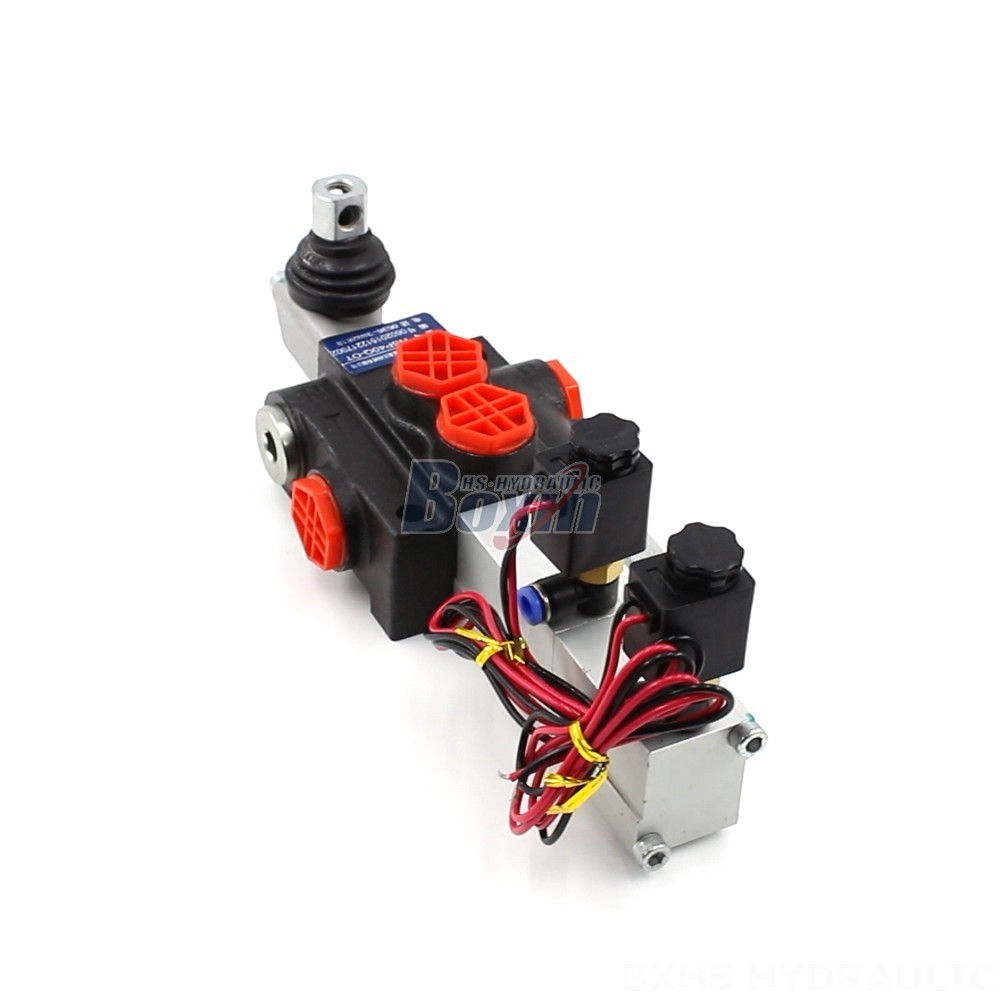

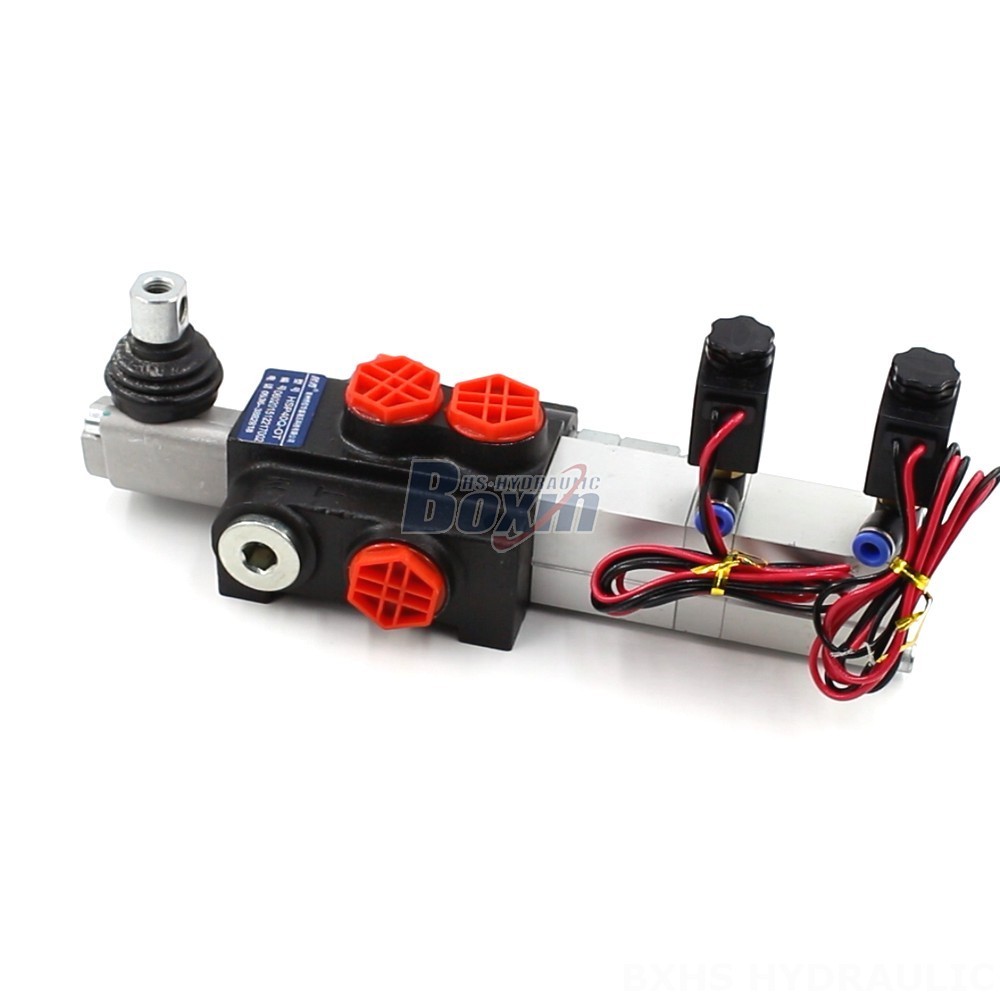

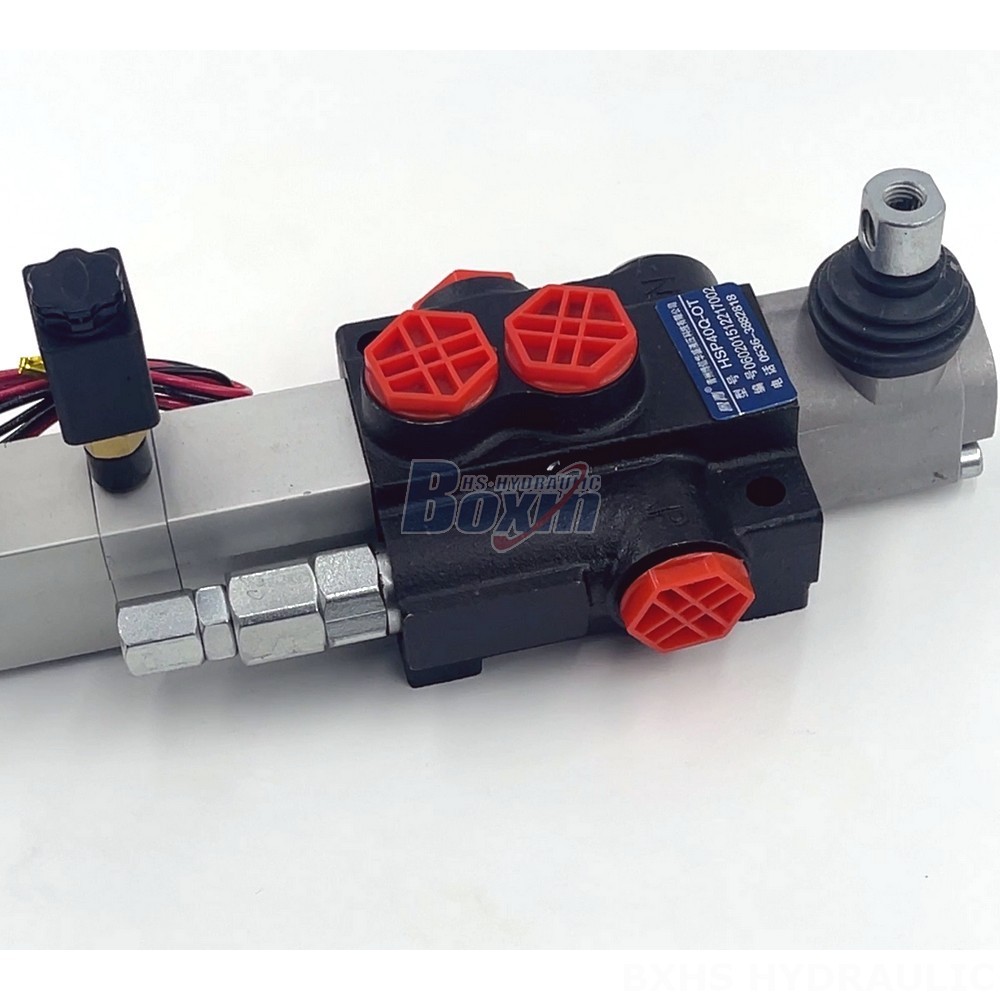

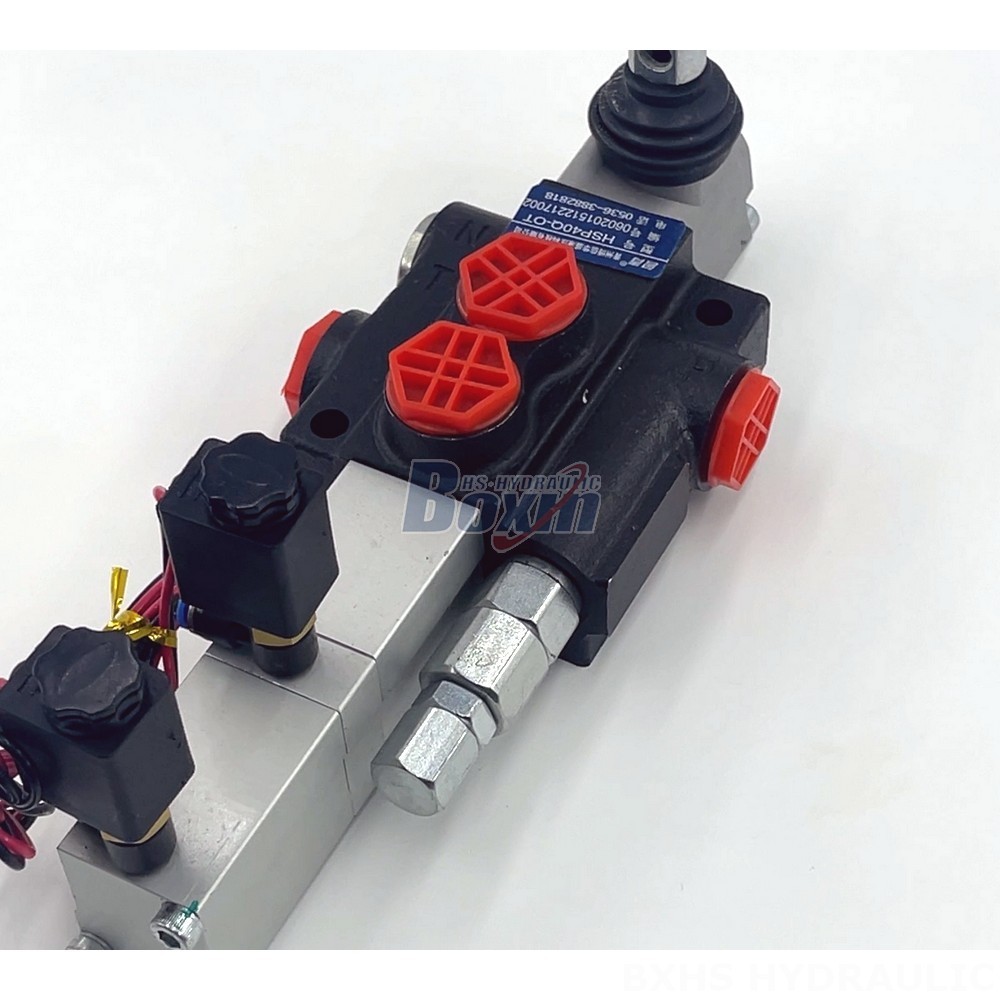

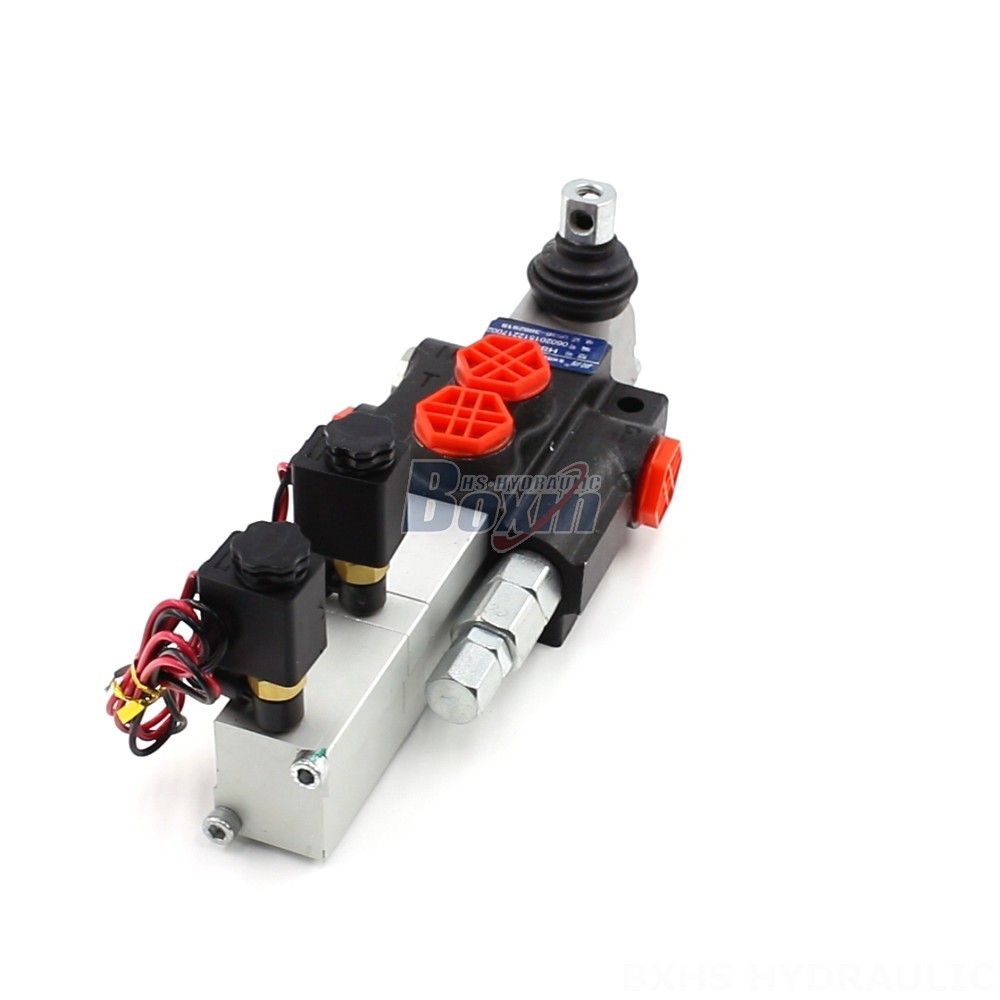

The P40 Series Hydraulic Multiple Directional Control Valve is a high-performance, electro-pneumatic valve designed for industrial automation applications in material handling, construction, and agriculture. It features a monoblock structure, 1 spool, and a rated flow of 40 L/min, making it ideal for a wide range of applications including telehandlers, forklifts, cranes, and more.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 1-section hydraulic valve is designed for industrial automation applications. It features an electro-pneumatic control method, a monoblock structure, and a single spool. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for a variety of applications in material handling, construction, and agriculture, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve is designed for operating viscosities between 15 and 75 mm²/s and can operate in ambient temperatures ranging from -40°C to +80°C.
