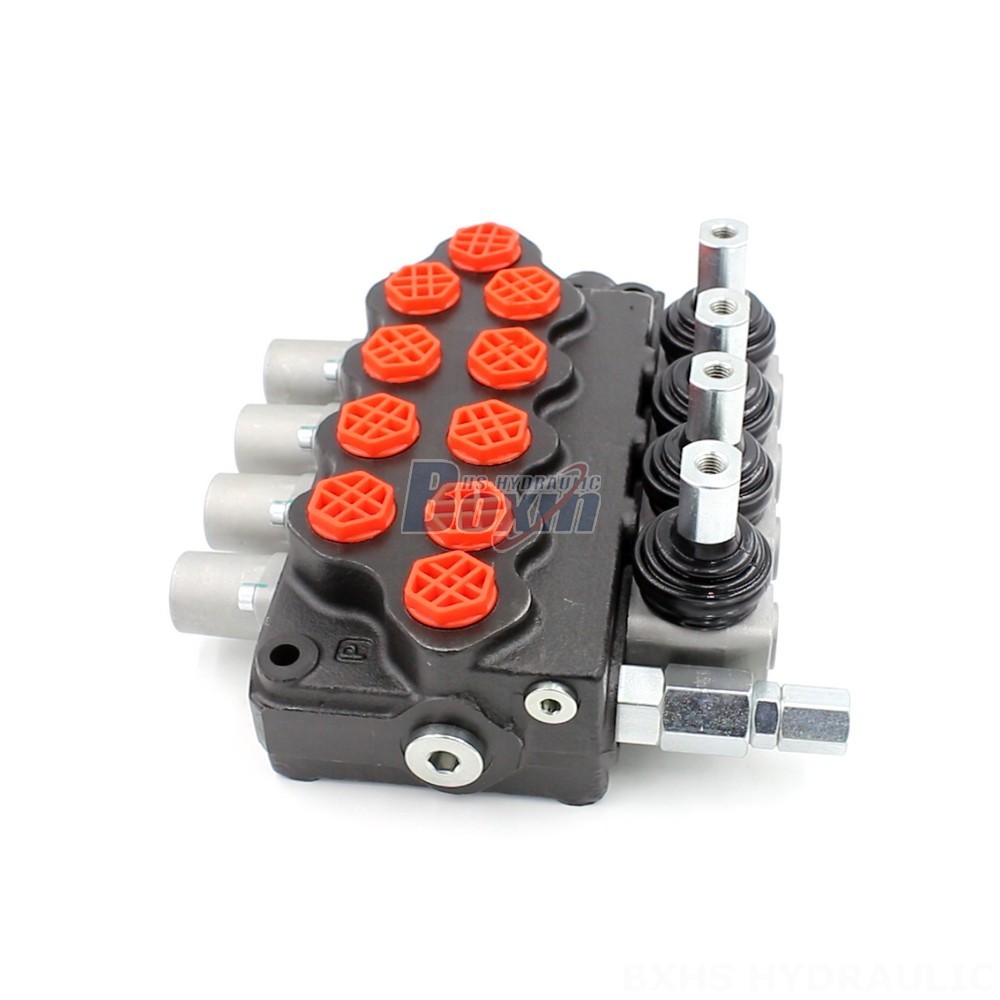

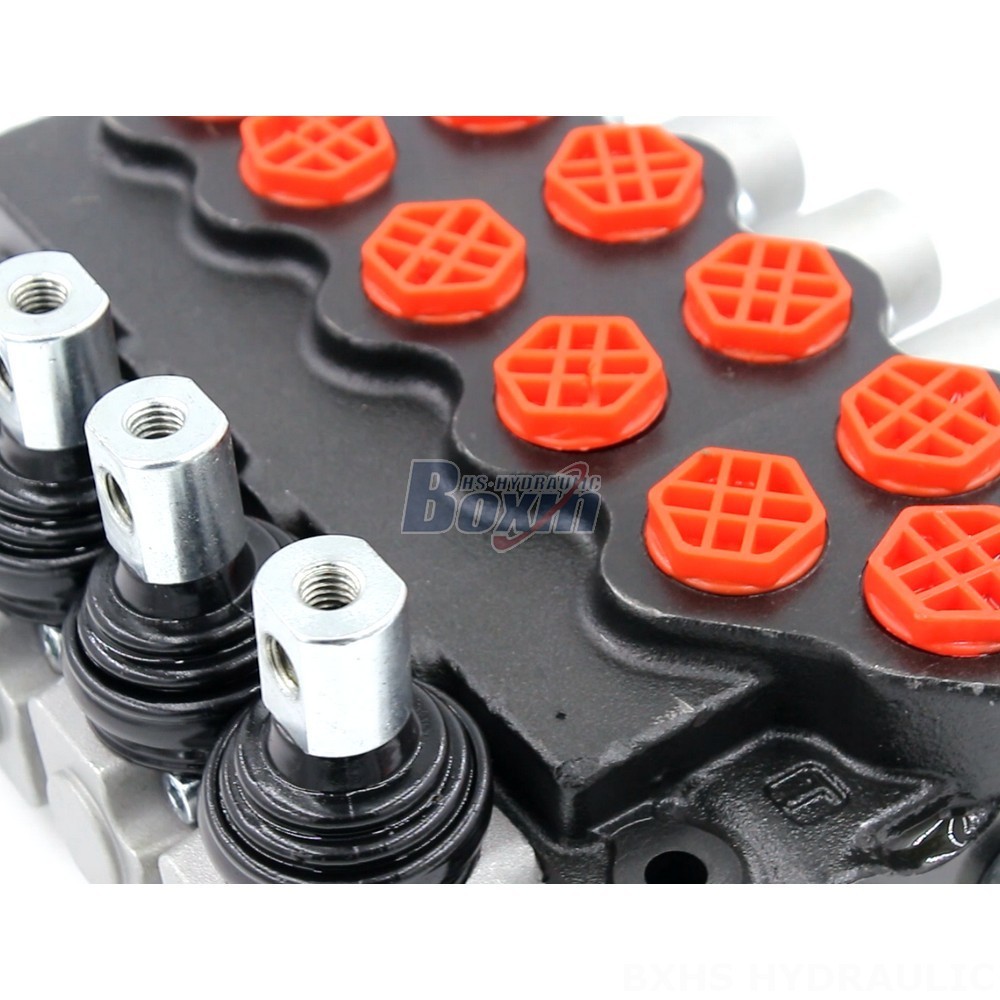

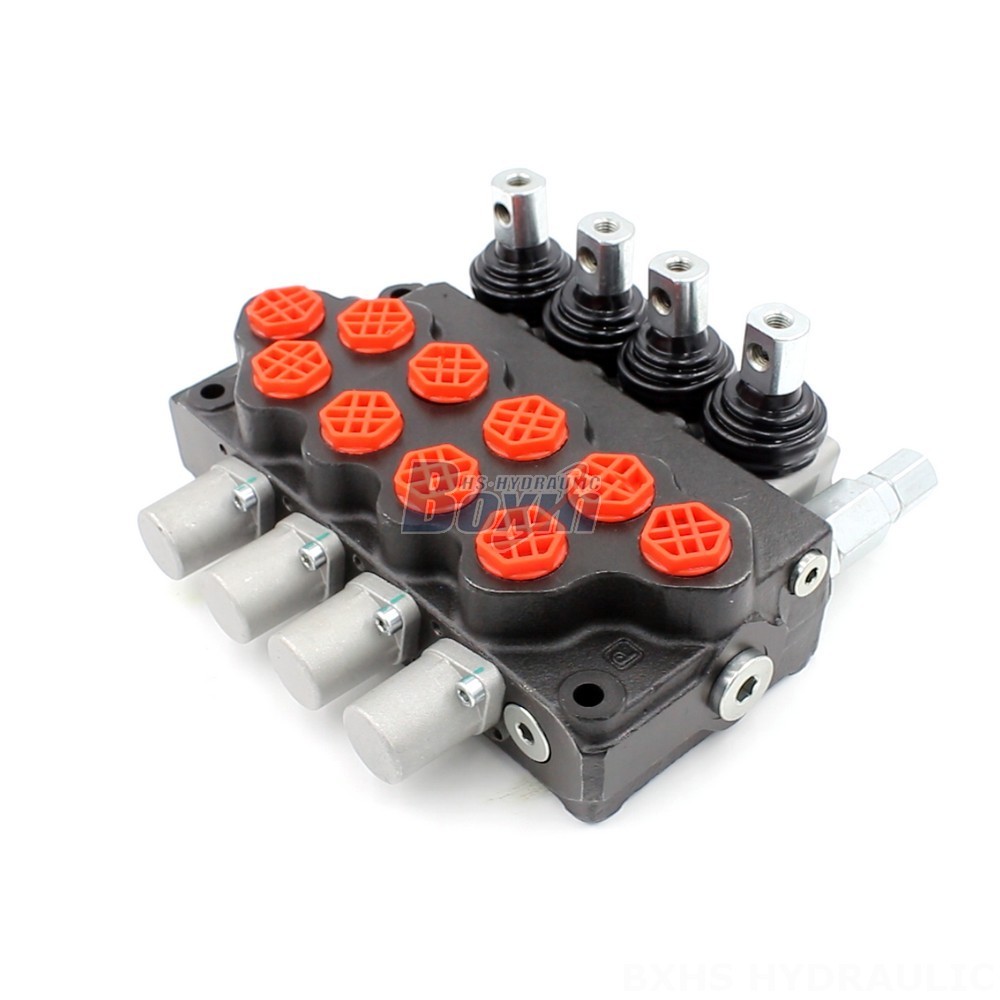

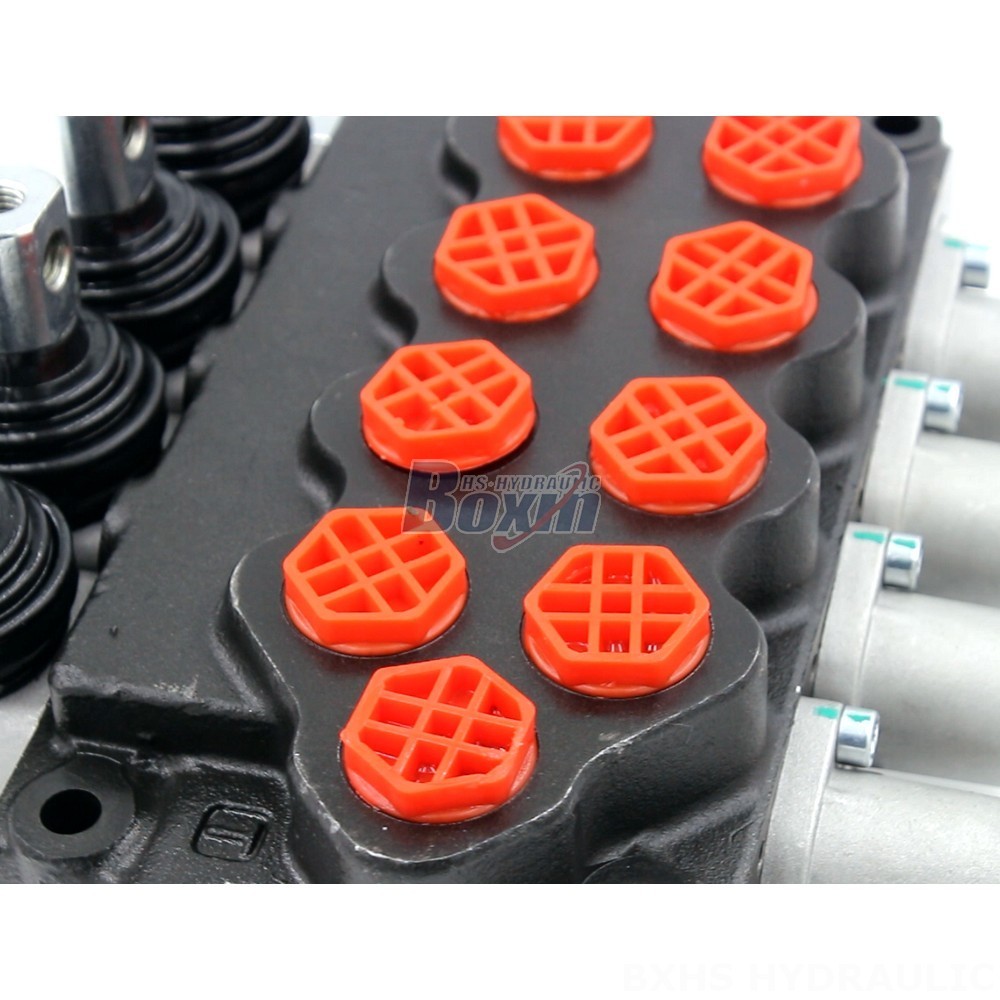

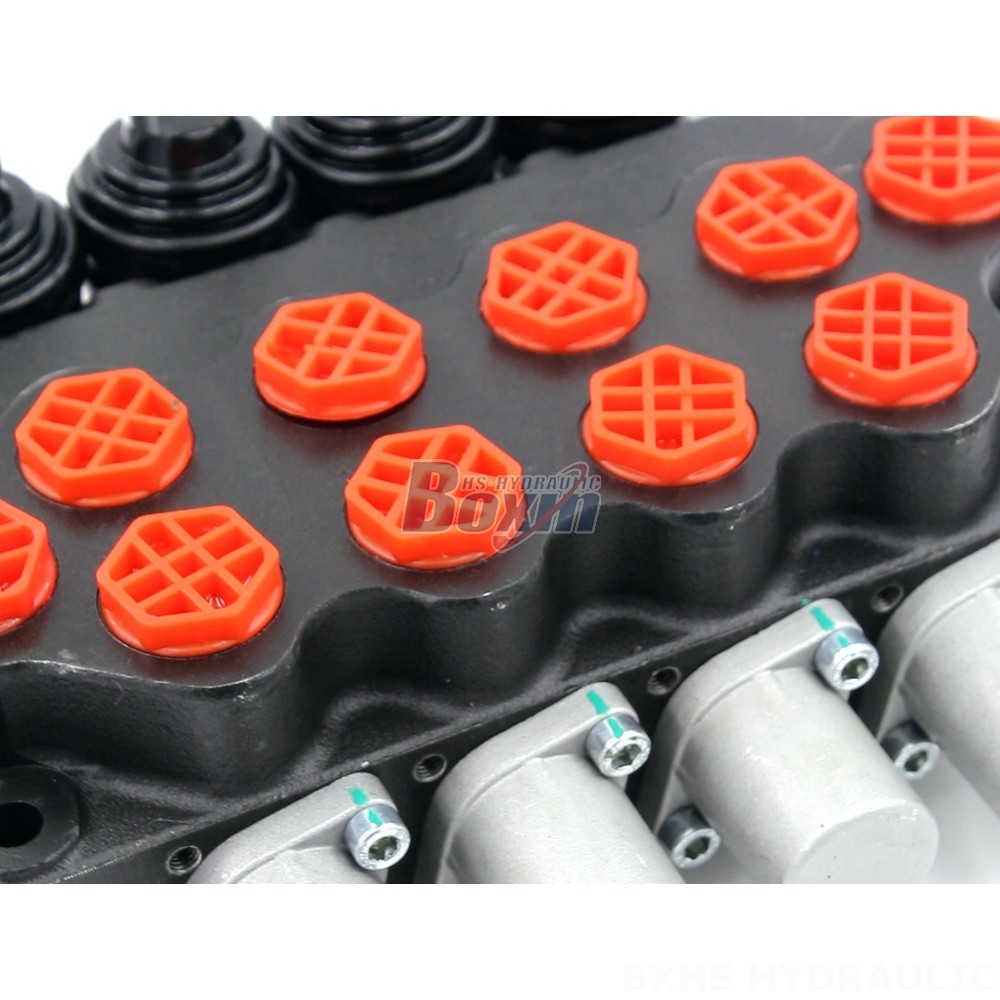

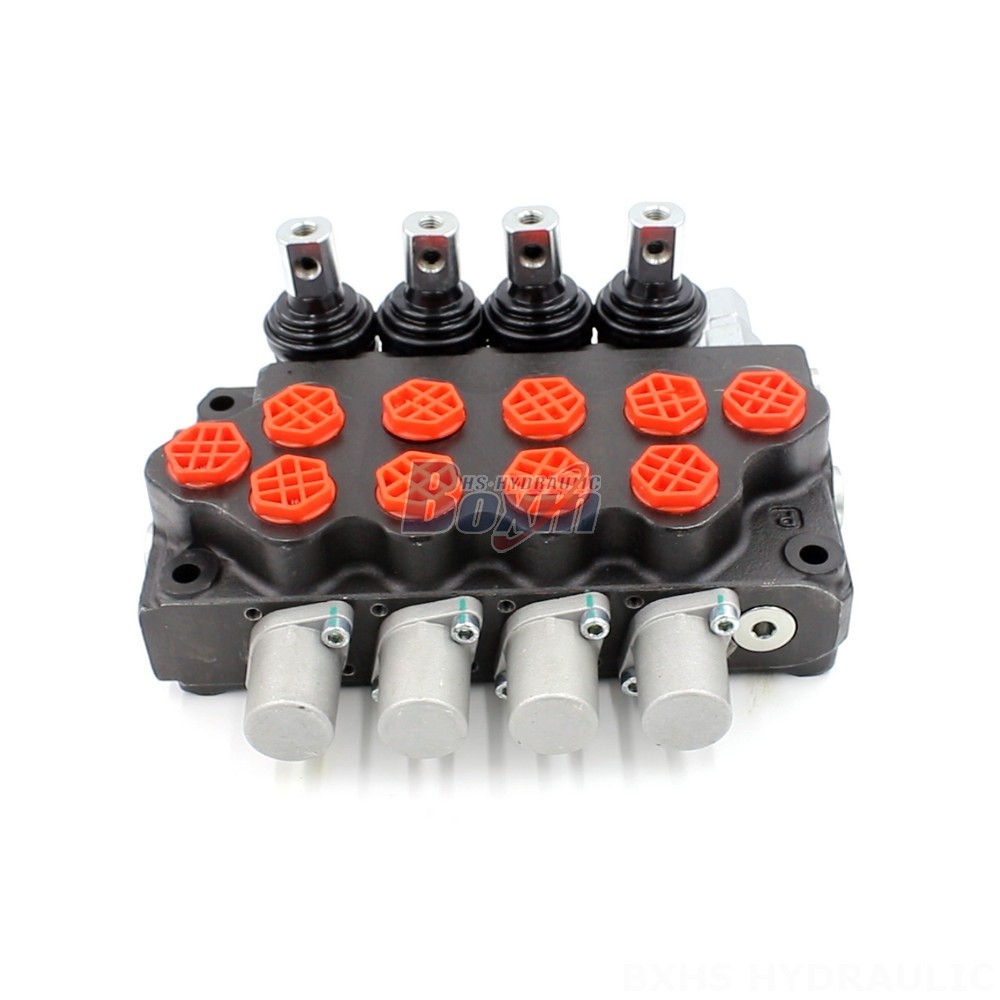

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Méthode de contrôle:Manuel

Distributeur:4 tiroirs

Débit nominal:45 L/min (11,8 US gpm)

Pression maximale:315 bar (4 600 psi)

Orifice d'entrée:G3/8

Orifice de sortie:G3/8

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série SD5 Vanne directionnelle monobloc

Taille de l'emballage:22.5*23.5*12.5

Poids brut:9.90 kg

Disponibilité: En stock

957 personnes consultent ce produit

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available

Hydraulic Valve: SD5-G38 Model | Wholesale & Customization Available drawing image

The SD5-G38 Hydraulic Two Way Valve is a high-performance, manual control valve designed for use in a variety of construction, material handling, and agricultural applications. This monoblock valve features a 4-section design, a 40 L/min rated flow, and a maximum pressure of 305 bar. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.

Série SD5 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs
Plage de températures ambiantes -40 °C à +60 °C (-40 °F à +140 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 40 L/min (10,5 US gpm)
Pression maximale 305 bar (4 400 psi)
Orifice d'entrée G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Orifice de sortie G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Dimension du raccord G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Hydraulic Two Way Valve is a robust and reliable valve that is ideal for demanding applications. It is manufactured from high-quality materials and is designed to withstand a wide range of operating conditions. The valve features a manual control method, a 4-section design, and a monoblock structure. It has a rated flow of 40 L/min and a maximum pressure of 305 bar. The operating viscosity range is 15-75 mm²/s and the ambient temperature range is -40°C to +60°C. This valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. We offer wholesale and customization options for this product.
